Veinasa THR Weather station with rain precipitation humidity temperature sensor for agricultural greenhouses
- Category: >>>
- Supplier: Sichuan Weinasa Technology Co. Ltd.
Share on (1600512092867):
Product Overview
Description

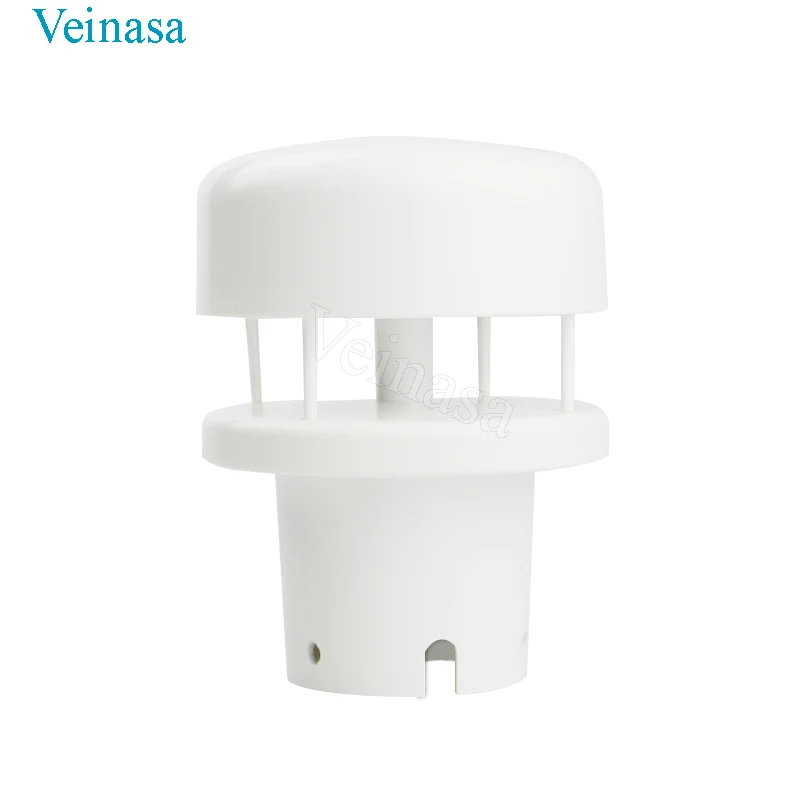

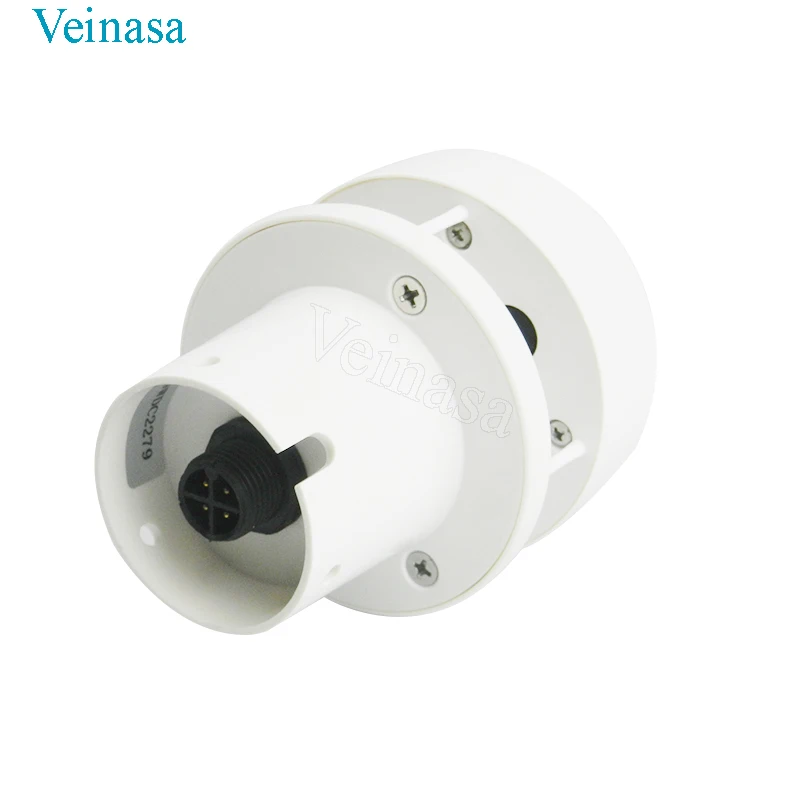

Veinasa-THR Weather Station with Rain Precipitation Humidity Temperature Sensor for Agricultural Greenhouses
Products Description

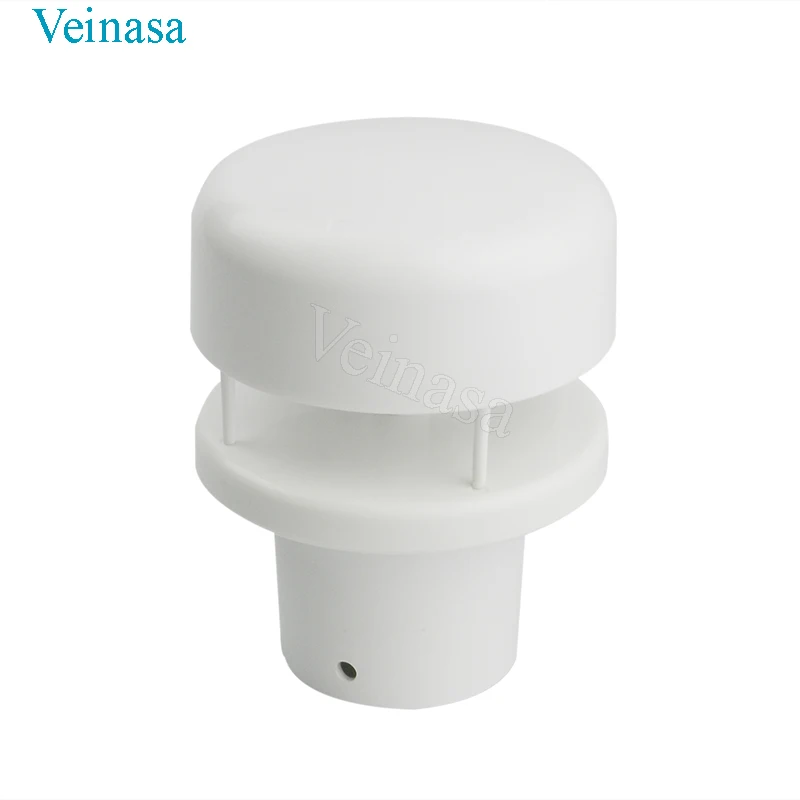

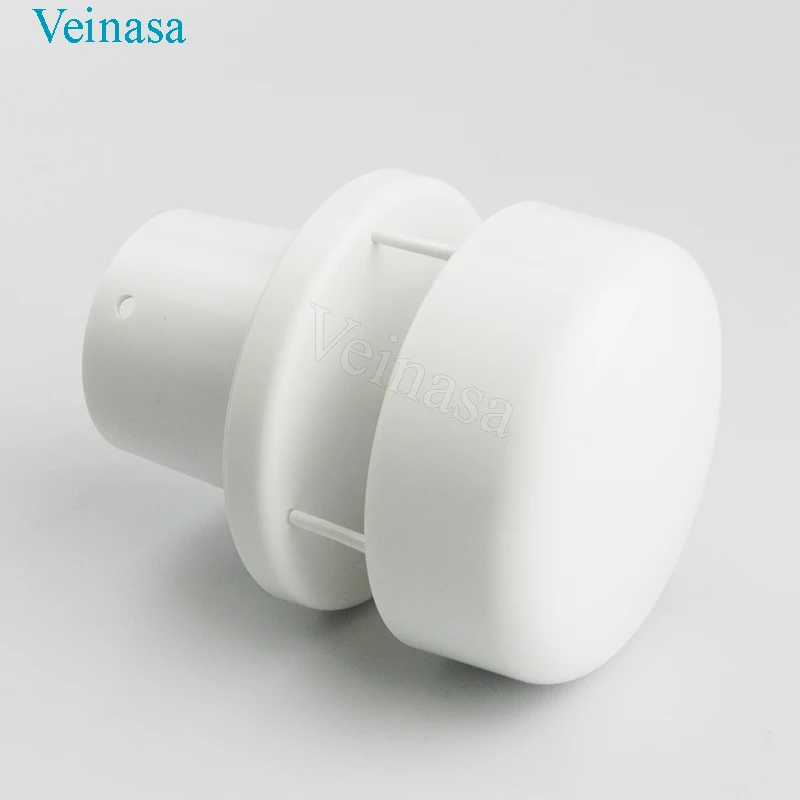

Veinasa-THR Weather Station with Rain Precipitation Humidity Temperature Sensor for Agricultural Greenhouses is a mini 3 elements compact weather station. This compact weather station is a civilian level integrated meteorological station developed by Veinasa independently, it can simultaneously measure air temperature humidity and rainfall.
It is characterized by high integration of all modules and fast response time. We can configure above modules flexibly to meet customers’ different application. It also can add other sensors, such as humidity, atmospheric pressure, wind speed, wind direction, etc.
Product Parameters
Item | Parameters | ||||||
Power Supply | 7-30V DC | ||||||
Data Consumption | 185mA@12V | ||||||
Body Material | ABS+Aluminum alloy | ||||||
Communication Protocol | Modbus, NMEA-0183, SDI-12 | ||||||
Dimension | 144*248mm | ||||||
Protection grade | IP65 | ||||||
Operating Temperature | -40℃ - 60 ℃ | ||||||
Operating Humidity | 0-100%RH | ||||||
Principle | Range | Accuracy | Resolution | ||||
Air Temperature | MEMS sensor | -40℃-80℃ | ±1℃ | 0.1℃ | |||
Air Humidity | MEMS sensor | 0-100% | ±5% | 1 | |||
Accumulated rainfall | 0-6550mm | ±10％ | 0.1mm | ||||

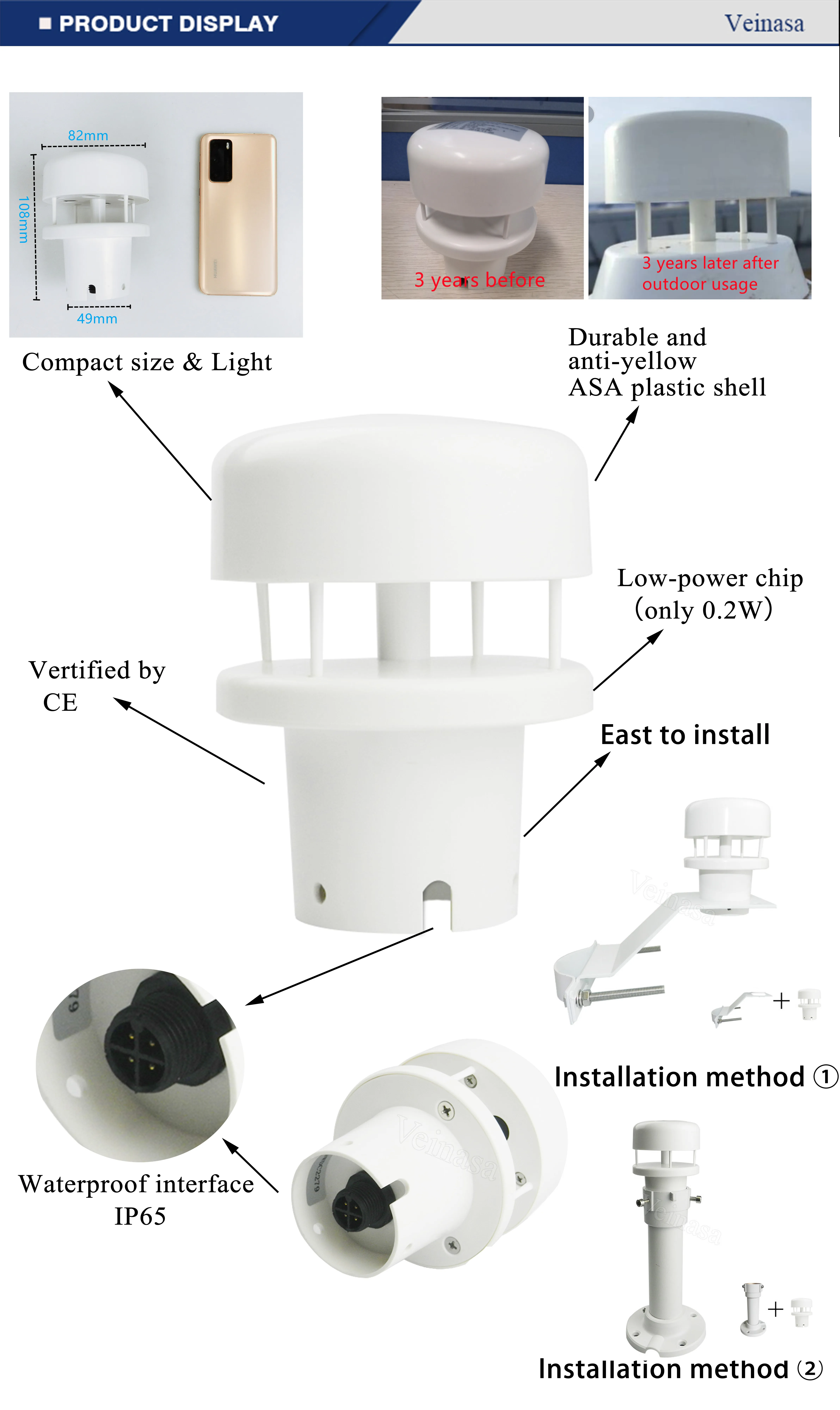

Product Features
Characteristics of Veinasa-THR Weather Station with Rain Precipitation Humidity Temperature Sensor for Agricultural Greenhouses:
Robust structure, easy for installation, 7/24 continuous monitoring
MODBUS Protocol, standard RS485/RS232 output
Robust structure, easy for installation, 7/24 continuous monitoring
MODBUS Protocol, standard RS485/RS232 output
Compact structure, no moving parts
3 elements included, all-in-one weather station
3 elements included, all-in-one weather station
High degree of integration, can integrate other elements, such as wind speed, wind direction, air pressure, etc

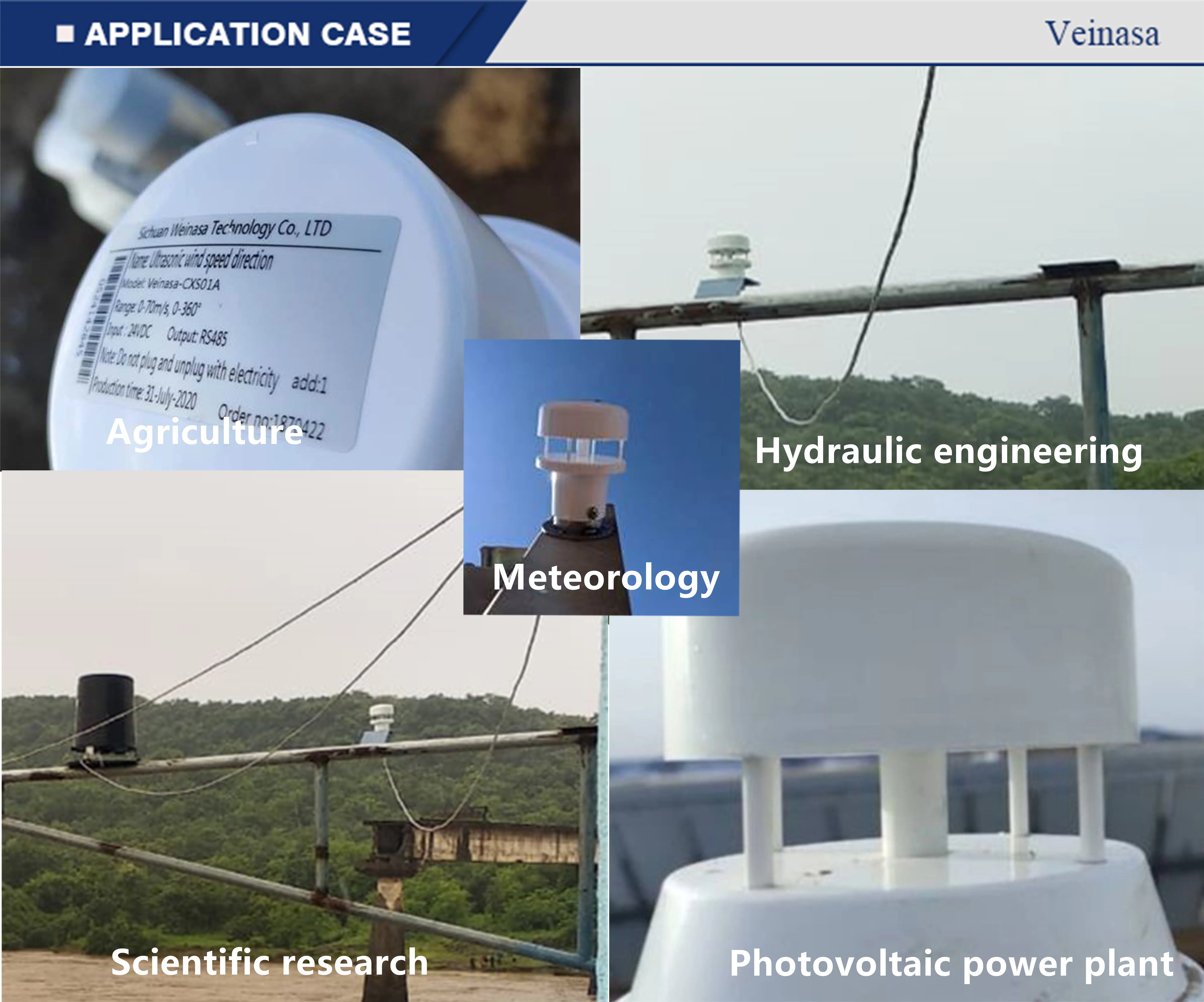

Application Field
Application of Veinasa-THR Weather Station with Rain Precipitation Humidity Temperature Sensor for Agricultural Greenhouses
City environmental monitoring
Agricultural automatic meteorological station
Traffic automatic meteorological station along the highway
Meteorological field monitoring station
City environmental monitoring
Agricultural automatic meteorological station
Traffic automatic meteorological station along the highway
Meteorological field monitoring station
Smart farm
Automatic weather station
Automatic weather station
Related Products
Company Introduction
FAQ
Q: Are you a factory/manufacturer?
A: Yes, we are professional factory/manufacturer of weather station and relative weather sensors. We also have hot sale and widely used weather sensor Veinasa-THPRW-03 which can measure 6 parameters.
Q: What’s the main characteristics of this temperature sensors?Compact weather station
A: Congratulations, the Veinasa-THR integrates 3 sensors in one body . It also has fast response time, high accuracy and good stability and free of maintaince. And we can provide you with factory price but amazing quality.
Q: Can it add/integrate other parameters?
A: Yes it can add/integrate other parameters like humidity, wind speed, wind direction, etc. we have this existing model Veinasa-THPRW-03.
A: Yes, we are professional factory/manufacturer of weather station and relative weather sensors. We also have hot sale and widely used weather sensor Veinasa-THPRW-03 which can measure 6 parameters.
Q: What’s the main characteristics of this temperature sensors?Compact weather station
A: Congratulations, the Veinasa-THR integrates 3 sensors in one body . It also has fast response time, high accuracy and good stability and free of maintaince. And we can provide you with factory price but amazing quality.
Q: Can it add/integrate other parameters?
A: Yes it can add/integrate other parameters like humidity, wind speed, wind direction, etc. we have this existing model Veinasa-THPRW-03.
Q: What’s the common power supply and signal output?
A: Common power supply and signal output is DC7-30V, RS485. But we can customize for you as demands.
Q: How can I collect data?
A: If you have your own data logger, you only need to buy our sensor and meanwhile we send you communication protocol.
If you do not have, we can add our data logger for you, also provided with English software, which can help you read, inquire and download data.
Q: What's the lifetime of this temperature sensors?
A: At least 5 years long. Every sensor has its own calibration certificate or testing report.
Q:What’s the delivery time?
A: Usually, we dispatch goods in 3-5 working days after receiving your payment. But it depends on your quantity.
Q: What’s the standard cable length?
A: Its standard length is 2 m. But it can be customized.
Q: May I know your warranty?
A: Yes, usually it’s 1 year. We can send you detailed warranty document if needed.
A: Common power supply and signal output is DC7-30V, RS485. But we can customize for you as demands.
Q: How can I collect data?
A: If you have your own data logger, you only need to buy our sensor and meanwhile we send you communication protocol.
If you do not have, we can add our data logger for you, also provided with English software, which can help you read, inquire and download data.
Q: What's the lifetime of this temperature sensors?
A: At least 5 years long. Every sensor has its own calibration certificate or testing report.
Q:What’s the delivery time?
A: Usually, we dispatch goods in 3-5 working days after receiving your payment. But it depends on your quantity.
Q: What’s the standard cable length?
A: Its standard length is 2 m. But it can be customized.
Q: May I know your warranty?
A: Yes, usually it’s 1 year. We can send you detailed warranty document if needed.
Veinasa-THR Weather station with rain precipitation humidity temperature sensor for agricultural greenhouses
With rich experiences in tackling problems, Veinasa aims to provide a package of meteorological solutions to your needs, whatever problems you encounters, Veinasa team always stand by your side.
Veinasa-THR Weather station with rain precipitation humidity temperature sensor for agricultural greenhouses
Just click the below picture to send us inquiry, to know more, or get the latest catalogue and competitive quotation. Do not hesitate!
With rich experiences in tackling problems, Veinasa aims to provide a package of meteorological solutions to your needs, whatever problems you encounters, Veinasa team always stand by your side.
Veinasa-THR Weather station with rain precipitation humidity temperature sensor for agricultural greenhouses
Just click the below picture to send us inquiry, to know more, or get the latest catalogue and competitive quotation. Do not hesitate!
