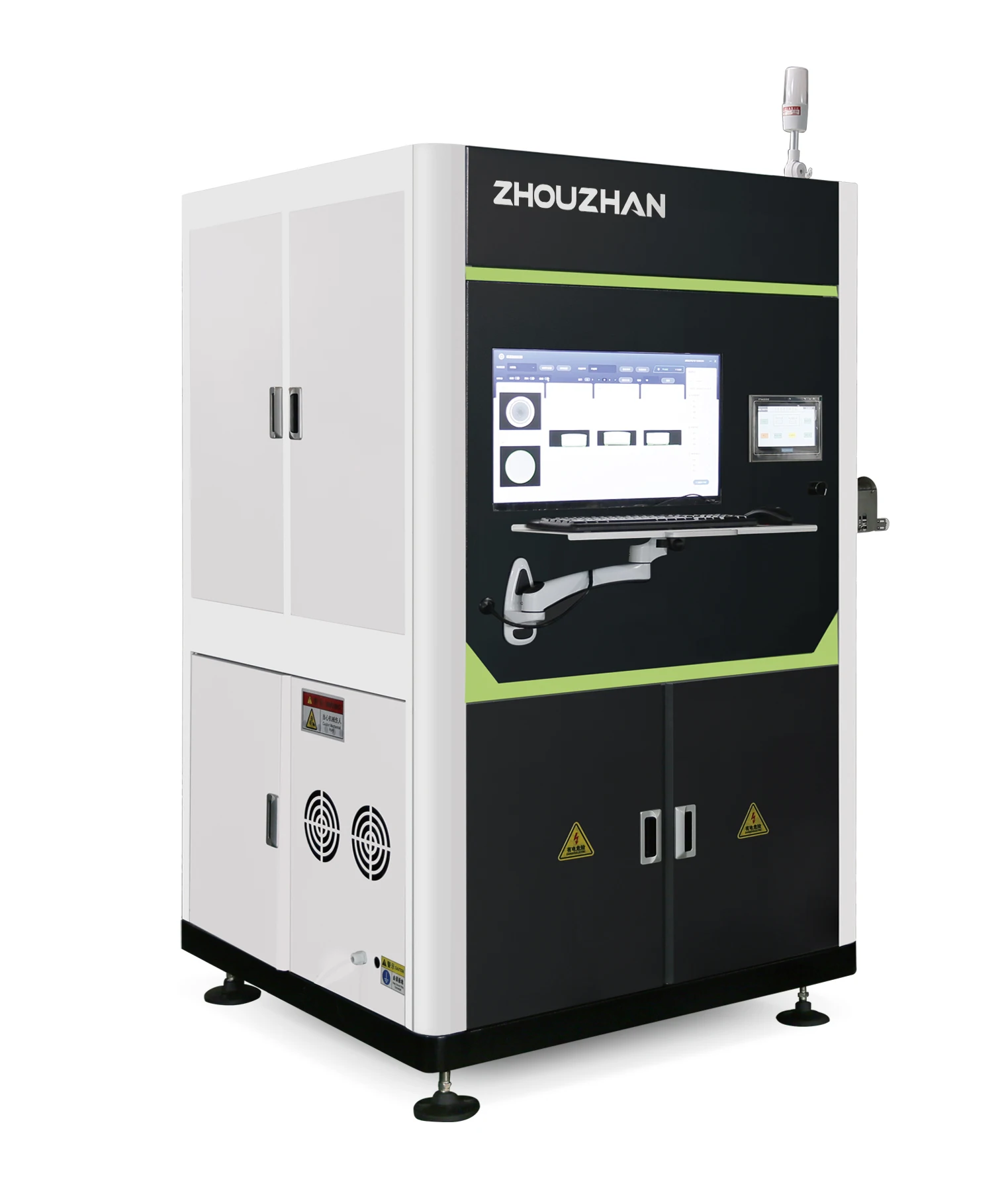

Automatic bottle Cap Inspection Machine of Black Spot And Scratch Defects/ccd check machine

Product Parameters

Machine Type

High speed Inspection Machine (plastic cap)

Application Field

Detection of bottle cap missing material, flying edge, black spot, deformation, maximum 2000 per minute

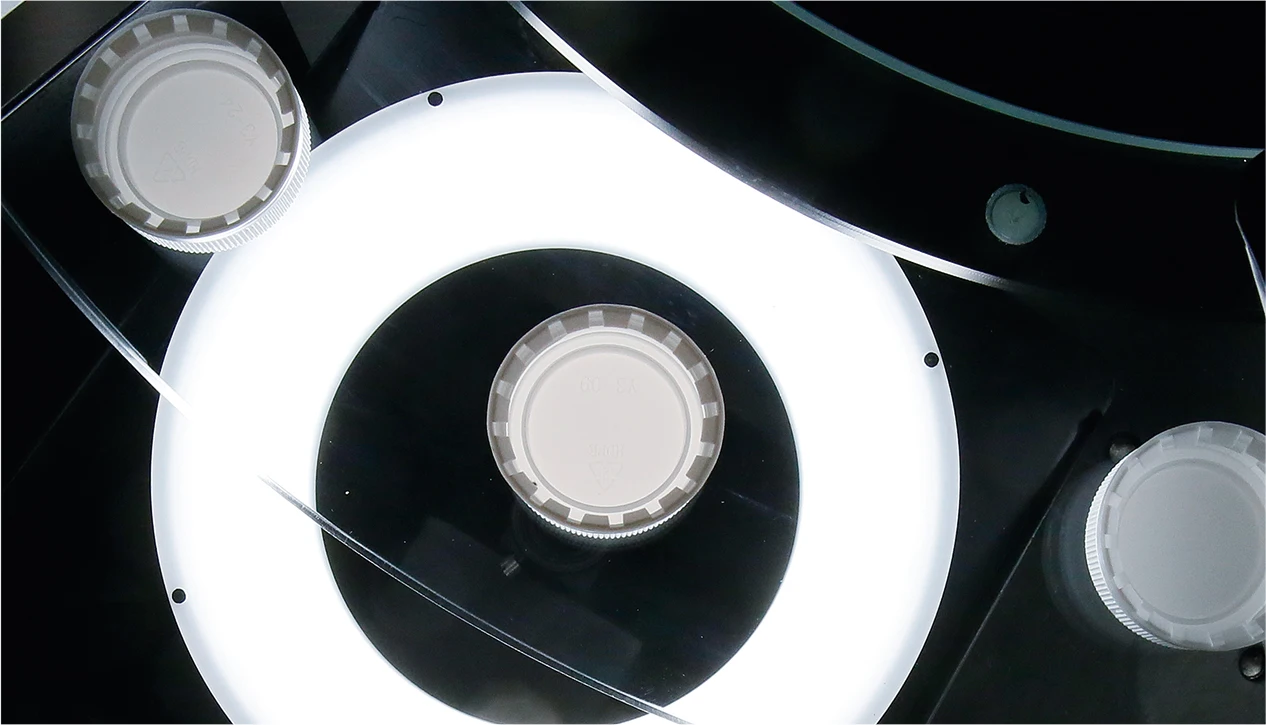

Turntable

Dedicated round glass turntable

Optical System

high magnification CCD industrial camera, Japanese lens, professional light source system

Camera Quantity

Standard with 3 ( 1-8 optional)

Operate System

 Industrial Computer

Video Inspection Software

 Oem Machine Vision Inspection System

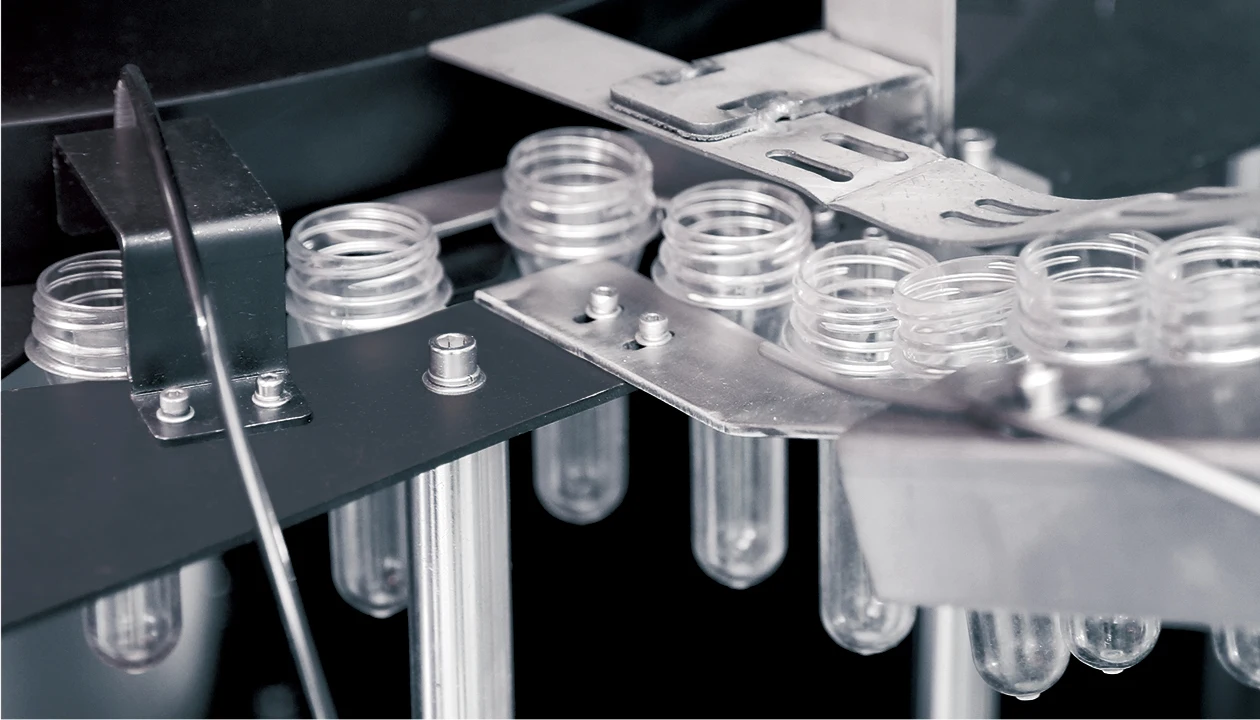

Feeding System

Dedicated feeding guide line, vibration feeder x 1 SET, automatic feeding and container devices (optional)

Package System

Automatic counter and package machine (optional)

Inspection Speed

2000 pcs/min

Accuracy

Highest level up to±0.01mm

Inspection Details

Appearance inspection: outer side, inner side, opposite side, diagonal, length, height, concentric, roundness, step size of each part, angle, sharpness and etc

Detection of bottle cap missing material, flying edge, black spot, deformation, maximum 2000 per minute

Power and Voltage

Two phase 220v, 50Hz

Rated Power

1KW

Air Pressure

Not lower than 0.35-0.7MPa

Weight

Around 500kg

Working Temperature

-3℃~45℃

Storage Temperature

-20℃~60℃

Machine Dimension

1000mm (Length) X 1000mm (Width) X 1900mm (Height)
