Safe Driving Blind Spot Detection System BSD Change Lane Safe BSA BSM Blind Spot Monitoring Assistant for Car Driving Security
- Category: >>>
- Supplier: Chengdu Shenyue Space Technology Co. Ltd.
Share on (1600512164371):
Product Overview
Description
Products Description
Auto Electronics Car Parking System Reversing Aids Ultrasonic Sensor Blind Spot Alert For Device
Specification
Product Name | Blind Spot Monitoring System |
Working Voltage | DC 9~16V |
Working Current | 190MA±5MA |
Working Temperature | -40℃~+85℃ |
Static Current | ≤1mA |
Working Frequency | 24GHZ~24.25GHZ |
Speed Range | ≤120KM/h |
Detect Range | 0.5-25m |
Warning | Buzzer and LED light |
Function | Safe driving assist, reversing assist, parking assist |
Place of Origin | Guangdong, China |
Warranty | 12 months |
Product Description

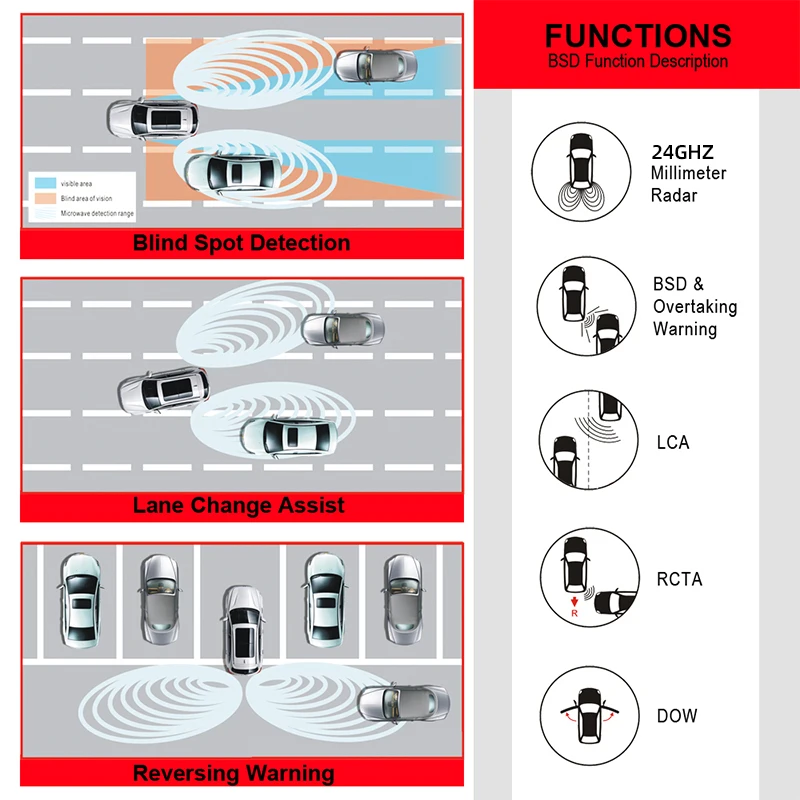

Function Configuration
Working Well Under Different Weather
Blind Spot Detection Warning
With BSD, no blind area, no worry for changing lanes any more.
Through installing 2 pcs of 24GHz microwave sensors into car rear bumper, when the car in moving, if any moving object closer to
blind area( 3 meter from right and left side,15 meters from behind), the object will be detected by system sensor, the LED
indicator will turn on and keep shining for reminding driver, in this condition, if the driver wants to change the lane, the
buzzer will beep sounds for reminder.
Through installing 2 pcs of 24GHz microwave sensors into car rear bumper, when the car in moving, if any moving object closer to
blind area( 3 meter from right and left side,15 meters from behind), the object will be detected by system sensor, the LED
indicator will turn on and keep shining for reminding driver, in this condition, if the driver wants to change the lane, the
buzzer will beep sounds for reminder.

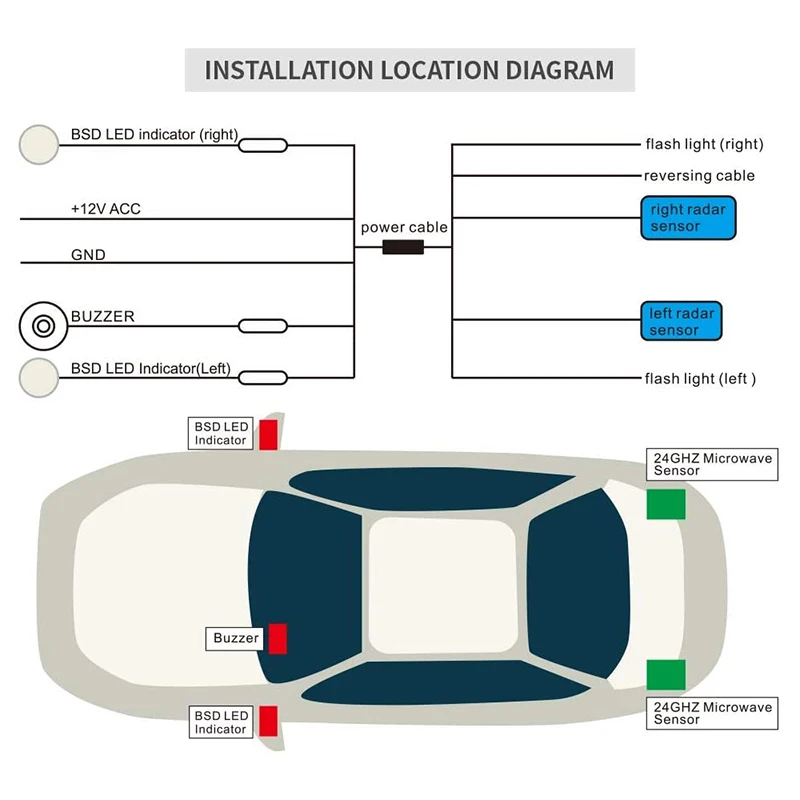

Installation Tips

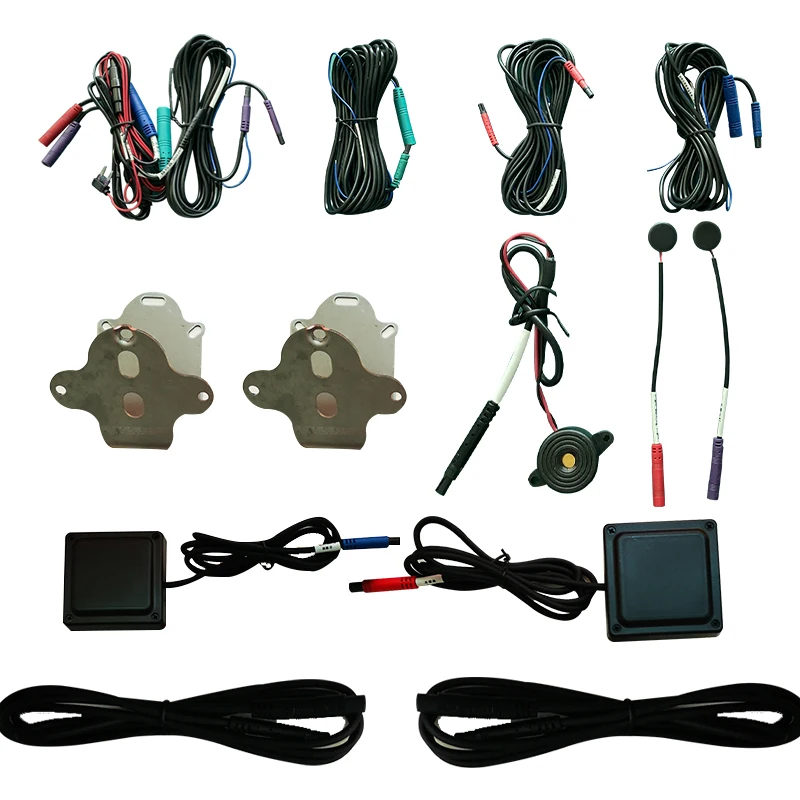

Product Display
