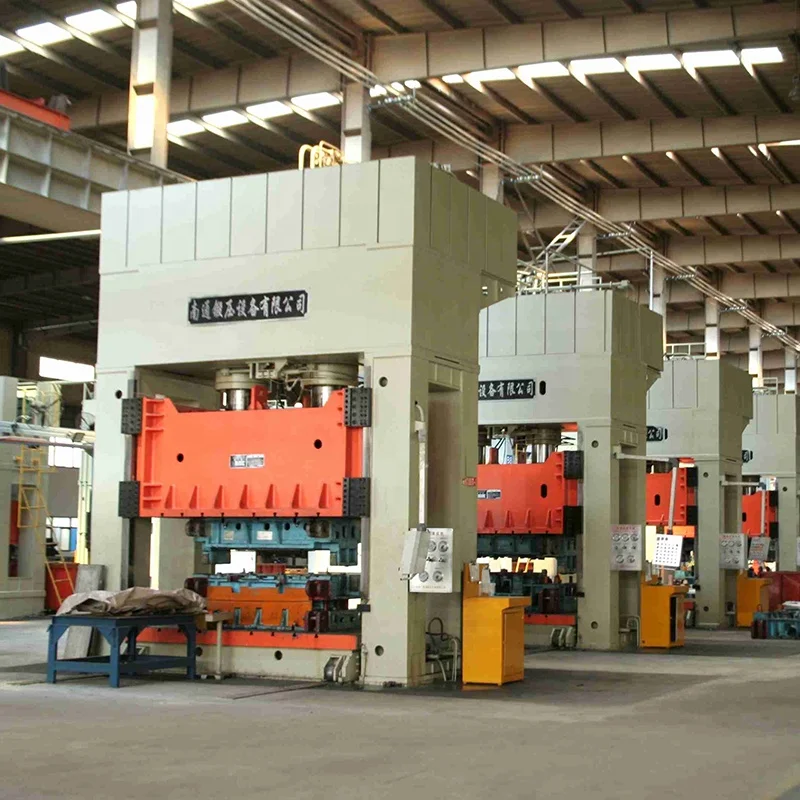

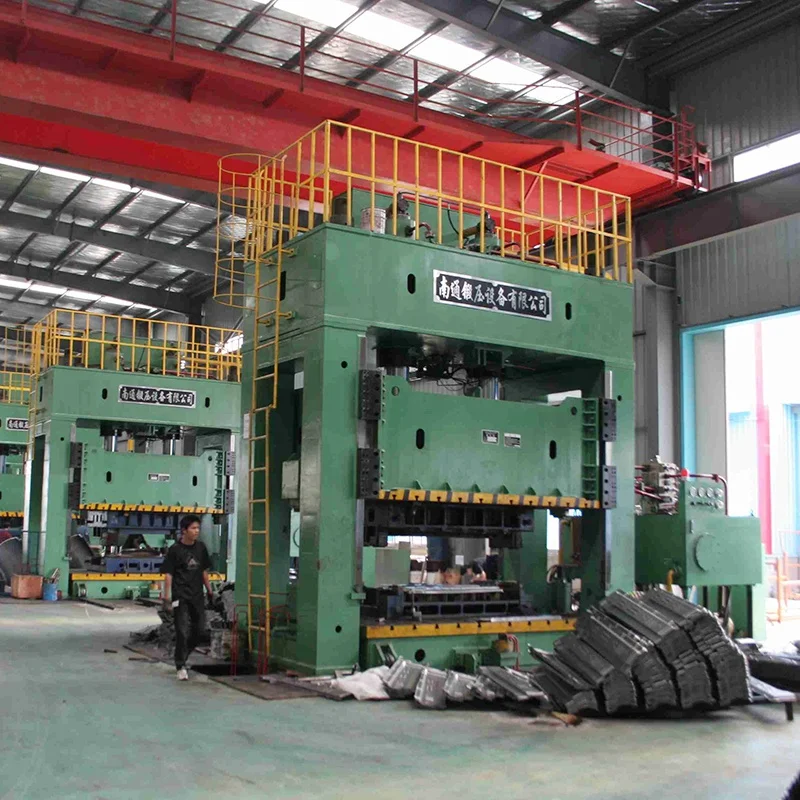

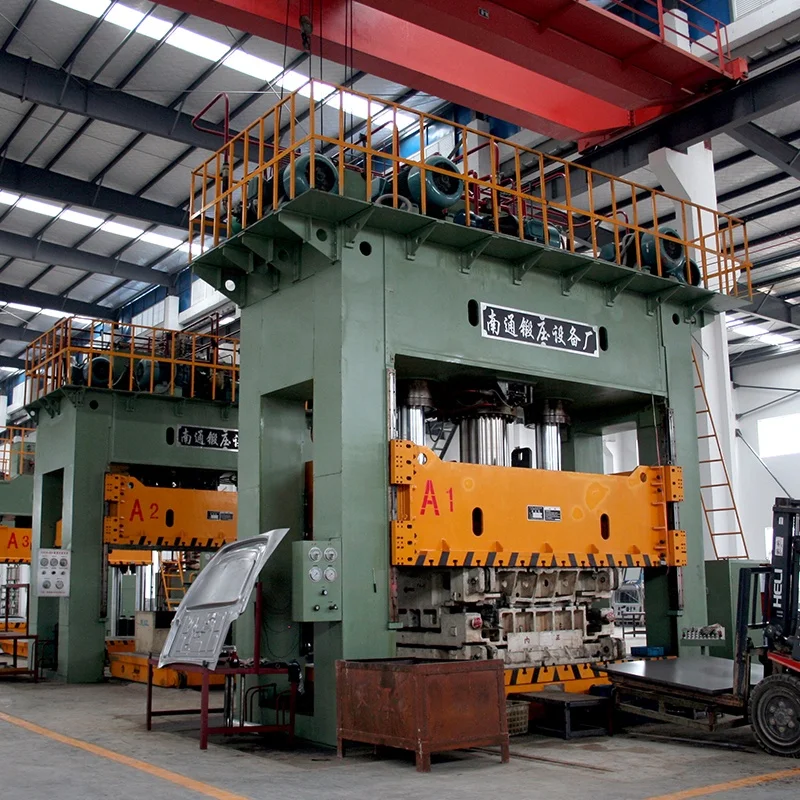

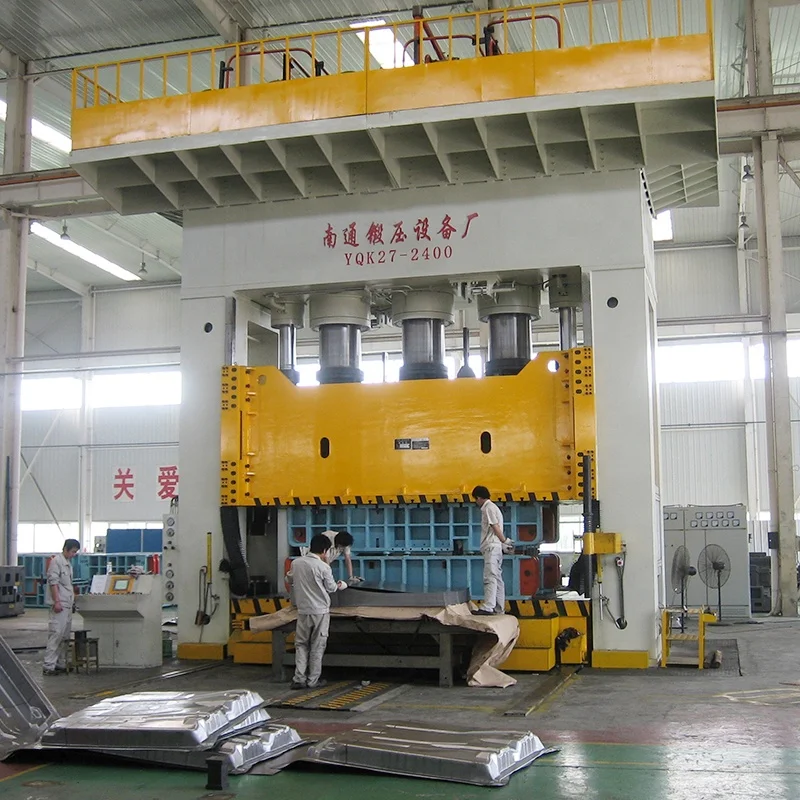

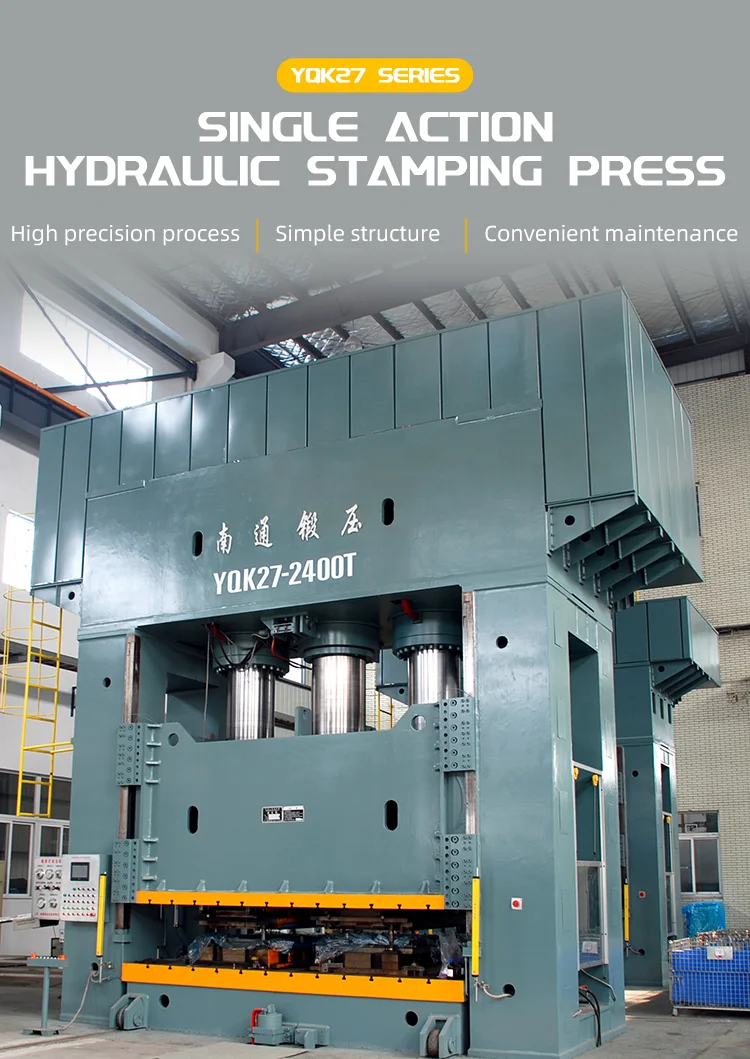

YQK27 500 frame type single action sheet metal stamping hydraulic press with good accuracy and small impact
- Category: >>>
- Supplier: Wuxi Mingxu Machinery Equipment Co. Ltd.
Share on (1600512168437):
Product Overview
Description
Products Description
The above price is a deposit, and you need to contact customer service for quotation.
Product Paramenters
Specification | Unit | YQK27-500 |
Rated Pressure（KN) | KN | 5000 |
Maximun Pressure Ofliquid（Mpa) | Mpa | 25 |
Max Stroke of Slide（mm) | mm | 900 |
Cushion pressure（KN) | KN | 2000 |
Max Stroke of Cushion（mm) | mm | 300 |
Daylight（mm) | mm | 1500 |
Speed of Slide Descent（mm/s) | mm/s | 250 |
Speed of Slide Pressing（mm/s) | mm/s | 44920 |
Speed of Slide Return（mm/s) | mm/s | 200 |
Size of Table L-R（mm) | mm | 2800 |
Size of Table F-B（mm) | mm | 1600 |
Size of Cushion L-R（mm) | mm | 2000 |
Size of Cushion F-B（mm) | mm | 1100 |
Main Motor Power（KW) | KW | 45+22 |
Specification | Unit | |||
Rated Pressure（KN) | KN | 4000 | 6300 | 8000 |
Maximun Pressure Ofliquid（Mpa) | Mpa | 25 | 25 | 25 |
Max Stroke of Slide（mm) | mm | 800 | 1000 | 1200 |
Cushion pressure（KN) | KN | 1600 | 2500 | 3000 |
Max Stroke of Cushion（mm) | mm | 300 | 350 | 350 |
Daylight（mm) | mm | 1250 | 1600 | 1800 |
Speed of Slide Descent（mm/s) | mm/s | 200 | 250 | 300 |
Speed of Slide Pressing（mm/s) | mm/s | 44888 | 15-30 | 15-30 |
Speed of Slide Return（mm/s) | mm/s | 200 | 250 | 300 |
Size of Table L-R（mm) | mm | 2300 | 3600 | 4000 |
Size of Table F-B（mm) | mm | 1600 | 2200 | 2200 |
Size of Cushion L-R（mm) | mm | 1700 | 2900 | 3200 |
Size of Cushion F-B（mm) | mm | 1100 | 1400 | 1400 |
Main Motor Power（KW) | KW | 45 | 45*2 | 45*3 |

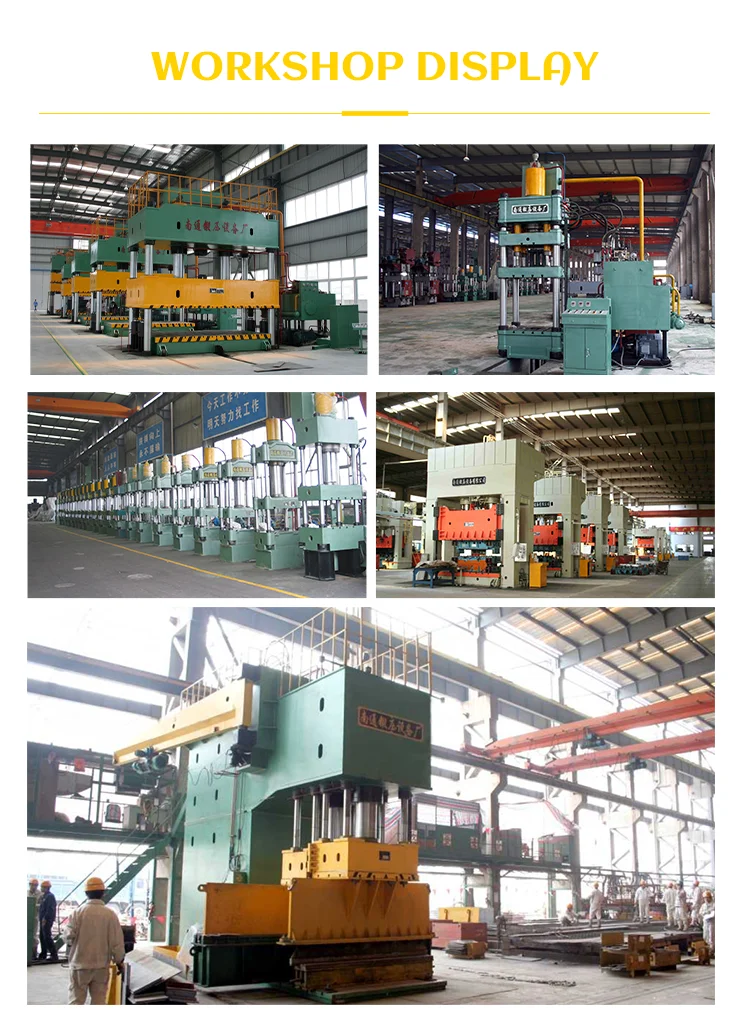

Company Profile
