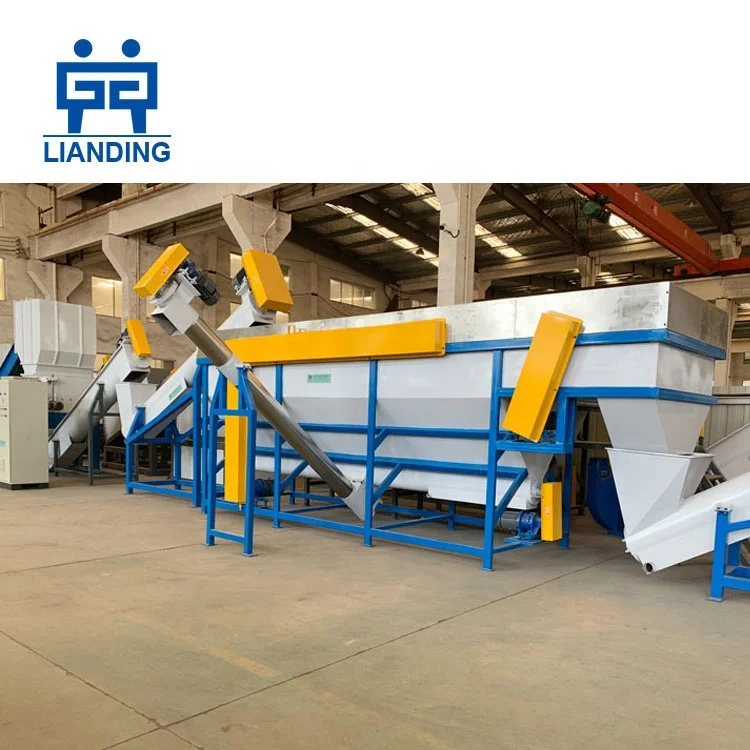

Lianding PE PP Film Bags Recycling Machine Washing Line
- Category: >>>
- Supplier: Zhangjiagang Lianding Machinery Co. Ltd.
Share on (1600512176025):
Product Overview
Description
Product Description

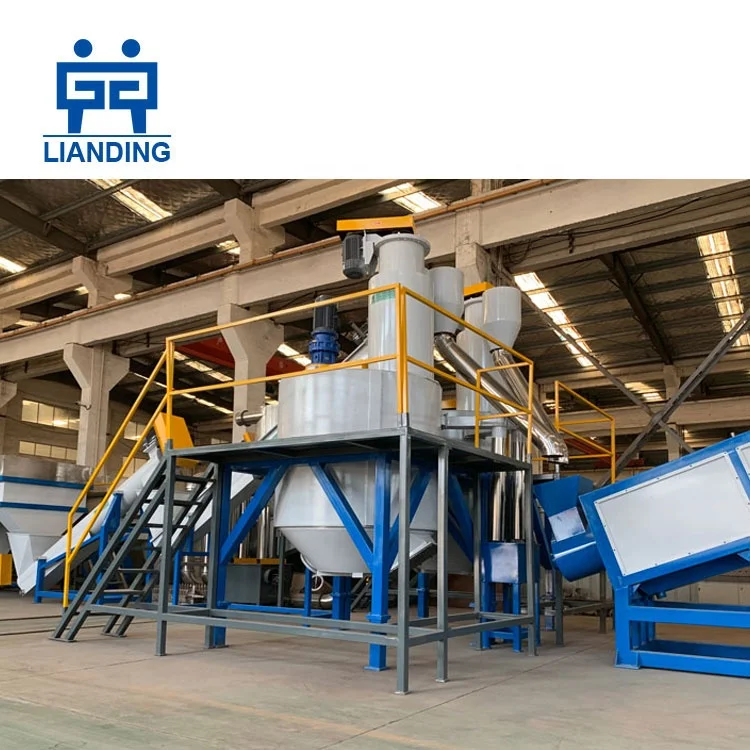

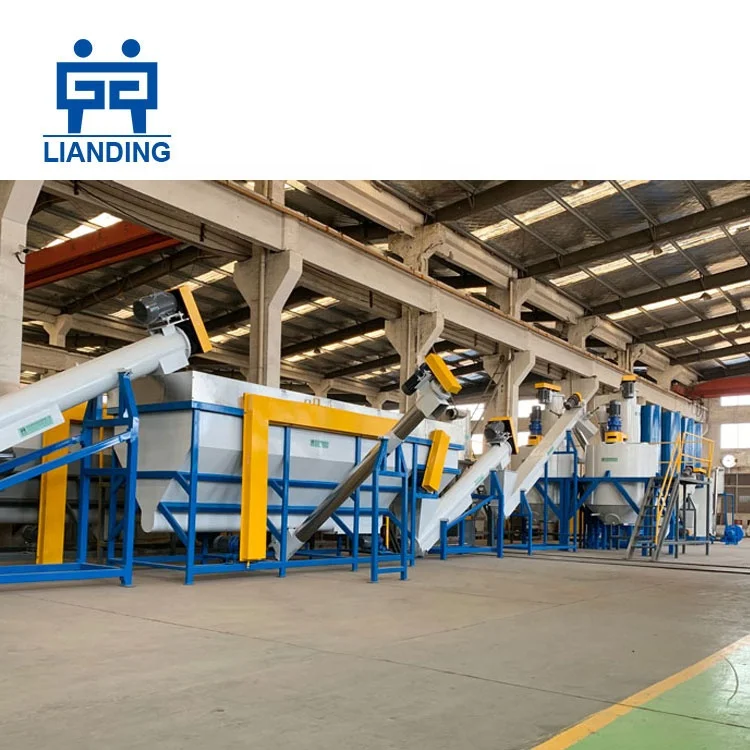

Lianding PE PP Film Bags Recycling Machine Washing Line
Main Features:
1) This whole production line is used to crush, wash, dewater and dry.
2) It takes the advantages of simple structure, easy operation, high capacity, low energy consumption, safety, reliability, etc.
3) This whole production line is automatic controlling, structure arrangement compact, high production efficiency, nice cleanness.
4) Production capacity: 100-3000kg/h.
5) After drying the water content is only 3-5%..
Specifications of machine:
| Capacity(KG/H) | 300 | 500 | 1000 |
| Crusher motor(KW) | 30 | 45 | 55 |
| Dewatering machine(KW) | 37 | 45 | 55 |
| Total power(KW) | 120 | 150 | 250 |
| Water content | Less than 3% | Less than 3% | Less than 3% |
| Total length(M) | 20 | 26 | 38 |

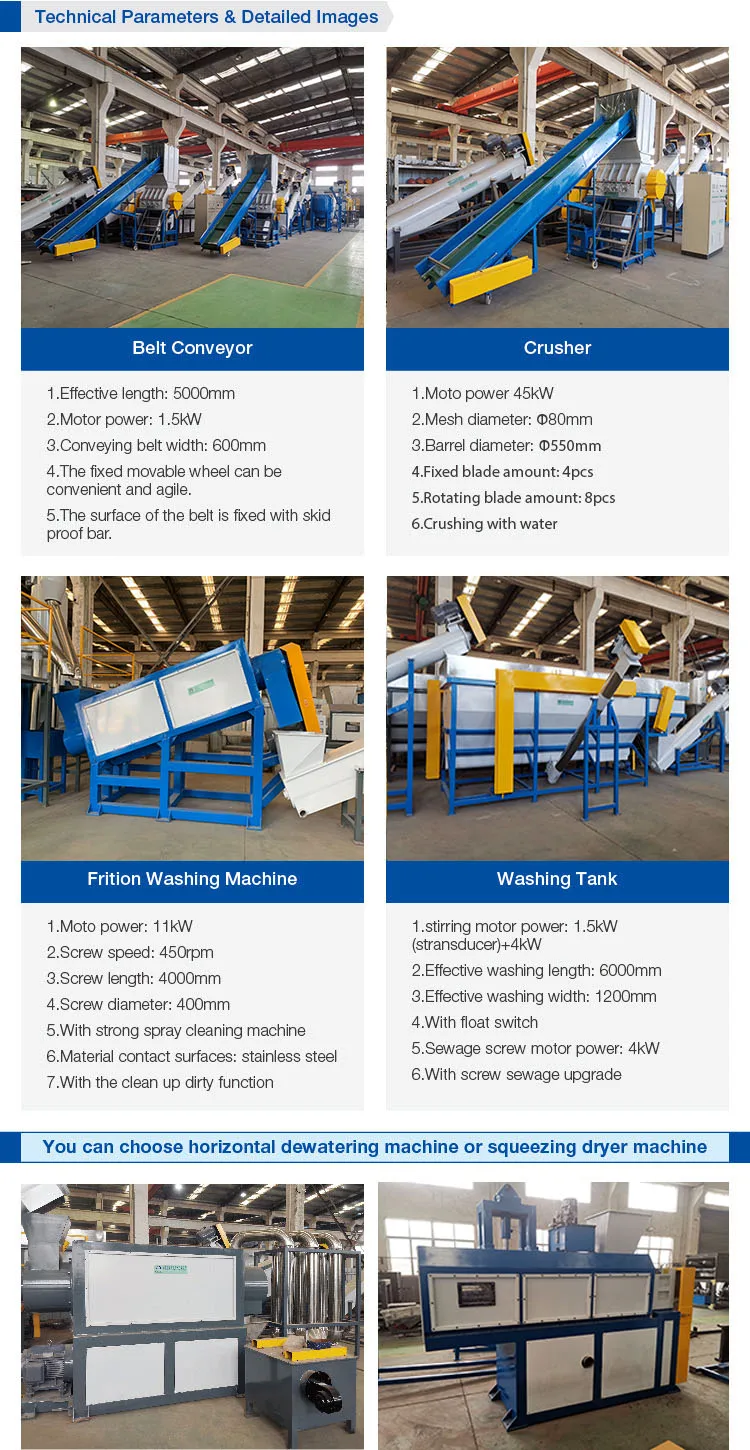

Process flow:

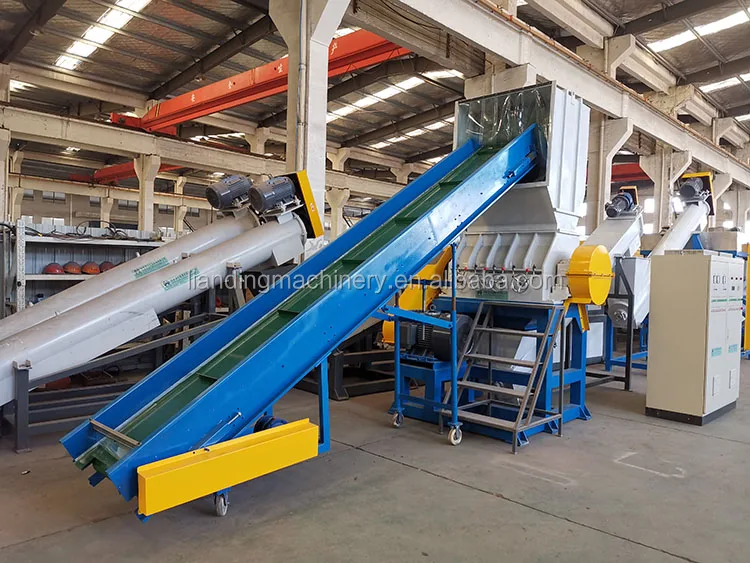

♦ Belt conveyor: conveying dirty plastic film or bottles into crusher. If too much scrap iron, metal detector may be needed.
♦ Crusher: can crushing with water, cutting plastic film or bags into small pieces.
♦ Screw loader: load film pieces into the next step

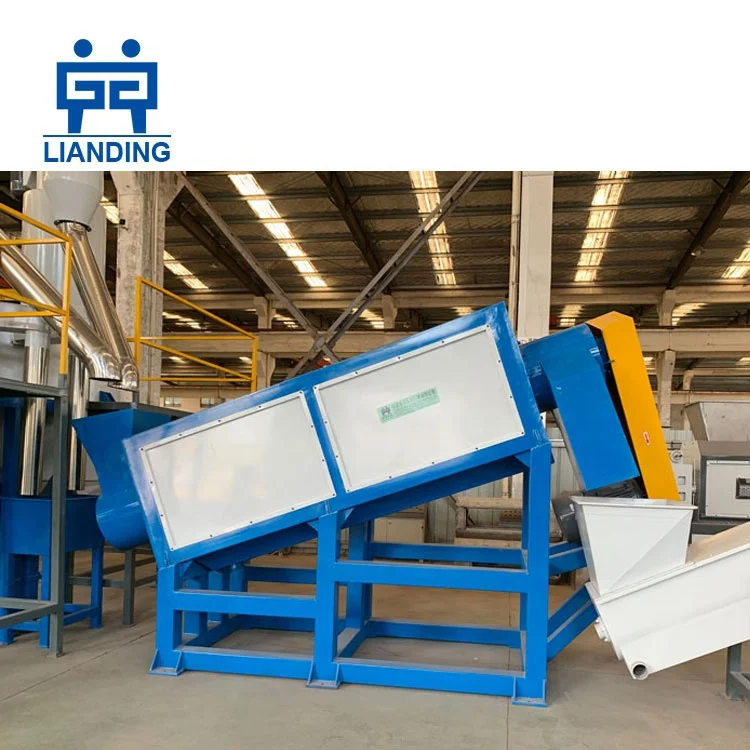

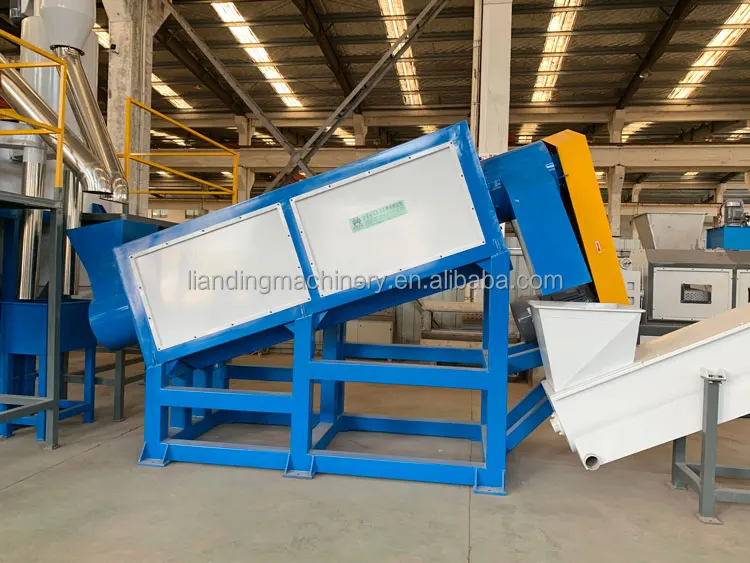

♦ High-speed friction washing machine: wash out the sand, soil and loading the material

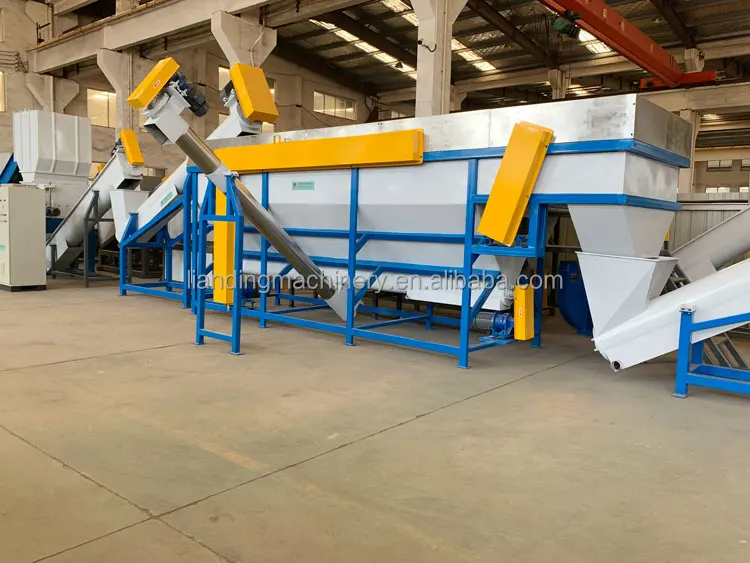

♦ Washing tank: separate the sand, soil and other dirties

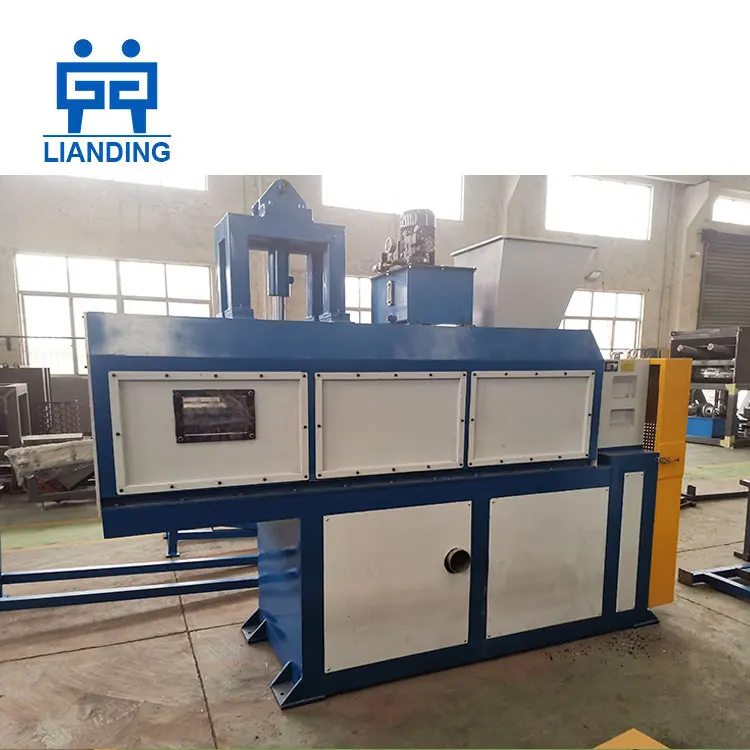

♦ Horizontal dewatering machine/squeezing dryer machine: remove the water from the material
Main Technical Dates:
| Material | Capacity | Install power | Water supply | Man power | Area required |
PP PE film/ bags
| 300KG/H | 120KW | 4-5m3/H | 2-3person | 23*5*3.5(L*W*H) |
| 500KG/H | 180KW | 5-6m3/H | 3-4person | 25*5*5.5(L*W*H) | |
| 1000KG/H | 250KW | 7-8m3/H | 4-5person | 40*6*5.5(L*W*H) |
More of machine pictures
