YG6 YG8 sintering tungsten cemented carbide strips for Drilling Tool Coal/Mining Industry/Drill Bits
- Category: >>>
- Supplier: Zhuzhou Jinxin Cemented Carbide Group Co. Ltd
Share on (1600512185916):
Product Overview
Description
Product Description

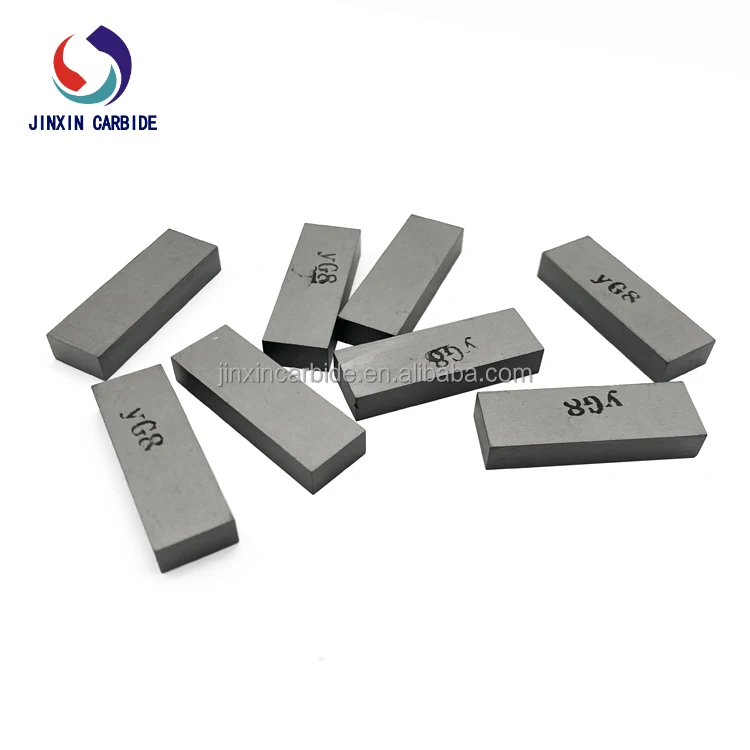

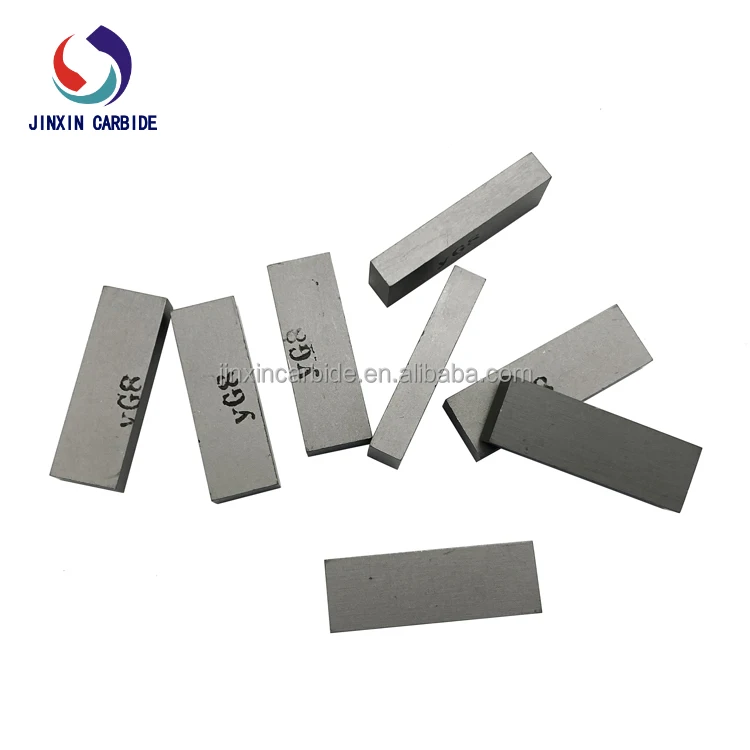

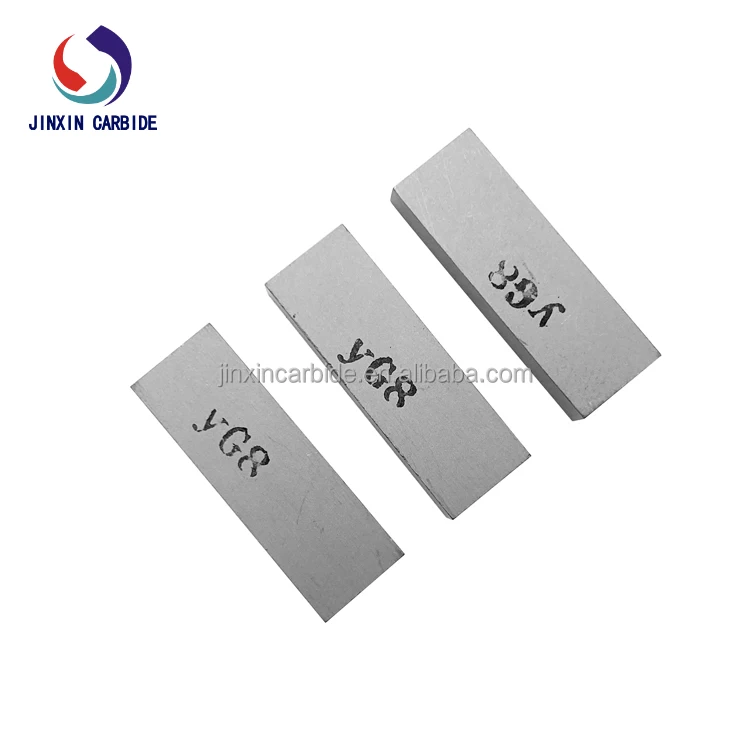

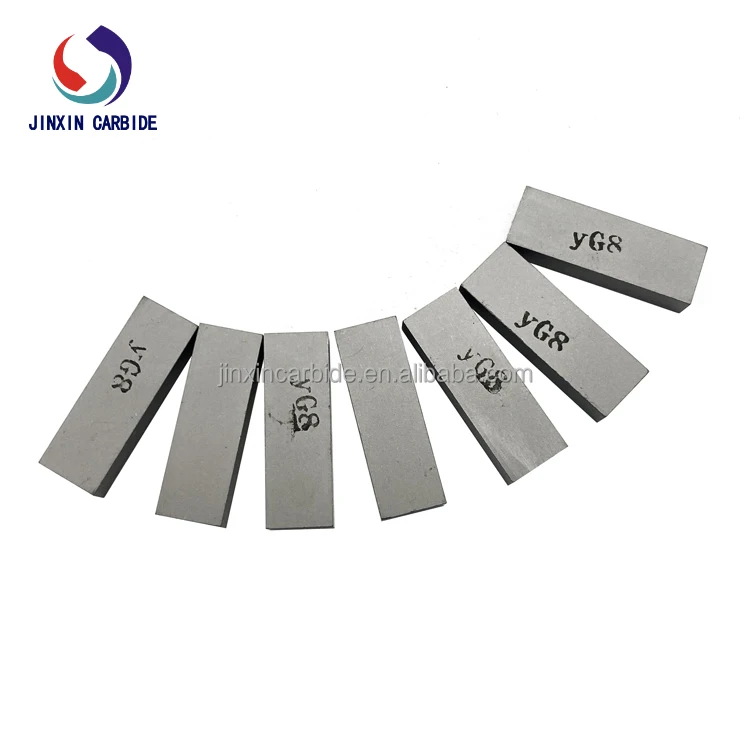

YG6 YG8 sintering tungsten cemented carbide strips for Drilling Tool Coal/Mining Industry/Drill Bits
1) Made of special high quality tungsten carbide material with more stable performance, greatly improving the yield of drill bit;
2) Additional grain size, higher impact resistance and lower thermal cracking and fracture;
3) Ground and tumbled, ensure uniform size, smooth surface, easy to install;
4) HIP sintering can greatly improve the strength and prolong the use time;
2) Additional grain size, higher impact resistance and lower thermal cracking and fracture;
3) Ground and tumbled, ensure uniform size, smooth surface, easy to install;
4) HIP sintering can greatly improve the strength and prolong the use time;
Specification
Item | Value |
Place of origin | Hunan, China |
Brand Name | JINXIN |
Product Name | Tungsten Carbide Square Strip |
Material | 100% Virgin tungsten cemented carbide Raw Material |
Main Chemical Composition | Tungsten carbide Co + WC |
Grades | K30 / K40 / YG6/ YG8 / KD8 / YG11C etc.or custom grade for carbide stips |
Dimension | D7.2*7*7mm,D9.2*10mm, etc. or custom cemented carbide button |
Finishing | Blank or Ground |
Size | Any size as customer's demand |
Application | For coal mining and rock drilling, oil-field drilling bits |
Certification | ISO9001:2015 |
Service | OEM/ODM |
Details Images
High Density
Using 100% high purity tungsten carbide powder, It has a better strength and hardness, thereby a longer service life. Taking isostatic pressing precision machine, our drill button has a uniform density, and do not break easily.
Good Wear Resistance
Sintered by over voltage sintering furnace, the carbide button are 24% more abrasive resistancing.
High Bending Strength
Using centerless grinding machine with high measuring accuracy and tight welding. So it's hard to fall off the drill.
Recommend Grade
Grade | Density | T.R.S | Hardness | Performance & application |
(g/cm³) | N/mm²(MPa) | HRA | ||
YG6 | 14.9 | 2150 | 90 | Good wear resistance, used for hard wood, used for processing original wood, aluminum section bar, brass rod and cast iron. |
YG6X | 14.9 | 1860 | 92 | Has wear resistance higher than YG6, used for processing hard wood, original wood, aluminum section bar, brass rod and cast iron. |
YG8 | 14.7 | 2320 | 89.5 | Wear and percussion resistance , used for processing hard wood, soft wood, ferrous and non-ferrous. |
YS2T | 14.5 | 2350 | 92 | Fine carbide, High wear resistance, high bending strength, high resistance to bonding, high thermal strength. Machining of refractory alloys, stainless steel and high manganese steel, etc. |
Company Profile
FAQ
1. Who are we?
We are based in Hunan, China, start from 2009,sell to Eastern Europe(35.00%),Southeast Asia(25.00%),North America(10.00%),South America(5.00%),Eastern Asia(5.00%),Western Europe(5.00%),Mid East(3.00%),Northern Europe(3.00%),Southern Europe(3.00%),Central America(2.00%),South Asia(2.00%),Africa(00.00%),Oceania(00.00%).
We are based in Hunan, China, start from 2009,sell to Eastern Europe(35.00%),Southeast Asia(25.00%),North America(10.00%),South America(5.00%),Eastern Asia(5.00%),Western Europe(5.00%),Mid East(3.00%),Northern Europe(3.00%),Southern Europe(3.00%),Central America(2.00%),South Asia(2.00%),Africa(00.00%),Oceania(00.00%).
There are total about 51-100 people in our office.
2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.What can you buy from us?
Tool Parts/Mining Machine Parts/Carbide Mould/Milling Cutter
4. Why should you buy from us not from other suppliers?
Zhuzhou Jinxin Cemented Carbide Co., Ltd. is a manufacturer of cemented carbide company,We have 11 years of experience in the production and development of cemented carbide products. such as Pattern products and rods, Special carbide products.
5. What services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Japanese,French
2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.What can you buy from us?
Tool Parts/Mining Machine Parts/Carbide Mould/Milling Cutter
4. Why should you buy from us not from other suppliers?
Zhuzhou Jinxin Cemented Carbide Co., Ltd. is a manufacturer of cemented carbide company,We have 11 years of experience in the production and development of cemented carbide products. such as Pattern products and rods, Special carbide products.
5. What services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Japanese,French
