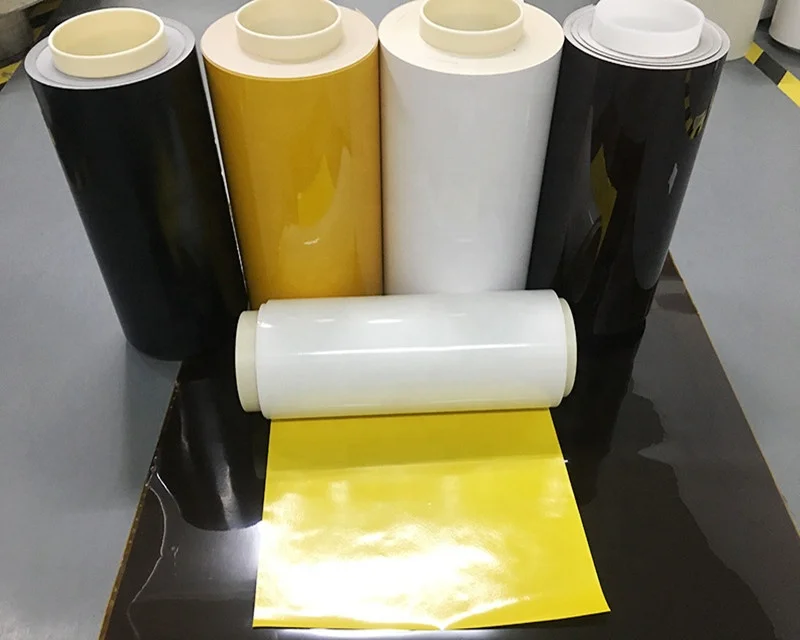

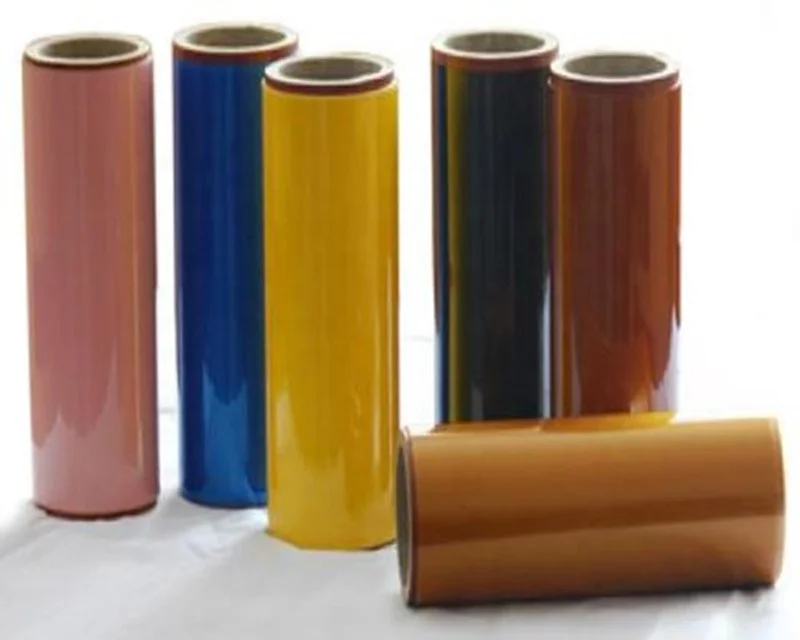

2023 hot sale PEN FCCL polyethylene naphthalate film flexible copper clad laminate sheet for FPCB

Product Overview

Description

Product Description:





Halogen Free PEN film Flexible Copper Clad Laminate for FPCB

Technical Data Sheet



1.Product type: PEN FCCL



2.Product Designation:

DL PEN25 ED35/ S-500

Width 500mm, more widths can be provide.

S:single side. D:double sides.

ED: EDHD copper Foil, RA:Rolled Copper Foil

PEN film thickness is 25um, more thickness can been provided.

DT product classification for PEN film with copper-clad laminates



3.Product Description:

DLPEN product consists of PEN film clad copper by coating adhesive. It includes various types according to different copper and PEN film utilized to meet the specific needs of customers:

	Raw materials and thickness	Supplier
PEN film	25um, 50um, 75um,100um,125um, etc.	Teijin-Dupont, etc.
Adhesive (modified epoxy)	12.5um is for 18um Cu foil; 21um is for over 18um Cu foil	USA, Japan, etc.
Copper foil	EDHD foil or RA foil; thickness:18um, 35um, 70um, etc.	Mitsui, Fukuda, etc.



4. Features & Applications:

DLPEN products are widely used in the data communication, personal computer and automotive fields. The features are as follows:

l Meet the RoHS requirement & halogen free, and pass SGS certificate.

l High bond strength and good chemical resistance.

l Excellent dimensional stability.

l Better than DLPET in solder float.



5.Package & Storage:

l Standard roll: 50^+0.25 or 25^+0.25square meters per roll, maximum 2 splices.

l Inner diameter core: 6 inches (152mm), packed in carton.

l Standard width: 500mm or 24 inches width except the customer’s special instruction within the maximum width 24 inches.

l Storage Life: 12 months since date of manufacturing; After 12 months please repeat testing procedure as first delivered, use after quality valid confirm.

l Storage Condition: Room temperature, Relative Humidity: < 75%
