belt return line conveyor roller conveyor feeding table for auto edge banding machine

Share on (1600512202186):


Price:

Quantity:


Product Overview

Description



Product Description

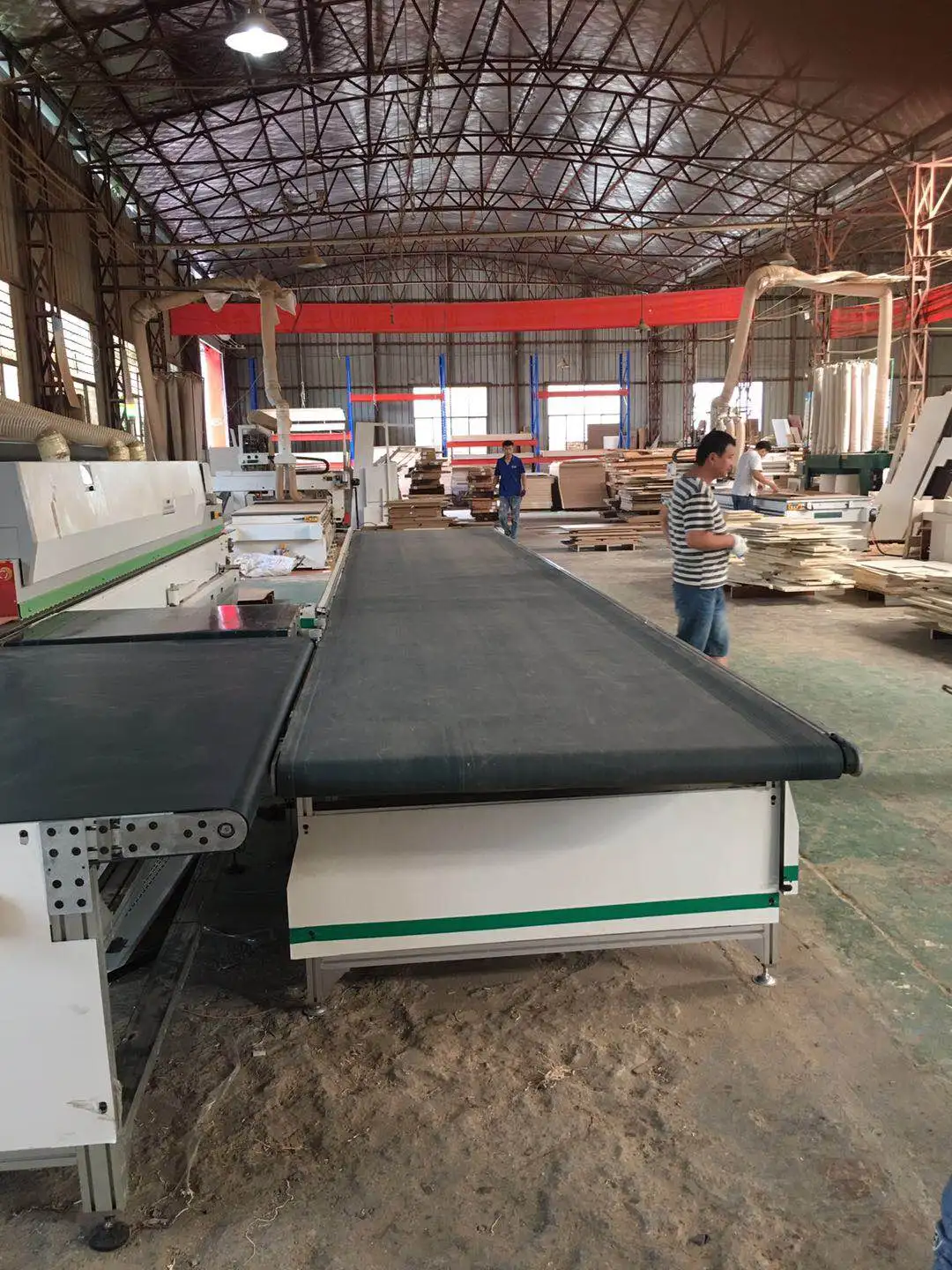

Belt return conveyor is a helpful equipment for auto edge banding machines. Only one worker can operate the machine, no need to pick up panels at the end. The belt will automatically transport the panels to the worker through the belt, time saving, labor saving and convenient.
Reduce labor cost 50%





Specification


Brand Name
Yowing
Application
Transportation
Material
Imported wearable belt
Model
YW-BTC
Max.work piece
2400x1200mm
Min.work piece
200x100mm
Panel thickness
10-60mm
Max.loading capacity
50kg
Feeding speed
28m/min
 voltage
380V, 50Hz, 3 phase


Equipped with inverter, stepless adjust the feeding speed

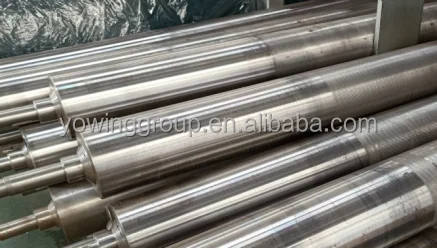

80mm diameter galvanized roller, durable and strong
3mm thickness belt from Taiwan, wear-resistant and long life time

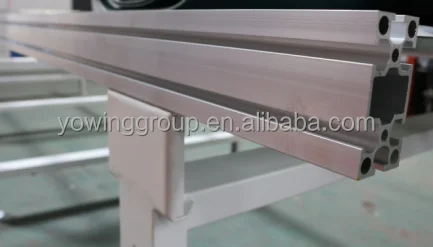

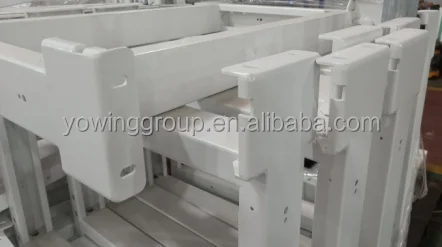

40*80mm strong aluminum structure, strong and stable, to ensure the panels can be transported smoothly
High quality bearing, easy for oil lubricating.

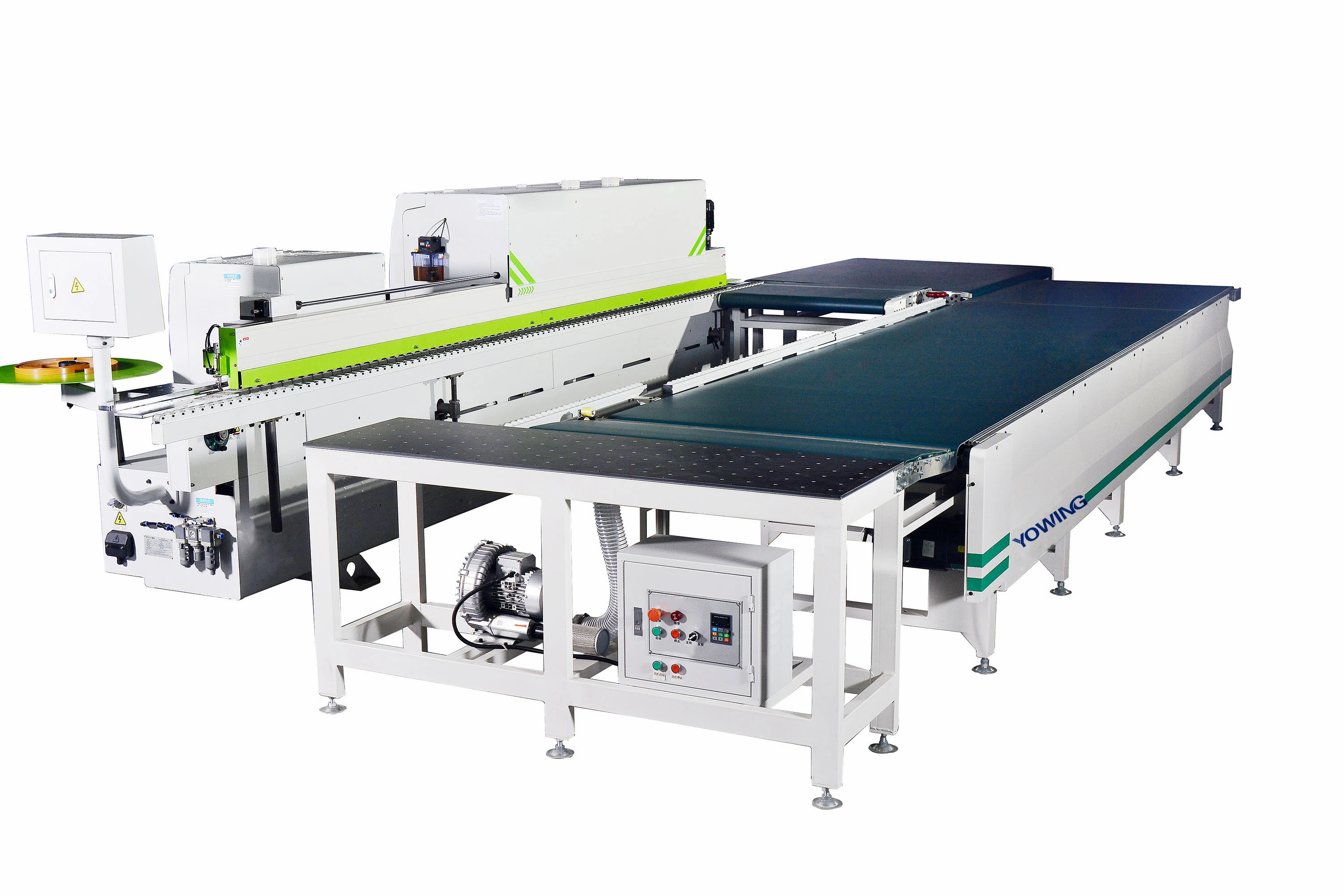

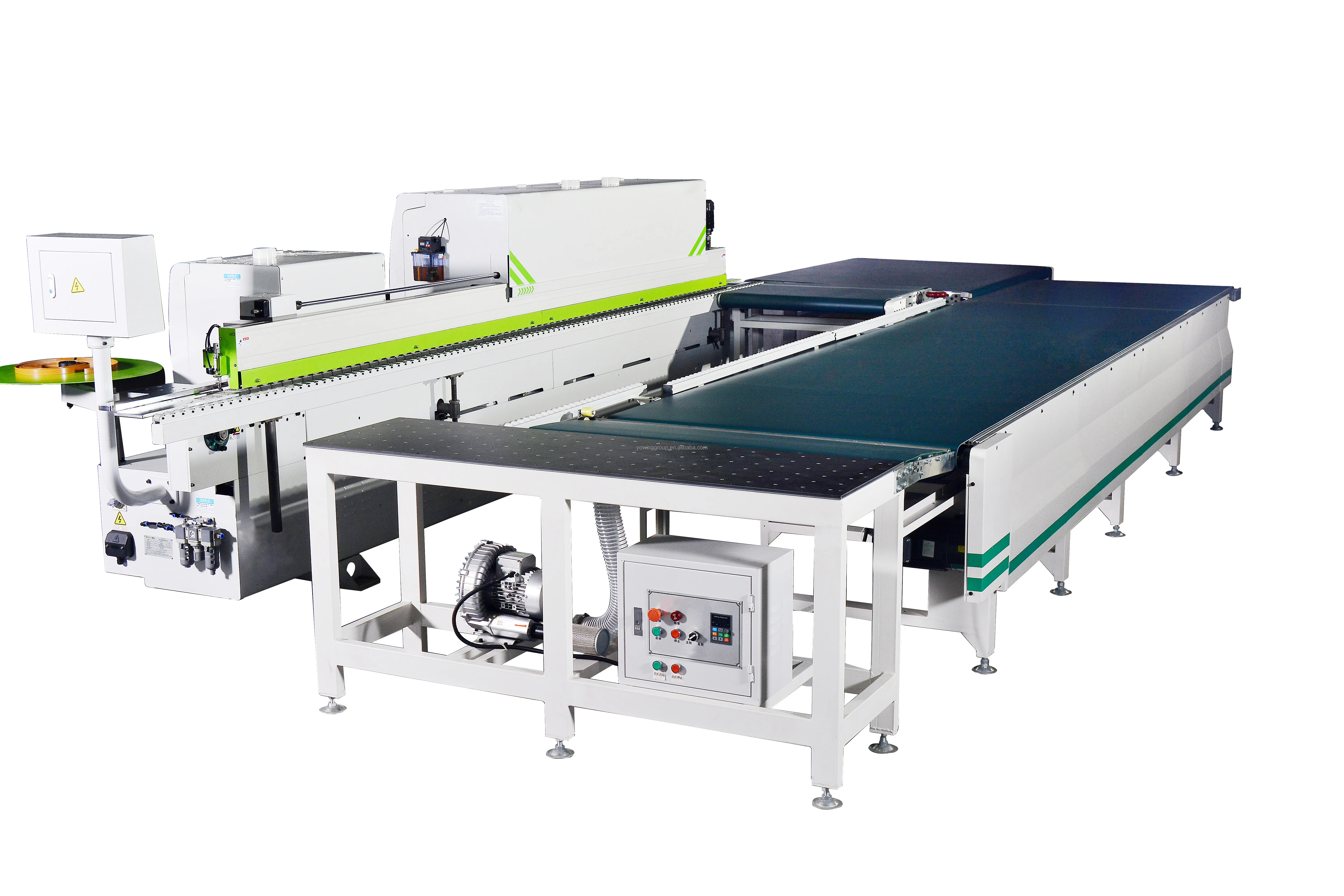

Air floating table is optional, can feed the panels easily, power saving

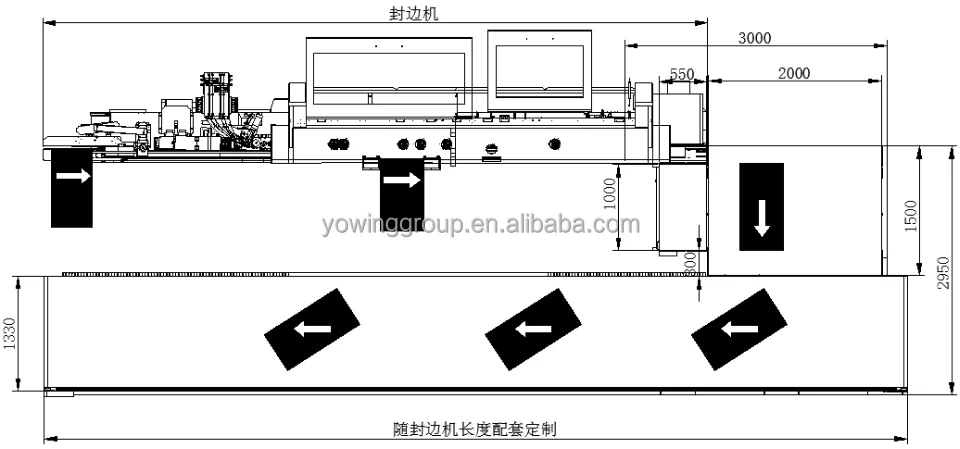

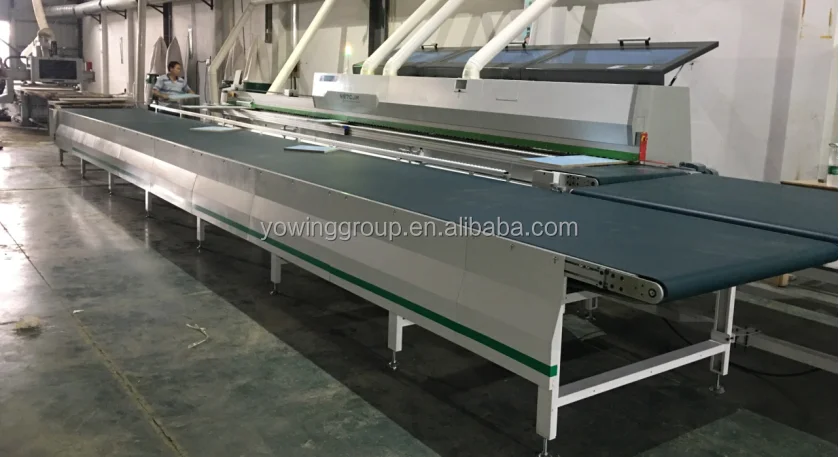

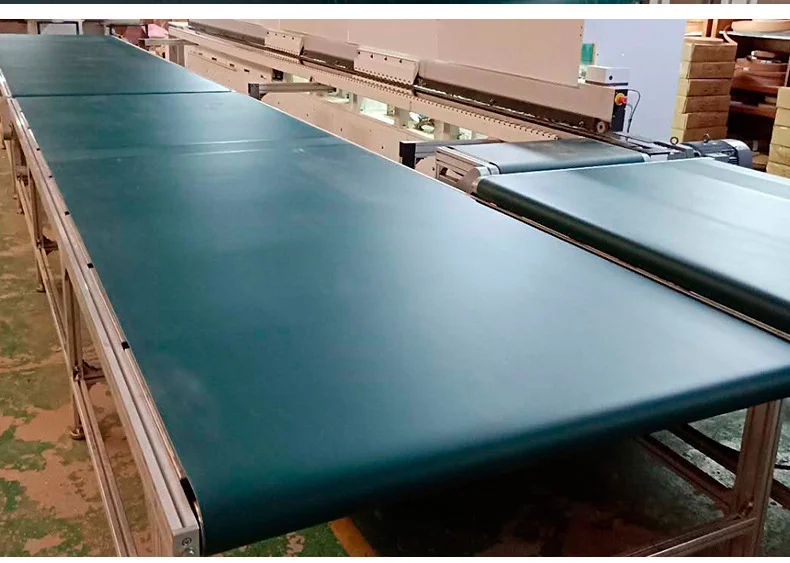

The belt conveyor include 3 pcs belt tables:
small belt table: to receive panels from the outfeed side of edge banding machine
medium belt table: there is guide rollers to connect with medium table, to change the panel direction
long belt table: to transport the panels to the infeed side of edge banding machine

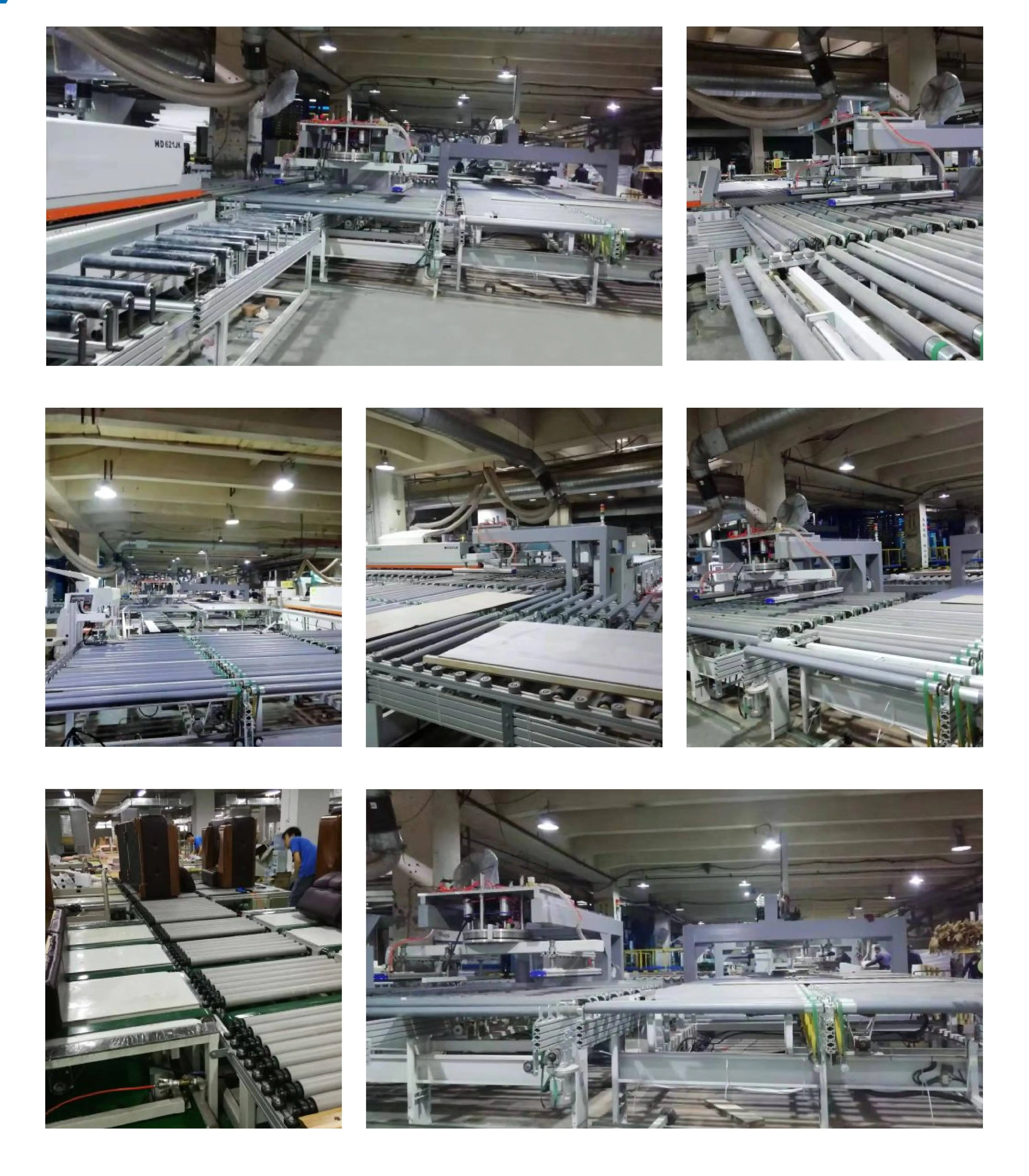

Projects

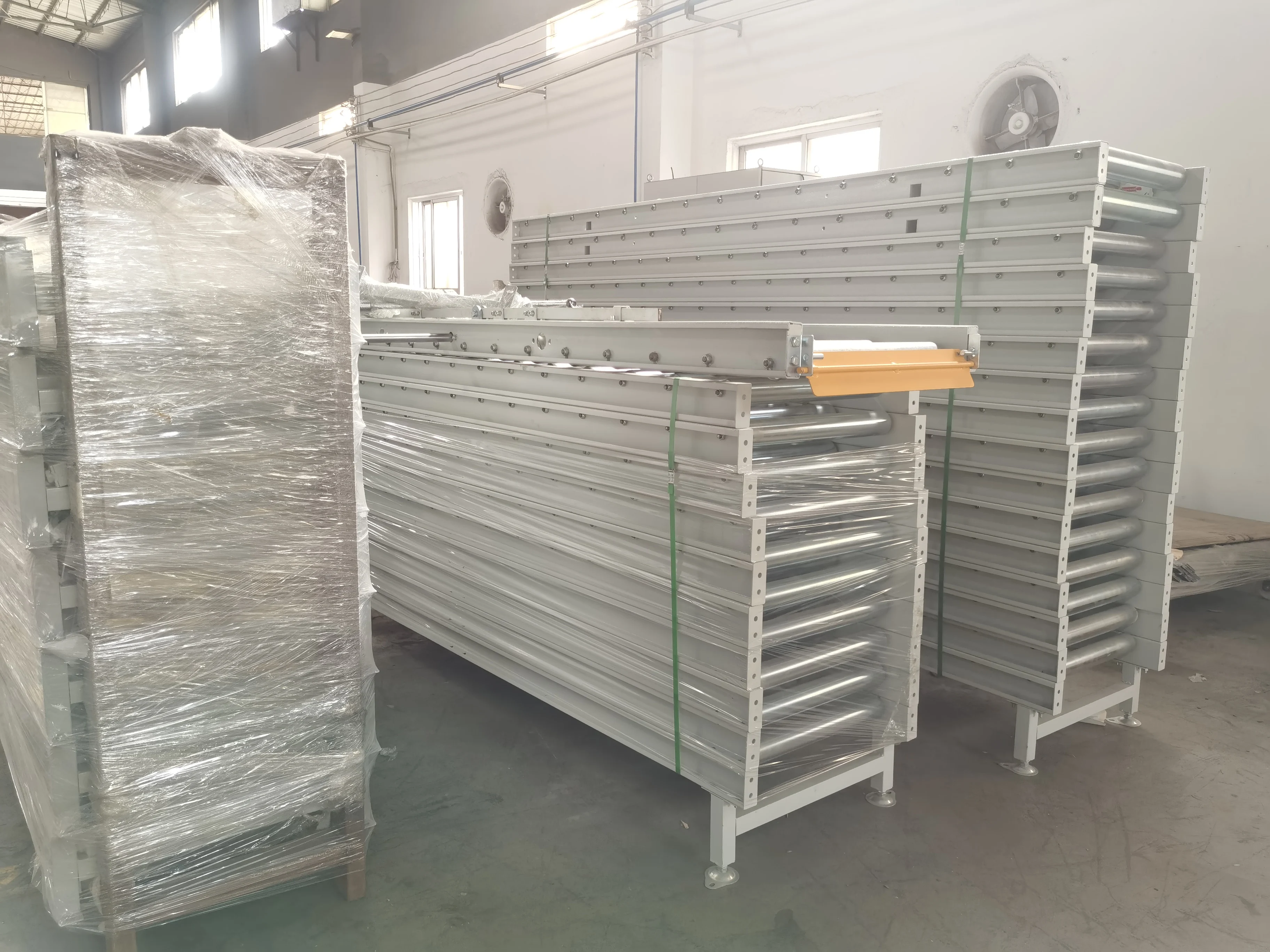

Packing & Delivery




Company Profile


YOWING MACHINERY,Located in China woodworking machinery important town: Lunjiao, Focusing on the development of full range of furniture and wooden door machinery equipment,providing furniture and wood door companies with solutions for whole factory planning and automatical production lines,presenting our customers with excellent quality,efficient and stable products and high-quality service.\\
Yowing machinery, under all colleagues hardworking,our machines sold very well domestic and abroad,our services has been to almost 10 countries including asia, Russia, Brasil and Mexico,ETC.In 2018,We built up a service office in Binh Duong, Vietnam, and created a professional service team, to make sure can prove immediate service for our domestic and abroad customers.
2019,Yowing machinery, in order to help solve sanding difficulties, we start import and sell Origin of Italy Profile sand, provide more proper sanding materials for wood sanding, and metal sanding.2020, we will continue searching high quality overseas sanding materials, matching chinese machines and equipments, give one more option to our customers!
