2023 hot sale Automatic hairspray aerosol Pneumatic Bottling Filling Line Plant Equipment Factory Manufacturer
- Category: >>>
- Supplier: Shanghai Paixie Packing Machinery Co. Ltd.
Share on (1600512210079):
Product Overview
Description
Product Description

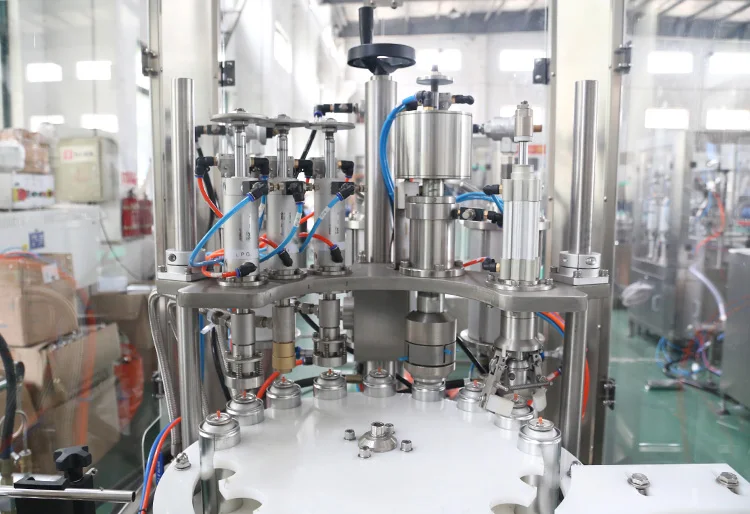

2023 hot sale Automatic hairspray aerosol Pneumatic Bottling Filling Line Plant Equipment Factory Manufacturer, which will convert the mixed liquid and gas to totally liquid. Then put it into add pump to storage, When the gas charging, add the pump suction the liquid from the quantitative tank. And then Quantitative cylinder piston work, gas charging finished. As the inflated gas has been completely transformed into liquid, so it can ensure the accuracy of inflation. The machine uses Quantitative SS316L stainless steel piston pump: corrosion, durable, quantitative criteria. When charging different specifications, it will adjust the charging quantity. There is a graduated scale at the piston pump, simply twist the hand wheel to adjust the gas charging quantity.
Product Paramenters
Product | 2023 hot sale Automatic hairspray aerosol Pneumatic Bottling Filling Line Plant Equipment Factory Manufacturer |
Output | 1500-6000BPH (Customized) |
Filling Volume | 200-550ml (can be customized) |
Control | PLC and Touch Screen |
Driving Motor | Servo Motor |
Filling Precision | ±1% |
Valve Feeding Precision | ±1% |
Air Consumption | 0.6-0.8Mpa |
Power | 1.0KW |
Machine Frame Material | SS304 |
Power Supply | 220/380V, 50/60Hz |
Bag inserting | Manually |
Metal ball inserting | Automatically |
Size | 1200-900-2200 (unit) |
Application
Details Images

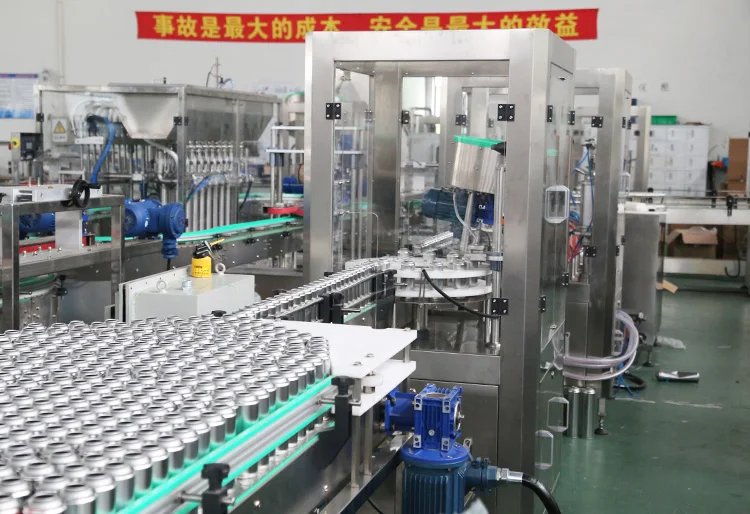

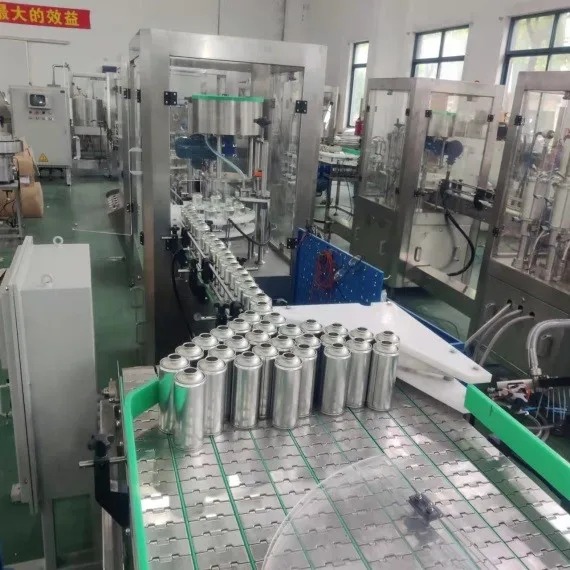

Variable speed bottle feeding table is the basic feeding system of aerosol spray bottle filling line, operator will put empty bottles on the table, with gear motor driving, the bottle will be arranged to the conveyor, the machine will be able to work with different size bottle.
Liquid Filling Machine
This machine adopts position pump, which is suitable for different kinds liquids, with high filling speed and high filling precision. The pump uses quick-fit removal structure: easy cleaning and disinfection. The filling nozzles adopt anti-drip and anti-drawing filling device. The machine adopts PLC and human-computer touch screen control system.

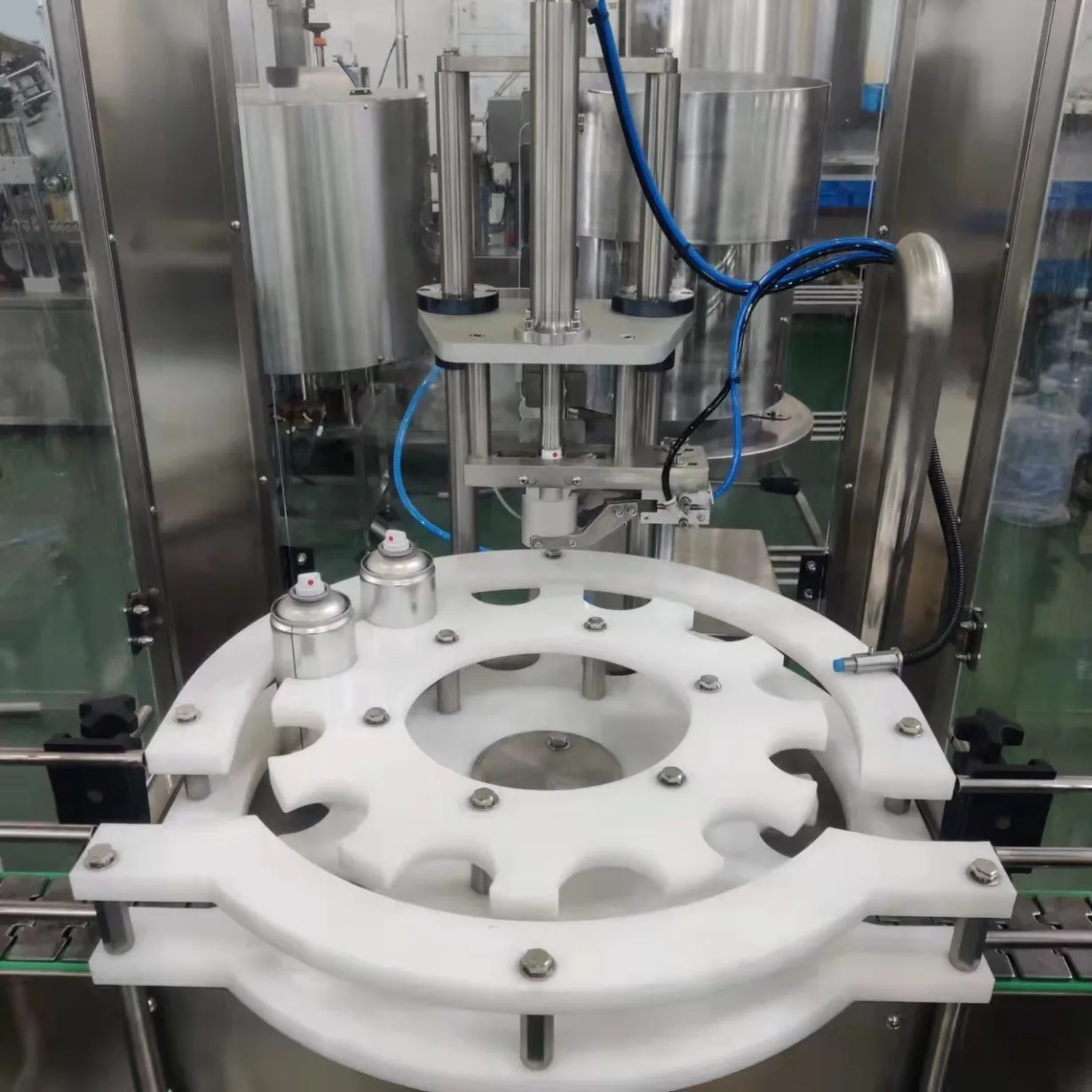

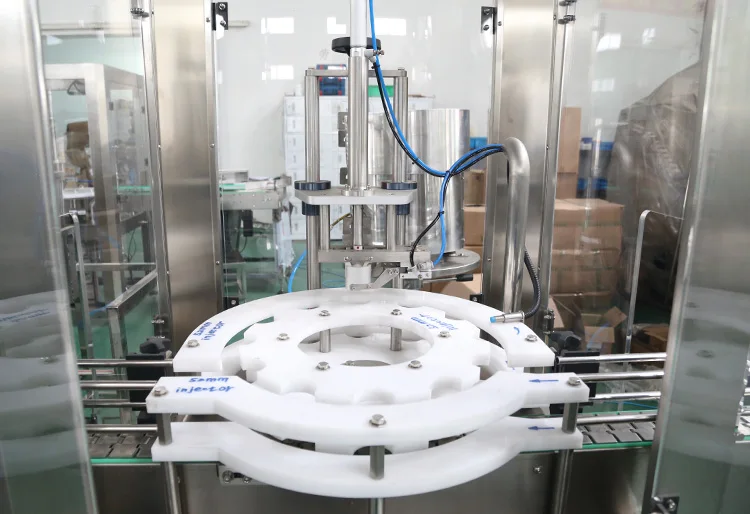

This valve putting part worked with stable speed and high efficiency. The machine adopts PLC and human-computer touch screen control system. The valve sorter and feeding parts can be easy to change for the different size.

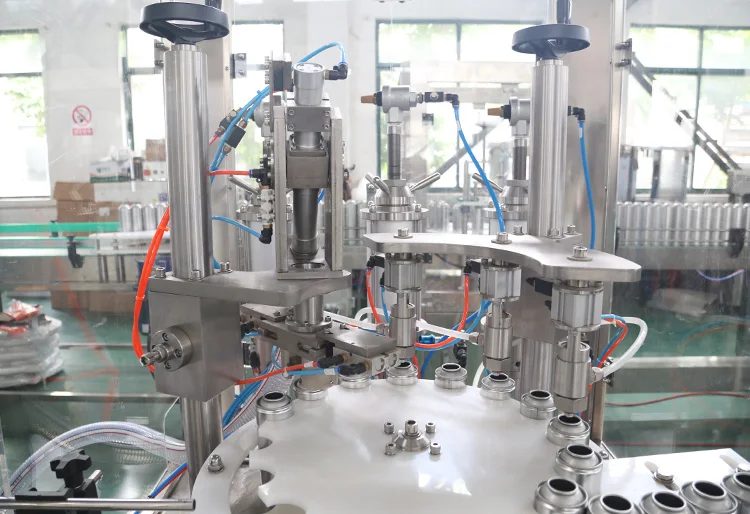

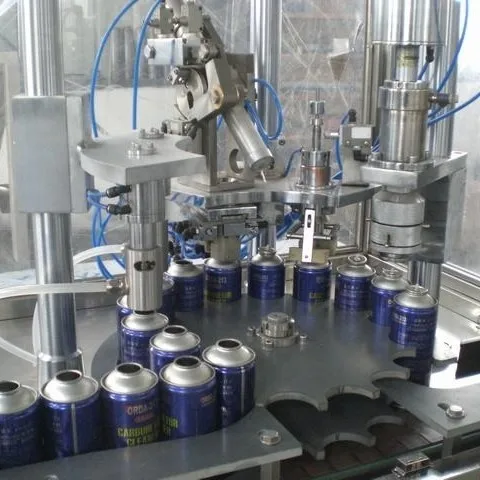

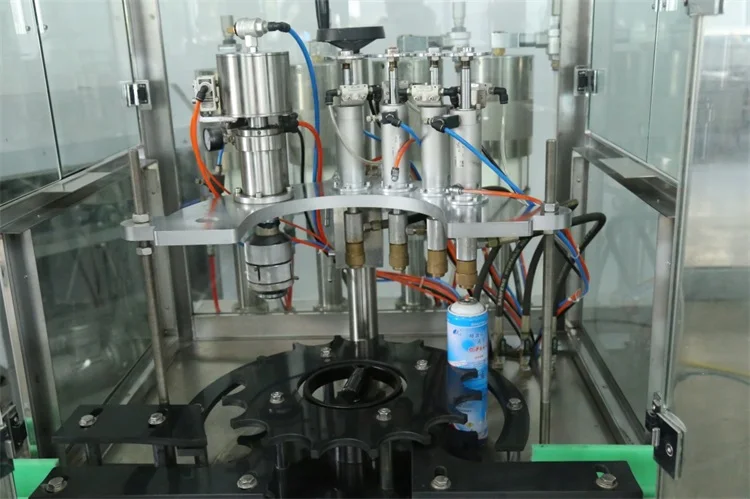

The sealing head is specially designed according to valve. When sealing the bottle, first step press valve to position it, then sealing claw will seal the bottle. The air proof circle inside the valve will tightly linked to the bottle, so it is beautiful without leakage.

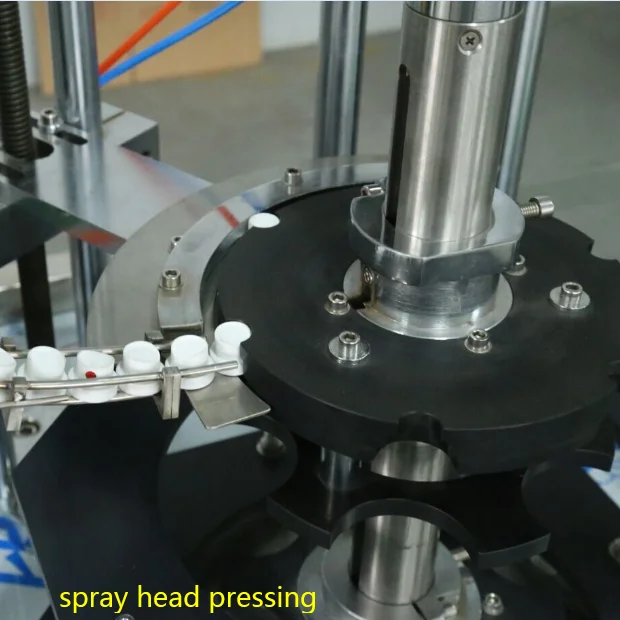

The vibrating cap feeder will arrange the spray heads automatically, sending the caps to the production line from the pipe under the air power. It can save labors and increase productivity.

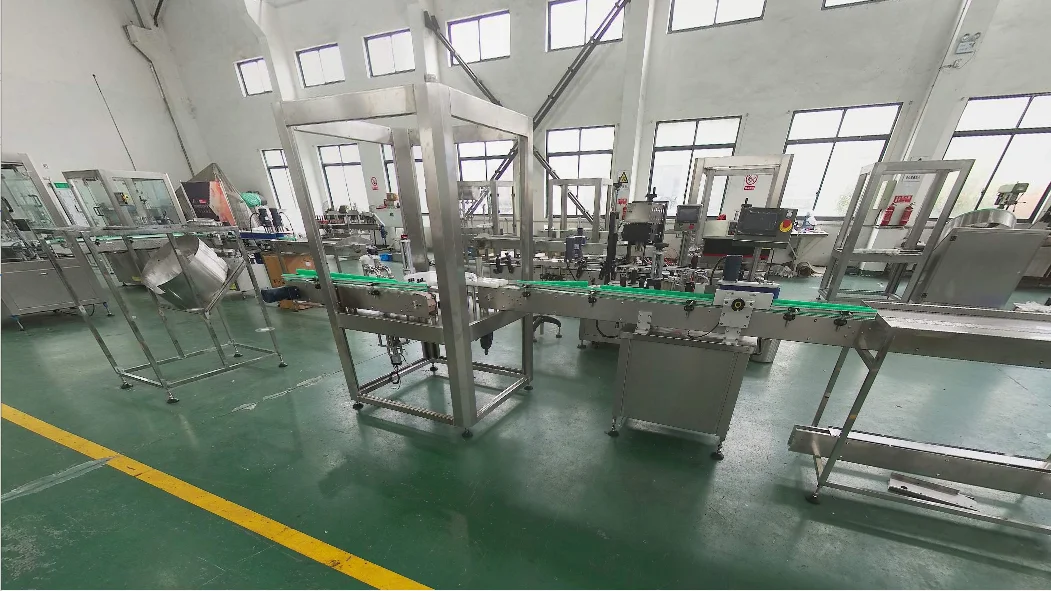

Virtual Reality Showroom
VR
Video Instruction
Company Profile
Company Introduction

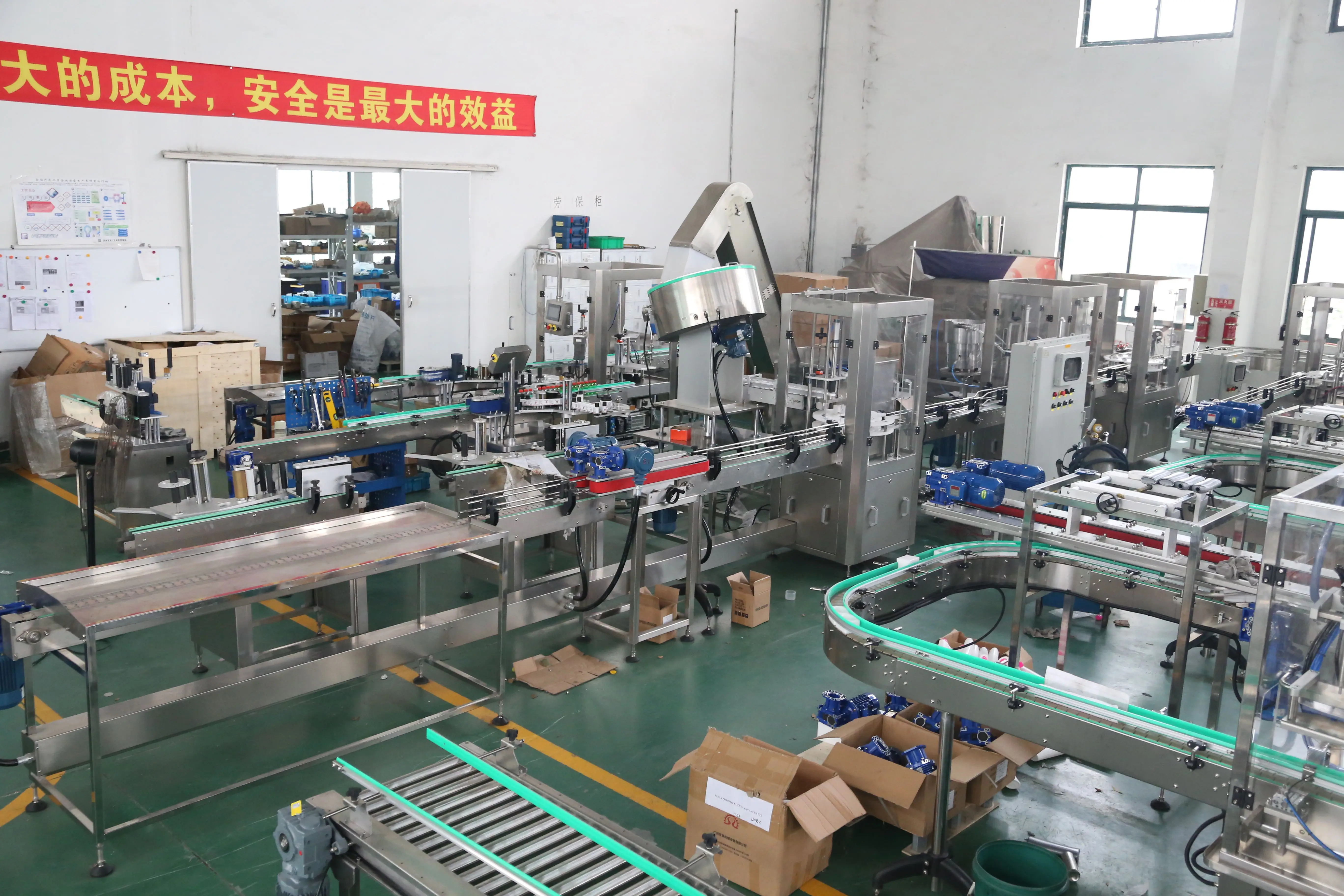

Shanghai Paixie Packing Machinery Co.,Ltd is a professional manufacturer of filling line for over 12 years, customized filling lines for different industry customers like food and beverage, cosmetic, medical industry, chemical industry and etc, lots of successful cases for your reference. The full automatic liquid filling machine is designed for saving time on adjusting and testing machine, it can fill liquid or paste accurately by entering a certain filling volume. The PLC control method makes it easy to operate and thigh speed working efficiency is ideal for different scale production. It can work with the automatic capping machine and labeling machine and other equipment based on customer requirement. PAIXIE filling line is widely used in the following industries:
Shanghai Paixie Packing Machinery Co.,Ltd is a professional manufacturer of filling line for over 12 years, customized filling lines for different industry customers like food and beverage, cosmetic, medical industry, chemical industry and etc, lots of successful cases for your reference. The full automatic liquid filling machine is designed for saving time on adjusting and testing machine, it can fill liquid or paste accurately by entering a certain filling volume. The PLC control method makes it easy to operate and thigh speed working efficiency is ideal for different scale production. It can work with the automatic capping machine and labeling machine and other equipment based on customer requirement. PAIXIE filling line is widely used in the following industries:
* Beverage Filling Machine Line (such as water, juice, beer, liquor, vodka, wine etc.)
* Food Filling Machine Line (such as honey, sauce, oil, chocolate, vinegar etc. )
* Chemical and Pharmaceutical Filling Machine Line (such as syrup, eye drop, alcohol, reagent, ampoul, syringe etc. )
* Cosmetics Filling Machine Line (such as perfume, body spray, nail polish, cream, lotion, detergent, hand gel etc. )
