Live image metal detector on sale door frame metal detector walk through gate full body specific with high sensitivity
- Category: >>>
- Supplier: Junhong Electronic & Technology (Dongguan) Co. Ltd.
Share on (1600512238976):
Product Overview
Description
Product Description

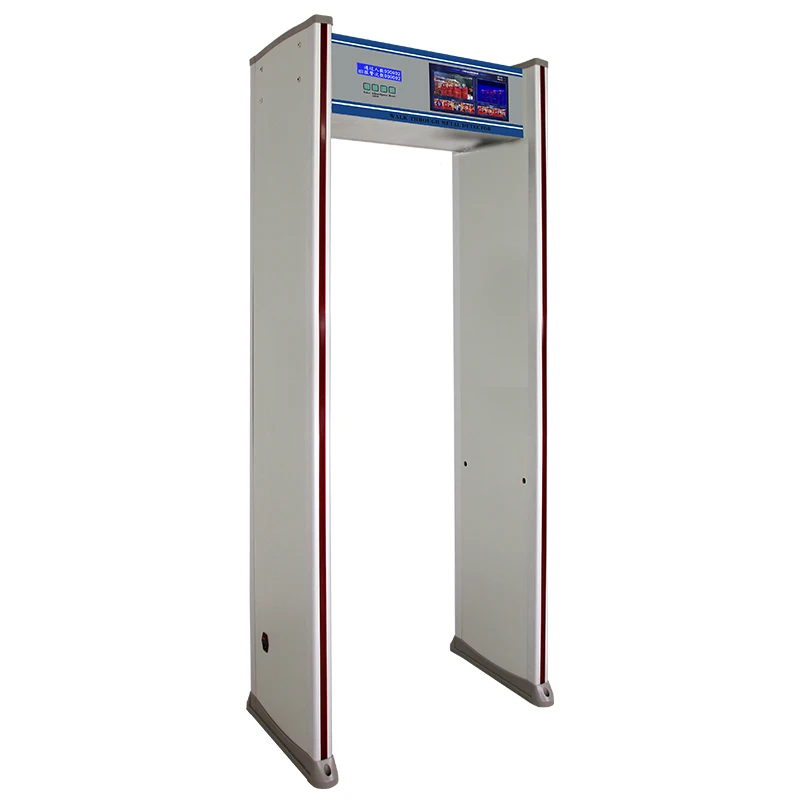

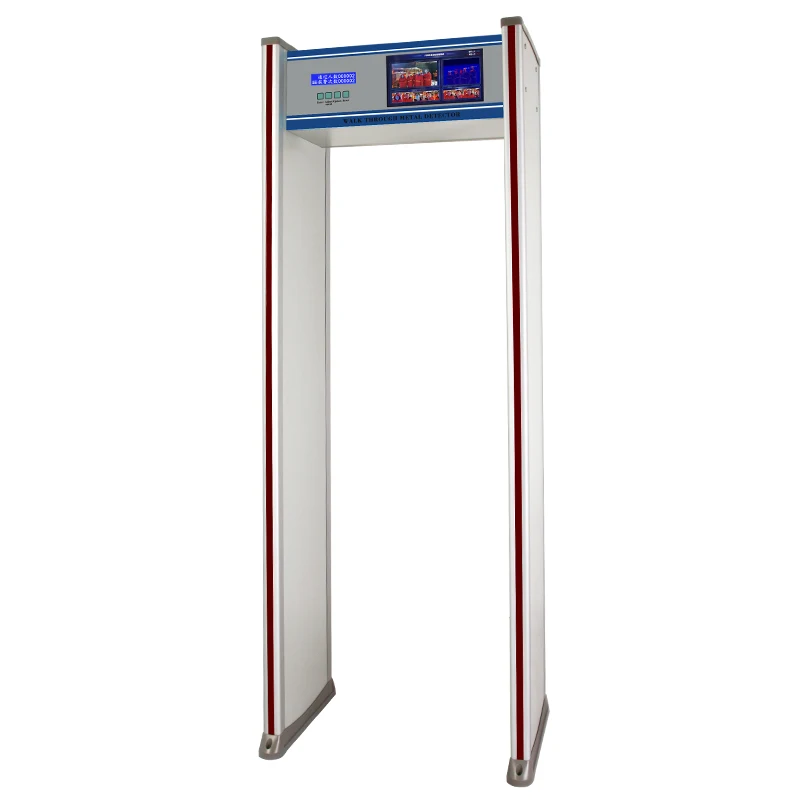

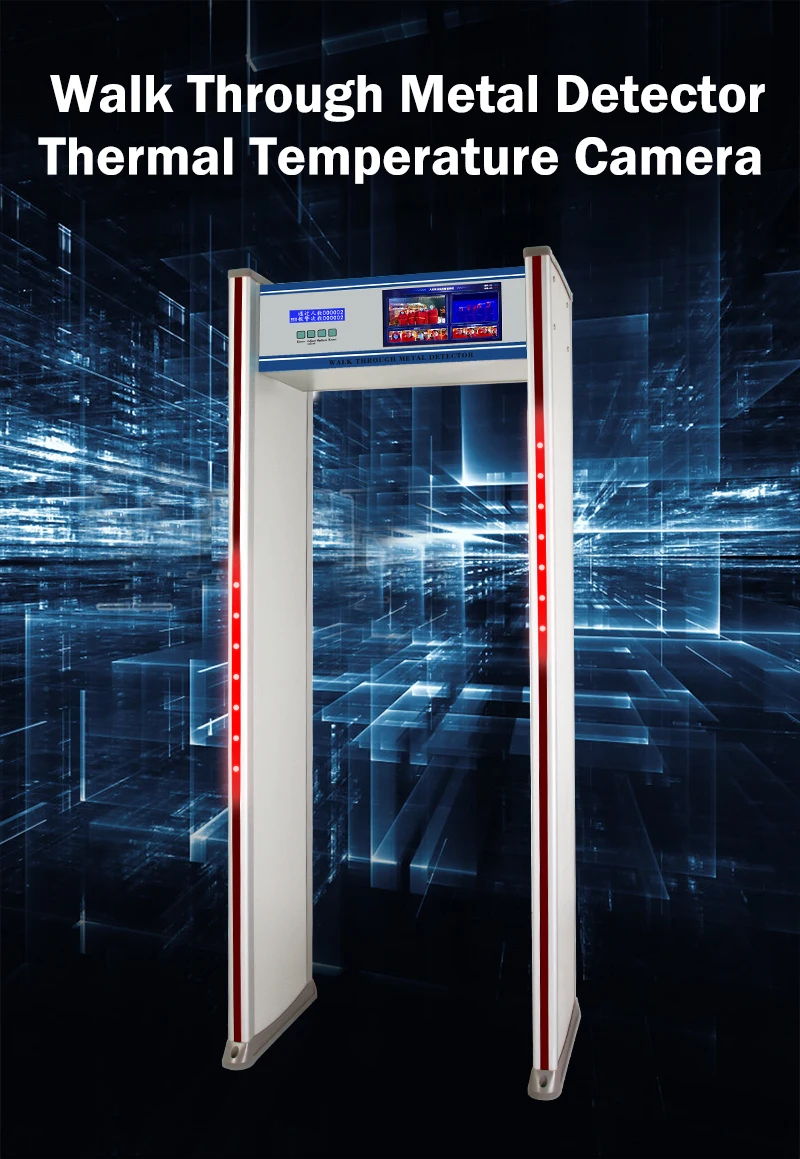

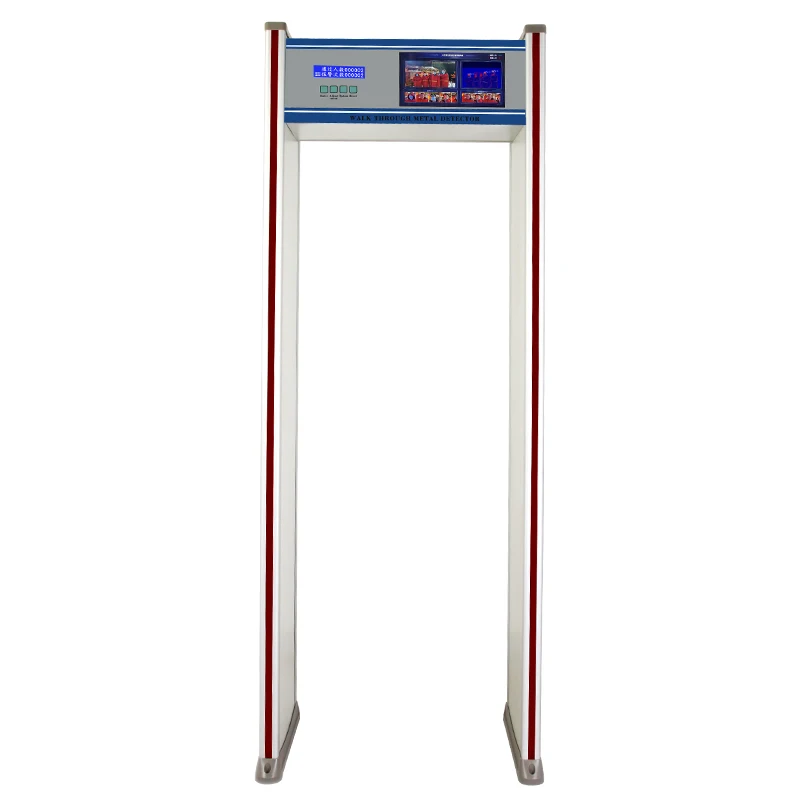

Live image metal detector on sale door frame metal detector walk through gate full body specific with high sensitivity

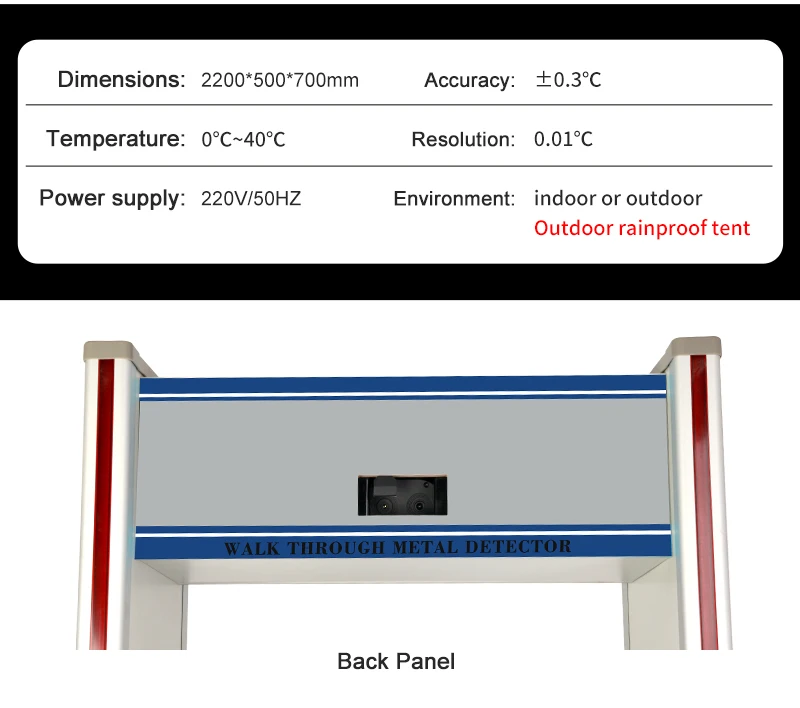

Technical specifications:

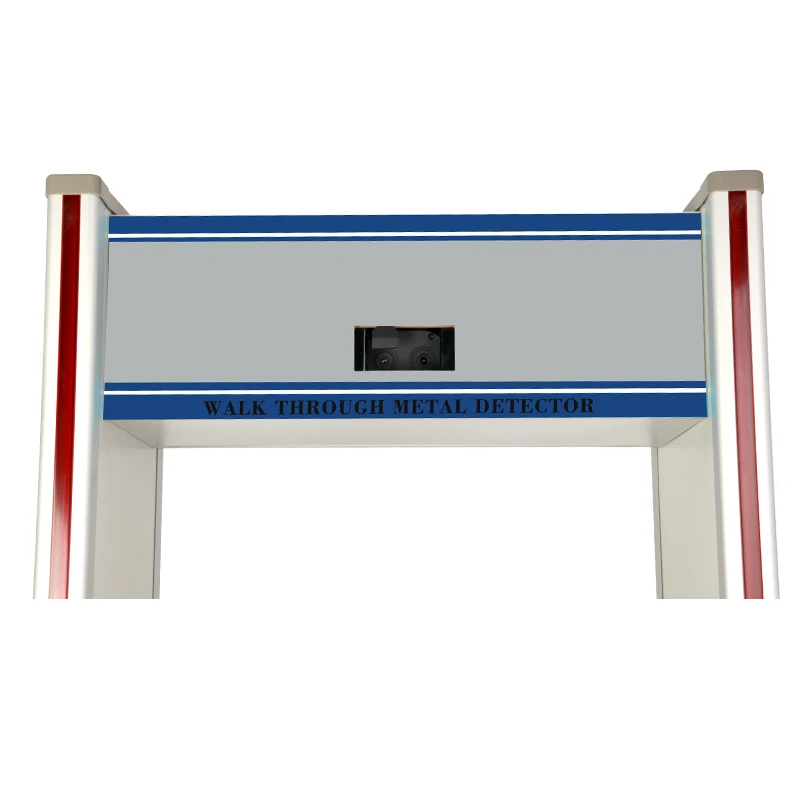

Visible camera | |
resolution | 2 megapixel |
Camera focal length | 6mm |
imaging device | CMOS |
Minimum illumination | 0.01LUX (color mode) - 0.001lux (black and white mode) |
SNR | > 56dB |
Voltage | 5V access |
Infrared camera | |
Detector type | uncooled infrared array sensor |
Thermal resolution | 160 * 120 |
Pixel spacing | 17um |
The working band | 8-14 um |
Detector NETD | ≤ 60mk (F / 1300k, 50Hz) |
Frame rate | 15 Hz |
Temperature data output | full range temperature output |
Working temperature range | -20 ℃ ~ 50 ℃ |
Field of view angle | 40 °× 30 ° |
Effective area | 20 mm * 30 mm |
The area emissivity | 0.96 ± 0.02 |
Temperature range | (ambient temperature + 5 ° C) ~ (50 ° C) |
Temperature resolution | 0.01 ° C |
The stability accuracy | better than ± 0.1 ° C |
Heating time | < 2 minutes |
Walk Through Metal Detector(option) | |

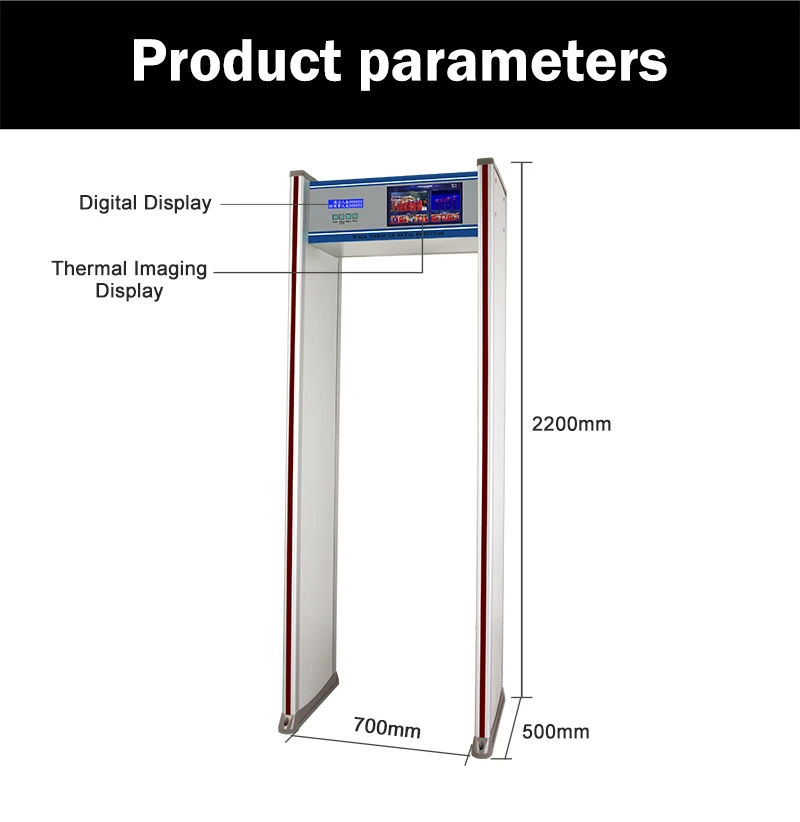

Overall dimensions | 2220(H) x 820(W) x 502(D)mm |
Inner dimensions | 2000 (H) x 700(W) x 502(D)mm |
Weight | 75kg |
Detection zone | 6 zone, 18 zone switchable |
Sensitivity | 100 levels |
|
|
Main board parameters | |
SOC | Broadcom BCM2711 |
CPU | 64 bit 1.5GHz quad core (28nm process) |
GPU | Broadcom VIdeoCore VI@500Hz |
USB Interface | USB interface 2.0 * 2 / USB interface 3.0 * 2 |
HDMI | micro HDMI * 2 supports 4k60 |
Power supply | ype C (5V 3a) |
Network | WiFi 802.11ac, Gigabit Ethernet |
Multimedia | h.265 (4kp60 decode); |
| H.264(1080p60 decode,1080p30 encode); |
| OpenGl es,3.0 graphics); |
Other parameters | |
IR-cut automatic switch, backlight compensation, strong light suppression, automatic white balance | |
Interface | RJ45, USB |
Installation environment | indoor or outdoor |
Installation method | mounted with tripod |
Camera size | 230mm x 142.6mm x 88.5mm |
Weight | 1.5KG |
Product features:

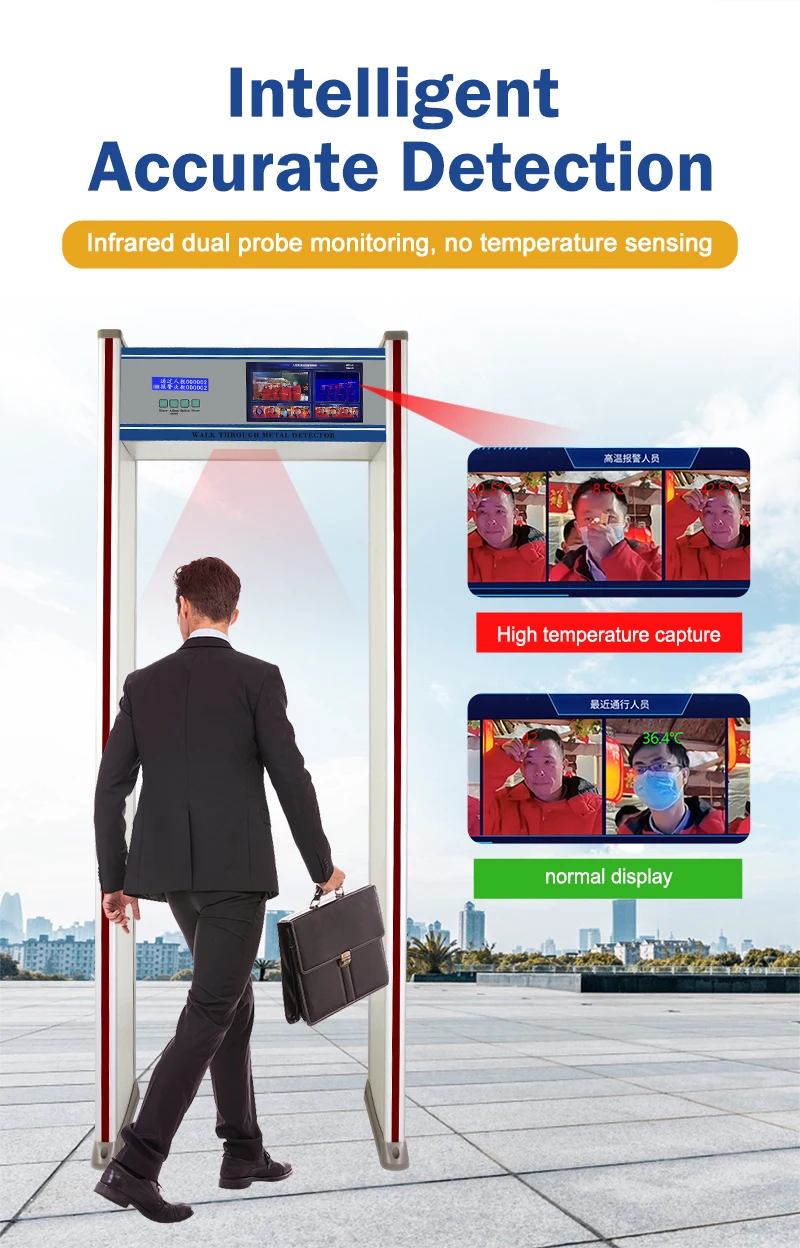

1.AI facial recognition: the system provides real-time dynamic thermal image, which can accurate and automatic measuring the multi-objective.
2.Environment temperature: working properly at -20 ℃ ~ 45 ℃
3.Blackbody: It can automatic correction accuracy to be +- 0.3°C, adapt to the environmental temperature changes on thermal imaging.
4.Contactless measurement: the walking through people at normal speed without stop and wait.

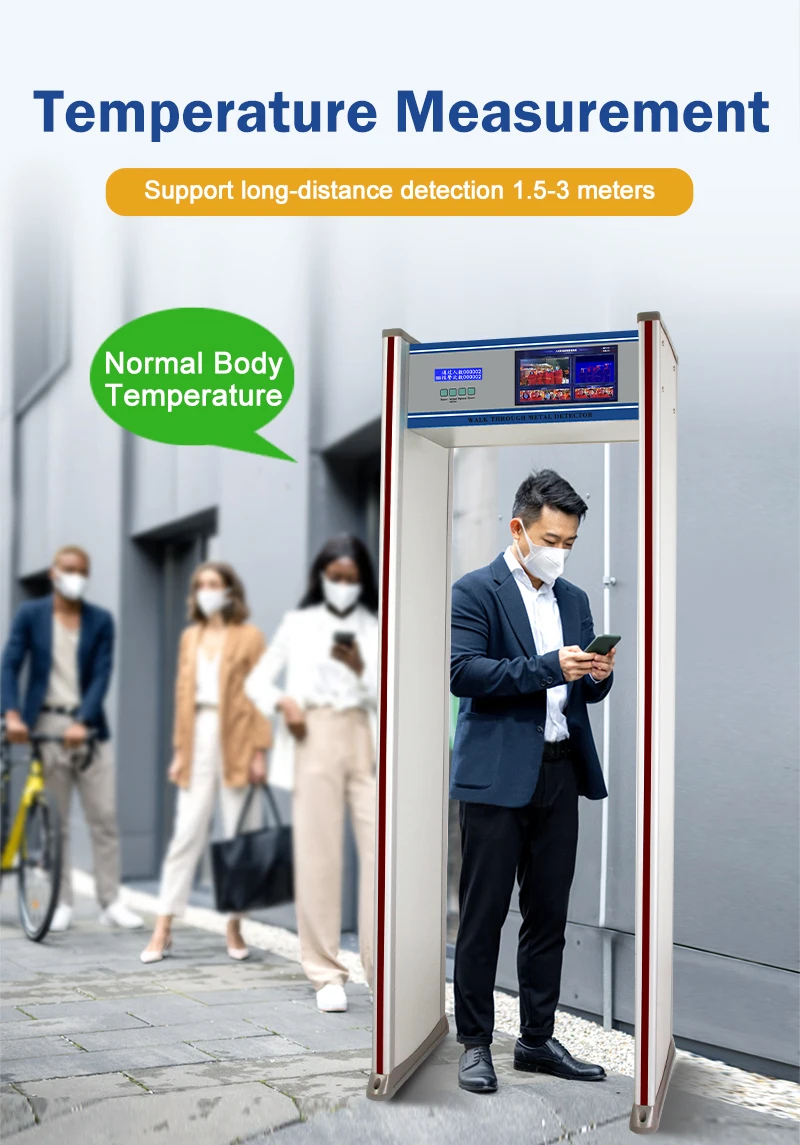

5.Long range measure distance: the best measurement distance is 1.5-2m, and the effective distance is 1.5m-5m.
6.Abnormal remind: the fever temperature as well as the metal signal are trigger warning alarm and voice in real time. The big screen displays real-time thermal imaging and visible light.

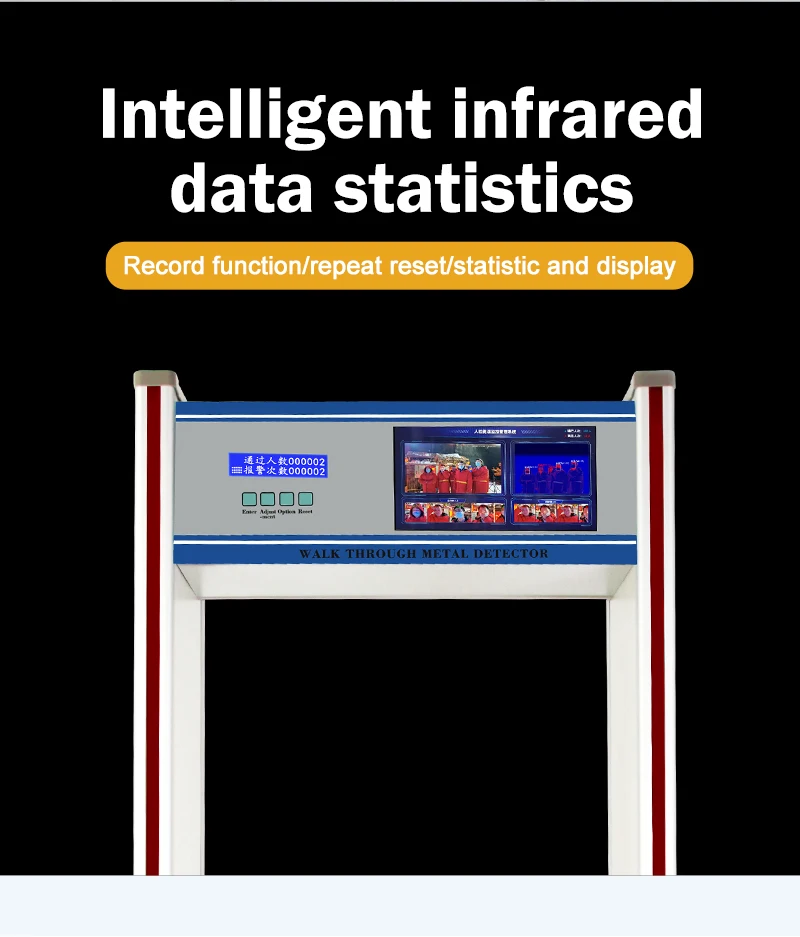

7.Statistical analysis: the fever screening system displays the traffic personnel, traffic data and abnormal body temperature data.

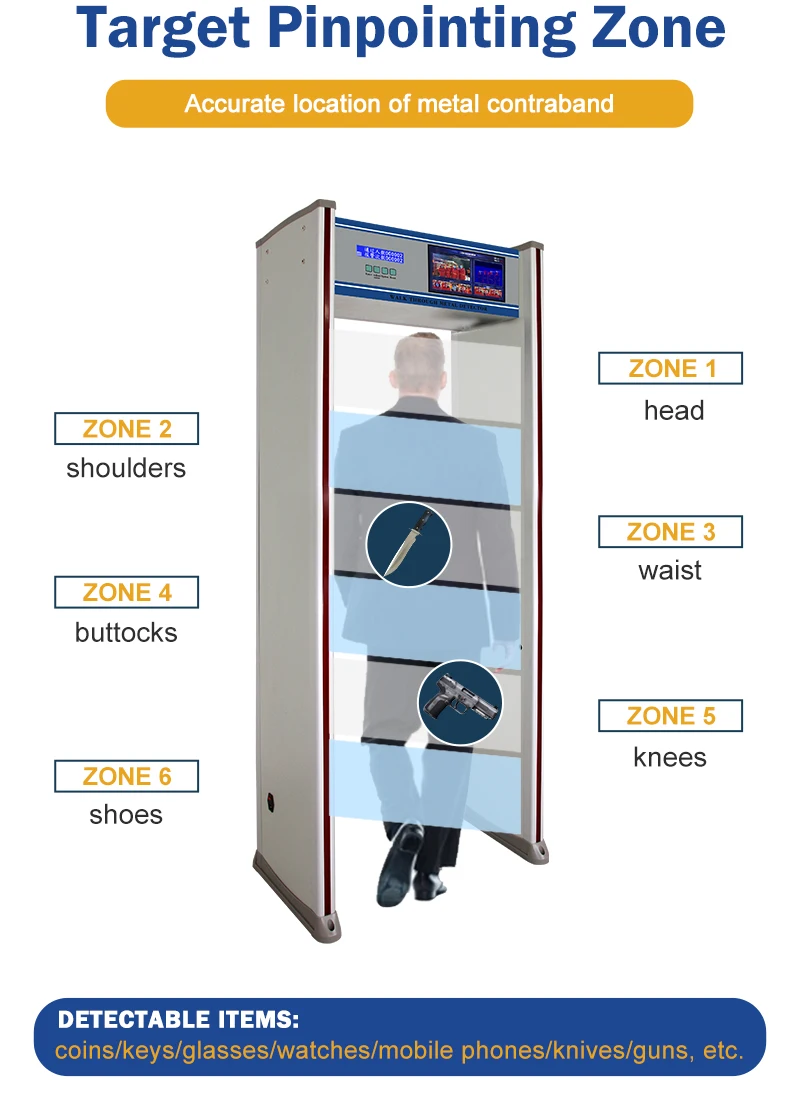

8.Metal Detection(option function): the metal weapon like knives, gun are pinpointed in each positions.
Company Profile
Company Profile
WHY CHOOSE US:
1. 15 years professional experience in manufacturing and exporting.
2. Have more than 15 years of professional and technical personnel in metal detection and safety products.
3. OEM, ODM accepted.
4. Low MOQ: It can meet your promotional business very well.
5. 100% Strict Quality Control, with own inspecting room.
6. Fast & Cheap Delivery: We have big discount from forwarder (Long Contract) beacause we delivery everyday.
7. Good Service: 24 hour hot line, service more swiftly.
Packaging & Shipping
Our Services
1.The OEM, ODM service are supported.
2.12 hours reply
Company Information

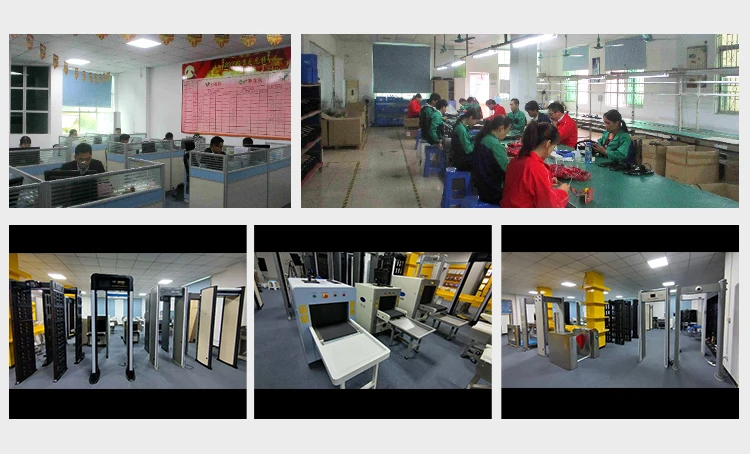

Junhong Electronic and Technology (Dongguan) Co., Ltd. established in 2 0 0 5, who has been specialized in research and development of measurement instruments for 16 years. Supplying various of products range: Body Temperature Measurement System, Walk through metal detector, hand held metal detector, industrial metal detector, check weigher, underground metal detector, X-ray inspection machine, etc. All products are conform to U S and E U standard.Junhong has its own fabrication company to lower the cost of mechanical parts, and we in turn extend this discount to the customer. Most of all, we buy primarily from China reliable vendors and manufacture. Assembling at our at our headquarters and branches gives us direct control over quality and improved manufacturing efficiency, all this we pass onto the customer in lead time, reliability and value. The Junhong team is comprised of experienced professionals that are experts in the field of security protection, and know it's markets, applications and products firsthand. We do not just want to sell you a machine, we want to be your go-to source for answers - including how to choose the appropriate products. We also supply operator training, operation tips and more. We sincerely welcome customers from both at home and abroad to cooperate with us to develop friendly and mutually beneficial business relationships for long term.
