Product Overview

Description

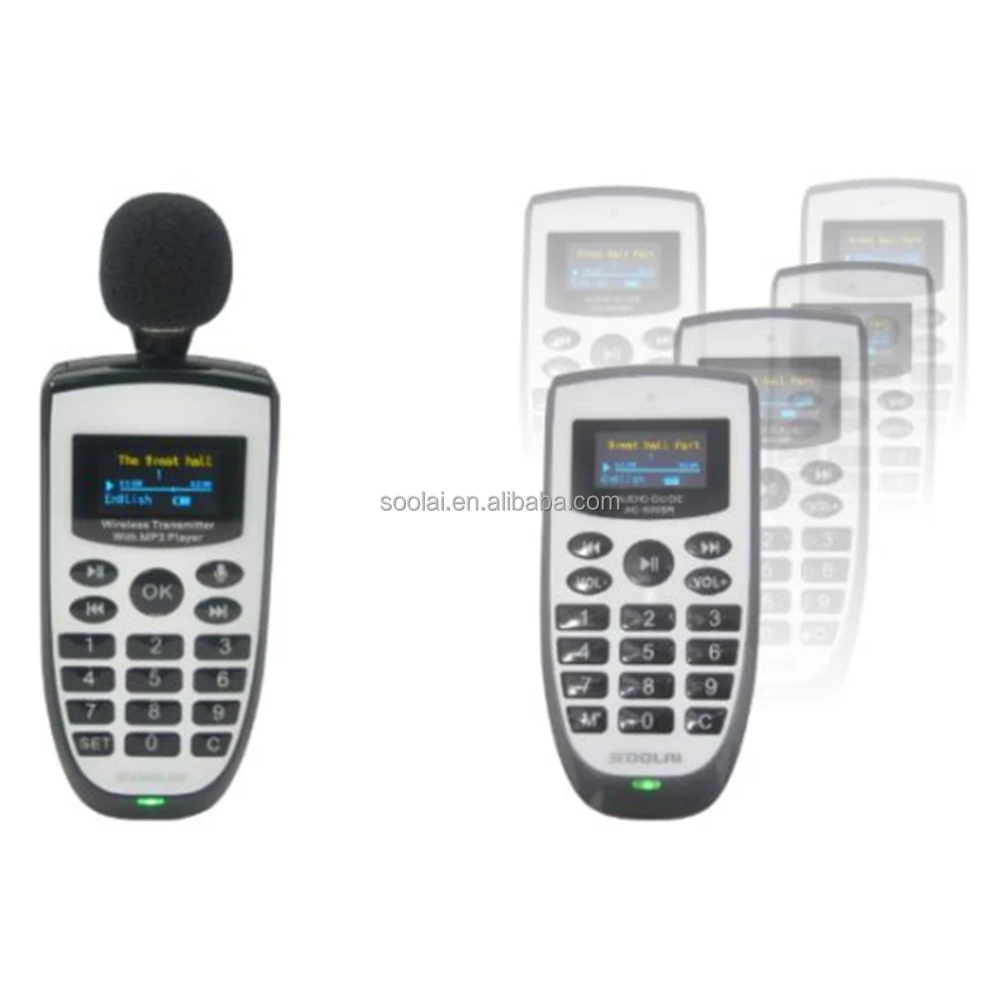

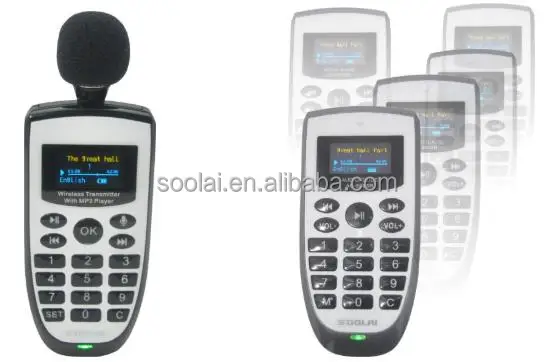

Audio Guide System with Tour Guide Function AG-600SR



----------------------------------------------------------------------------------------------------------------------------------------------------------------







Main Features

• Built-in wireless tour guide module,not only a audio guide system but also a wireless tour guide system,to support both individual and group tours.


• Wireless transmitter can remote control audio files playback,language switching,and shutdown of audio guide device.


• UHF band PLL synthesized design of tour guide module.


• High performance double-IF circuit design of tour guide module.


• Excellent anti-interference performance of tour guide module to ensure that multiple systems can be used simultaneously.


• SOOLAI's original "Digital Pilotone & Noise Lock" design of tour guide module.


• 31-level digital volume control of tour guide module which can be adjusted independently.


• Extremely high reception sensitivity of tour guide module, it can work more than 200m in open area.


• With user data statistics and analysis function,analyze the data of language,month,week,visiting time,scenic spot ranking,etc.


• Yellow and blue dual color OLED screen, 128*64 dot matrix.


• Welcome screen can be customized, which can be displayed as logo or text.


• Support audio files of MP3 format, 8-48KHz sample rate, 8-320kbps bit rate and VBR.


• Support 99 different languages,4096 audio files in each language.Language can be switched manually or wirelessly triggered.


• Object name display, support 173 languages.


• Support numeric keypad playback.

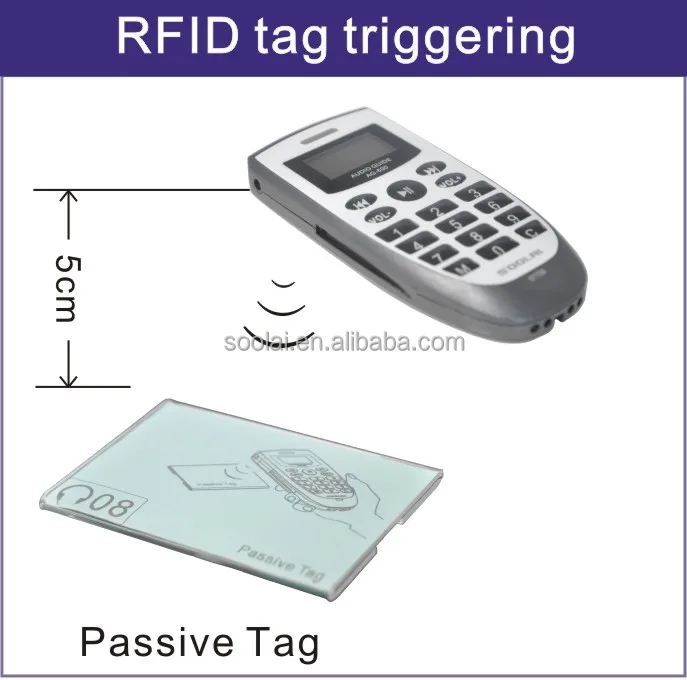

• Support RFID tag triggering playback within 0~5cm.

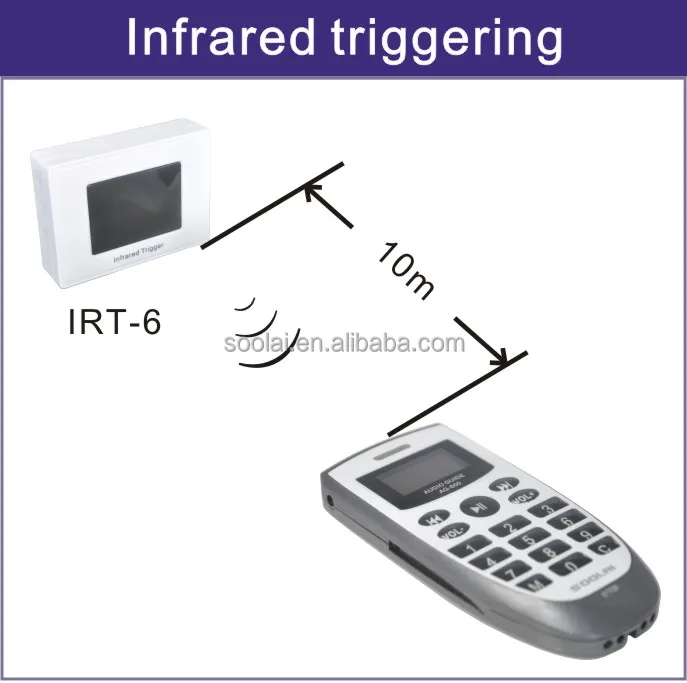

• Support infrared to trigger playback within 0~10m.

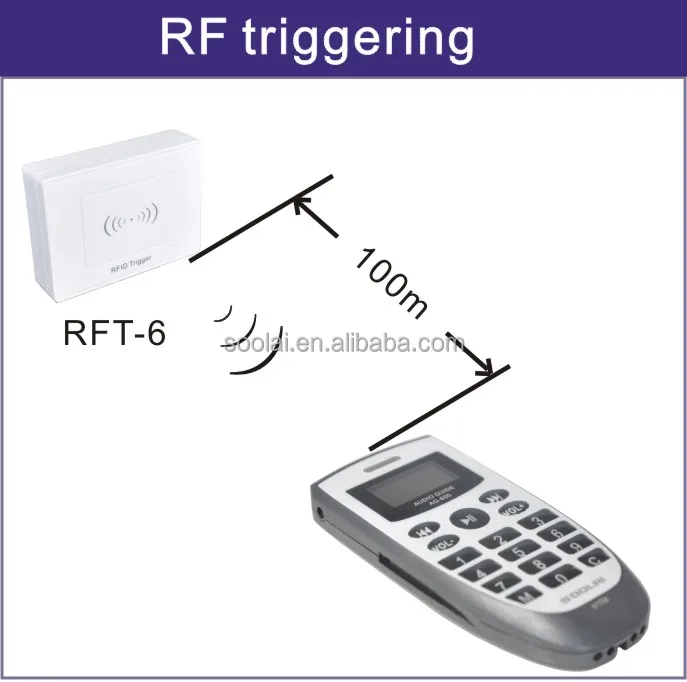

• Support RF signal to trigger playback within 0~100m.


• 32-level digital volume control of audio guide,and the maximum output volume can be locked.


• With play restriction and play times statistics functions, it is convenient for rental management.


• The latest three triggered audio files can be replayed.


• Play background music automatically when trigger playing ended.


• Can vibrate and buzz when triggering.


• With anti-theft alarm function.


• With Audio-video synchronization function, the visitors will hear the audio that is synchronized with the currently playing video screen in their needed language.


• Battery level of RF trigger and infrared trigger can be shown on audio guide.


• The charger adopts 2U rack design, it is compatible with 19 inch standard server network cabinet assembly.


• The parameters of audio guide is set by a special wireless decoder to avoid the visitors to change it.


• A special uploader can be match used with uploading software is convenient for updating the audio files of multiple audio guide devices simultaneously.


• Extra audio files control function. To achieve more functional application through editing the simple command for audio files.


• One audio guide can store 224 visitors' data,there is no need to export the data every day,data can be exported once every 2-4 months.


• Import the user data of audio guide to computer through wireless communication.


• Audio guide can be charged while exporting user data.


• User data export master can automatically connect to 256 pcs of user data export charger, user data data of 3072 pcs of audio guide can be exported,each audio guide can store 224 visitors' data, it can import more than 680,000 visitors' data once.

----------------------------------------------------------------------------------------------------------------------------------------------------------------









System Composition

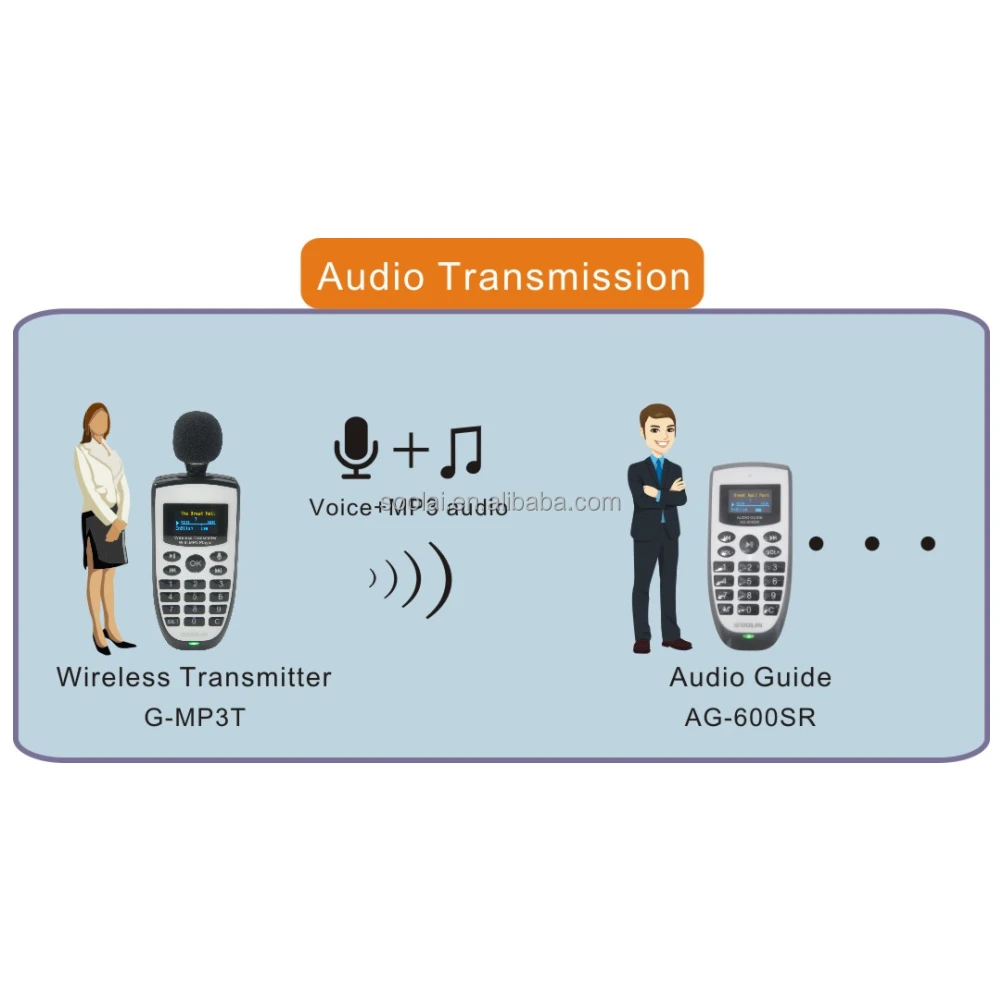

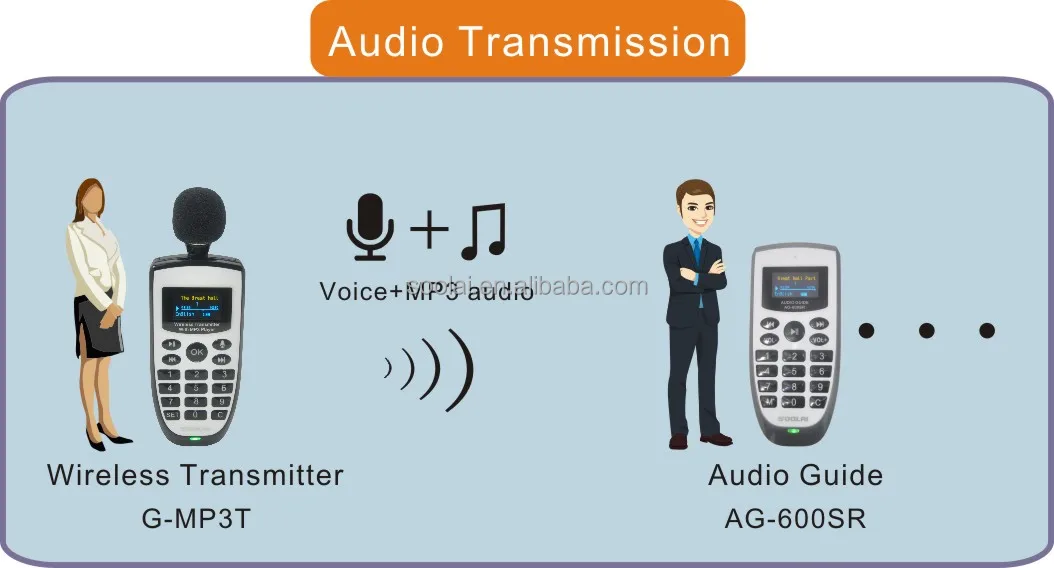

1. The voice of interpreter is transmitted through wireless transmitter to the audio guide device.


2. The built-in MP3 files in wireless transmitter can be played manually and sent to audio guide.

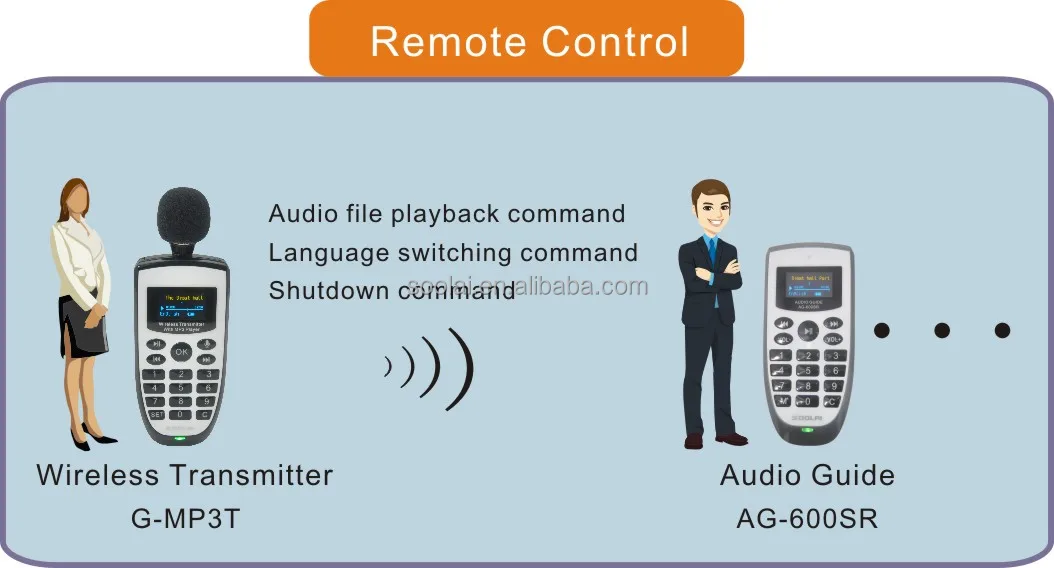

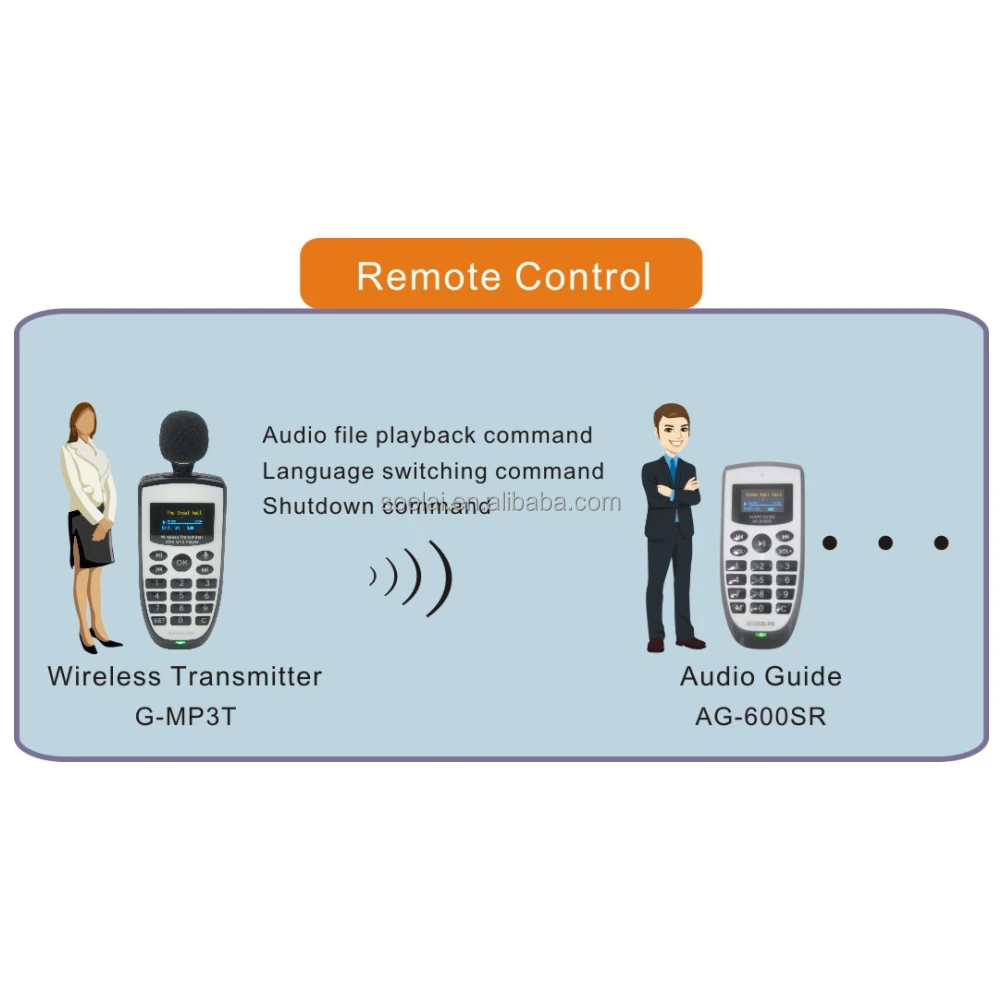

3. Wireless tranmitter has remote control function,it can remote control the playback,language switching,and shutdown of the audio guide device.

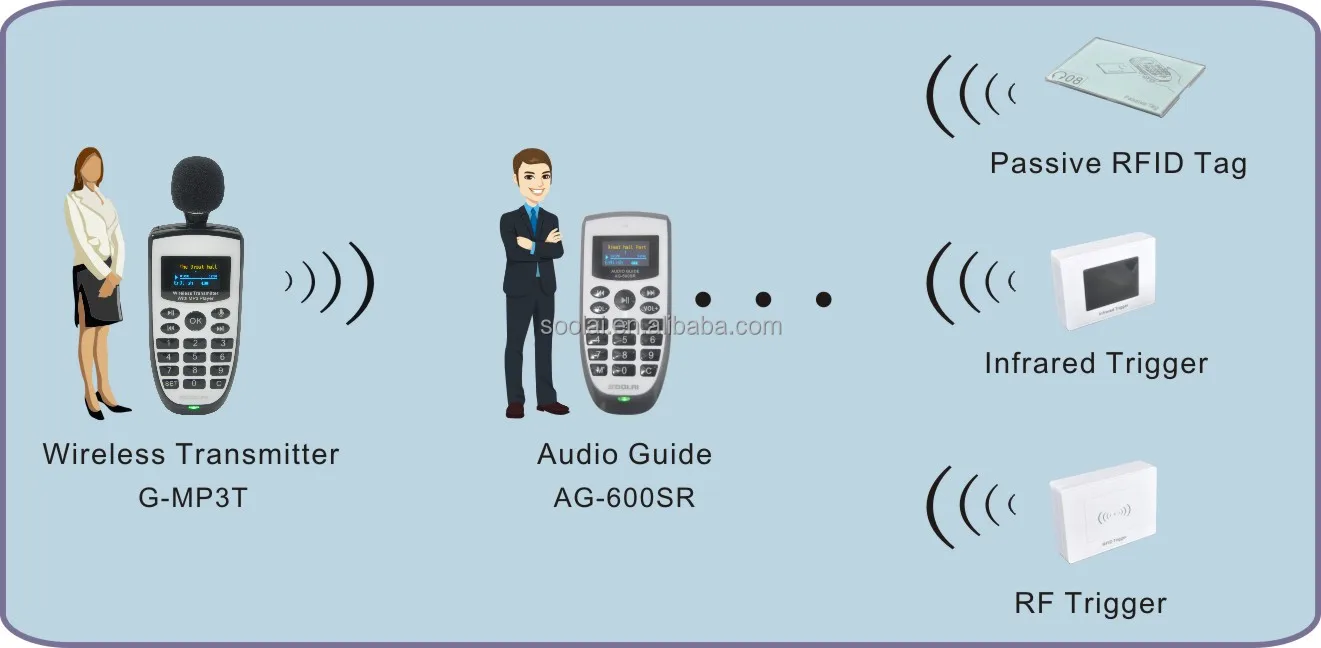

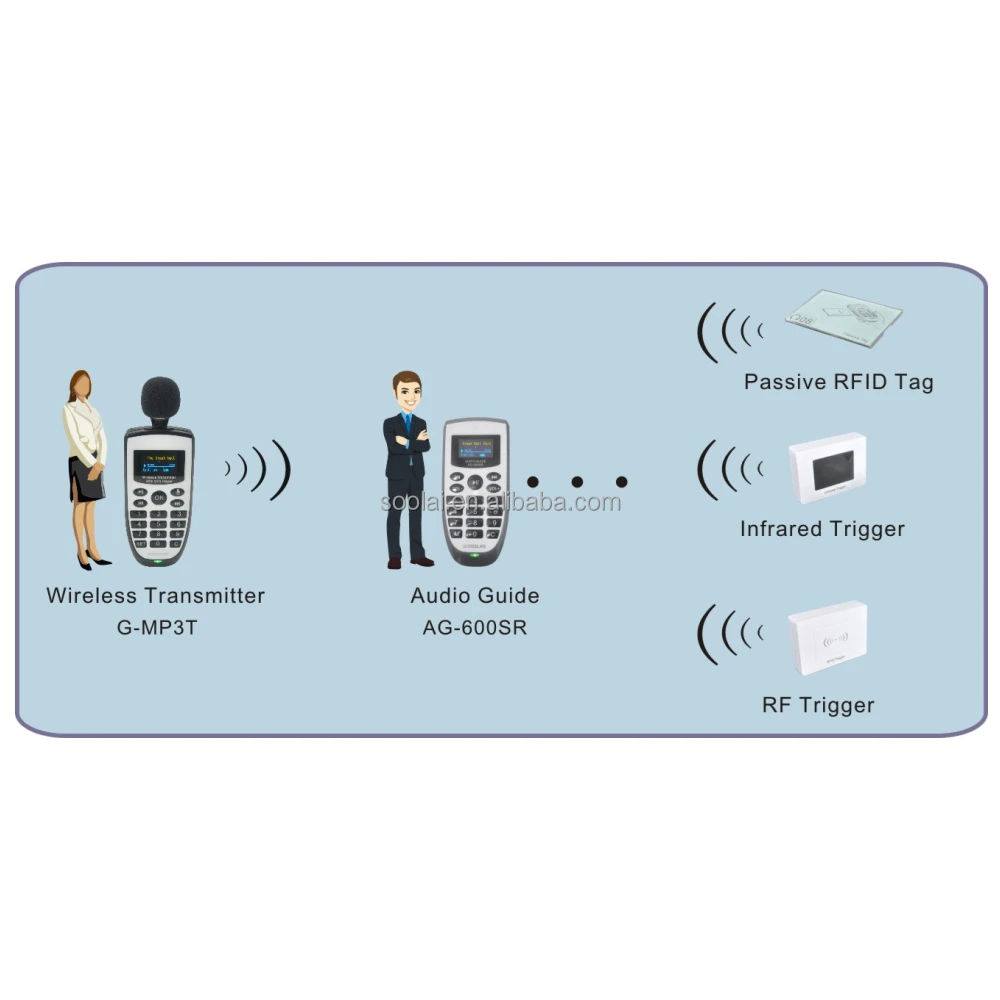

4. Audio guide has built-in MP3 files,it can manually play through keypad or trigger automatically play by Passive RFID tag,Infrared trigger and RF trigger.

----------------------------------------------------------------------------------------------------------------------------------------------------------------











Application of Wireless Transmitter



Wireless transmitter can play built-in MP3 files while speaking,or MP3 Audio will be paused automatically when interpreter is speaking.		Wireless transmitter can transmit remote control commands to control audio guide to perform corresponding operations.



----------------------------------------------------------------------------------------------------------------------------------------------------------------











Triggering Applicaiton of Audio Guide

Passive Tag L45A	Infrared Trigger IRT-6	RFID Trigger RFT-6
Activate range:0~5cm	Range:0~10m,4 steps adjustable	Range:0~100m,16 steps adjustable
NO power supply	Battery:AA alkaline battery 1.5V*2	Battery:AA alkaline battery 1.5V*2
	Battery life:>15 months (measured)	Battery life:>3 years (measured)



---------------------------------------------------------------------------------------------------------------------------------------------------------------

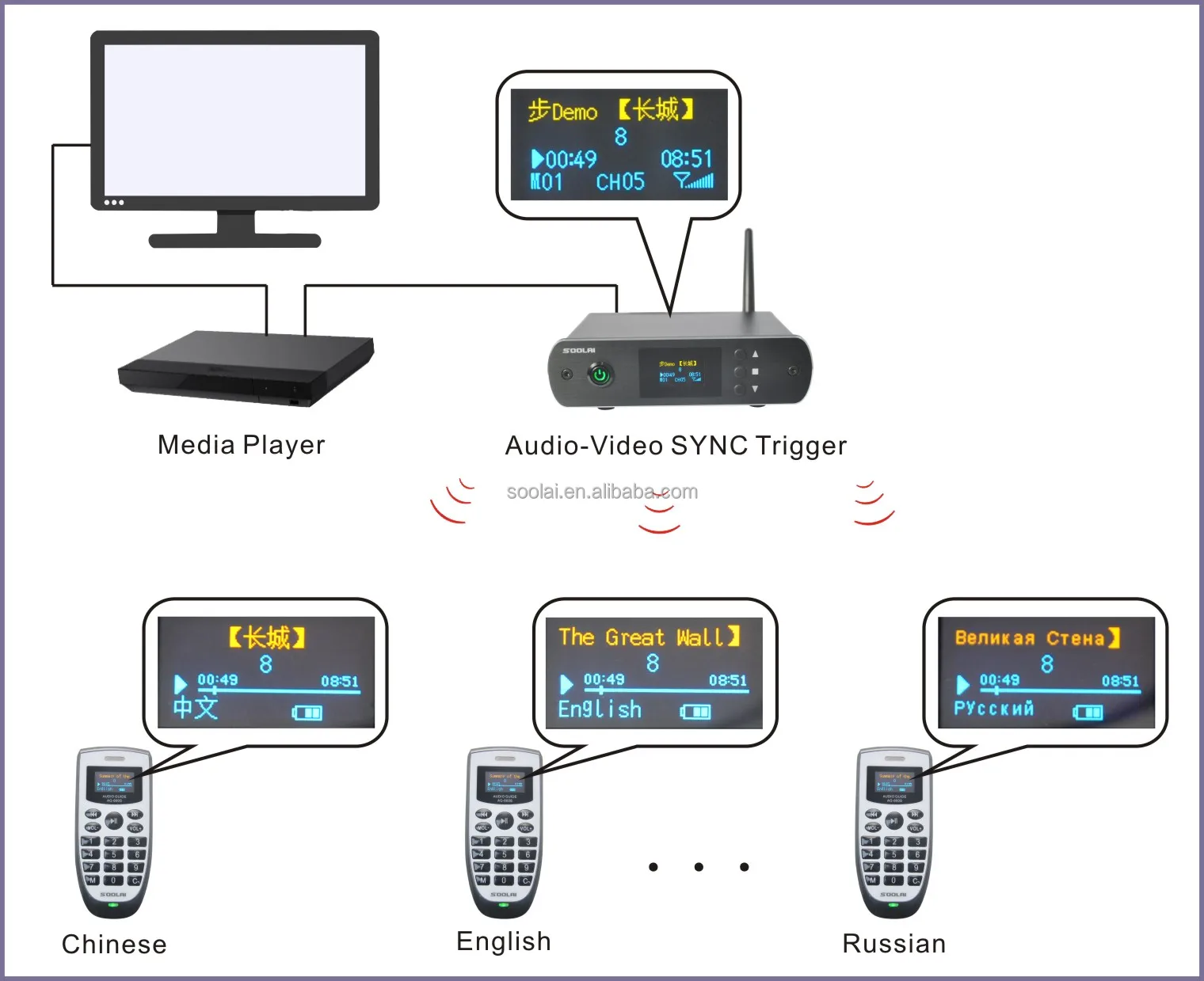

Audio-Video SYNC Application of Audio Guide

	Direct trigger: When visitors bringing audio guide into trigger area, audio guide can automatically play the audio that is synchronized the video screen.   Indirect trigger: When visitors bringing audio guide into trigger area,audio guide must trigger the MP3 file of current playing video first,then can automatically play the audio that is synchronized with the video screen.
	Audio guide can switch audio-video sync channel automatically to solve frequency interference problem.



----------------------------------------------------------------------------------------------------------------------------------------------------------------

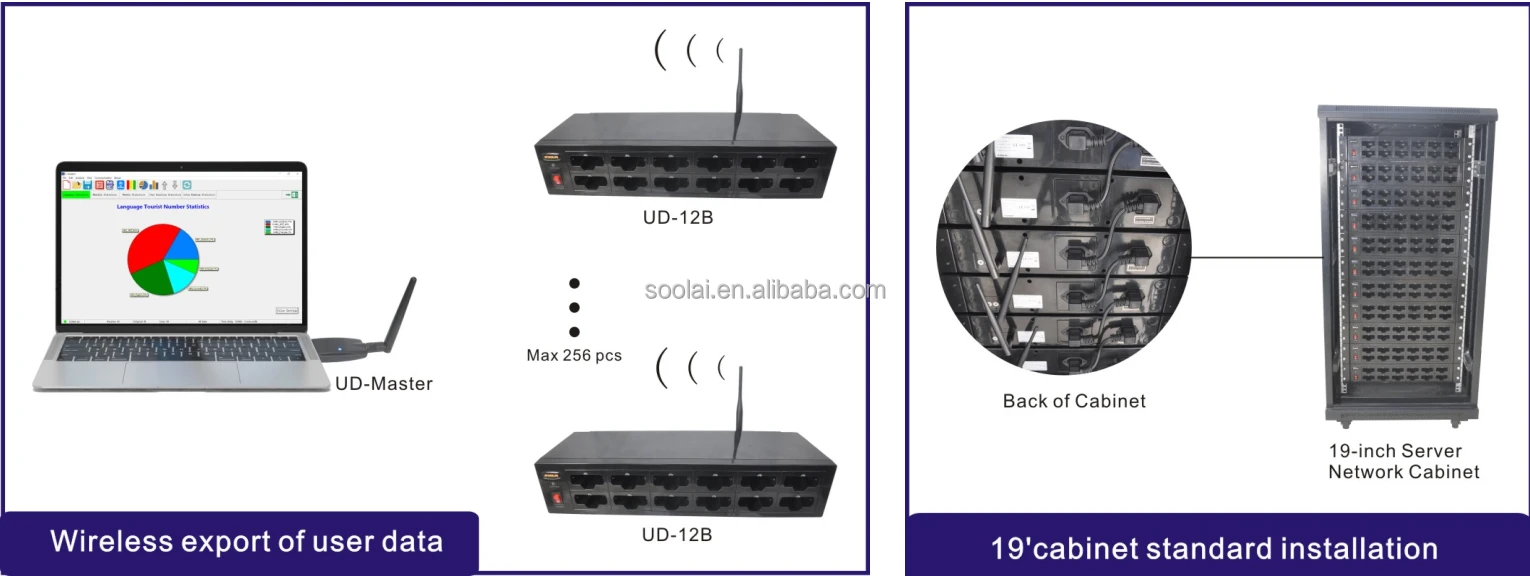

User Data Exporting and Charging

1. Import the user data of audio guide to computer through wireless communication.


2. Export the user data while charging, audio guide device automatically turn on when exporting the user data, and automatically turn off after exporting completed.


3. UD-Master can automatically connected to 256 pcs of UD-12B, user data of 3072 pcs of audio guide can be exported, each audio guide can store 224 visitors’ data, it can import more than 680,000 visitors’ data at one time.



----------------------------------------------------------------------------------------------------------------------------------------------------------------

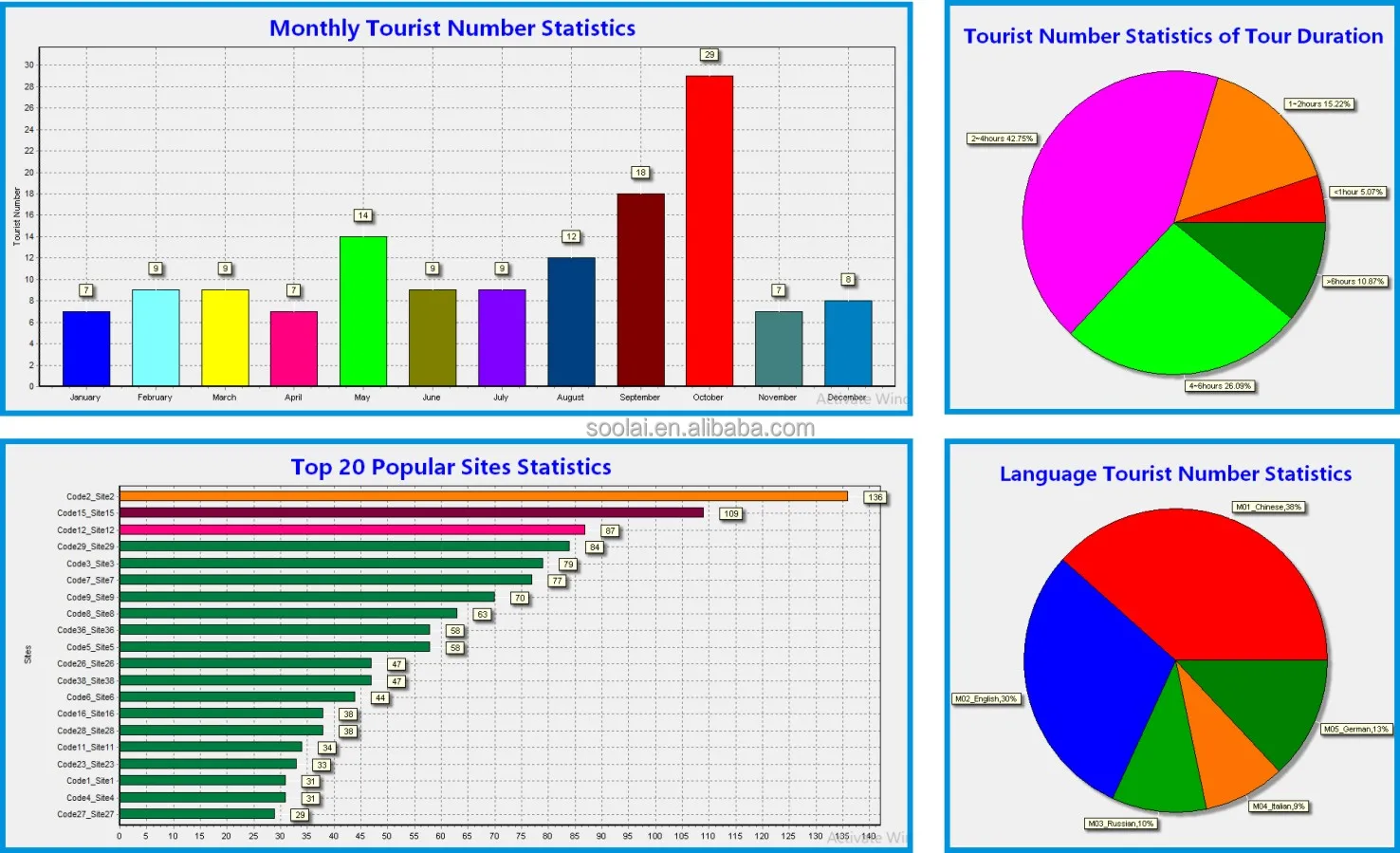

User Data Analysis Software S-Analyst



---------------------------------------------------------------------------------------------------------------------------------------------------------------













System Specifications



Wireless Transmitter(G-MP3T)

Audio Guide(AG-600SR)



RF frequency	UHF846~870MHz/863~865MHz	UHF845~875MHz
Oscillation type	PLL Synthesized
Tunable channels	38 Fixed channels+32 User channels

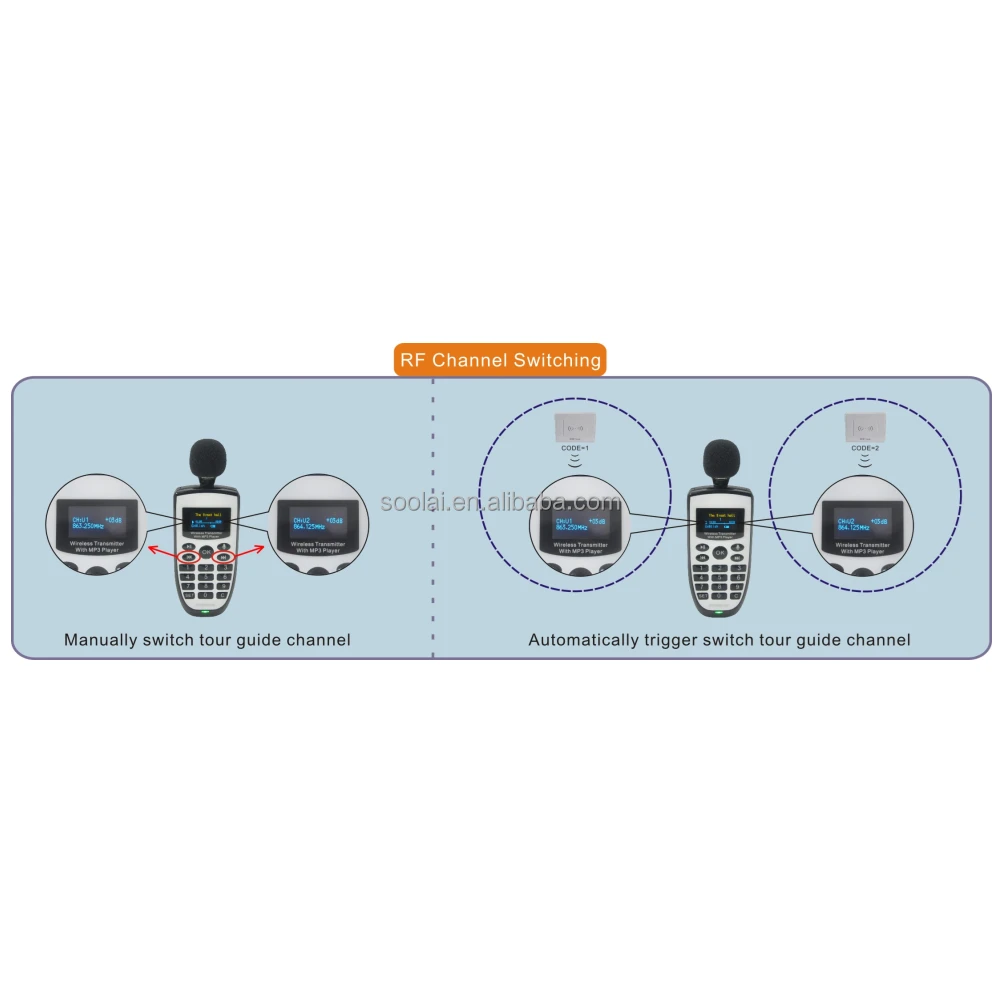

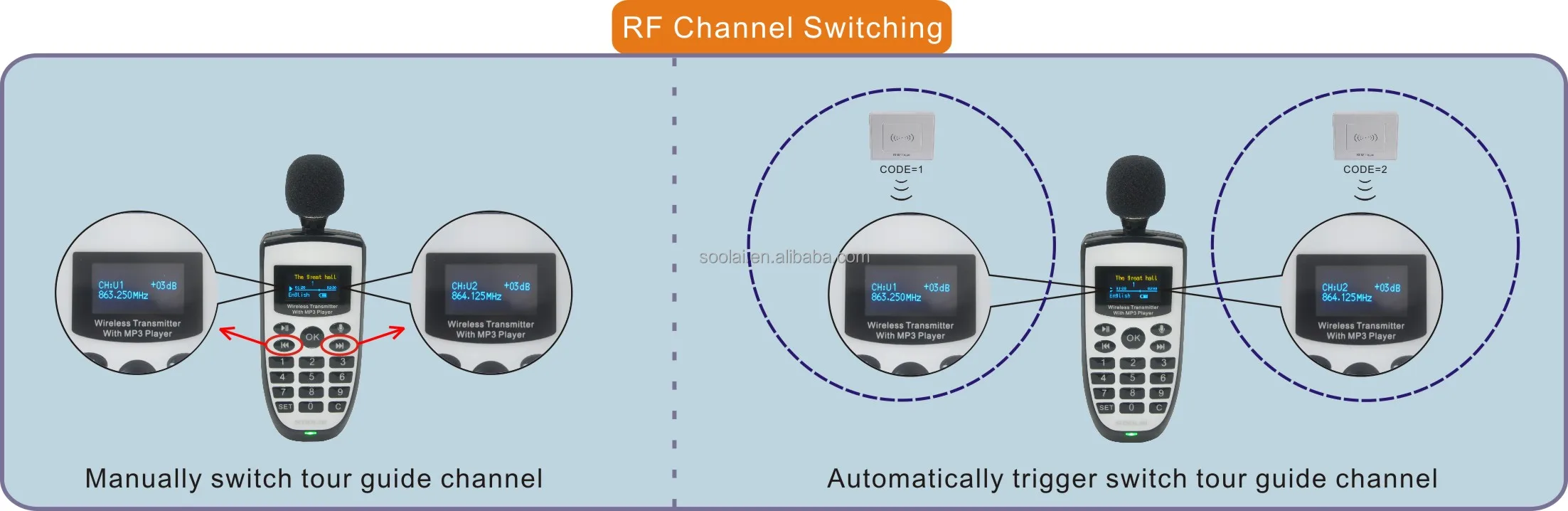

Channel setting & s witching	Manually select+RFID trigger control	Wireless transmitter remote control
Frequency bandwidth	24MHz/2MHz	30MHz
Tunable steps	25KHz
Frequency stability	±0.005%(0~50)℃
Modulation	FM±45KHz deviation, compander system with pre-and de-emphasis
RF power output	20mW	—
Harmonic suppression	>50dB	—
Built-in microphone	φ9.7mm,Uni-directiona	—
External microphone	Support,3.5mm connector(Tip)	—
Microphone gain	Microphone gain	—
RF sensitivity	—	2uV(60dB S/N)
Antenna	Built-in antenna	External headphone cable is antenna
Intermediate frequency	—	Double-IF 110.6MHz/10.7MHz
Tour guide module SNR	>80dB(A)
Total harmonic distortion	<0.8%@1KHz ±45KHz modulation degree
Operating range	>200m(Environment dependent)
MP3 file format	8~48KHz sample rates,8~320 kbps bit rate
Memory capacity	4GB(Optional 8GB,16GB,32GB)
Multi-language	99
Tracks number	4096(per language)
Object name display	Support multi-language title display
User data analysis	Language,month,week,visiting time,scenic spot ranking
User data storage	—	224 users
Playback control	Play/Pause,Previous/Next Fast,Forward/Rewind
Numeric keypad playback	Support
RF trigger playback	2.4GHz,0~100m (16 levels adjustable)
Infrared trigger playback	—	38KHz,0~10m (4 levels adjustable)
Passive RFID tag playback	—	13.56MHz,14443A standard (0~5cm)
Remote control playback	—	Support
Audio output	3.5mm earphone socket(Ring)	3.5mm stereo connector
Volume control	32 levels electronic volume control	Separate 32 levels audio guide/tour guide
Anti-theft alarm	—	Support
Audio-Video SYNC	Support
Screen display	128*64 dot matrix,OLED double color
Frequency response	50~18000HZ
Signal-to-noise ratio	96dB
Power supply	Built-in lithium ion battery,3.7v/1020mAh
Operating time	Built-in lithium ion battery,3.7v/1020mAh
Operating temperature	-10~60℃
Dimension	138*49*16mm	110*49*16mm
Weight	75g(including battery)	65g(including battery)





----------------------------------------------------------------------------------------------------------------------------------------------------------------













Optional Accessories

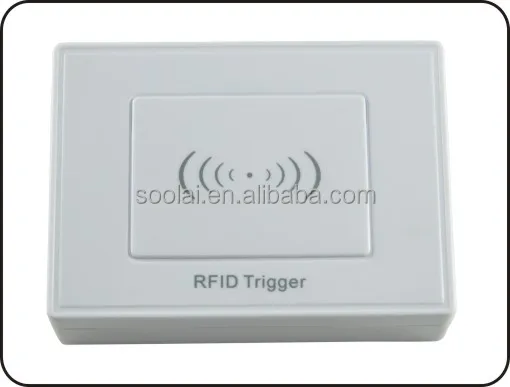

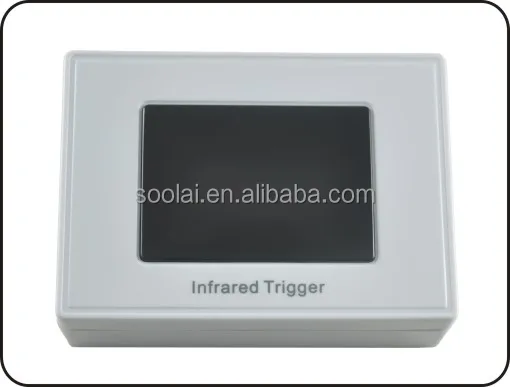

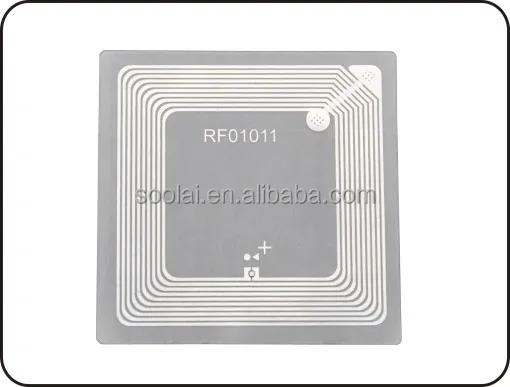

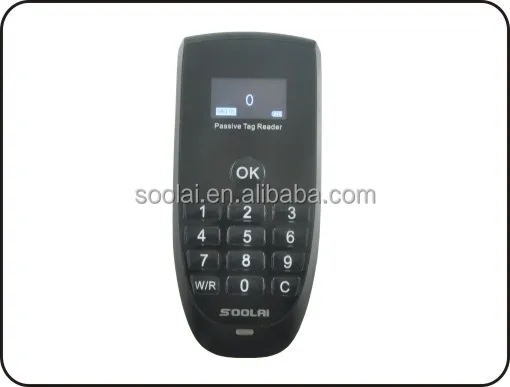

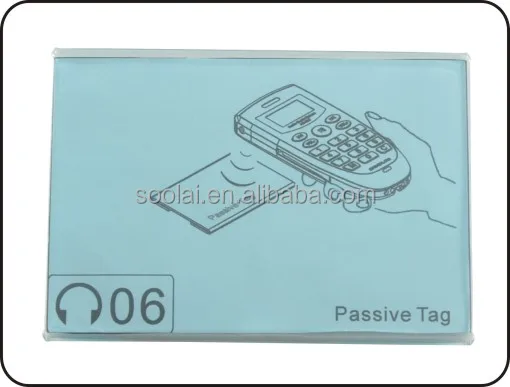

RFT-6 RFID Trigger	IRT-6 Infrared Trigger	L45A / B Passive Tag	K96 Display Card	EW100 Passive Tag Reader

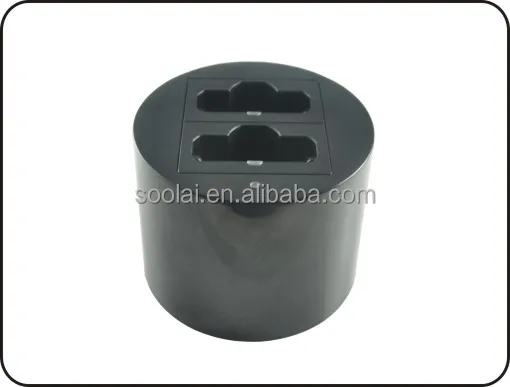

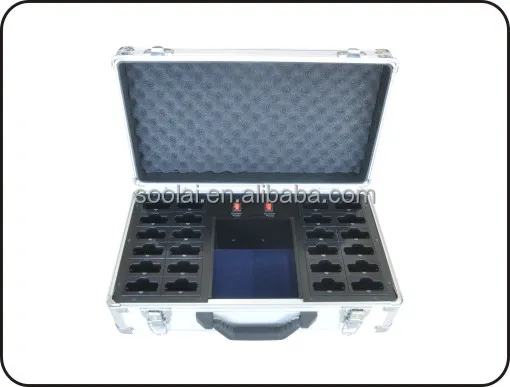

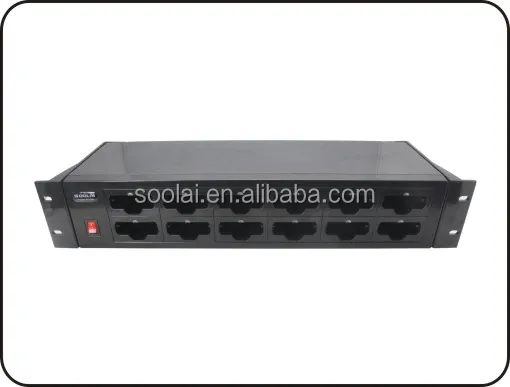

WD-600 Wireless Decoder	AVT-8 Audio-Video Trigger	SC-02B 2-Slots Charger	SC-12B / SU-12B 12-Slots Charger/ 12-Slots Charger/	SCB-24BD 24-Slots Charging/ Disinfection Case
