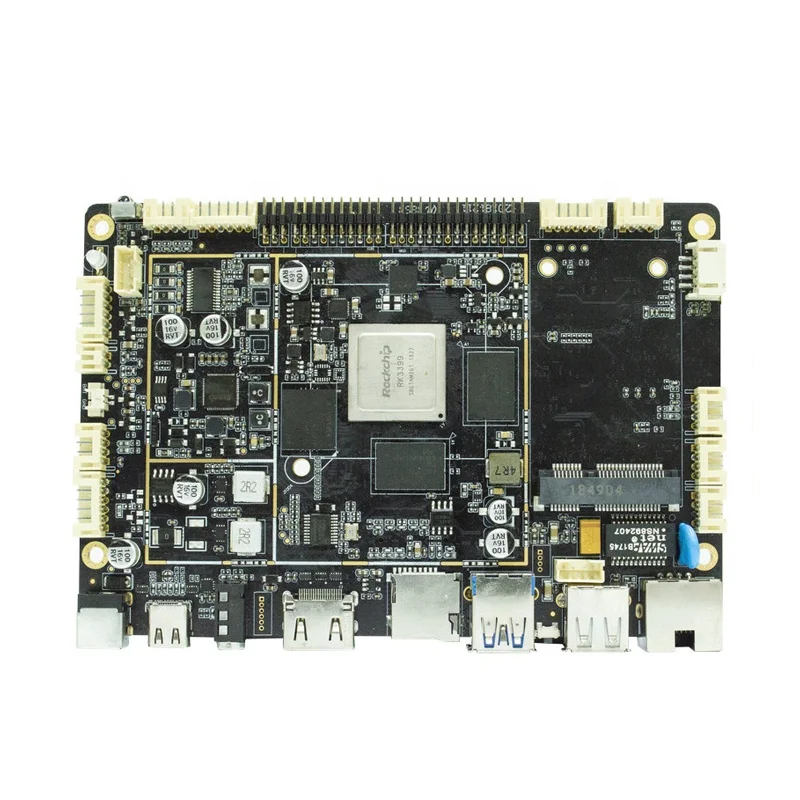

CPU | Rockchip RK3399 dual core Cortex-A72+ quad core Cortex-A53 CPU |
GPU | ARM Mali-T860MP4 GPU |
Deposit | LPDDR4 4G |
Built-in storage capacity | EMMC 8GB/16G/32G/64G optional (labeled 16GB) |
Display interface | LVDS interface (single, 6-bit dual, 8-bit dual). Supports a maximum resolution of 1920x1080,support 7"-84" display |
EDP screen interface, support resolution 1920x1080 | |
Screen voltage | Support 3.3V/5V/12V optional |
Network | With RJ45 interface, support 10/100/1000 Ethernet |
Support 4G PCIE interface | |
With Wifi & BT module, support Wi-Fi 802.11a / b / g / n / ac protocol. Support BT4.0 | |
Image rotation | Support 0 degree, 90 degrees, 180 degrees, 270 degrees manual / automatic rotation, support gravity sensing function |
Real Time Clock | External real-time clock power supply battery |
Interface device | Support USB camera |
5 USB HOST | |
SD card, maximum support 64GB | |
Class D amplifier: 5W*2 8 ohms, support microphone | |
Audio | MP3, WMA, WAV, APE, FLAC, AAC, OGG, M4A, 3GPP format |
Video | Supports 2160P@24FPS decoding of H.264, MPEG2, VP6, VP8, MVC and other video formats. Online videos such as YouTube, up to 4K, HTML5 video playback, Flash 10.1 playback |
Picture | Support JPG, BMP, PNG, GIF and other image formats to browse and support rotation / image enlargement |
Power Adapter | Input:AC100-240V.50-60HZ, Output: DC12V 3A |
