Kamoer KLP180 12V 24V DC Low Noise Mini Electric Diaphragm Water Liquid fluid transfer membrane pump
- Category: Tools & Hardware >>>
- Supplier: Kamoer Fluid Tech (shanghai) Co. Ltd.
Share on (1600512262018):
Product Overview
Description

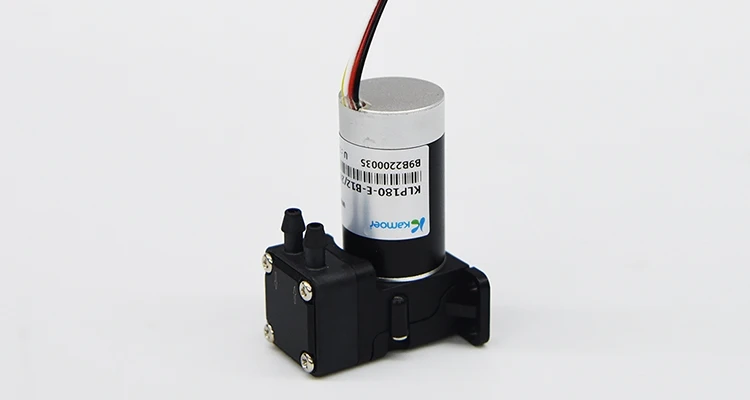

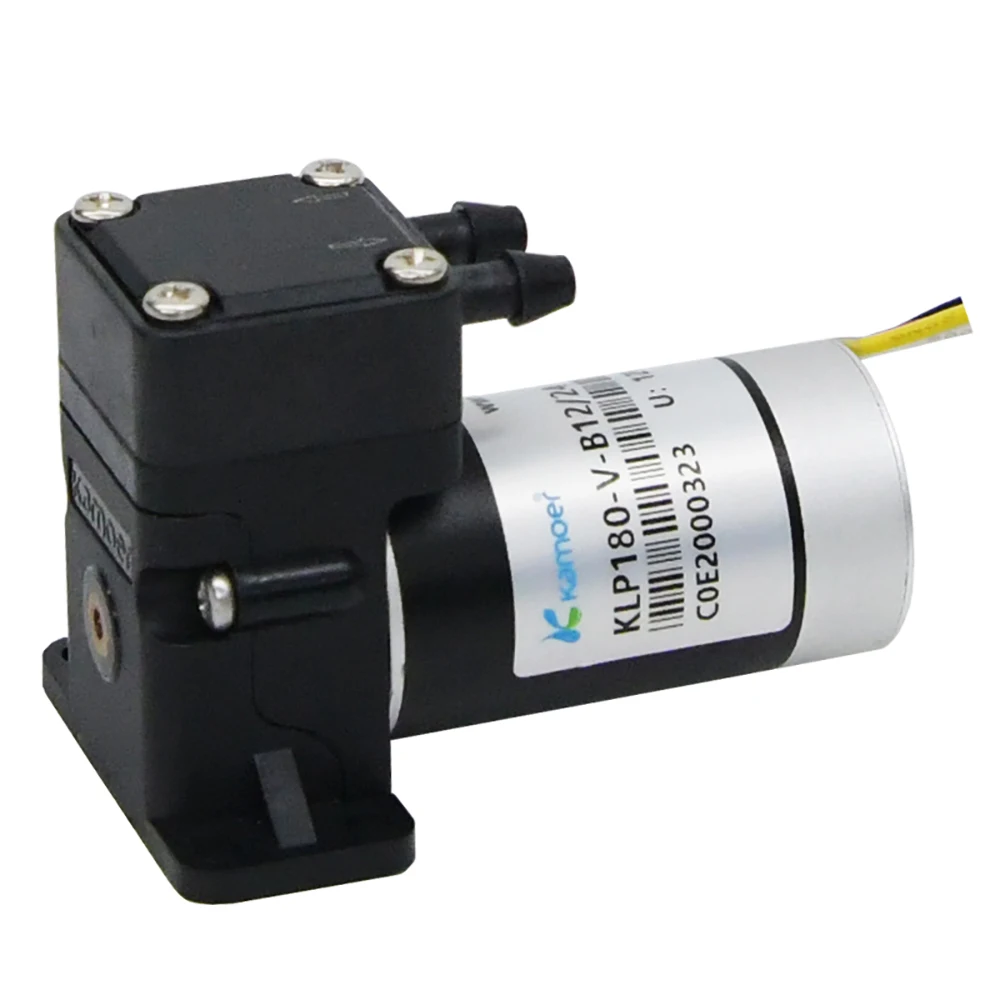

Kamoer KLP180 Mini 12V 24V Diaphragm Pump
Liquid Transfer
KLP180 Diaphragm pump
Small and power, strong and durable
KLP180 mini diaphragm liquid pumps are designed out of volume pumps. They are suppiled with brushless motor. The diapragm in the pump moves forward and
backward so to generate the force to input or outputthe inside liquid.
Application
Medical,Laboratory,Pumping flux,Dental machine,Inkjet , Washer
Features
Exquisite workmanship, durable structure
Small and power
Drying run/ durable/ Chemical stabilization
Long-life DC brush motor

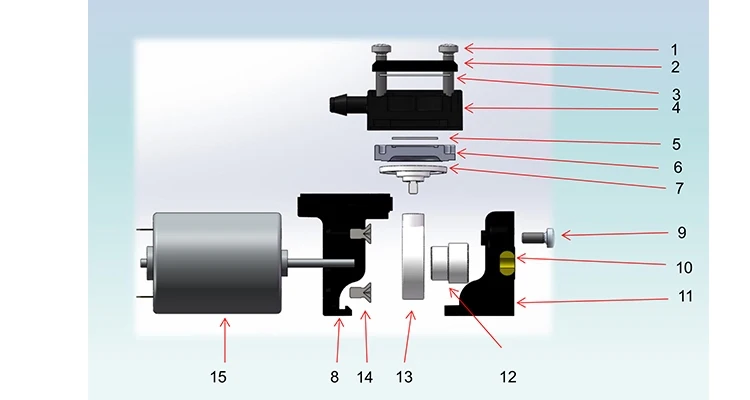

KLP180 Structure Description
1. Screw(metal) 2. Upper cover(Powder metallurgy) 3. Gasket(EPDM/PTFE)
4. Upper valve plate(PPS) 5. Valve(EPDM/V) 6. Lower valve plate(PPS)
7. Diaphragm(EPDM/V) 8. Pump body(PA6) 9. End cover screw(metal)
10. Oil bearing(Copper matrix)11. Back cover(PA6) 12. Eccentric wheel(aluminum)
13. Bearing positioning ring(NSK/NMB) 14. Pump body screw(metal) 15. Motor(Ferrite)
Brushless motor wire sequence description:
1. Red wire positive; black wire negative; white wire speed control wire; yellow feedback wire; positive and negative pole reverse connection protection function.
2. Two speed regulation modes: PWM and 0-5V. Speed adjustment range: 1500-4200rpm. PWM frequency 10KHZ-30KHZ, volt value: 5V.
3. Yellow line speed feedback, connect oscilloscope probe or host computer. 1 pulse/revolution
4. The global uniform speed, the red wire and white wire are connected to the positive pole of the power supply, and the black wire is connected to the negative pole.
Company
Our Services
Why choose us:
-Kamoer Fluid Teach(Shanghai)Co.,Ltd is a professional manufacture for ride on micro pump.
-We have obtained ISO,RoSH certificate and become a assessed supplier by Alibaba.
-Kamoer has developed into a powerful and high-tech company through precise market orientation, superior quality, competitive price and dedicated service,and we has owned design team.
-Our products are selling all over the world.
-Kamoer has professional production process
-We have top sales team, R&D team,QC team , PMC team and logistic team.
-Professional and flexible product service
-Delivery on time
-Experiential selling service
-Welcome to visit our factory,
-Contact us now to get the latest price .
-We will reply you at the first time.
FAQ
1) Q:What is the minimum order?A: The MOQ as 1 piece.
2) Q:What payment methods your company accept?A:We accept most ofthe payment methods,but mainly accept T/T,L/C,Western Union,Paypal and MoneyGram.
3) Q:How long is the warranty time for your products?A:Our officially promised warranty time is one whole year after delivery at best.
4) Q:Do you give any discount ?A:I'll surely try my best to help you get those by the best price and good service at the same time.
5) Q:I would like to ask you if it's possible to have my logo on the product.A:We hope you know that our company Kamoer perfectly support customized logo service. But, we also hope you know that it's an extraservice,so a little bit extra service fee is needed.
