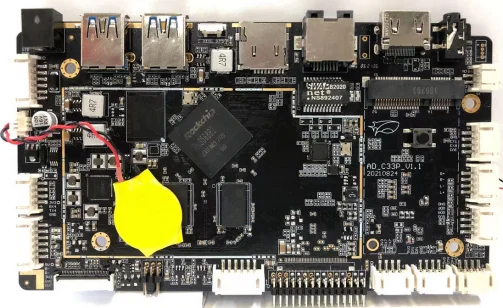

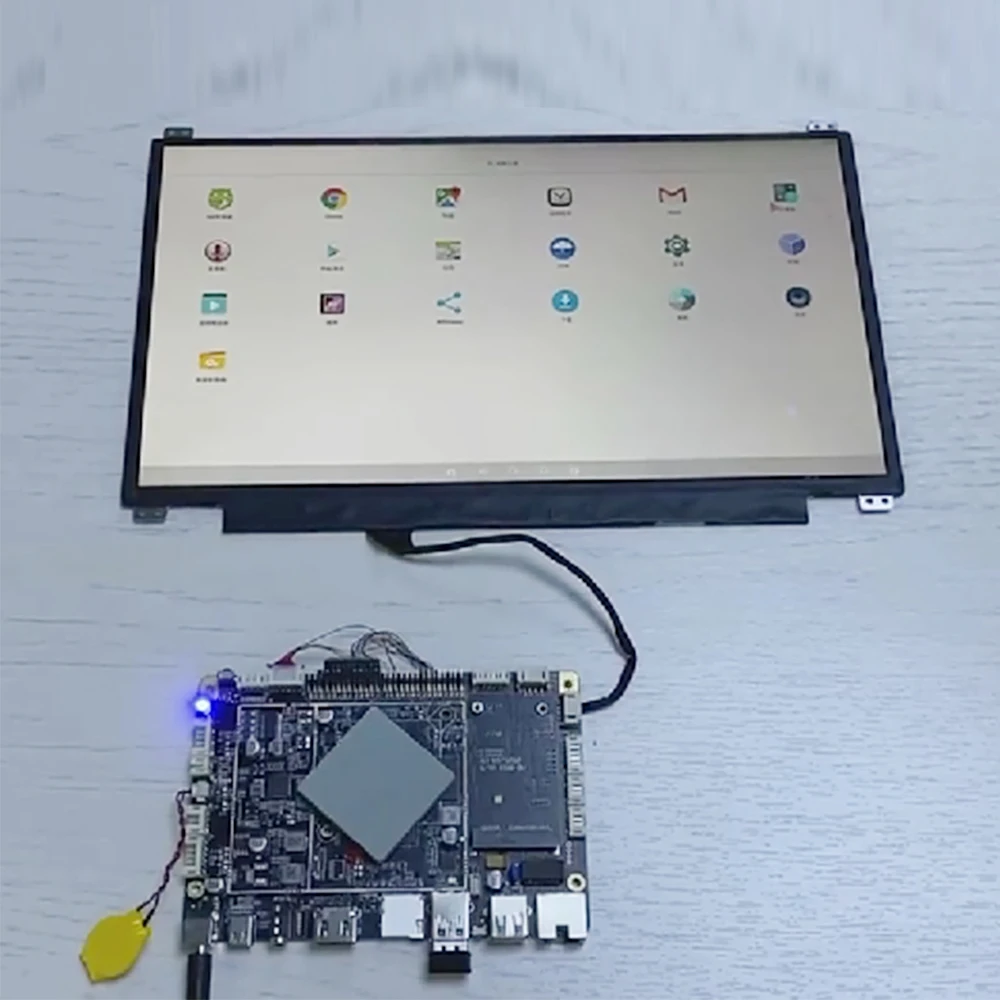

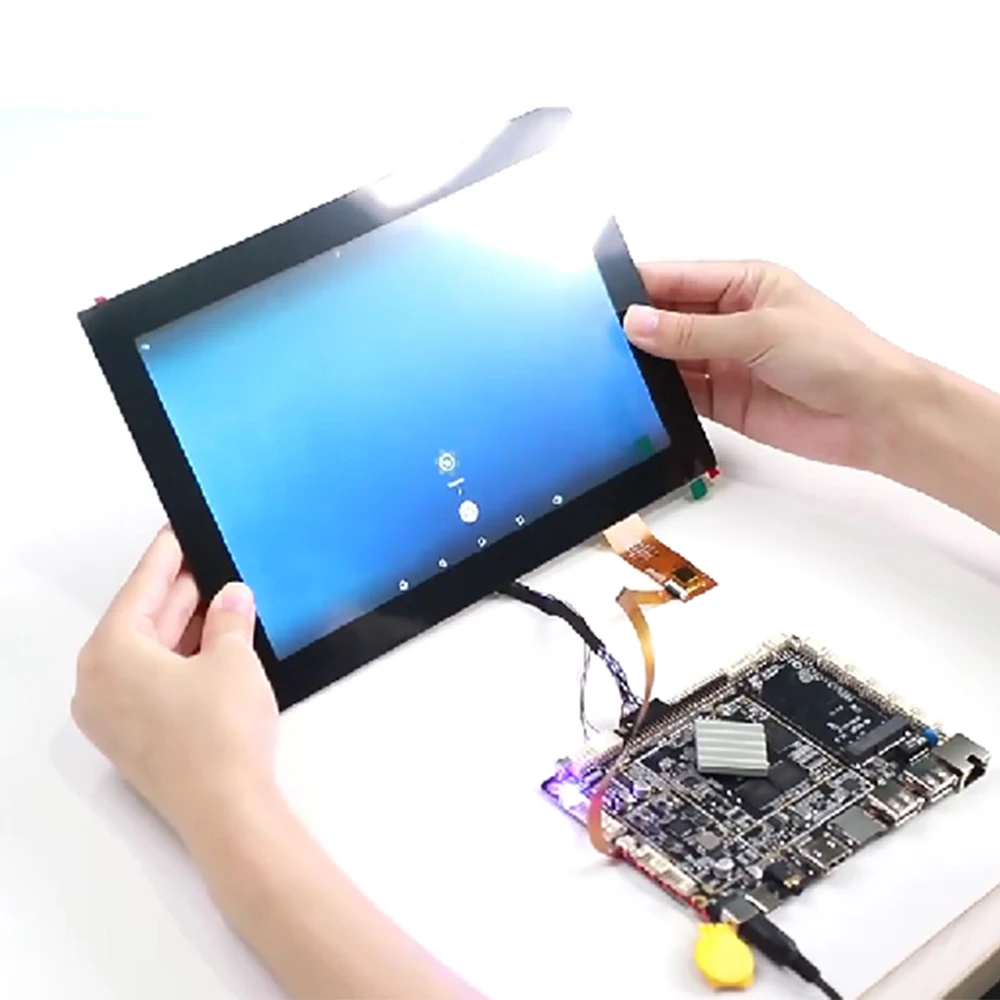

10.1 digital signage LCD kit RK3568 android board touch screen advertising player
- Category: >>>
- Supplier: Shenzhen Sunchip Technology Co. Ltd.
Share on (1600512271301):
Product Overview
Description
Product Description
Specification
CPU | Rockchip RK3568 quad-core 64-bit Cortex-A55, GPU Mali-G52 |
Main frequency | Up to 2.0 GHz |
RAM | DDR4 2G/4G optional |
Built-in storage capacity | EMMC 8GB/16G/32G/64G optional (label 16GB) |
Display interface | LVDS interface (single-channel, 6-bit dual-channel, 8-bit dual-channel). Support maximum resolution 1920x1080, support 7"-84" display |
MIPI interface | |
EDP interface | |
Screen voltage | Support 3.3V/5V/12V optional |
Touch screen | Provide I2C interface (can support multi-point resistive touch, multi-point capacitive touch). Support USB multi-point infrared touch, multi-point acoustic wave touch, multi-point optical touch. |
The internet | With RJ45 interface, support 10/100/1000M Ethernet. |
Equipped with Wifi&BT module, supporting Wi-Fi 802.11b/g/n protocol. Support BT4.0 | |
Image rotation | Support 0 degree, 90 degree, 180 degree, 270 degree manual/auto rotation, support gravity sensor function |
Real Time Clock | External real-time clock power supply battery |
Interface device | Support MIPI interface camera, up to 500W pixels |
4 USB HOST, 1 USB OTG (support usb camera@500W usb printer, U disk, mouse, keyboard, standard usb peripherals) | |
3 groups of serial ports. Support external serial device module (NFC module, printer, card reader, etc.) | |
TF card, maximum support 32GB | |
Class D power amplifier: 3W*2 8 ohms, support microphone | |
HDMI 2.0 output | |
Audio | MP3, WMA, WAV, APE, FLAC, AAC, OGG, M4A, 3GPP format |
Video | Support 4K 60fps H.265/H.264/VP9 video decoding. Support 1080P 100fps H.265/H.264 video encoding. Support 8M ISP, support HDR. |
Picture | Support JPG, BMP, PNG and other image format browsing and support rotation/slide show/picture zoom function |
Power Adapter | Input: AC100-240V.50-60HZ, output: DC12V 3A |
Please contact me for more technical supports!
