NanXiang Mass Transfer pall ring Tower Packing PP Pall Ring plastic 16mm 25mm 38mm 50mm 76mm 100mm pall ring
- Category: >>>
- Supplier: Pingxiang Nanxiang Chemical Packing Co. Ltd.
Share on (1600512323306):
Product Overview
Description
Video Presentation
Product Description

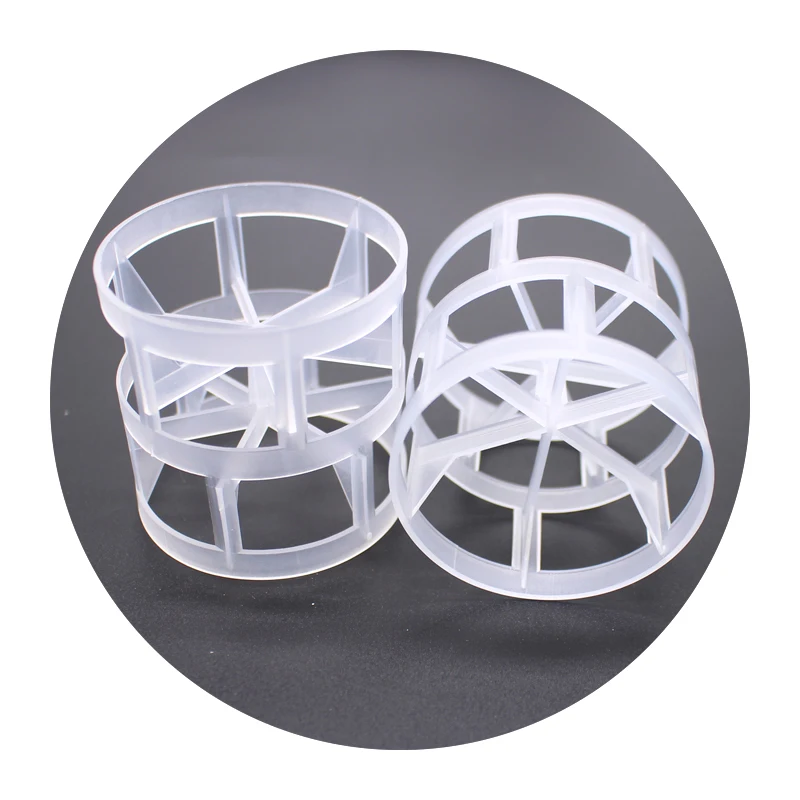

Mass Transfer pall ring Tower Packing PP Pall Ring plastic 16mm 25mm 38mm 50mm 76mm 100mm pall ring
Plastic Pall Ring packing is a high hole diameter equal to the packing ring, each window there are five tongue leaves, each leaf
tongue ring in turn point to heart, upper and lower levels of the location of the opposite window at different times and in
general Central area of wall openings about the total area of about 30%. With porosity, and pressure drop and low height of mass
transfer unit, the pan-point high, vapor-liquid contact with the full, the proportion of small, high mass transfer efficiency.
This structure improves the vapor-liquid distribution, make full use of the inner surface of the ring, so that the tower fill the
gas and liquid form from the free passage.
tongue ring in turn point to heart, upper and lower levels of the location of the opposite window at different times and in
general Central area of wall openings about the total area of about 30%. With porosity, and pressure drop and low height of mass
transfer unit, the pan-point high, vapor-liquid contact with the full, the proportion of small, high mass transfer efficiency.
This structure improves the vapor-liquid distribution, make full use of the inner surface of the ring, so that the tower fill the
gas and liquid form from the free passage.
Product Paramenters
Product name | Plastic pall ring | ||||||||||
Material | PP/RPP/PVC/CPVC/PVDF/PTFE, etc | ||||||||||
Life span | >3 years | ||||||||||
Size( mm) | Surface area m2/m3 | Void volume % | Packing number pieces/ m3 | Packing density Kg/m3 | Dry packing factor m-1 | ||||||
3/5” | 16*16*1 | 188 | 91 | 170000 | 85 | 275 | |||||
1” | 25*25*1.2 | 175 | 90 | 53500 | 69 | 239 | |||||
1-1/2” | 38*38*1.4 | 115 | 89 | 15800 | 69 | 220 | |||||
2” | 50*50*1.5 | 93 | 90 | 6500 | 52 | 127 | |||||
3” | 76*76*2.6 | 73.2 | 92 | 1927 | 48 | 94 | |||||
4” | 100*100*3 | 52.8 | 94 | 1000 | 48 | 82 | |||||
Feature | High void ratio, low pressure drop, low mass-transfer unit height, high flooding point, uniform gas-liquid contact, small specific gravity, high efficiency of mass transfer. | ||||||||||
Advantage | 1. Their special structure make it has big flux, low pressure drop, good anti-impaction capability. 2. Strong resistance to chemical corrosion, large void space. energy saving, low operation cost and easy to be load and unload. | ||||||||||
Application | These various plastic tower packing are widely used in petroleum and chemical, alkali chloride, gas and environmental protection industries with max. temperature of 280°. | ||||||||||
Plastic tower packing can be made from heat resistant and chemical corrosion resistant plastics, including polyethylene (PE),polypropylene (PP), reinforced polypropylene (RPP), polyvinyl chloride (PVC), chlorinated polyvinyl chloride (CPVC),
polyvinyiidene fluoride (PVDF) and Polytetrafluoroethylene (PTFE). The temperature in media ranges from 60 Degree C to 280 DegreeC.
polyvinyiidene fluoride (PVDF) and Polytetrafluoroethylene (PTFE). The temperature in media ranges from 60 Degree C to 280 DegreeC.
Performace/Material | PE | PP | RPP | PVC | CPVC | PVDF |
Density(g/cm3) (after injection molding) | 0.98 | 0.96 | 1.2 | 1.7 | 1.8 | 1.8 |
Operation temp.(℃) | 90 | >100 | >120 | >60 | >90 | >150 |
Chemical corrosion resistance | GOOD | GOOD | GOOD | GOOD | GOOD | GOOD |
Compression strength(Mpa) | >6.0 | >6.0 | >6.0 | >6.0 | >6.0 | >6.0 |

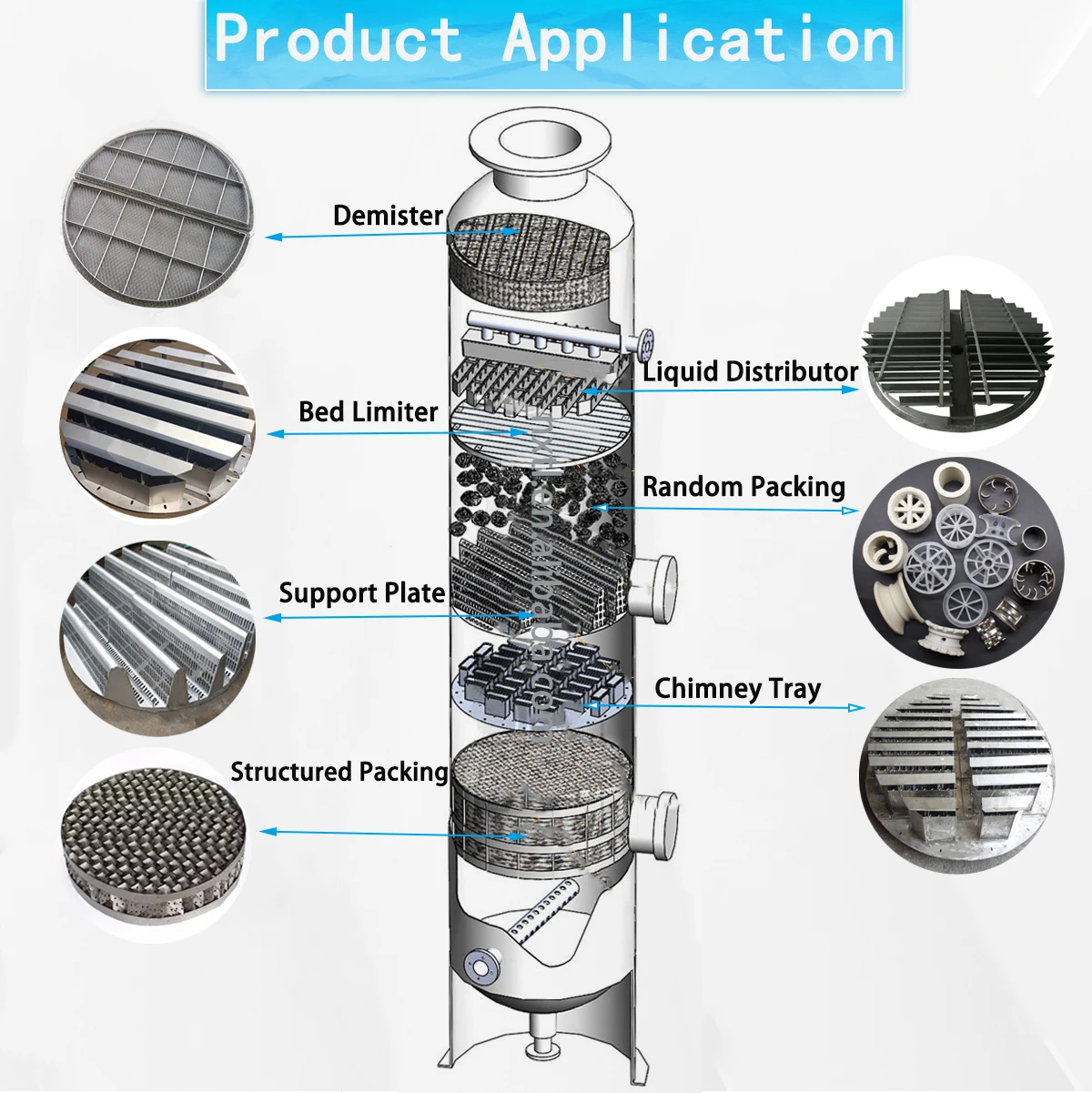

Application
It can be applied to various of device of isolation, absorption,deadsorption,common decompression such as Toluene
separation ,ethylbenzene separation, isooctane separation and desulfurization System etc..
separation ,ethylbenzene separation, isooctane separation and desulfurization System etc..
Packing & Shipping
Package type | Container load capacity | Delivery Time | Quality insurance | Payment terms | ||||
20GP | 40GP | 40HQ | Within3-10days | Chinese national standard; SGSOffer quality assurance as request. | T/T, L/C, Paypal, West Union, Paypal | |||
Woven Bag | 26 m3 | 54m3 | 65m3 | |||||
Jumbo Bag | 20-24m3 | 40m3 | 48m3 | |||||
