Product Overview
Description
DTMC
Product Description

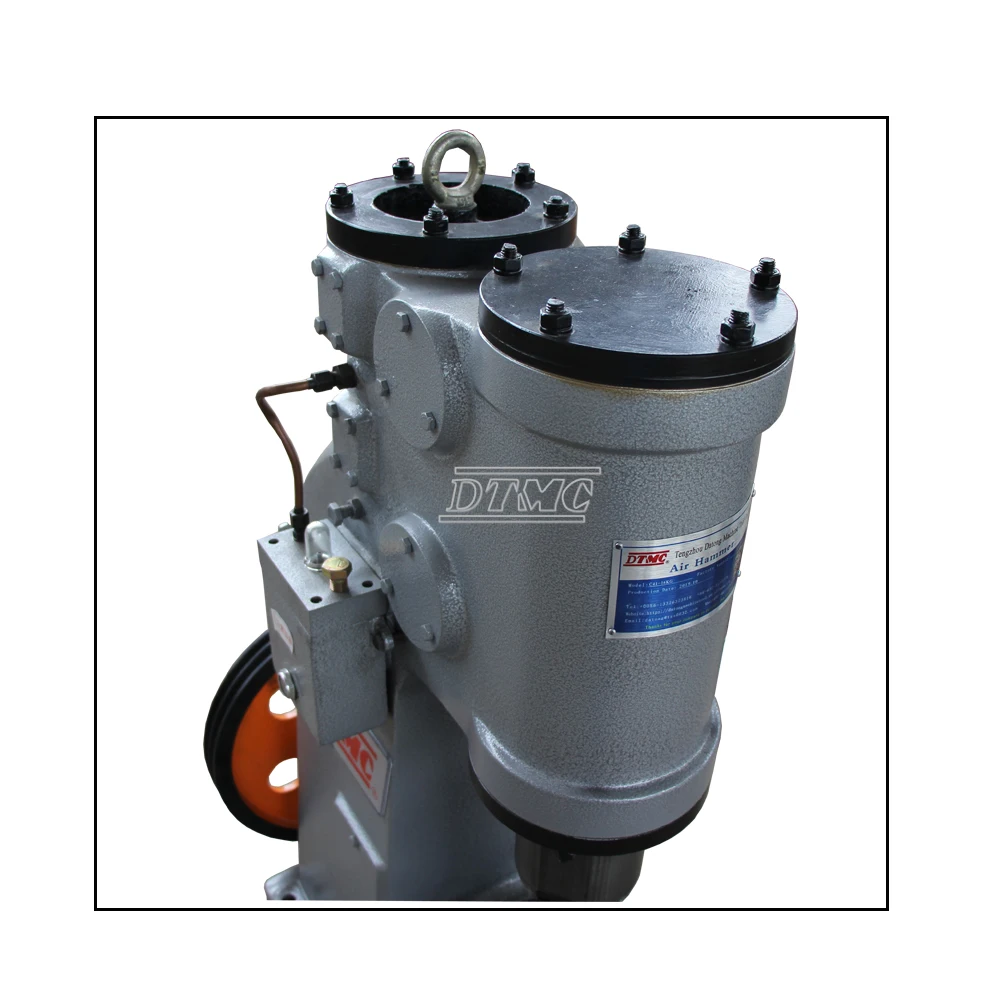

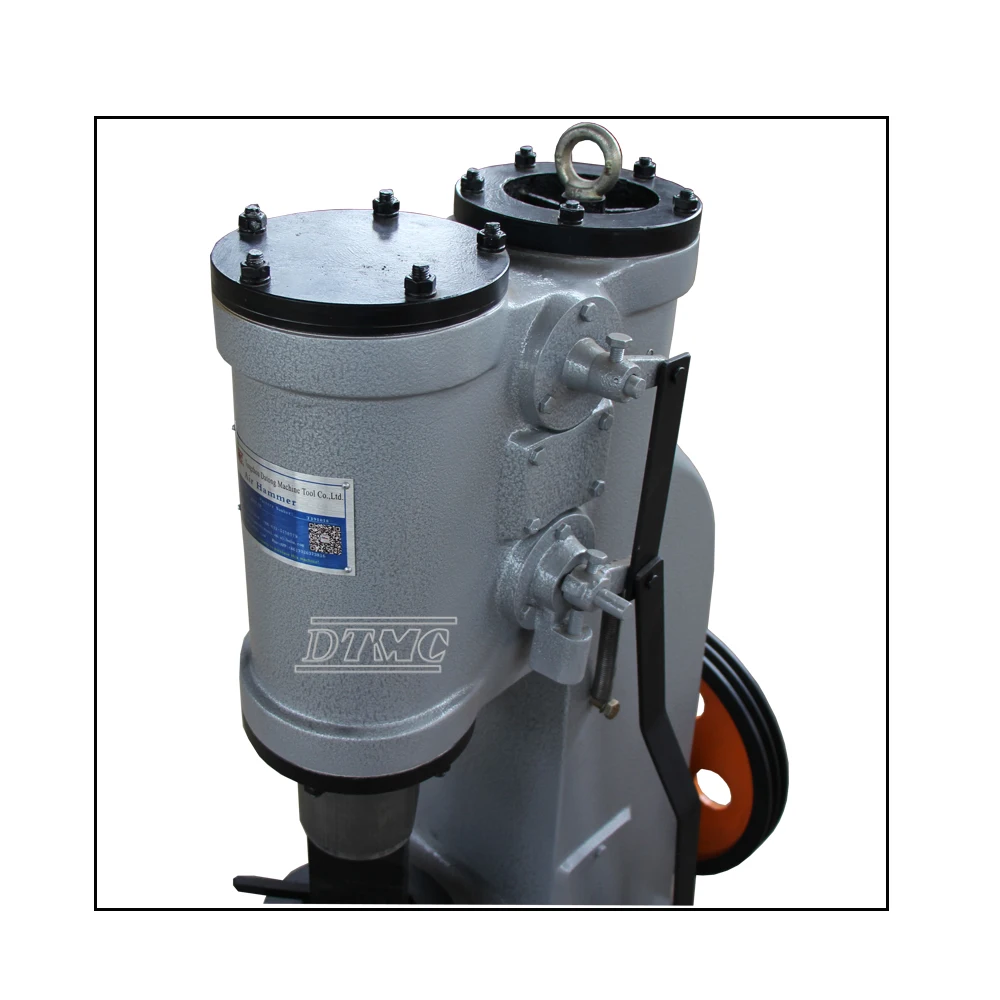

C41-25kg mini forging hammer power hammer frame and anvil block is one piece. It consists two air cylinders, compression cylinder and working cylinder. The compression cylinder compress air, then deliver compressed air to working cylinder by distribution valve, the compressed air push the piston and hammer to work. It is mainly used for free forging, drawing, upsetting, punching, cutting, forged welding, torsion and bending, also used in bolster die forging.
Main Features
1) Largeest selection of air power hammer 9kg to 2000kg.
2) Self contained no compressor needed.
3) Resin casting, surface is good.
4) Lifetime warranty on hammer frame.
5) X-Y anvil on all hammers.
6) Exported to USA, UK, Germany, Australia etc over 66 countires.
Main Features
1) Largeest selection of air power hammer 9kg to 2000kg.
2) Self contained no compressor needed.
3) Resin casting, surface is good.
4) Lifetime warranty on hammer frame.
5) X-Y anvil on all hammers.
6) Exported to USA, UK, Germany, Australia etc over 66 countires.
Specification
Model | C41-25KG | C41-25KG | C41-25KG |
Single air hammer | Single with base plate | Separate air hammer | |
Weight of failling parts(kg) | 25 | 25 | 25 |
Max.hit energy(kj) | 0.27 | 0.27 | 0.27 |
Height of working area(mm) | 240 | 240 | 240 |
Hit number(min) | 250 | 250 | 250 |
Dimension of top and bottom die surface(LxW mm) | 100x50 | 100x50 | 100x50 |
Max. square steel can be forged(Diameter mm) | 40x40 | 40x40 | 40x40 |
Max. round steel can be forged(Diameter mm) | Φ 45 | Φ 45 | Φ 45 |
Rate power(kw) | 3/2.2 | 3/2.2 | 3/2.2 |
Speed of motor(r.p.m) | 1440 | 1440 | 1440 |
Total weight (kg) | 560 | 640 | 760 |
Overall dimensions(L x W x H mm) | 980x510x1200 | 1150x510x1400 | 900x510x1200 |

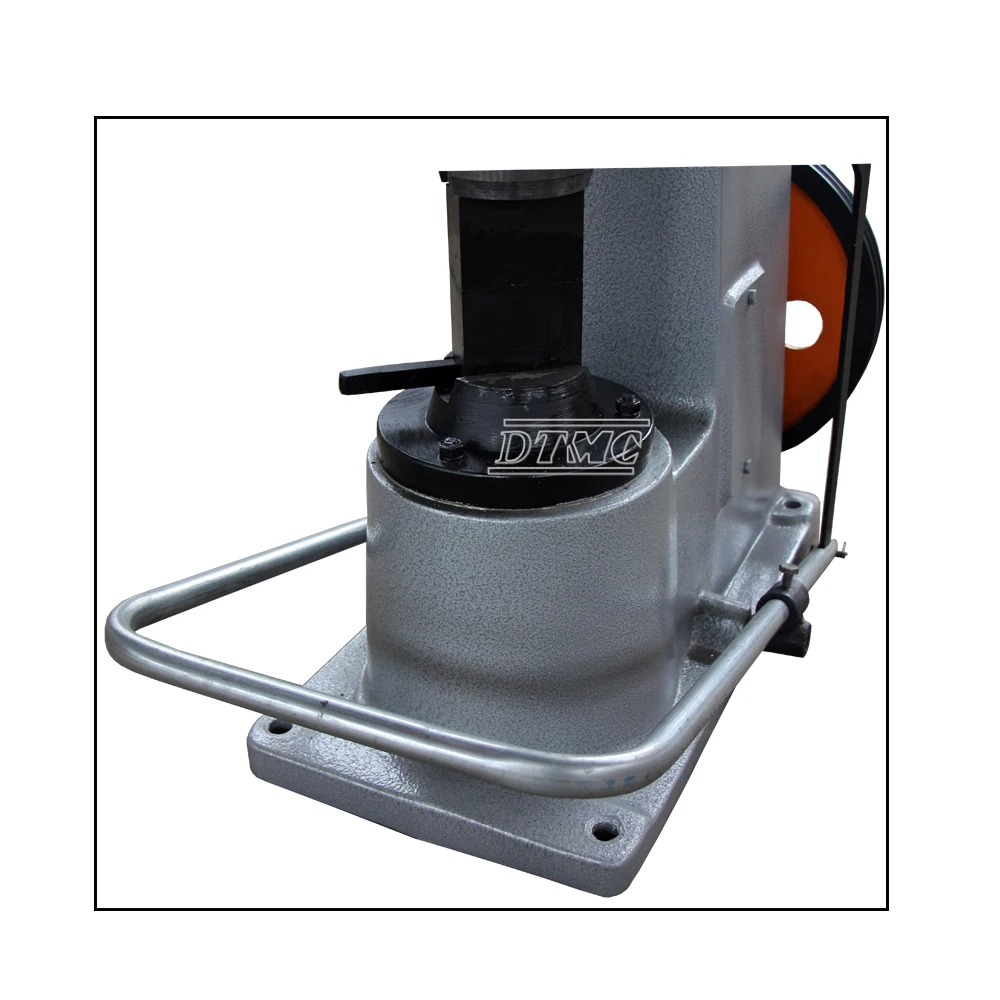

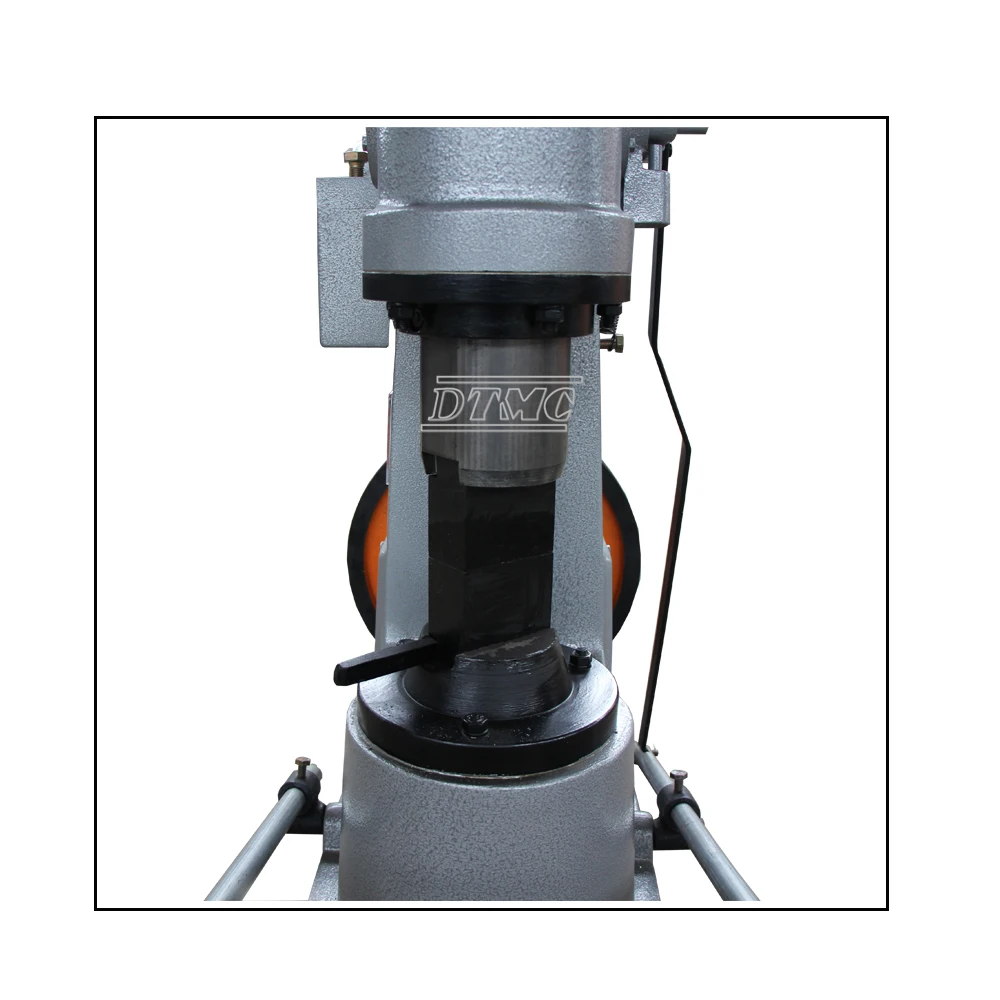

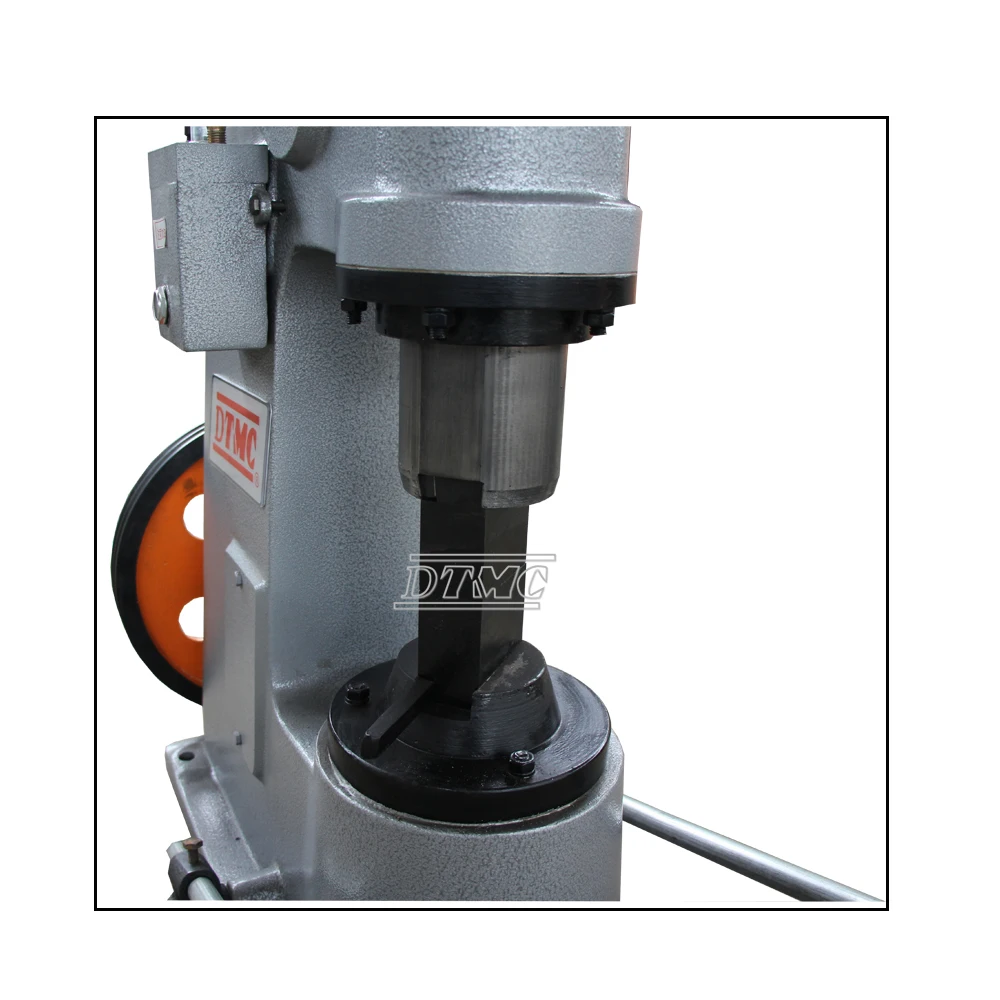

Product Display
