5HP 7.5HP 10HP 15HP Solar Powered Pump High Pressure Solar Water Pumps for Agriculture
- Category: >>>
- Supplier: Goldbell Electric (shenzhen) Co. Ltd.
Share on (1600512325454):
Product Overview
Description
Product Description

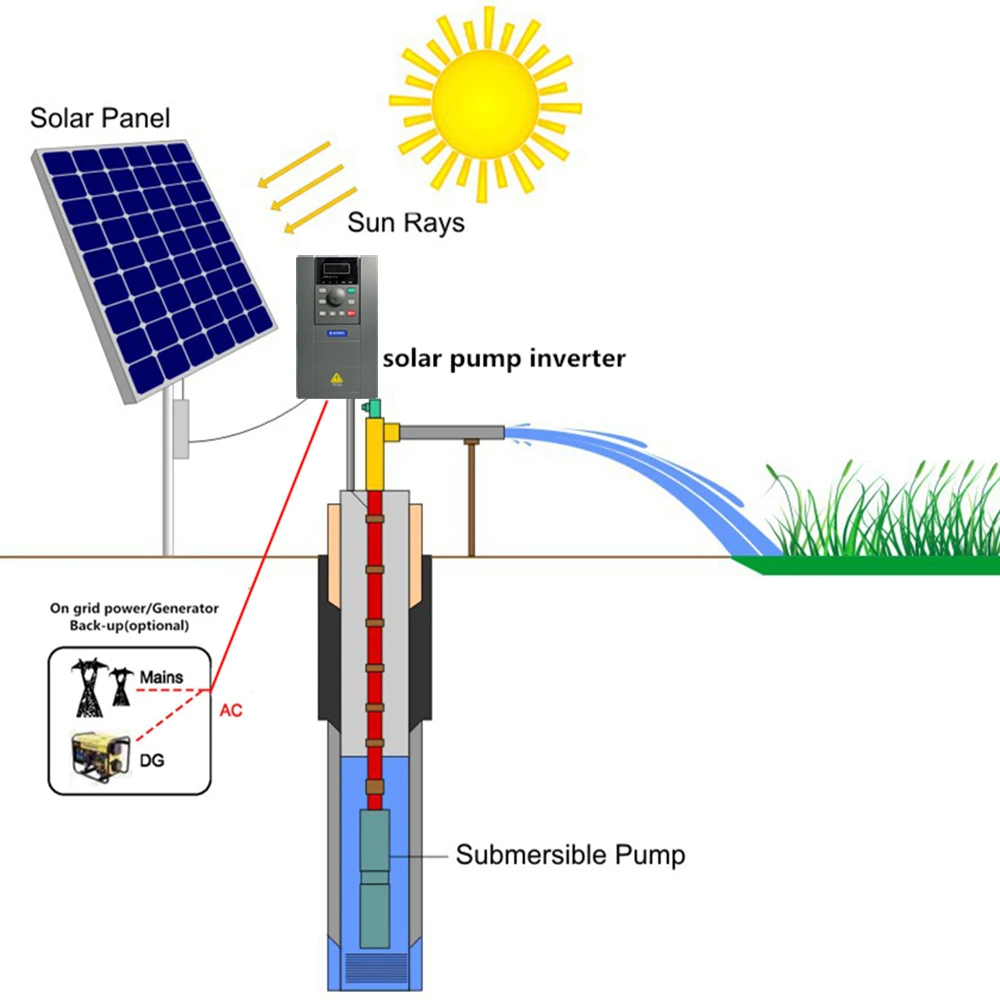

Solar Pump Irrigation System

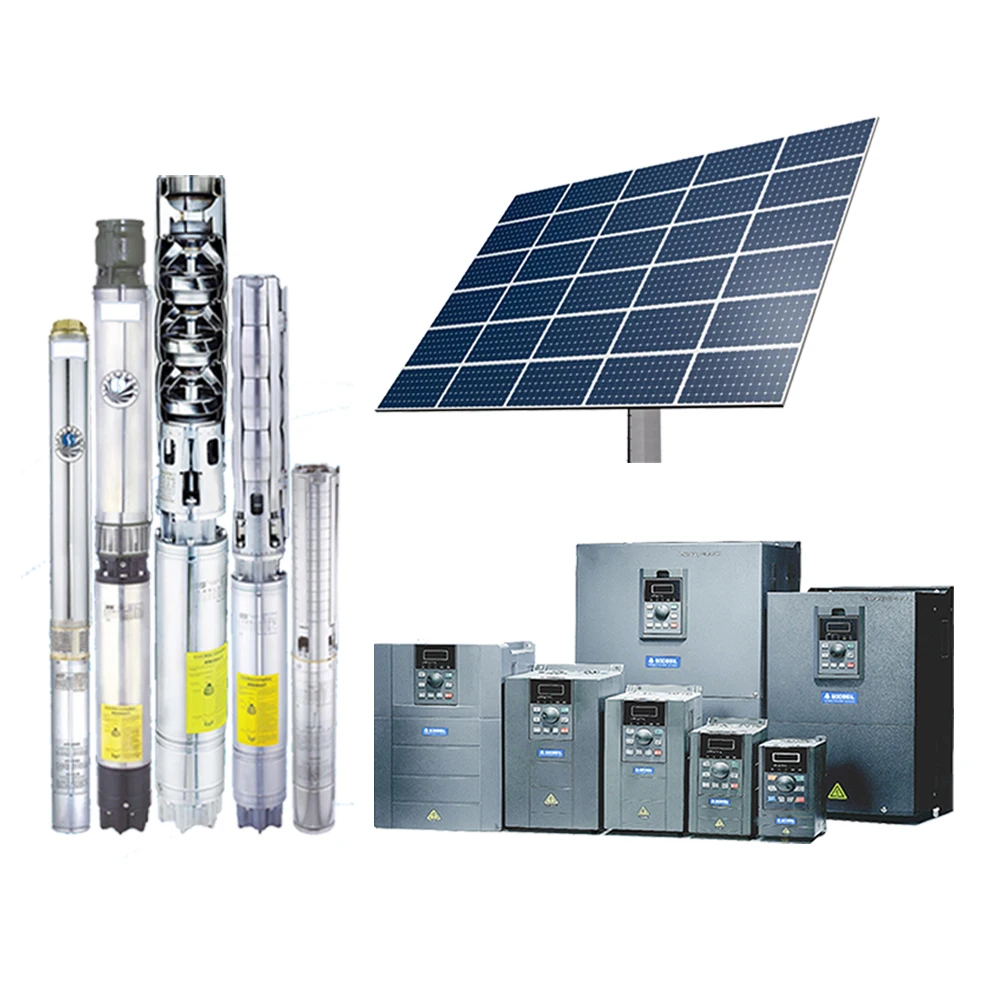

System composition: The solar water pump system is mainly composed of solar panels, solar water pump inverters, water pumps, photovoltaic combiner boxes, mounting brackets, cables, water level sensors and other necessary accessories.
Working principle: The solar water pump inverter converts solar DC current into AC power to drive the water pump to work without batteries, with low cost and low maintenance cost.
Working principle: The solar water pump inverter converts solar DC current into AC power to drive the water pump to work without batteries, with low cost and low maintenance cost.
Extensive support: AC/DC, 50HZ-60HZ, 0.75KW-110KW, 3 inches to 10 inches, lift range: 10-680m, flow range: 1 m³/h-200 m³/h, meet all customer needs for solar pumps.
Multiple protection functions: dry running protection, reverse protection, overload protection, overcurrent protection, overvoltage protection, phase loss protection.
Multiple protection functions: dry running protection, reverse protection, overload protection, overcurrent protection, overvoltage protection, phase loss protection.

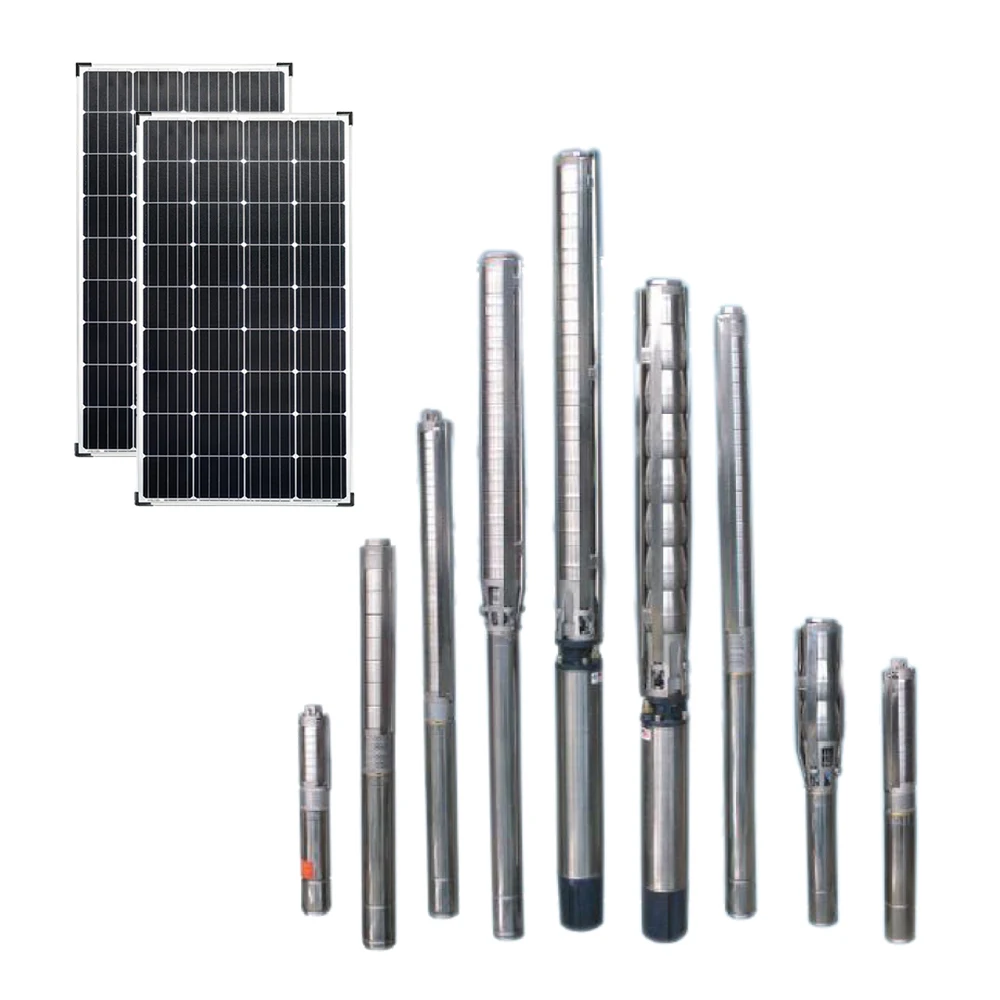

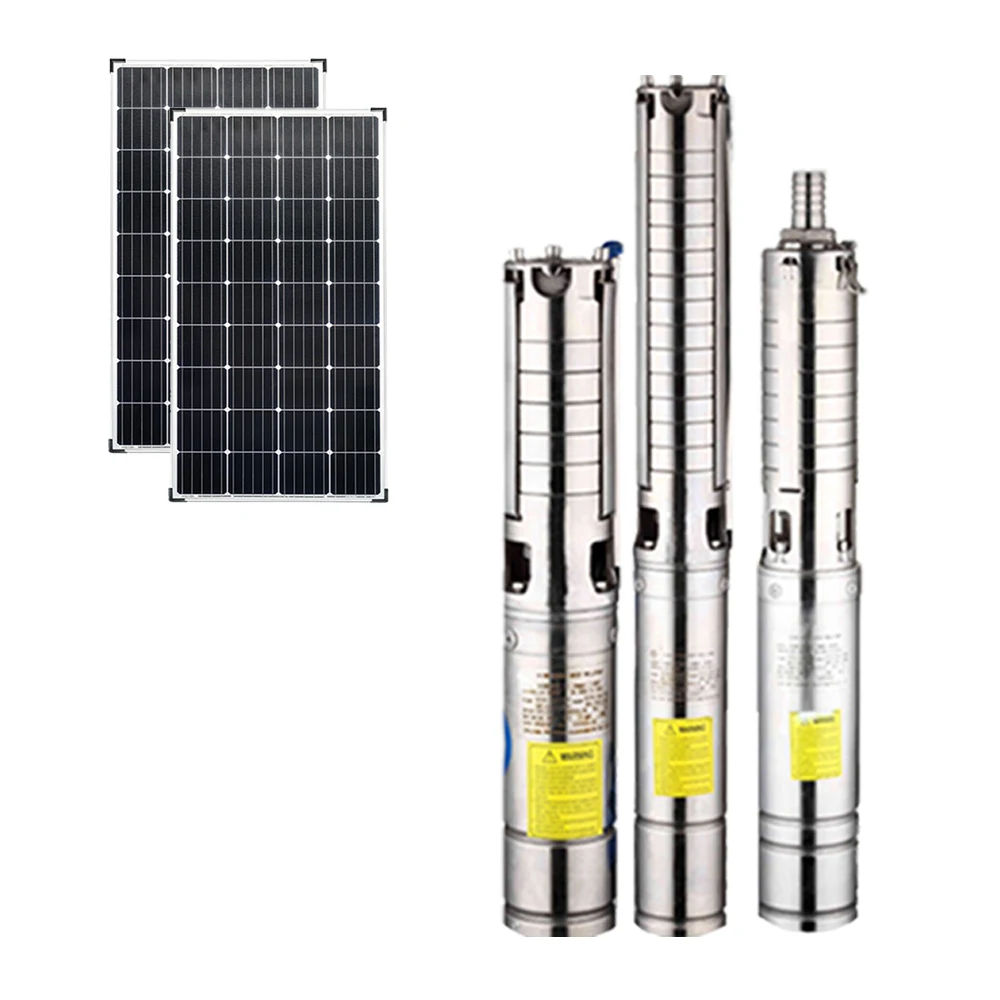

Water Pump Details
1. Adopt stainless steel 304 pump pipe, beautiful and corrosionresistant.
2. POM impeller. PPO diffuserhiah temperature resistancecorrosion resistancehiah mechanical strengthlong service life.
3. The design of multi-stage floating impeller can effectively reduce the requirement of starting torque,and it is not easily blocked because of small sand partical(strong ability to cross sand)longer servicelife ofthemotor.
4. Pump head material:options:copper alloystainless steel304/31castiron(anti-rust treatment).
2. POM impeller. PPO diffuserhiah temperature resistancecorrosion resistancehiah mechanical strengthlong service life.
3. The design of multi-stage floating impeller can effectively reduce the requirement of starting torque,and it is not easily blocked because of small sand partical(strong ability to cross sand)longer servicelife ofthemotor.
4. Pump head material:options:copper alloystainless steel304/31castiron(anti-rust treatment).
Specification
Product | AC DC Solar Submersible Deep Well Water Pump for Agriculture Irrigation |
Head Range | 10 m - 600 m |
Flow Range | 1 m³/h - 200 m³/h |
Frequency | 50Hz / 60Hz |
Voltage | 220V - 240V / 380V - 480V |
Power | 0.75KW-110KW (1HP-150HP) |
Pump Material | AISI 304 |
Motor Head | Brass / AISI 304 / Cast Iron |
Delivery Door | Brass / AISI 304 / Cast Iron |
Pump Impeller | Plastic / Stainless steel |
Pump Size | 3'', 3.5'', 4'', 5'', 6'', 8'', 10'' |
Pump Outlet Size | 1'', 1.25'', 1.5'', 2'', 2.5'', 3'', 4'', 5'', 6'' |
Name Rule
Model Selection

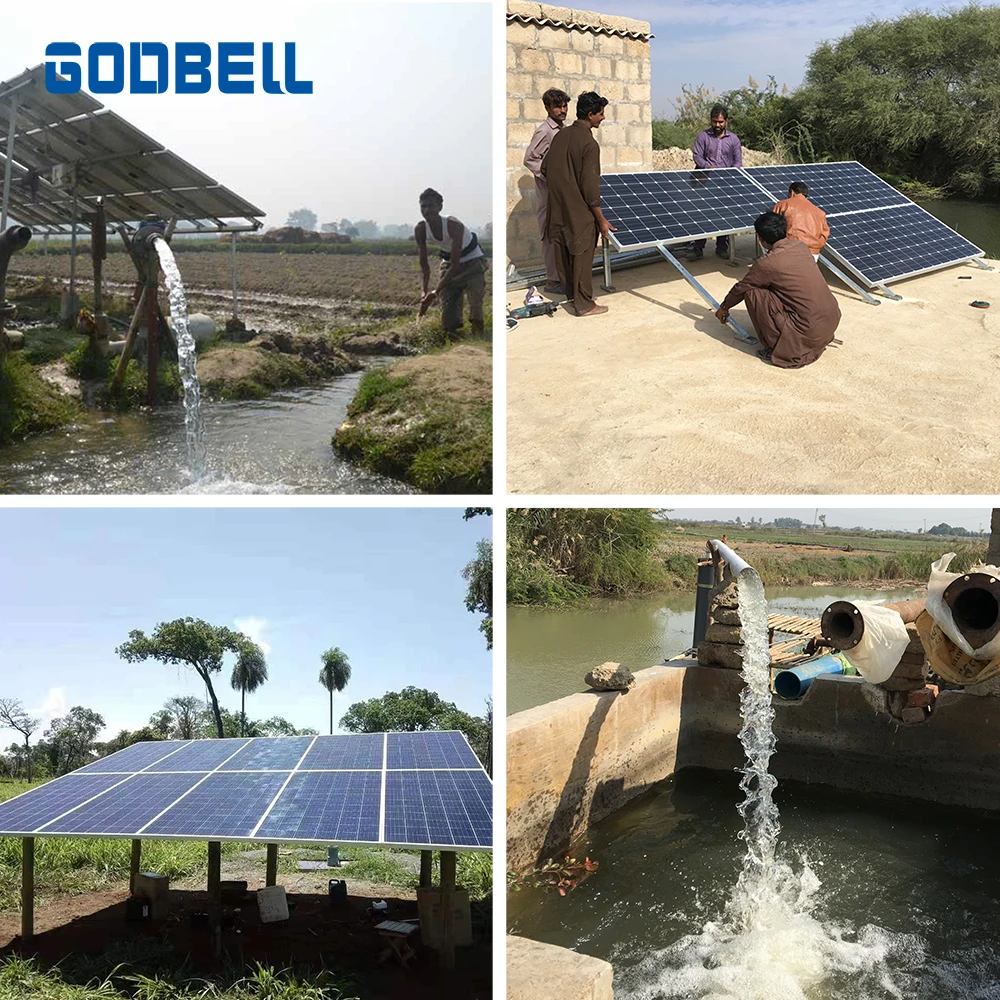

Cooperation Case
Project country | Khartoum,Sudan | ||
Installtion place | Desert for watermelon and fruit tree | ||
Solar pump system one-stop solution design | Water pump | 6SP46-17,26KW (35HP) 3PH 380V 50HZ,full AISI304 pump material Rate 48 m3/h water flow, rate 146 m lift head Pump life time: more than 5 years | |
Solar pump inverter | GS500-30G/37P-4TB, 30KW 60A 3PH 380V MPPT solar inverter for water pump Lift time: more than 3 years | ||
Solar panel | 37KW total power solar panel 90PCS 415W/pcs mono half cell solar panel Connection: 15PCS series * 6 strings parallel Life time: more than 25 years | ||
Mounting structure | Ground mounting bracket structure Material: Q235B hot-dip galvanized steel bracket | ||
Accessories | Cabinet for solar pump inverter, PV combiner box,PV cables, AC cables,AC output reactor,water level sensor,MC4 conenctor | ||
Benifits | In sudan, before many farmer only use diesel generator to pump water by generator. customer puchased 2 set 26KW solar water pump system to replace his generator.as the land only need water flow when at day, after installed the solar pumping system, it can do drip irrigation for watermelon and fruit tree in his desert land,and no human operation.around the villages,more than 10 family have choosed to change to be solar,all of them use GOLDBELL solar pump for agriculture irrigation. | ||
Company Profile
GOLDBELL ELECTRIC (SHENZHEN) CO., LTD. is located in Shenzhen City, Guangdong Province. It is a national high-tech enterprise focusing on industrial automation control and new energy fields. Its products include frequency inverter, solar pump inverter, solar water pump, solar pump system, etc. After 10 years of industry technology precipitation, it has excellent software and hardware design, development, production and sales capabilities, and can provide customers with one-stop overall solutions.
Over the years, we have obtained ISO9001:2015 quality system certification, CE certification. And won a number of honorary titles and patented technology certificates such as Shenzhen and national high-tech enterprises.
Through our unremitting efforts, the products have been sold to more than 30 countries and regions in the Middle East, Africa, Southeast Asia, North America, and South America. . In the future, distributors from all over the world are welcome to join hands with GOLDBELL!
Over the years, we have obtained ISO9001:2015 quality system certification, CE certification. And won a number of honorary titles and patented technology certificates such as Shenzhen and national high-tech enterprises.
Through our unremitting efforts, the products have been sold to more than 30 countries and regions in the Middle East, Africa, Southeast Asia, North America, and South America. . In the future, distributors from all over the world are welcome to join hands with GOLDBELL!
Packing & Delivery
Outer Packaging: high-quality strong export wooden box.
Inner Packaging: bubble bag to protect the controller and water pump from damage during transportation.
Inner Packaging: bubble bag to protect the controller and water pump from damage during transportation.
FAQ

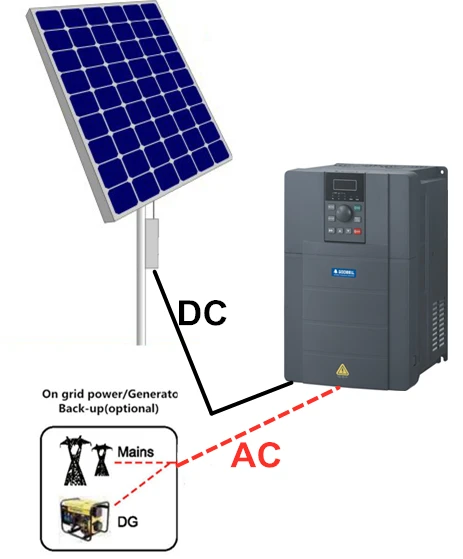

Q: Can the inverter input both solar and AC ? Can it be complementary ?
A: Yes, the inverter can run by both solar and AC, solar connect to inverter P+ P- terminal, AC connect to inverter R S T
terminal.
terminal.
* When strong sunlights, inverter will only use solar energy (100% solar + 0% AC);
* When low sunlights,inverter will use both solar and AC (like 90% solar+10%AC, 70% solar+30%AC, 50%solar+50%AC, 30% solar+70%AC.......,it will dynamically adjust based on sunshine,do not waste any solar energy);
* When no sunlights at night, inverter will only use AC (0%solar+100%AC).
* When low sunlights,inverter will use both solar and AC (like 90% solar+10%AC, 70% solar+30%AC, 50%solar+50%AC, 30% solar+70%AC.......,it will dynamically adjust based on sunshine,do not waste any solar energy);
* When no sunlights at night, inverter will only use AC (0%solar+100%AC).
Note: must add a diode in solar side, otherwise when low sun or no sun, the AC power will charge to solar panel, and the solar panel will be damaged.
Q: How to let inverter run/stop automatically , weak sun sleep,strong sun wake-up?
I want the inverter to run automatically, no need manual.
* when weak sun or sunset, the inverter will sleep and stop working auto;
* when strong sun or sunrise, the inverter will wake-up and restart to work auto.
Does the inverter have the function?
* when weak sun or sunset, the inverter will sleep and stop working auto;
* when strong sun or sunrise, the inverter will wake-up and restart to work auto.
Does the inverter have the function?
A: Yes.do like following steps
For 380V pump
Data set | Wire connect | Description | Note |
P00.01=1 | COM and DI1 | When COM and X1 be on,the inverter will run; When COM and X1 be off,the inverter will stop. | RUN/STOP will control by COM and X1 terminal, Keypad “RUN” key is invalid,”STOP” key is valid; If you want to control “RUN/STOP” by keypad,set P00.01=0, COM and X1 will be invalid. |
P15.37=350 | NO need Change based on local condition | A: Sleep and stop running when weak sun 1: When low sun, inverter run with 30HZ(50HZ*P15.05),and keep 60S(P15.23),then inverter will stop working,and report “A-LS” 2: When low sun or sunset, solar DC voltage go down to 350V(P15.37), inverter will stop working directly, and report “A-LS”. B: Wake-up and restart to run when strong sun. 1: When strong sun or sunrise, solar DC voltage go up to more than 350V(P15.37),and keep 300S(P15.24),inverter will restart to run auto. | Suggest 300-400V |
P15.05=60 | Suggest:40%~60% | ||
P15.23=60 | Suggest 30-150S, | ||
P15.24=600 | Suggest 300-1800S, |
For 220V pump
Data set | Wire connect | Description | Note |
P00.01=1 | COM and X1 | When COM and X1 be on,the inverter will run; When COM and X1 be off,the inverter will stop. | RUN/STOP will control by COM and X1 terminal, Keypad “RUN” key is invalid,”STOP” key is valid; If you want to control “RUN/STOP” by keypad,set P00.01=0,COM and X1 will be invalid. |
P15.37=200 | NO need Change based on local condition | A: Sleep and stop running when weak sun 1: When low sun, inverter run with 30HZ(50HZ*P15.05),and keep 60S(P15.23),then inverter will stop working,and report “A-LS” 2: When low sun or sunset, solar DC voltage go down to 200V(P15.37), inverter will stop working directly, and report “A-LS”. B: Wake-up and restart to run when strong sun. 1: When strong sun or sunrise, solar DC voltage go up to more than 200V(P15.37),and keep 600S(P15.24),inverter will restart to run auto. | Suggest 180-250V |
P15.05=60 | Suggest:40%~60% | ||
P15.23=60 | Suggest 30-150S, | ||
P15.24=600 | Suggest 300-1800S, |
