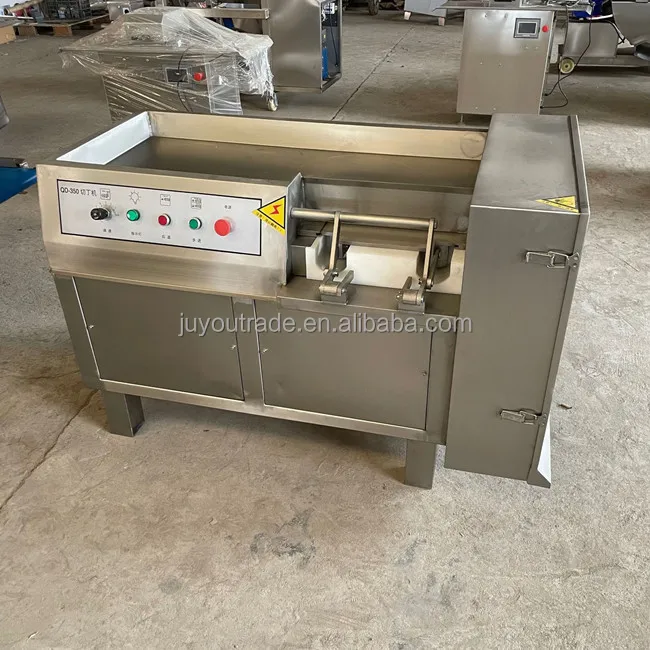

JUYOU Electric Frozen Meat Cutter Cutting Machine Meat Cube Cutting Equipment
Information:
The whole machine is made of stainless steel with beautiful appearance. This machine can cut cold, fresh and semi frozen meat into cuboids and cubes of different sizes and shapes according to customers' needs. Fresh tofu can be cut into cubes and cuboids of different sizes and shapes.
The diced meat pieces can be directly thrown into the dice or put into the mold. After freezing, the commercial frozen meat machine opens the mold and puts it into the machine for cutting. Generally, a square mold is used. This mold is just made according to the size of the feeding port.

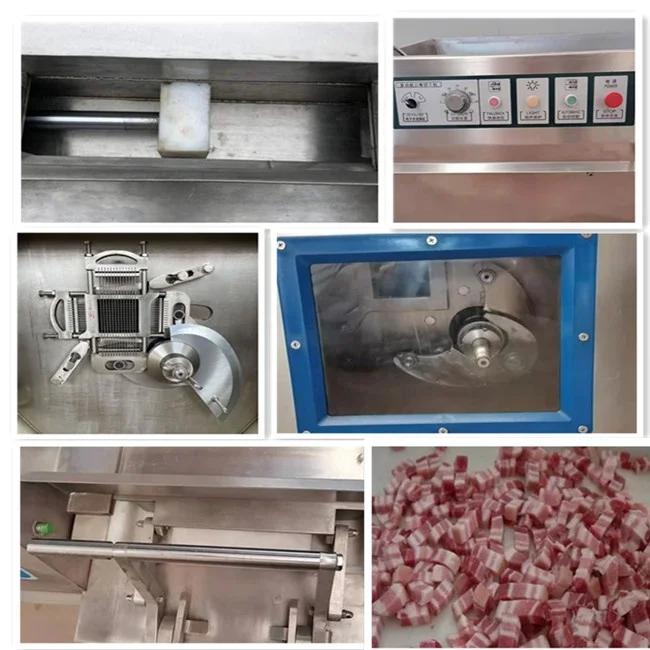

Main features:
1. Adjust the cutting thickness knob to change the pushing speed of the meat push rod to meet the requirements of different cutting thickness.
2. Adjust the preload knob to ensure the consistency of the product in the cutting process.
3. Adjust the meat push rod to step motion, which can minimize the extrusion of the product in the cutting process when using single edge cutting.
4. One side of the cutting groove adopts a movable side pressure structure to facilitate feeding and improve work efficiency.
Parameters:
Model | JU-350 | JU-550 |
Power | 3KW | 3.3KW |
Voltage | 380V | 380V |
Capacity | 500-600KG/H | 700-1000KG |
Cutting slot size | 84*84*350mm | 120*120*570mm |
Material of Body | 304 S/S | 304 S/S |
Cutting size for choice | 4,5,6,7,8,9,10,12,14,16, 21, 28mm | 4,5,6,7,8,10,12,16,24, 30mm |
Dimension | 1480×800×980mm | 1950×1000×1120mm |
Weight | 500KG | 700KG |
