5500W charger with inverter with mppt 48V 100A at very favorable price from China

Share on (1600512355338):


Price:

Quantity:


Product Overview

Description































































































































Specifications:


Model No.


5.5KW


Parallel Capability


Yes, 9units


Rated power


5000VA /5000W









Input



voltage


230VAC


selectable voltage range


170-280VAC (for personal computers)


90-280VAC (for home appliances)


Frequency range


50Hz/60Hz (auto sensing)











Output



AC voltage regulation (Batt.mode)


230VAC±5%


Surge power(5 seconds)


10000VA


efficiency (peak)


93%


transfer time


10ms(for personal computers);


20ms (for home appliances)


waveform


pure sine wave

















Battery& AC charger



battery voltage


48VDC


floating charge voltage


54VDC


overcharge protection


66VDC


maximum charge current


10A /20A/30A /40A/50A/60A/70A/80A


MAX PV array power


4500W


MPPT range@ operating voltage


120 ~ 430V


maximum PV array open circuit voltage


450VDC


MPPT charging current


80A


maximum efficiency


98%


standby power consumpsion


2W





Physical



Dimension, D*W*H(mm)


155*295*455


Net weight (kgs)


13KG





Operating Environment



humidity


5%-95% relative humidity ( non-condensing)


operating temperature


-10℃ to 50℃


storage temperature


-15℃ to 60℃

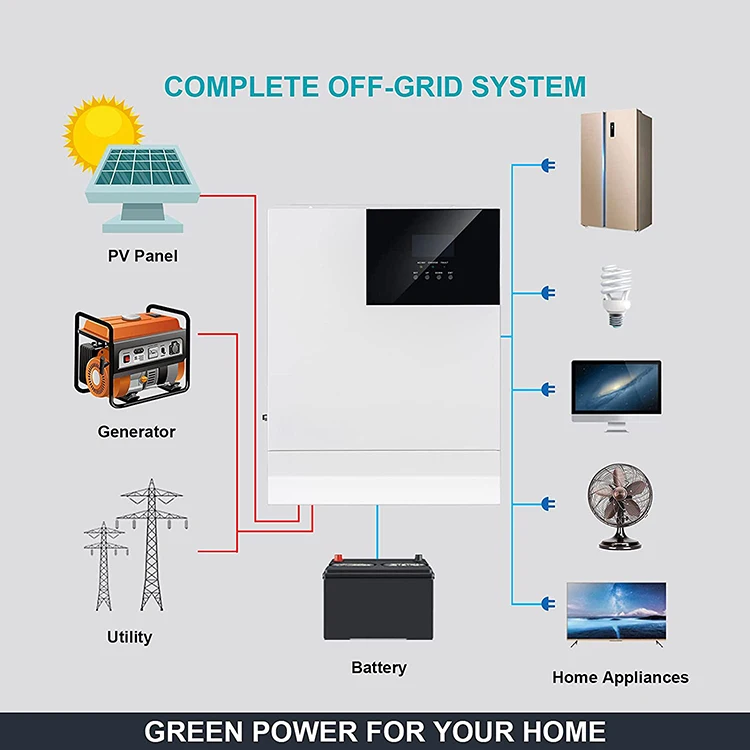

61pgs2nr1xL._AC_SL1500_





















Company info. & Advantages OUYAD Group was established in 2000, main products are solar modules(power from 5Wp to 370Wp), wind turbine generator system(power from 200W to 50KW), inverters, UPS and batteries for wind/solar power systems. Main Honor: 2010 Ouyad was accredited as "High-Tech Enterprise of Guangdong Province" by Guangdong Province government; 2014 Ouyad was accredited as "National High-Tech Enterprise" by China government; 2016 Ouyad was accredited as "Foshan City Smart Wind & Solar Hybrid Power System engineering technology research Center" by Foshan City government; 2017 Ouyad was accredited as "Guangdong Province Smart Wind & Solar Hybrid Power System engineering technology research Center" by Guangdong Province government; Product Quality Control Ouyad Group as an export-oriented company, product quality standards are in full accordance with international standards like IS09001, GB/T28001-2011,IDTOHSHS18001:2007. Products all international certified like CE, CQC, VDE, LVD, SONCAP, Inmetro etc.









FAQ

FAQ






1. who are we?
We are based in Guangdong, China, start from 2007,sell to Africa(32.00%),Mid East(30.00%),Domestic Market(15.00%),Southeast Asia(15.00%),North America(2.00%),Western Europe(2.00%),Eastern Europe(2.00%),Northern Europe(2.00%). There are total about 51-100 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Inverter,Solar,Panel,Windturbine,Lithium Ion Battery

4. why should you buy from us not from other suppliers?
Company info. & Advantages OUYAD Group was established in 2000, Ouyad Group is a scientific and technological enterprise engaged in the research, development and production of solar, wind and ternary lithium battery energy storage systems,solar inverter.

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES;
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese
