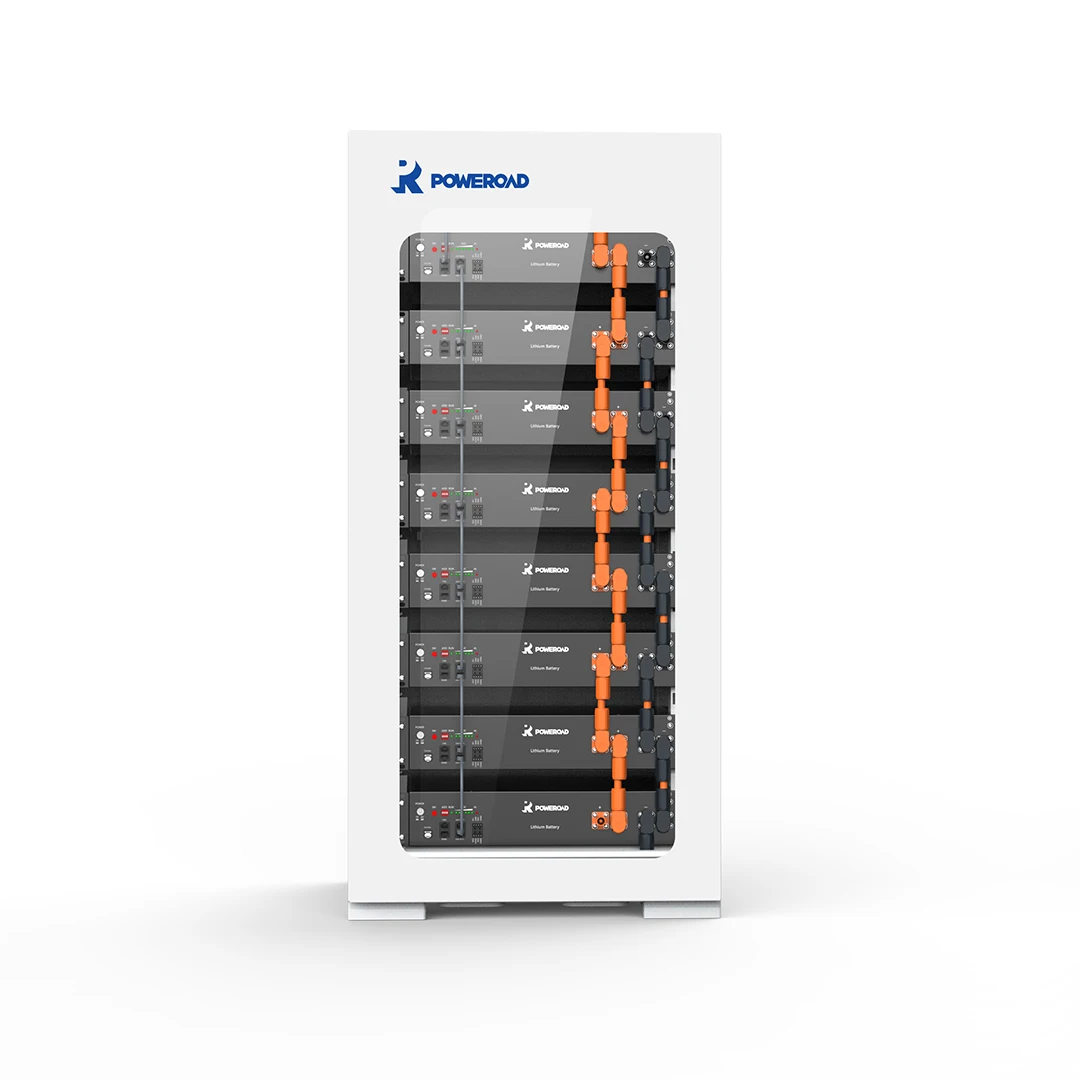

Home Solar Energy Storage Battery System 5kw Solar Panel System 5k
- Category: >>>
- Supplier: Poweroad (xiamen) Renewable Energy Technology Co. Ltd.
Share on (1600512374958):
Product Overview
Description
Specification
Product Name | H-U4850 | H-U48100 | |
Battery Type | LiFePO4 | ||
Nominal Voltage | 48V | 48V | |
Nominal Capacity | 52Ah | 100Ah | |
Nominal Energy (kWh) | 2.5kWh | 4.8kWh | |
Cycle Life (Cycles) | 6000 | 6000 | |
Charge of Voltage | 54V | 54V | |
Discharging Voltage | 40.5V | 40.5V | |
Recommend Charge/Discharge Current | 25A | 50A | |
Max. Charge/Discharge Current | 50A | 100A | |
Peak Charging/Discharging Current | 100A | 150A | |
Configuration(Max. in 1 battery Group, pcs) | 8 | 15 | |
Communication | RS485, CAN | RS485, CAN | |
Working Temperature | 0~50℃ Charging -10~50℃ Discharging | 0~50℃ Charging -10~50℃ Discharging | |
Protection Class | IP20 | IP20 | |
Cooling Type | Natural cooling | Natural cooling | |
Humidity | 5%-85%(RH) without Condensation | ||
Dimension (mm) | 440*410*89mm | 442*450*145mm | |
Weight (KG) | 26KG | 44KG | |
Certification | CE/ UN38.3 | CE/ UN38.3 | |
Product Description

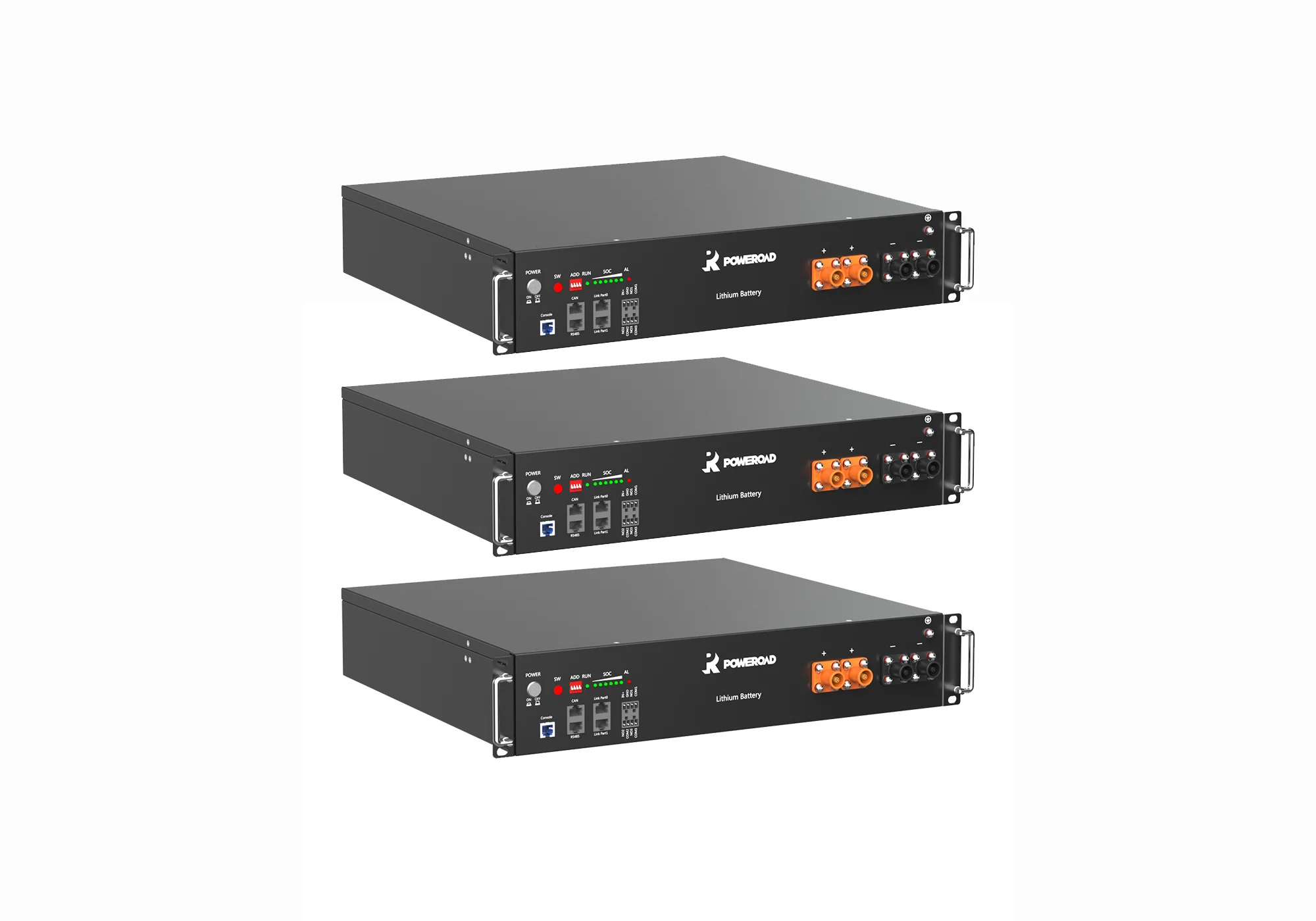

H-U4850

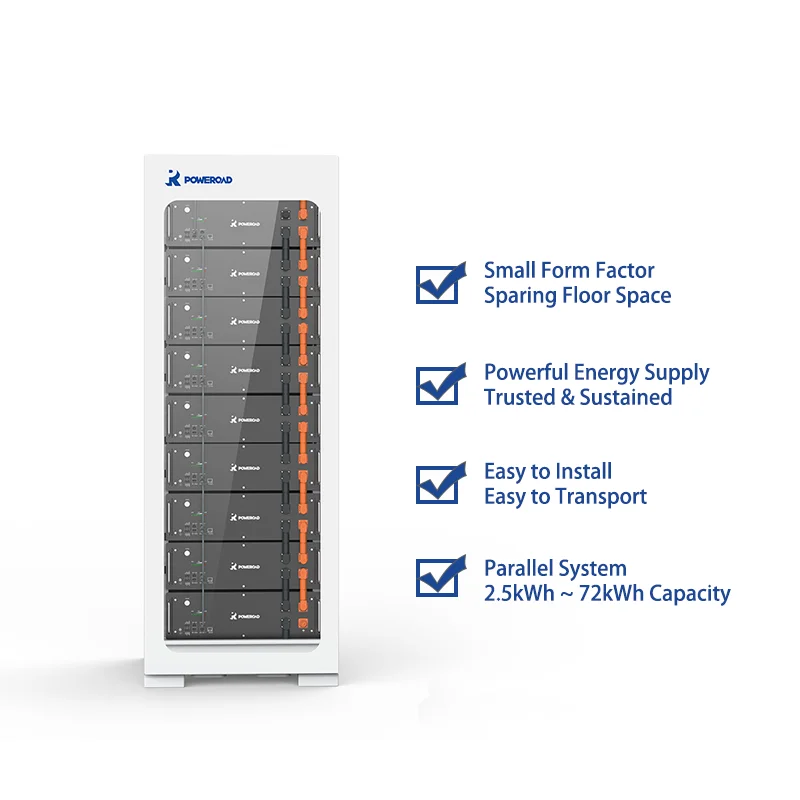

* Scalable from 2.5kWh to 20kWh power configurations.
* Modular design allows convenient installation, more operation.
* Extendable-modular, adding more capacities as needed.
* Safest LiFePO4 technology, high-securety, sustained power, 6000 cycle life.
* Armed with POWEROAD design BMS, full-scale protection, safety first.
* Floor Space sparing, allowing more space management.
* RS485, CAN, communication support.
* Modular design allows convenient installation, more operation.
* Extendable-modular, adding more capacities as needed.
* Safest LiFePO4 technology, high-securety, sustained power, 6000 cycle life.
* Armed with POWEROAD design BMS, full-scale protection, safety first.
* Floor Space sparing, allowing more space management.
* RS485, CAN, communication support.
* Scalable from 4.8kWh to 72kWh power configurations.
* Modular design allows convenient installation, more operation.
* Extendable-modular, adding more capacities as needed.
* Safest LiFePO4 technology, high-securety, sustained power, 6000 cycle life.
* Armed with POWEROAD design BMS, full-scale protection, safety first
* Floor Space sparing, allowing more space management.
* RS485, CAN, communication support.
* Modular design allows convenient installation, more operation.
* Extendable-modular, adding more capacities as needed.
* Safest LiFePO4 technology, high-securety, sustained power, 6000 cycle life.
* Armed with POWEROAD design BMS, full-scale protection, safety first
* Floor Space sparing, allowing more space management.
* RS485, CAN, communication support.
Company Profile
Poweroad (Xiamen) Renewable Energy Technology Co., Ltd established in 2014, is a professional manufacturer engaged in the research, development, sale and service of lithium ion battery and energy storage system (ESS). In order to supply the satisfactory products and services, we have built a modern quality management system which is in strict accordance with international standards. We have obtained ISO 9 0 0 1 / ISO 1 4 0 0 1 / SA 8 0 0 0 certificates. In recent years, our company has introduced a series of advanced equipment including automatic welding machine, automatic sorting machine and automatic test equipment which ensure the high efficiency of the production, high quality and trace-ability of products. In addition, most of our products have got CE, FCC, PSE and RoHS certificates. Selling well in all cities and provinces around China, our products are also exported to clients in such countries and regions as Europe, South Africa, USA, Australia. We also welcome OEM and ODM orders.
Certifications
FAQ
1. Q: .Can you offer samples for testing?
4. Q: Do your products have certifications?
A: Sure,samples are available and delivery time usually 3-5 days. If you need samples for quality check,sample fees and shipping fees should be charged from buyer’s aside.
2. Q: What’s the delivery time for mass production?
A: Usually 25-30 days, it depends on the quantity, material, battery cell model and so on, we suggest to check delivery time case by case.
3. Q: Do you have current sample in stock?
A: Usually we don’t have, because different customers have different requests, even the voltage and capacity are the same, other parameters maybe different. But we could finish your sample quickly once order confirmed.
4. Q: Do your products have certifications?
A: Yes, We are the assessment supplier by TUV and our products with certificates of CE, RoHs, FCC, etc.
5. Q: OEM or ODM accepted?
A: Yes, we can do OEM&ODM. Logo on the power stations or solar panels available. Custom packaging welcome.
6. Q: Are you manufacturer or simply trading company?
A: We are manufacturer, and we sincerely welcome you to visit our factory!
7. Q: Still have questions?
A: Click CONTACT US to send email with your questions, we will be in contact with you within 24 hours.
