Automatic liquid shampoo bear oil juice water filling and capping machine
- Category: >>>
- Supplier: Guangzhou Rifeng Electromechanical Equipment Co. Ltd.
Share on (1600512380534):
Product Overview
Description
Product Description

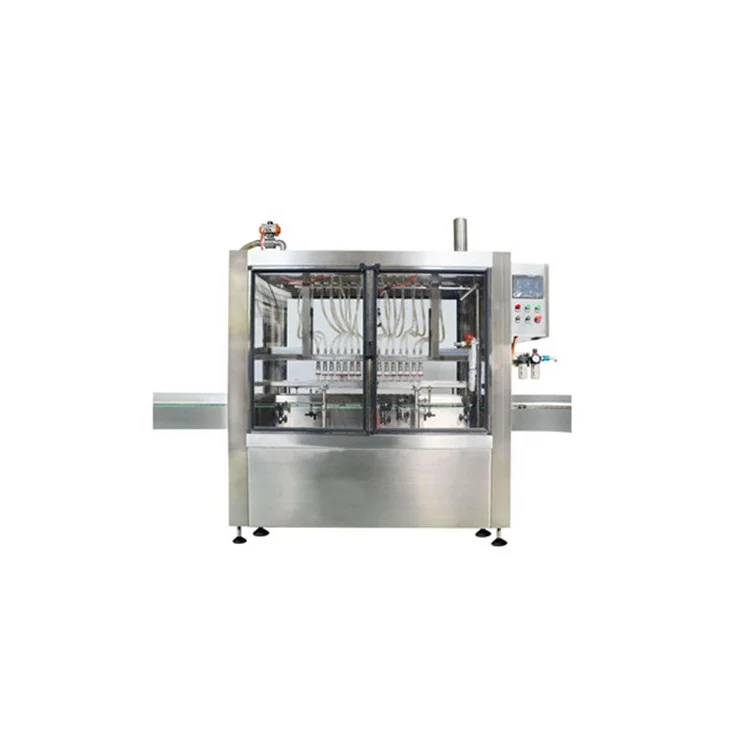

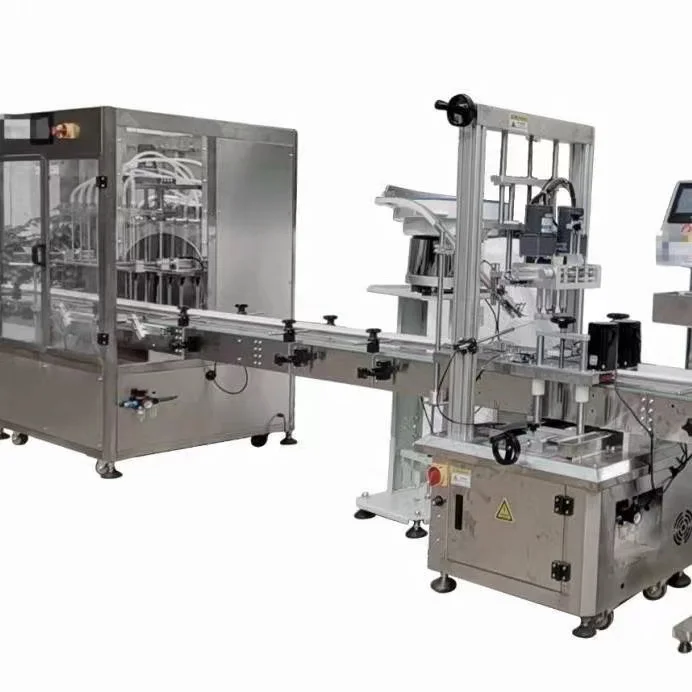

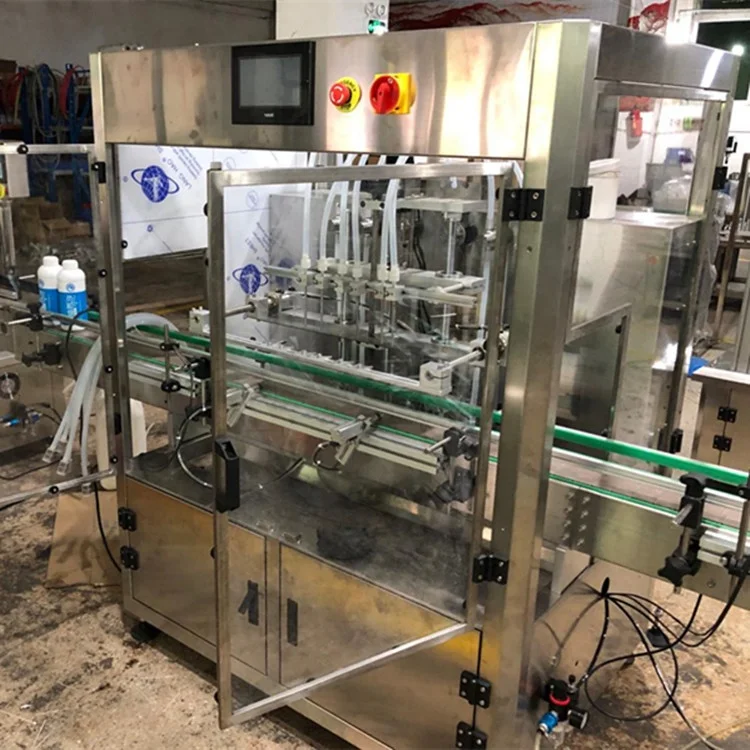

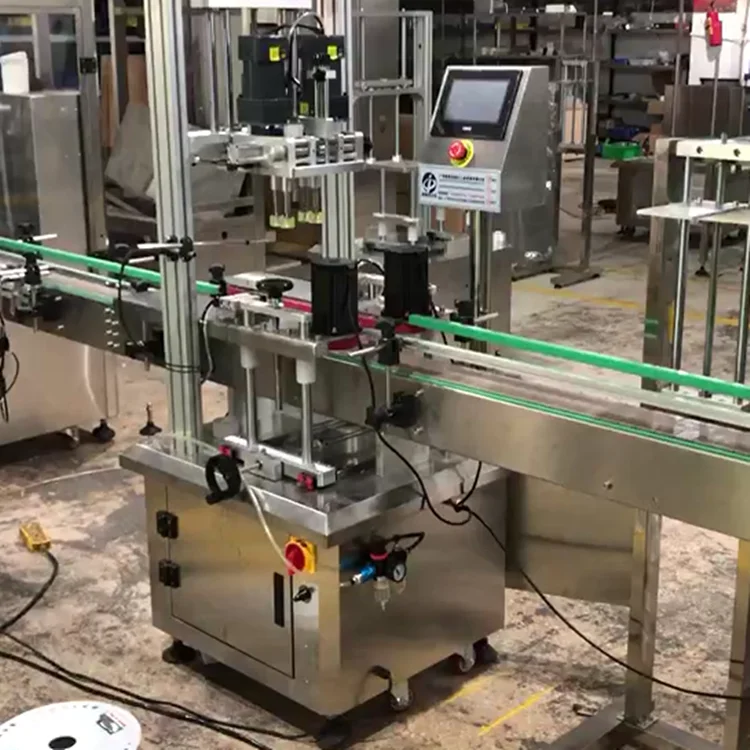

Filling machine can be applied for filling sanitizer liquid, sanitizer gel, shampoo, hand soap, etc.It is fully automatic production line which is connected the capping machine, labeling machine.
Machine features
1. PLC intelligent control, automatic bottle blocking, bottle setting and filling. The high-precision magnetic pump filling system can be used to independently adjust the filling volume.
2. The filling is controlled by a magnetic pump, with the function of filling and lifting at the same time, it can fill foam products, and the filling head is anti-drip and leak-proof
3. Filling range 50-5000ML,
4. The main body of the machine is composed of aluminum alloy and stainless steel 304
2. The filling is controlled by a magnetic pump, with the function of filling and lifting at the same time, it can fill foam products, and the filling head is anti-drip and leak-proof
3. Filling range 50-5000ML,
4. The main body of the machine is composed of aluminum alloy and stainless steel 304
Filling Speed | 1000-6000BPH | ||||||
Filling tolerance | ±1ml | ||||||
Filling volume | 50-5000ML | ||||||
Filling pump | Magnetic pump | ||||||
Voltage | 220V, 50/60Hz | ||||||
Machine size | Filler:2100*1000*1750mm, Capper:2100*750*1750mm, Labeler:1950*1200*1500mm | ||||||
Air pressure | 0.4-0.6mpa | ||||||
Cap diameter | 18-50mm | ||||||
Machine weight | Filling machine:300kg, Capping machine:250kg, Labeling machine:250kg | ||||||
Machine power | 2kw | ||||||
Related Products
Packing&Shipping
Packing by wooden box, which is suitable for long distance transportation and sea transportation
Company Introduction
Guangzhou Rifeng Electromechanical Equipment Co., Ltd is a professional manufacturer of blow moulding machines, filling capping labeling machine,etc.Our factory hasgathered experts with decades of experience in this area. We not only keep researching of blow moulding machine technology,but also constantly exploring in blowing process and filling packaging solutions.We aim to provide more comprehensive services to customers.
The products are widely used in various beverage bottle, edible oil bottle,cosmetic bottles.pharmaceutical packaging and plastic products industries. we can also design for customers according to their special requirements.
The products are widely used in various beverage bottle, edible oil bottle,cosmetic bottles.pharmaceutical packaging and plastic products industries. we can also design for customers according to their special requirements.
"Customer Firstly, Quality First" is the consistent insistence of our company,Therefore many customers around the world build partnership with us. Our machines have been exported to Europe,Southeast Asia, Middle East. Africa and other countries. It has always been our aim to innovate and create valve for our customers on the way forward. we hope to work hand in hand with you to create brilliance.
FAQ
1.Are you a factory?Where is the location?
Yes. We have different factorys in Guangzhou, which is 30 mins away from the Baiyun airport. For making different packing machine, such as bottle blowing machine, filling machine, pet preform making machine,etc.
2.Can we do testing by using our product?
Sure, Normally we also will request to get the product samples from you to do testing before shipment.
3.What else service you supply?
Before order, we can supply the machine layout support, machine running video support, samples filling support.
After order, we will supply the machine training video and manual book. If need engineer support, we can arrnage the engineer to your factory for installation, commission, training.
