Outdoor IP65 IP66 IP67 wall pole mount 12port 16port FTTH box terminal termination box fiber junction distribution box
- Category: >>>
- Supplier: Jiangsu EC Photoelectric Technology Co. Ltd.
Share on (1600512391841):
Product Overview
Description
Fiber Optical Equipment PC ABS 8 cores 16 32 48 Cores FTTH Fiber Optic Distribution Box Compliant With SC Connector Mini Plug-in
Product Description
This box is used as a termination point for the feeder cable to connect with drop cable in FTTX communication
network system.
It intergtates fiber splicing, splitting, distribution, storage and cable connection in one unit. Meanwhile, it provides
solid protection and management for the FTTX network building
Features:
1.Total enclosed structure.
2. Material: ABS or ABS+PC, wet-proof, water-proof,dust
proof,anti-aging, protection level up to IP65.
3. Clamping for feeder cable and drop cable, fiber splicing, fixation, storage distribution ... etc all in one.
4 . Cable, pigtails, patch cords are running through own path without disturbing each other, cassette type SC adaptor .installation, easy maintenance.

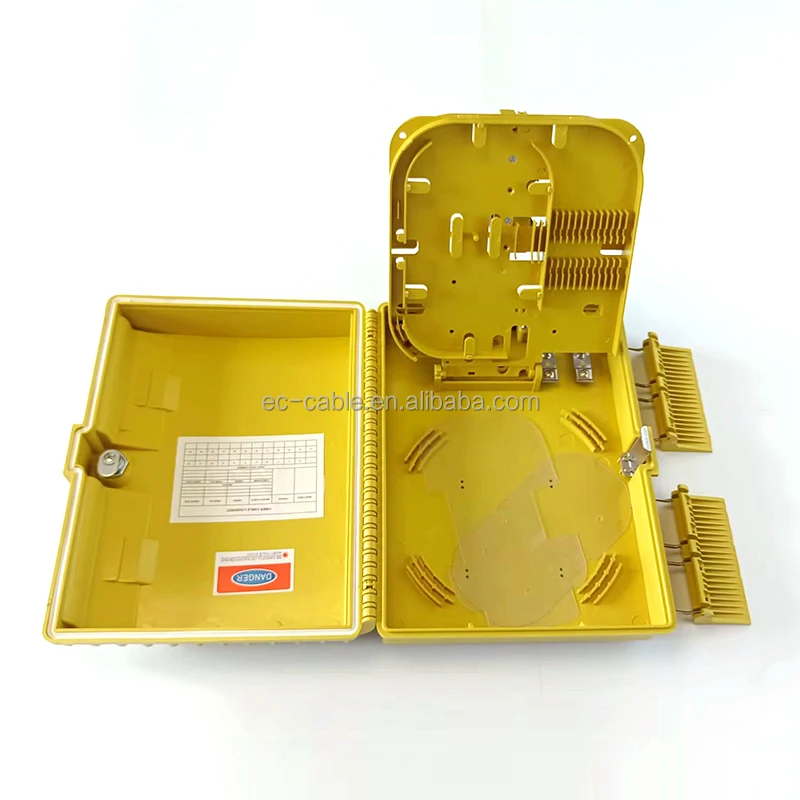

5. Distribution panel can be flipped up, feeder cable can be placed in a cup-joint way, easy for maintenance and installation.
6 .Box can be installed by the way of wall-mounted or poledmounted,suitable for both indoor and outdoor uses.
Configuration:
Material | Size | Max capacity | Nos of PLC | Nos of adapter | Weight | Ports |
Strengthen ABS or ABS+PC | A*B*C(mm) 300*245*100 | Splice 16 Fibers (1trays,16 core/tray) | 2pcs of 1x8 1 pcs of 1×16 | 16 pcs of SC(max) | 1.35kg | 2 in 16 out |
Standard Accessories:
- Screw: 4mm*40mm 4pcs
- Expension bolt: M6 4pcs
- Cable tie:3mm*10mm 6pcs
- Heat-shrink sleeve:1.0mm*3mm*60mm 16pcs
- Hose clamps:2pcs
- Key:1pcs
- Replaceable Accessories:1 sets
