650nm 100mw Red Laser Module Dot/Line/Crossline Optional Equipment Positioning Laser Light laser diode module
- Category: >>>
- Supplier: Xinland Laser Co. Ltd.
Share on (1600512393053):
Product Overview
Description
Specification
Product Name | Dot/Linear/Cross Laser Module |
Size | 16*66mm |
Output Wavelength | 658nm±5nm |
Output Power | 100mw |
Input Voltage | 3-5V |
Input Current | >150mA |
Storage Temperature | -40℃~80℃ |
Operating Temperature | -10℃~70℃ |
Wire Length | 80cm |
Irradiation Distance | Adjustable Focus |
Lens Angle | 130° |
Working Hours | 8000H |
Products Description

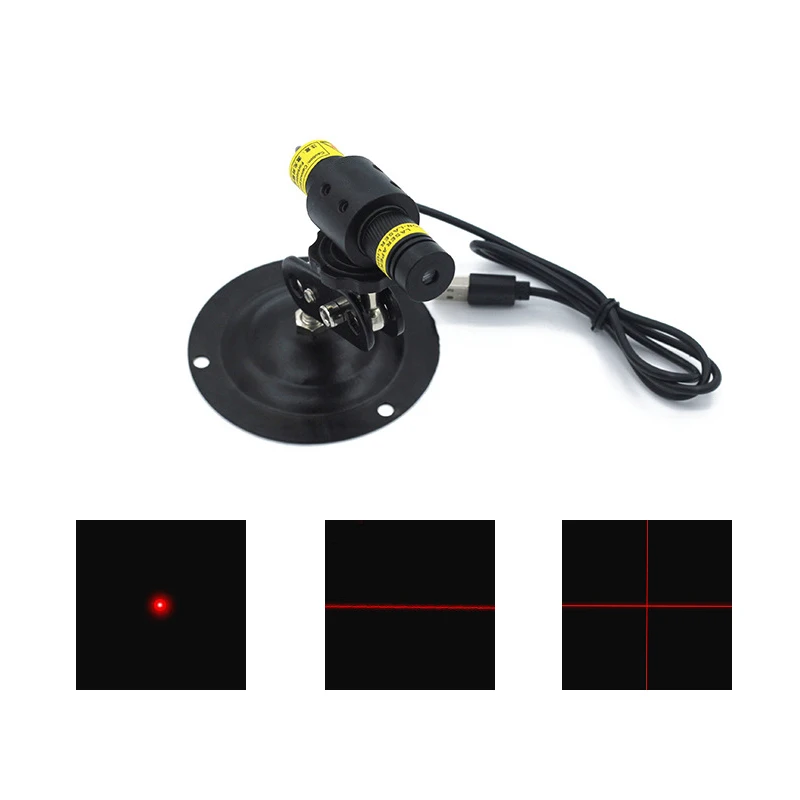

Super Bright, Clear Light, Adjustable Line Width, Support Customization

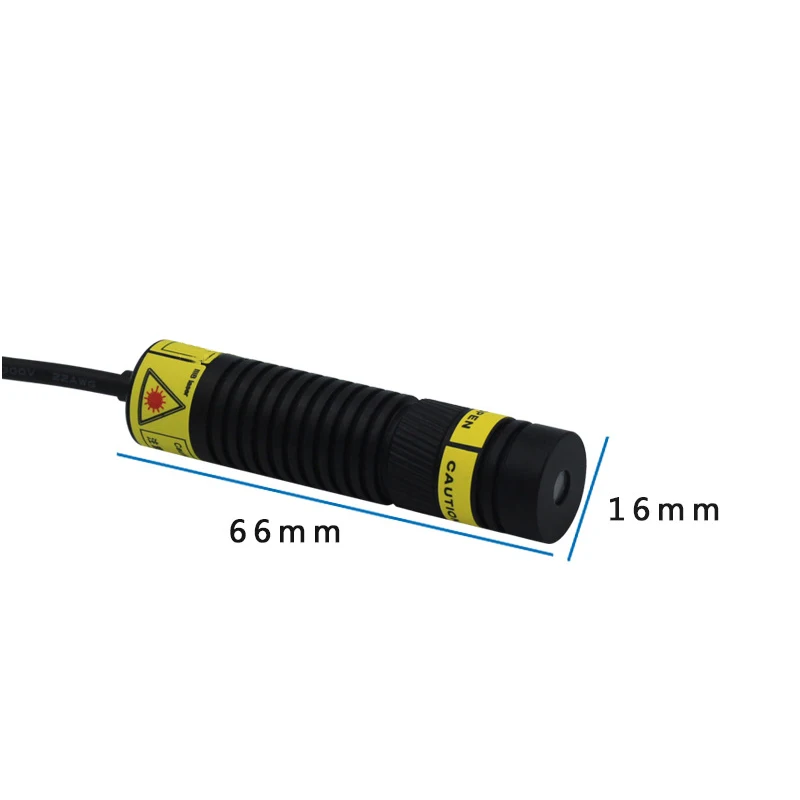

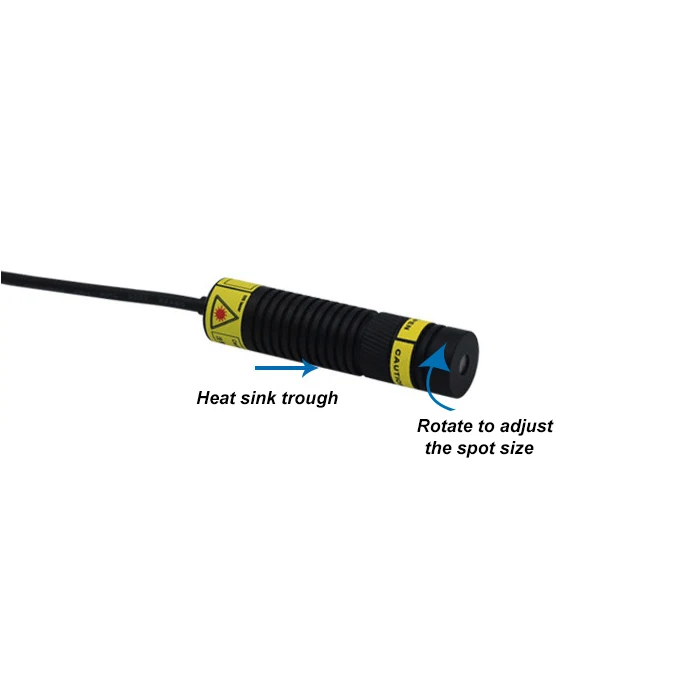

The laser structure size is 16*66mm, adjustable focal length (rotate the laser head left and right), and comes with a locking ring, which has strong anti-interference and high stability.
Wavelength, power, wire length, working distance, spot effect, etc. can be customized according to customer requirements.

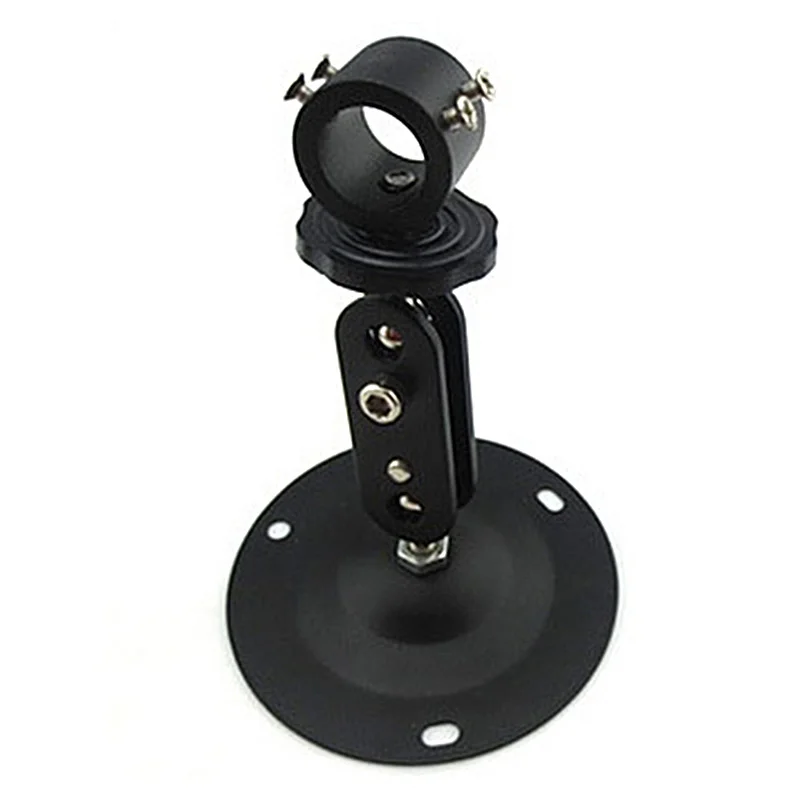

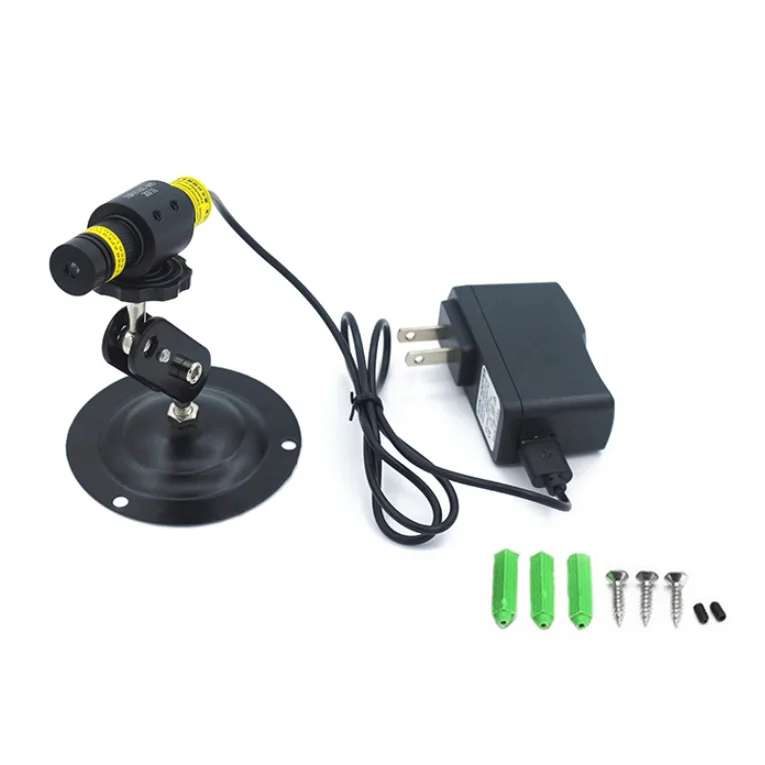

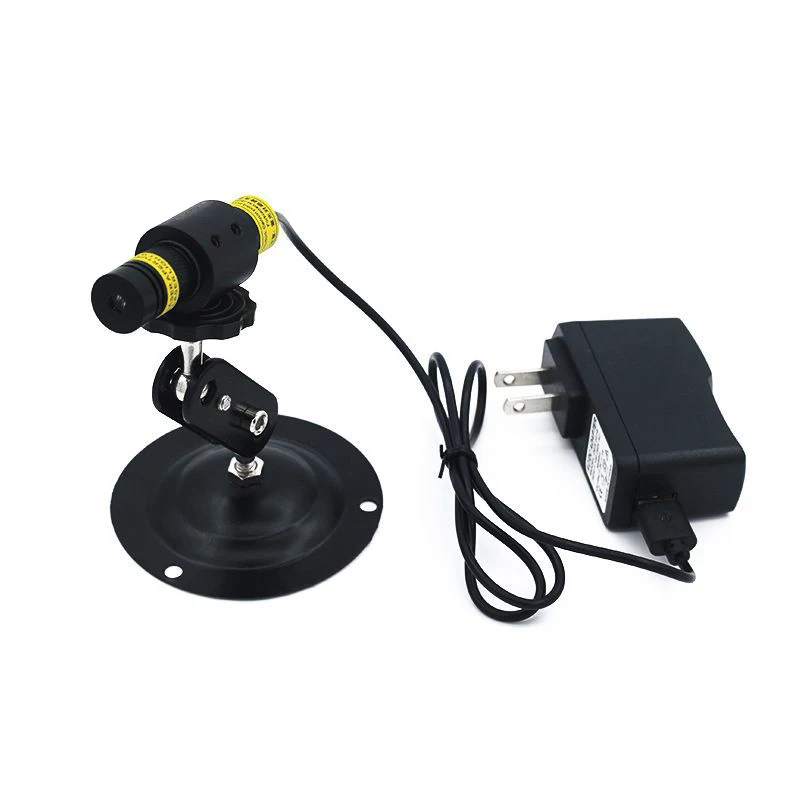

Set Includes: laser module+ power supply + universal bracket

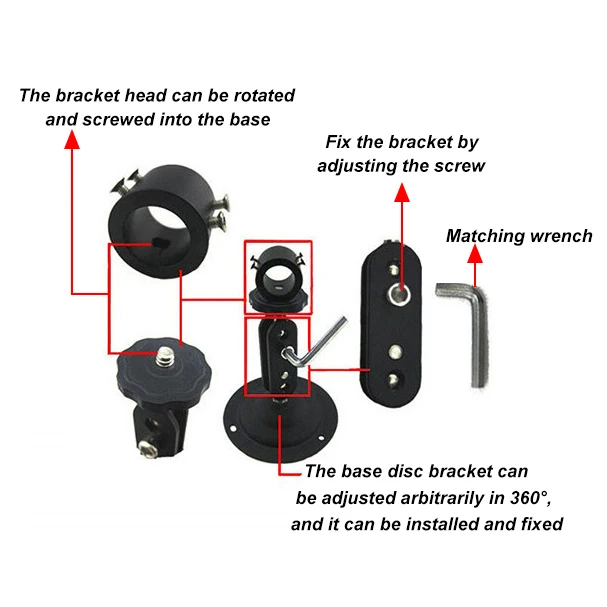

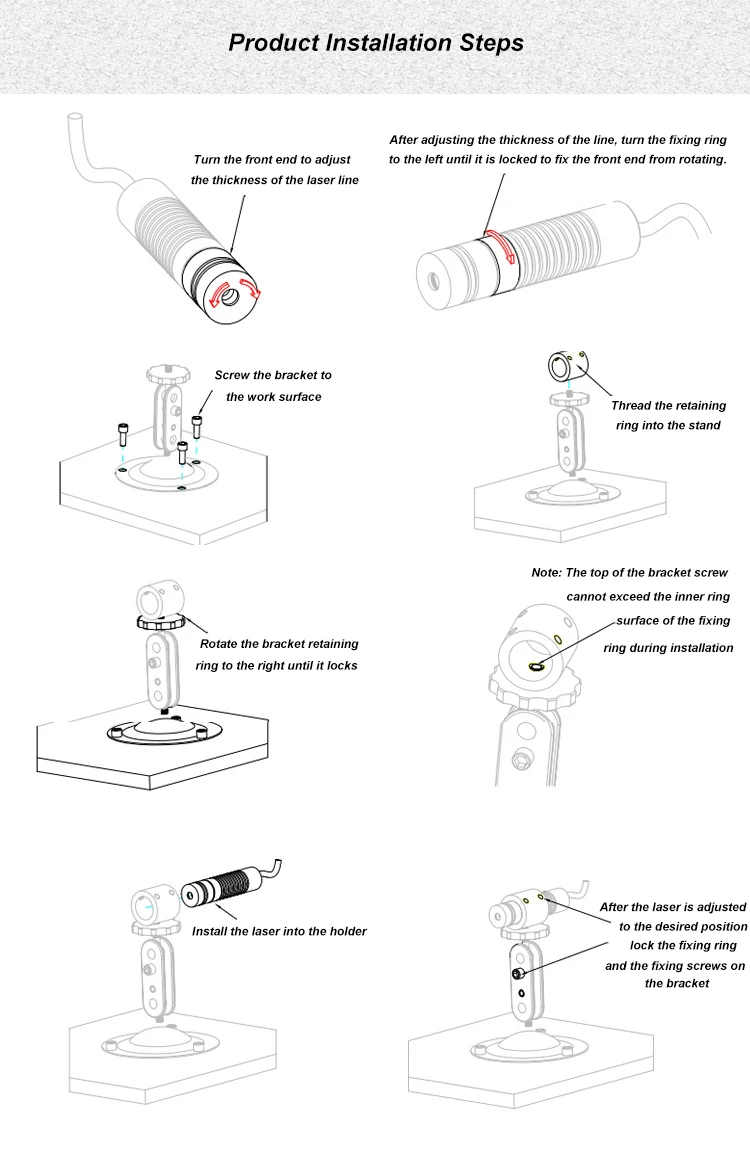

Easy to install, (can be installed from multiple angles) can be quick switch operation.

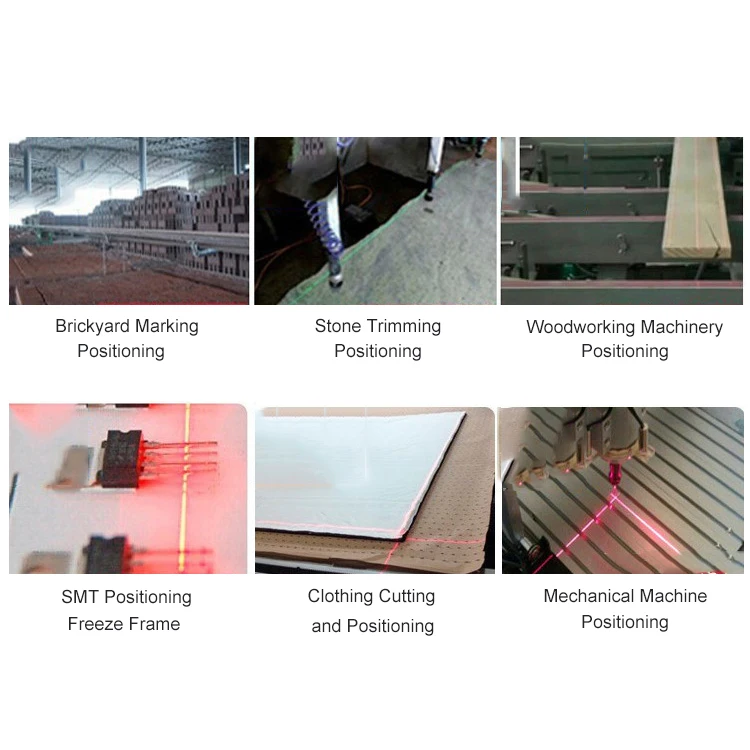

Application
It is widely used in the positioning of various sawmilling processing, clothing cutting machines, clothing cutting and cloth cutting machines, and can play an auxiliary role in marking and positioning.
It can be installed on the vertical or horizontal plane of the machine to provide a visible laser marking line, so that there is a visible, non-contact in-line positioning line to guide the operation process throughout the production process.
It can be installed on the vertical or horizontal plane of the machine to provide a visible laser marking line, so that there is a visible, non-contact in-line positioning line to guide the operation process throughout the production process.
