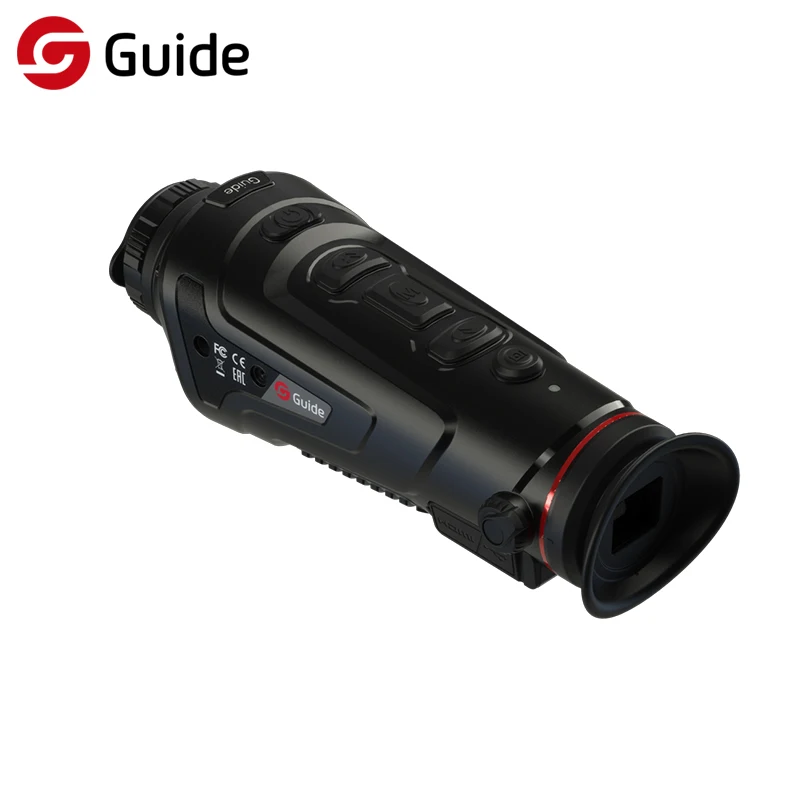

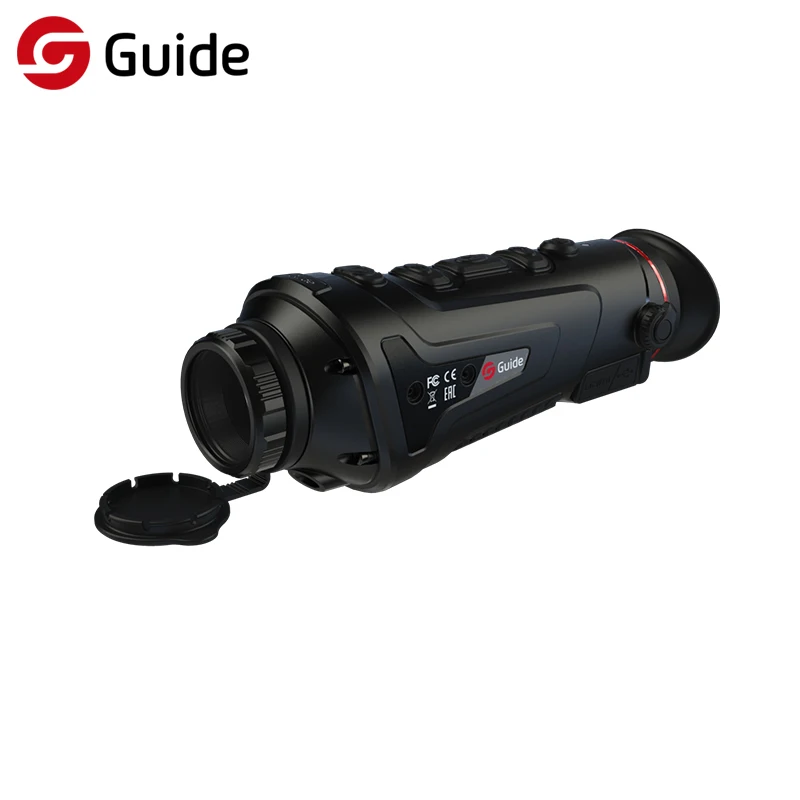

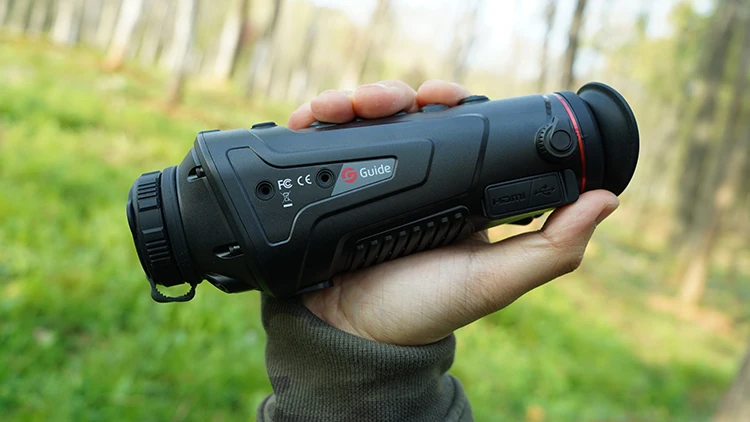

Guide TK611 Handheld Thermal infrared Imaging Monocular Thermal Night Vision with built in laser indicator and illuminator
- Category: >>>
- Supplier: Wuhan Guide Sensmart Tech Co. Ltd.
Share on (1600512410821):
Product Overview
Description
Products Description

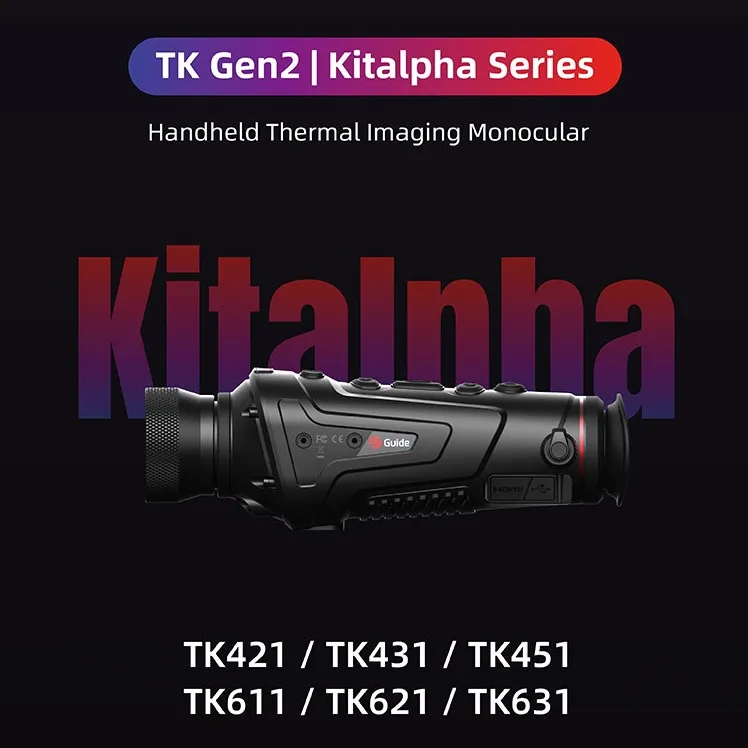

TK Gen2 Kitalpha Series Handheld Thermal Imaging Monocular
Equipped with Guide's new self-developed infrared detector and the patented image processing technology, the TK Gen2 Kitalpha Series captures sharp imaging and is packed with powerful features like image and video recording, smooth zoom, pseudo-color adjustment, approximate ranging and PIP. Personalized image observation is supported in different scene modes. The built-in laser indicator and illuminator facilitate itself to be operated in harsh environment.
Features and Benefits
New self-developed infrared metal detector with high sensitivity
PureIR adaptive filtering algorithm for sharp images in complex environments
Built-in laser indicator to locate the targets up to 200m
0.4-inch 1280x960 display for comfortable observation
Differential buttons for easy operation in total darkness
The connected app via WiFi for remote control, live image and video transmission
Designed to be operated under extreme environmental conditions with IP66 and 1 meter drop test
Product Paramenters
Model | TK421 | TK431 | TK451 | TK611 | TK621 | TK631 | |||||
IR Resolution | 400×300@17μm | 640×480@12μm | |||||||||
NETD | ≤50mk @ F1 25℃ | ||||||||||
Focal Length | 25mm/F1.1 | 35mm/F1.2 | 50mm/F1.2 | 19mm F1.0 | 25mm F1.0 | 35mm F1.0 | |||||
Focusing | Manual Focus | ||||||||||
FOV | 15.4°×11.6° | 11.1°×8.3° | 7.8°×5.8° | 22.9°×17.2° | 17.5°×13.1° | 12.5°×9.4° | |||||
Output Frame Frequency | 50Hz | ||||||||||
Optical Zoom | 1.7x | 2.3x | 3.3x | 1.1x | 1.5x | 2.0x | |||||
Digital Zoom | 1x—4x | 1x—8x | |||||||||
Battery Operating Time | Battery continuous working time ≥ 5 hours @ 25 ℃ (only observe the state) | Battery continuous working time ≥ 4.5 hours @ 25 ℃ (only observe the state) | |||||||||
USB | Type C (USB 2.0 standard) interface, chargeable and data access | ||||||||||
Video Interface | Micro HDMI | ||||||||||
WIFI | Transmission of real-time video via WIFI for remote control, 2.4G frequency band, distance up to 15m | ||||||||||
Internal Storage | 16GB | ||||||||||
Working temperature | -10℃~50℃ | ||||||||||
Certifications | IP66/FCC/CE/Rohs/EAC/un38.3 | ||||||||||
Weight | ≤470g | ≤485g | ≤535g | ≤490g | ≤560g | ||||||
Size | 192*65*71mm | 214*65*71mm | 192*65*71mm | 214*65*71mm | |||||||
Company Profile
Wuhan Guide Sensmart Tech Co., Ltd.
Guide Sensmart is the subsidiary of Guide Infrared (SZ.002414), the world leading infrared thermal imaging systems manufacturer.Thanks to our group company’s 20 years experience in the infrared industry and mass production capacity, Guide Sensamrt designs and delivers high quality, affordable thermal imaging products across the globe at scale quantity, with the mission to make thermal imaging benefit everyone in the daily work and life.

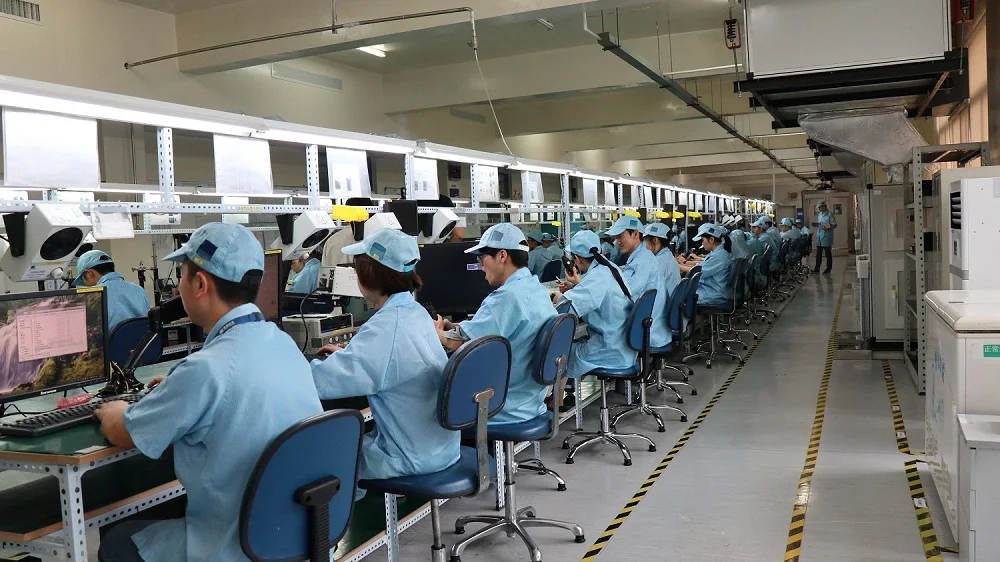

Thanks to the advantage of low cost and mass production brought by Guide’s self-developed IR detectors, Guide Sensmart developed a wide range of infrared thermal imaging products with an annual production capacity of 500,000 units, including industrial thermal cameras, IR fever warning systems, thermal imaging scopes, thermal binoculars and more.
Guide Sensamrt has always adhered to the innovation on thermal imaging technology. So far, the company has over 216 patents, and is honored to be the High-tech Enterprise supported by the state. In the overseas market, Guide Sensmart has developed over 300 long-term partners and established sales and service network in more than 70 countries and regions around the world.
Thanks to the advantage of low cost and mass production brought by Guide’s self-developed IR detectors, Guide Sensmart developed a wide range of infrared thermal imaging products with an annual production capacity of 500,000 units, including industrial thermal cameras, IR fever warning systems, thermal imaging scopes, thermal binoculars and more.
Guide Sensamrt has always adhered to the innovation on thermal imaging technology. So far, the company has over 216 patents, and is honored to be the High-tech Enterprise supported by the state. In the overseas market, Guide Sensmart has developed over 300 long-term partners and established sales and service network in more than 70 countries and regions around the world.
Why Choose Us
Professional
We are the NO.1 biggest manufacturer of infrared thermal imaging products in China , with 20 Years' experience in infrared thermal imaging industry.
Market Share
NO. 3 market share in the globle commercial infrared thermal imaging products markets.
Reliable
Guide's self-developed infrared cores and complete chain of infrared thermal products realize mass production capacity in short leadtime.
Best Servie
We are committed to providing the customers with a quick, efficient, professional and high-quality after-sales service. Most of our products provide the 1+1 years warranty policy.
Verified Supplier
Guide Sensmart is officially verified by alibaba.com
Trade Assurance
Alibaba Trade Assurance payment terms makes the business deal safer faster and more reliable.

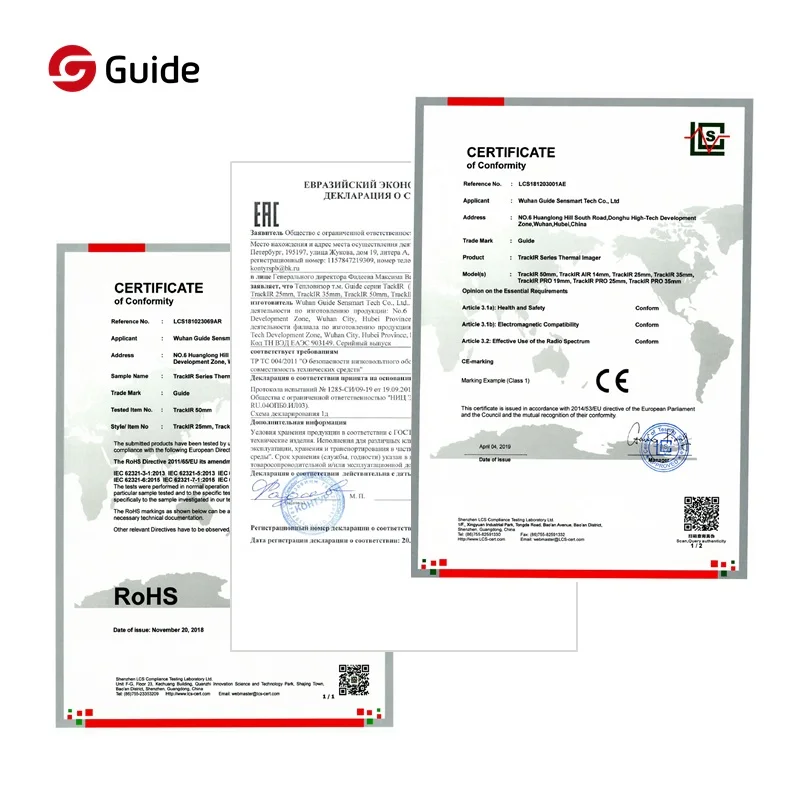

Certifications
