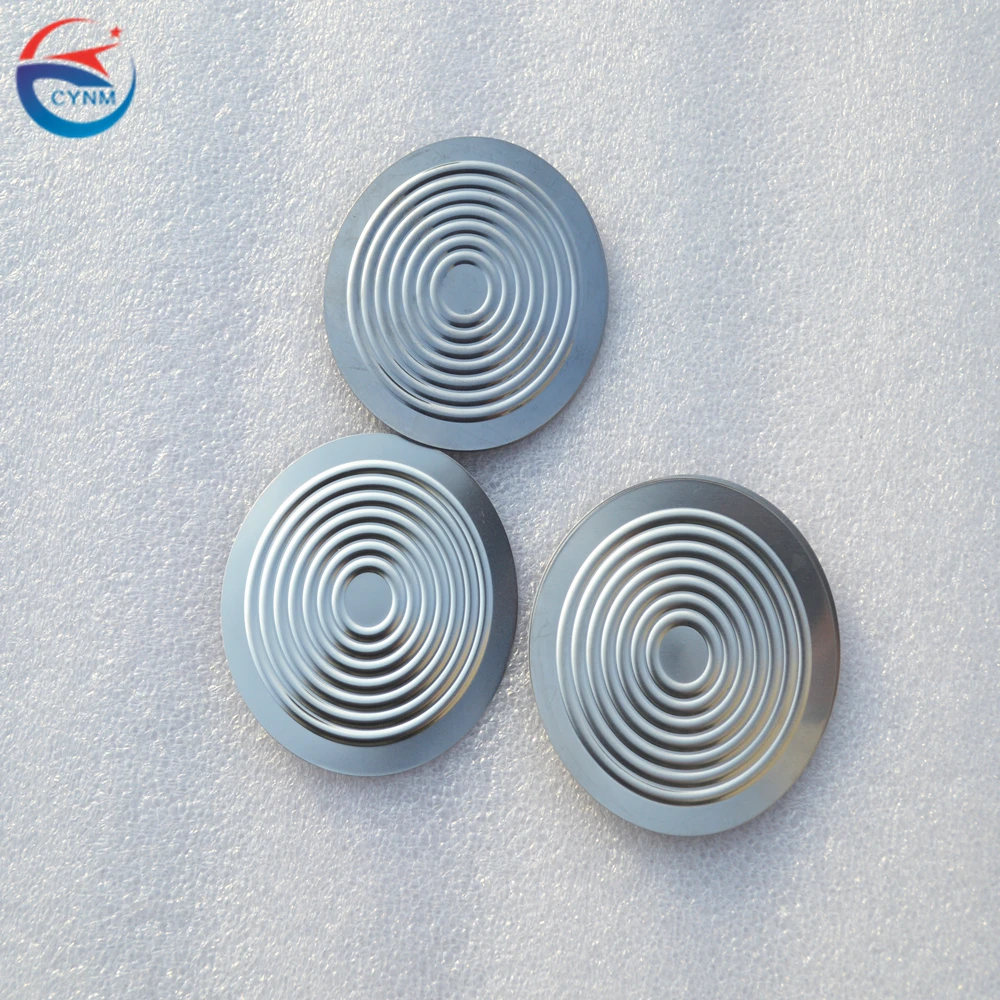

stainless steel diaphragm capsule for regulator
- Category: >>>
- Supplier: Baoji Chengyi Nonferrous Metals Co. Ltd.
Share on (1600512414288):
Product Overview
Description
Customers feedback
Free sample will be offered if we have stock

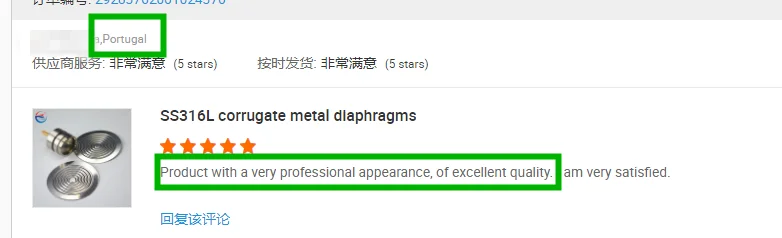

Feedback of the metal diaphragm which used in the Pressure sensor

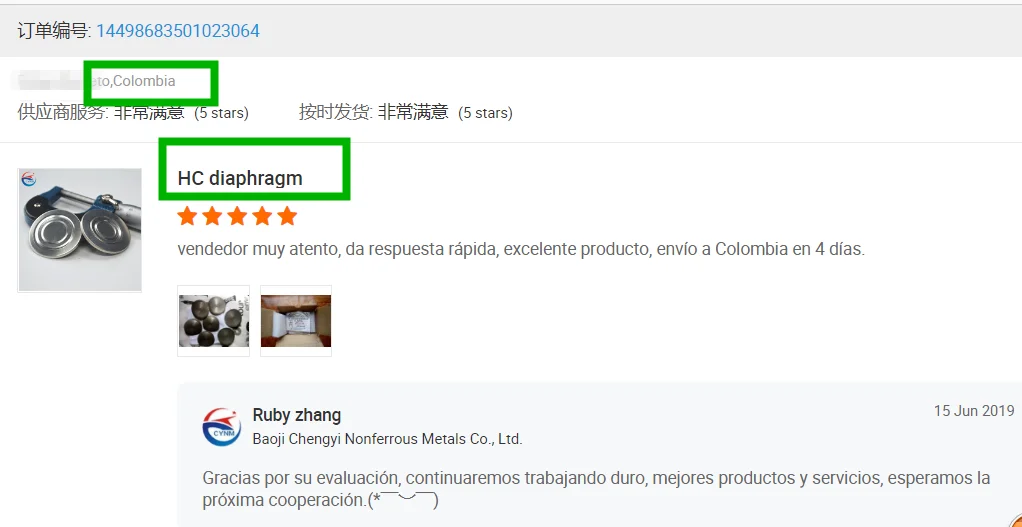

HC276 Diaphragm feedback from our Colombia Customer

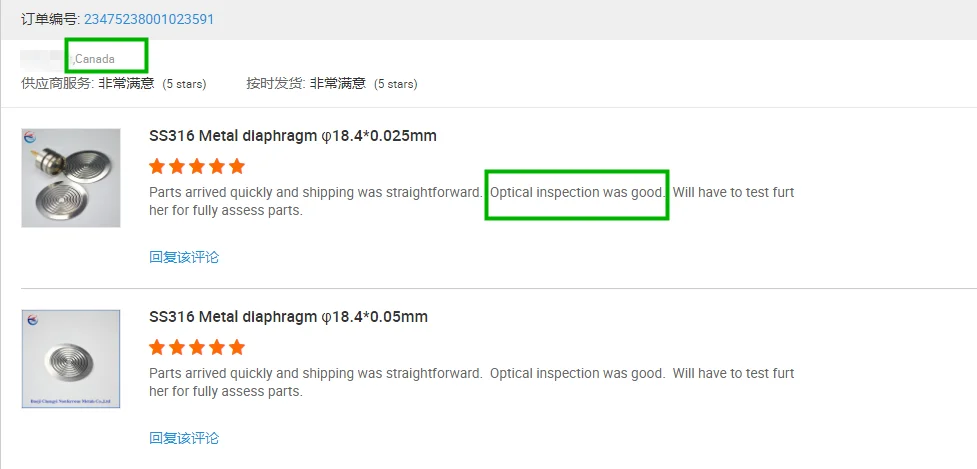

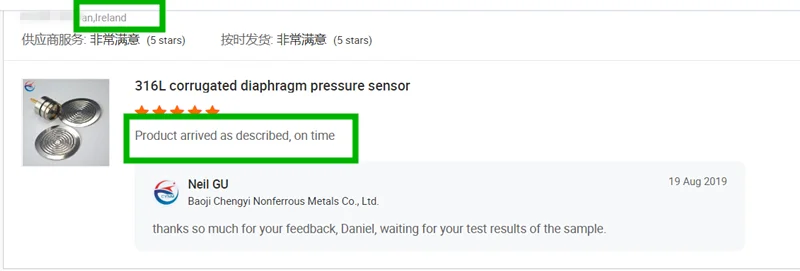

Stainless Steel SS316L Diaphragm feedback from our Ireland Customer
Product Description
Product name | Metals Diaphragm |
Material | Tantalum, Titanium, SS316L, 304, HC276,Monel, Inconel625 |
MOQ | 50 Pieces |
Hot sale size | φ18.4*0.025mm φ12.4*0.03mm φ30*0.05mm, φ50*0.05mm, φ65*0.08mm φ18.8*0.02mm |
Application | Diaphragm pressure gauge Pressure sensor Pressure Transmitters Diaphragm valve pressure switch |
Detailed Images

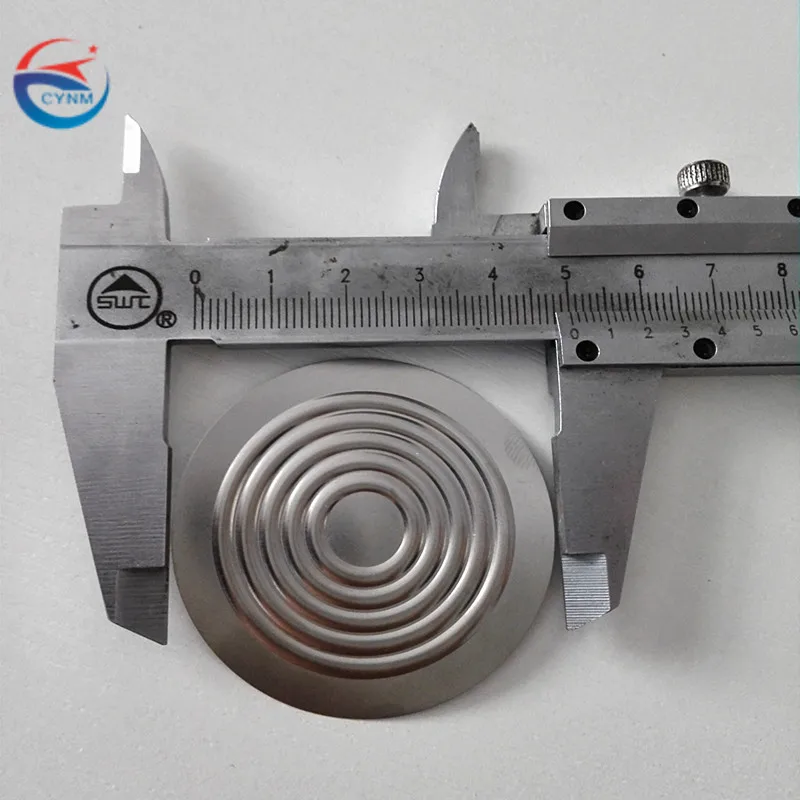

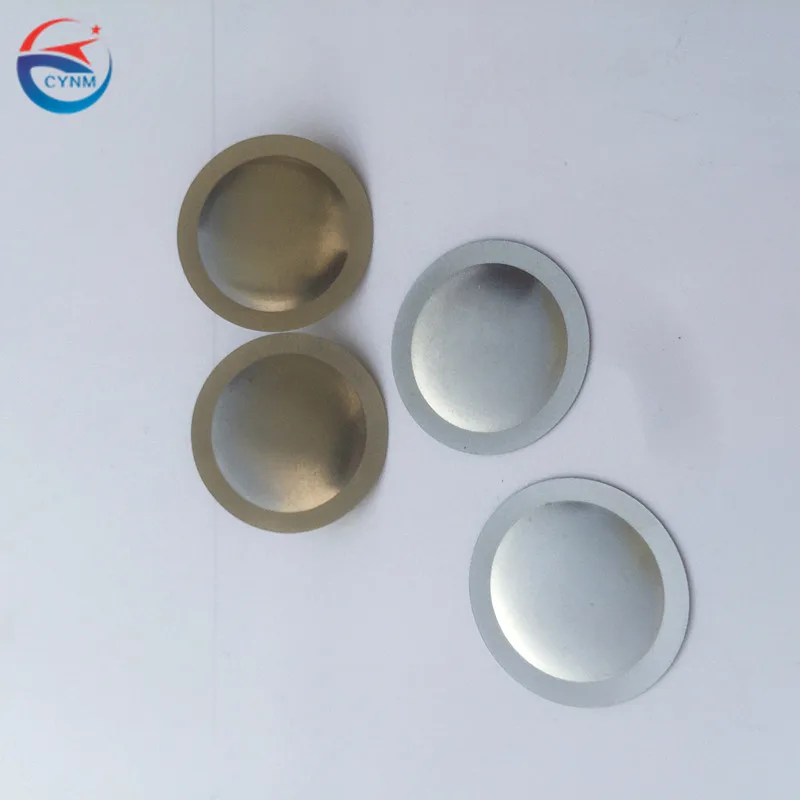

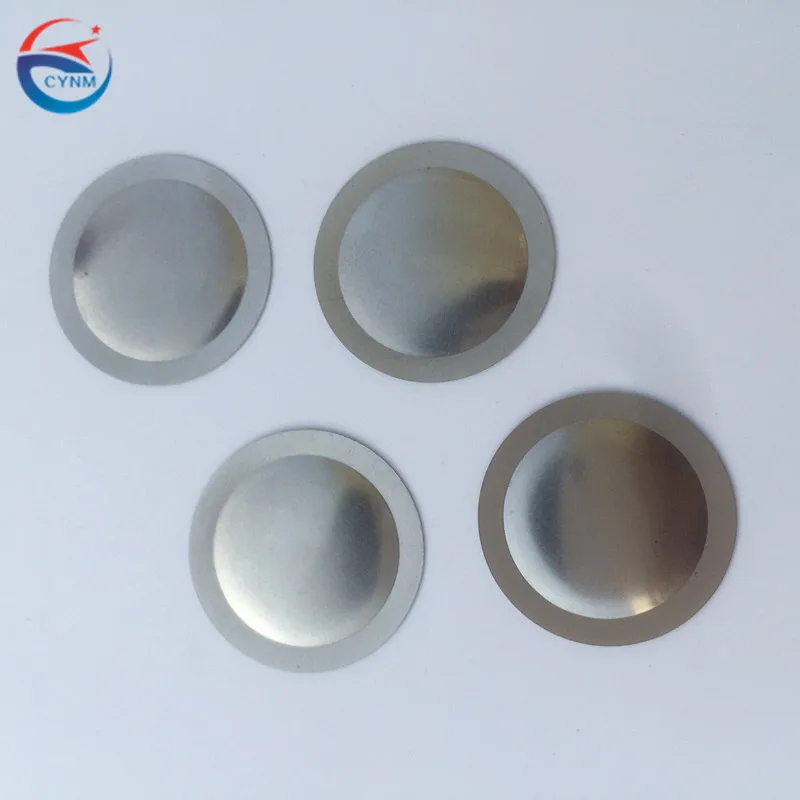

We have both corrugated diaphragm and flat diaphragm, if you have some special demand, please send the drawing.
Hastelloy C276
Working enviroment:
Oxidizing, salts such as Fe, Cu, Seawater phosphhoric acid, Organic acid, Choride, Magnesium, Aluminum, Calcium, Ammonium, Iron and so on MOQ: 100 Pieces
Titanium diaphragm
Material: Gr1, G2
Working environment: Sodium, Potassium, Ammonium, Seawater; Potassium hydroxide (Concentration less 50%), ammonium hydroxide, Barium hydrofluoric alkaline solution. hydrochloric acid(Concentration less than 40%)
MOQ: 100 pieces
SS316L diaphragm
Suitable environment: Domestic water, Industrial water, Raw water well, urban sewage weakly corrosive acid,Alkali, Salt solutio.
MOQ: 100 Pieces

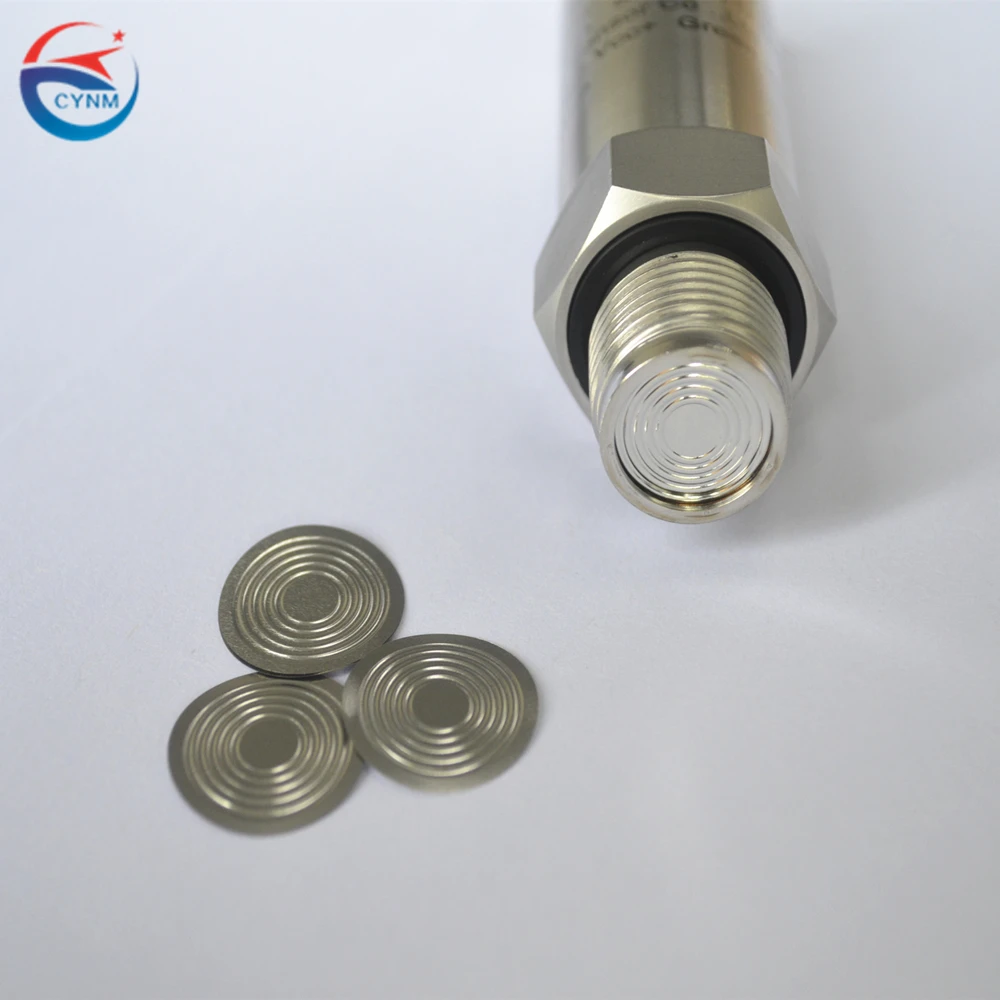

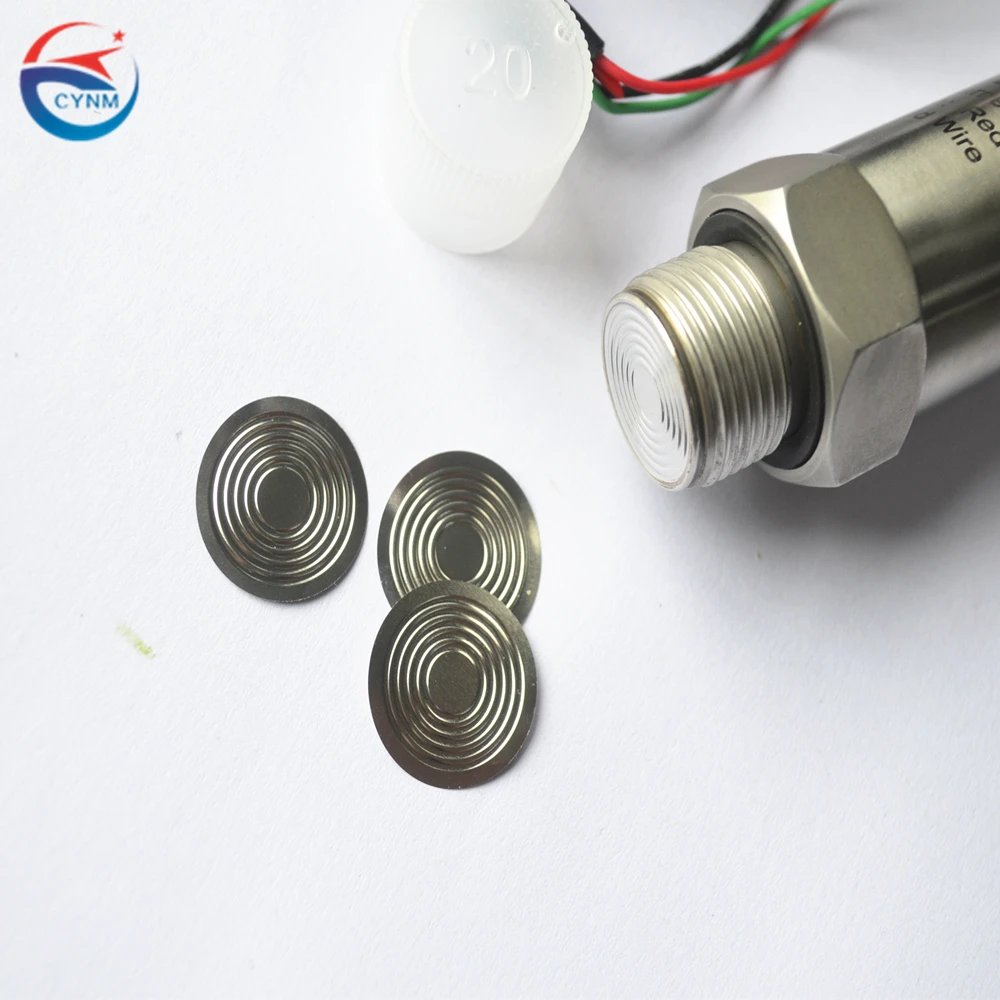

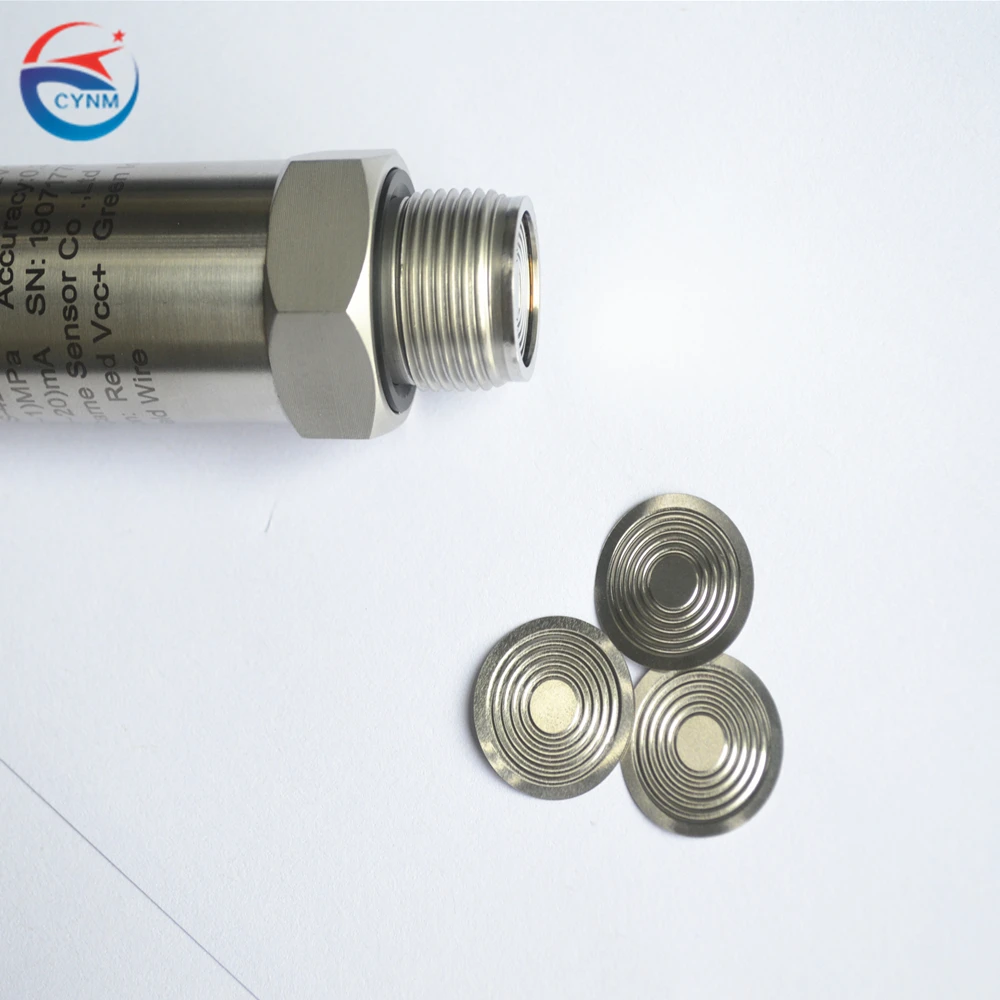

Pressure sensor common diaphragm dimesions:
φ12.4*0.025mm
φ12.4*0.05mm
φ18.4*0.02mm
φ18.4*0.025mm
φ18.4*0.05mm
The Material including SS316L and HC276
Tantalum diaphragm
Working enviroment:
Chlorine Dioxide,Ferric Chloride, Hypochlorous acid, Sodium, Cyanide, Acetic acid and the like; oxidizing acids such as nitric acid(Including fuming nitric acid) and aqua regia at temperature below 80 Celsius
Due to the tantalum material is expensive, so the MOQ of the Tantalum diaphragm is only 50 pieces

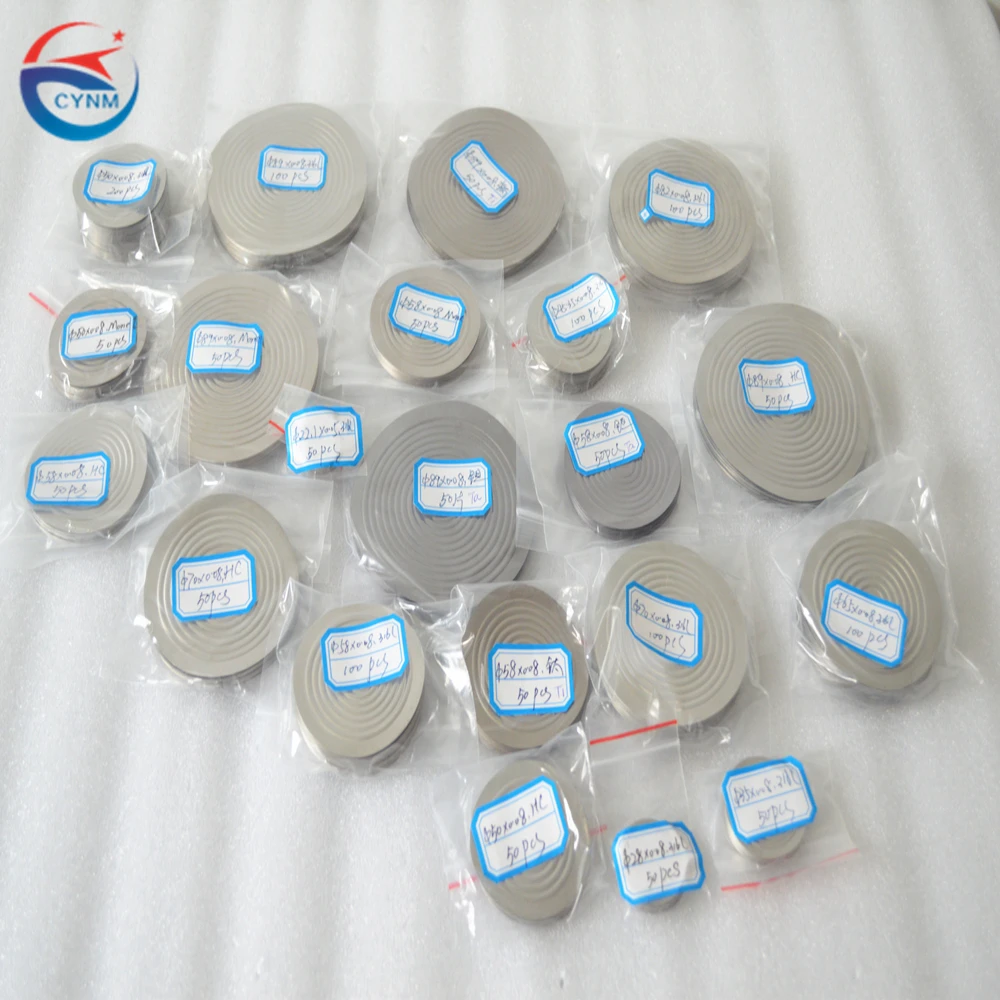

Package and Delivery
How to package the small size diaphragm
For the diameter ≤18.4mm, we put it in a plastic pipe, then put it in the carton case full of the high quality foam,then Fully wrapped with yellow waterproof tape
How to package the bigger size diaphragm
For the Diameter ＞18.4mm, we put it in the plastic bag,then put it in the carton case full of the high quality foam,then Fully wrapped with yellow waterproof tape

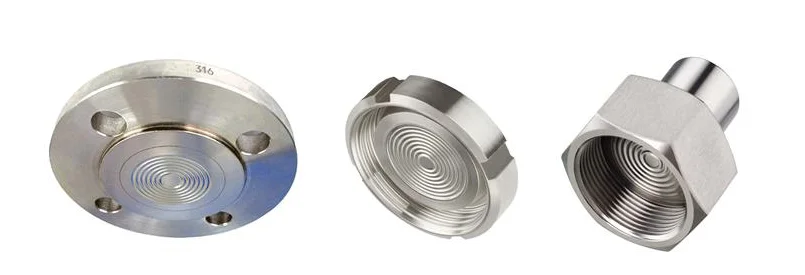

The Application of the Diaphragm
Diaphragm valve

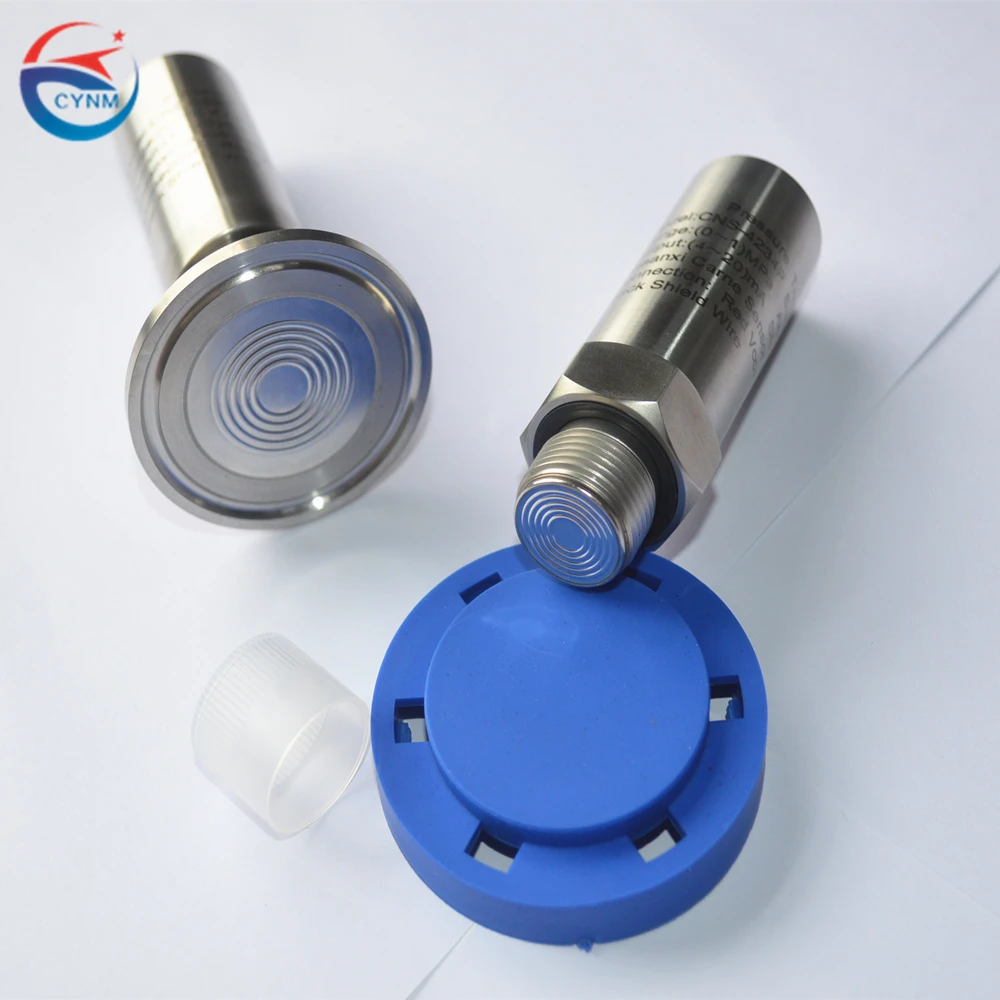

Pressure Sensor
Company Introduction
Our International sales department
Our factory
Exhibition
Customer come to visit us
Recommend Products
Are you also interested in the Grounding ring and electrode which used in the Electromagnetic Flowmeter
Tantalum grounding ring
Tantalum foil
