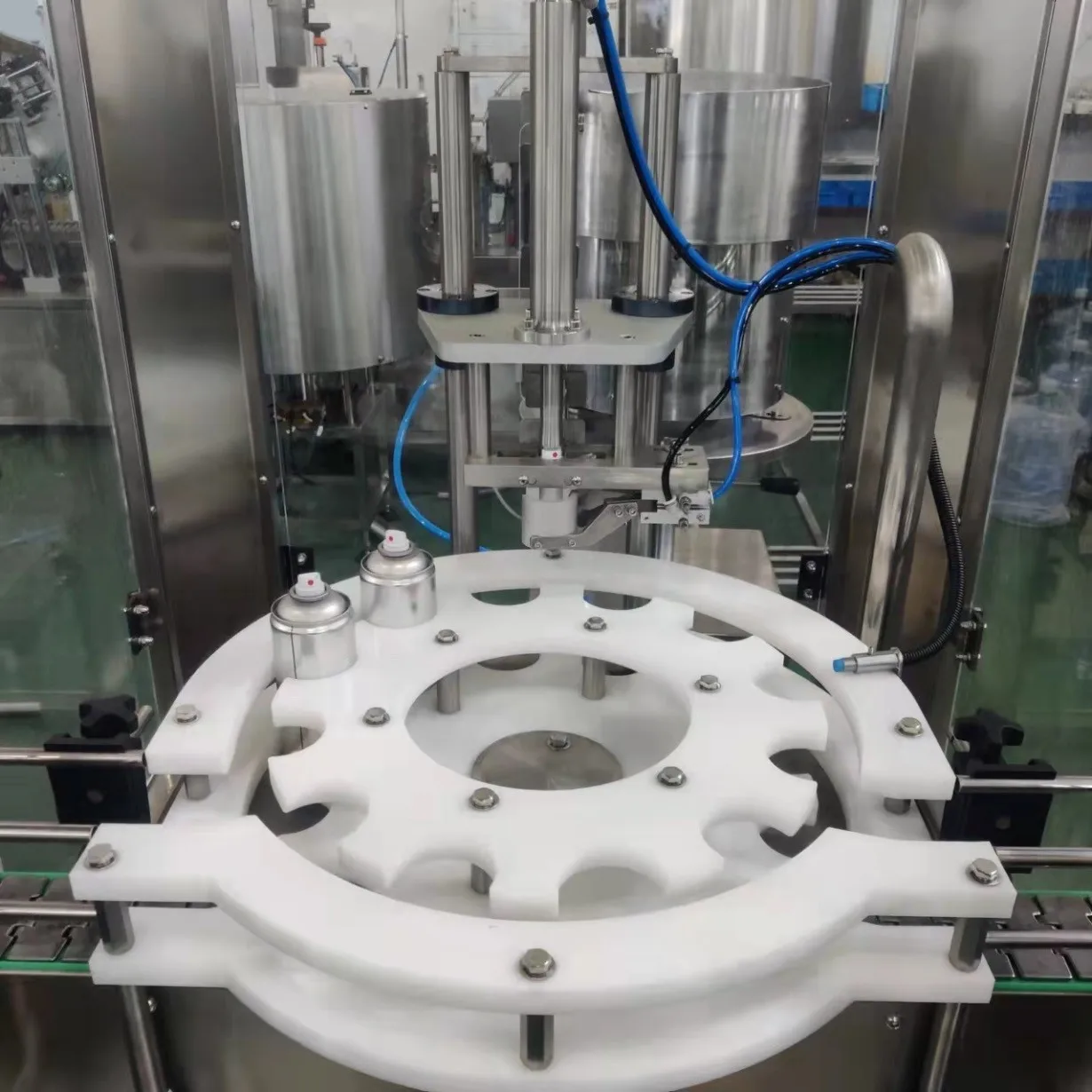

High Capacity Household Cleaning Spray Aerosol Spraying Automatic Filling Line with Capper Filler
High Capacity Household Cleaning Spray Aerosol Spraying Automatic Filling Line with Capper Filler
High Capacity Household Cleaning Spray Aerosol Spraying Automatic Filling Line with Capper Filler
High Capacity Household Cleaning Spray Aerosol Spraying Automatic Filling Line with Capper Filler
High Capacity Household Cleaning Spray Aerosol Spraying Automatic Filling Line with Capper Filler
High Capacity Household Cleaning Spray Aerosol Spraying Automatic Filling Line with Capper Filler
High Capacity Household Cleaning Spray Aerosol Spraying Automatic Filling Line with Capper Filler

High Capacity Household Cleaning Spray Aerosol Spraying Automatic Filling Line with Capper Filler

Share on (1600512415643):


Price:$12,000.00

Quantity:


Product Overview

Description











Automatic aerosol tin can spraying filling line use booster pump, which will convert the mixed liquid and gas to totally liquid. Then put it into add pump to storage, When the gas charging, add the pump suction the liquid from the quantitative tank. And then Quantitative cylinder piston work, gas charging finished. As the inflated gas has been completely transformed into liquid, so it can ensure the accuracy of inflation. The machine uses Quantitative SS316L stainless steel piston pump: corrosion, durable, quantitative criteria. When charging different specifications, it will adjust the charging quantity. There is a graduated scale at the piston pump, simply twist the hand wheel to adjust the gas charging quantity.


Product

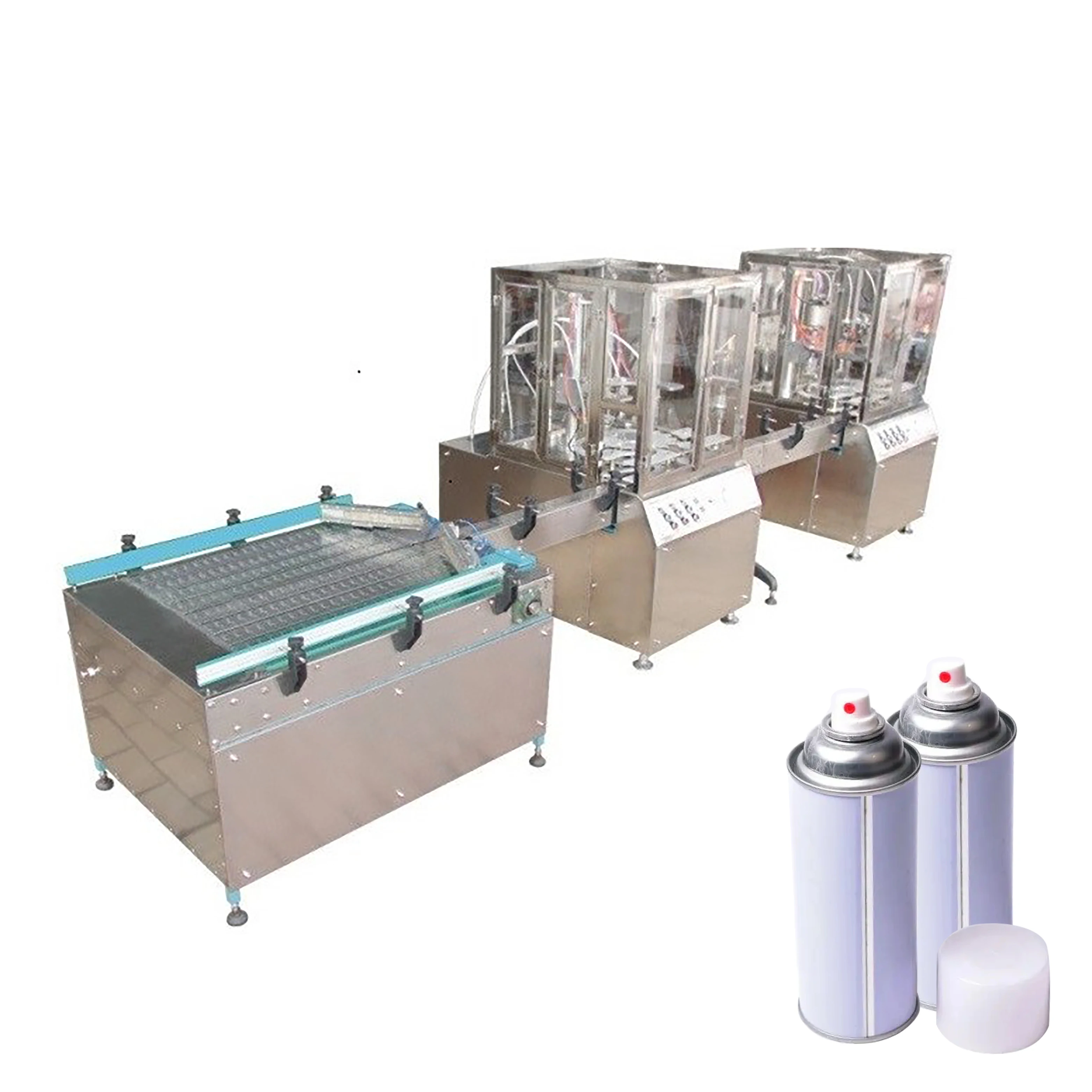

Automatic aerosol tin can spraying filling line
Output
1500-6000BPH (Customized)
Filling Volume
200-550ml (can be customized)
Control
PLC and Touch Screen
Driving Motor
Servo Motor
Filling Precision
±1%
Valve Feeding Precision
±1%
Air Consumption
0.6-0.8Mpa
Power
1.0KW
Machine Frame Material
SS304
Power Supply
220/380V, 50/60Hz



Bottle Feeding Table

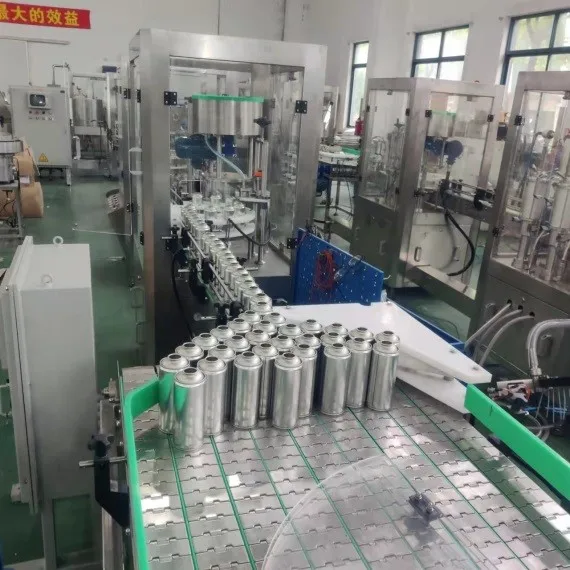

Variable speed bottle feeding table is the basic feeding system of aerosol spray bottle filling line, operator will put empty bottles on the table, with gear motor driving, the bottle will be arranged to the conveyor, the machine will be able to work with different size bottle.



Liquid Filling Machine

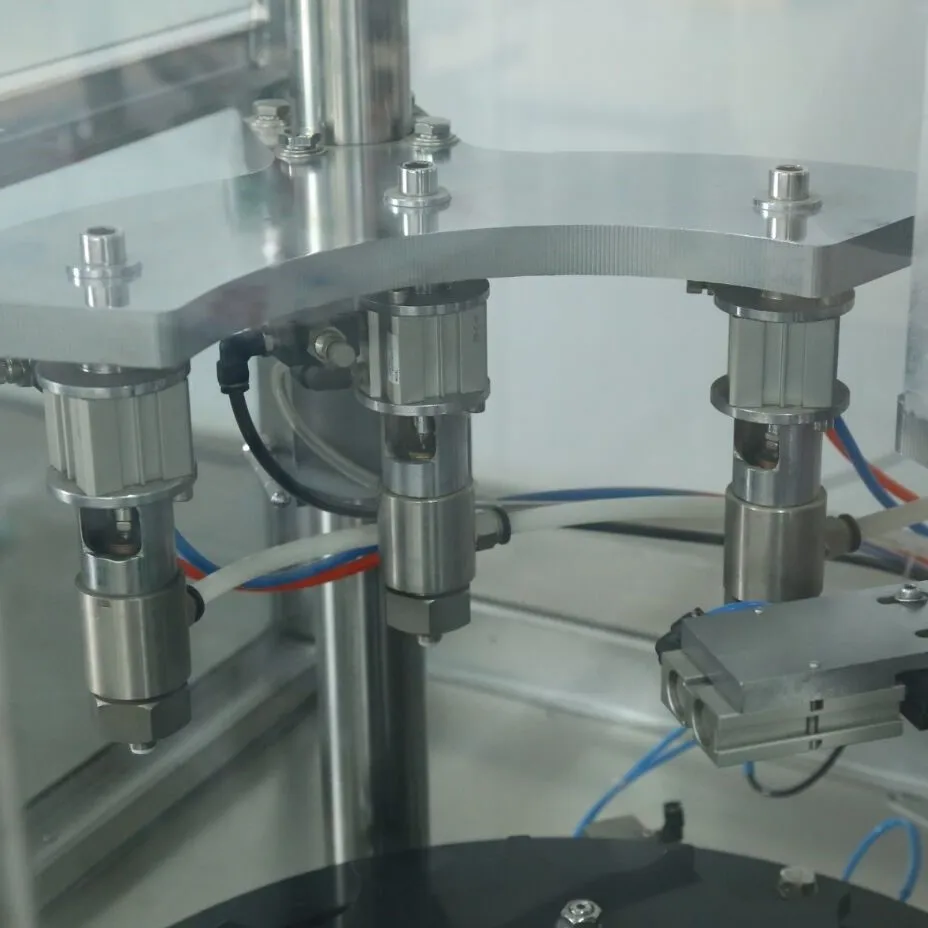

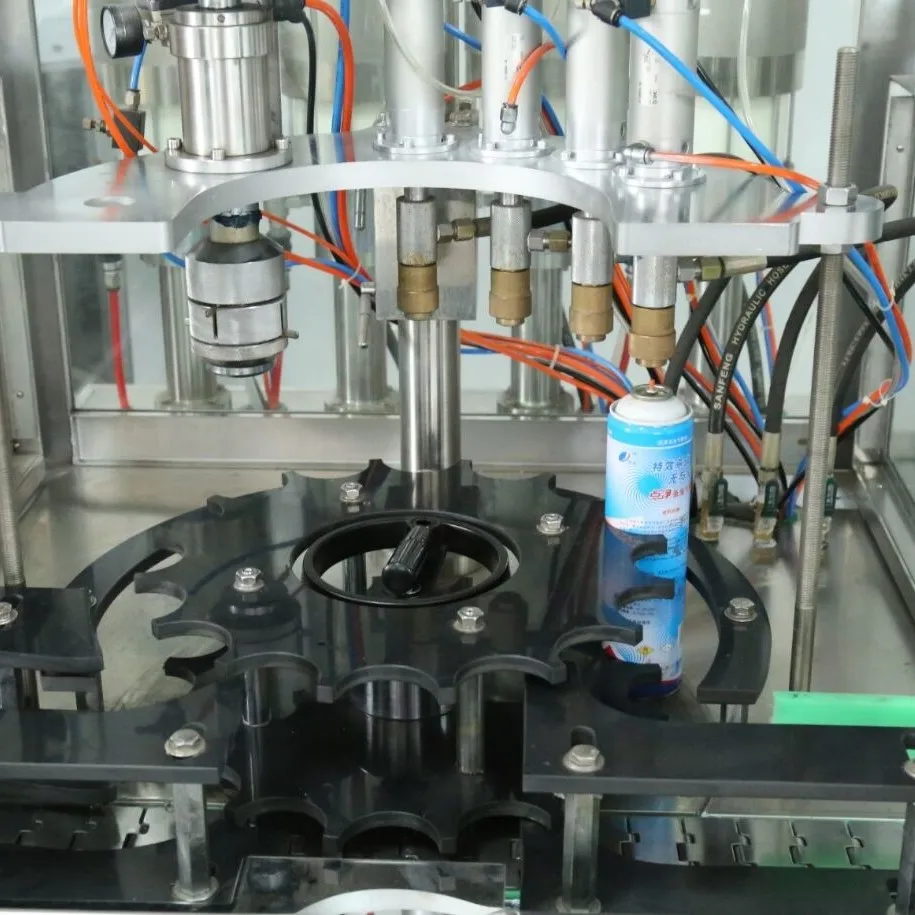

This machine adopts position pump, which is suitable for different kinds liquids, with high filling speed and high filling precision. The pump uses quick-fit removal structure: easy cleaning and disinfection. The filling nozzles adopt anti-drip and anti-drawing filling device. The machine adopts PLC and human-computer touch screen control
system.

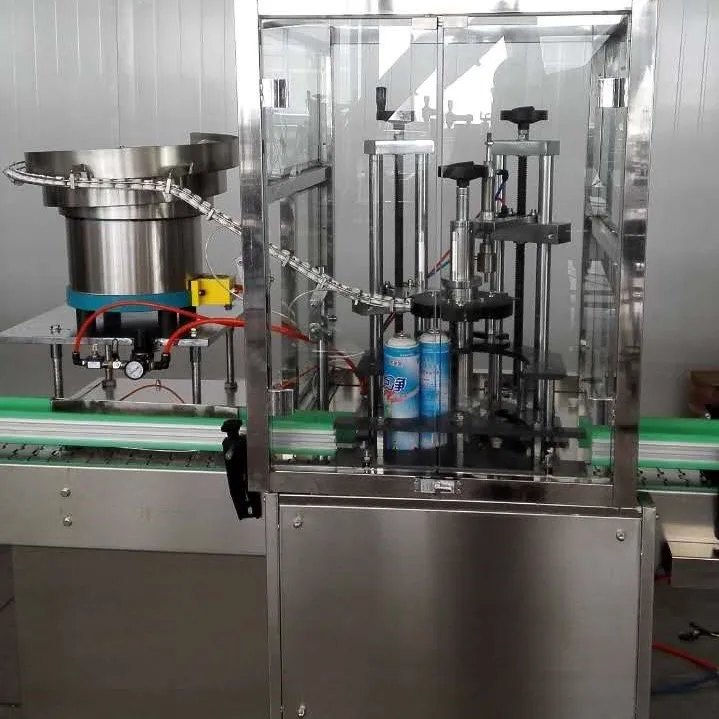

Spray Valve feeding machine



This valve putting part worked with stable speed and high efficiency. The machine adopts PLC and human-computer touch screen control system. The valve sorter and feeding parts can be easy to change for the different size.

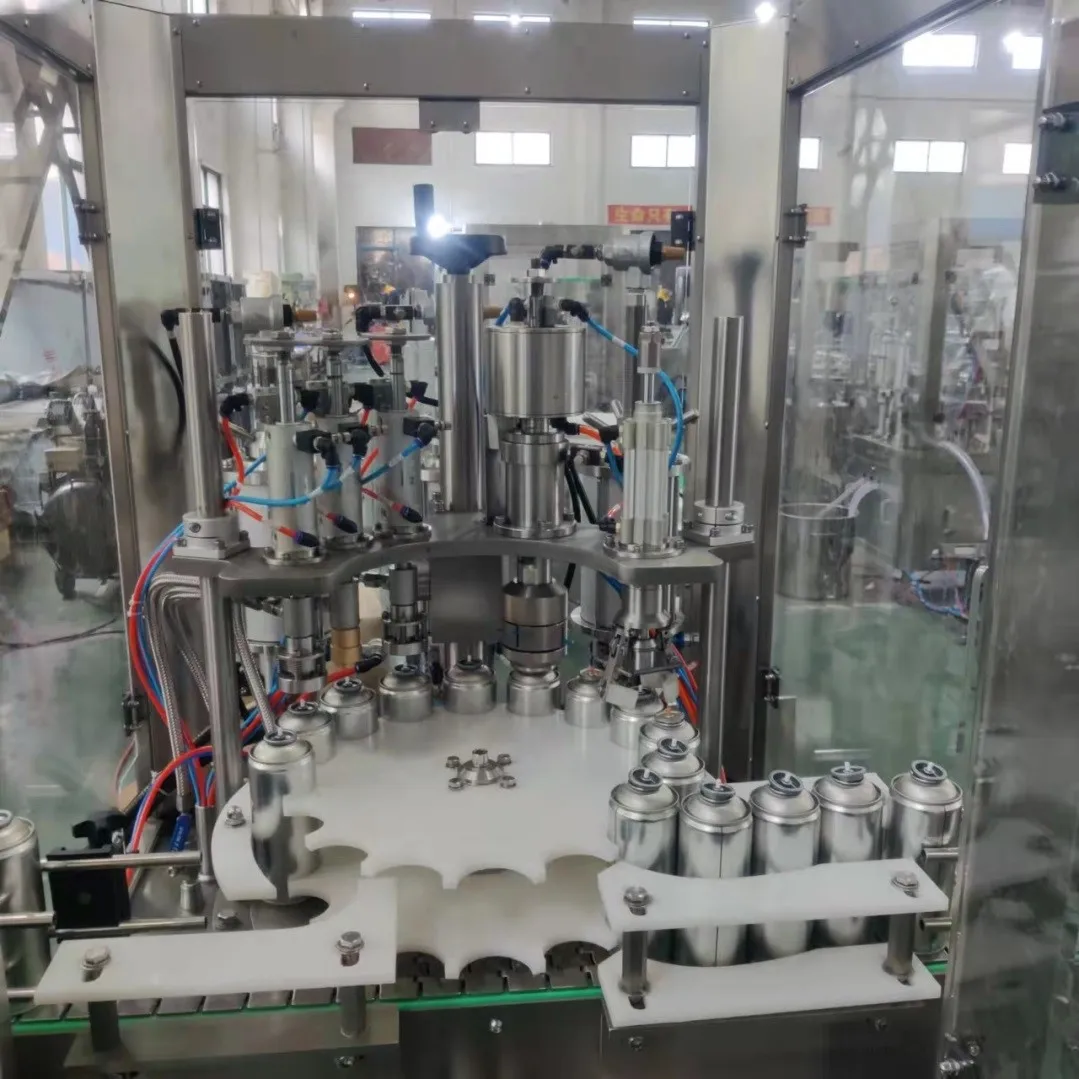

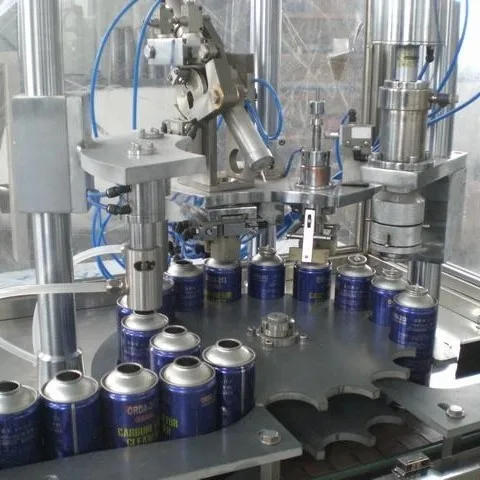

Spray Valve Sealing Machine



The sealing head is specially designed according to valve. When sealing the bottle, first step press valve to position it, then sealing claw will seal the bottle. The air proof circle inside the valve will tightly linked to the bottle, so it is beautiful without leakage.

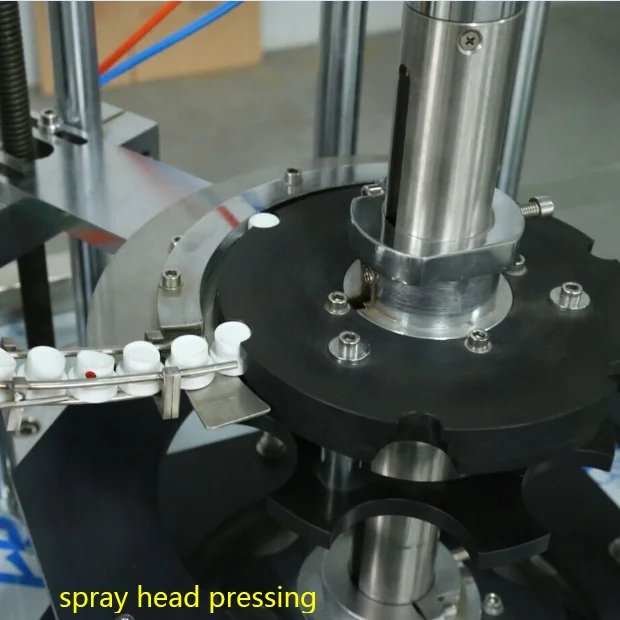

Spray Head Pressing Machine



The vibrating cap feeder will arrange the spray heads automatically, sending the caps to the production line from the pipe under the air power. It can save labors and increase productivity.



Electric Cabinet and Touch Screen
