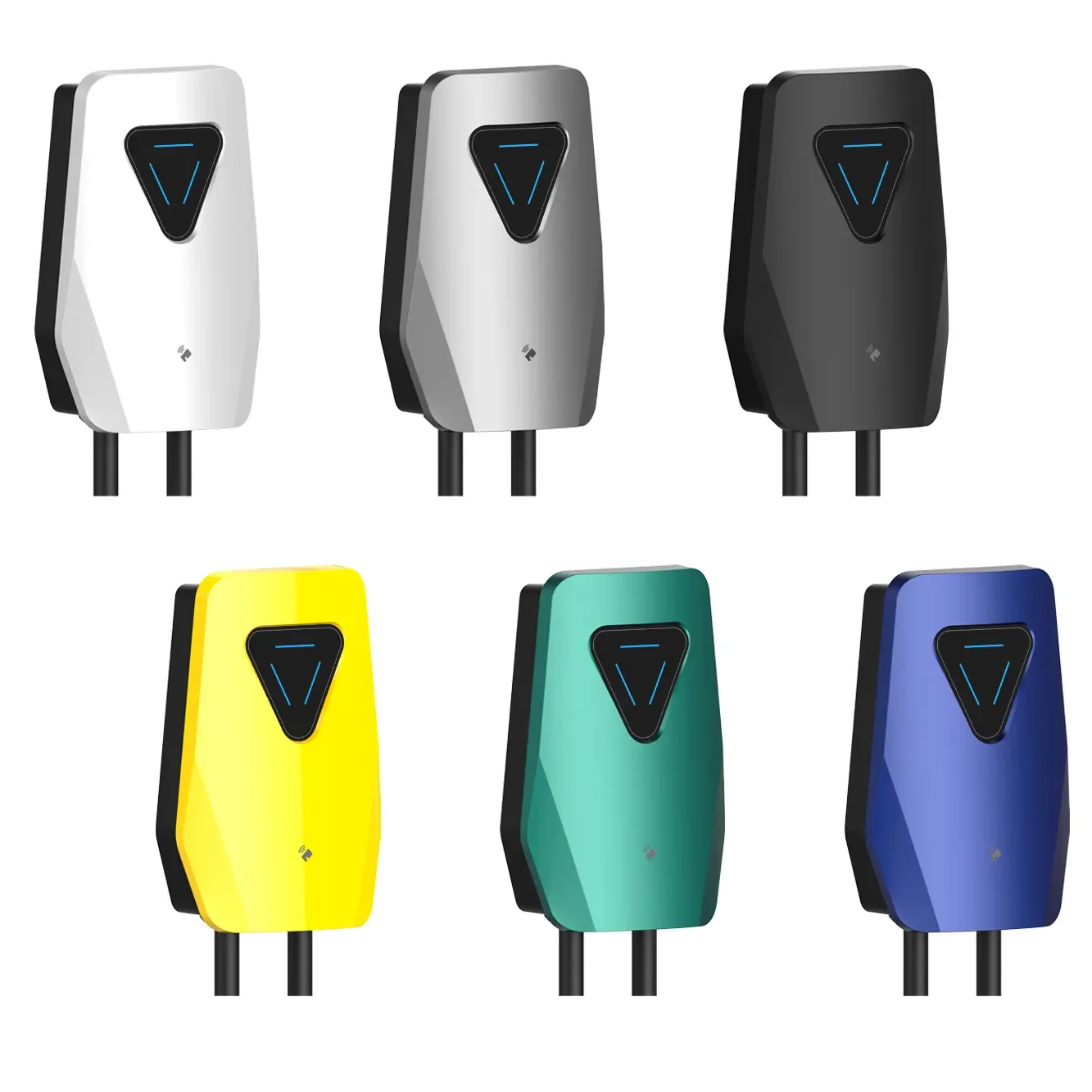

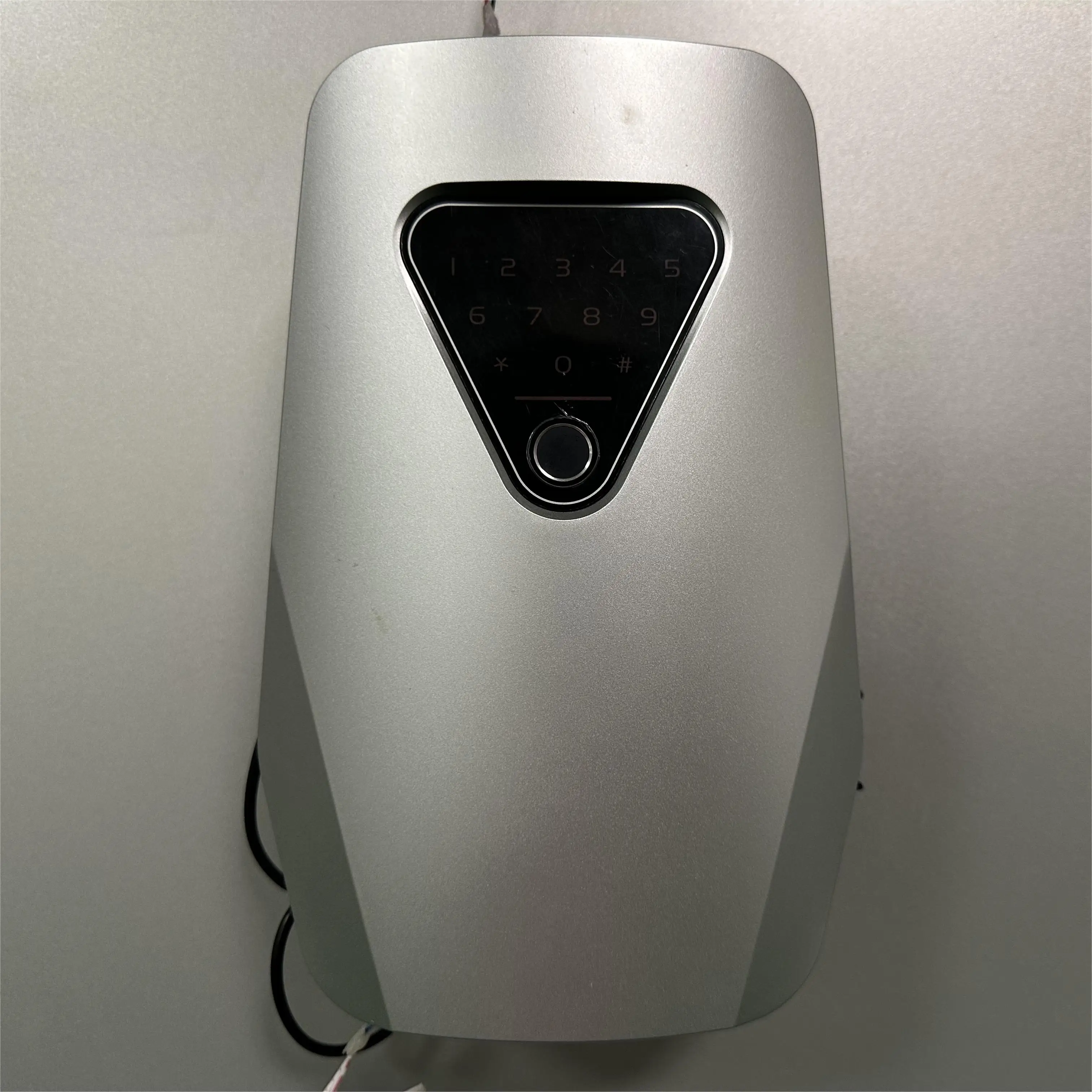

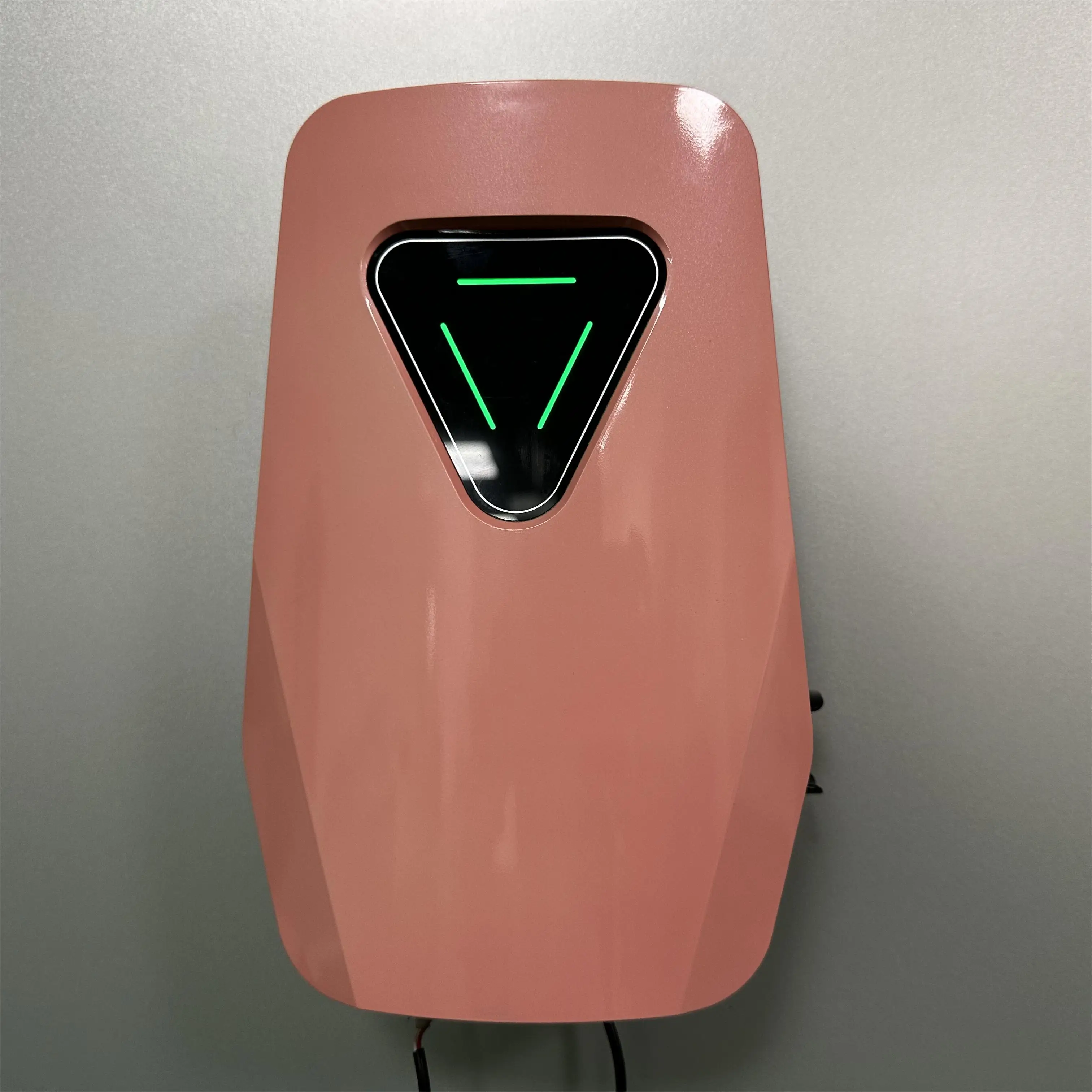

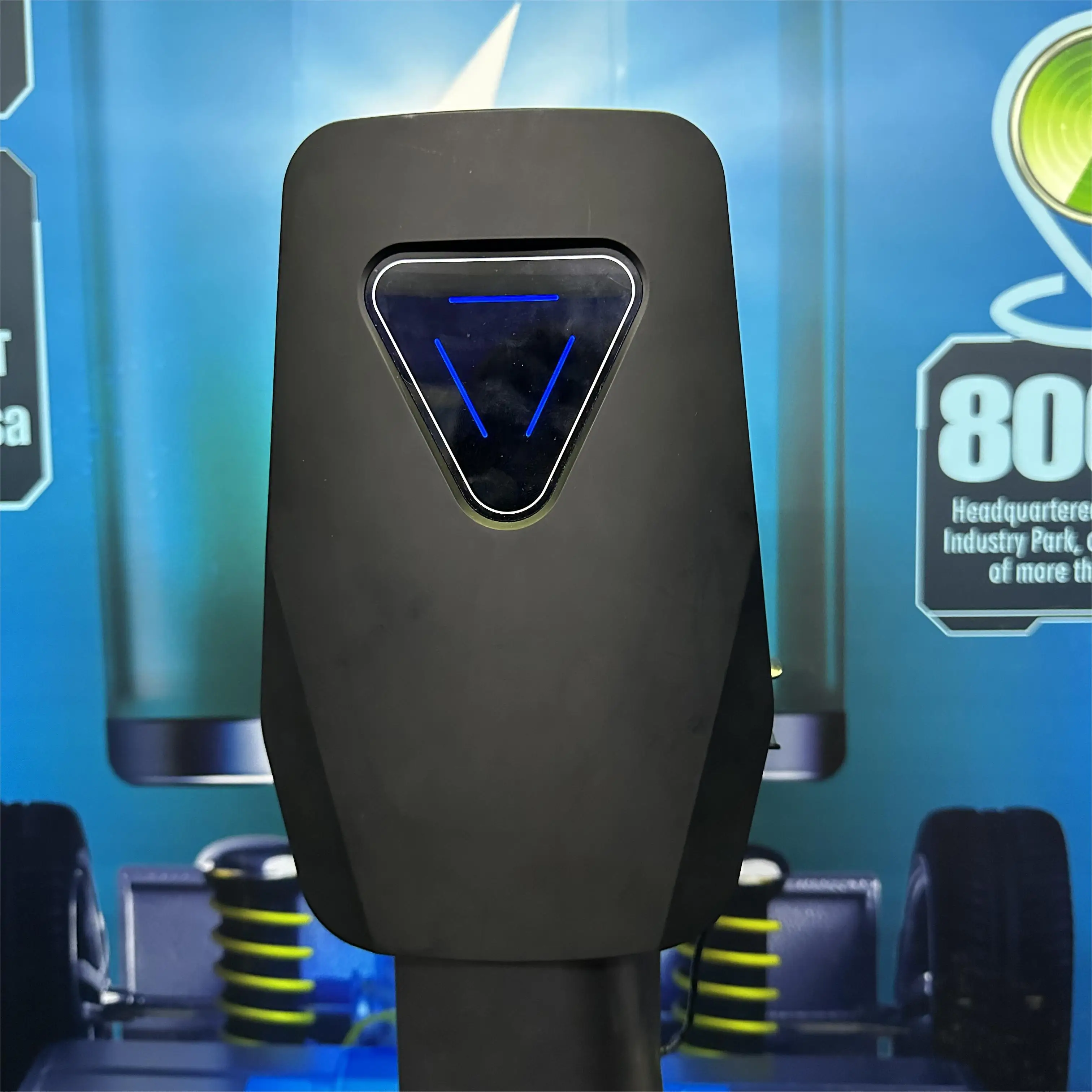

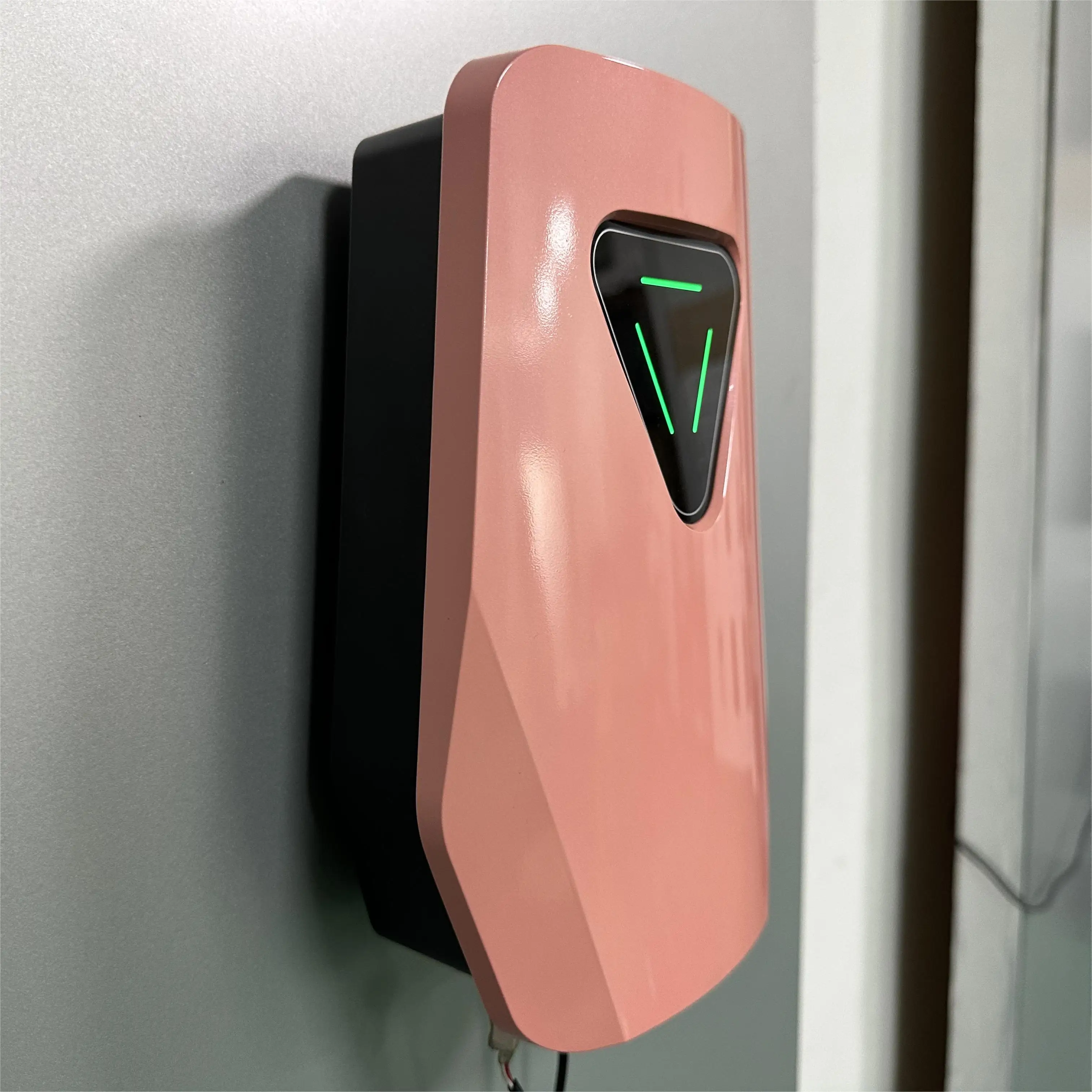

7Kw 11Kw 22Kw Dc Charger Ccs 380v Ev Wall mounted Charging Stations Fast Charger for Electric Cars EV Charging Station
7Kw 11Kw 22Kw Dc Charger Ccs 380v Ev Wall-mounted Charging Stations Fast Charger for Electric Cars EV Charging Station
7Kw 11Kw 22Kw Dc Charger Ccs 380v Ev Wall-mounted Charging Stations Fast Charger for Electric Cars EV Charging Station
7Kw 11Kw 22Kw Dc Charger Ccs 380v Ev Wall-mounted Charging Stations Fast Charger for Electric Cars EV Charging Station
7Kw 11Kw 22Kw Dc Charger Ccs 380v Ev Wall-mounted Charging Stations Fast Charger for Electric Cars EV Charging Station
7Kw 11Kw 22Kw Dc Charger Ccs 380v Ev Wall-mounted Charging Stations Fast Charger for Electric Cars EV Charging Station
7Kw 11Kw 22Kw Dc Charger Ccs 380v Ev Wall-mounted Charging Stations Fast Charger for Electric Cars EV Charging Station

7Kw 11Kw 22Kw Dc Charger Ccs 380v Ev Wall mounted Charging Stations Fast Charger for Electric Cars EV Charging Station

Share on (1600512435256):


Price:192,00 US$ - 218,00 US$

Quantity:


Product Overview

Description



Production parameters


Datasheet
Model
7KW
11KW
22KW
Input
Power Supply
L+N+PE
L1+L2+L3+N+PE
L1+L2+L3+N+PE
Rated voltage
AC 230V
AC 400V
AC 400V
Rated current
32A
16A
32A
Frequency
50/60Hz
50/60Hz
50/60Hz
Output
Output voltage
AC 240V
AC 400V
AC 400V
Output current
32A
16A
32A
Rated power
7KW
11KW
22KW
User interface
Cable length
5M
Outer case
PC9010
LED indicator
Green/blue/red (blue - standby; green - charger connected to the vehicle, flashing - charging; red - abnormal)
Emergency stop
include
Start-up mode
Plug-and-Play
Yes
RFID Reader
Optional
Network
4G
Optional
RJ45
Optional
Bluetooth/WiFi
Optional
Security
RCD
A+DC6mA
Ingress Protection
IP55
Surge Protection
IK10
Electrical Protection
Overvoltage protection, undervoltage protection, grounding protection, lightning protection, leakage protection, flame retardant
protection, overcurrent protection, intelligent temperature control protection, relay adhesion protection, input shutdown
protection, vehicle specification level protection vehicle and protective personnel
Warranty
15 months
Cooling mode
Natural cooling
Environment
Installation
Wall-mount/Pole-mount
Working Temperature
-30℃~+50℃
Storage temperature
-40℃~+80℃
Operating humidity
5%~95% no moisture condensation or frost
Working Height
<2000M
Packing list
Charging pile
1Pcs
Instructions
1Pcs
Cable
1Pcs
Plug holder
1Pcs
Screw (for installation)
1Pcs
Outer packaging
Carton
Other
Efficiency
≥98
Insulation resistance
≥10MΩ
Power of control module
≤7W
Terminal
include


Product Description
