Lab 50L Rotary Evaporator Turnkey Setup Rotovap

Product Overview

Description

Lab 50L Rotary Evaporator Turnkey Setup Rotovap

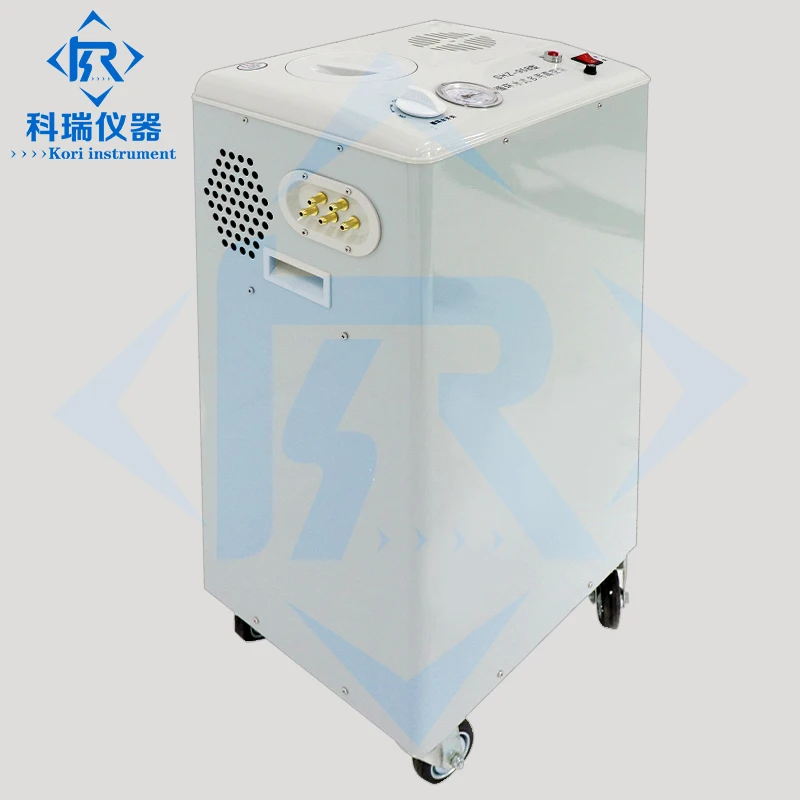

With the help of vacuum pump and rotary evaporator, the rotary evaporator turnKey setup kit can recovers solvents more efficiently and faster.



Importantly, this rotovap turnkey setup has good price performance. You can purchase them with an affordable price.



The glass part of rotary evaporator is made of high Borosilicate Glass with good visibility and perfect acid and corrosion resistance.



Vacuum feeding port and bottom discharge valve allow continuous feeding and discharging without stopping working and breaking vacuum.



Kori manufactures rotary evaporator with 1L, 2L, 3L, 5L, 10L, 20L, 50L, 100L.



Manual lift tyte, automatic lift type and ex-proof model are optional.

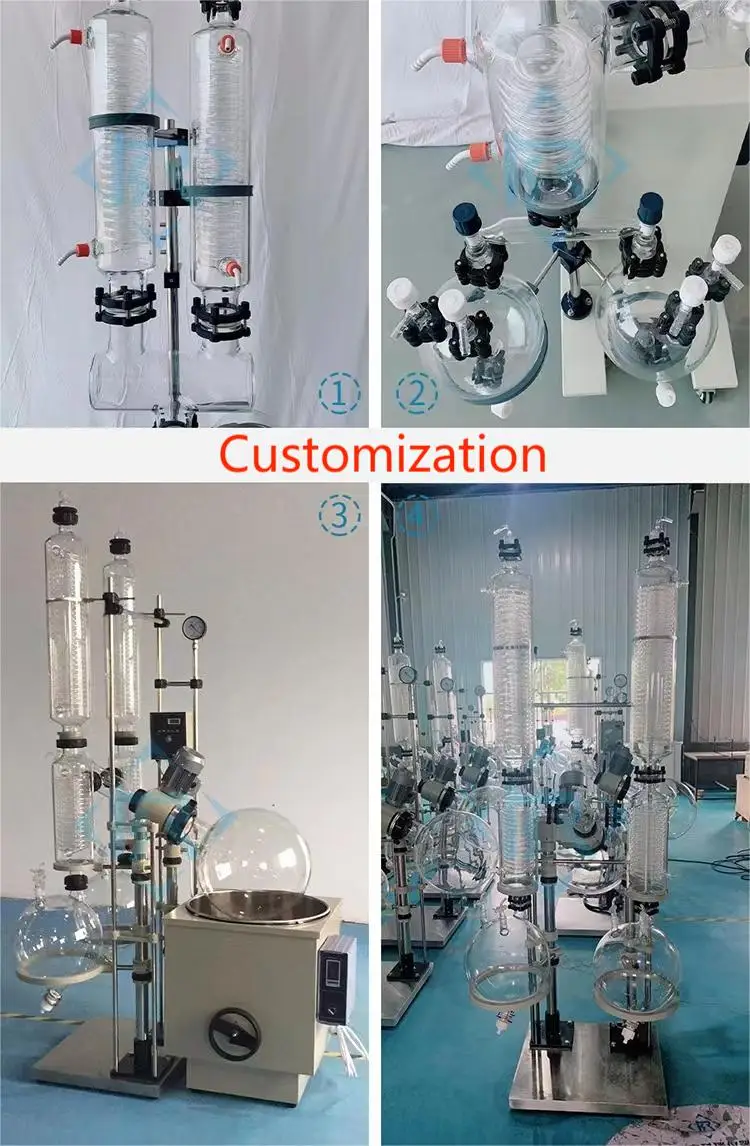

Support flexible customization.



Support OEM&ODM order.

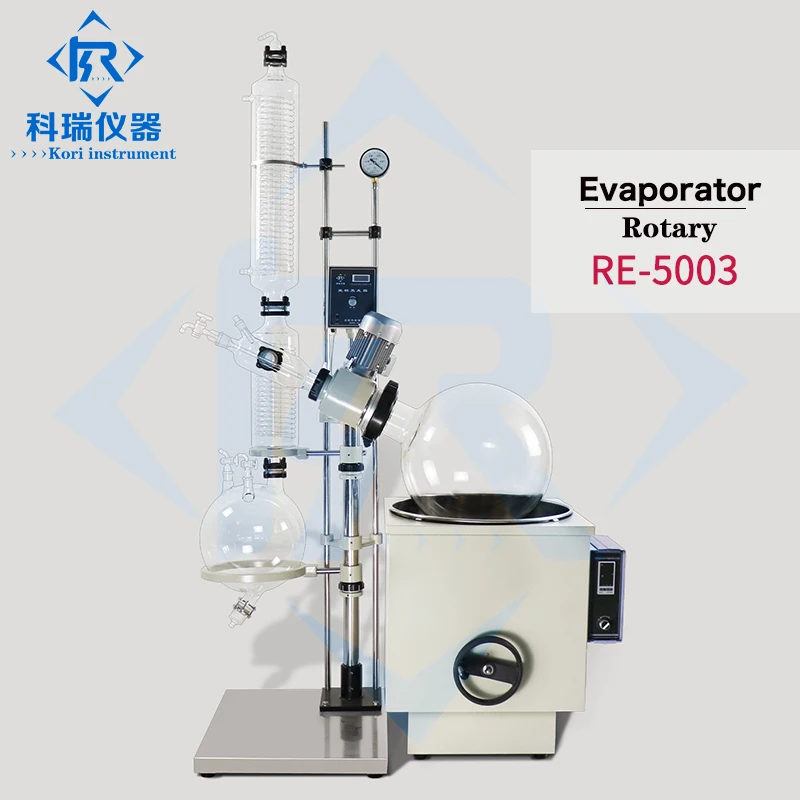

More Details for 50L vacuum rotary evaporator

Technical Data

Model	RE-1002	RE-2003	RE-3002	RE-5003
Rotary Flask(L)	10L	20L	30L	50L
Collection Flask(L)	5L	10L	10L	20L
Vacuum Degree(Mpa)	-0.098Mpa	-0.098Mpa	-0.098Mpa	-0.098Mpa
Rotary Speed(rpm)	0-120rpm	0-120rpm	0-120rpm	0-120rpm
Temperature Range	Room-200℃	Room-200℃	Room-200℃	Room-200℃
Moter Power(W)	120W	120W	180W	180W
Heat Bath Power(KW)	3KW	5KW	6KW	7.5KW
Tem.Accuracy	±1℃	±1℃	±1℃	±1℃
Power Supply	220V50Hz	220V50Hz	220V50Hz	220V50Hz

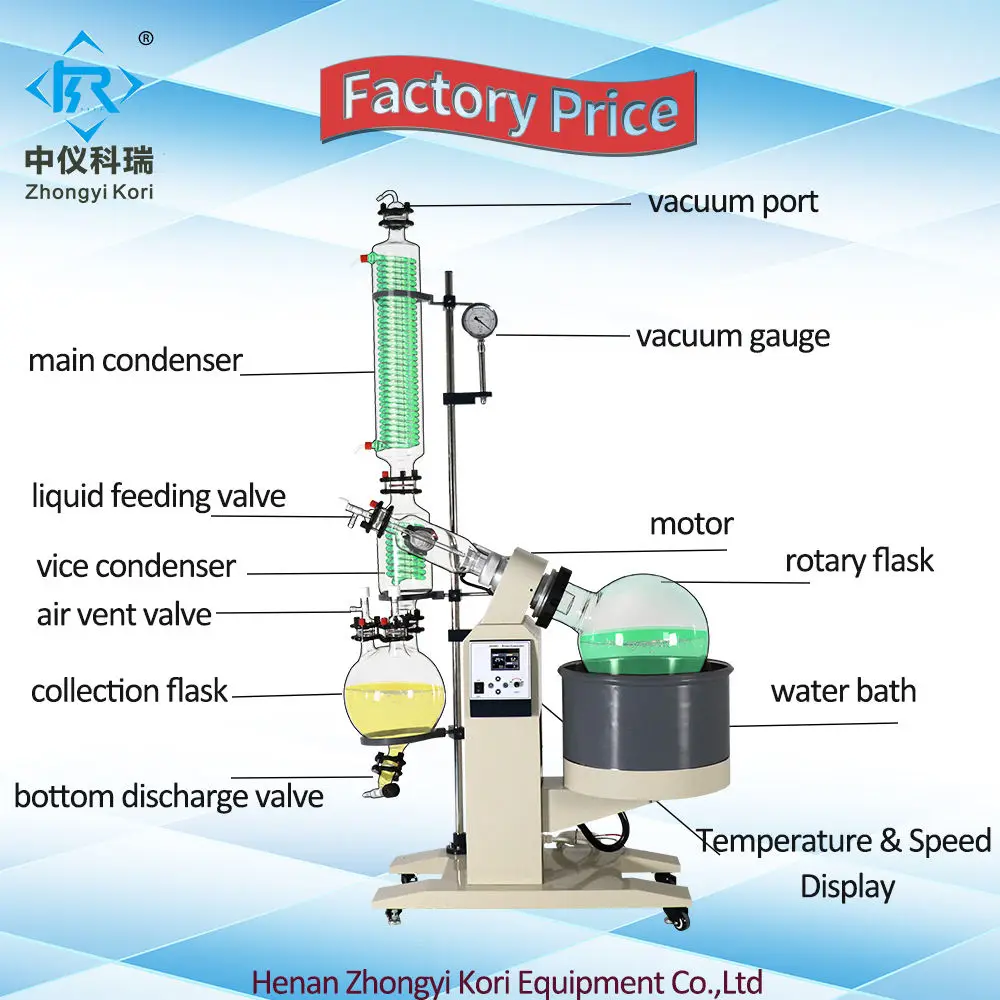

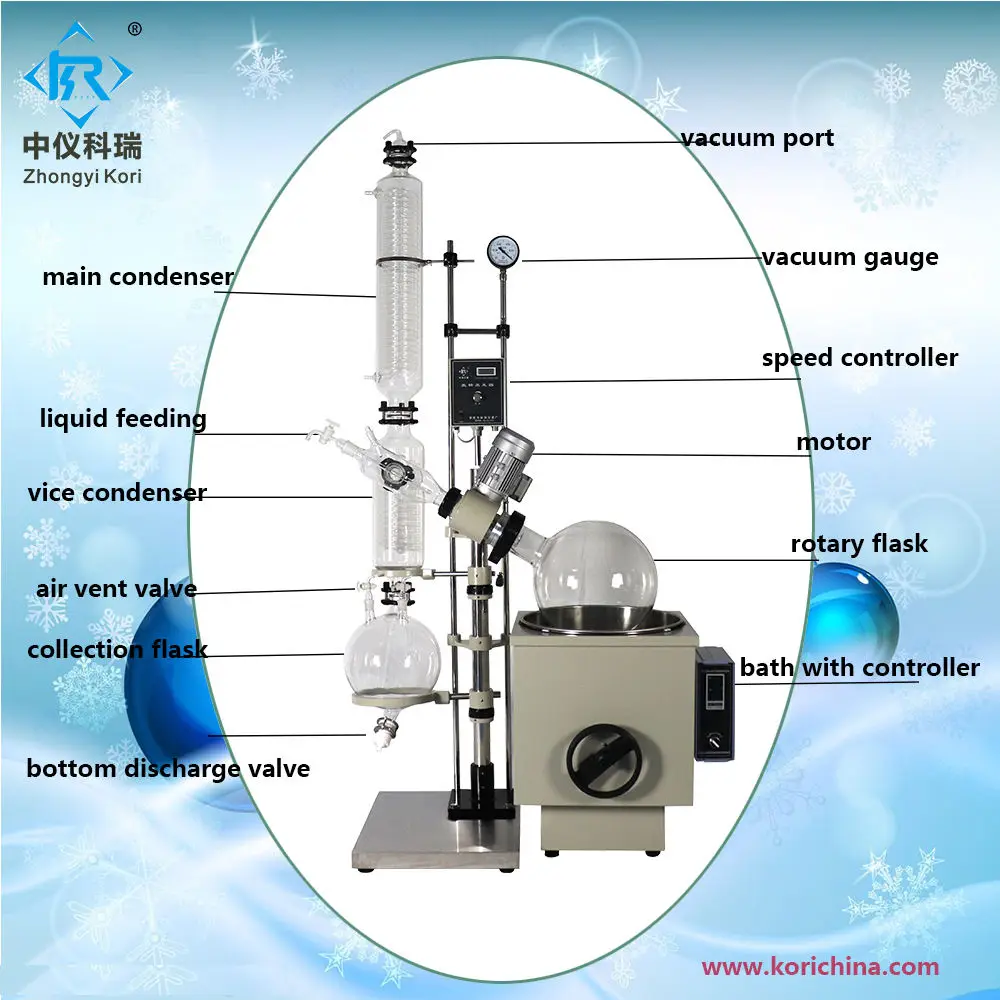

Main Parts Description

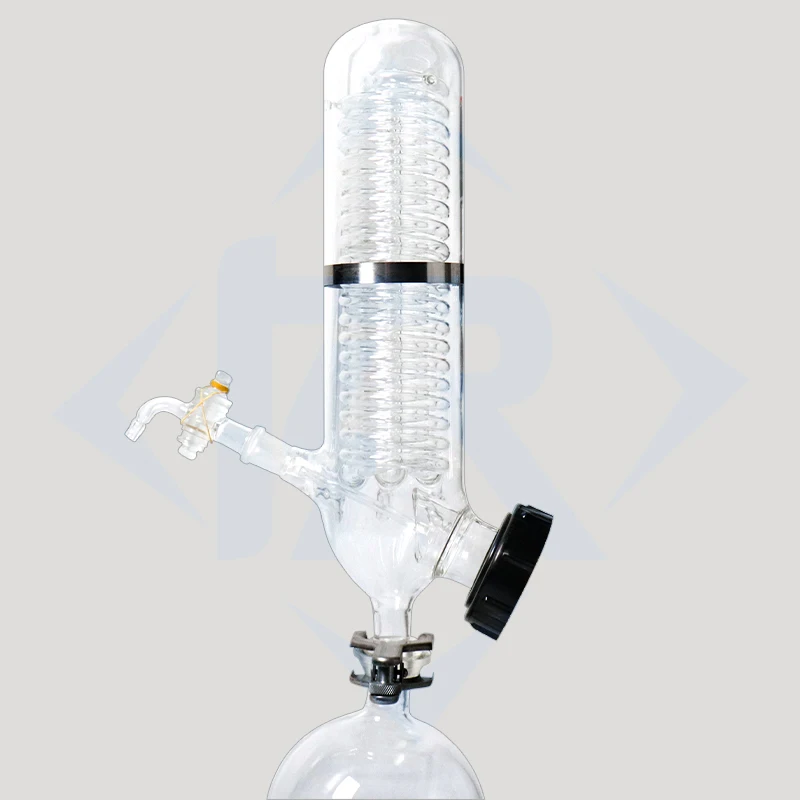

Condenser is made of S-shaped double high borosilicate glass coil, the condensing area is increased 1.5 times.

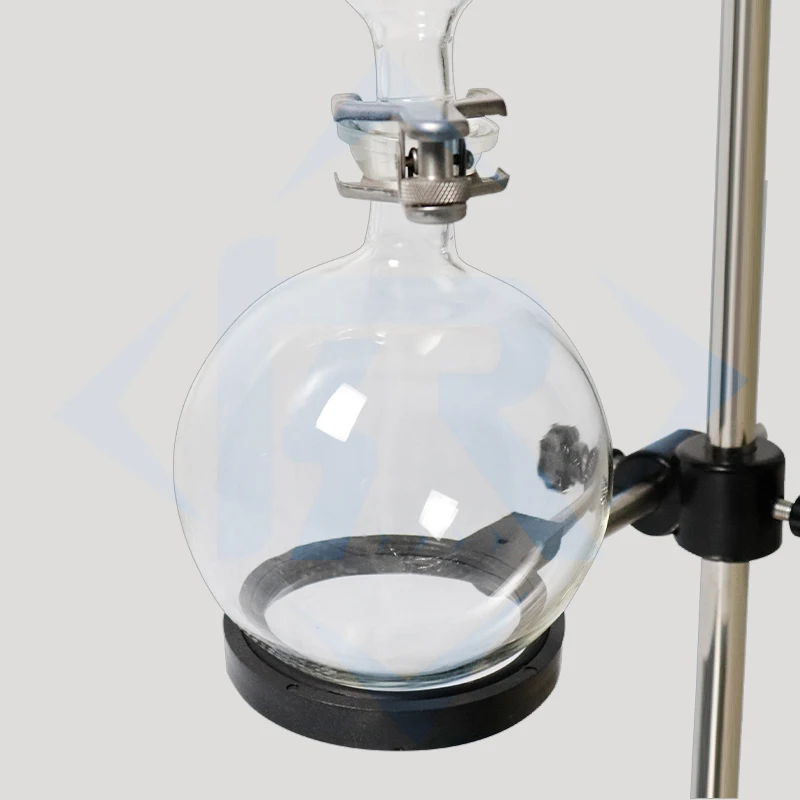

Receiving flask is made of high borosilicate glass. It is safe and stable. It can be collected continunously and can

be collected without stopping.

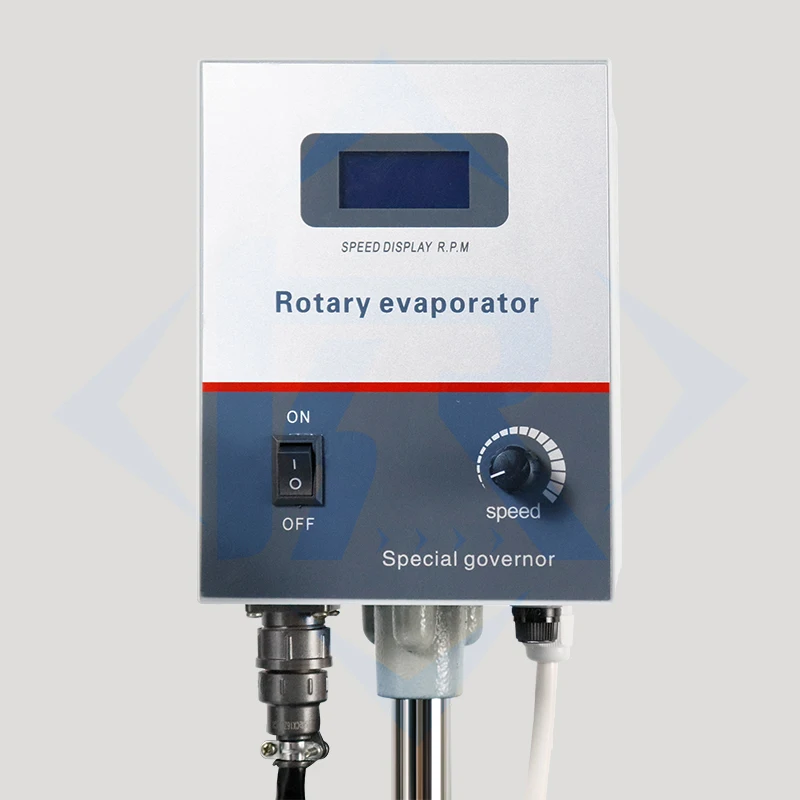

Speed Control:Stepless speed regulation is adopted.With adjustable speed and real time speed display.Equipped

with overload protection function to avoid material stick, resulting in overload of controller.

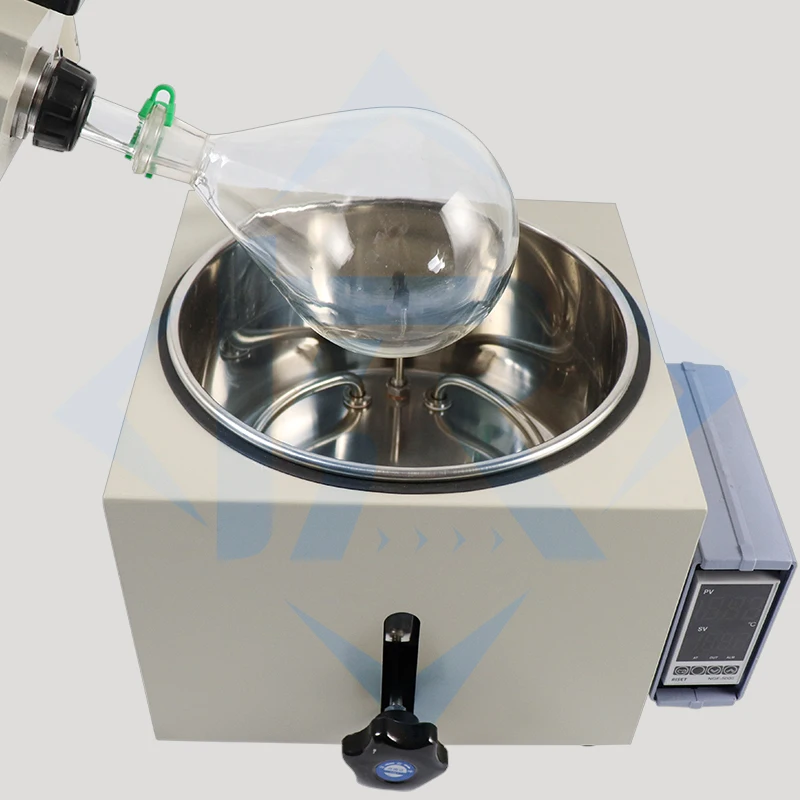

Rotary Flask:It is made of high borosilicate glass. Three times high temperature annealing to ensure quick

and balanced heating.

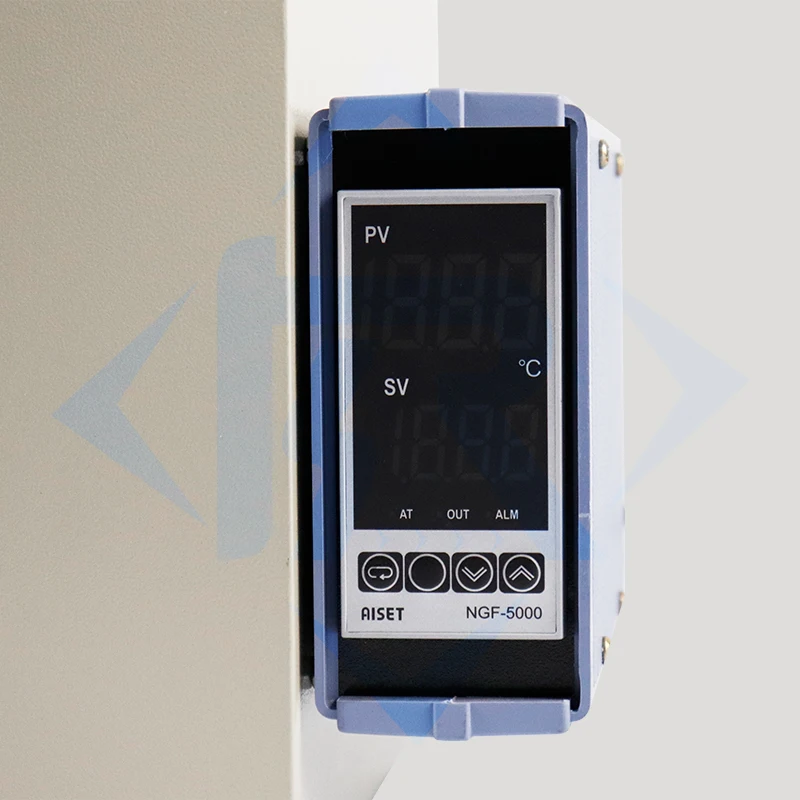

Temperature Control Device:PID microcomputer intelligent control temperature, intelligent operation,

simple operation, precise control.

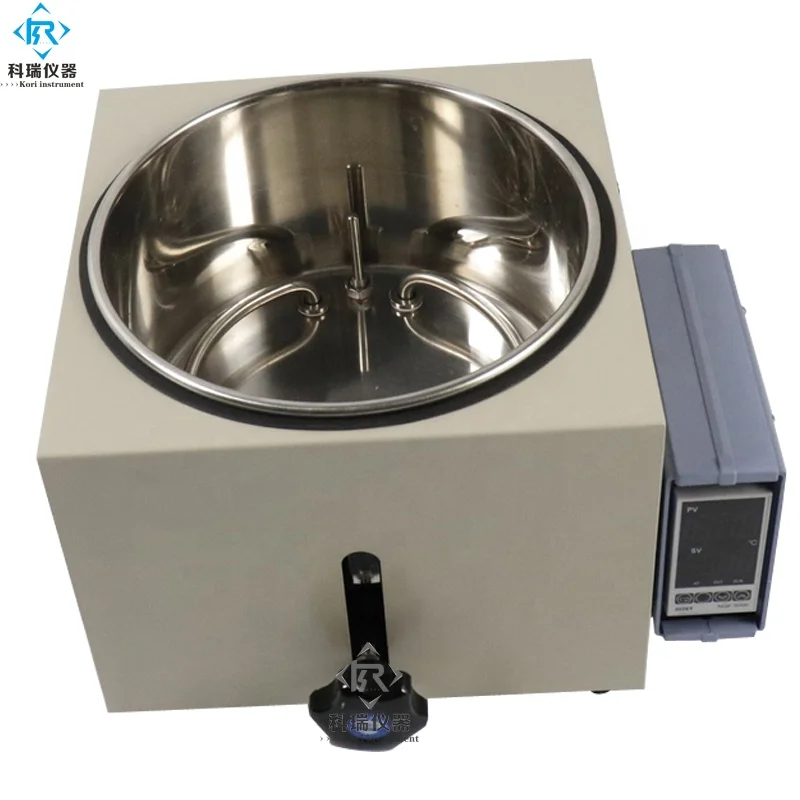

Heating Bath:The pot body and heating ring are all 304 stainless steel materials, and the temperature of

the bath is controlled intelligently.

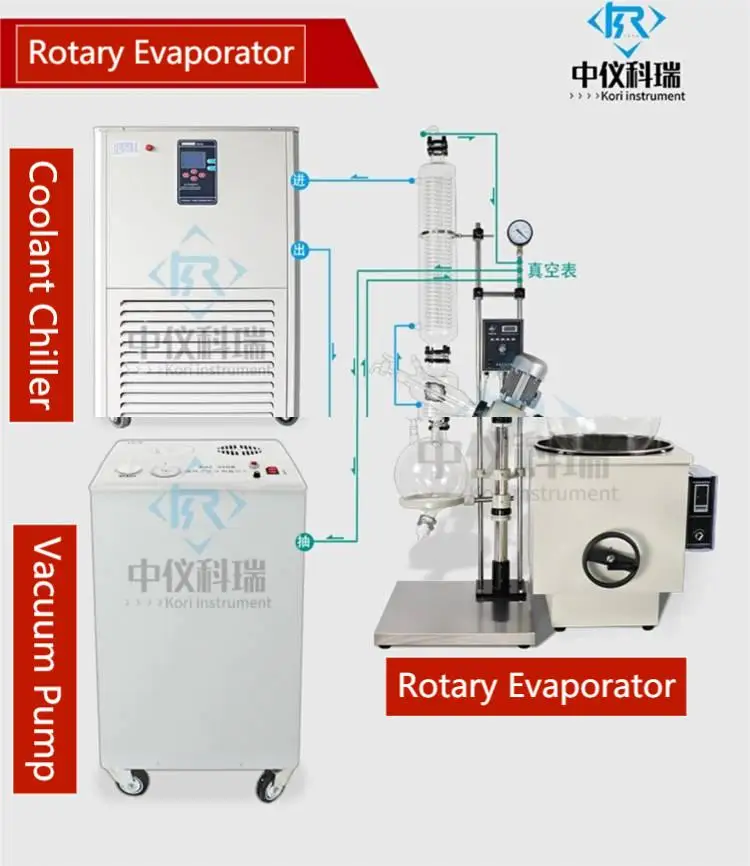

Rotary Evaporator Turnkey Setup System

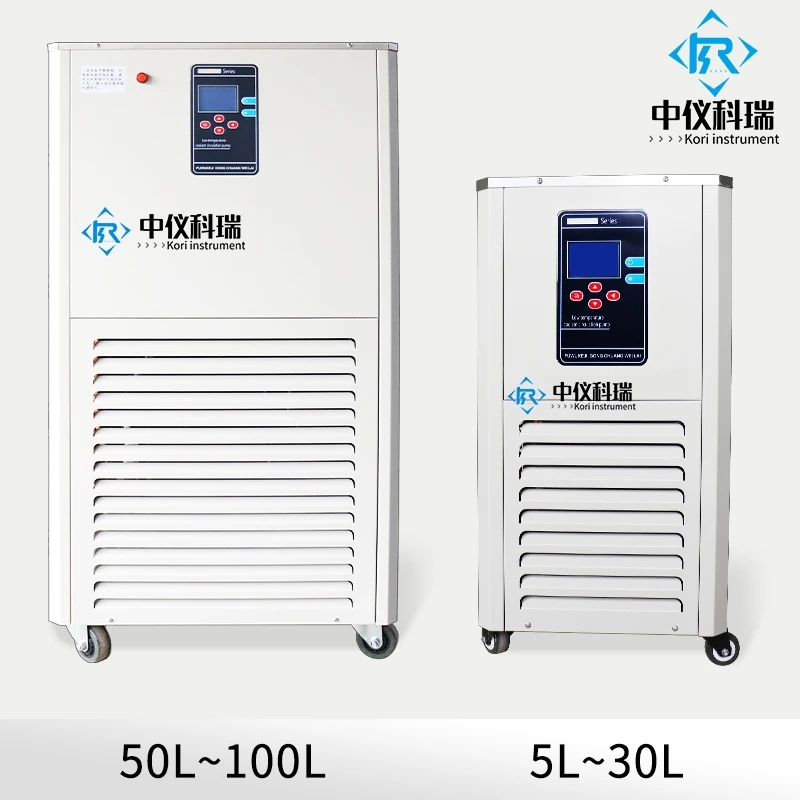

50L rotary evaporator with vacuum pump with coolant chiller

Automatic Lift Rotary Evaporator

Dual Condenser Dual Collection Rotovap

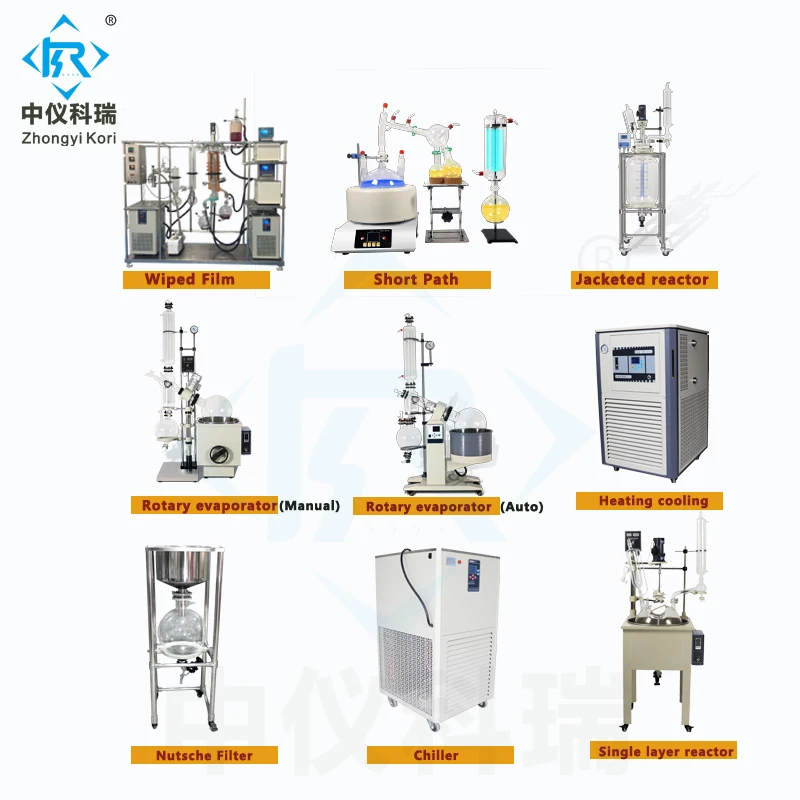

Other Distillation Equipment

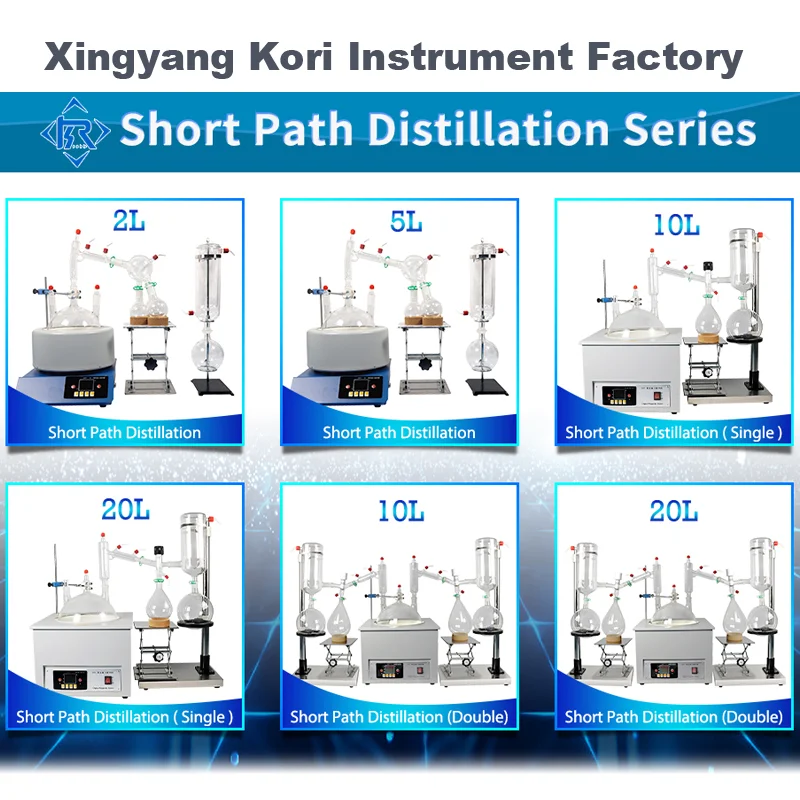

Short path distillation unit

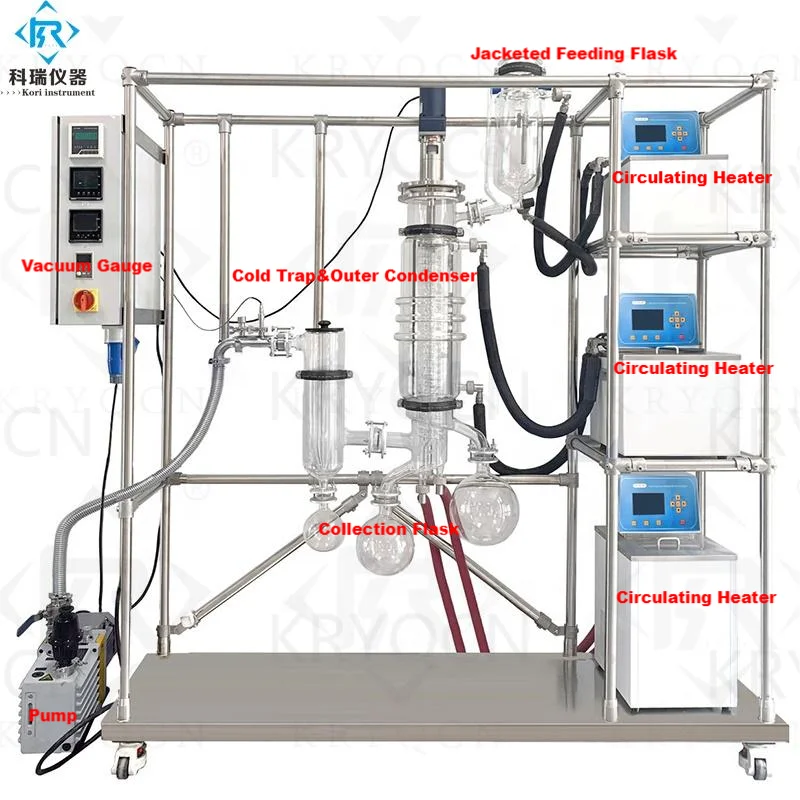

Wipe Film Moleculor Distillation System

Application

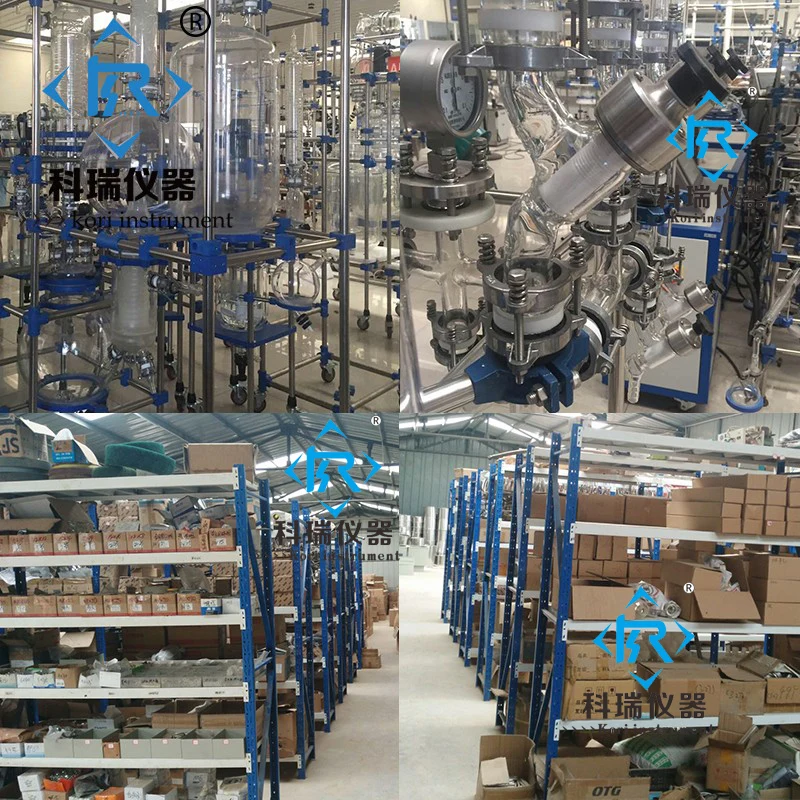

Company Information
