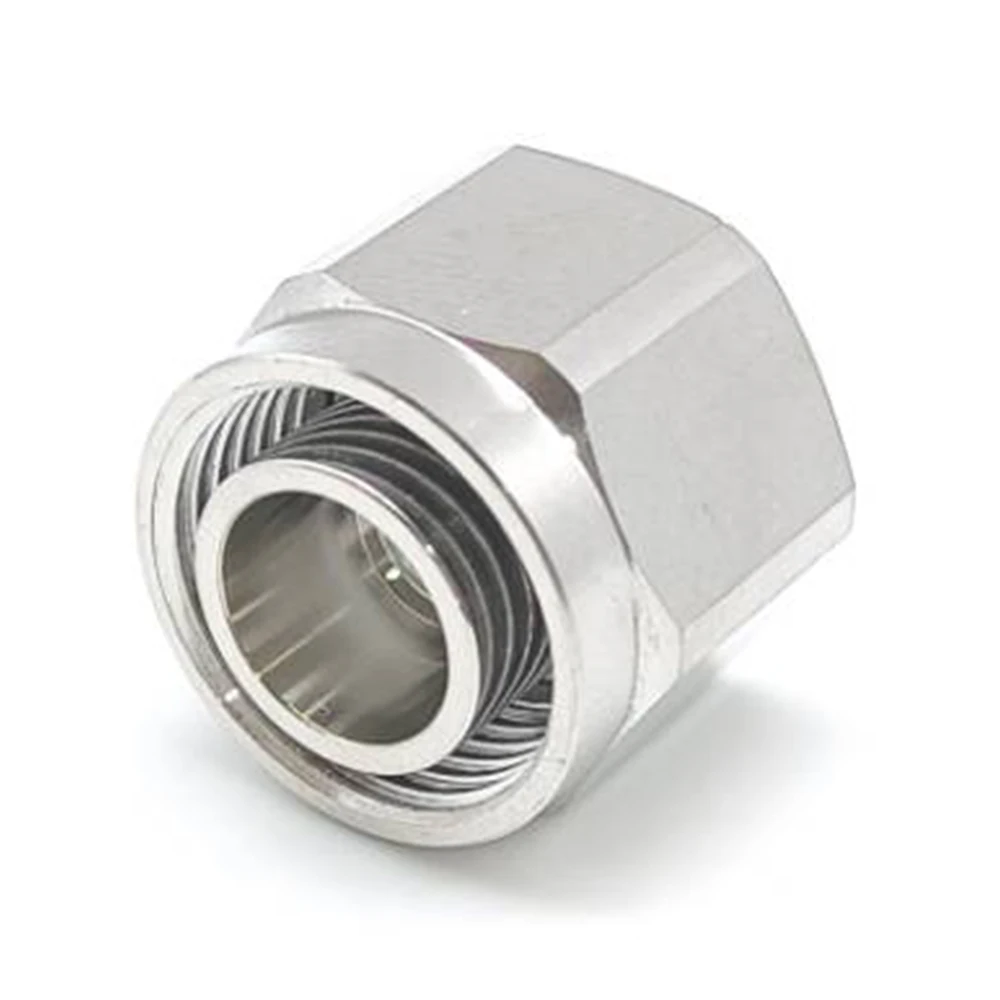

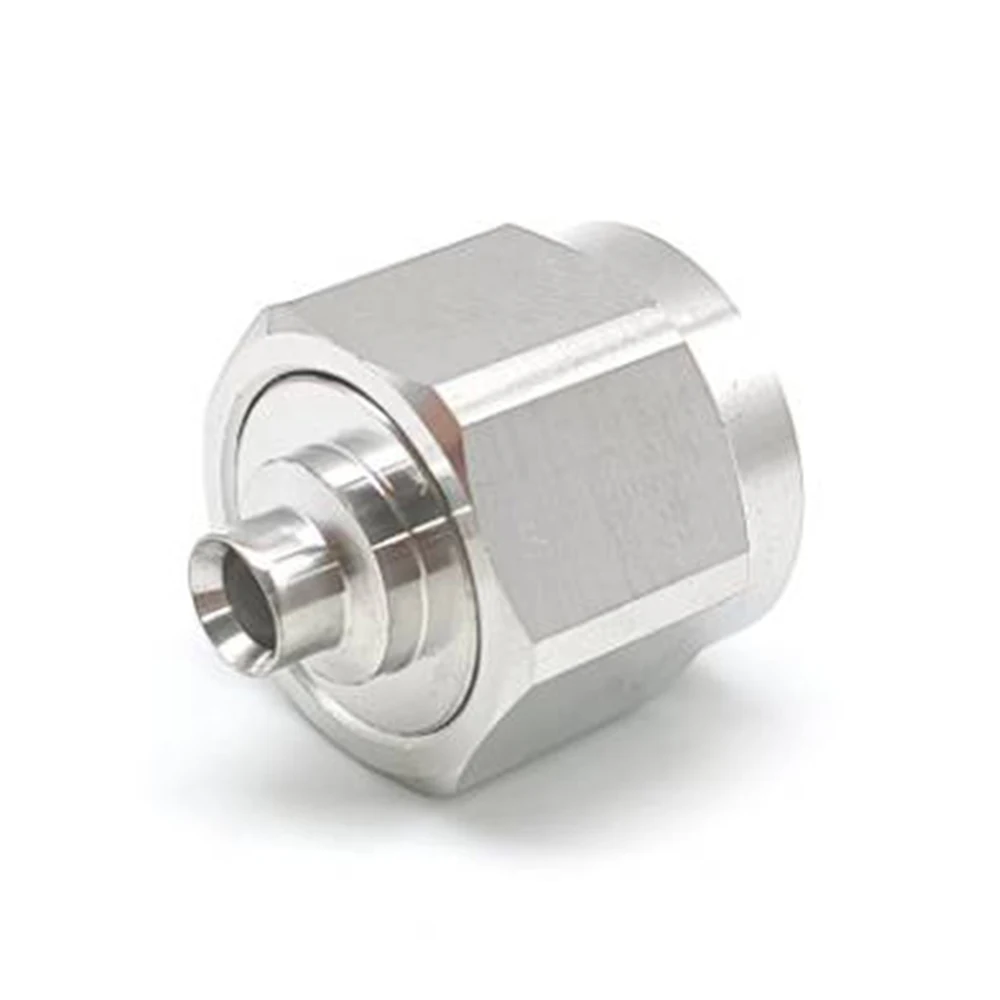

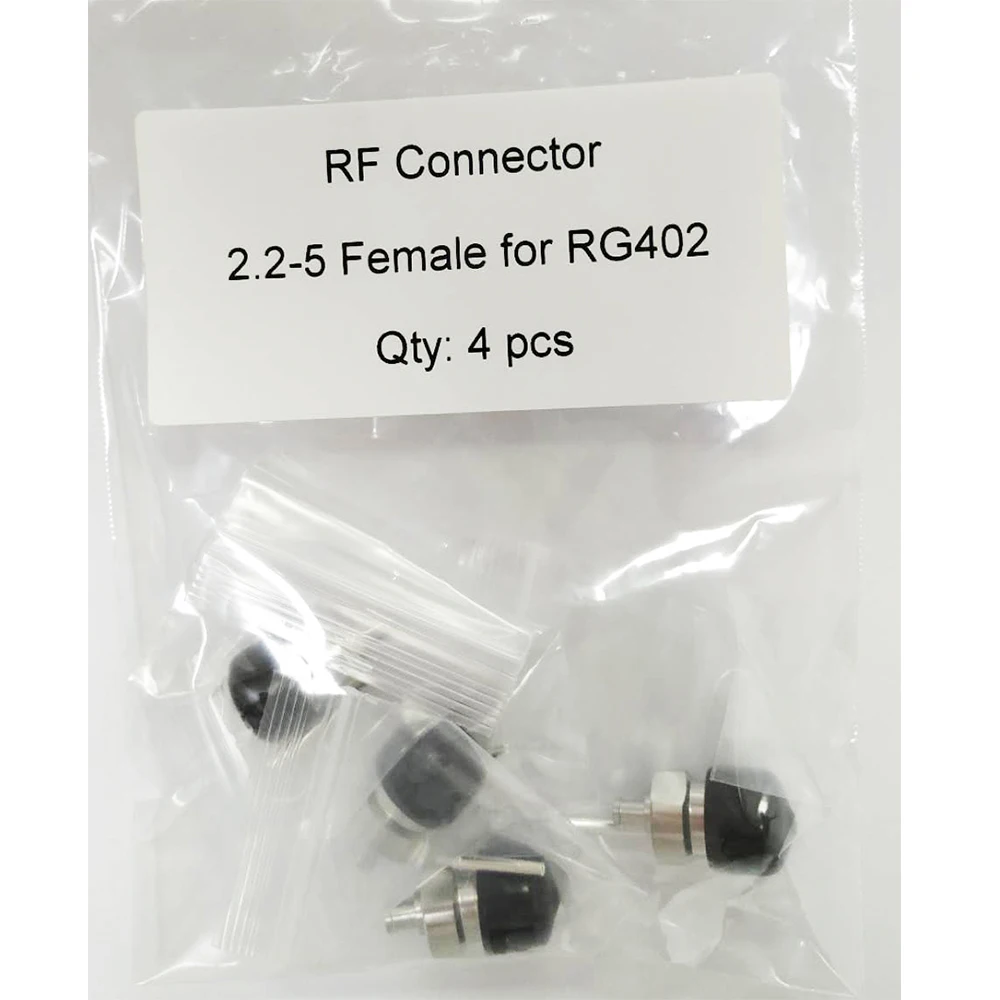

Low PIM Connector 2.2 5 Male Female for RG402 TFT 402 Cable
- Category: >>>
- Supplier: Raynool Technology Co. Ltd.
Share on (1600512502020):
Product Overview
Description
Product Description

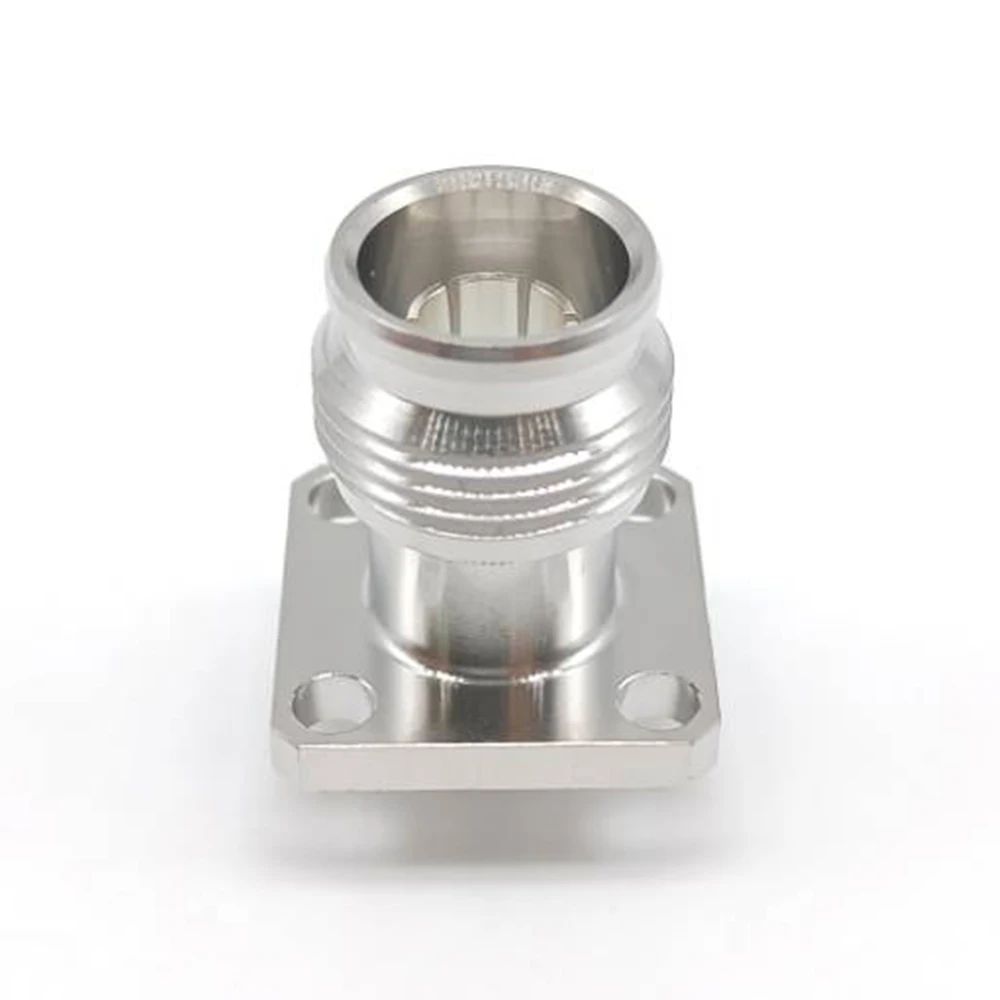

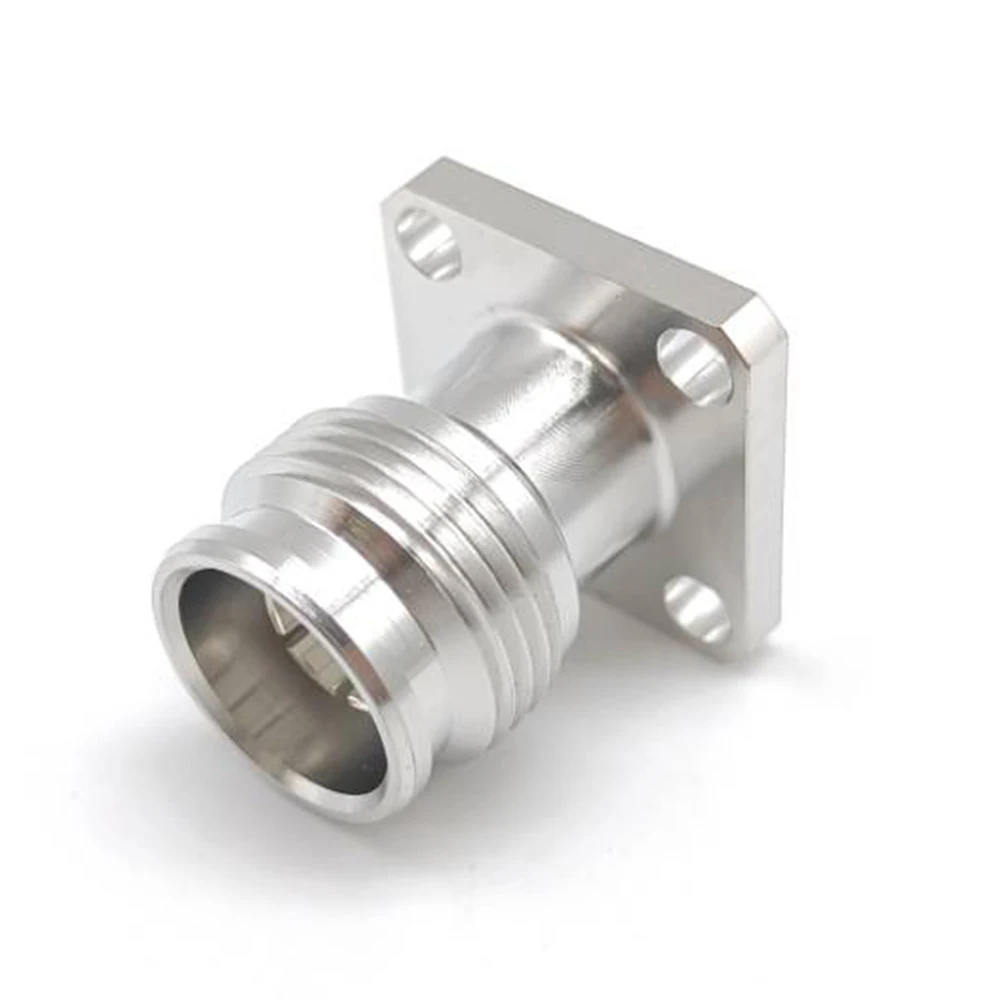

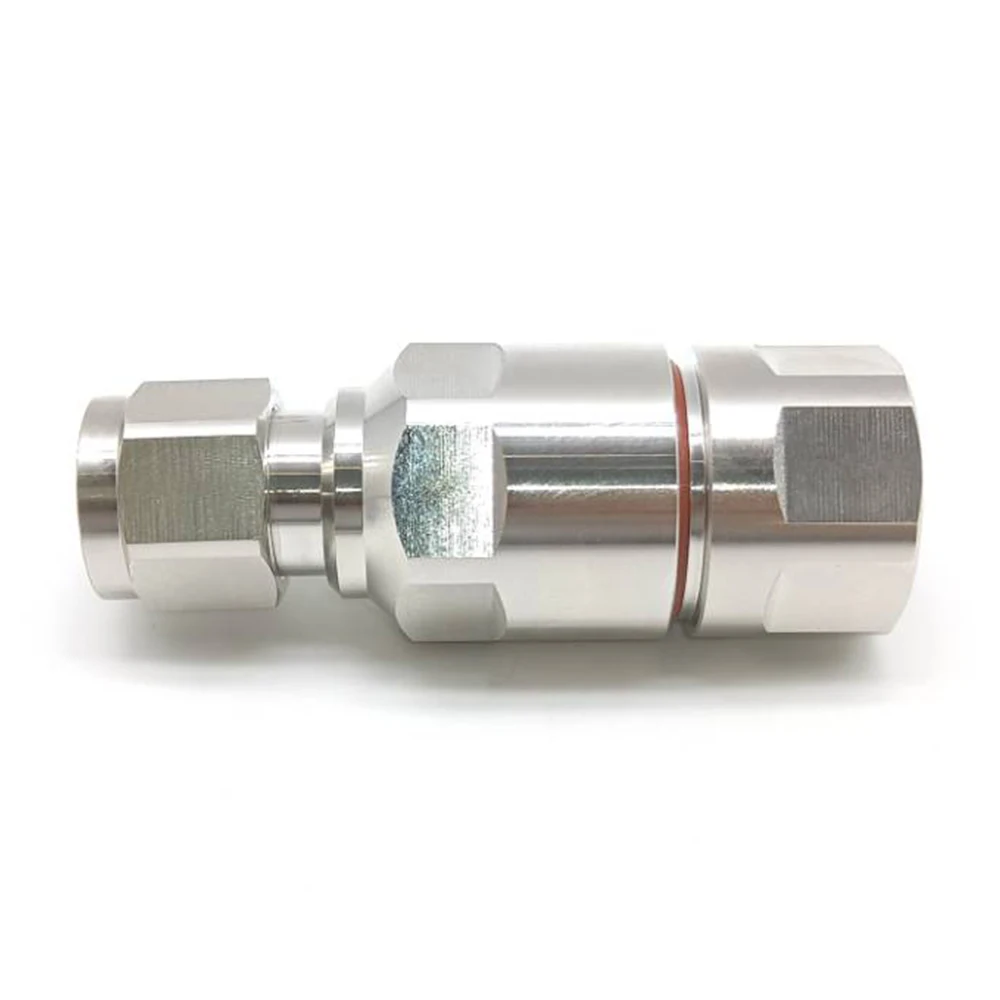

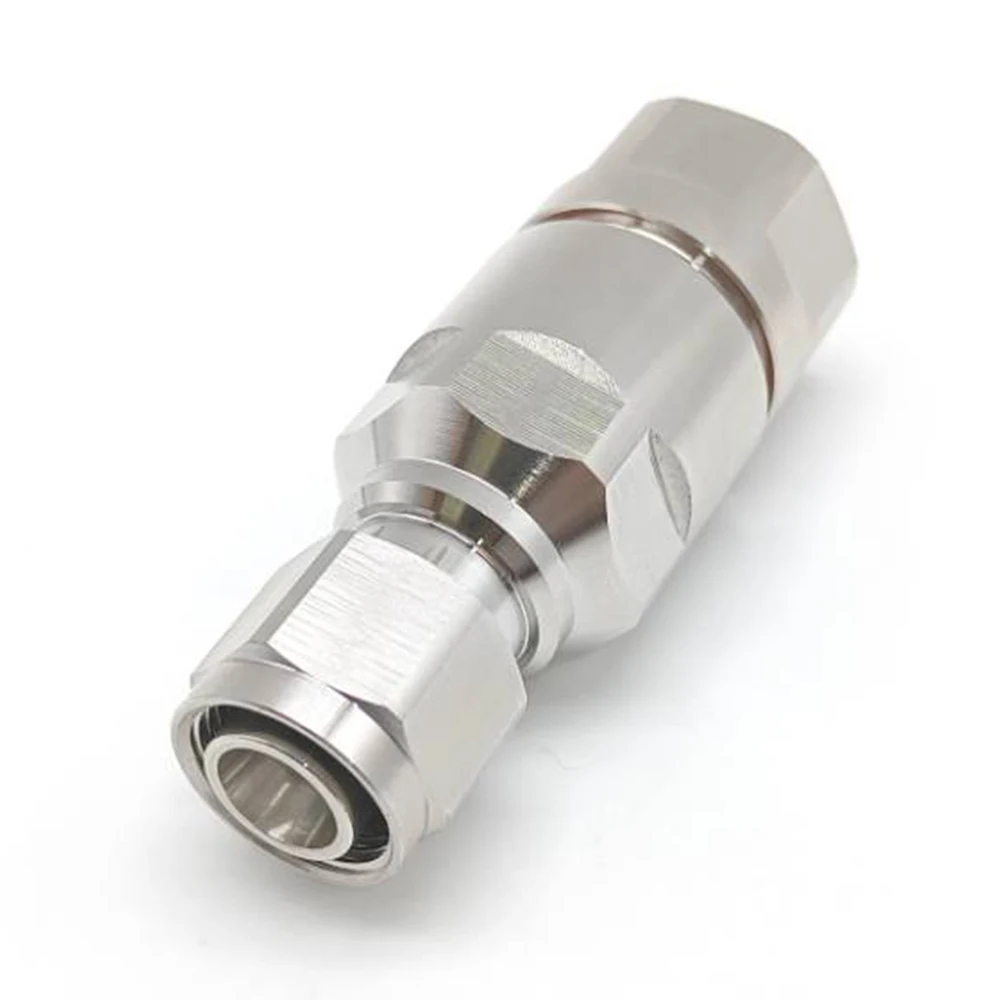

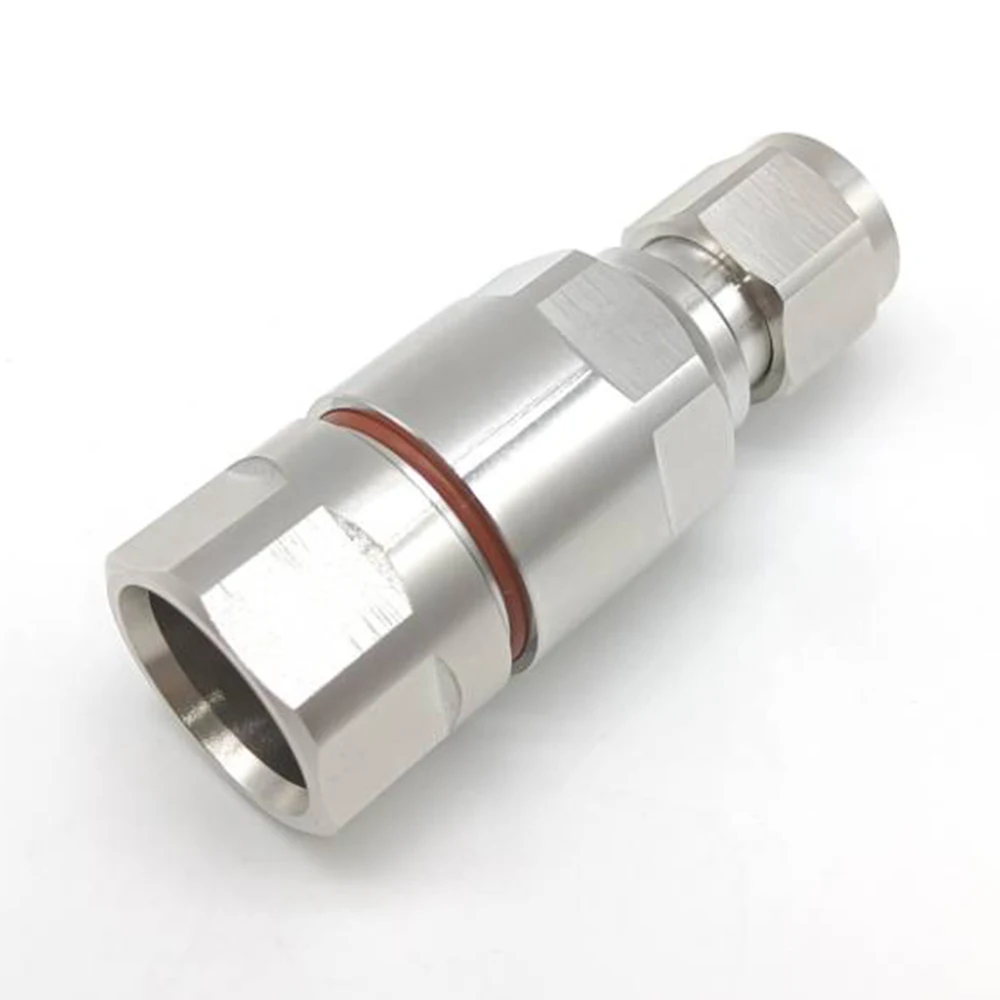

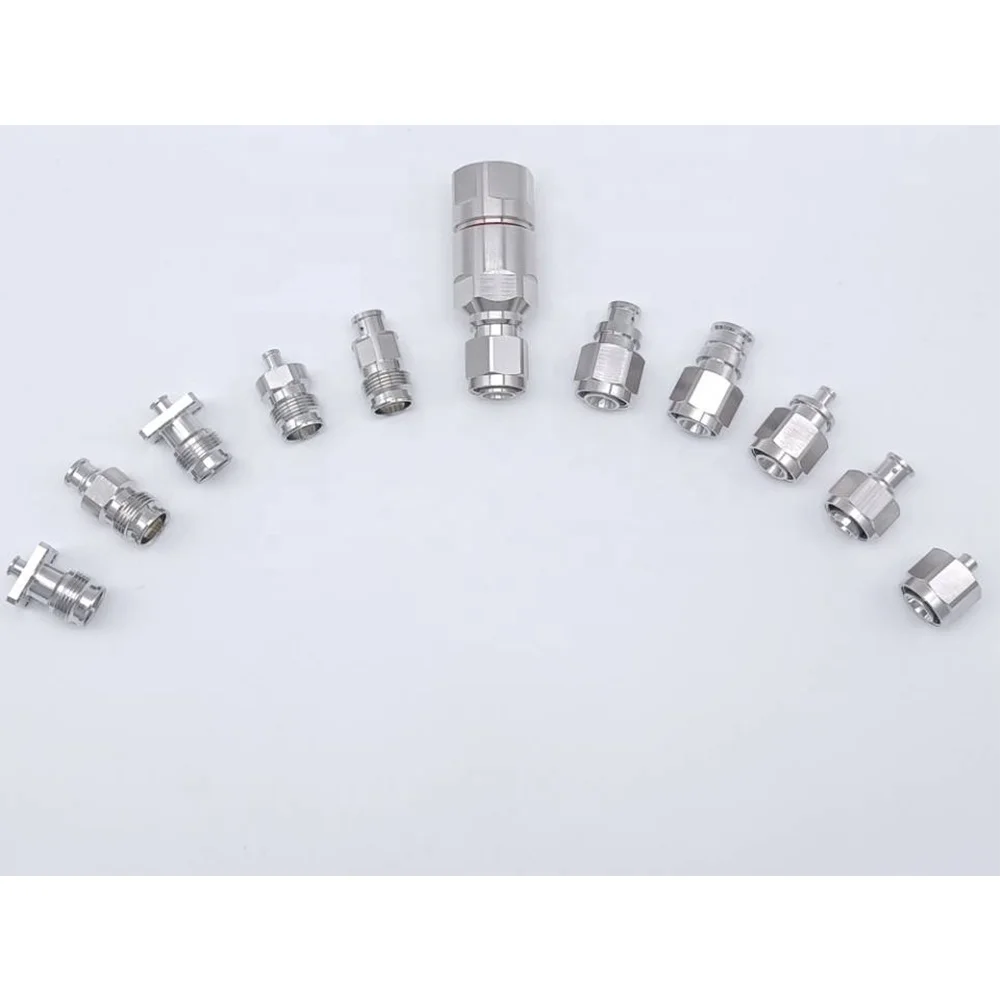

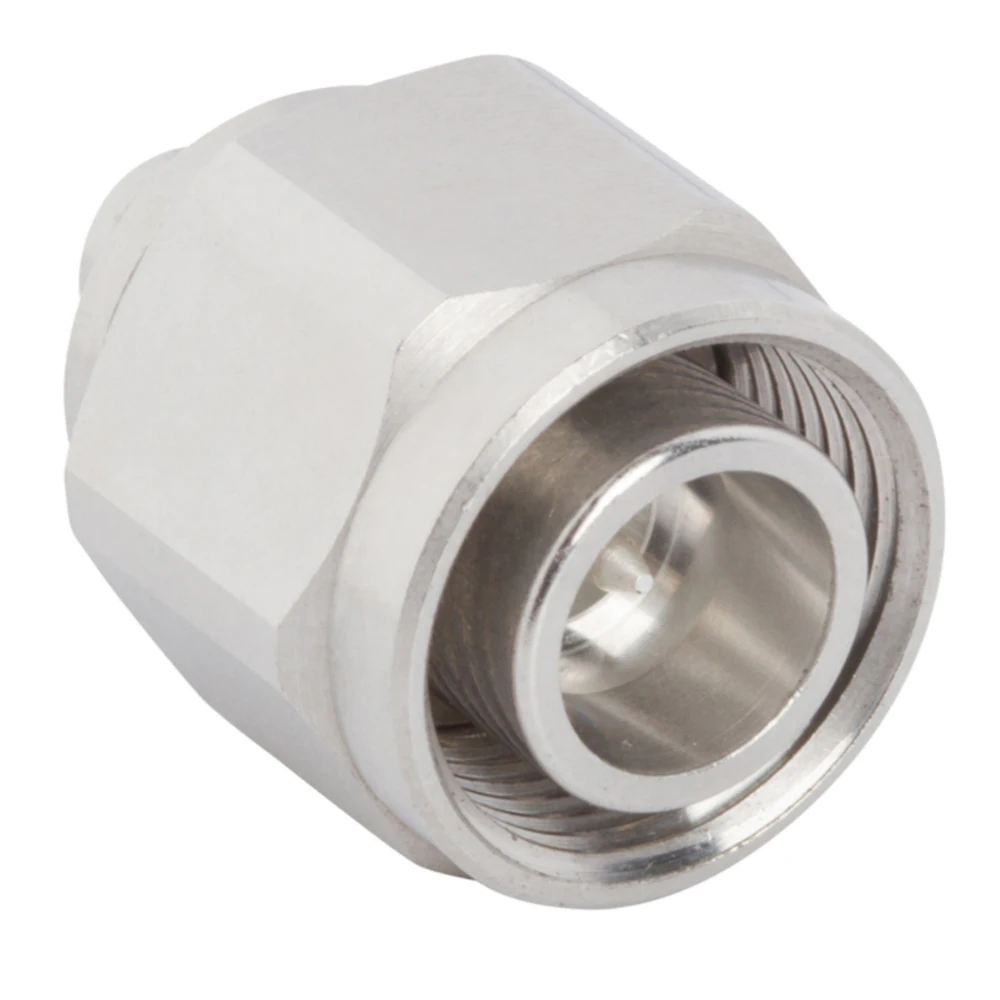

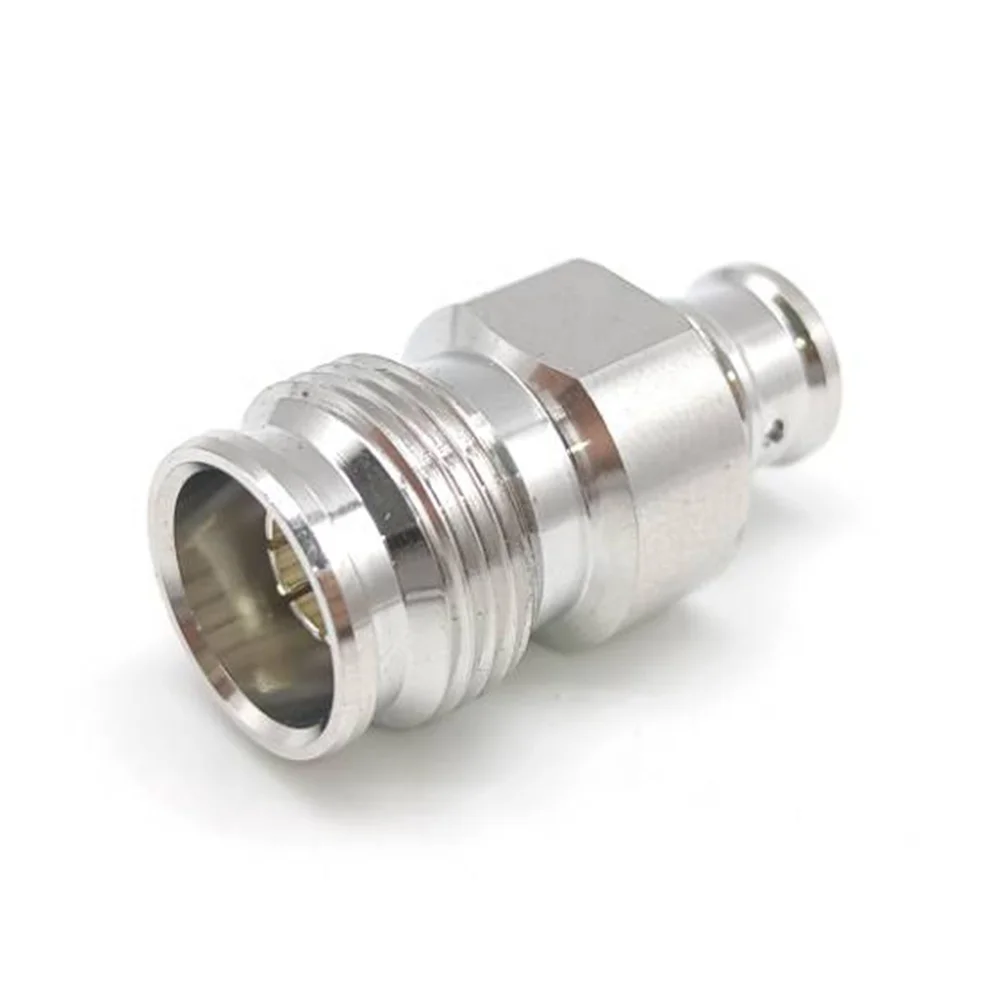

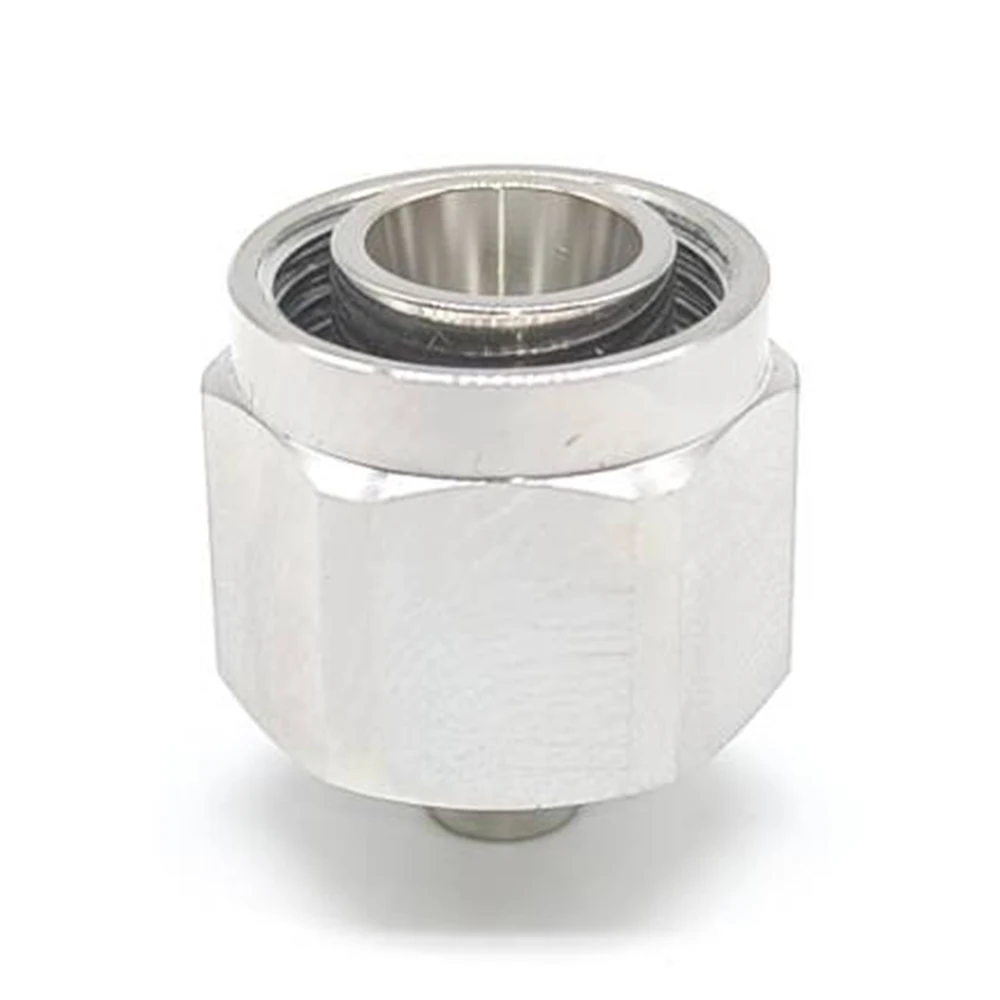

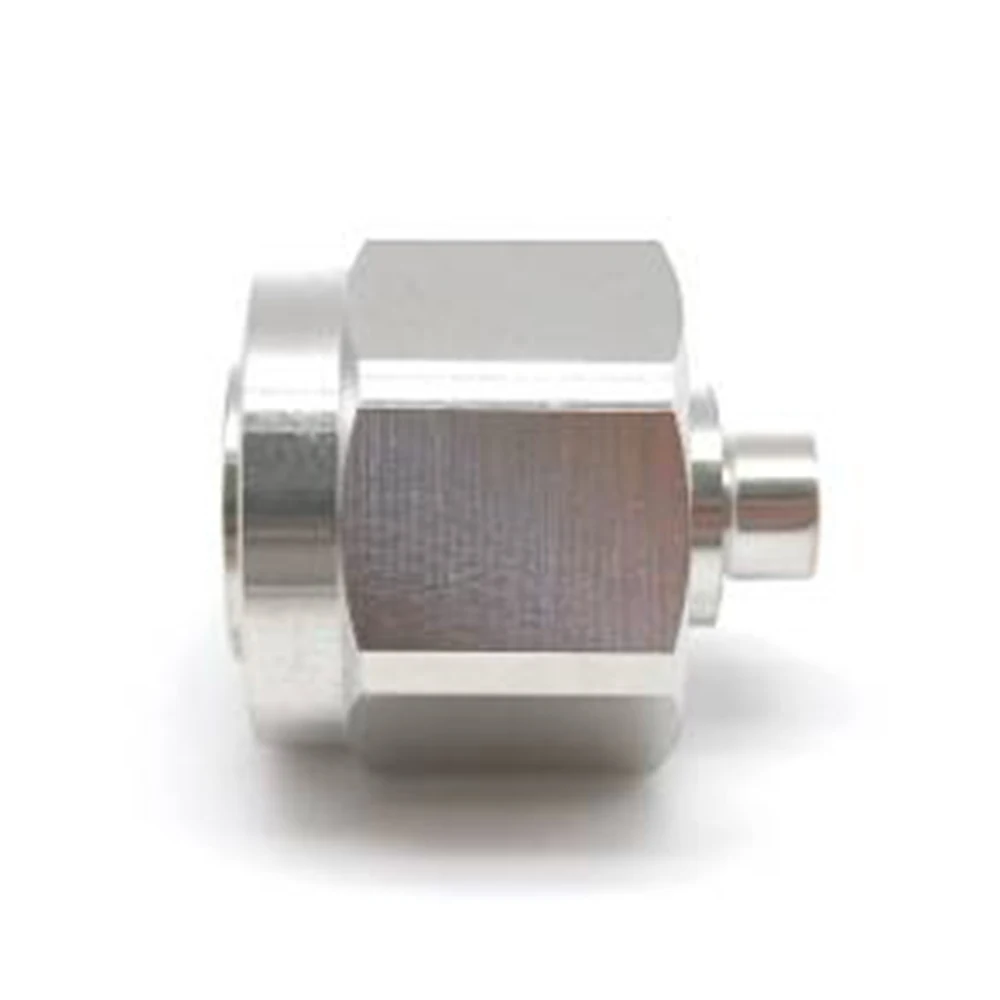

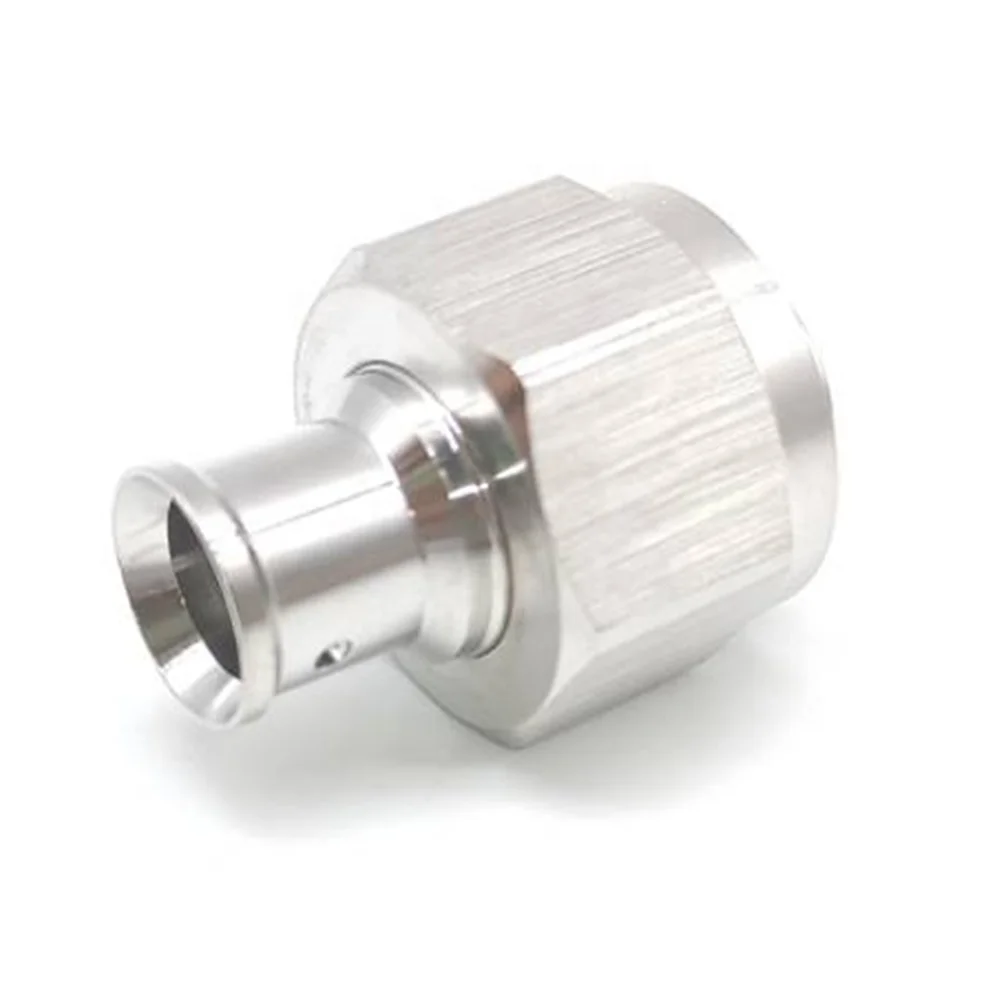

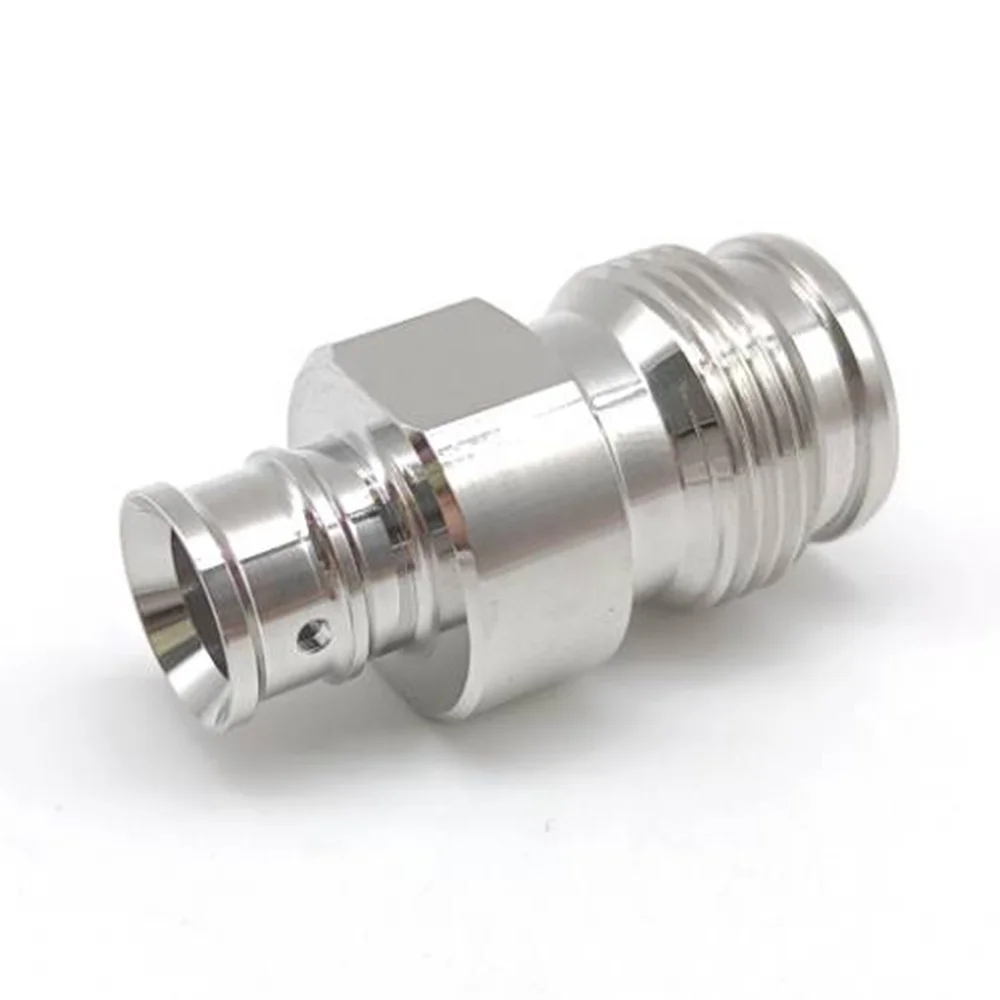

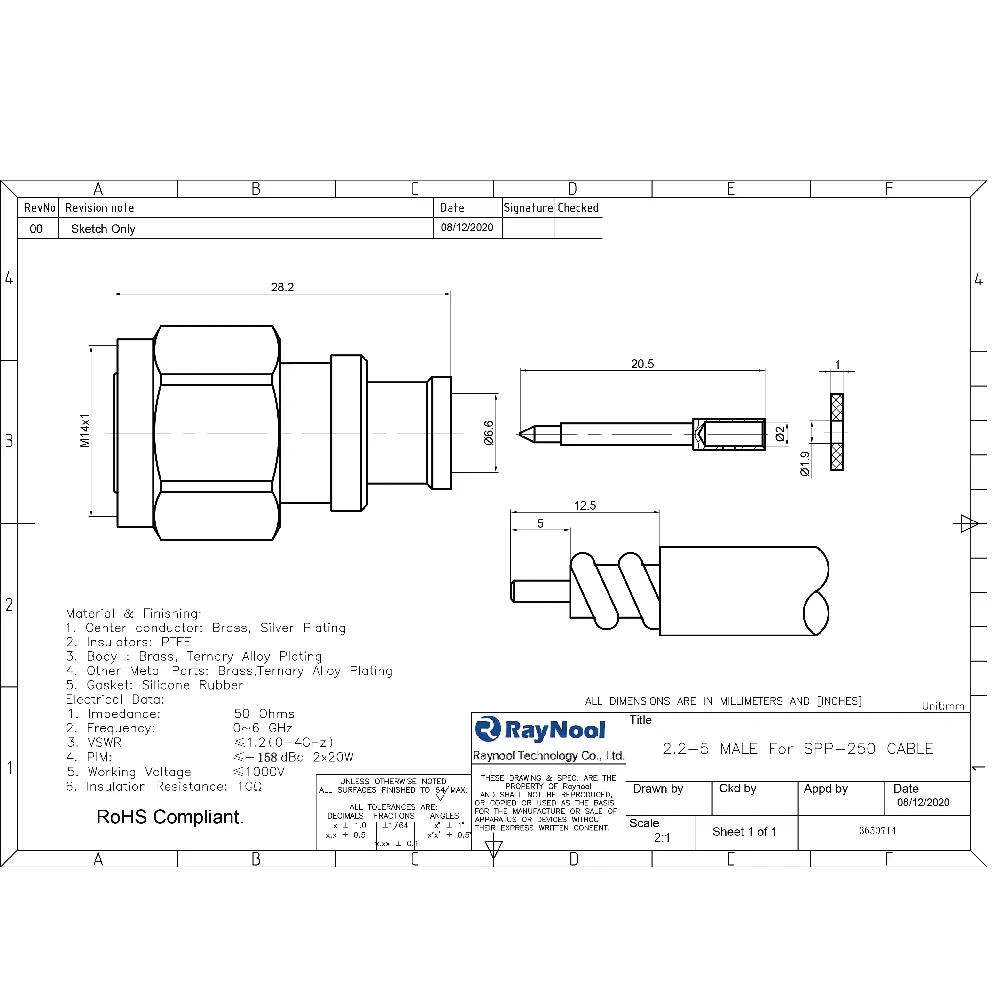

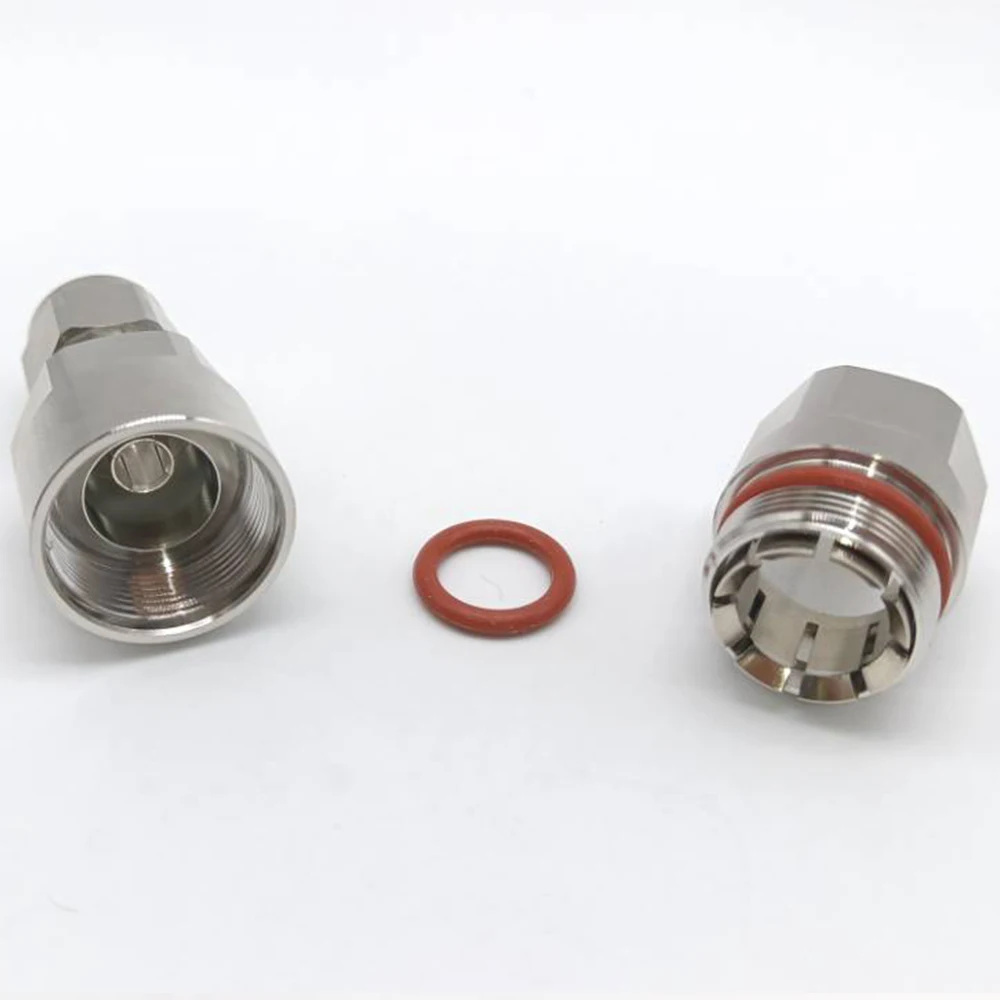

2.2-5 RF COAX CONNECTOR

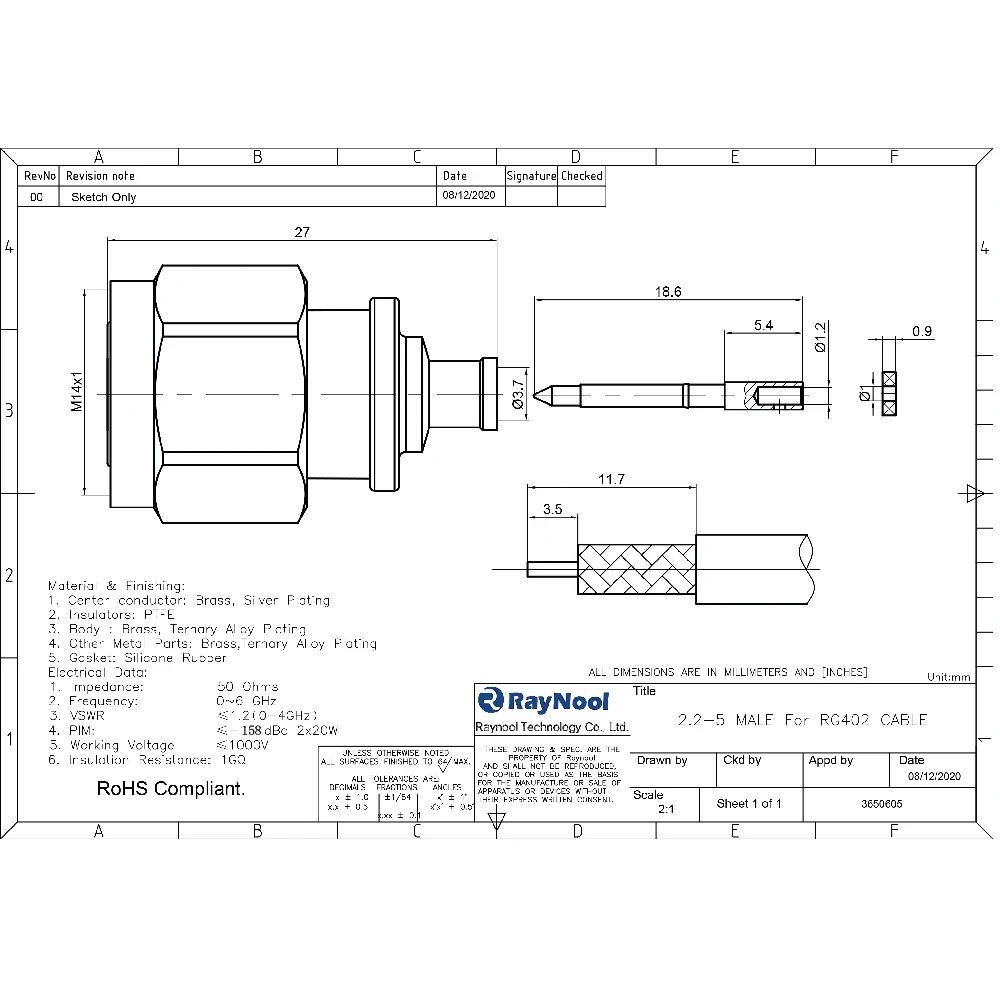

Raynool 2.2-5 Series RF coax connector has a brass body with ternary plating, phosphor bronze center pin with silver plating, feature a max level of -161dbc PIM performance, with a VSWR 1.15 at 3GHz and 1.30 up to 6GHz.
Solder type and Clamp(field termination) type are available and attachment for cable RG402, RG401, 1/4’’S, 3/8’’S 1/2’’S

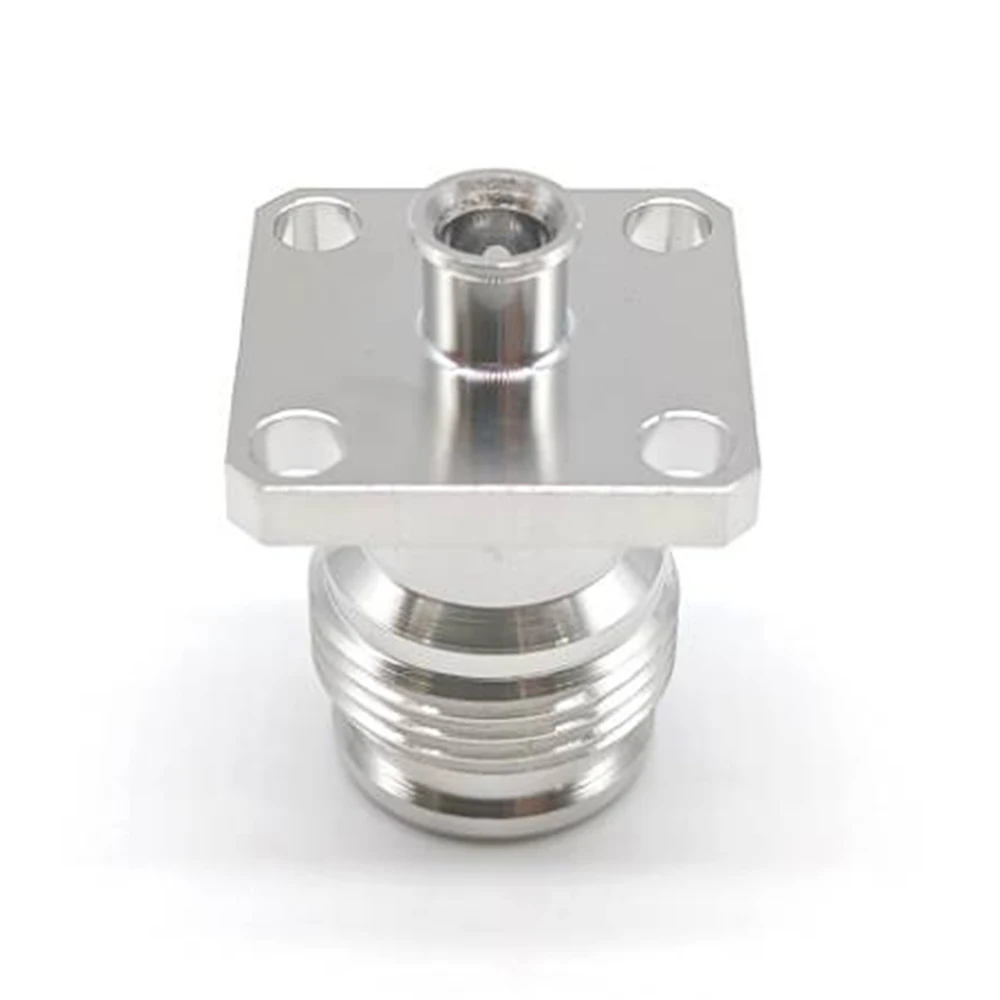

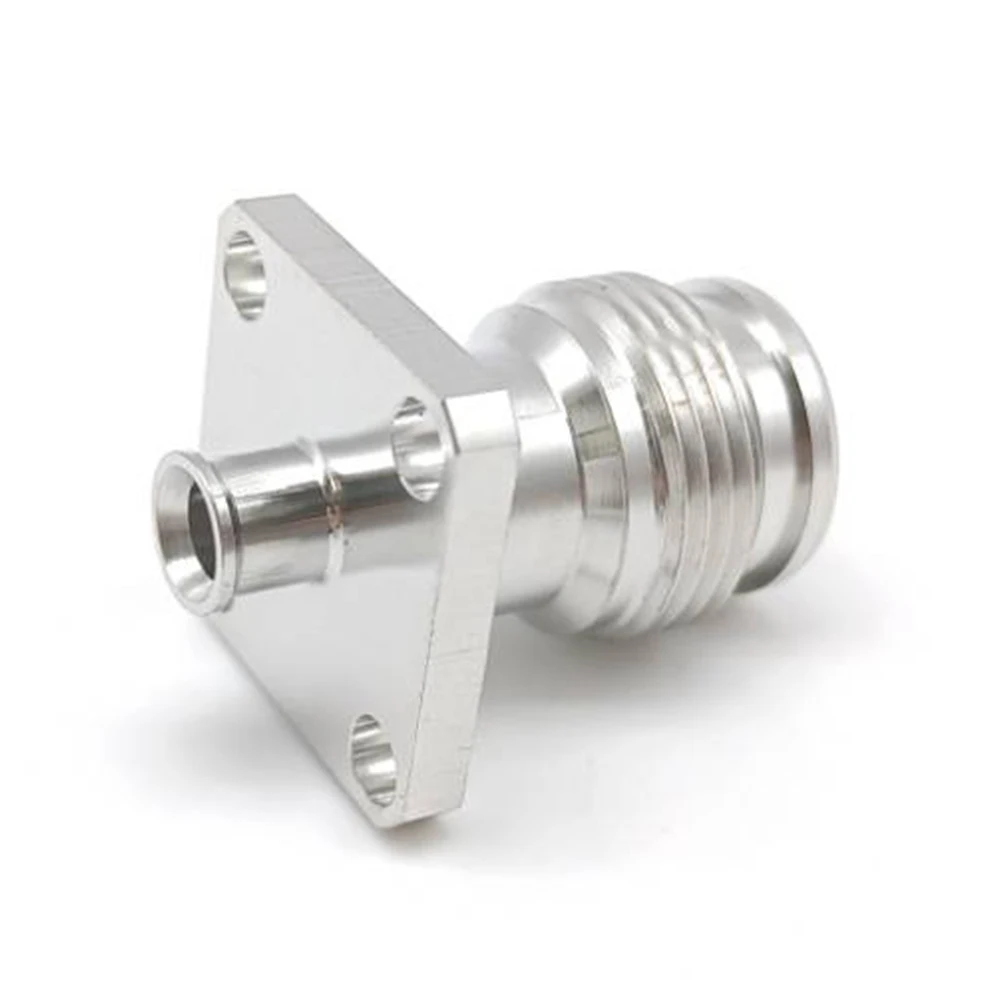

superflex, flange mount and bulkhead type can be customized based on your project requirement.
Solder type and Clamp(field termination) type are available and attachment for cable RG402, RG401, 1/4’’S, 3/8’’S 1/2’’S
superflex, flange mount and bulkhead type can be customized based on your project requirement.

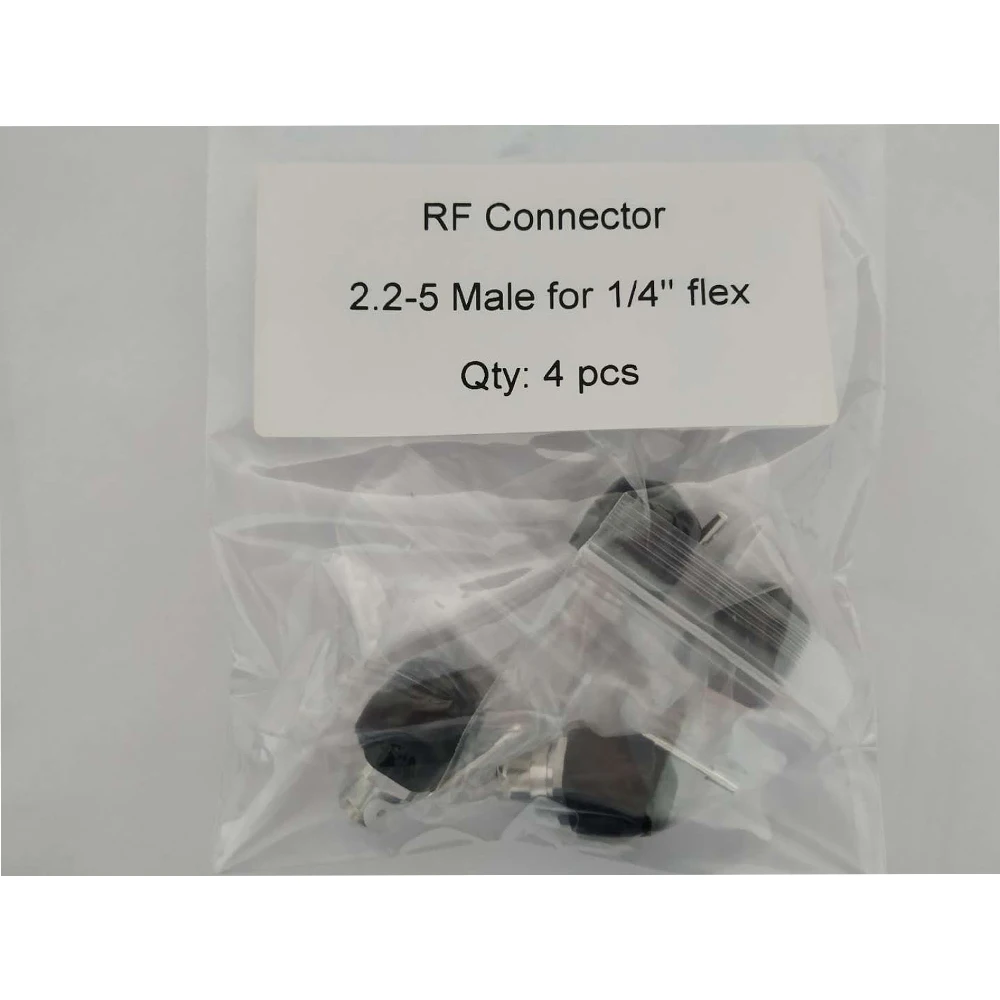

Raynool stock Low PIM RG402, 1/4’’S, 1/4’’S Plenum (SPP-250-LLPL) cable to achieve fast turnaround and the lead time can be 3 days for sample and 2 weeks for mass order.

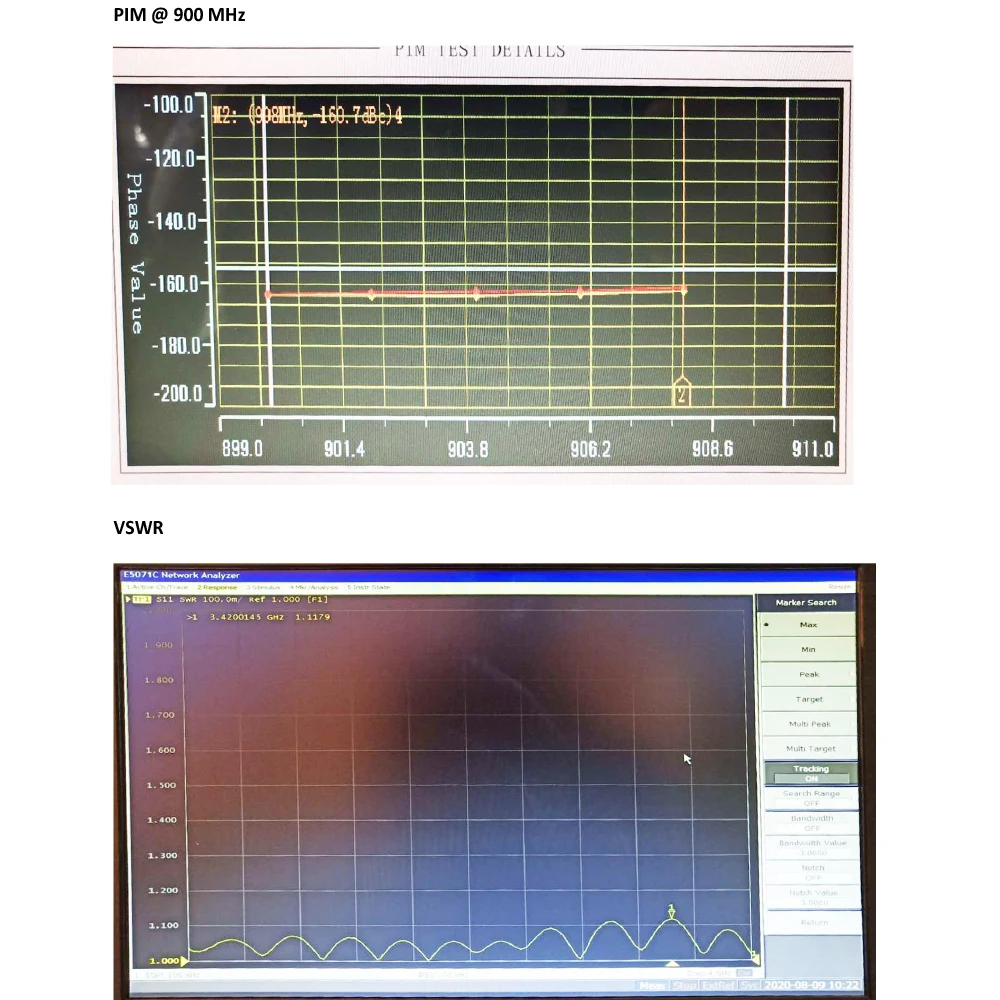

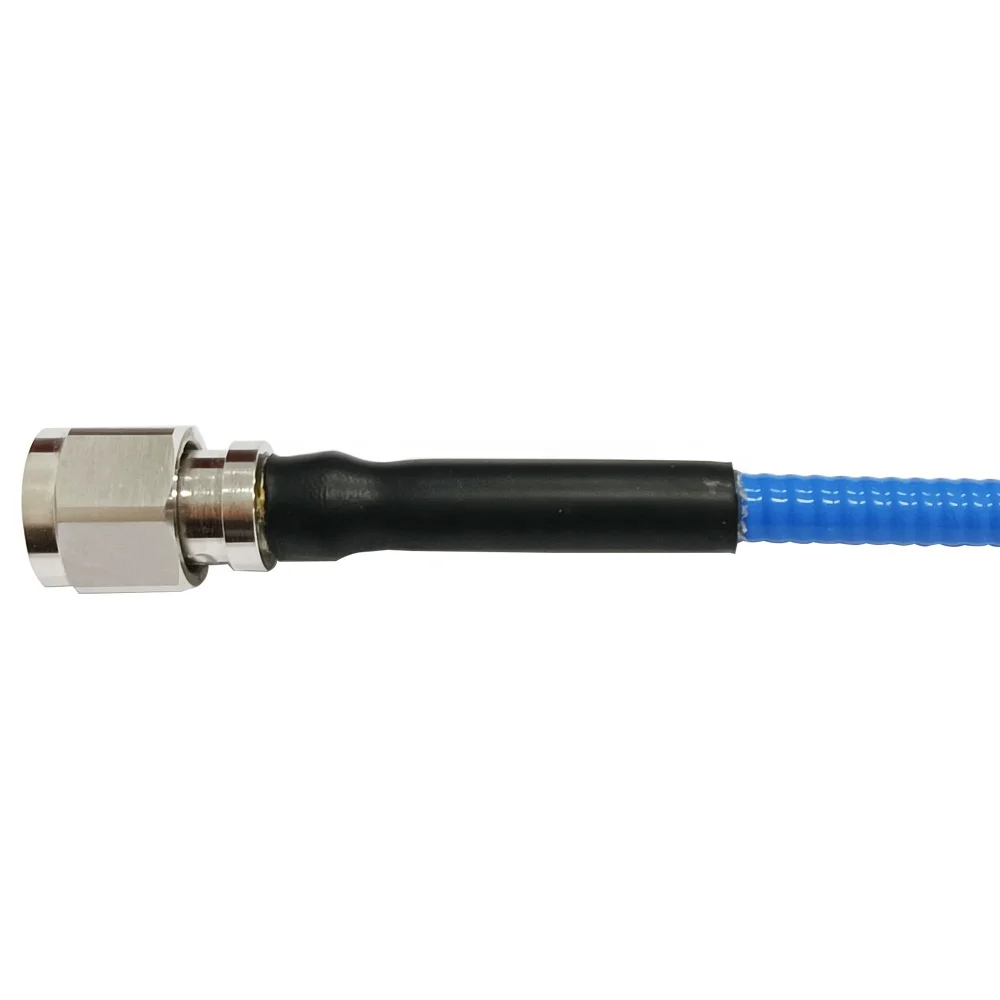

Raynool 2.2-5 cable assemblies are 100% PIM tested, and available on 700MHz, 900MHz, 1800MHz, 1900MHz Frequency.
Raynool 2.2-5 cable assemblies are 100% PIM tested, and available on 700MHz, 900MHz, 1800MHz, 1900MHz Frequency.
Feature and benefits
Excellent Low PIM Performance
Light wight & Robust
Indoor & outdoor application
53% Smaller than 4.3-10 series

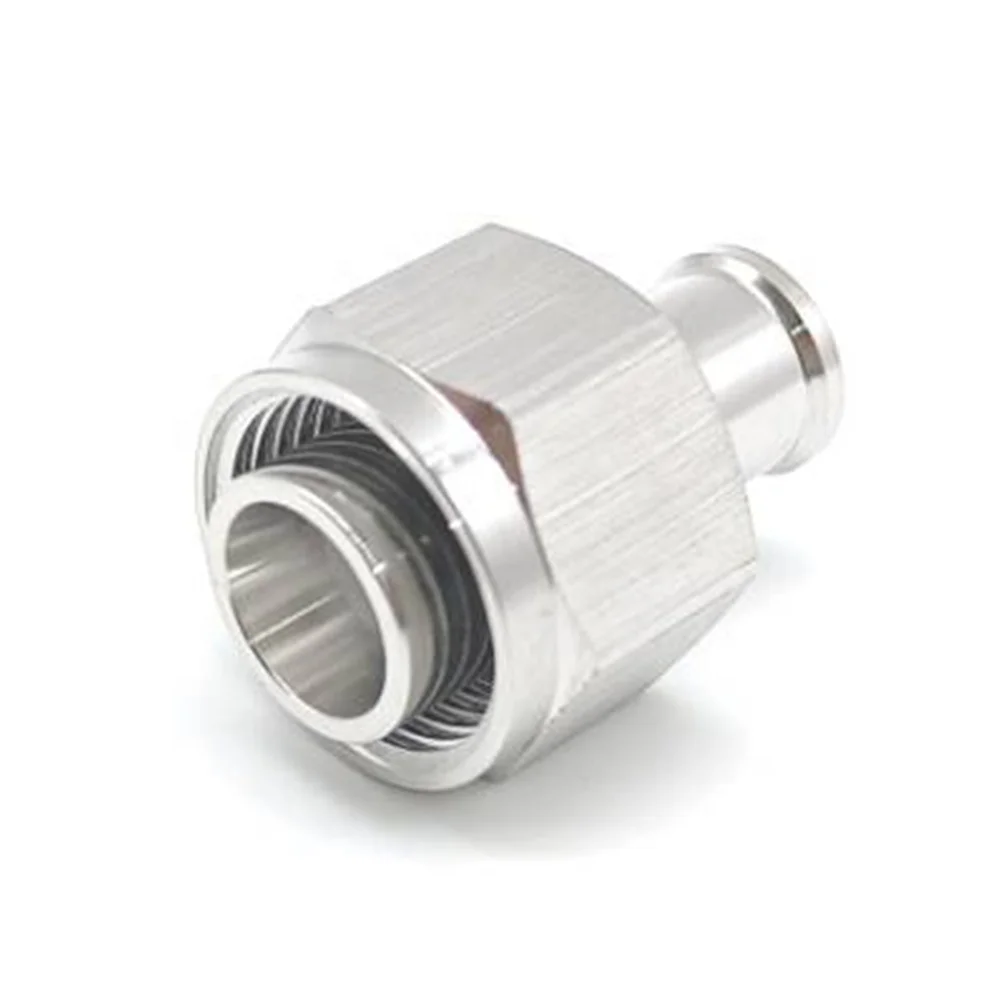

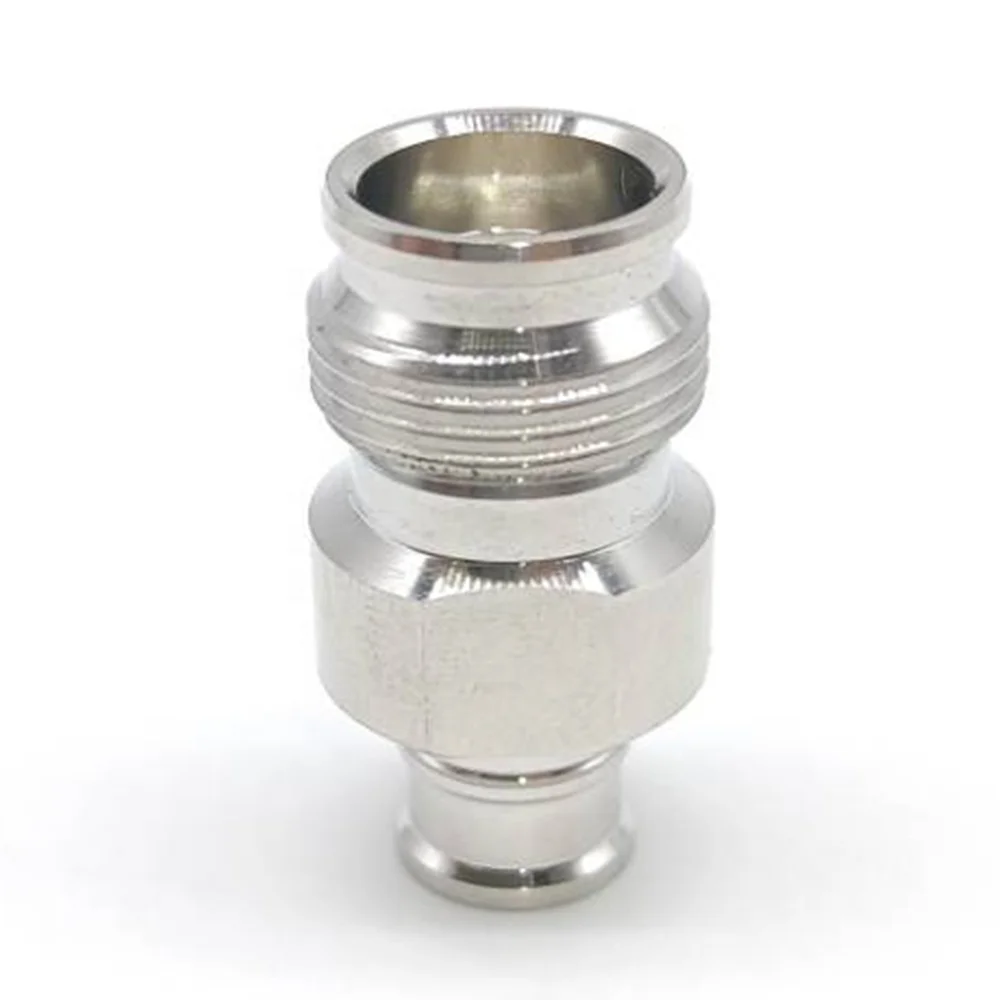

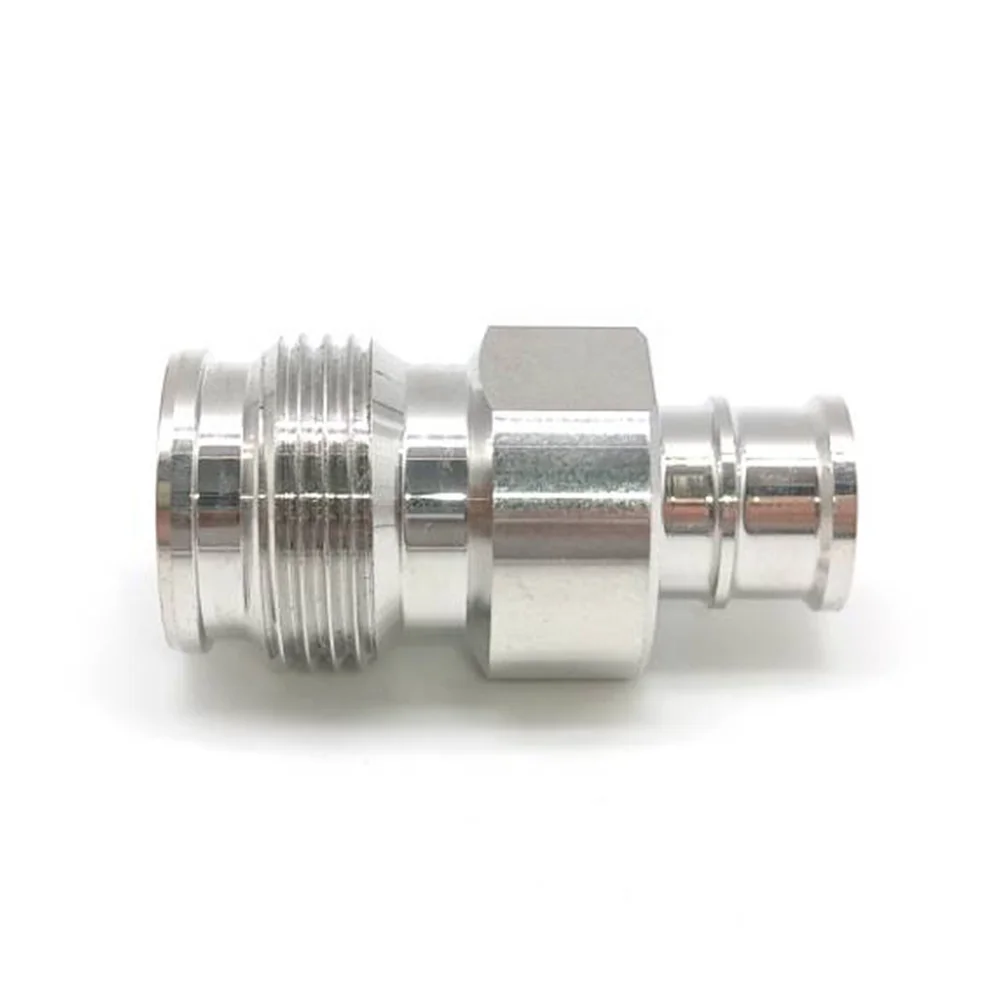

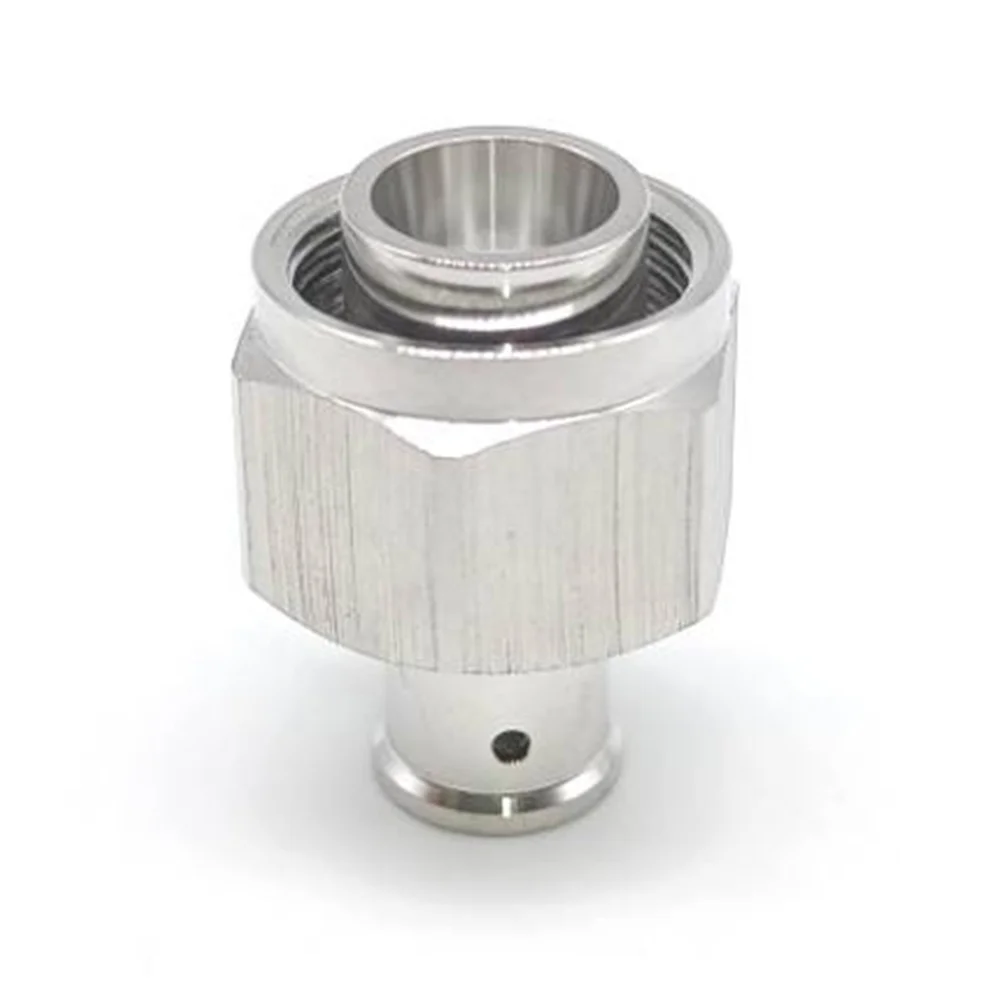

2.2-5 Adaptor
2.2-5 Adaptor
2.2-5 Adaptor
Cable Types
For Connections between Base Station and Antenna, Corrugated Cable are the preferred type. For DAS & Small Cell, Semiflex cable and RG cable are used according to the engineer design.
2.2-5 | NEX10 | 1.5-3.5 | 4.3-10 | |
Passive Intermodulation | -166dBc @2*43dBm | -166dBc @2*43dBm | -166dBc @2*43dBm | -155dBc @2*43dBm |
Power Handling | 250W(2GHz) | 100W(2GHz) | 100W(2GHz) | 700W(2GHz) |
Frequency Range | 20GHz | 20GHz | 30GHz | 6GHz |
Return Loss | 36dB@4GHz 34dB@6GHz | 36dB@4GHz 34dB@6GHz | 36dB@4GHz 32dB@6GHz | 36dB@4GHz 32dB@6GHz |
Coupling Mechanisms | Screw Push Pull Hand Screw | Screw Push Pull Hand Screw | Screw Push Pull | Screw Push Pull Hand Screw |
Packaging Density | 17.5mm | 12.7mm | 12.7mm | 25.4mm |

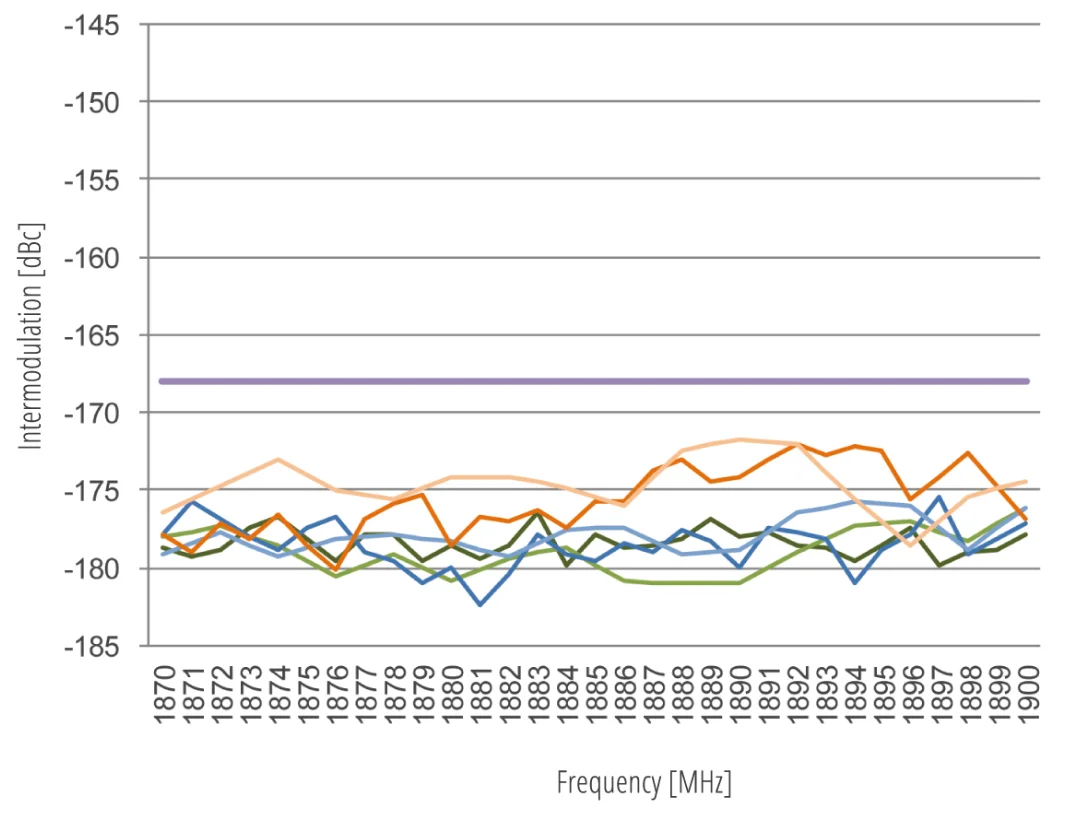

Low PIM
-166 dBc @ 2*43 dBm
