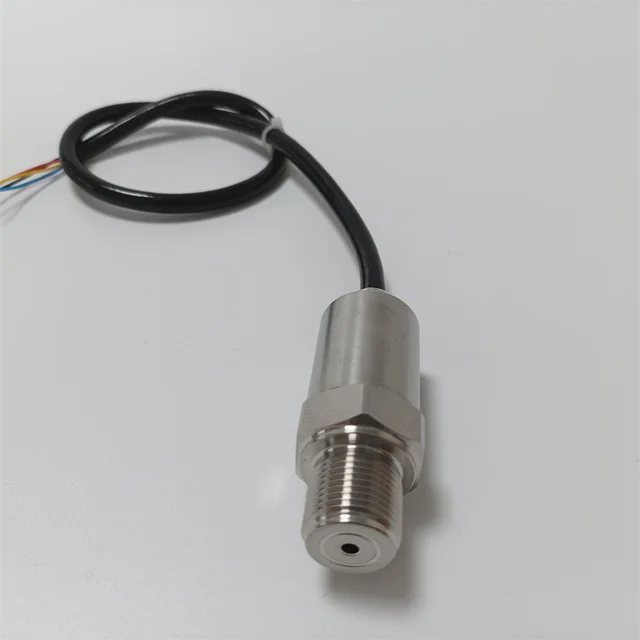

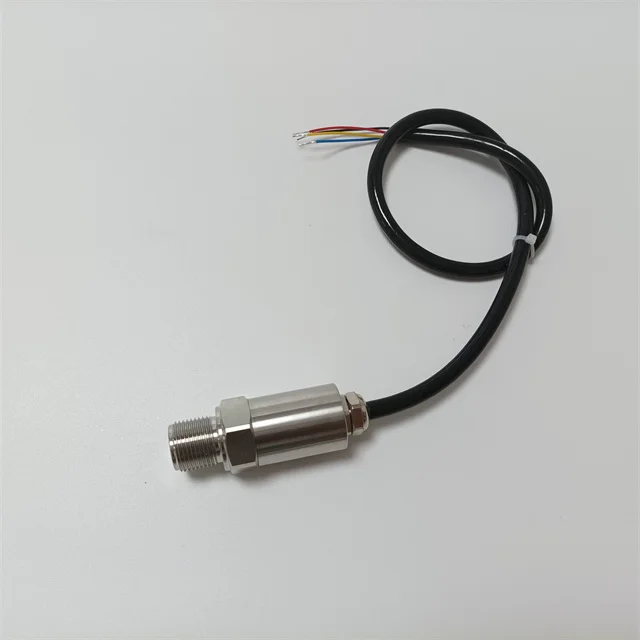

NICON india 12~36VDC flowmeter pressure level transmitter 4-20ma water pressure sensor
Products Description
NICON india 12~36VDC flowmeter pressure level transmitter 4-20ma water pressure sensor
Flowmeter special pressure sensor through the introduction of advanced production technology, pressure interface and shell are stainless steel, with good corrosion resistance. The sensor compensates the temperature in a wide temperature range, which ensures the technical index of the sensor. Sensor interface can be adapted according to user requirements, can choose constant current source power supply or constant voltage source power supply. High quality sensors, exquisite packaging technology and perfect assembly process ensure the excellent quality and performance of the product. The product has a variety of interface forms and a variety of lead ways, can meet the needs of customers to a limited extent, this product is suitable for the use of various measurement and control equipment. The product is widely used in the pressure measurement and micro power situation in the Flowmeter, is the customer Flowmeter matching pressure measurement instrument.
Product Paramenters
Model | 2166-C |
Pressure range | 0~100MPa |
Pressure measurement | Gauge Pressure, Absolute pressure, Sealing pressure |
Output | ≥70mVDC |
Power supply | 1.5mADC |
Process connection | M20×1.5/G1/2( or on your demand) |
Power supply | 12~36VDC/5VDC |
Environment temperature | -30~80ºC |
Relative temperature | 0~90％ |
Medium temperature | -30~80ºC |
Accuracy(linearity,Hysteresis and Repeatability) | 0.1%F.S, 0.25%F.S,0.5%F.S |
Long-term stability | ≤0.2%F.S/year |
Overload | 150% |
Housing material | 304/316 stainless steel |
Production grade | IP65 |

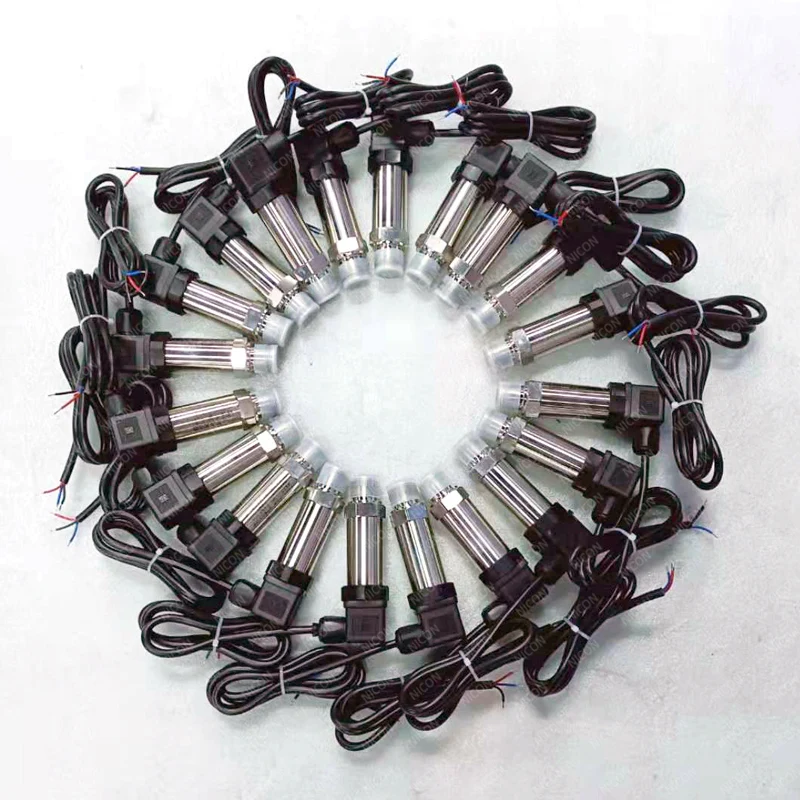

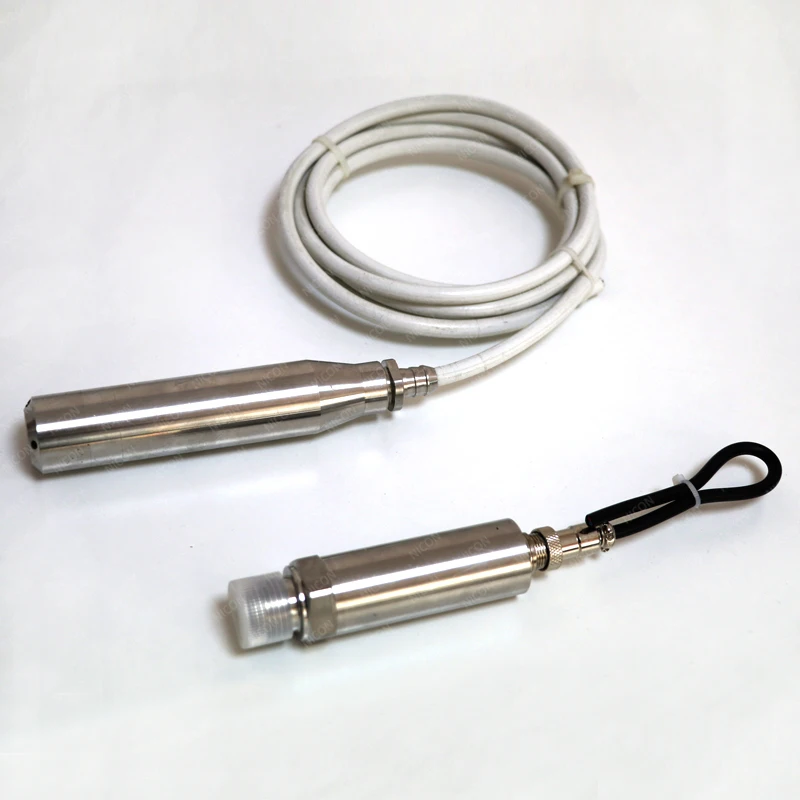

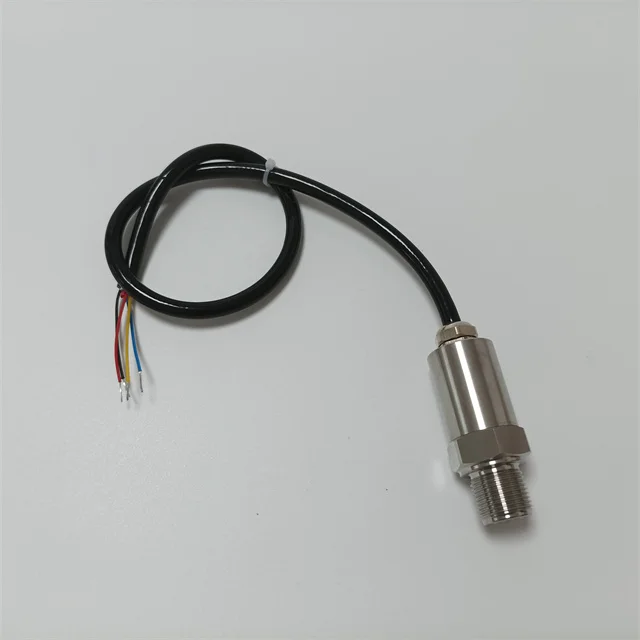

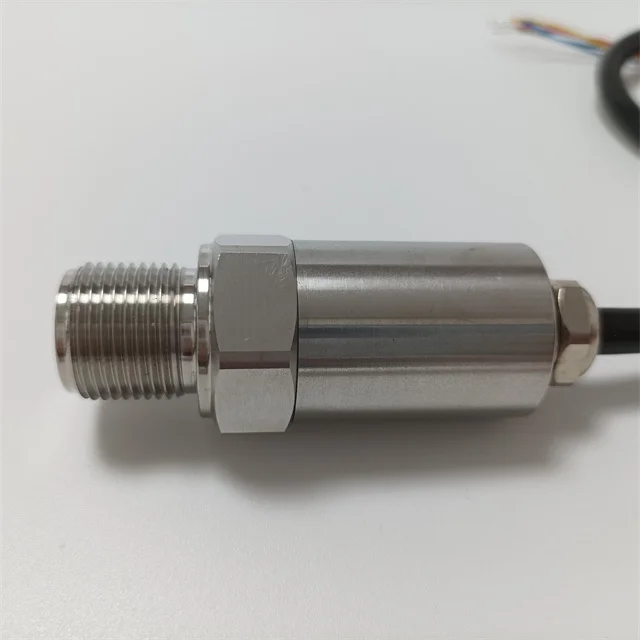

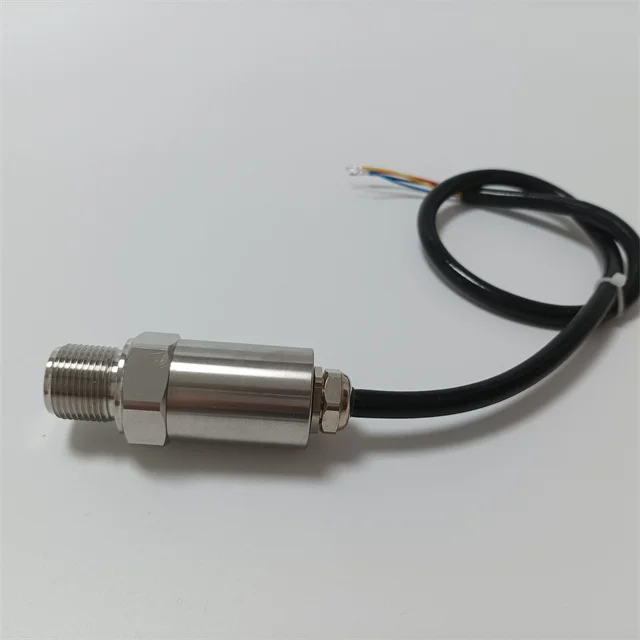

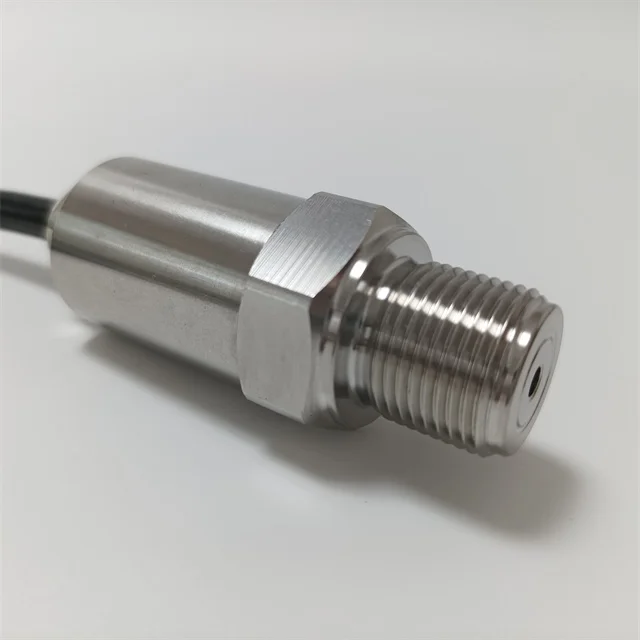

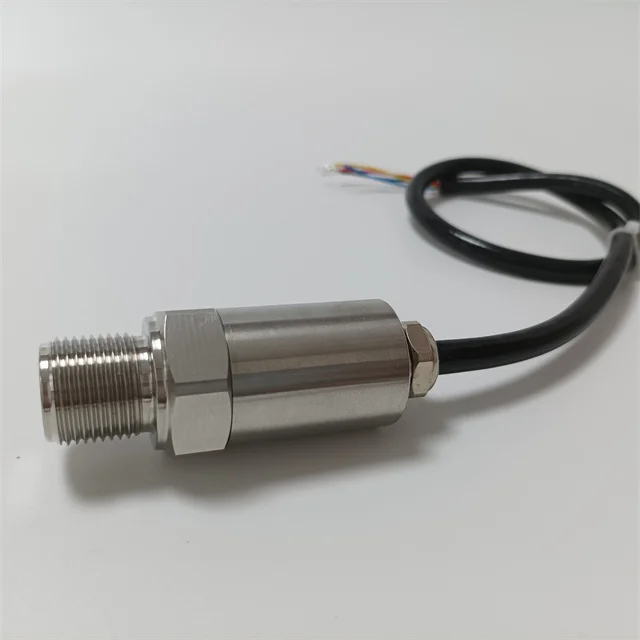

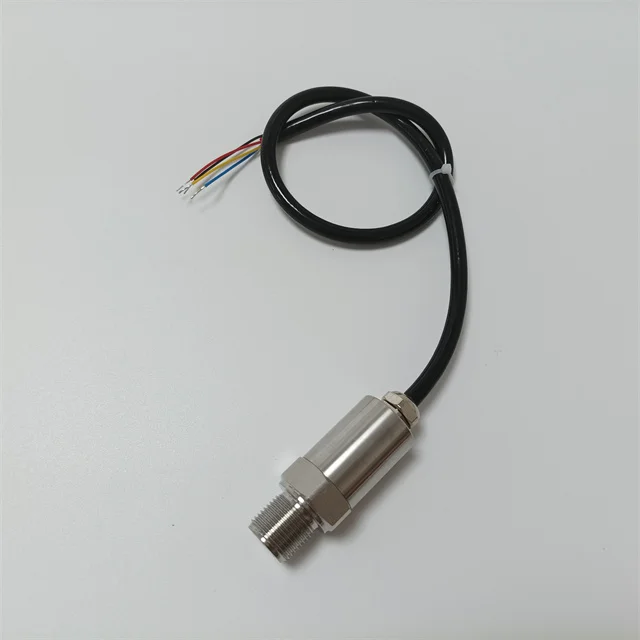

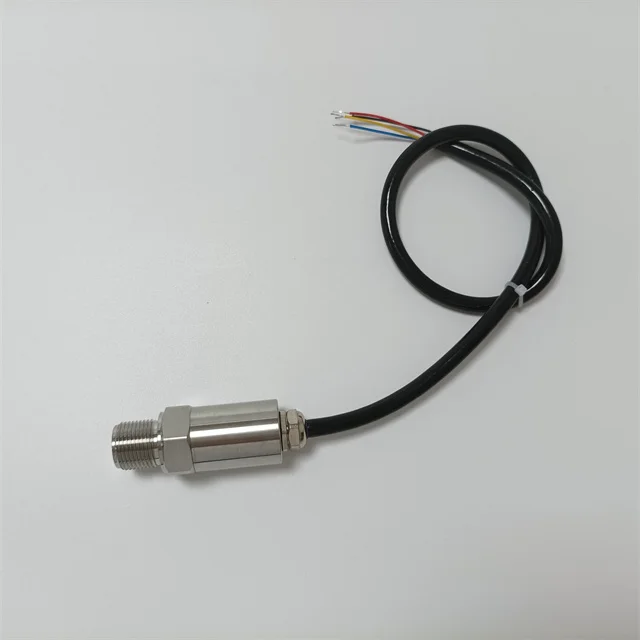

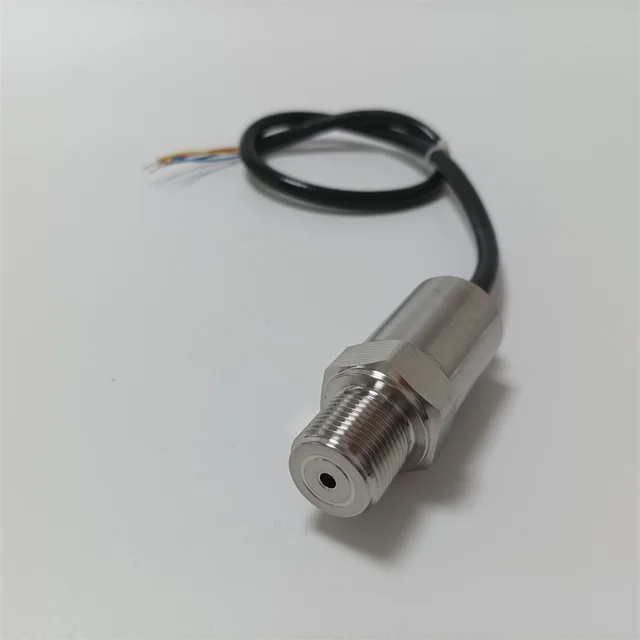

Details Images
Features of water pipe air pressure sensor pressure level transmitter
1. Compact structure, light weight, can save a lot of space, can be installed in narrow position
2. integrated special chip, few discrete components, good temperature characteristics
3. easy to operate and maintain durable
4. stainless steel mechanical and electrical integration structure, sturdy and durable.
5. cost-effective, can save 30% cost.
6. diaphragm damage rate is low, improve the practical life of the sensor.
2. integrated special chip, few discrete components, good temperature characteristics
3. easy to operate and maintain durable
4. stainless steel mechanical and electrical integration structure, sturdy and durable.
5. cost-effective, can save 30% cost.
6. diaphragm damage rate is low, improve the practical life of the sensor.

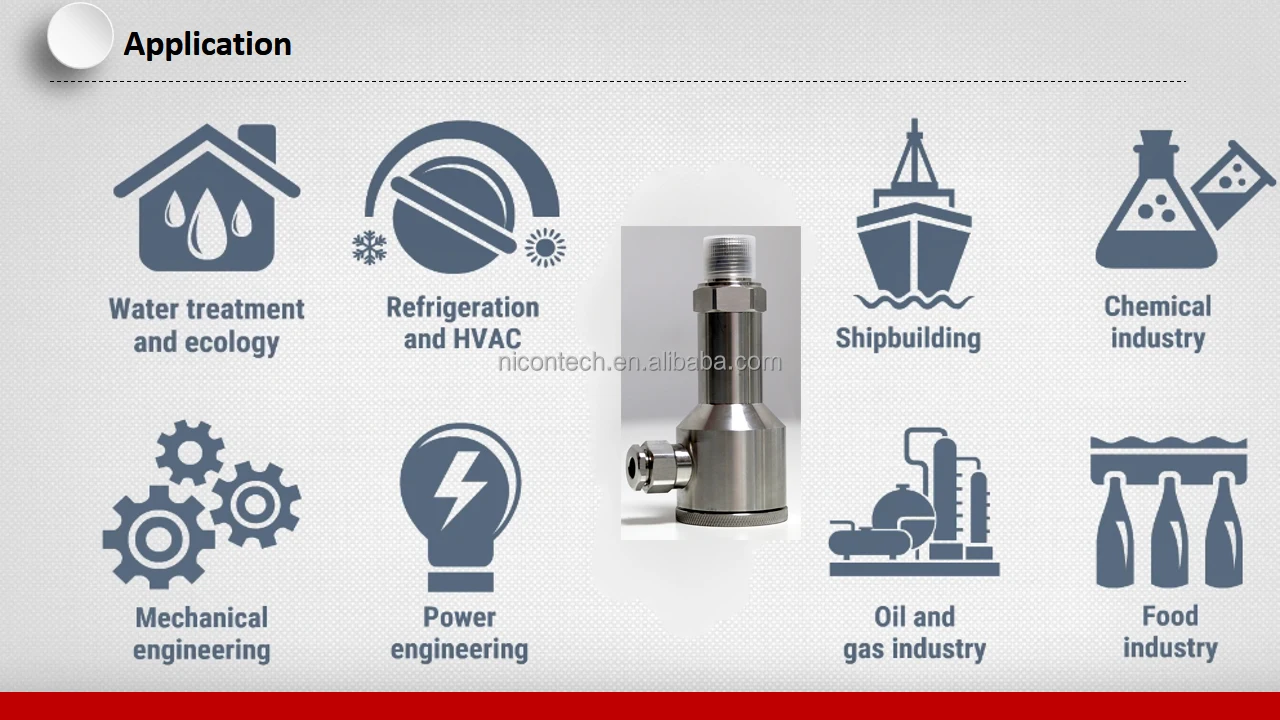

Application
The IP65 production grade 0~100MPa fluid meter flowmeter special industrial pressure sensor adopts diffused silicon core as sensitive element and intelligent digital circuit. The overall performance is stable and reliable, and can be transmitted over long distance. Easy installation, suitable for gas, liquid, steam pressure measurement and control.
Use scenarios
1. Constant pressure water supply for buildings and water pressure monitoring
2. Hydraulic monitoring
3. Air tightness monitoring
4. Negative pressure measurement
2. Hydraulic monitoring
3. Air tightness monitoring
4. Negative pressure measurement
Packaging & Shipping
Company Profile
NICON is a high-tech technology enterprise integrating R&D, design, manufacturing, sales service, engineering design and complete system of industrial automation control equipment. The company has strong technical force, advanced production and testing equipment, excellent product technology, reliable quality, and timely after-sales service, and is deeply trusted by users.
Certifications
High standard production processes
1. The screening of components, using pearl cotton all-round package storage, to prevent shell collision scratch. Layer by layer control for you to provide high-quality pressure transmitter.
2. Six accurate calibration, using the United States General Electric automatic calibration system, each product from production to delivery, after six accurate calibration. Zero point, midpoint, full degree of three-point detection, covering the full range, the measurement accuracy is much higher than two-point calibration.
3. High temperature aging test 72 hours aging test to ensure stable and reliable quality.
4. Laser marking, each pressure transmitter has a corresponding'identity number, from production to use, can detect maintenance records, one-click query, digital management, to give you a better use of experience.
2. Six accurate calibration, using the United States General Electric automatic calibration system, each product from production to delivery, after six accurate calibration. Zero point, midpoint, full degree of three-point detection, covering the full range, the measurement accuracy is much higher than two-point calibration.
3. High temperature aging test 72 hours aging test to ensure stable and reliable quality.
4. Laser marking, each pressure transmitter has a corresponding'identity number, from production to use, can detect maintenance records, one-click query, digital management, to give you a better use of experience.
