thin addressable rgb side emitting 5mm 60leds 60pixels sk6812 ws2812b smd4020 mini rgb led strip

Features for smart programmable side emitting rgb led strip:

1.dc5v 14.4W/m

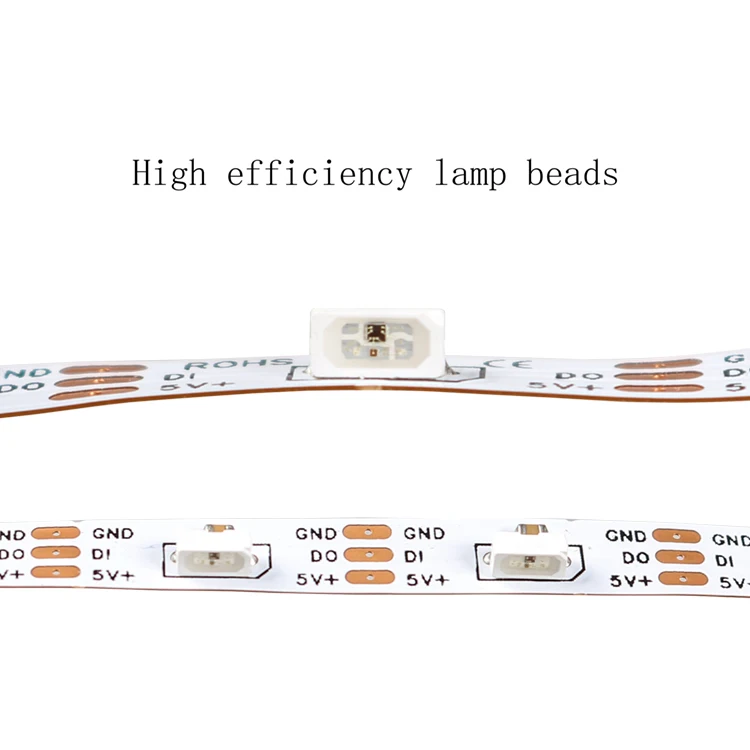

2.SK6812 IC Chip built-in SMD4020 RGB
3.60led sk6812/ws2812b 4020 rgb per meter
4.white and black pcb
5.5mm pcb width,pitch distance is 16.67mm
6.normal is 2 oz copper,also can do customer 3oz or 4oz copper pcb

More details for side view addressable sk6812 led strip:

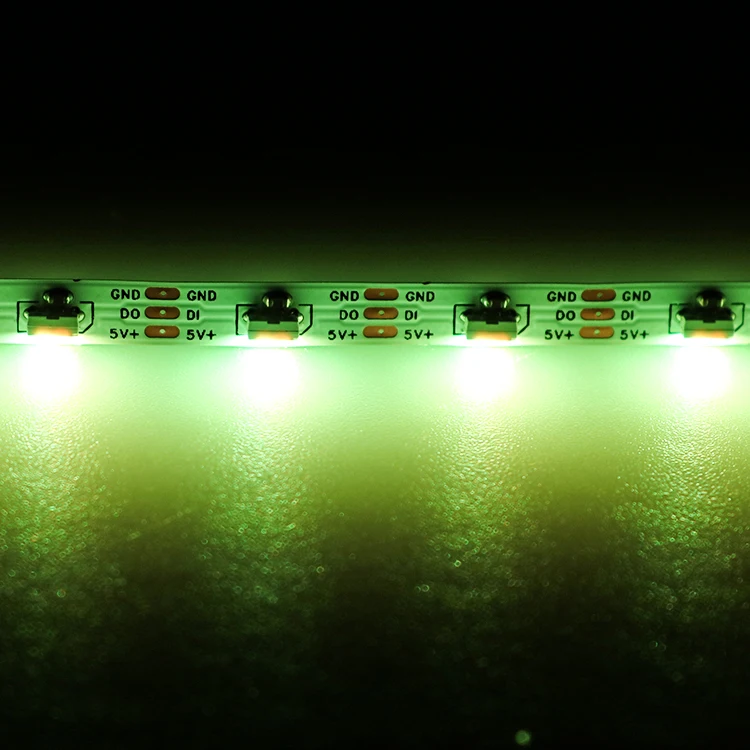

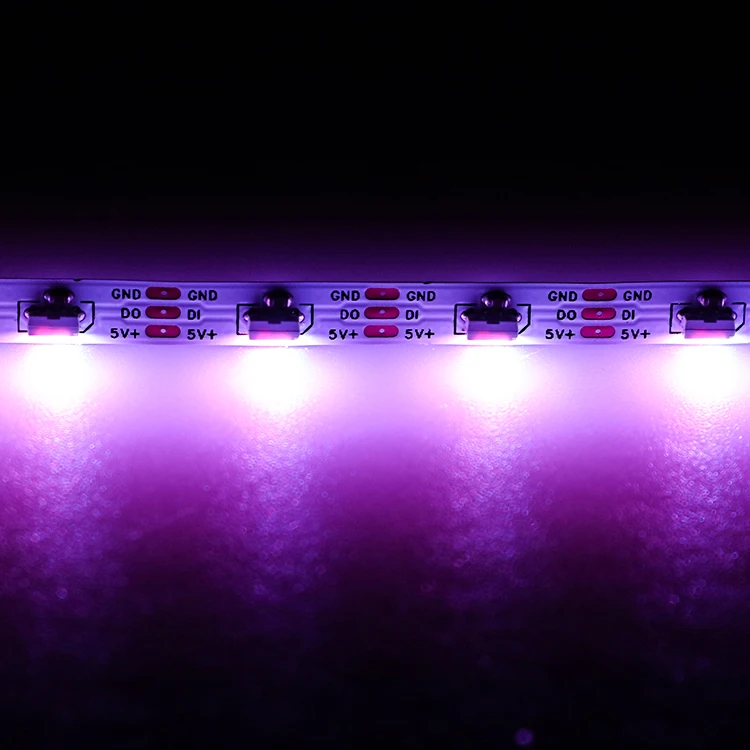

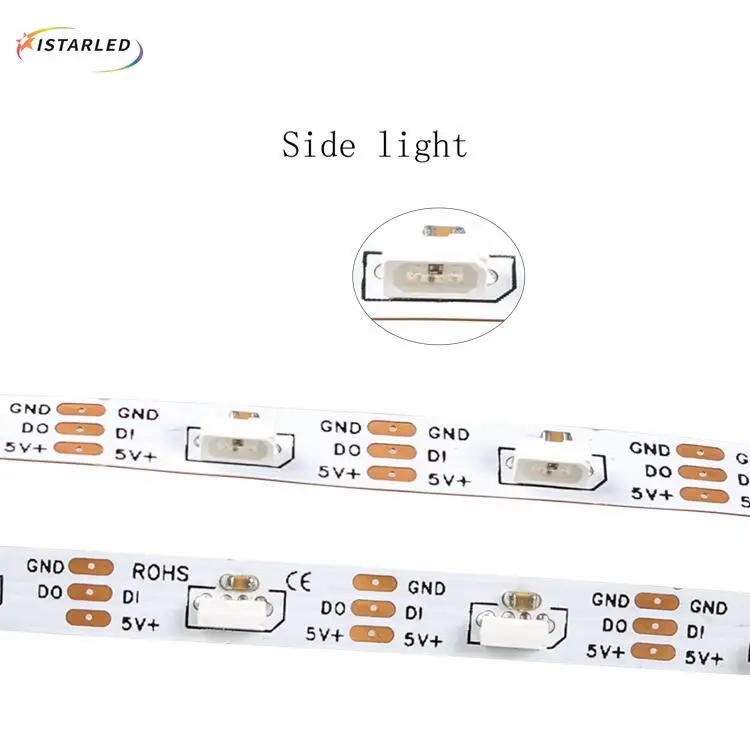

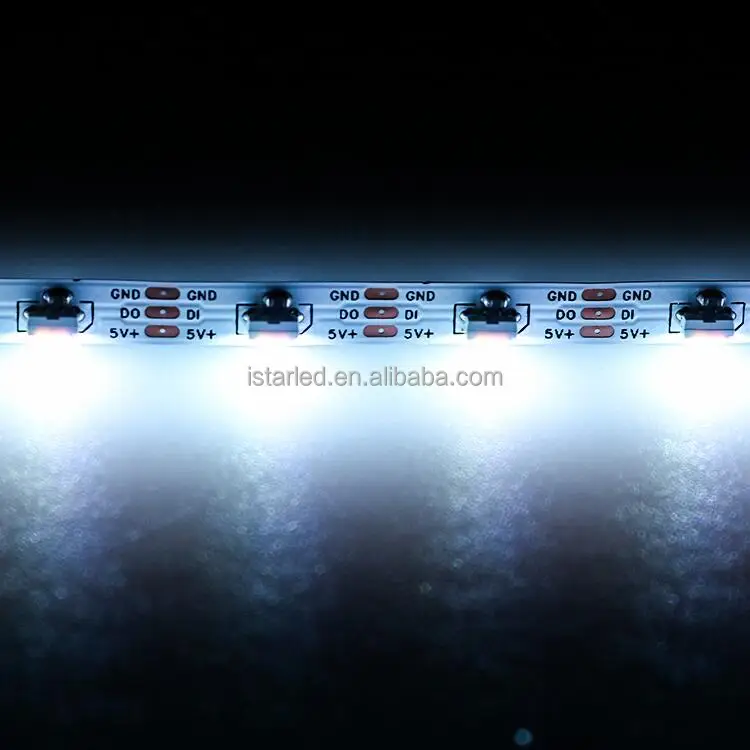

1.After 020 and 335 side view leds, what is better than them ? It is sk6812 4020 side emitting LED! Sk6812 4020 side emitting achieve addressable with light emitting at 90 degrees.They're also very skinny so you can run them along a thin edge and curve them around shapes and corners. These look awesome for accent lighting, back lighting, edge lighting...

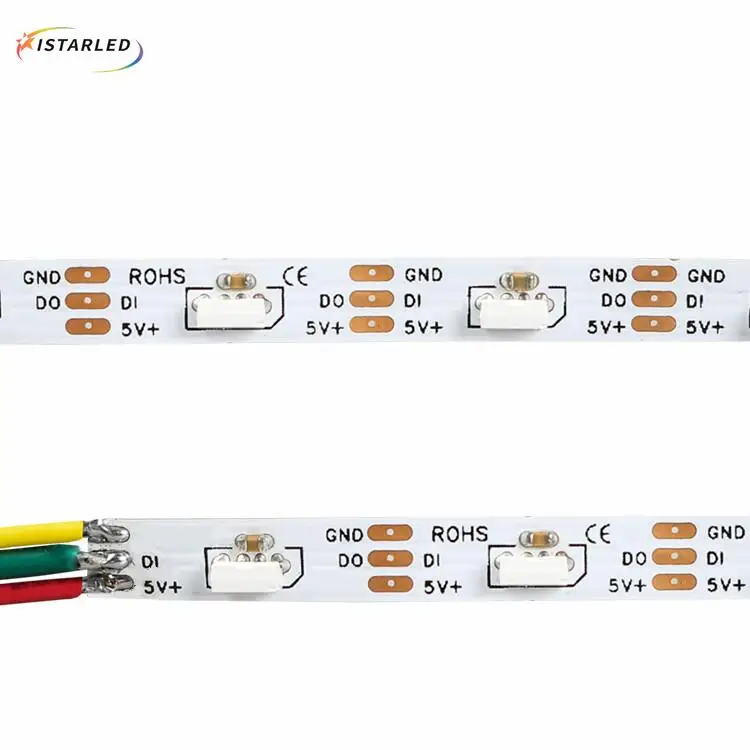

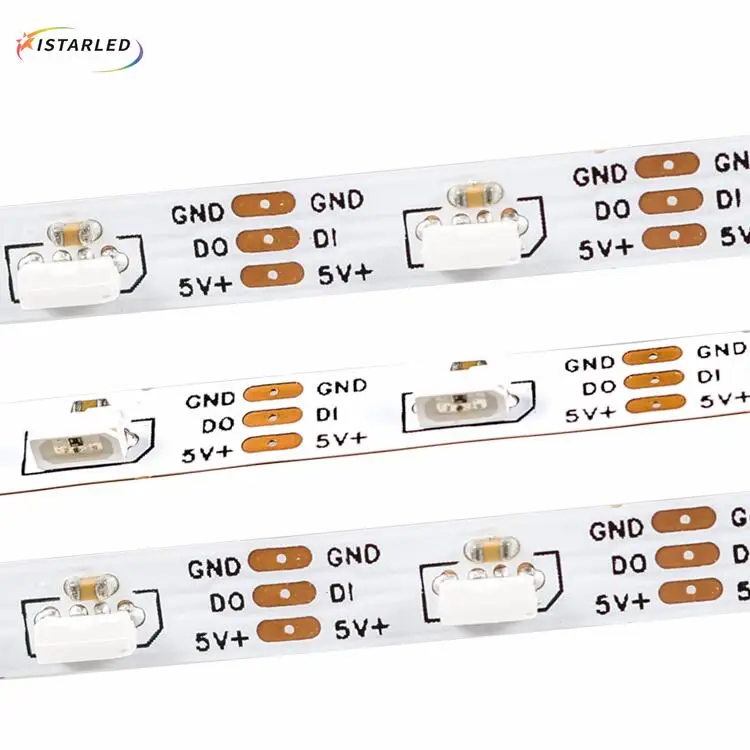

2.The sk6812 4020 side view pixel led strip is only 3 solder pads on the PCB,that is,5V+,DATA,GND,which is mix Data and clk into DATA,so only one data line,the advantage of one data is that it can transfer longer signal,such as first leds to controller can reach 15-20m,if over this,you need to use signal amplifier.

3.This is come with 60led per meter version of sk6812 smd4020 side light.And we also have 90led/m,120led/m and 144led/m. White and black pcb are available.

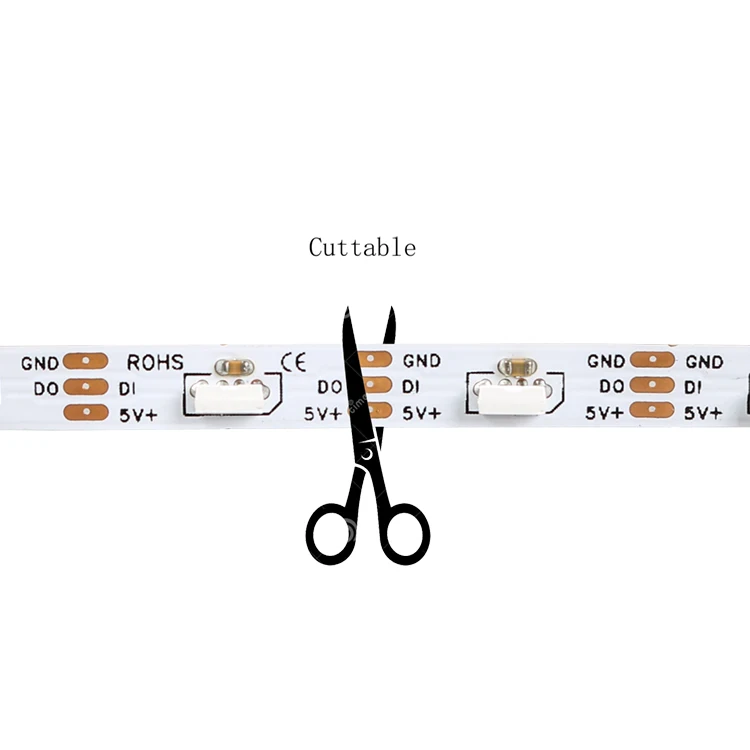

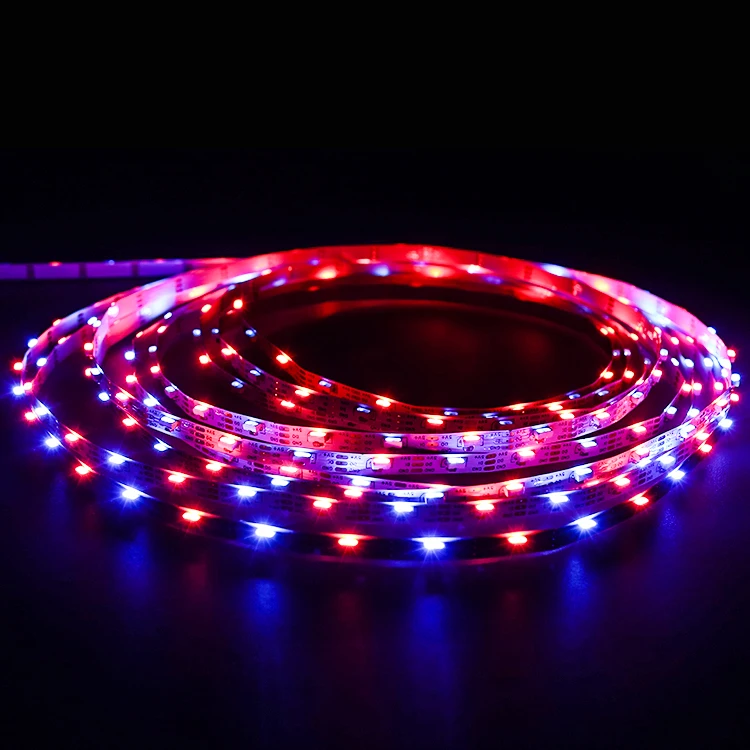

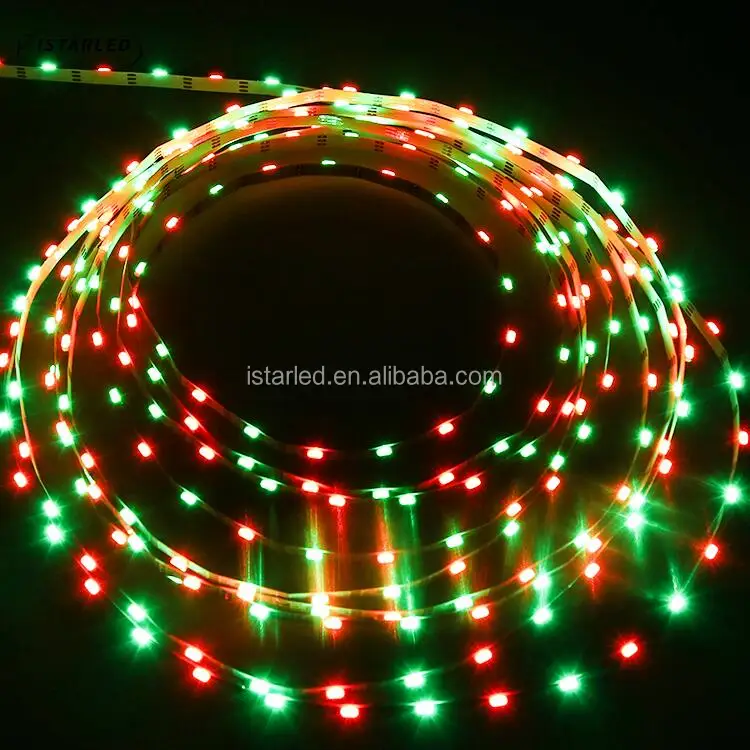

4.Those side light sk6812 4020 led strip is normal with 5m/roll,each end with 3Pin JST SM female and male connectors.Also each roll have 2 extra wires for power wires.The you can plug them together with the length you need if have enough power.

5.sk6812 4020 side emitting rgb pixel led tape is SPI signal,it works with controller such as K-1000c/k-8000c,LM-501,LM-901,DMX,Artnet,Madrix software.

Datasheet for rgb pixel side view 60led strip:

 smd4020 side emitting sk6812 programmable pixel led strip

ISTAR LED specialized in rgb pixel led products, such as pixel addressable led strip, pixel led modules, pixel led string light,pixel led bar light and 3D dmx led products. All of ISTAR LED products are used for large business plazas, hotels,shopping malls, as well as buildings,KTV,concerts,amusement park rides decoration. As the year of the experience of pixel led lights,many clients create amazing projects which are beyond our imagination. If you have any idea for pixel led lights,please don't hesitate to contact us.Hope we can move forward the LED technology to a high level by using ISTAR LED products.

Q: Are you manufacturer?

A: Yes, our factory has been set up for more than 6years. Also we have our own R&D center. Sincerely welcome you to visit us in ShenZhen China.

Q: Can you OEM or ODM?

A: Yes, we have adviced ability of R&D team. The products can be made according to clients' resquest.

Q: Can we print our logo on the LED lights?

A: Yes, we can print your logo on the pixel LED lights.

Q: Is the sample available?

A: Yes, we are very glad to make the samples for your test.

Q: What is the warranty for the LED lights?

A: The LED lights have two years warranty. If it is our quality problem, we will replace the new one for the broken.

Q: How long is the lifetime for the LED products?

A: The lifetime is about 50,000hours

Q: What is the MOQ?

A: For our first cooperation, your small order is acceptable.

Q: What kinds of certificate do you have?

A: The LED lights are of good quality approved by CE and RoHS.

Q: What kinds of LED chip do you use?

A: The LED chips we are using are Epistar/Cree/Edison. Also can use led chip as your request.

Q: How long is the production time?

A: For samples, the lead time is about 3-5days. For mass production, the lead time is 10-20days after receiving payment.

Q: How about shipment?

A: For small order, we can ship it by DHL, FedEx, UPS, TNT, etc. For big order, we can ship it by sea or by air.

Q: What kinds of payment methods do you accept?

A: You can make the payment to our bank account, Western Union,Alipay or PayPal
