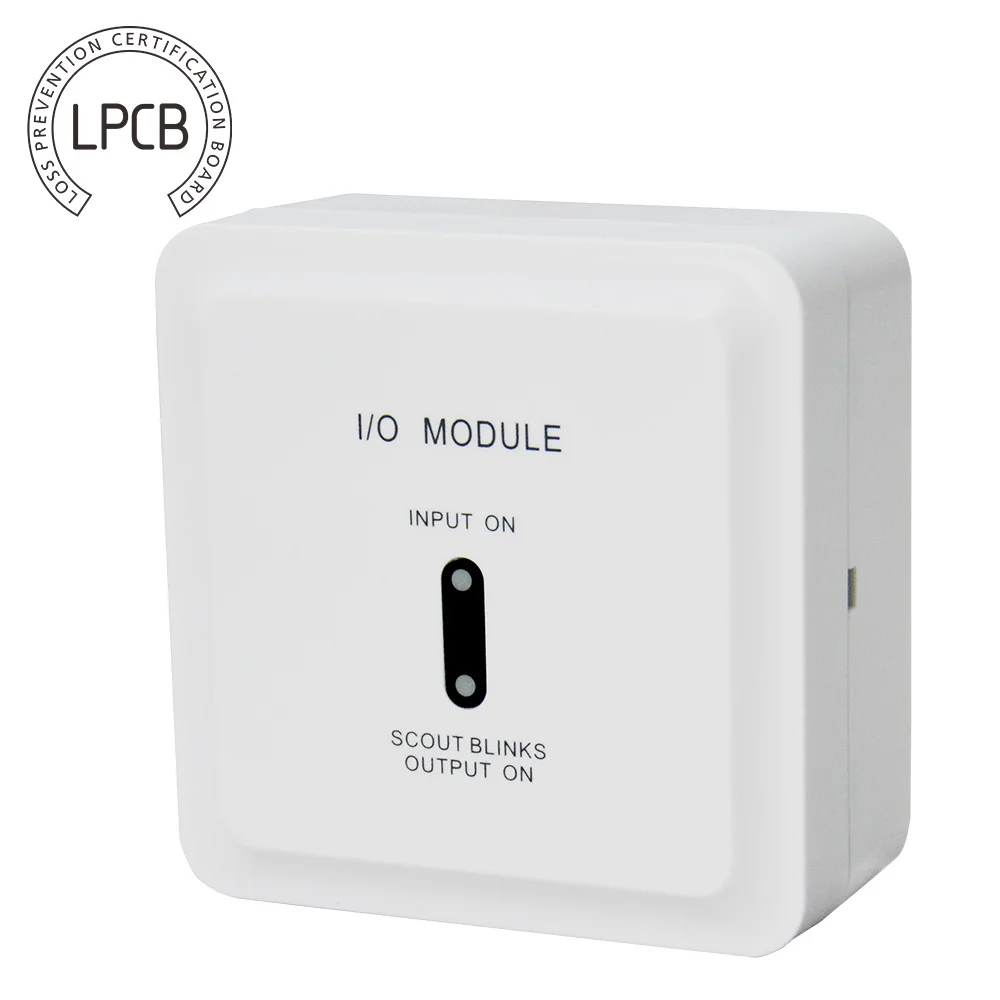

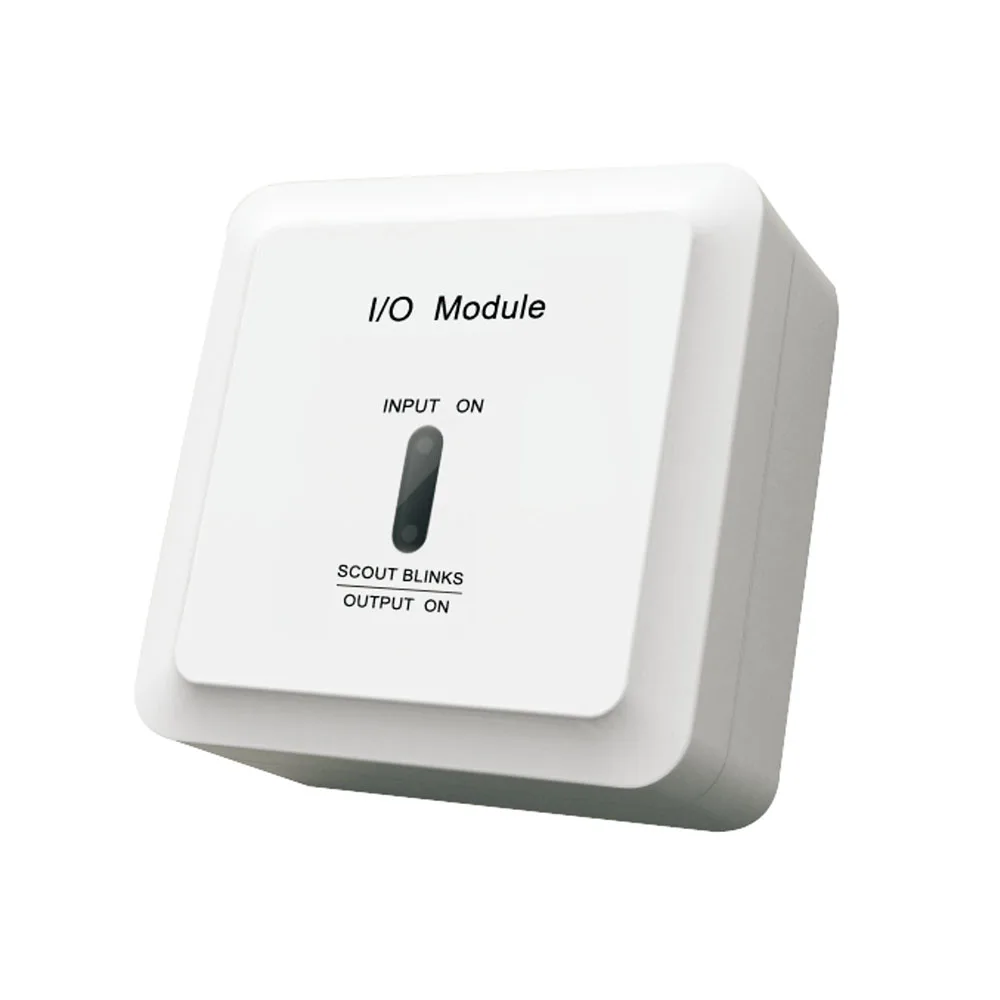

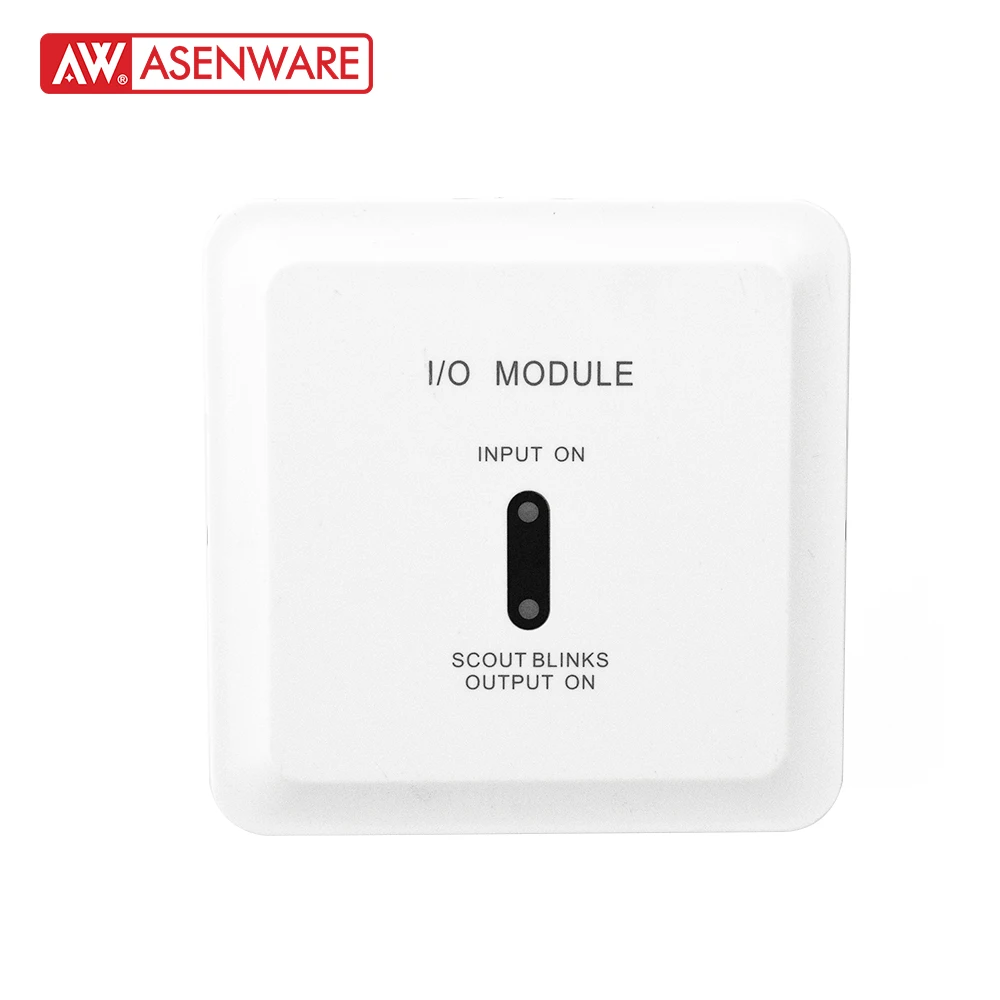

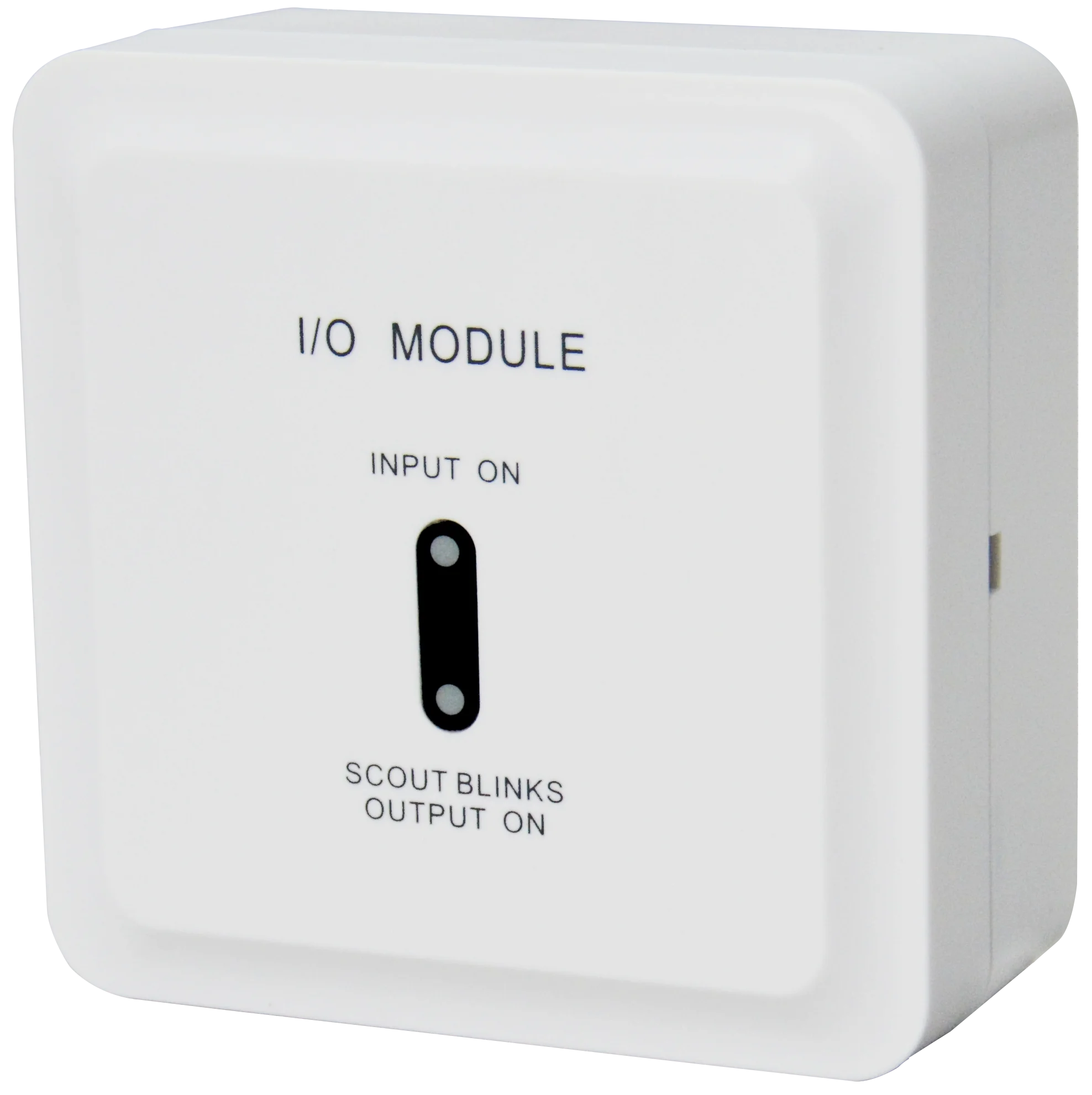

Factory direct 4 wire addressable I/O module 24VDC fire alarm
- Category: >>>
- Supplier: Zhongshan Guta Fire Equipment Technology Co. Ltd.
Share on (1600512566188):
Product Overview
Description
Product Description
Specification
Brand Name | Asenware |
Model Number | AW-D319 |
Product name | 4 wire addressable I/O module |
Operating Voltage | Signal Loop 24V(18V～28V) Power 24VDC(20VDC～28VDC) |
Standby Current | Loop＜0.8mA ; Power＜2mA |
Action Current | Loop＜5mA ; Power＜15mA |
Output Capacity | 1A@DC30V |
Input Mode Setting | NC or NO input mode can be set by the jumper JP4. |
Programming Method | Electronically addressed |
Code Range | One address within 1~324. |
Indicators | Inspection indicator: l blink once about every 12 seconds in the inspection status or remain lit in the output status; Input indicator : remain lit in the feedback status. |
Operating Temperature | -10℃～+55℃ |
Relative Humidity | ≤95% , non-condensing |
Material of Enclosure | ABS |
Dimension (L×W×H) | 86mm×86mm×41mm (with base) |
Mounting Hole Distance | 60.5mm |
Weight | About 148g (with base) |
Certificate | LPCB |
Recommend Products
Why choose us
Certifications
Company Profile
ASENWARE is the fire alarm system and fire suppression system manufacturer and whole fire safety solution provider since 2005.
