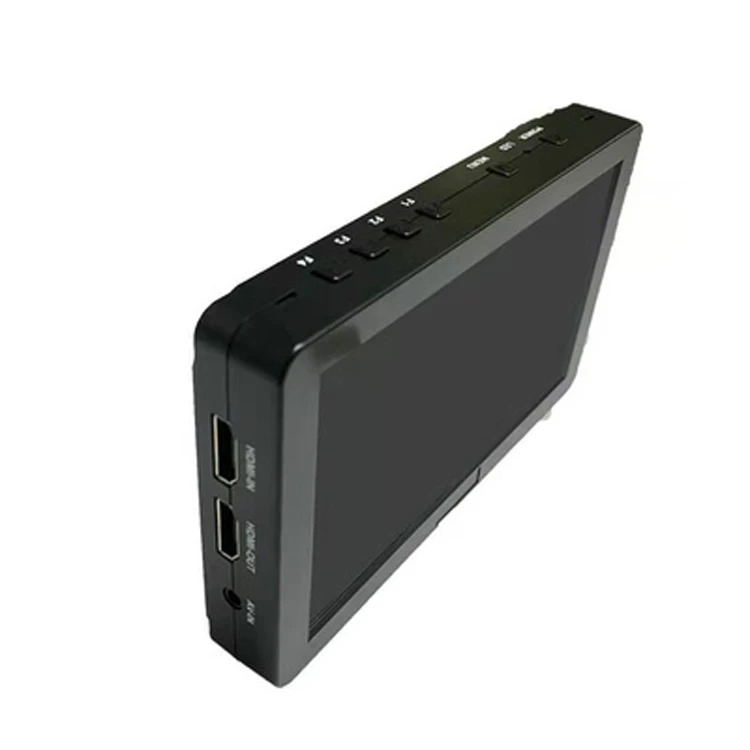

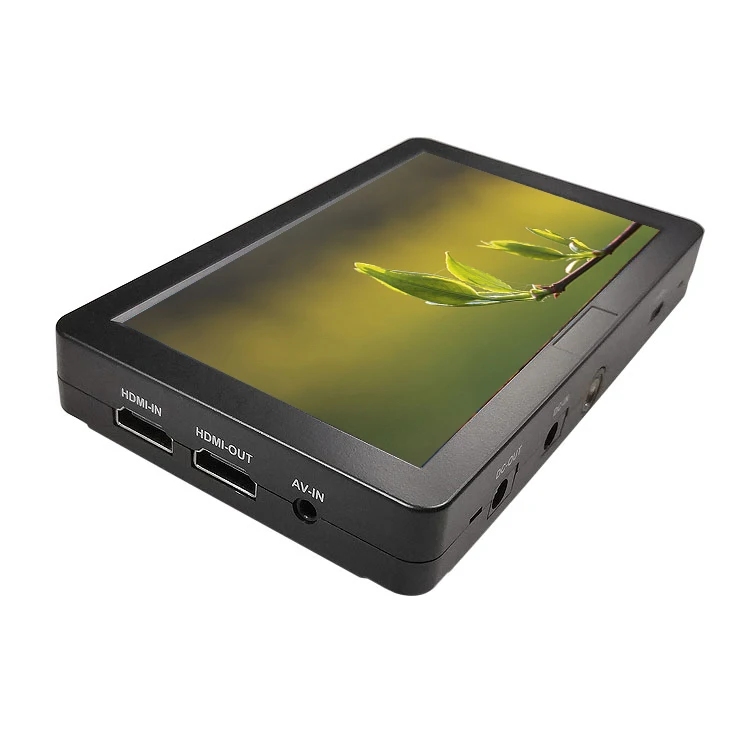

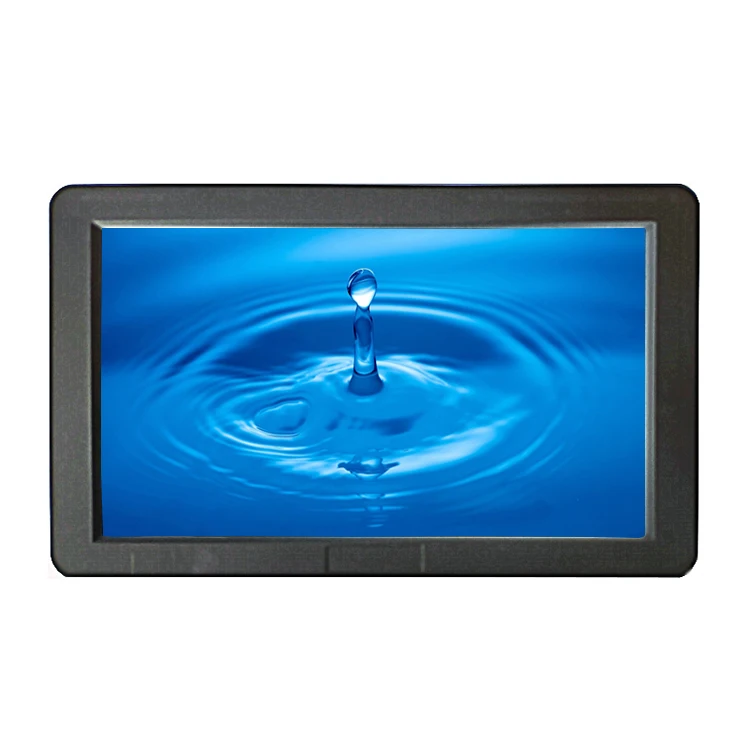

1920*1080 resolution lcd display LED backlight mini 5.5 inch monitor with 4K camera filed monitor
- Category: >>>
- Supplier: Shenzhen Kings Fun Electronic Co. Ltd.
Share on (1600512569828):
Product Overview
Description
Factory price widescreen 5" tft lcd led screen on camera HD field monitor
| Key Specifications | ||||
| System parameters | Panel Size | 5.5"LCD IPS panel | ||
| Panel Grade | A+ pefect panel | |||
| Aspect Ratio | 16:9 | |||

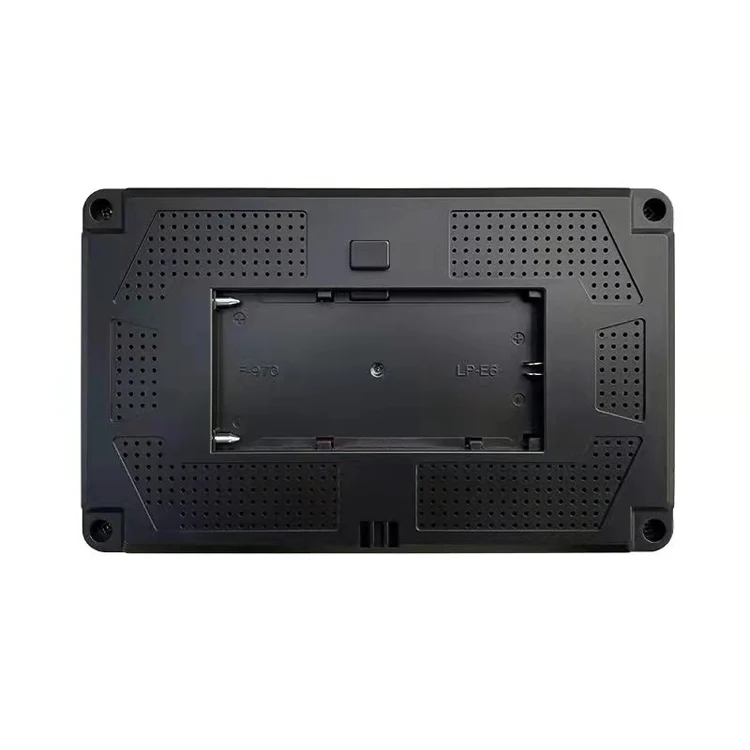

| Input Voltage: | DC:12V/Power bank 5V 2A/Battery | |||
| Power consumption | <8W Typ | |||
| Resolutions | 1920×1080 | |||
| Backlight | Led Backlight | |||
| LCD Brightness | 450 cd/m2 | |||
| Contrast | 1000:1 | |||

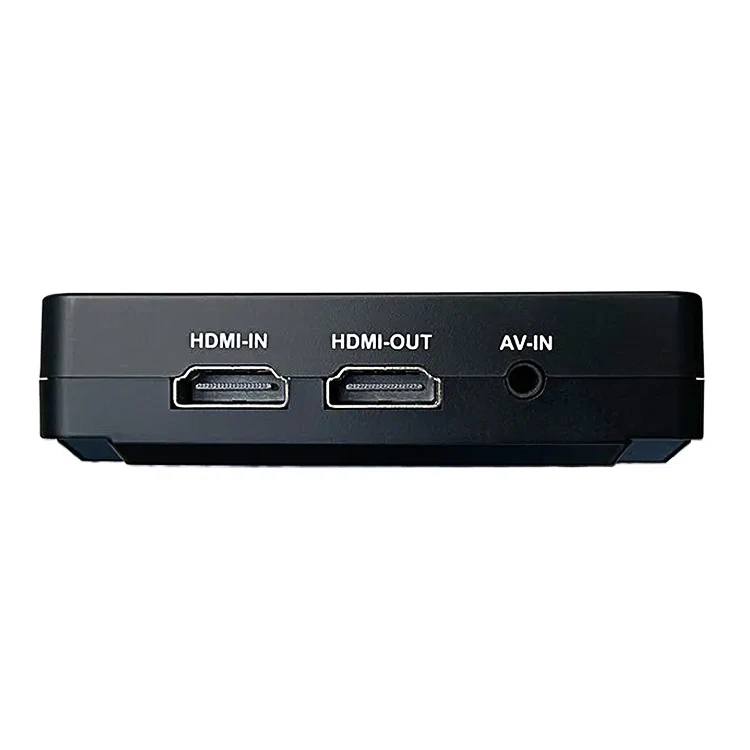

| Input configuraion | HDMI AV TypeC | |||
| Onput configuraion | HDMI Earphone | |||
| TOUCH | Multi-touch | |||
| HDMI Support Mode | 480i / 576i / 480p/576p | |||
| 720p (60/59.94/50/30/29/25/24/23.98) | ||||
| 1080i (60/59.94/50) | ||||
| 1080p(60/59.94/5030/29.97/25/24/24fps/23.98/23.98fps) | ||||
| View Angle | 80°/80°/80°/80° (L/R,U/D) | |||
| Video signal input range | 0.7~1.4Vp-p/75Ω | |||
| Audio system | BG/DK/I,M/N,L | |||
| Frequency | H:30~60kHz V:60~75Hz | |||
| Operation Environment | Workable Temperature:-10 to 60°C | |||
| Storage temperature:-20 to 70°C | ||||
| Operate relative humidity:20% to 80%; | ||||
| storage relative humidity:10% to 90% | ||||
| Headphone Output | stereo 3.5mm | |||
| Chromatic System | PAL/NTSC Auto Switch | |||

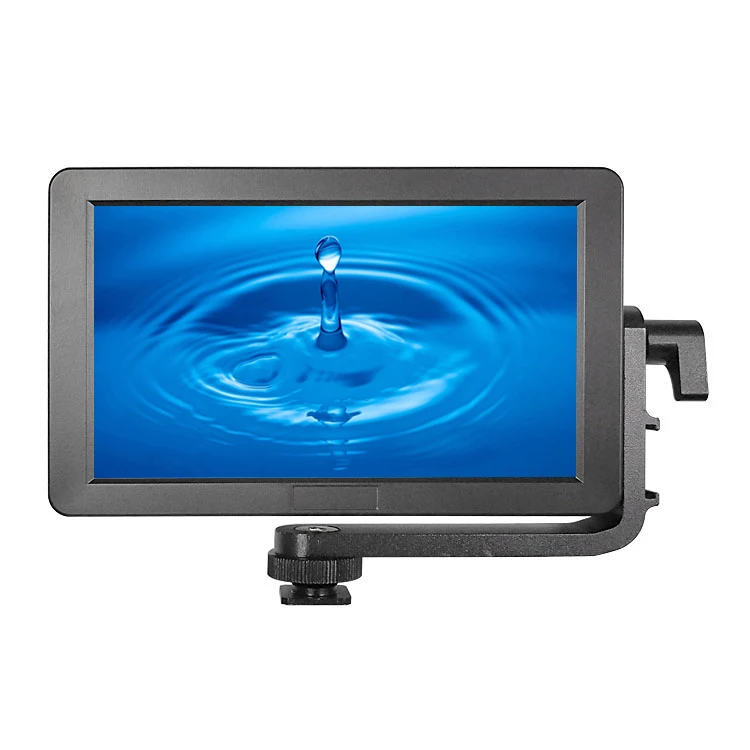

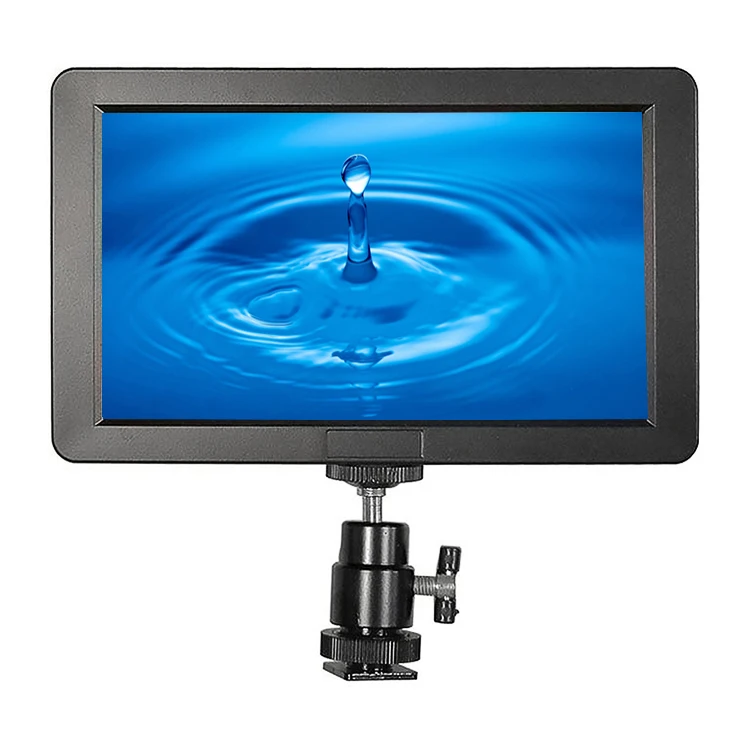

| Install Way | 1/4 inch bracket screw holes, can be easily connected to the hot shoe mount, tripod fixed installation | |||
| Unit Size | 145(L)x88(H)x23(D) mm | |||
| Unit Weight | 255g | |||
| Spare parts | 1* DC power adapter | |||
| 1* mini HDMI cable | ||||
| 1*stand | ||||
| 1*Hot shoe mount with screws | ||||
| 1*Sun shade | ||||
| 1*User manual | ||||
