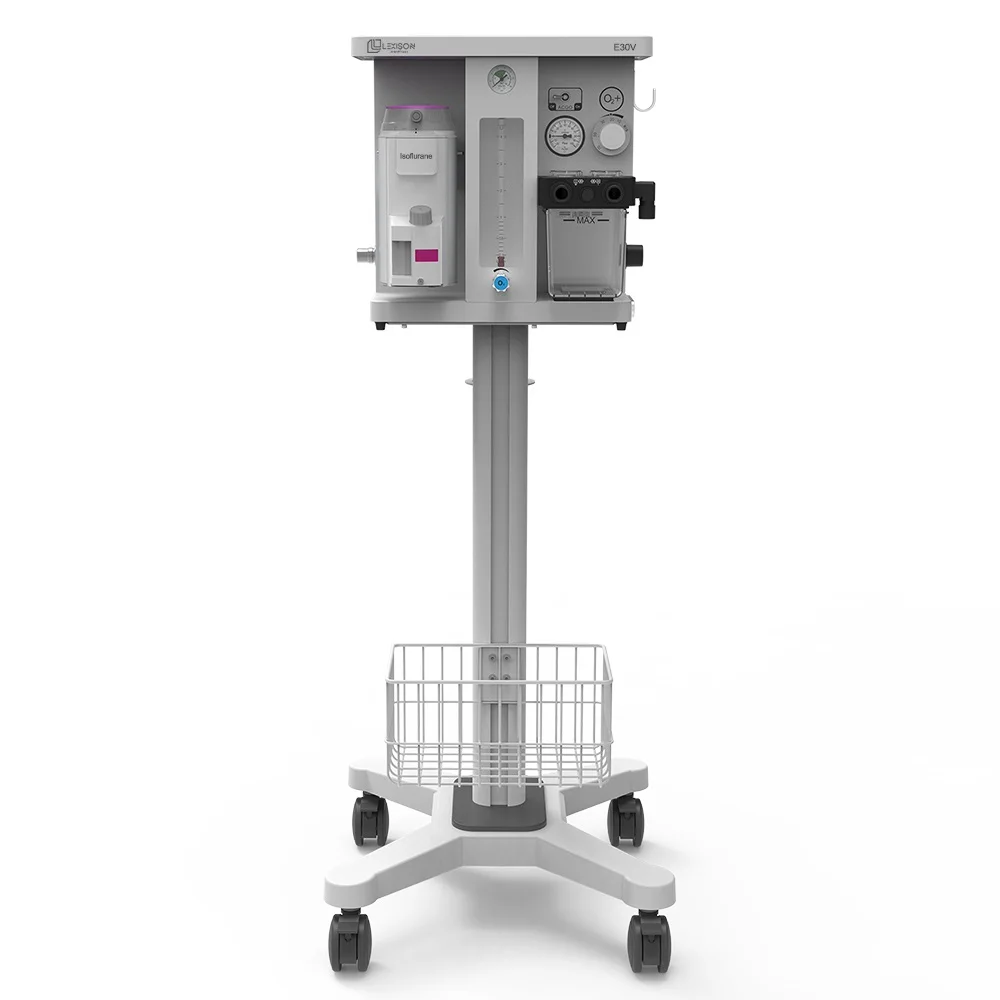

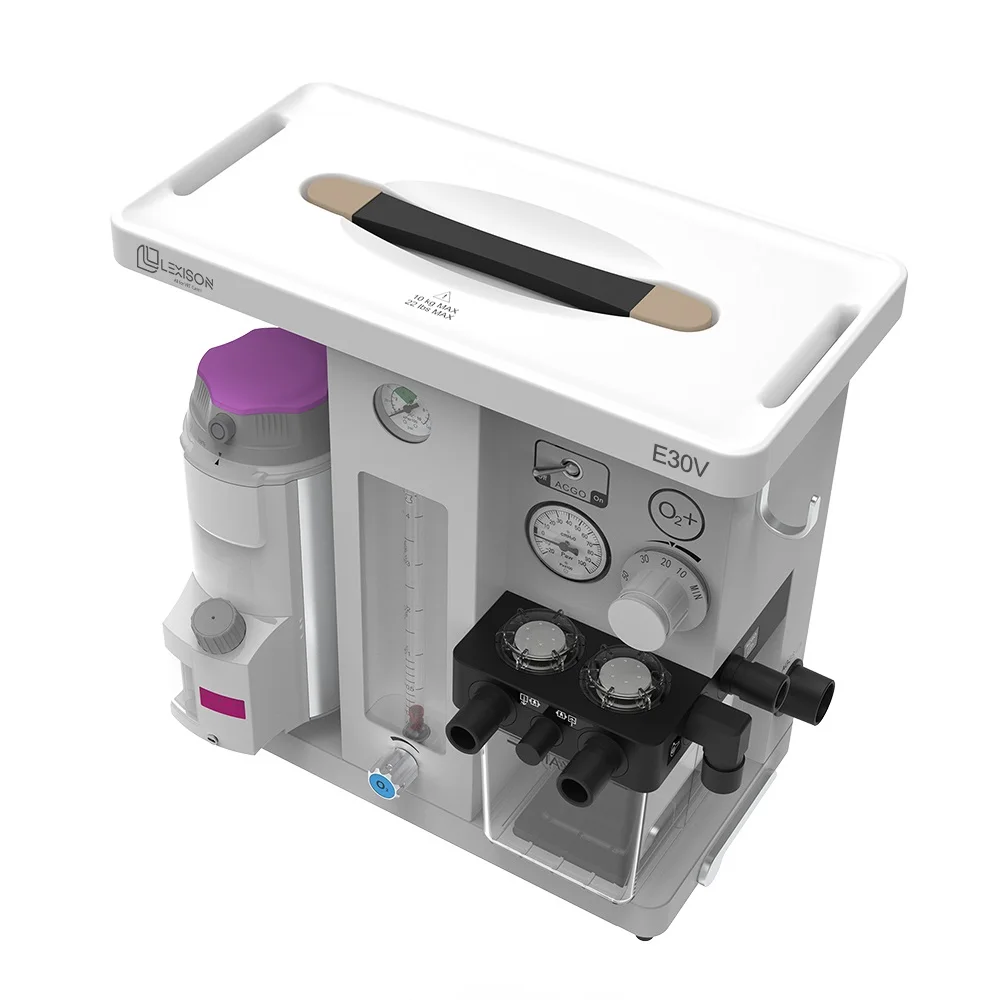

PRAT E30V High quality Professional Veterinary use Portable Anesthesia Machine with Isoflurane Vaporizer

Lexison Veterinary Equipment: PRAT-E30V High quality Professional Veterinary use Portable Anesthesia Machine with Isolfurane/Sevoflurane Vaporizer

PRAT-E30V is a high-end anesthesia machine used in animal hospitals. The design of the product adheres to the concept of anesthesiologists-oriented, completely abandoning the design idea of traditional animal anesthesia machines that only considers product costs.

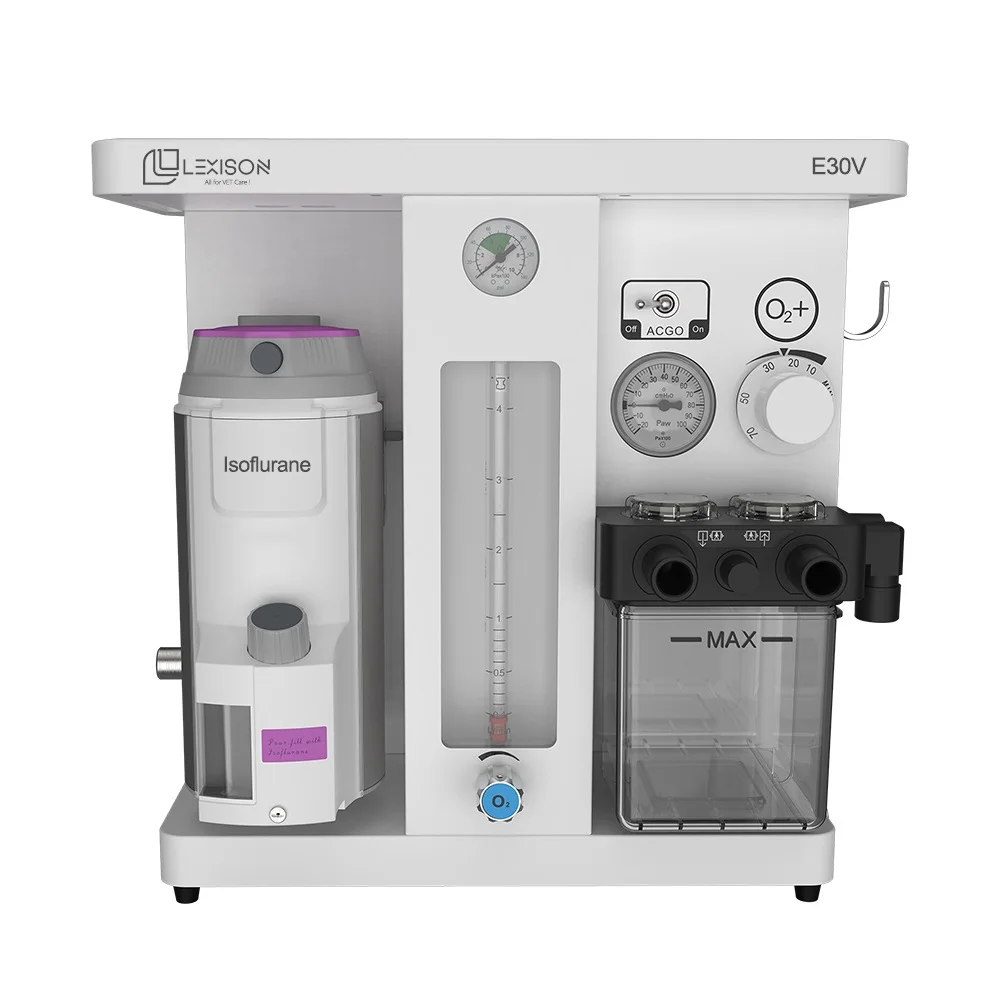

Through the innovation of product structure and circuit module design, all the gauges and main operating elements of E30V are arranged on the front of the product to facilitate the operation and observation, and also realizer a variety of installations and applications such as wall-mounted, desktop and stand/cart for one model.

Specifications:
\t\t\t\t\t\t\t\t

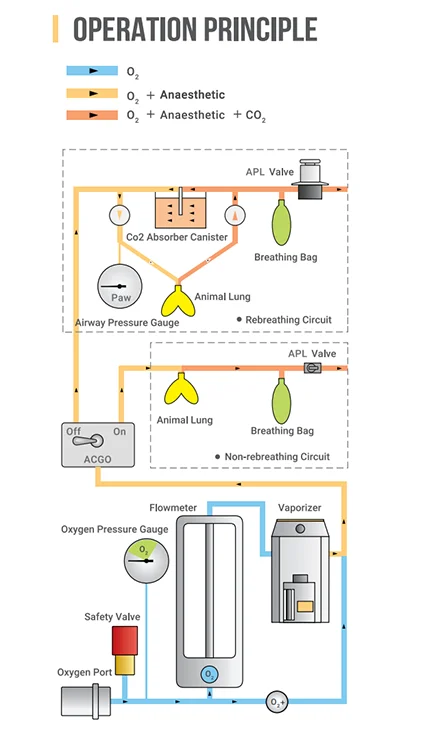

Gas Circuit System Specifications
* Source Gas: Oxygen
* Air Source Pressure Range: 280 ~ 600kpa / 40 ~ 87psi
* Port Type: NIST/DISS
* Air Source Pressure Gauge: 0 ~ 1Mpa / 0 ~ 140psi
* Air Source Safety Valve: Built-in
* Flowmeter Adjustment Range: 0 ~ 4L/min (Single tube oxygen flowmeter)
* Vaporizer Base: Single tank position

Respiratory System Specifications

* Airway Pressure Gauge: -20cmH2O ~ 100cmH2O

* APL Valve: Adjustment range: 0 ~ 70cmH2O, with one key closing button

* CO2 Absorber Canister: Volume 1400ml

Vaporizer Specifications
* Vaporizer Types(Dosing method):

- Isoflurane (Pour-Fill, Key-Fill, Easy-Fill)
- Enflurane (Pour-Fill, Key-Fill, Easy-Fill)
- Sevoflurane (Pour-Fill, Key-Fill, Easy-Fill, Quick-Fill)

Weight:
- Empty sate: 4kg±0.3kg
- Full drug state: 5kg±0.3kg

Volume:
- Core drying: 300ml ~ 360ml
- Core wetting: 240ml ~ 300ml
- Between the maximum and minimum tick marks: 200ml ~ 260ml

Concentration Range:
- Isoflurane: 0 ~ 5vol,%
- Enflurane: 0 ~ 5vol,%
- Sevoflurane: 0 ~ 8vol,%

Concentration Accuracy: ±0.25vol,% or set value±20%, whichever is greater

Main unit

Dimensions:
- Main Unit without Stand/Cart: Height 385mm, Width 405mm, Length/Depth 265mm
- Main Unit with Stand/Cart: Height 1230mm, Width 510mm, Length/Depth 470mm

Weight:
- ≤ 10kg (not includes Vaporizer, Stand/Cart and other accessories)
- ≤ 14kg (includes Vaporizer, not includes Stand/Cart and other accessories)
- ≤ 2kg (includes Vaporizer, Stand/Cart and other accessories)

* Maximum Load on Top: 10Kg
* Handle: Single handle, located in the middle of top.

Suzhou Lexison MediTech Co., Ltd is the subsidiaries of SUZHOU PROWAY GROUP CO., LTD. With years of export experience along with excellent quality, advanced services and competitive prices, Proway has won numerous customers' trust and support in the past 10years.

In order to better control the product's quality and lead time, provide the most cost-effective products, Proway built its own factory Suzhou Lexison MediTech in 2012 which specialized to manufacture various Patient Monitors, Pulse Oximeters, Syringe Pumps and Infusion Pumps, etc Meanwhile, to provide as perfect service as we can, we have established close cooperation with lots of well-known domestic & overseas medical equipment companies all over the world.

Our value Message is "QUALITY IS OUR CULTURE"!
"WITH US, YOUR MONEY IN SAFE, YOUR BUSINESS IN SAFE!"

Carton box packing with foam filled..

For the order which less than 20units, more of the customers choose the shipment by Express Courier or by Air Cargo.
Our normal Lead Time is within 5-7working days after payment.

1. What is your MOQ?
    ---- 1Unit/1pc

2. What is your Lead Time?
    ---- For the normal order, 7working days after payment.

3. What is your company's Payment Term?
    ---- Alibaba Trade Assurance Order, TT(Wire Transfer), PayPal, Western Union, Credit Card and E-checking are available.

4. What is your Warranty Period?
    ---- 24months warranty period and lifetime technical support.

5. Do you accept Money Refund?
    ---- Yes, we accept Full Money Refund once the customer received the goods with quality problem.
