Product Overview

Description

Porous Alumina Membrane from Ceramic membrane manufacturers

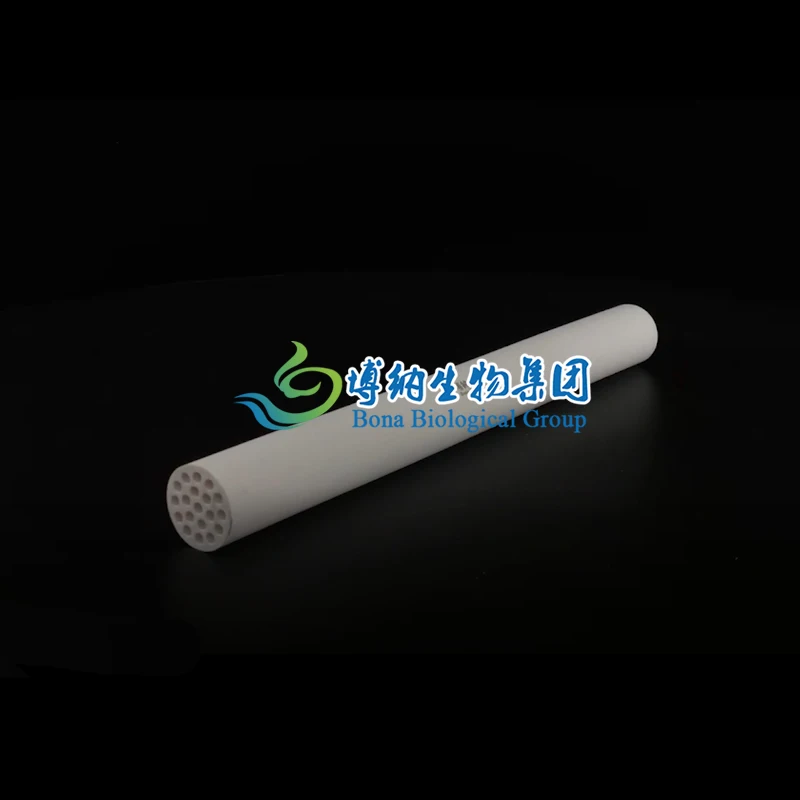

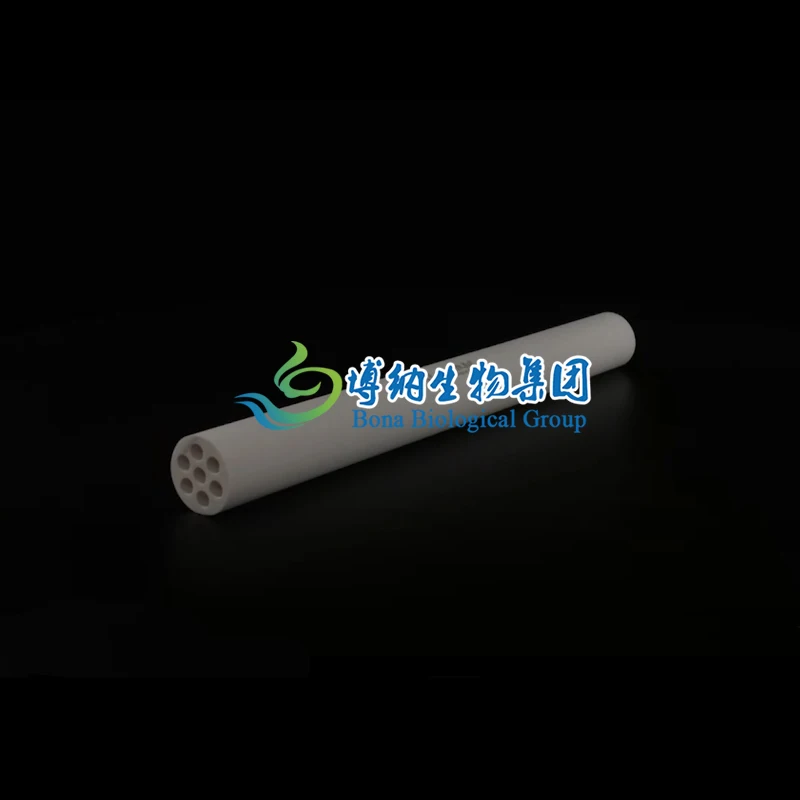

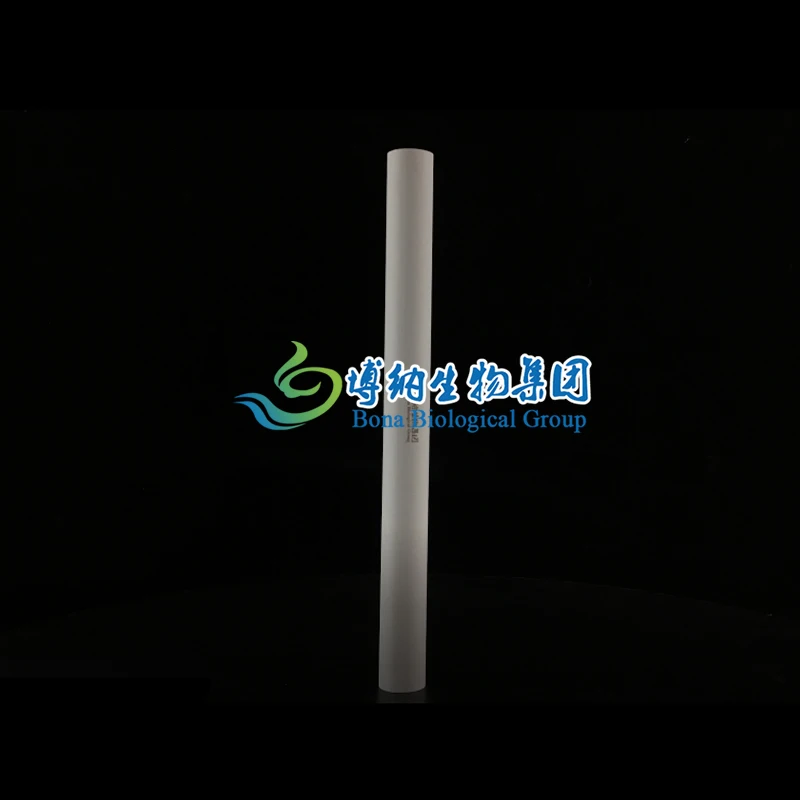

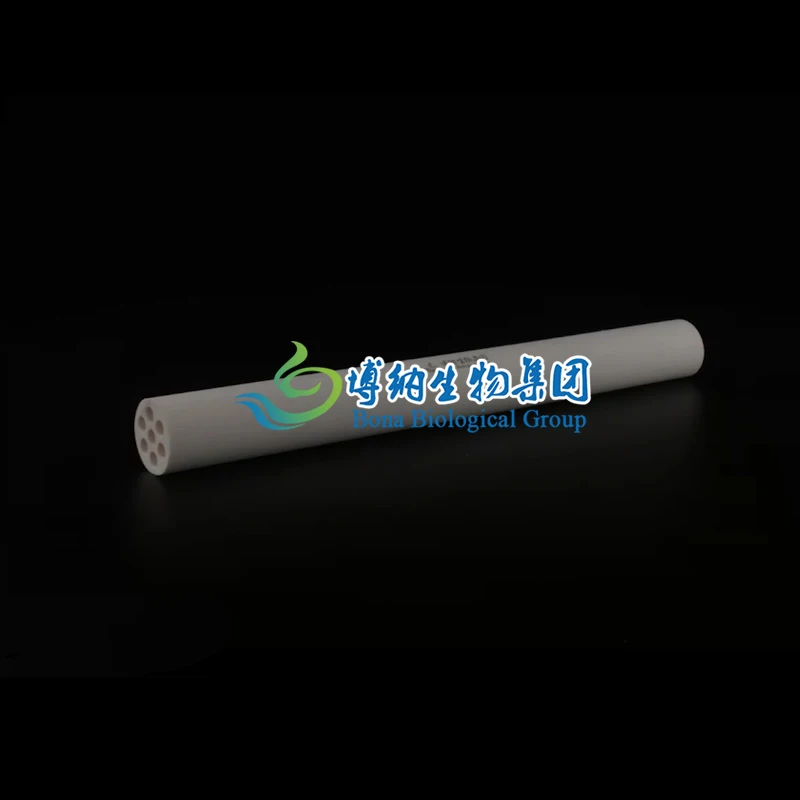

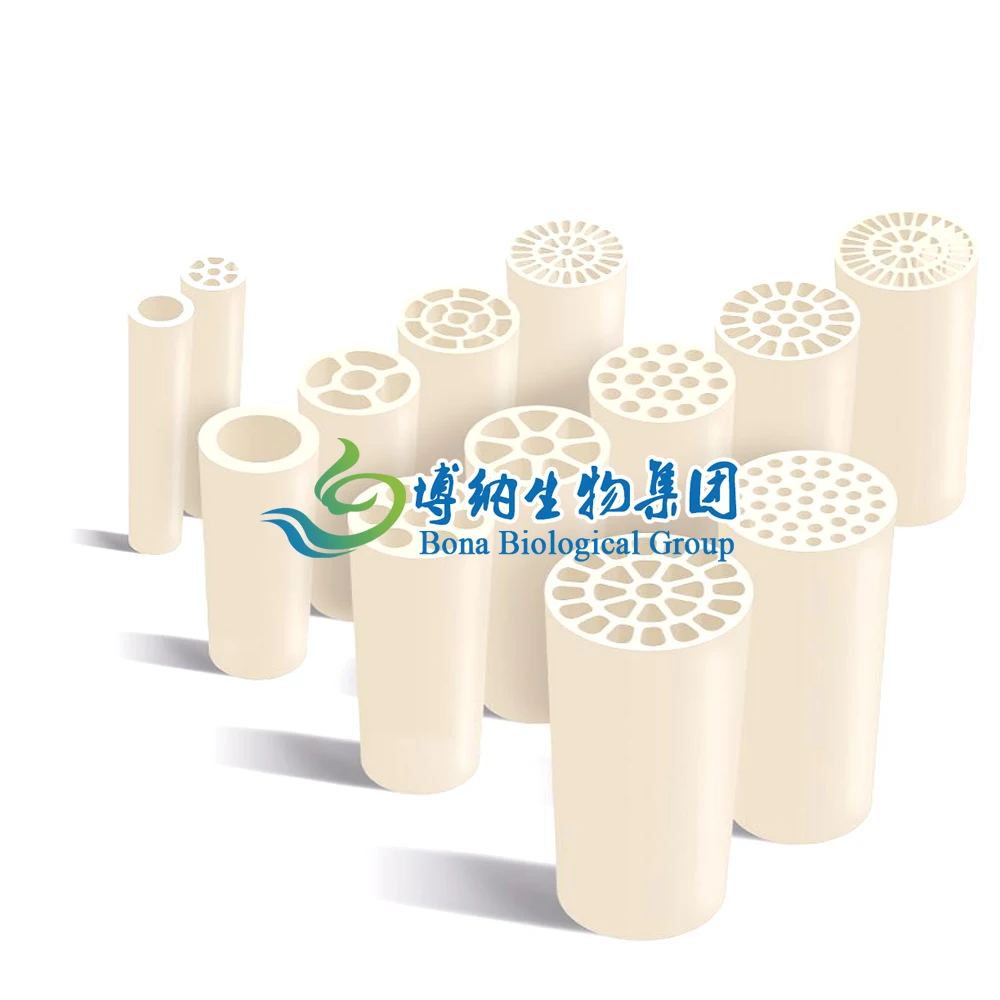

The ceramic membrane element is made from alumina and zirconia, which is a tubular shape structure

with multi-channel, with pores on the channel.
Liquid driven by operation pressure, and running in the membrane.
The part of the liquid less than pore size is permeated, the part lager than pore size is concentrated, so as

to achieve the separation, concentration and purification purposes.



Compared with traditional filtration system,Ceramic Membrane has many unique advantages:

* Excellence resistance to acid, alkaline and oxidation chemicals.

* Solvent stability, high thermal stability.

* Fine separability with narrow pore size distribution.

* Extremely long work life compared with polymeric membrane.

* High mechanical strength, good abrasive resistance.

* Easy to be cleaned and sanitized with back flush.





Ceramic Membrane Basic technical data:



Support Material	α-Al2O3
Membrane Material	Al2O3,ZrO2,TiO2
Pore Diameter	50nm,100nm,200nm,400nm,600nm,800nm, 1um,1.2um,1.5um,2um
	30nm(200KD),20nm(150KD),12nm(100KD),10nm(20KD),5nm(8000D),3nm(2000D)
Membrane Length	250-1200mm(Special length upon customer's request)
PH Stability	0-14
Applicable temperature	-10~150℃

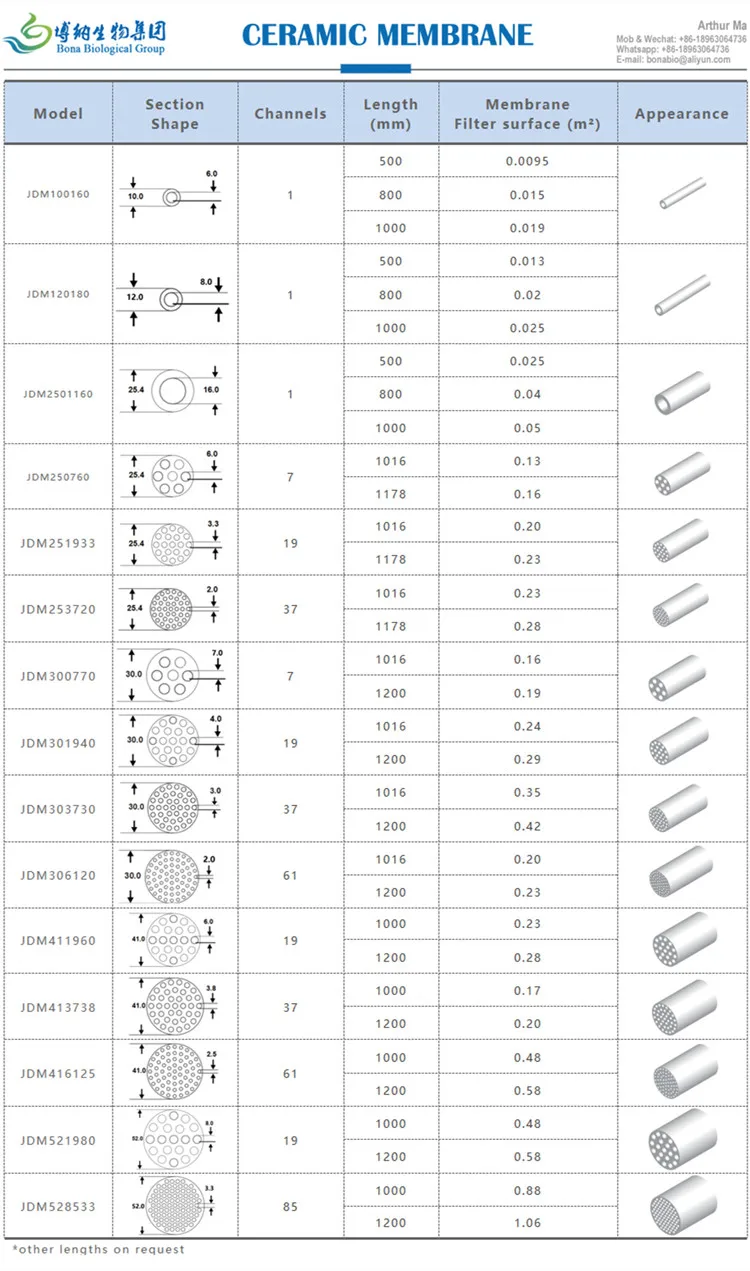

Specifications:

Applications:

 *Biochemical and Pharmaceutical Industries

 *Food and beverage Industry



 *Petro-Chemical Industry

 *Other fields: Reclamation of nano powders, filtration of acid/alkali containing liquids







As a proffessional manufacturer and solutions provider with two membrane production factories, one advanced R&D center, we not only can provide qualified membrane elements/modules, but also provide high quality filtration systems from small lab machine to industrial use systems



Related Products:

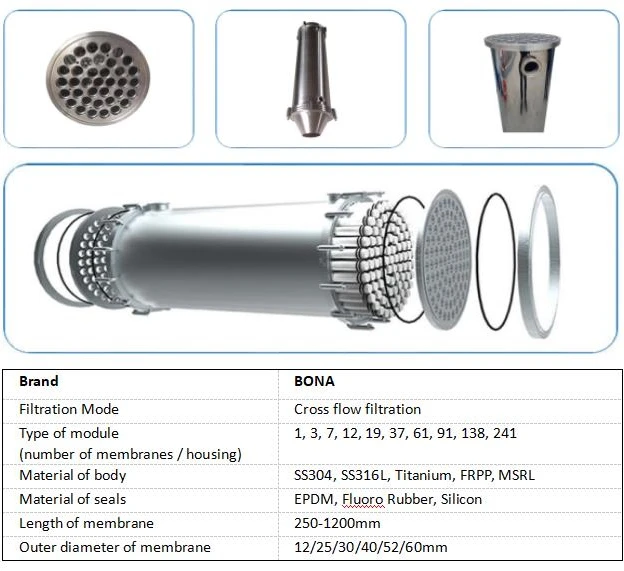

Ceramic membrane module is a  housing filled with ceramic membrane elements. It can combined with different OD or area of ceramic membrane elements together into one module according to different demands. The design of outline and sealing type of Ceramic Membrane Module is significant, for the whole system operation.

* Membrane Module:

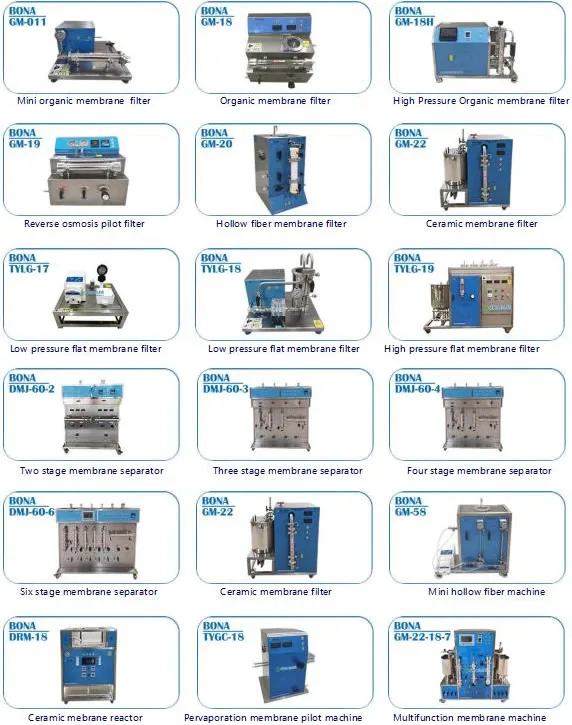

* Lab experimental machine:

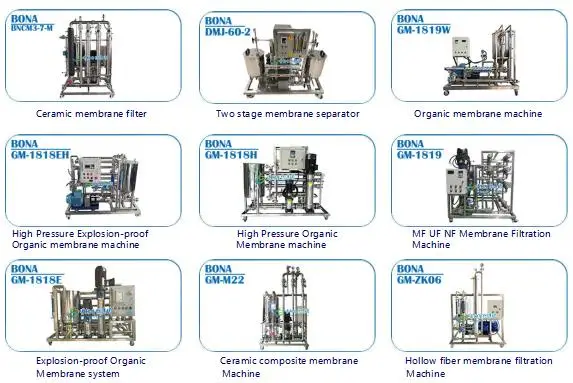

* Pilot machine:

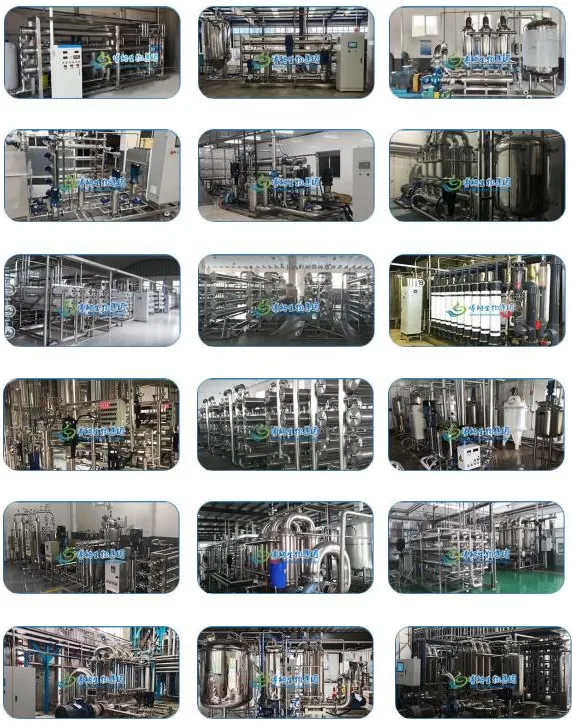

* Industrial machine system:
