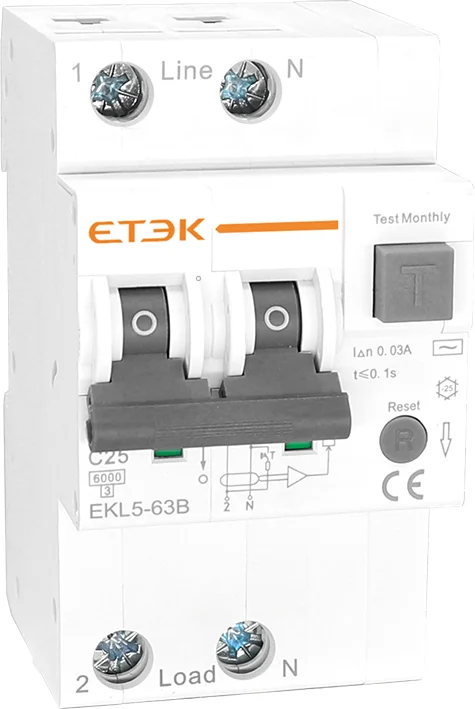

ETEK EKL5 63 6KA 3P N 25A 100mA Type AC RCBO Residual Current Breaker with Overcurrent Protection with CE Approval
- Category: Circuit Breakers >>>
- Supplier: Hangzhou Etek Electric Co. Ltd.
Share on (1600512631592):
Product Overview
Description
Overview
Technical Data
Electrical Features | |
| Mode | Electronic |
| Network type (earth-leakage sensitivity) | AC,A,S |
| Rated current In | 6,8,10,13,16,20,25,32,40,50,63A |
| Poles | 2P(1P+N),4P(3P+N) |
| Rated voltage Ue | 2P-240V, 4P-415V |
| Insulation voltage Ui | 500V |
| Rated frequncy | 50/60Hz |
| Rated sensitivity IΔn | 10mA,30mA,100mA,300mA |
| Break time under IΔn | ≤0.1S ( S type ≤0.5s ) |
| Rated breaking capacity | 6,000A |
| Energy limiting class | 3 |
| Rated impulse withstand voltage(1.5/50) Uimp | 4,000V |
| Dielectric test voltage at ind,Freq. for 1 min | 2kv |
| Pollution degree | 2 |
| Thermo-magnetic release characteristic | B,C,D |
Mechanical Features | |
| Electrical life | 4,000 Cycles |
| Mechanical life | 10,000 Cycles |
| Contact position indicator | Yes |
| Protection degree | IP20 |
| Reference temperature for setting of thermal element | 30ºC |
| Ambient temperature (with daily average≤35ºC) | -5ºC~+40ºC |
| Storage temperature | -25ºC~+70ºC |
Installation | |
| Terminal connection type | Cable/Pin-type busbar/U-type busbar |
| Terminal size top/buttom for cable | 25mm² 18-3AWG |
| Terminal size top/button for busbar | 25mm² 18-3AWG |
| Tightening torque | 2.5Nm 22In-Ibs |
| Mounting | On DIN rail EN60715 (35MM) by means of fast clip device |
| Connection | From top |
Combination with accessories | |
| Auxiliary contact | EKM1-OF |
| Alarm contact | EKM1-FB |
| Shunt release | EKM1-MX |
| Over voltage protection | Yes |
| Under voltage protection | Yes |
| Over/under protection | Yes |
