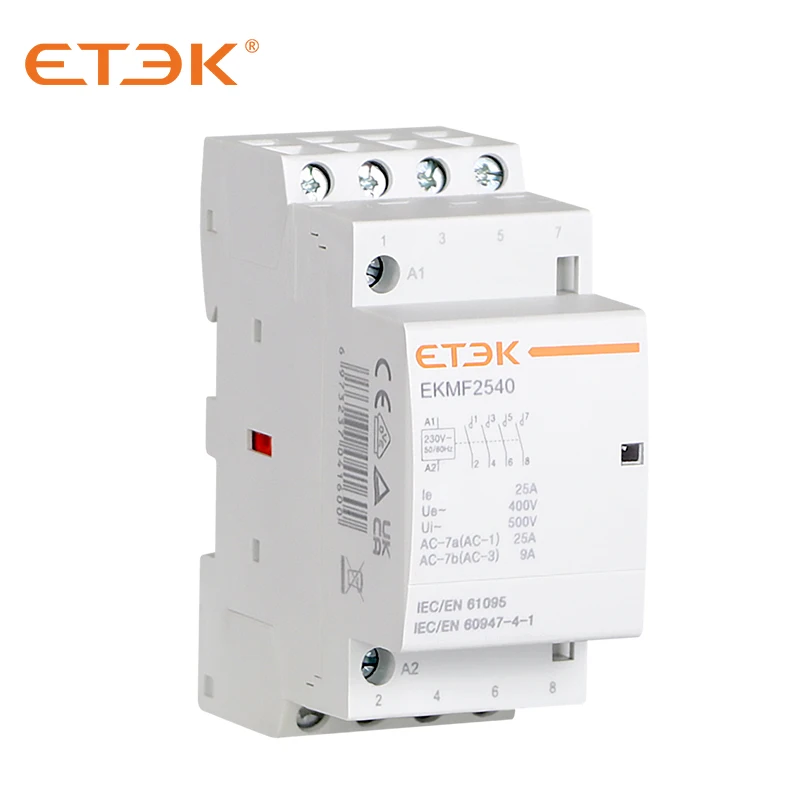

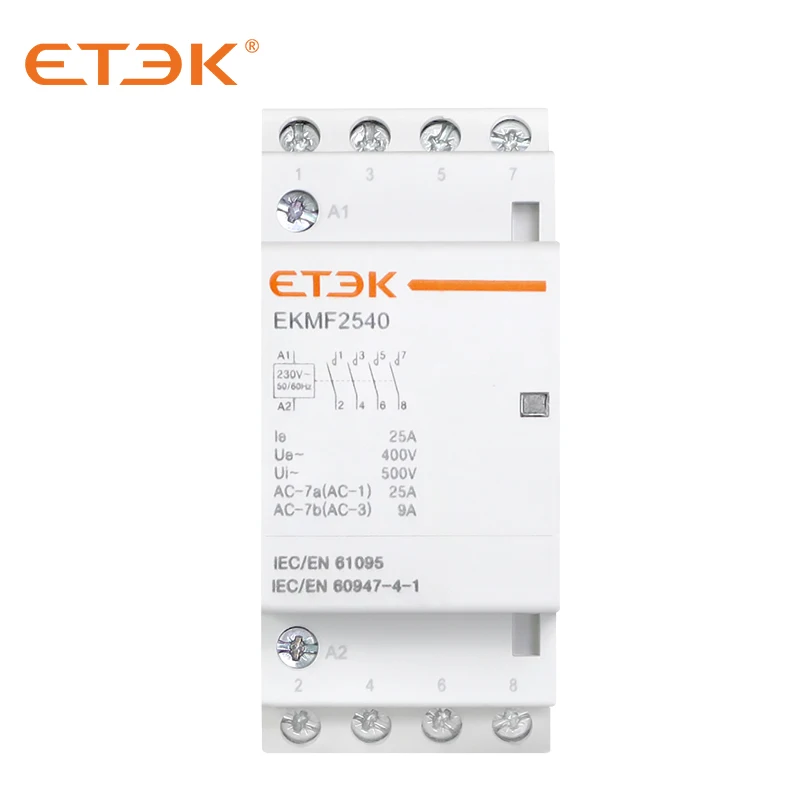

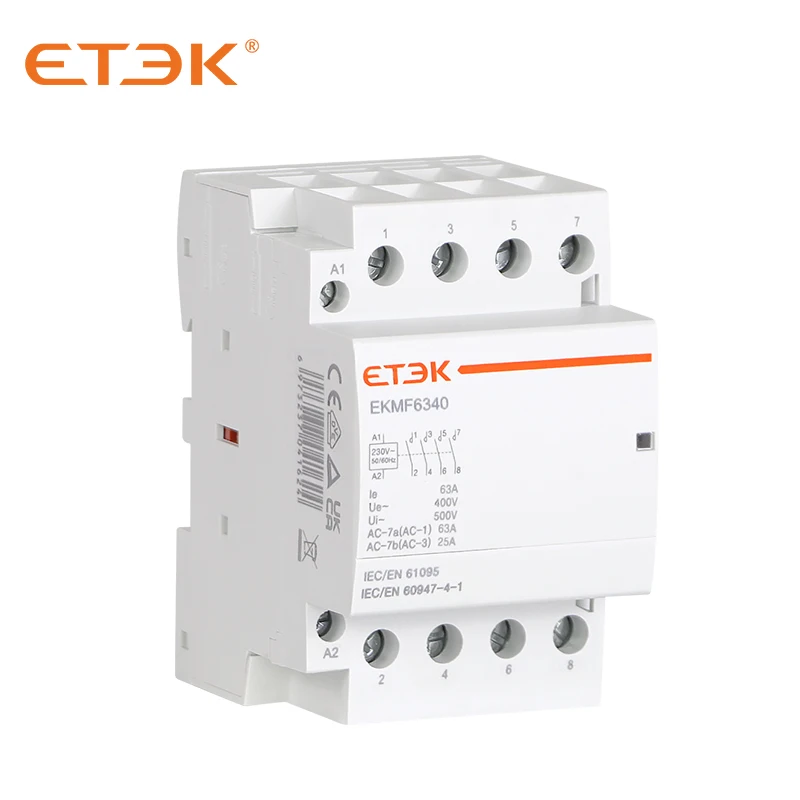

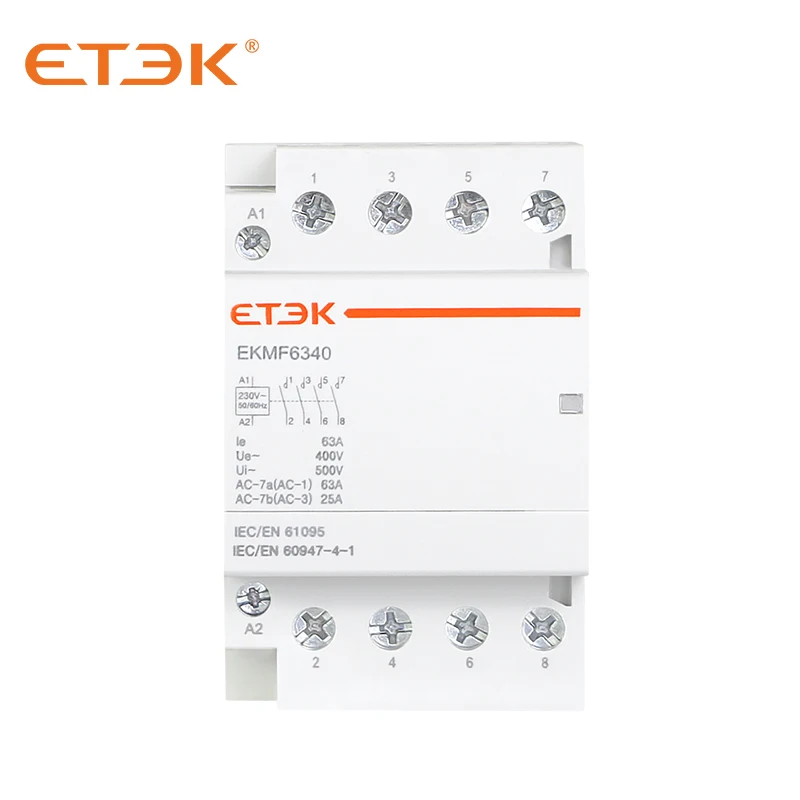

ETEK EKMF 4P 25A 40A 63A 100A 2NO 2NC Coil 24VAC 110VAC 230VAC Modular Contactor with TUV CB test report CE Approval
ETEK EKMF 4P 25A 40A 63A 100A 2NO+2NC Coil 24VAC 110VAC 230VAC Modular Contactor with TUV CB test report CE Approval
ETEK EKMF 4P 25A 40A 63A 100A 2NO+2NC Coil 24VAC 110VAC 230VAC Modular Contactor with TUV CB test report CE Approval
ETEK EKMF 4P 25A 40A 63A 100A 2NO+2NC Coil 24VAC 110VAC 230VAC Modular Contactor with TUV CB test report CE Approval
ETEK EKMF 4P 25A 40A 63A 100A 2NO+2NC Coil 24VAC 110VAC 230VAC Modular Contactor with TUV CB test report CE Approval
ETEK EKMF 4P 25A 40A 63A 100A 2NO+2NC Coil 24VAC 110VAC 230VAC Modular Contactor with TUV CB test report CE Approval

ETEK EKMF 4P 25A 40A 63A 100A 2NO 2NC Coil 24VAC 110VAC 230VAC Modular Contactor with TUV CB test report CE Approval

Share on (1600512651518):


Price:$7.20 - $7.60

Quantity:


Product Overview

Description







Quick Details



Place of Origin:


Zhejiang, China




Brand Name:


ETEK




Model Number:


EKMF




Rated current:


25A 40A 63A 100A




Pole:


4P




Rated voltage:


240/415V




Rated frequency:


50Hz/60Hz




Electrical Life:


4000 cycles




Mechanical Life:


10000 cycles




Protection degree:


IP 20




Packing:


Cartoon Box




Brand:


ETEK




auxiliary contact:


2NO+2NC




Type:


Air




Poles Number:


4






Supply Ability



Supply Ability

50000 Piece/Pieces per Month





Packaging & Delivery












Modular Contactor




1. Specification























































































StandardIEC61008-1
Electrical Feature
Power current
Rated current In16, 25, 40, 63A
Rated voltage Ue230V(2P) 400V(4P)
Rated sensitivity A0.03,0.1,0.3
Rated frequency50/60Hz
Remote control circuit(coil)
Control voltage24V, 220V-240V
Rated frequency50/60Hz
Mechanical endurance100,000 cycles
Electrical endurance30,000 cycles
Ambient temperature-5-+60
Connection terminalpillar terminal with clamp
Contact form
2P2NO, 2NC, 1NO+1NC
4P4NO, 4NC, 3NO+1NC, 2NO+2NC
Construction and Feature
Compact and modular design
Electro-magnetic mechanism free of noise
Contact position indication
Big contact capacity and long endurance
Automatic and manual type


2. Dimension(mm)



3. Feature Product






4. Our Services

A. Punctual delivery time:
We carry out your order into our well-organized production schedule, ensure your punctual delivery time.
Production report before your order packed.
Shipping notice and photos sent to you as soon as your order is shipped.

B. After-service:
We Pay high Attention To Your Feed back after receive the goods.
We Provide 18 months warranty after goods arrive.
We Positively Revert Your Complain Within 48hours.

C. Professional Sales:
We value every Inquiry Sent To Us, Ensure Quick Competitive Offer.
We Cooperate With Customer To Bid Tenders. Provide all Necessary Documents.
We Are A Sales Team, With All Technical Support From Engineer Team.

5. FAQ

Q 1. What's the payment term?
A. We accept tt,30% deposit and 70% balance against the copy of b/l.

Q 2. How's the delivery time?
A. Usually it will take about 25 days for production.

Q 3. Tell me the standard of package?
A. Normally are cartons, but also we can pack it according to your requirement.

Q 4. Could you offer form a? or c/o?
A. It's totally not a? problem. We can prepare relative documents to foreign affairs office or other office??to apply for this certificate.

Q 5. Would you accept to use our logo?
A. If you have good quantity, it absolute no problem to do oem.
