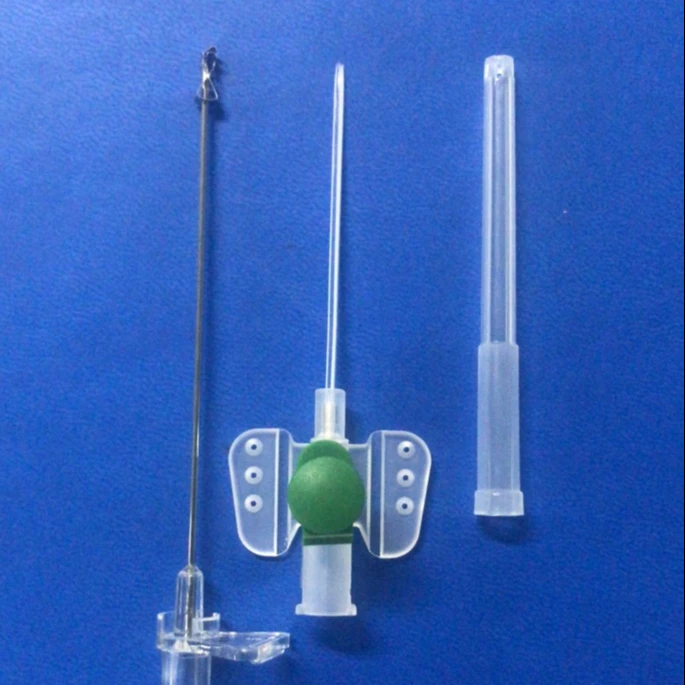

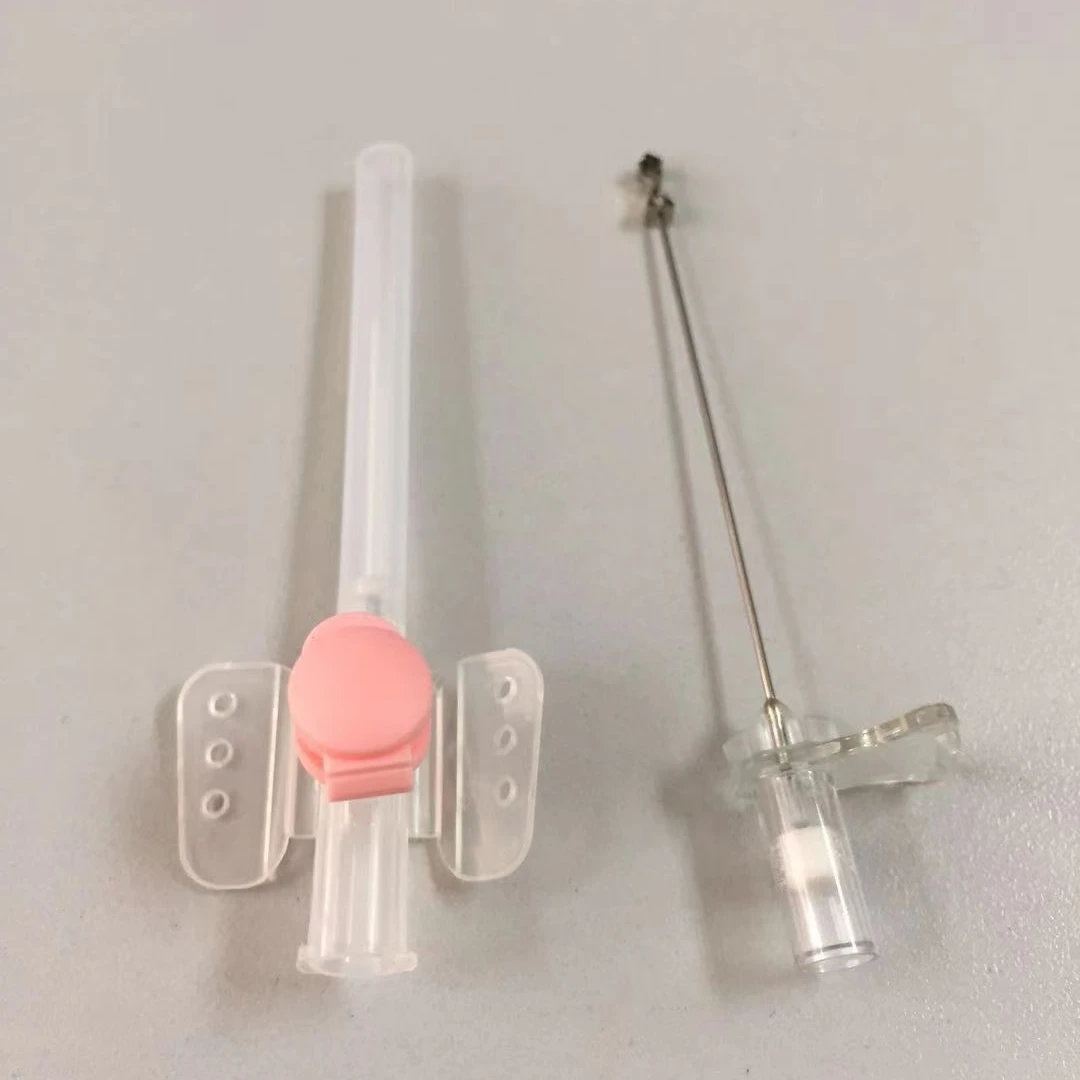

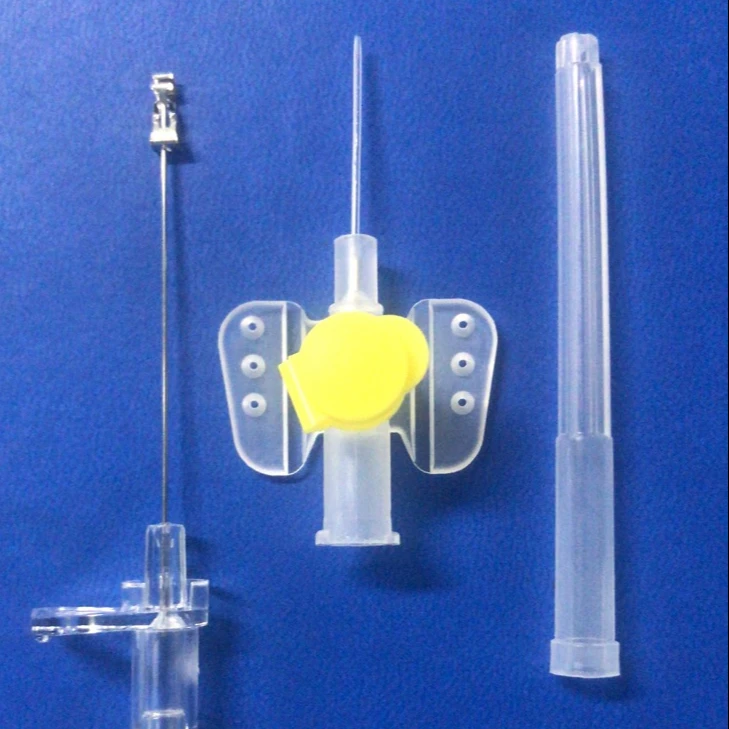

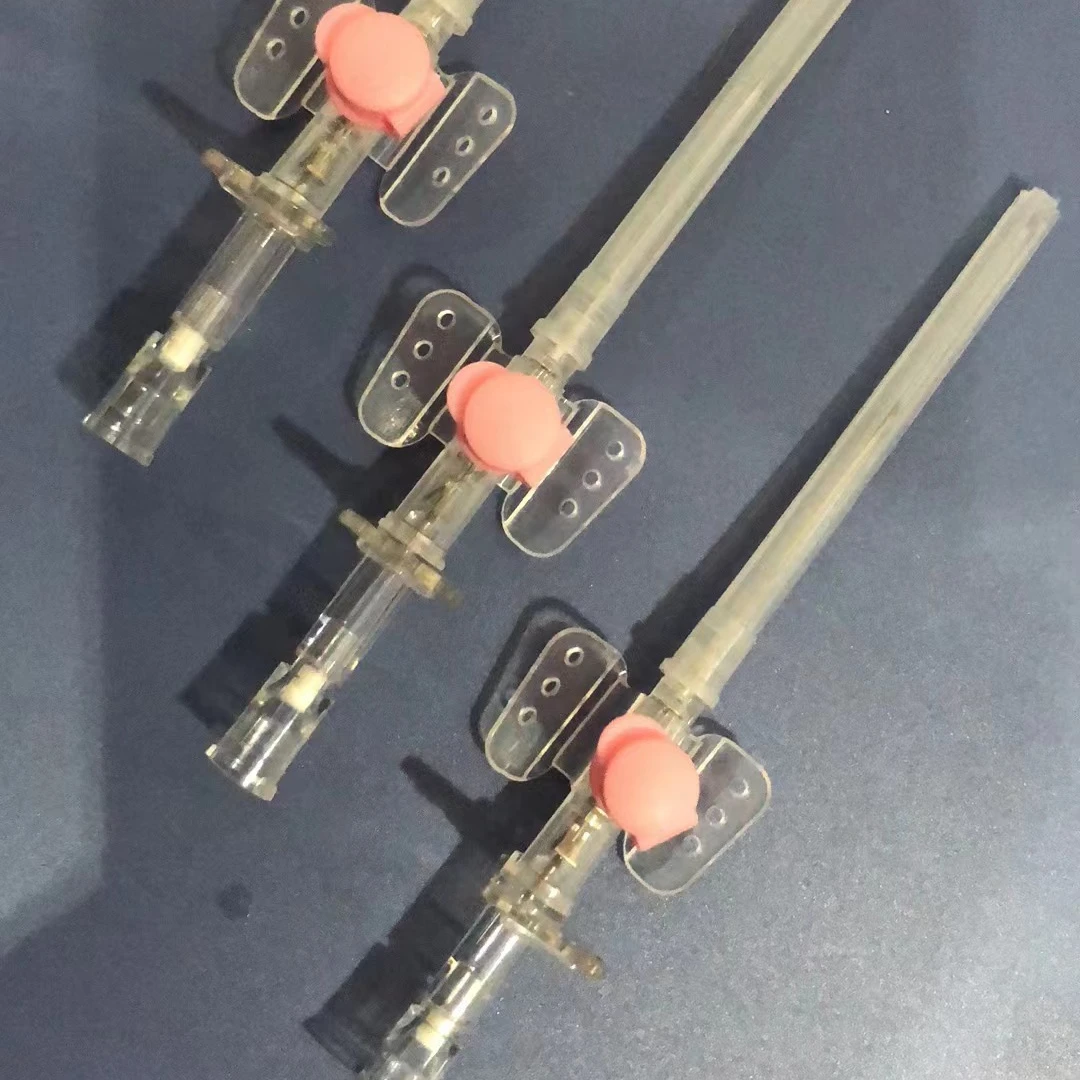

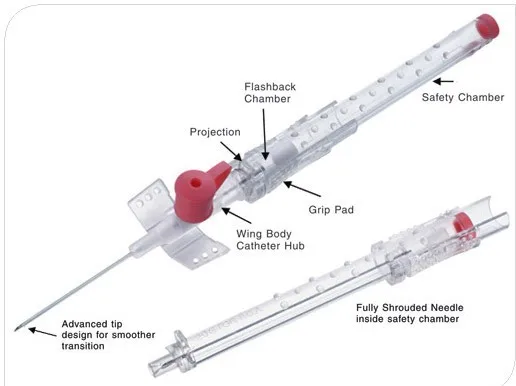

Safety I.V.Catheter with wings and inject port

Product Overview

Description

(1) Back cut needle bevel for easier, less traumatic insertion

(2) Thin wall FEP(PU) catheter with 3 or more embedded X-Ray contrast lines provides high flow rate

(3) Flexible and kink resistant catheter is double tapered with a rounded tip for smooth introduction and minimal discomfort to the patient

(4) Flexible wings provide easy and secure fixation and also prevent skin contact with luer lock connection

(5) Highly transparent flashback chamber for an easy view of returning blood

(6) Blood stopper

(7) Luer lock cap for closing the proximal end of the catheter after removing the needle

(8) Color coded catheter hub.

(9)The needle should be retraction to the bins when remove the needle,and the needle can not be push or pull after the needle retraction, and can not be recycle again, this function not only can avoide injury to the human, but also to avoid the contamination to the blood of patient and nurse.





Special features

• The shape of the tape of the blade,the puncture force and the rigidity of the needle can meed the different requirement from customer,and the needle tube is made of the steel material of SUS304,SUS316.According to the clinical experience,it is more conducive of the needle remove and the catheter indwelling with the gap between the cannula and the needle.After the cilica surface treatment to the needle,the puncture is more smoother.


• The unique switching function between the infusion and the injection,the feature of the exhaustof the self-contained on the needle seat,and the seat tube catheter can be completed within the built-in self-sealing injection seat parts are our factory proprietary,these functions can reduce the heparin cap, exhaust parts, etc. accessories, to reduce the risk of operating errors.
