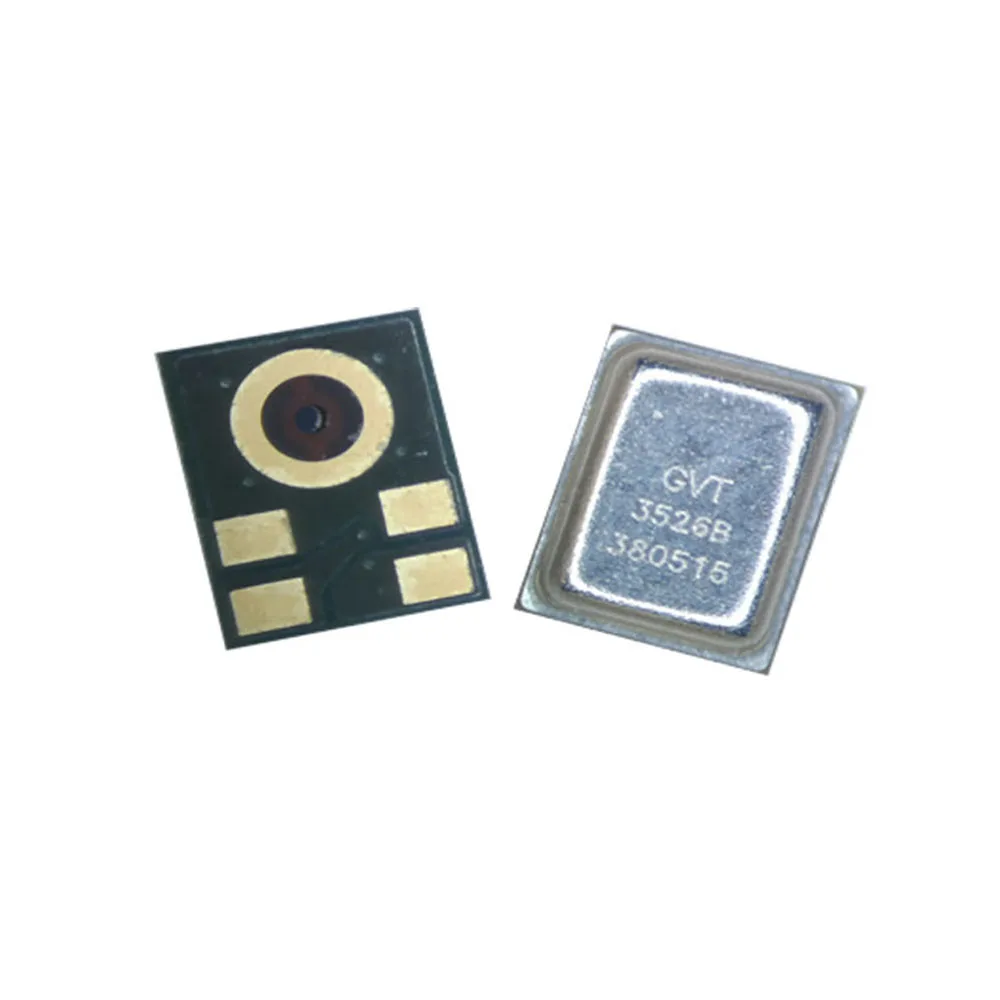

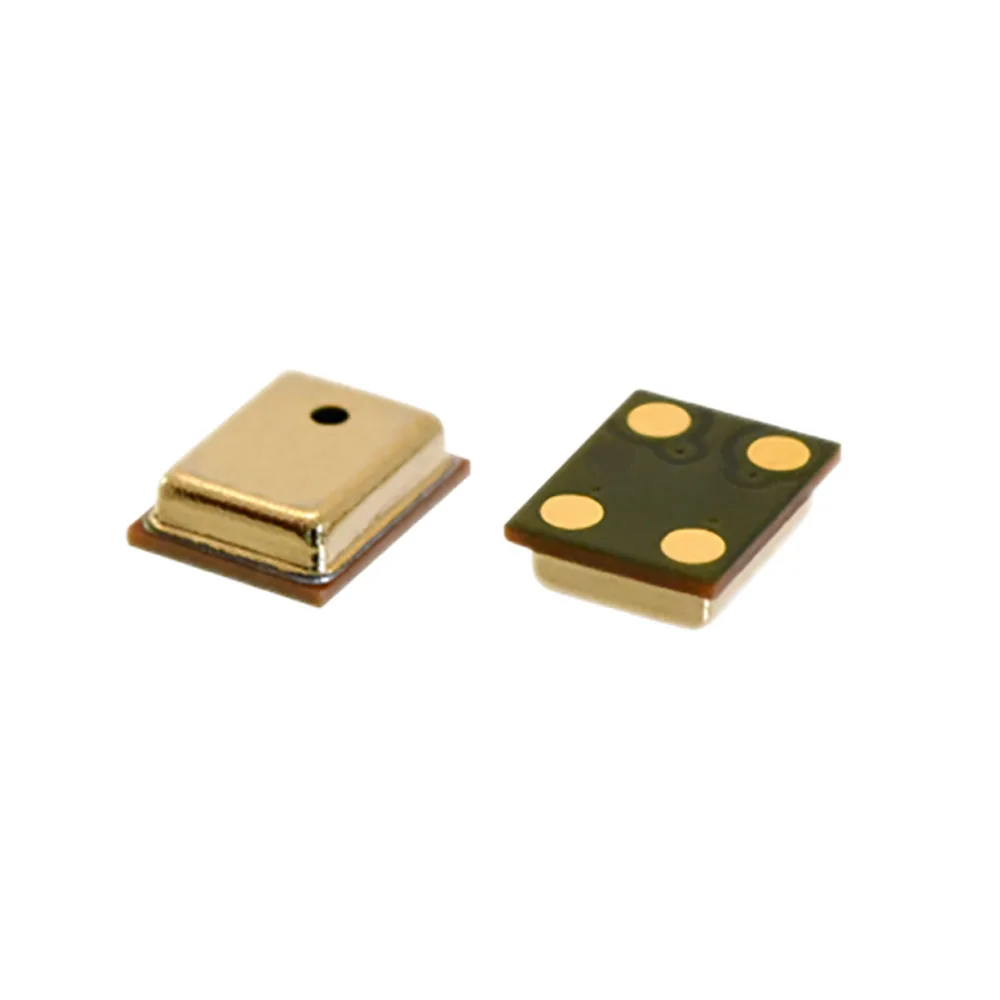

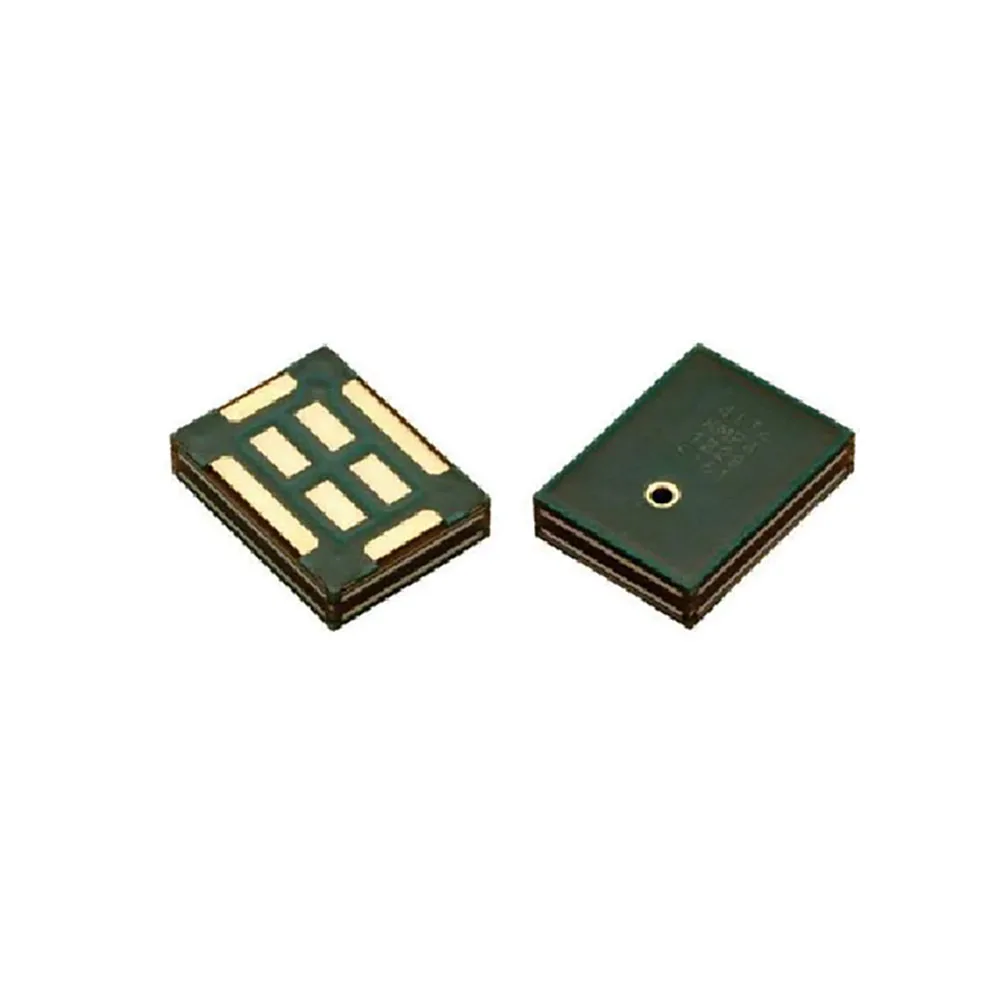

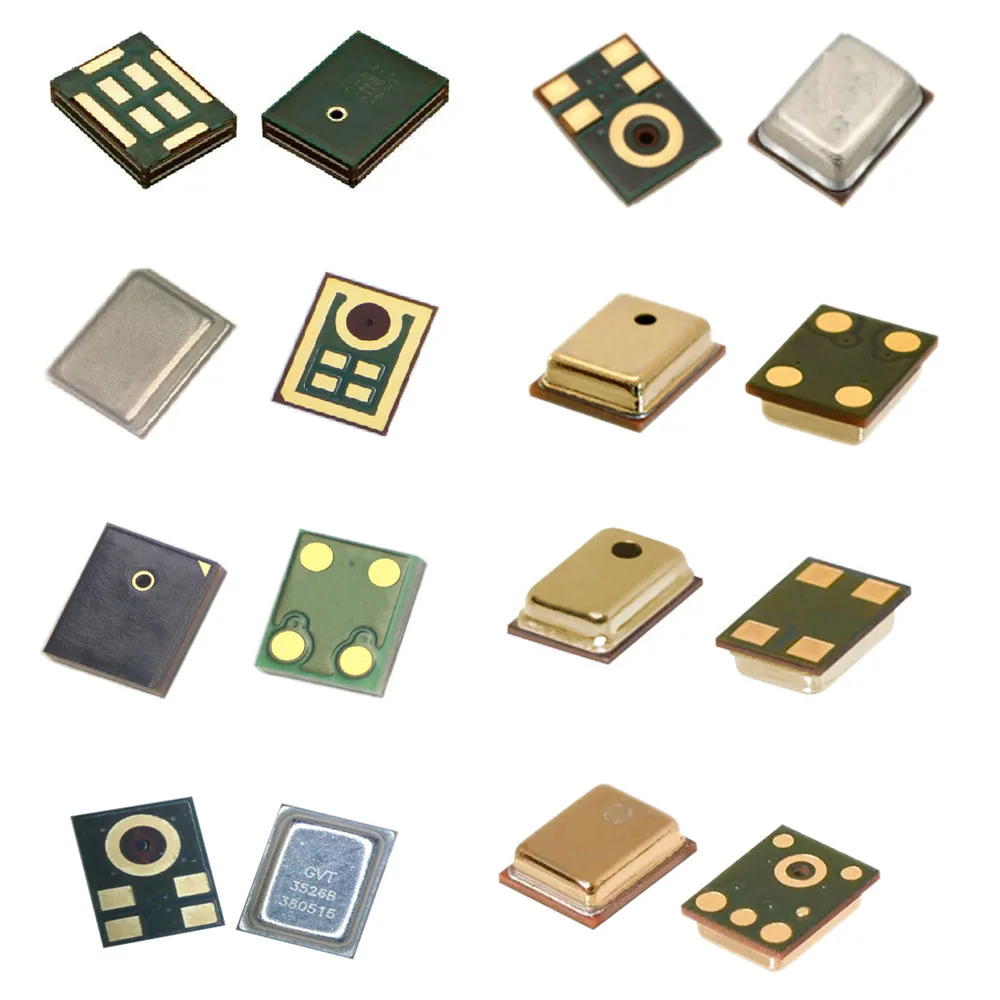

42DB Microphones GSMHOAT37291142DB Silicon analog microphone SMD silicon microphone MEMS mic for LAPTOPS, CELL PHONES, TABLETS
- Category: >>>
- Supplier: Shenzhen Lestar Technology Co. Ltd.
Share on (1600512735024):
Product Overview
Description
Product Description
Sensitivity | -42±1dB(0dB=1v/Pa,1KHz) |
Output Impedance | Max250Ω（Typ.100Ω） |
THD | ＜1% （94dBSPL @1KHz） |
AOP | 130dBSPL |
Directivity | Omni-directional |
Operate Voltage | 1.6V-3.6V |
GSMHOAB24160938DA
Sensitivity:-38±1dB(0dB=1v/Pa,1KHz)
Output Impedance: Max400Ω
THD:＜1% （94dBSPL @1KHz）
AOP：125dBSPL
Directivity: Omni-directional
Frequency Response: 100~10KHz
Operate Voltage: 1.6V-3.6V
Current consumption: Max 110uA
Signal to Noise Ratio: 62dBA
Output Impedance: Max400Ω
THD:＜1% （94dBSPL @1KHz）
AOP：125dBSPL
Directivity: Omni-directional
Frequency Response: 100~10KHz
Operate Voltage: 1.6V-3.6V
Current consumption: Max 110uA
Signal to Noise Ratio: 62dBA
GSMHOAB27181038DA
Sensitivity:-38±1dB(0dB=1v/Pa,1KHz)
Output Impedance: Max400Ω（Typ.100Ω）
THD:＜1% （94dBSPL @1KHz）
AOP：125dBSPL
Directivity: Omni-directional
Frequency Response: 30~10KHz
Operate Voltage: 1.6V-3.6V
Current consumption: Max 110uA
Output Impedance: Max400Ω（Typ.100Ω）
THD:＜1% （94dBSPL @1KHz）
AOP：125dBSPL
Directivity: Omni-directional
Frequency Response: 30~10KHz
Operate Voltage: 1.6V-3.6V
Current consumption: Max 110uA
GSMHOAT27181042DB
42±1dB(0dB=1v/Pa,1KHz)
Output Impedance: Max400Ω（Typ.100Ω）
THD:＜1% （94dBSPL @1KHz）
AOP：130dBSPL
Directivity: Omni-directional
Frequency Response: 100~10KHz
Operate Voltage: 1.6V-3.6V
Current consumption: Max 150uA
Signal to Noise Ratio: Typ.59dBA
Output Impedance: Max400Ω（Typ.100Ω）
THD:＜1% （94dBSPL @1KHz）
AOP：130dBSPL
Directivity: Omni-directional
Frequency Response: 100~10KHz
Operate Voltage: 1.6V-3.6V
Current consumption: Max 150uA
Signal to Noise Ratio: Typ.59dBA
GSMHOAB35261038DB
Sensitivity:-38±1dB(0dB=1v/Pa,1KHz)
Output Impedance: Max400Ω（Typ.100Ω）
THD:＜1% （94dBSPL @1KHz）
AOP：125dBSPL
Directivity: Omni-directional
Frequency Response: 30~10KHz
Operate Voltage: 1.6V-3.6V
Current consumption: Max 110uA
Signal to Noise Ratio: Typ.65dBA
Output Impedance: Max400Ω（Typ.100Ω）
THD:＜1% （94dBSPL @1KHz）
AOP：125dBSPL
Directivity: Omni-directional
Frequency Response: 30~10KHz
Operate Voltage: 1.6V-3.6V
Current consumption: Max 110uA
Signal to Noise Ratio: Typ.65dBA
GSMHODB35261026DA
Sensitivity:-26±1dBFs(0dB=1v/Pa,1KHz)
THD:＜1% （94dBSPL @1KHz）
AOP：125dBSPL
Directivity: Omni-directional
Frequency Response: 30~10KHz
Operate Voltage: 1.6V-3.6V
Current consumption: Max 110uA
Signal to Noise Ratio: Typ.66dBA
THD:＜1% （94dBSPL @1KHz）
AOP：125dBSPL
Directivity: Omni-directional
Frequency Response: 30~10KHz
Operate Voltage: 1.6V-3.6V
Current consumption: Max 110uA
Signal to Noise Ratio: Typ.66dBA
GSMHOAT37221042DA
Sensitivity:-42±1dB(0dB=1v/Pa,1KHz)
Output Impedance: Max400Ω（Typ.100Ω）
THD:＜1% （94dBSPL @1KHz）
AOP：130dBSPL
Directivity: Omni-directional
Frequency Response: 100~10KHz
Operate Voltage: 1.6V-3.6V
Current consumption: Max 110uA
Signal to Noise Ratio: Typ.59dBA
Output Impedance: Max400Ω（Typ.100Ω）
THD:＜1% （94dBSPL @1KHz）
AOP：130dBSPL
Directivity: Omni-directional
Frequency Response: 100~10KHz
Operate Voltage: 1.6V-3.6V
Current consumption: Max 110uA
Signal to Noise Ratio: Typ.59dBA
GSMHOAB37291138DA
Sensitivity:-42±1dB(0dB=1v/Pa,1KHz)
Output Impedance: Max250Ω（Typ.100Ω）
THD:＜1% （94dBSPL @1KHz）
AOP：125dBSPL
Directivity: Omni-directional
Frequency Response: 30~20KHz
Operate Voltage: 1.6V-3.6V
Current consumption: Max 120uA
Signal to Noise Ratio: Typ.66dBA
Output Impedance: Max250Ω（Typ.100Ω）
THD:＜1% （94dBSPL @1KHz）
AOP：125dBSPL
Directivity: Omni-directional
Frequency Response: 30~20KHz
Operate Voltage: 1.6V-3.6V
Current consumption: Max 120uA
Signal to Noise Ratio: Typ.66dBA
GSMHOAT37291138DA
Sensitivity:-38±1dB(0dB=1v/Pa,1KHz)
Output Impedance: Max250Ω（Typ.100Ω）
THD:＜1% （94dBSPL @1KHz）
AOP：125dBSPL
Directivity: Omni-directional
Frequency Response: 30~20KHz
Operate Voltage: 1.6V-3.6V
Current consumption: Max 100uA
Signal to Noise Ratio: Typ.64dBA
Output Impedance: Max250Ω（Typ.100Ω）
THD:＜1% （94dBSPL @1KHz）
AOP：125dBSPL
Directivity: Omni-directional
Frequency Response: 30~20KHz
Operate Voltage: 1.6V-3.6V
Current consumption: Max 100uA
Signal to Noise Ratio: Typ.64dBA
GSMHOAT37291142DB
Sensitivity:-42±1dB(0dB=1v/Pa,1KHz)
Output Impedance: Max250Ω（Typ.100Ω）
THD:＜1% （94dBSPL @1KHz）
AOP：130dBSPL
Directivity: Omni-directional
Frequency Response: 100~20KHz
Operate Voltage: 1.6V-3.6V
Current consumption: Max 110uA
Signal to Noise Ratio: 59dBA
Output Impedance: Max250Ω（Typ.100Ω）
THD:＜1% （94dBSPL @1KHz）
AOP：130dBSPL
Directivity: Omni-directional
Frequency Response: 100~20KHz
Operate Voltage: 1.6V-3.6V
Current consumption: Max 110uA
Signal to Noise Ratio: 59dBA
GSMHODT40301026DB
Sensitivity:-26±1dB(0dB=1v/Pa,1KHz)
THD:＜1% （94dBSPL @1KHz）
AOP：125dBSPL
Directivity: Omni-directional
Frequency Response: 30~10KHz
Operate Voltage: 1.6V-3.6V
Current consumption: Max 110uA
Signal to Noise Ratio: Typ.64dBA
THD:＜1% （94dBSPL @1KHz）
AOP：125dBSPL
Directivity: Omni-directional
Frequency Response: 30~10KHz
Operate Voltage: 1.6V-3.6V
Current consumption: Max 110uA
Signal to Noise Ratio: Typ.64dBA
