Double bodys Temperature controlling stainless steel leather tanning dyeing drum leather drum dyer
- Category: >>>
- Supplier: Nantong Erqing Precision Equipment Co. Ltd.
Share on (1600512766940):
Product Overview
Description
Product Description

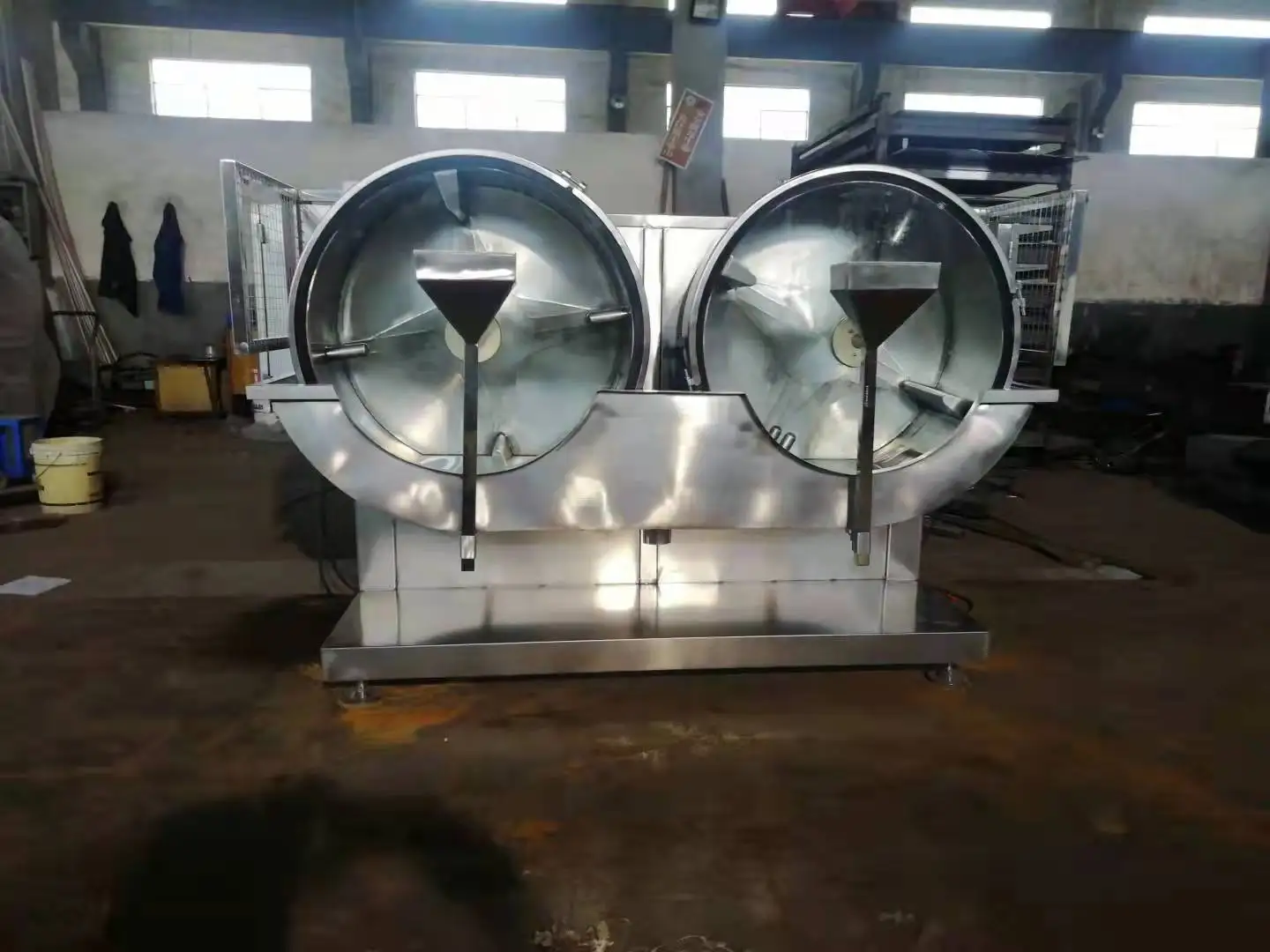

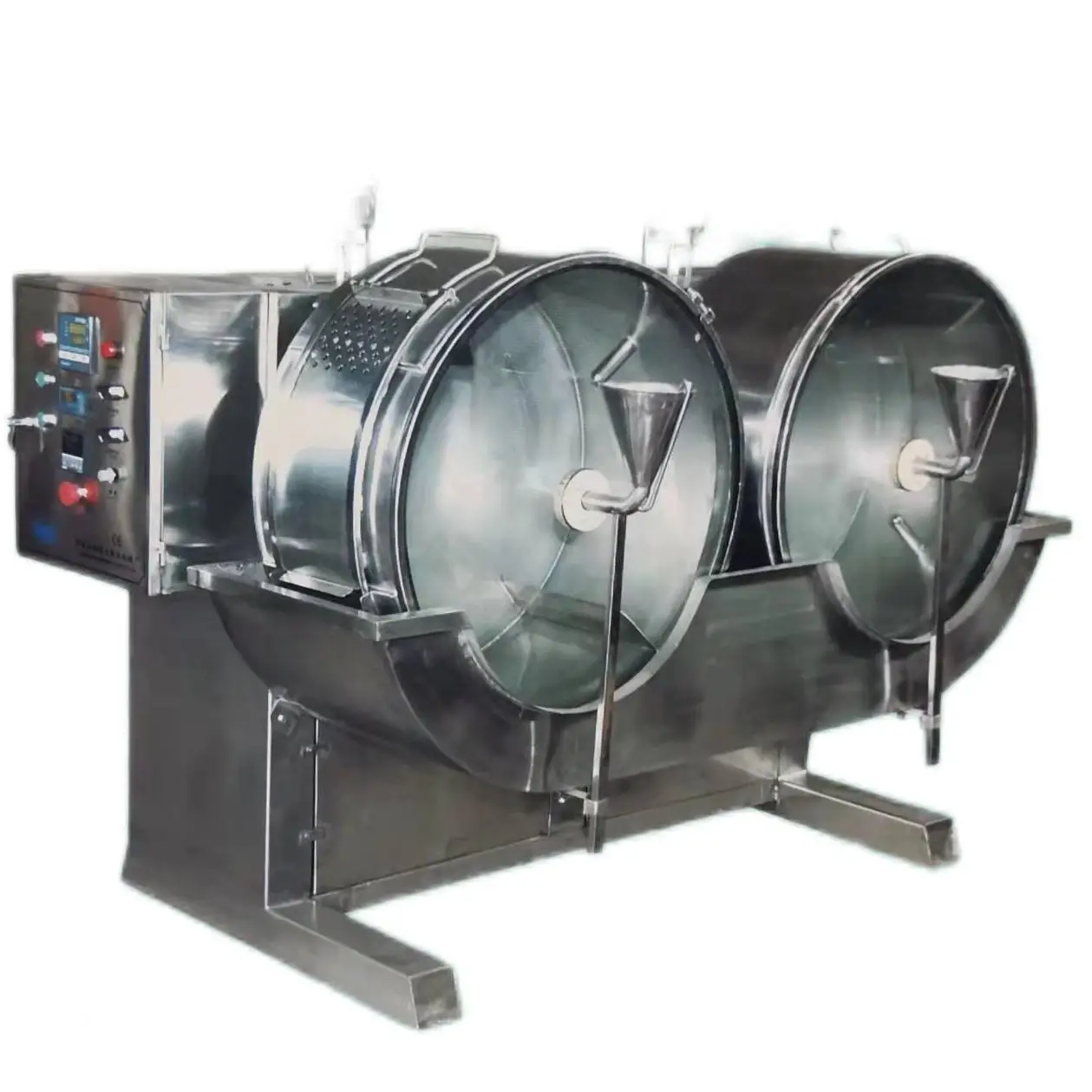

Double Body Pump Heat Circulating Stainless Steel Test Drum
This double body stainless steel temperature controlling drum is composed of several drums, which have the
same size. The pump heating and circulating system used in this drum is a totally isolated system , which heat the circulating medium(water) in the interlayer of the drum, thus making leather liquid inside the drum heat up. The circulating water does not contact with the leather liquid so that it can conduct heating process whether there is water or not in the drum, or the drum stops operating.
Our Advantages:
1.Adopts stainless steel for the complete machine which have long performance life.
2.Adopt heat pump circulation to heat, can heat the constant temp while stopping the drum.
3.Infinitely variable speeds, the speed of drum is adjustable.
4. Heat automatically constant temperature, correct temperature control.The heating temperature can be adjusted between room temperature and 70℃, the precision control up to ±1℃.
5. New quick-opening drum gate ,easy to operate and glass view, be convenience for installation and cleaning.
6. heating the liquid is separated from liquid in the drum and washing completely ,not having incomplete liquid and waste residue.
7, Electrical machinery , electricity are heated the tube , have long performance life.
8. Set up working time total 30 mins , timing positive and negative rotation or one direction rotation.
9. System setup for working at night, can control temp and rotation to let leather rotate , dye timely and the date is more precise.
10. It is made up of two drums and suitable to comparing testing, and are controlled respectively by two groups of electric.
Specification
Model | GI600 | GI801 | GI1001 | GI1200 |
Size(mm) | 600*300 | 800*400 | 1000*500 | 1200*500 |
Max loading capacity(kg) | 10 | 20 | 40 | 60 |
Drum speed (rmp) | 0-30 | 0-25 | 0-25 | 0-25 |
Electric heating power(kw) | 5.4 | 10.5 | 10.5 | 12.5 |
Temperature rage regulated | 0-70℃ | 0-70℃ | 0-70℃ | 0-70℃ |

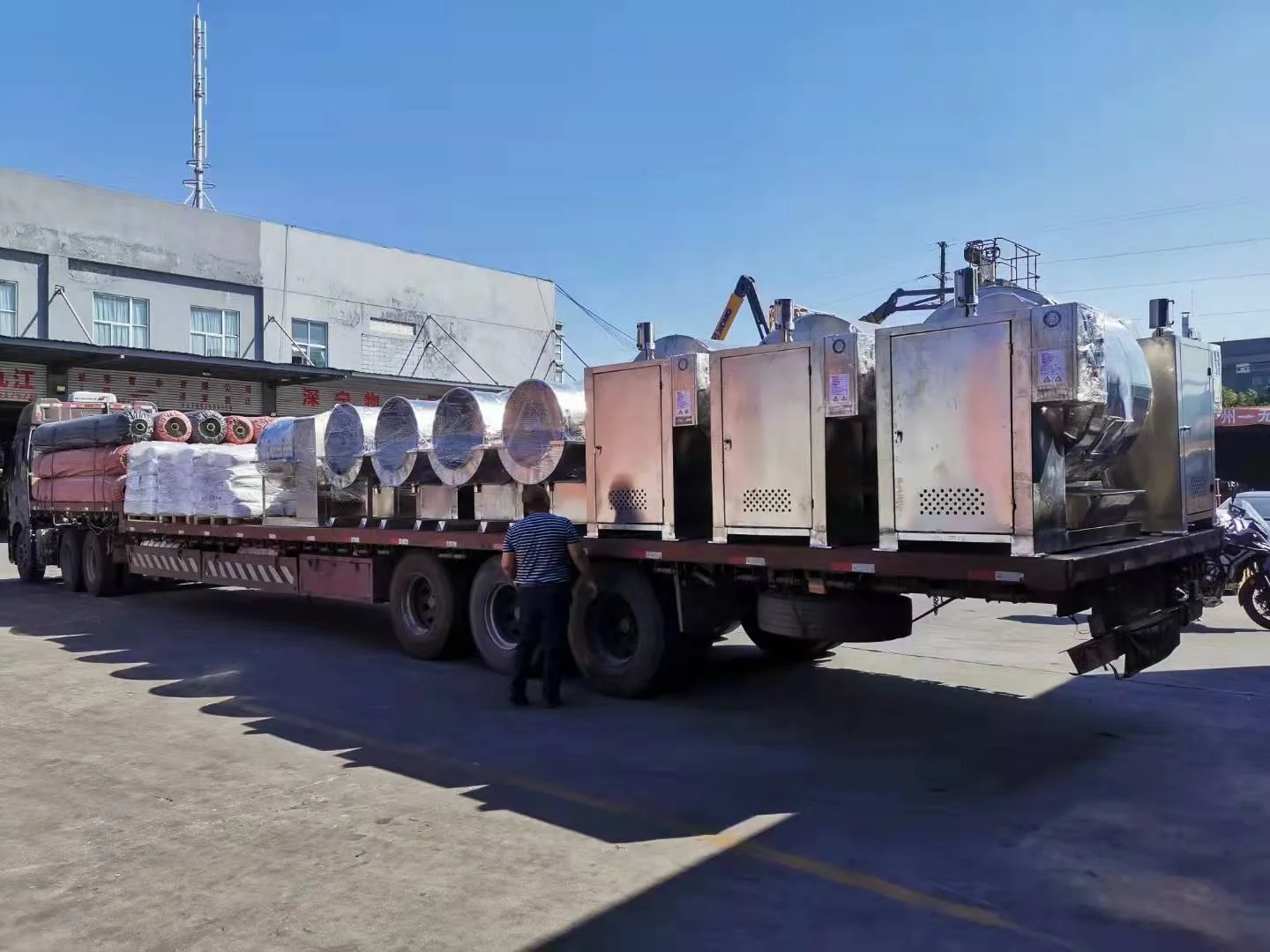

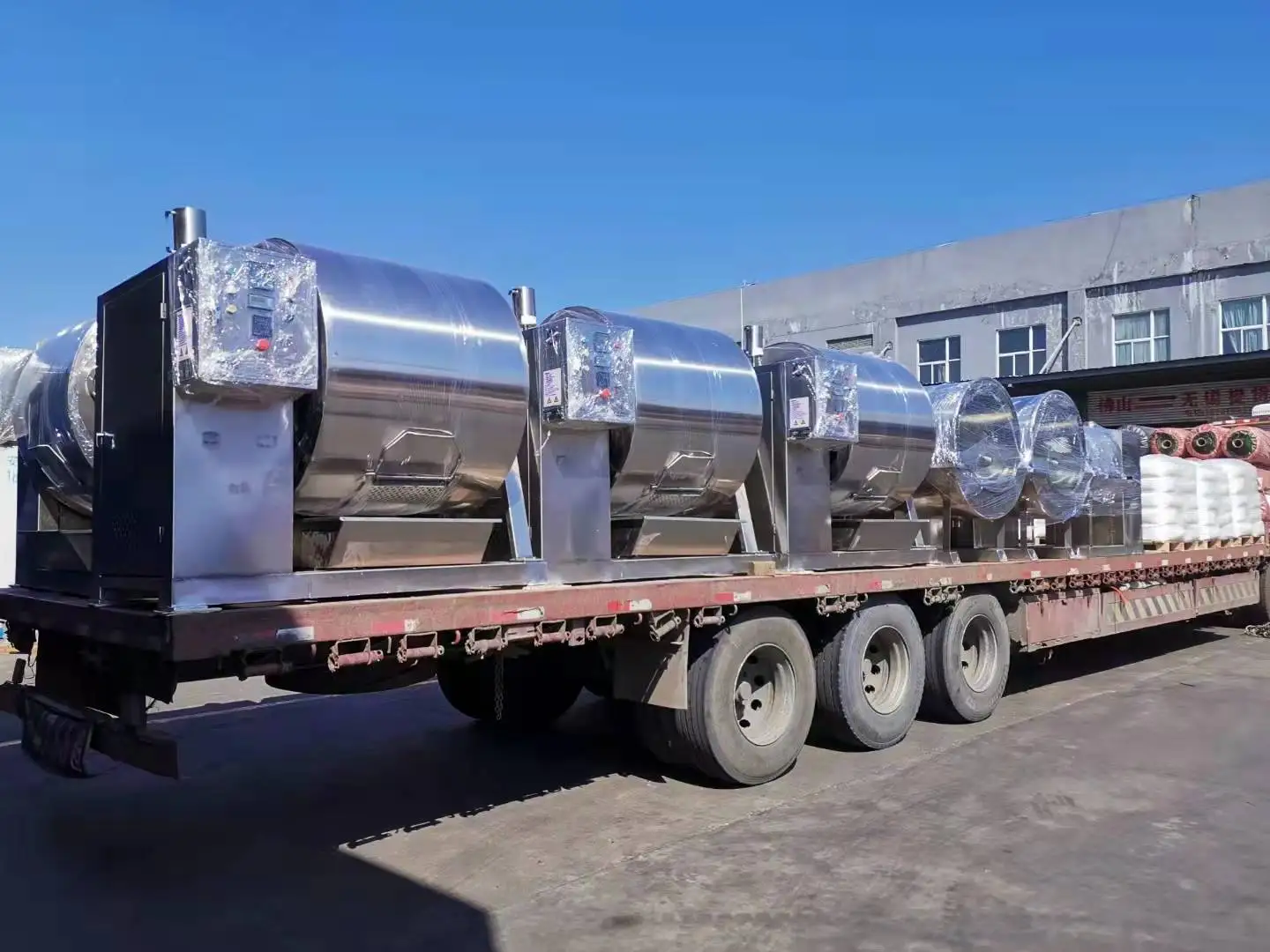

Packing & Delivery
Iron box
