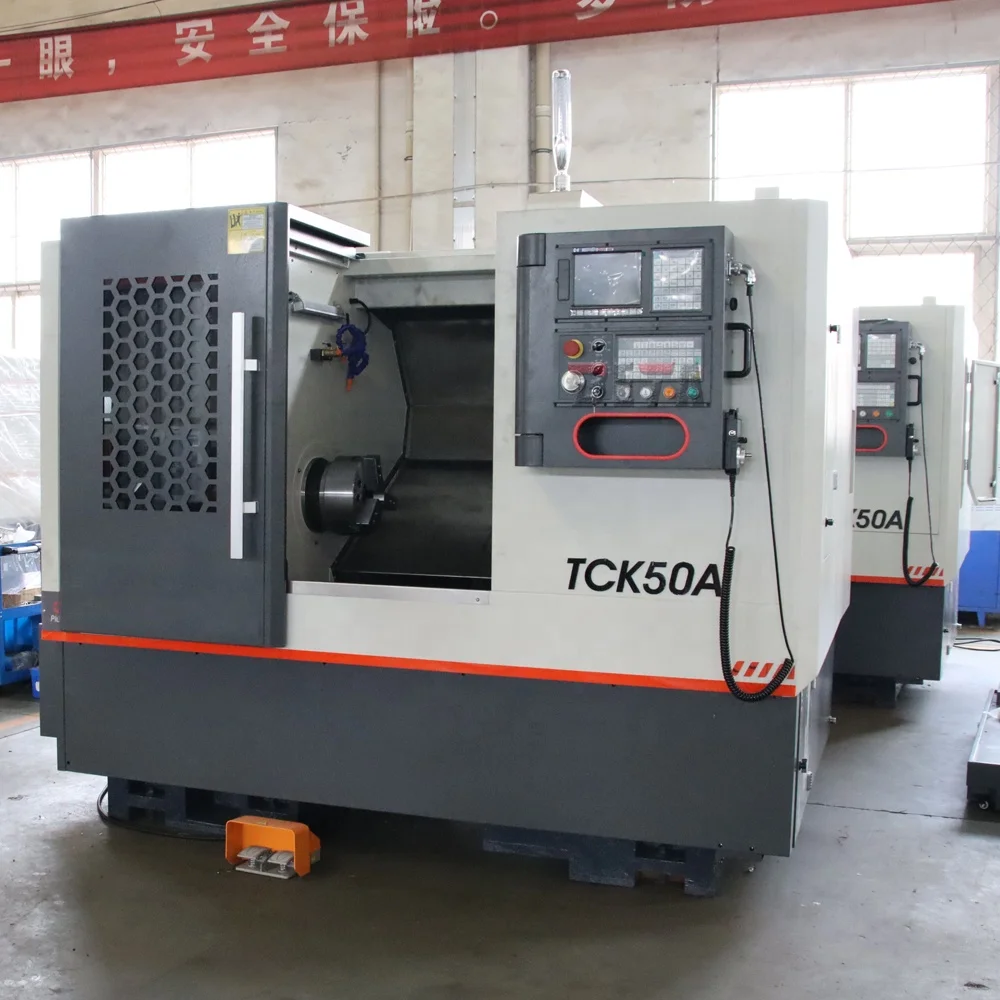

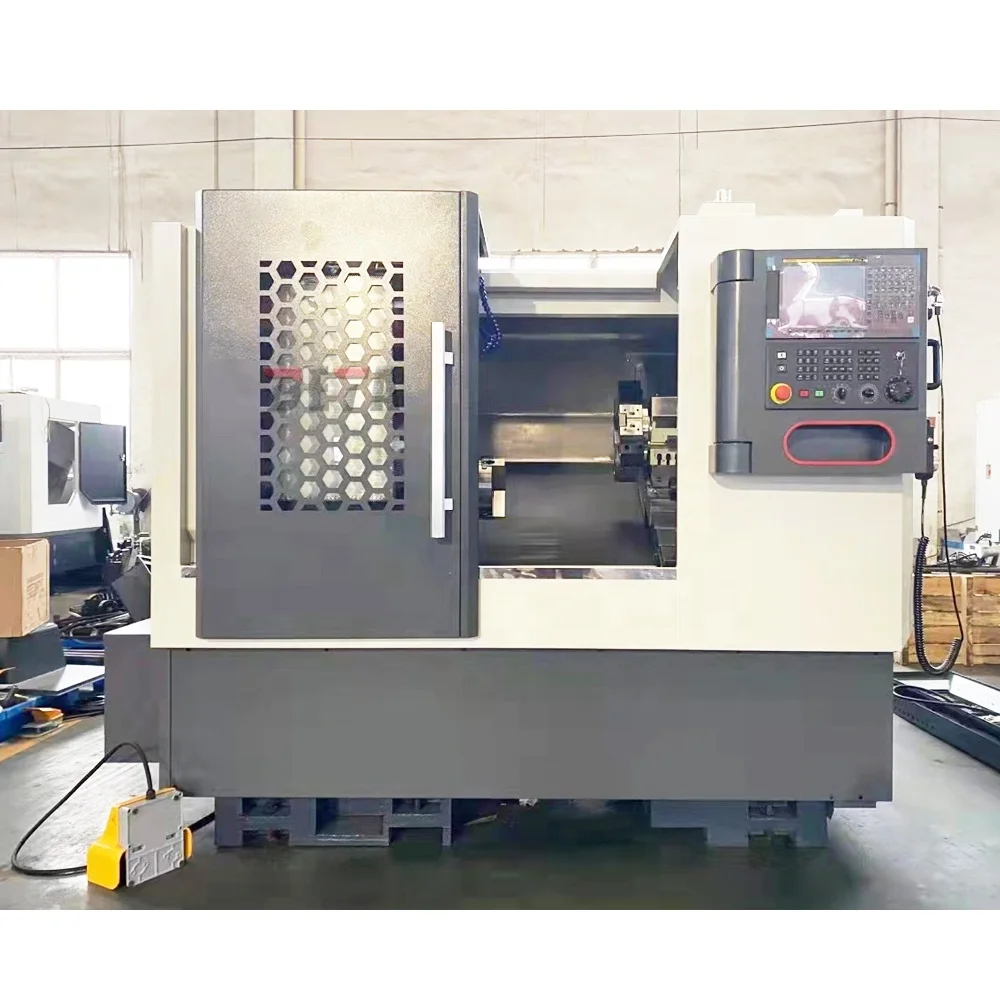

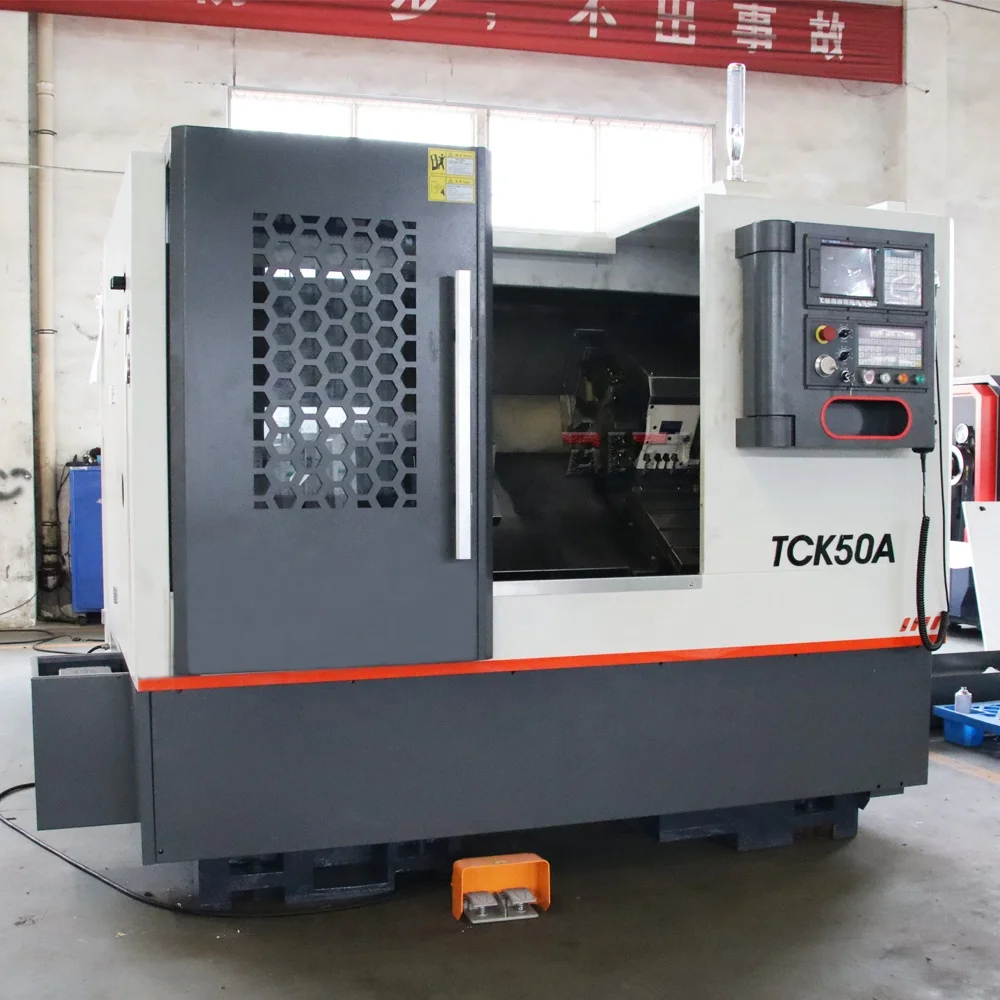

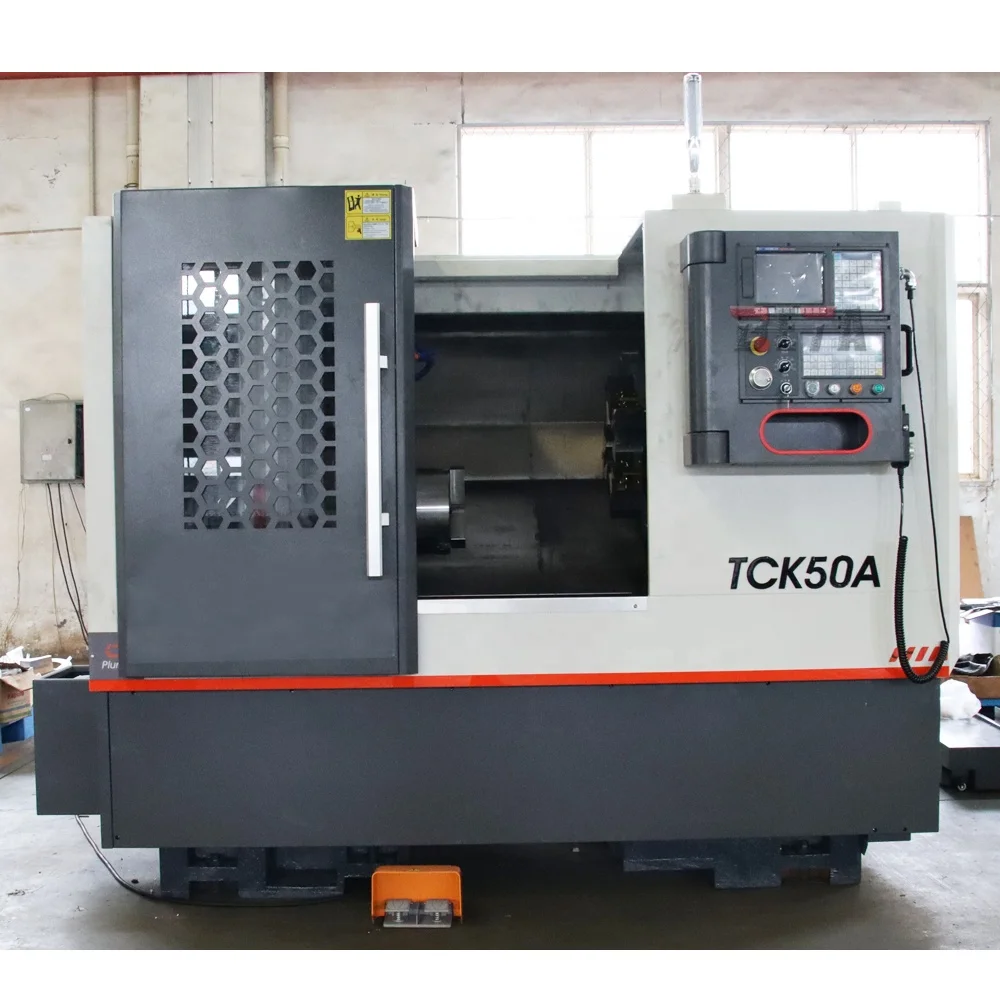

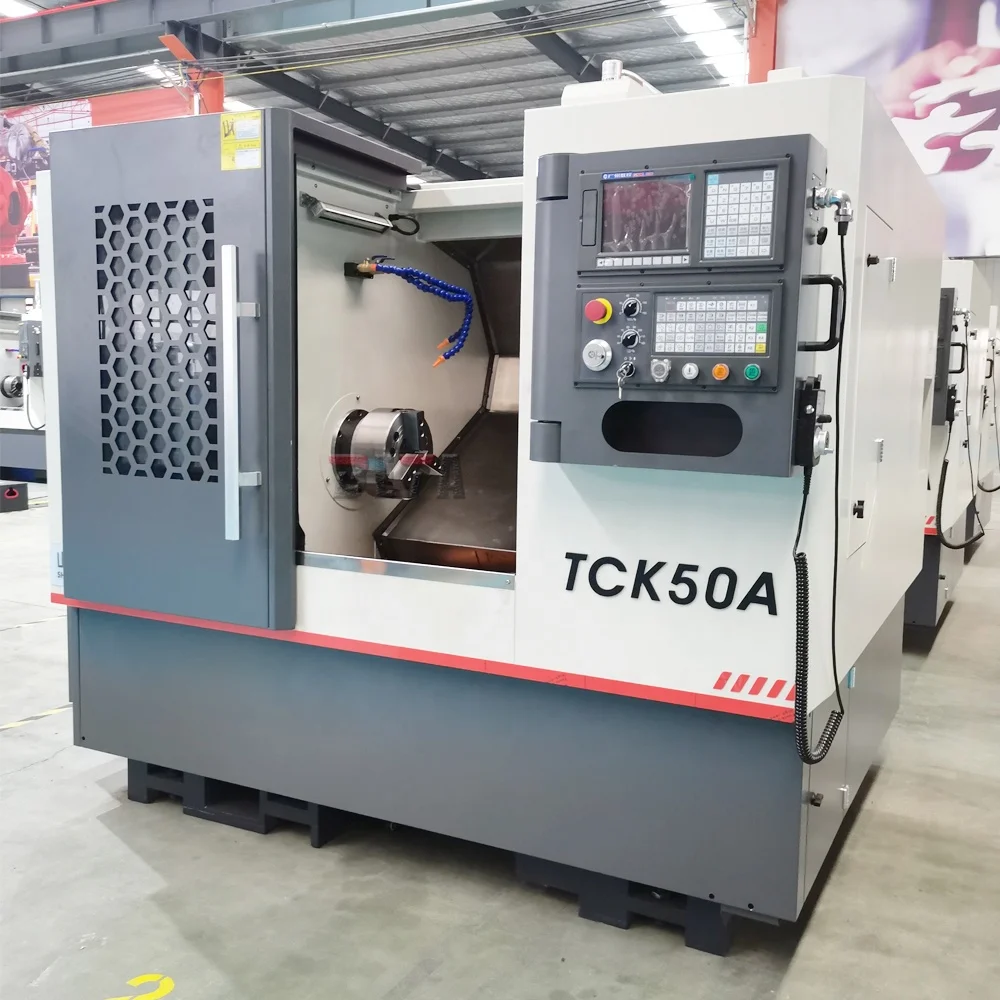

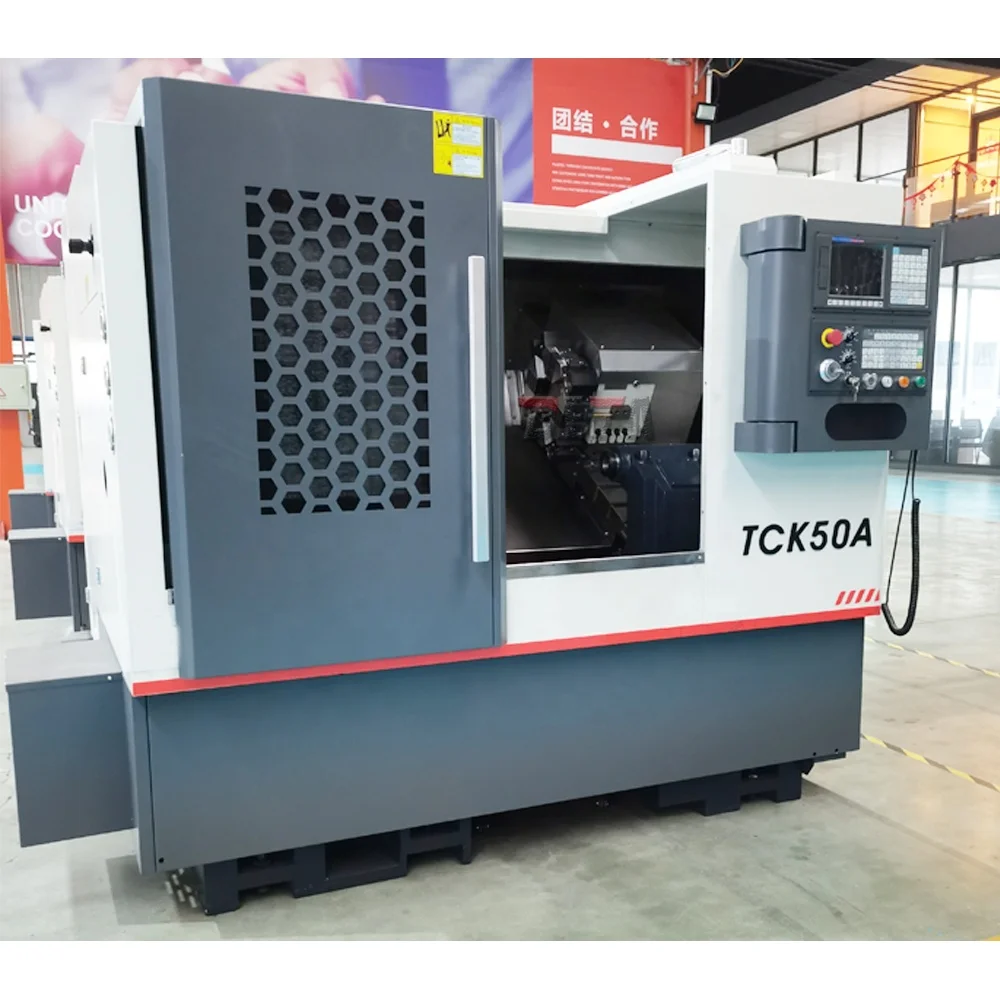

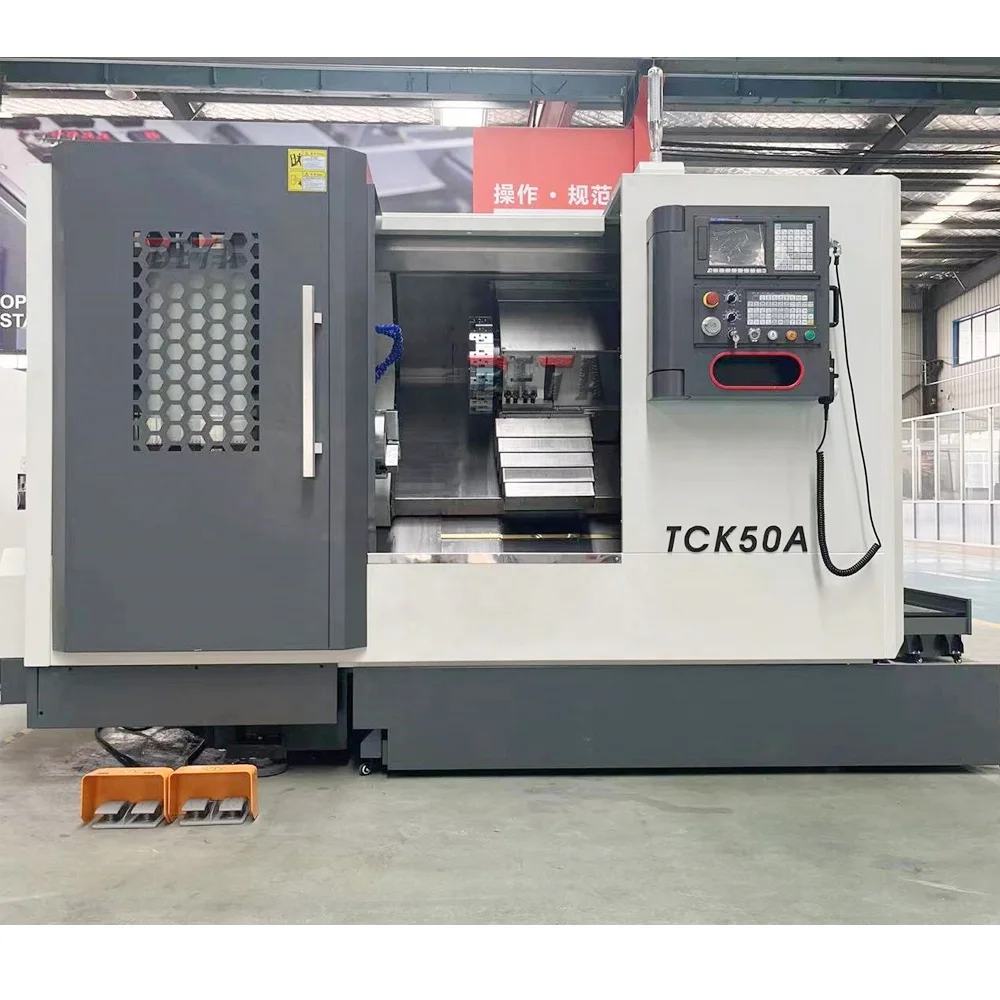

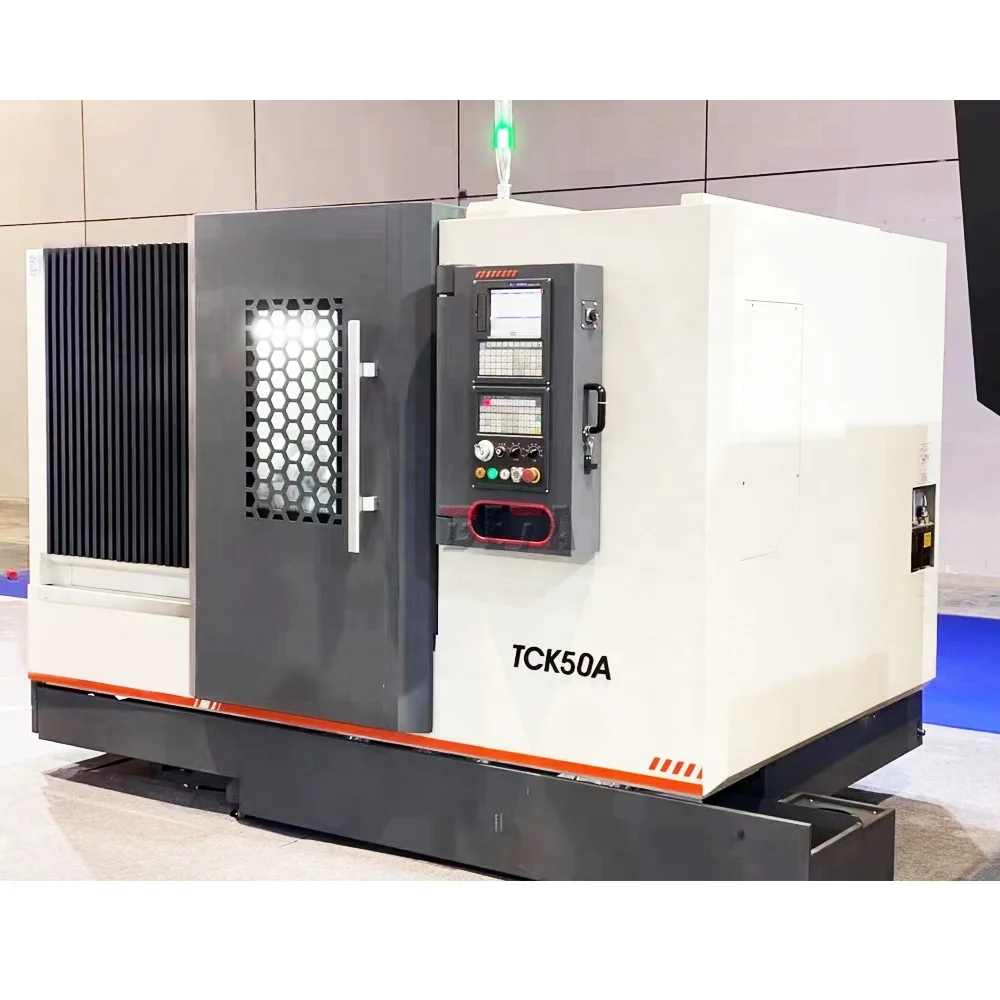

TCK50Ax800 Heavy Duty Lathe Machine CNC Slant Bed Turret CNC Lathe Turning
- Category: >>>
- Supplier: Tengzhou Beta Co. Ltd.
Share on (1600512766945):
Product Overview
Description
Products Description
TCK50Ax800 Heavy Duty Lathe Machine CNC Slant Bed Turret CNC Lathe Turning
Product Parameters
Model | Unit | TCK50A x 300/500 | TCK50A x 800 |
Max. Swing over bed | mm | Φ560 | Φ560 |
Max. Swing over carriage | mm | Φ260 | Φ260 |
Max. Turning length | mm | 300/500 | 800 |
Chuck size | inch | 10 inch | 10 inch |
X-axis travel | mm | 240 | 260 |
Z-axis travel | mm | 400/540 | 900 |
Max. Spindle speed | rpm | 3000rpm | 3000rpm |
Spindle speed change | Stepless | Stepless | |
Spindle nose | A2-6 | A2-8 | |
Spindle bore diameter | mm | Φ66 | Φ86 |
Through bar capacity | mm | Φ55 | Φ75 |
Rapid moving speed | m/min | X:18 Z:18 | X:18 Z:18 |
Cutting feeding | mm/min | 1-15000 | 1-15000 |
X/Z-axis motor torque | NM | 7.5/7.5 | 10/10 |
Main motor power | KW | 11 | 15 |
Standard Turret | 8 station hydraulic turret | 8 station servo turret | |
Tool shank size | mm | 25´25 | 25´25 |
Quill diameter | mm | 70 | 90 |
Tailstock quill taper | MT5# | MT5# | |
Max. Travel of tailstock | mm | 450 | 750 |
Total power capacity | KVA | 18 | 18 |
Coolant tank | L | 100 | 100 |
Overall dimension(L*W*H) | mm | 2800*1850*1890 | 3250*1860*2000 |
Machine weight | KG | 3200 | 4000 |
Standard configurations:
GSK988T CNC controller,
Taiwan linear guide way,
High spindle unit speed 3000rpm,
10" hollow type hydraulic chuck
8 station hydraulic turret/servo turret ,
automatic lubrication system,
automatic cooling system,
work light ,
tools & tool box
Taiwan linear guide way,
High spindle unit speed 3000rpm,
10" hollow type hydraulic chuck
8 station hydraulic turret/servo turret ,
automatic lubrication system,
automatic cooling system,
work light ,
tools & tool box
Optional configurations:
Hydraulic 4-jaw chuck
servo turret/Power turret
Chip conveyor
Siemens/FANUC CNC controller
servo turret/Power turret
Chip conveyor
Siemens/FANUC CNC controller
Details Images
TCK50Ax300, TCK50Ax500:
Max. swing over bed 560mm, Max.turning diameter 300/500mm, Spindle bore diameter 66mm
TCK50Ax800:
Max. swing over bed 560mm, Max.turning diameter 800mm, Spindle bore diameter 86mm
hydraulic hollow type 3-jaw chuck 10 inch
automatic coolant system

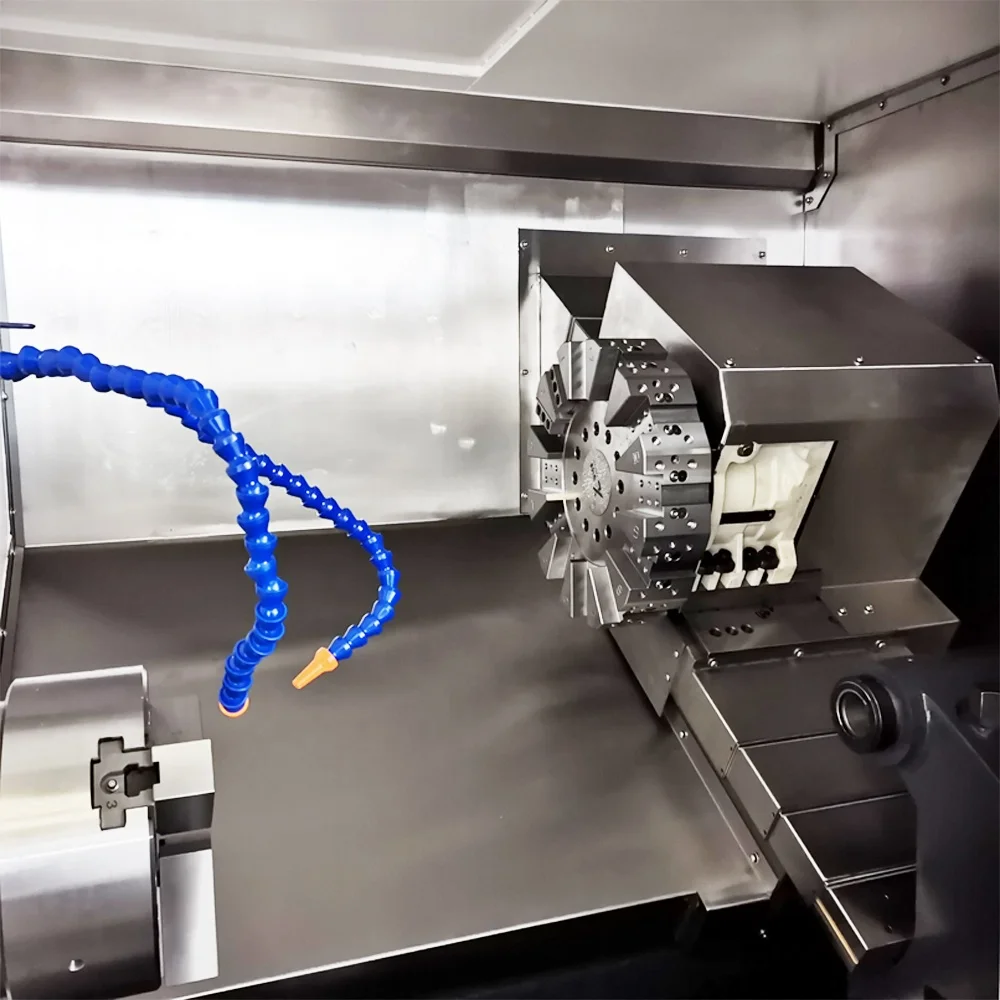

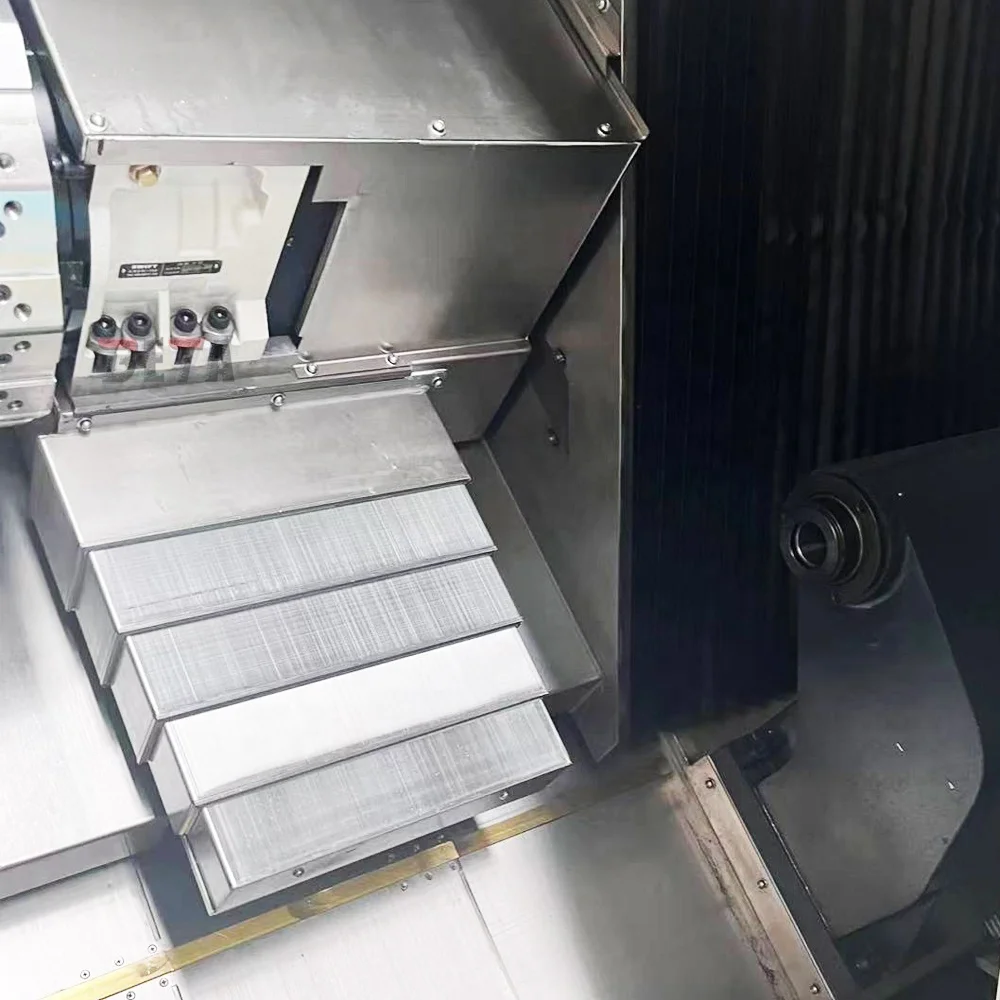

8 station hydraulic/servo turret
hydraulic tailstock
Standard:
Slant Bed, GSK988T CNC controller, HIWIN/PMI Linear guideway and leadscrew, Main motor power 11/15kw
