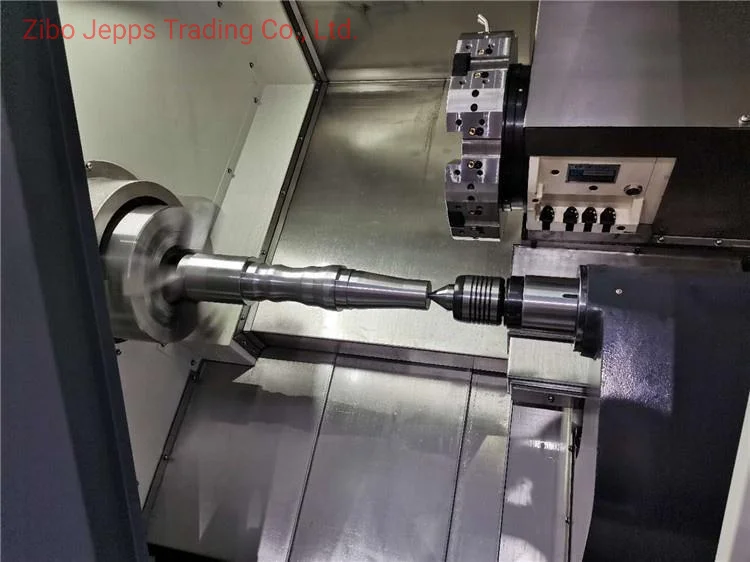

Tck36A Tck46A Tck50A Precision Linear Guide Metal CNC Lathe with Hydraulic Turret Chuck
- Category: >>>
- Supplier: Zibo Jepps Trading Co. Ltd.
Share on (1600512802838):
Product Overview
Description
Product Description
CNC Lathe Application
The Hot Sale Small CNC Turning Center Slant Bed cnc Lathe TCK46A is mainly used for processing all kinds of shaft parts, diskparts, you can turn a variety of threads, arcs, cones and rotary body inside and outside the surface, to meet the ferrous metal and nonferrous metal high-speed cutting speed demand. Suitable for automotive, motorcycle, electronics, aerospace, other industries on the rotary parts for efficient, high-volume, high-precision processing. Processing accuracy can reach 7 level.
Details Images
Specification
Machine model | TCK36A |
Maximum turning diameter of bed | 360mm |
Maximum turning diameter of cross slide | 140mm |
Maximum processing length | 300mm |
Maximum machining diameter (disk type) | 360mm |
Standard chuck specifications | 8 inches |
Spindle speed | 4000rpm |
Spindle speed stage | Infinitely variable speed |
Spindle end code | A2-5 |
Spindle through hole | 48mm |
Pull tube through hole | 41mm |
Fast moving speed | X：24m/min Z：24m/min |
Cutting feed rate | 1-15000mm/min |
X/Z motor torque | 7.5/7.5Nm（X direction with brake） |
Spindle motor power | 7.5/11KW |
Horizontal turret station | 8 |
Tool body size | 20×20mm |
Sleeve diameter | 70mm |
Sleeve stroke | 80mm |
Taper hole of tailstock sleeve | Mohs 5# |
Maximum stroke of tailstock | 200mm |
Dimensions (length × width × height) | 2200*1600*1850mm |
Total Weight | 2400kg |

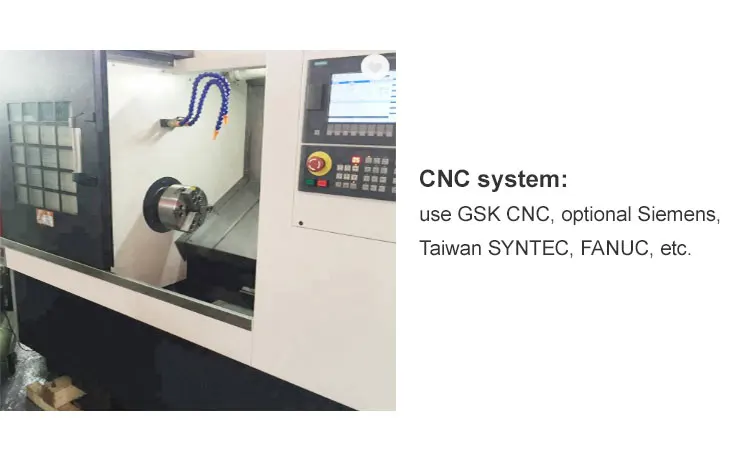

CNC system | use Guangzhou CNC, optional Kane, Siemens, Taiwan Baoyuan new generation, fanuc |

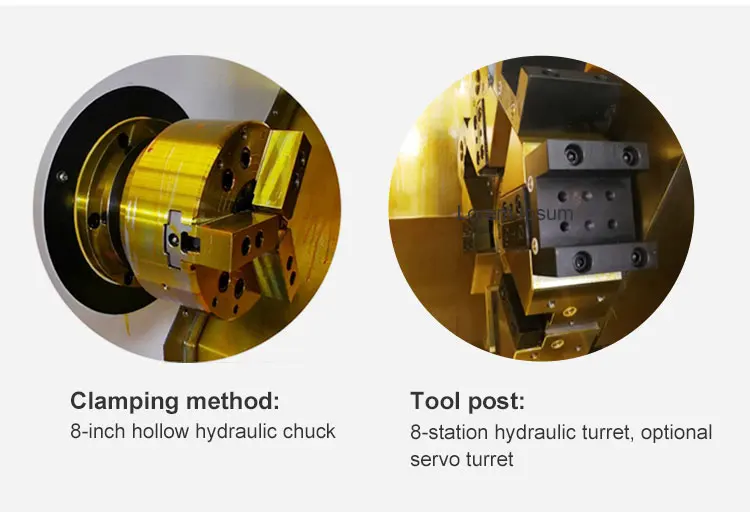

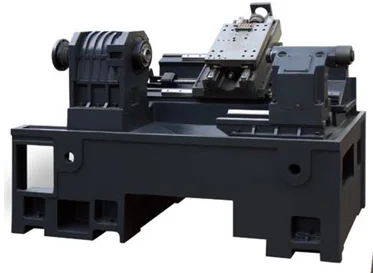

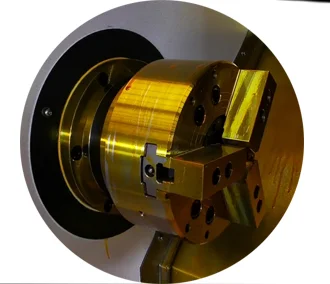

Clamping method | 8-inch hollow hydraulic chuck,Overall inclined bed, hydraulic tailstock |

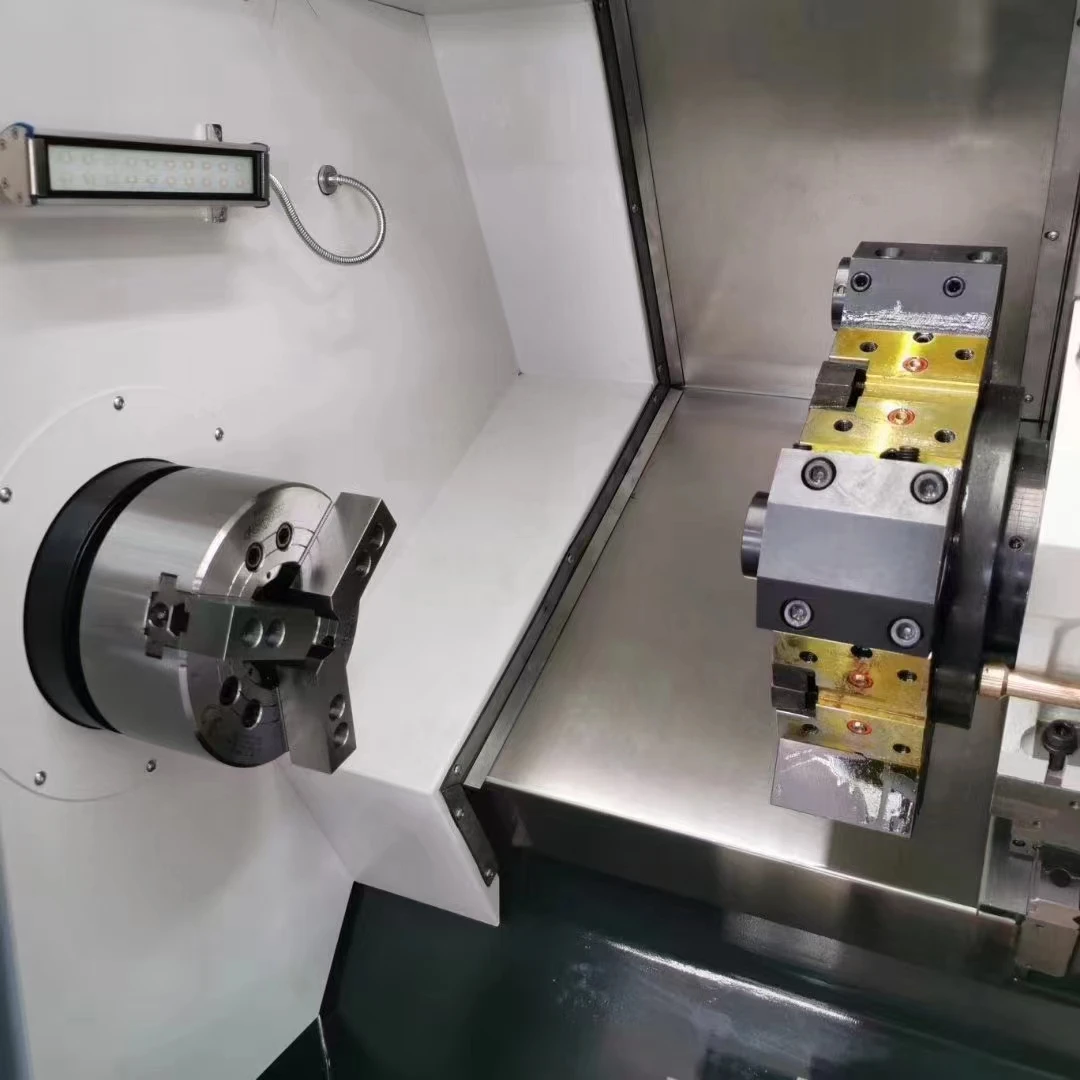

Tool post | 8-station hydraulic turret, optional servo turret |
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
