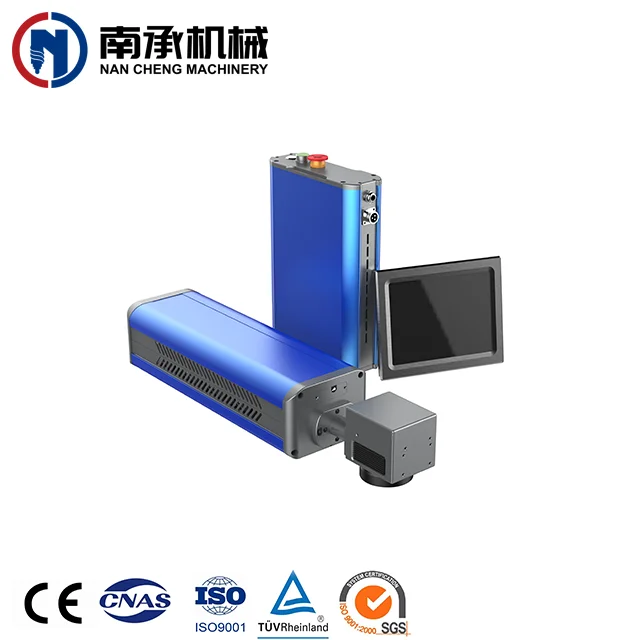

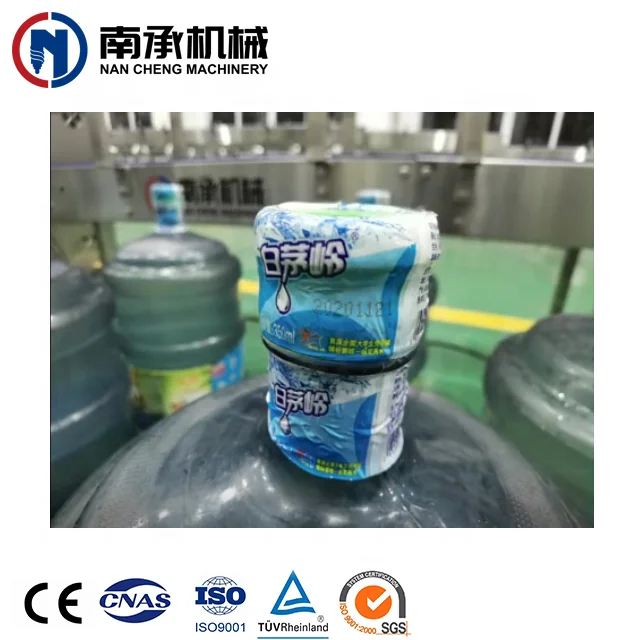

20/30W Fast Speed Expiry Date Batch Coding Machine Fiber Co2 Online Flying Laser Jet Printer For Glass Plastic Bottle
- Category: >>>
- Supplier: Zhangjiagang City Nan Cheng Machinery Co. Ltd.
Share on (1600512827536):
Product Overview
Description
Product Overview

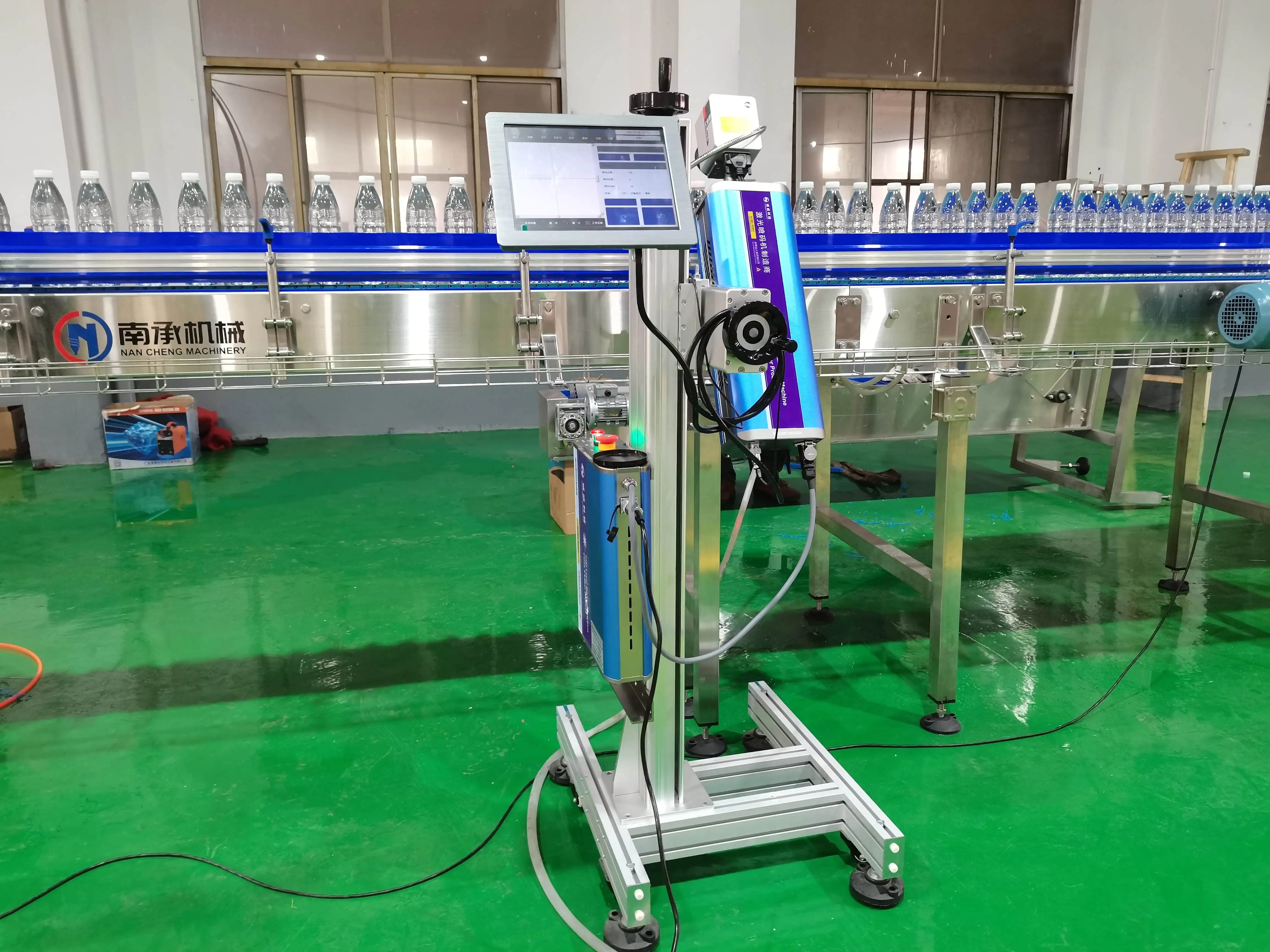

CO2 laser code printer
Product Paramenters
ITEM | Model | CO2 W6330 | CO2 W6430 | |
Laser Machine Characteristics | Material | All aluminum structure | ||
Φ50-Φ100mm | Laser | Sealed metal radio frequency carbon dioxide laser generator | ||
150-320mm | Continuous output power | ≥30W | ≥40W | |
0.6Mpa | Laser wavelength | 9.3um | ||
0.2/min | Galvanometer deflection | High precision Double d scanning system | ||
4.3kw | Engraving speed | ≤7000mm/s | ||
2000kg | Master control | Highly integrated motherboard with 10 inch screen | ||
2200*1600*2200mm | Operating system | WIN CE | ||
Cooling System | Air cooling system | |||
Laser Parameters | Focus lens | Focal length 138 mm | ||
Marking type | Dot matrix and vector machine (can play both dot matrix and vector) | |||
Minimum line width | 0.03mm | |||
Repositioning Accuracy | 0.01mm | |||
Marking area | 110mm×110mm（Choosable） | |||

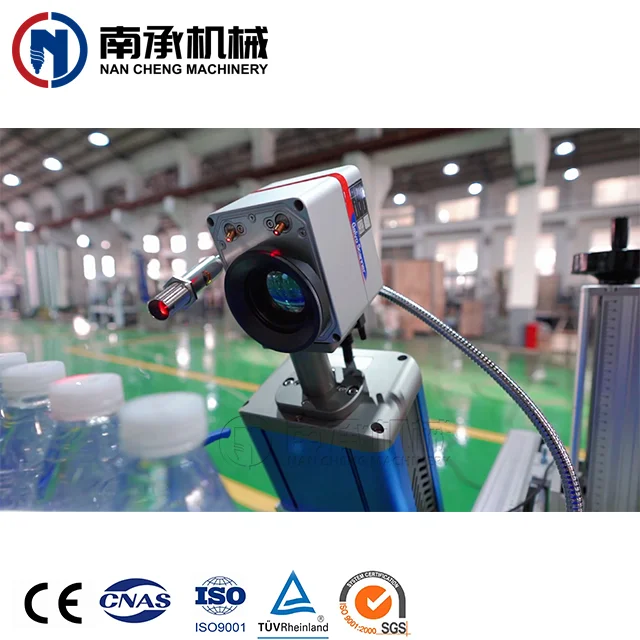

Locate mode | Red light focusing | |||
Lines to type | Any lines in the marking range | |||
Production Line Speed | 0~100m/min (depends on the material) , 0~150m/min (depends on the material),0~200m/min (depends on the material) | |||
Support Types | Font | Standard Chinese and English, Numbers, etc | ||
File Format | BMP/DXF/HPGL/JPEG/PLT | |||
Bar codes | CODE39、CODE128、CODE126、QR、ETC | |||
Parameters | Power | 220V | ||
Power Consumption | 300W | 580W | ||
Machine net weight | 14kg | 25kg | ||
3 d bracket net weight | 30kg | |||
Operational Reliability | \\ | External temperature 0℃-45℃;Humidity≤95% or less; Non - Condensing;No vibration | ||
FEATURES AT A GLANCE
Technical Features:
A new generation of 60 series carbon dioxide laser inkjet machine.
The new CO2 laser code printer is a highly integrated, compact, easy to operate and cheap to use and maintain.It is not only applicable to the carton, food, medicine industry in the simple marking code application, but also very suitable for the beverage industry production date marking, and optimize the use in the beverage industry.
The new CO2 laser code printer is a highly integrated, compact, easy to operate and cheap to use and maintain.It is not only applicable to the carton, food, medicine industry in the simple marking code application, but also very suitable for the beverage industry production date marking, and optimize the use in the beverage industry.
* ··Compact integrated solutions
* New modular design, fast installation
* New aluminum alloy custom light path, compact and reasonable structure
* New modular design, fast installation
* New aluminum alloy custom light path, compact and reasonable structure
* ··Easy to install and transfer solution
* Setting can be in 30 minutes.Production line change can be in 20 minutes

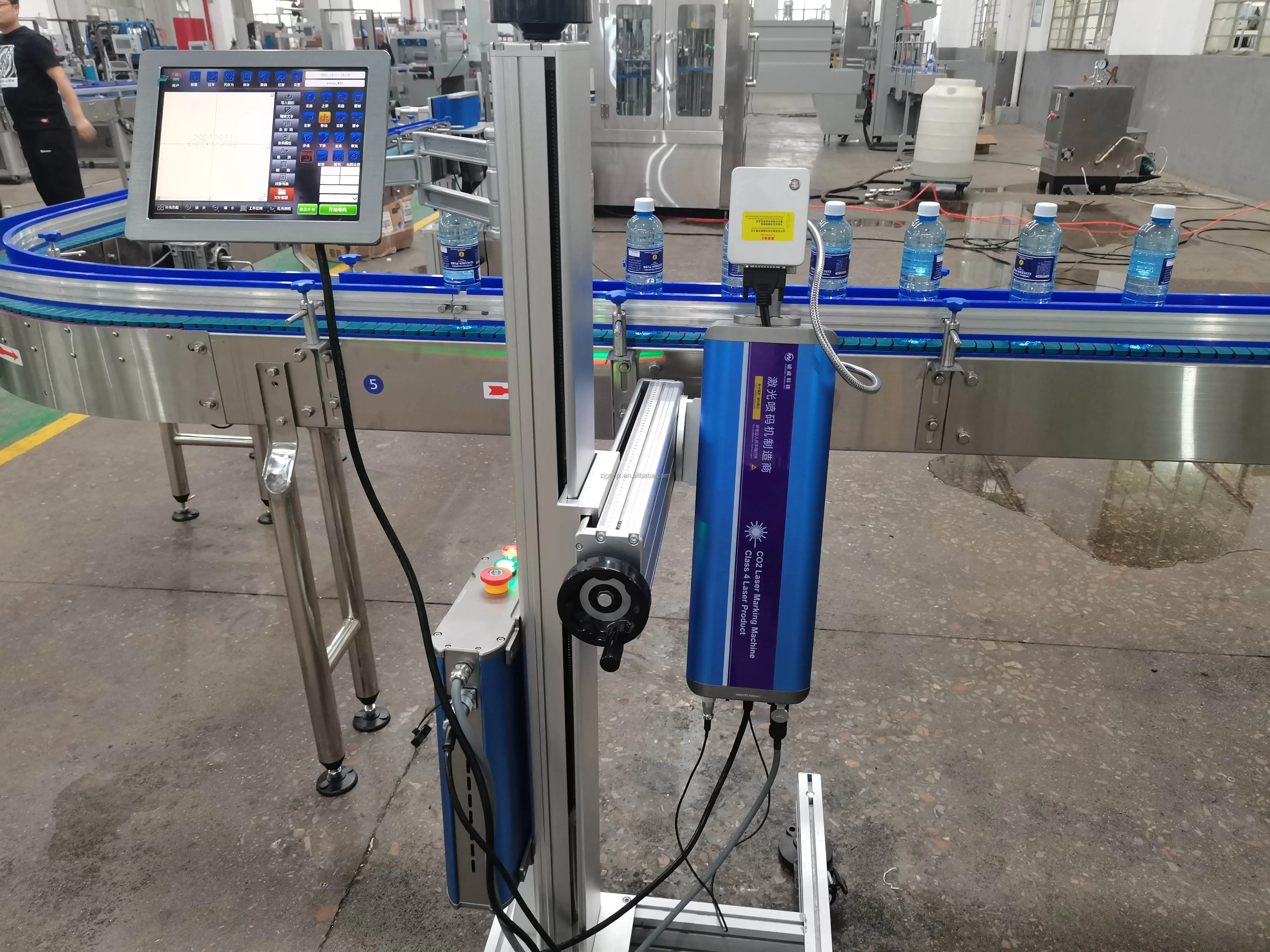

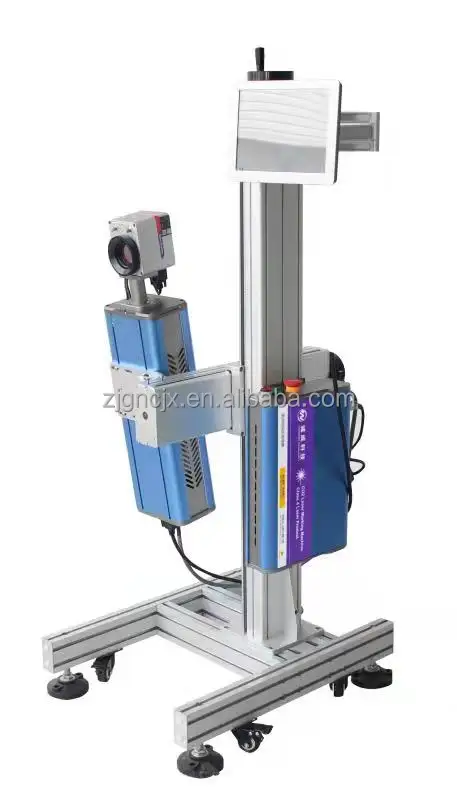

* The movable bracket is convenient for flexible installation

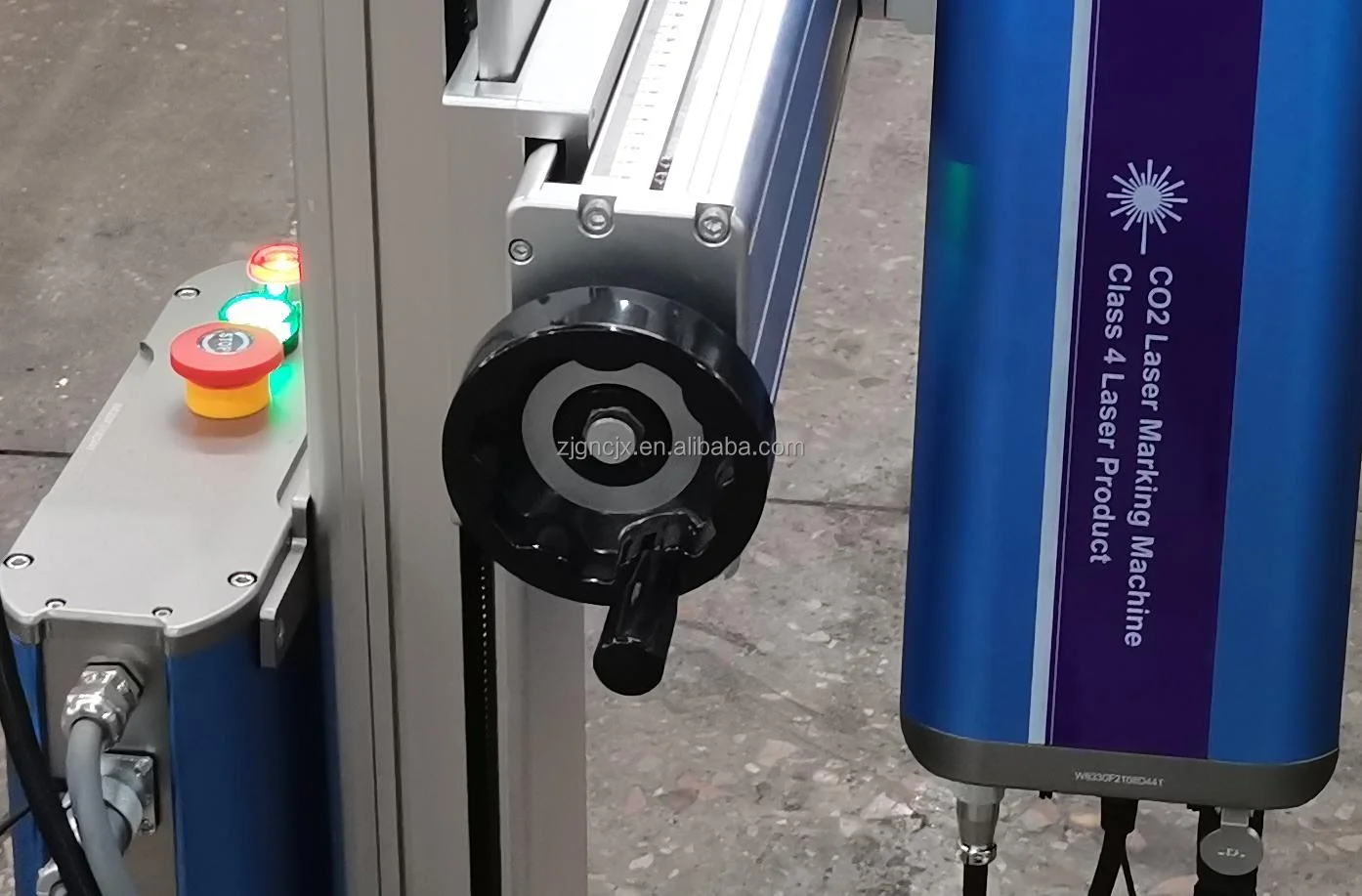

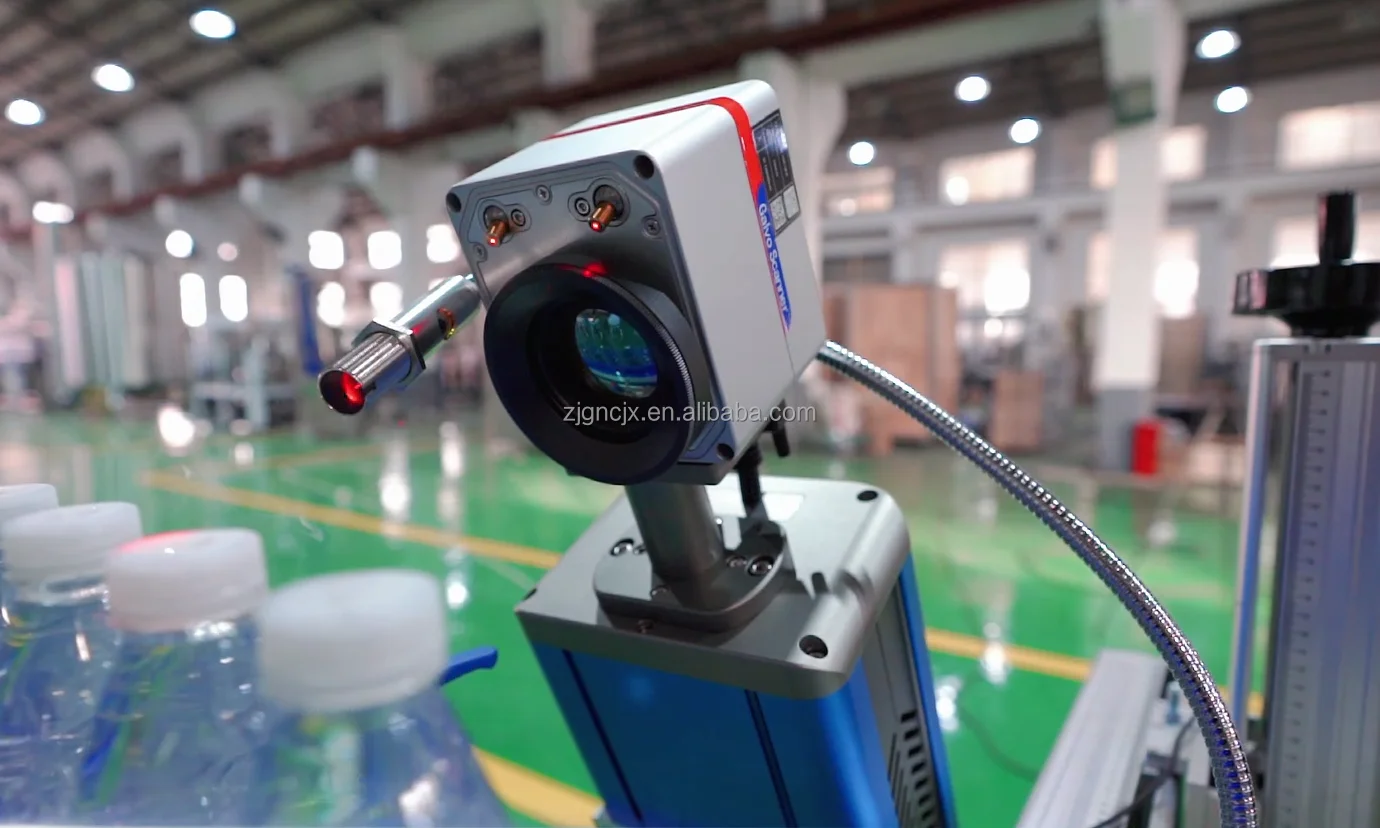

* Auxiliary focusing system,easy to find the focus, make the logo more clear
* Setting can be in 30 minutes.Production line change can be in 20 minutes
* The movable bracket is convenient for flexible installation
* Auxiliary focusing system,easy to find the focus, make the logo more clear
* ··Quick start and easy operation

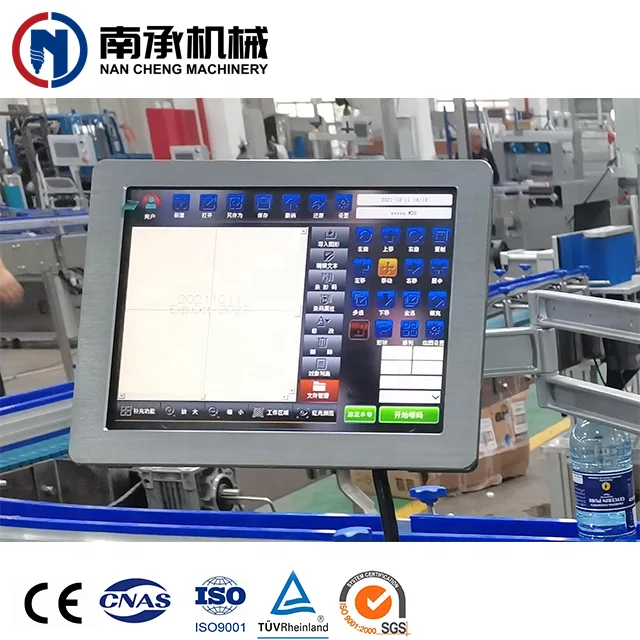

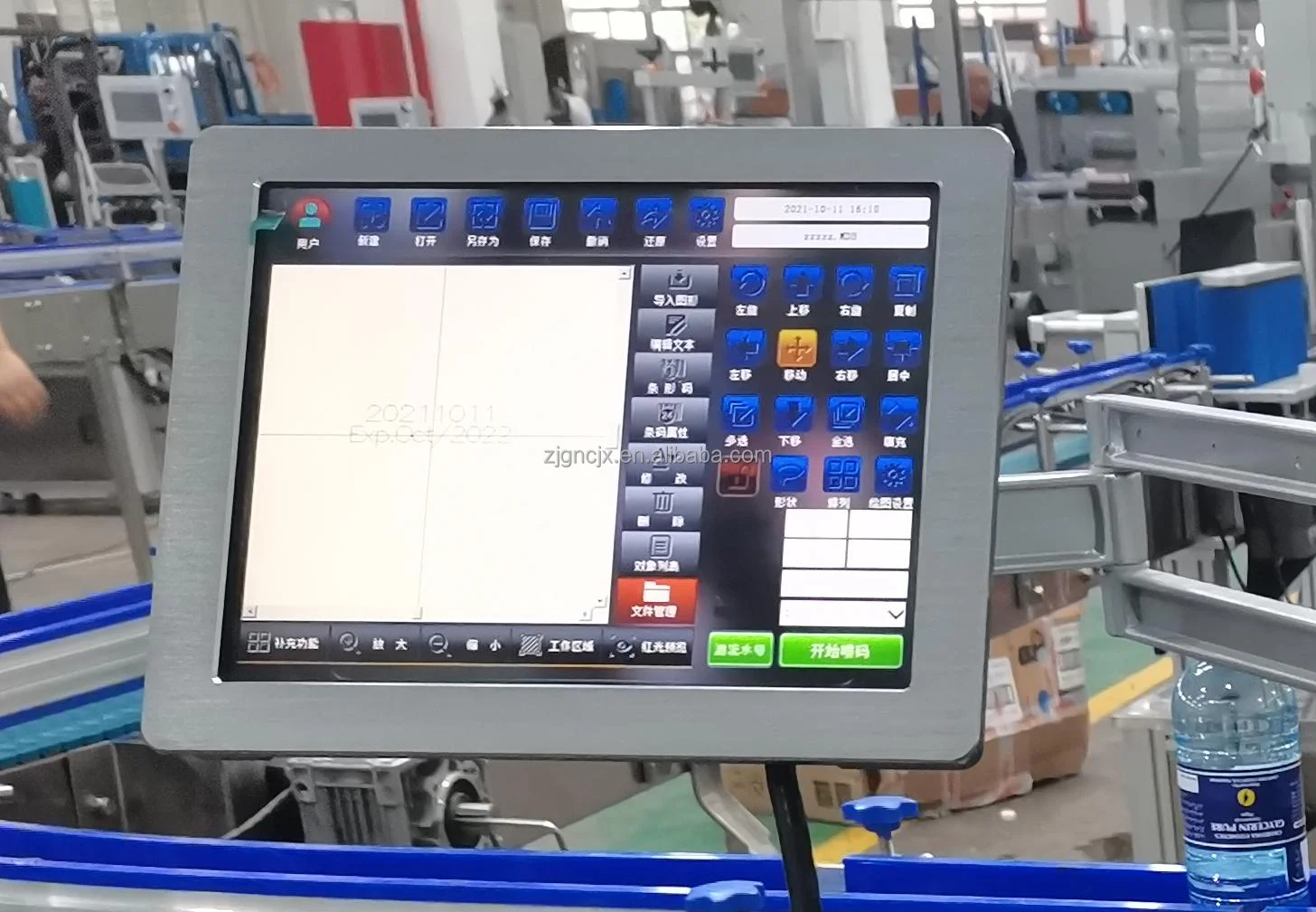

* Touch screen control is easier to operate for a best ease of use
* Application Settings and task creation takes only 2 minutes
* Simple pipelining can be made from the select box menu and preview window
* Automatic detection of ready-to-use encoders and product detectors
* Touch screen control is easier to operate for a best ease of use
* Application Settings and task creation takes only 2 minutes
* Simple pipelining can be made from the select box menu and preview window
* Automatic detection of ready-to-use encoders and product detectors

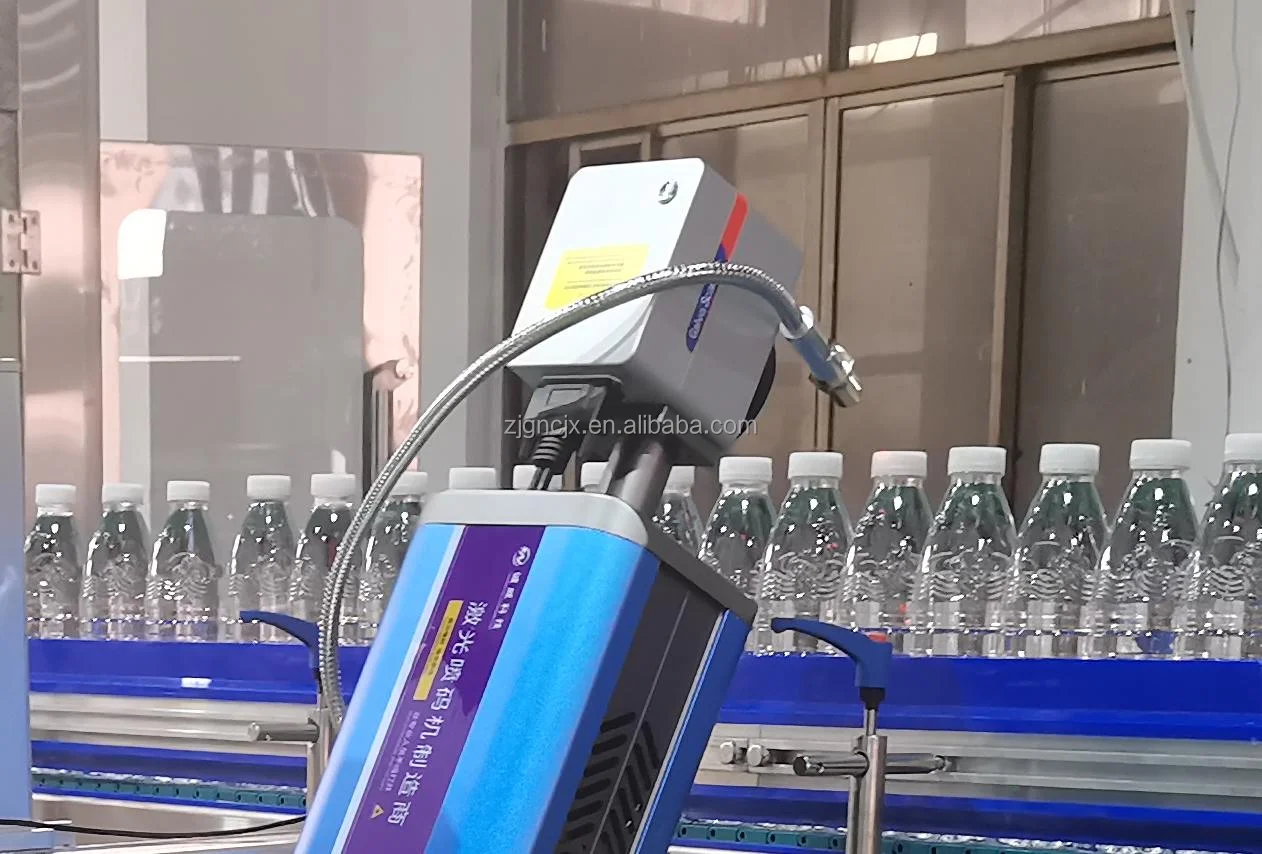

* ··Unique 9.3 wavelength laser, more conducive to high-speed production of beverage production line
* 9.3 wavelength /10.6 wavelength laser,which can meet different materials coding of PET bottle and glass bottle
* 9.3 wavelength /10.6 wavelength laser,which can meet different materials coding of PET bottle and glass bottle
Product Details

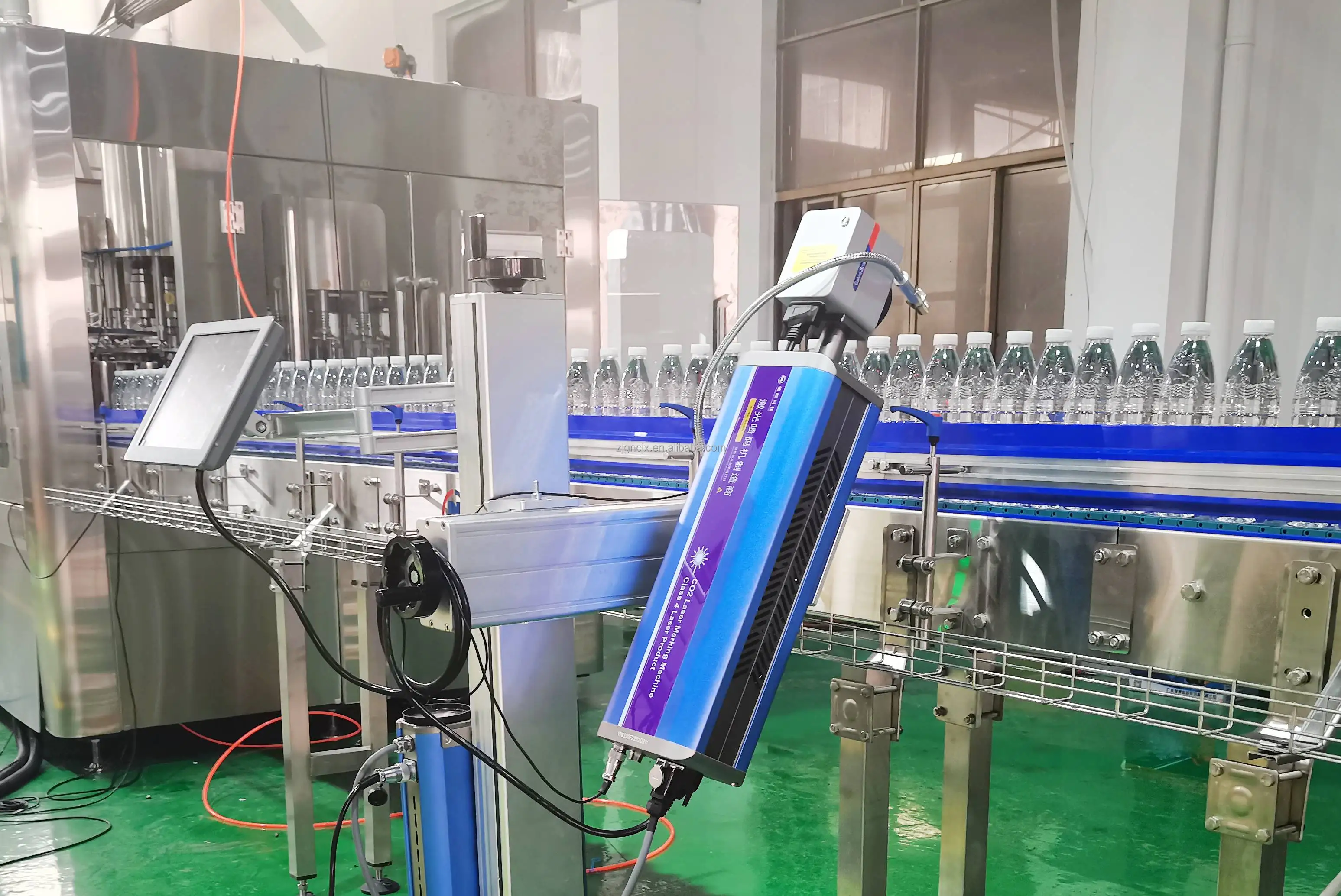

Production line

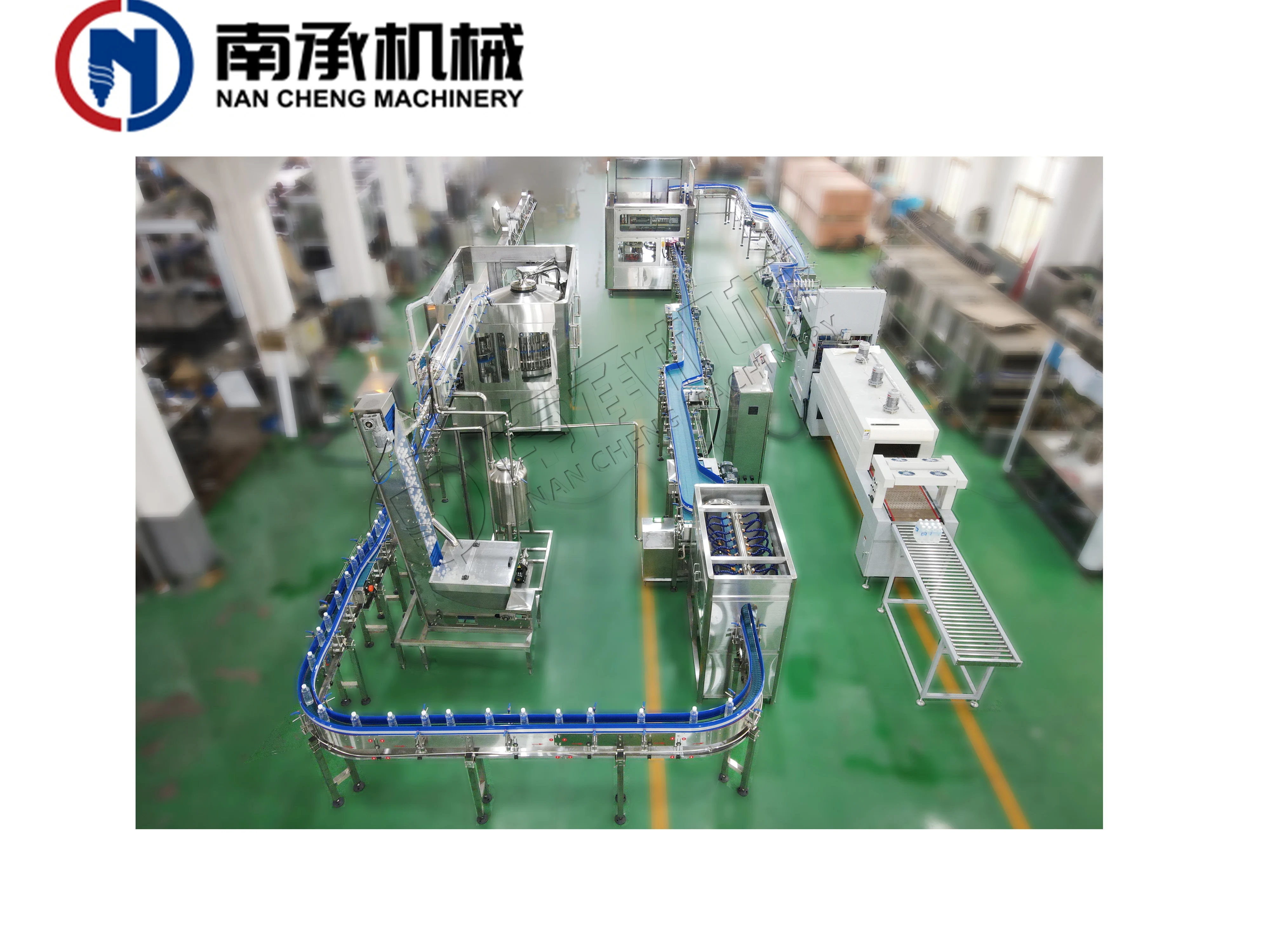

Complete bottled water production line
1. Bottle blowing system to make PET plastic bottles ( Semi automatic / Fully automatic )
2. Water treatment system purify water (Sand filter,carbon filter,RO/UF ,Ozone sterilizer,UV sterilizer and etc.) 3. Air conveyor for empty bottle loading
4. 3 in 1 monoblock Rinser-filler-capper machine
5. Labeling machine(PVC sleeve labeling machine/OPP hot melt glue labeling machine/Self-adheisive labeling machine )
6. Cap loader load caps
7. Code printer (Ink-jet printer/ laser-jet printer)
8. End packaging ( PE film shrink wrapping machine / Carton packing machine )
FAQ
Q1:Do you have any reference project?
>> A1:We have reference project in most countries, and you can visit their factories if we get the permission of the customer.Q2:What's your guarantee or the warranty of the quality if we buy your machines?
>>A2:We offer you high quality machines with 2 years guarantee . we will give u spare part free in 2 years.
Q3: Do you provide customized service?
>> A3: We will customize the machine according to your needs, materil ,power,filling type,the kinds of the bottles and so on.
Q4:When can I get my machine after I paid?
>> A4:We will deliver the machines on time as the date we agreed both side.
Q5:How can I install my machine when it arrives?
>> A5:We will send our engineer to your side as soon as you get all your machines ready, for testing and teaching your technicians how to run the machines.
