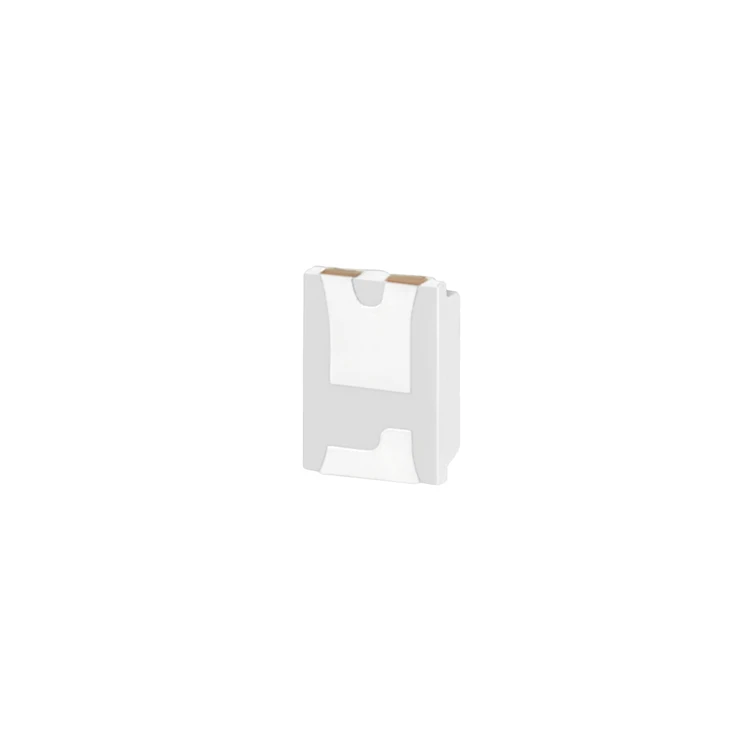

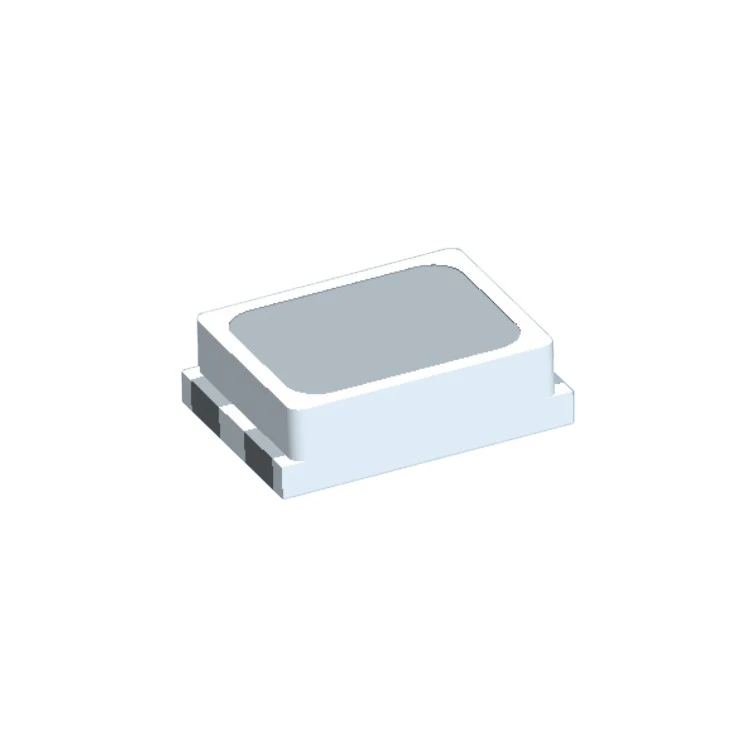

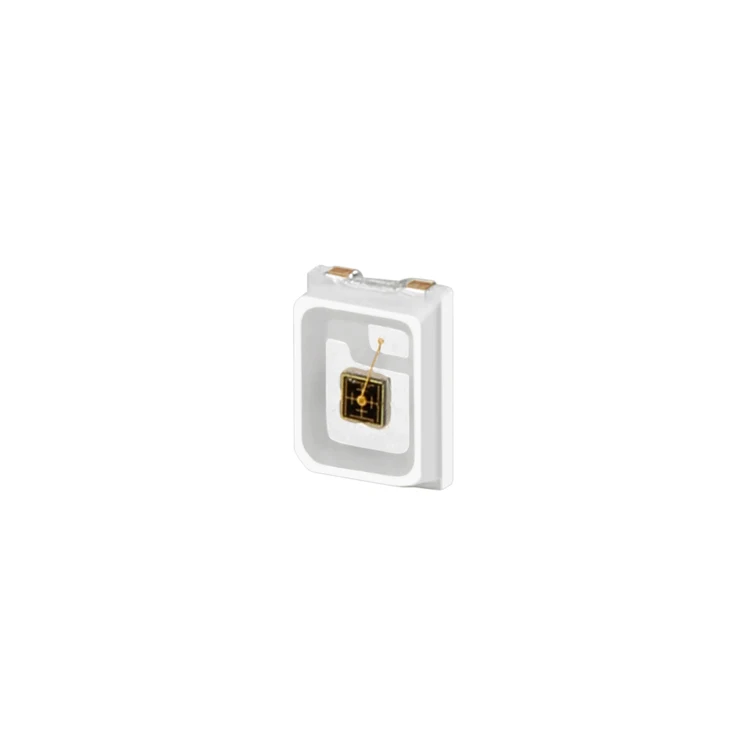

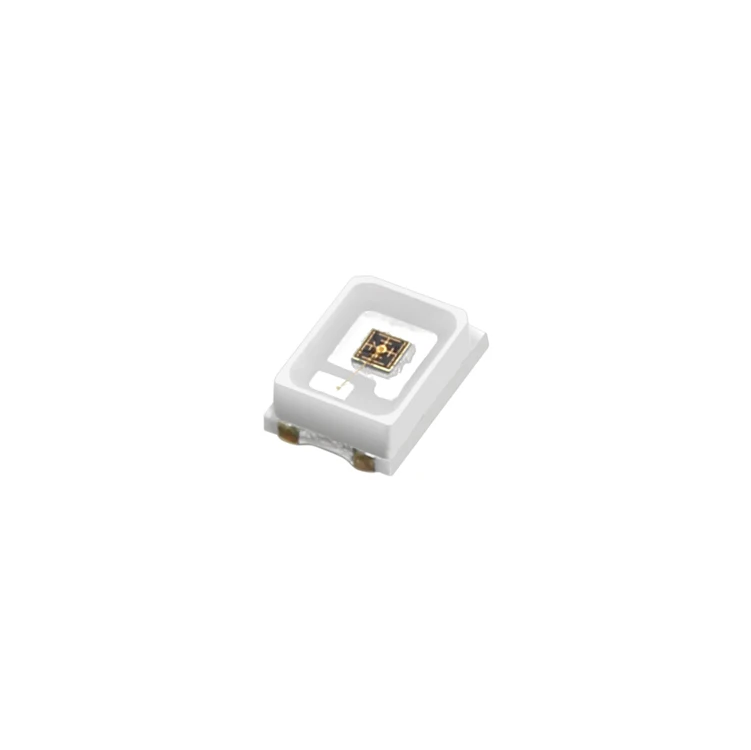

Chip On Board Infrared 2016 Led Smd Infrared Emitter 850nm
- Category: >>>
- Supplier: Shenzhen Hongying Technology Co. Ltd.
Share on (1600512835607):
Product Overview
Description
Free Sample Good Quality High Power 250mA 2016 IR Led Diode 850nm Infrared Smd Led
Applications
1, Infrared remote control units with high power requirement
2, Smoke detector
3, Infrared applied system
4, Infrared illumination for cameras
5, Surveillance systems
Maximum Rating (TSoldering: 25℃)
Parameter | Symbol | Min. | Typical | Max. | Unit |
Forward Current | IF | - | - | 250 | mA |
Peak Forward Current Pulse Width≦100μs ,Duty≦1% | IFP | - | - | 500 | mA |
Reverse Voltage | VR | - | - | 5 | V |
Power Dissipation at(or below) 25℃ Free Air Temperature | Pd | - | - | 500 | mW |
Operating Temperature Range | Top | -40 | - | 85 | ℃ |
Storage Temperature Range | Tstg | -40 | - | 100 | ℃ |
Soldering Temperature | Tsol | - | - | 260 | ℃ |
Electrostatic Discharge(HBM) | ESD | - | - | 2000 | V |
Electro-Optical Characteristics (TSoldering=25℃)
Parameter | Symbol | Min. | Typ. | Max. | Unit | Condition | ||||||
Radiant Intensity | Ee | 20 | 30 | 42 | mW/sr | IF=150mA | ||||||
- | 90 | - | IF=500mA Pulse Width≦100μs ,Duty≦1% | |||||||||
Forward Voltage | VF | 1.4 | 1.6 | 1.9 | V | IF=150mA | ||||||
- | 1.8 | 2.1 | IF=500mA Pulse Width≦100μs ,Duty≦1% | |||||||||
Peak Wavelength | λp | - | 850 | - | nm | IF=150mA | ||||||
Viewing Angle | 2θ1/2 | - | 120 | - | deg | IF=150mA | ||||||
Reverse Current | IR | - | - | 10 | uA | VR =5V | ||||||
Notes: 1, Tolerance of Radiant Intensity: ±10% 2, Tolerance of Forward Voltage: ± 0.05V | ||||||||||||

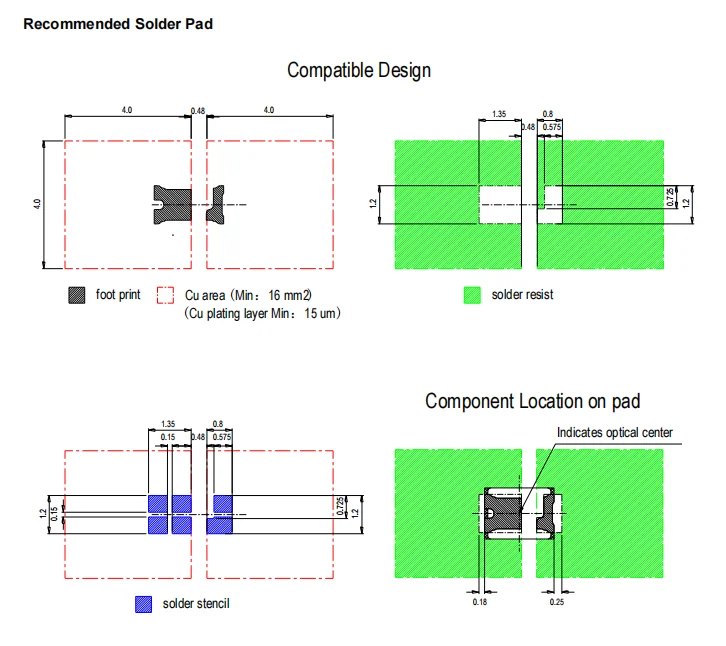

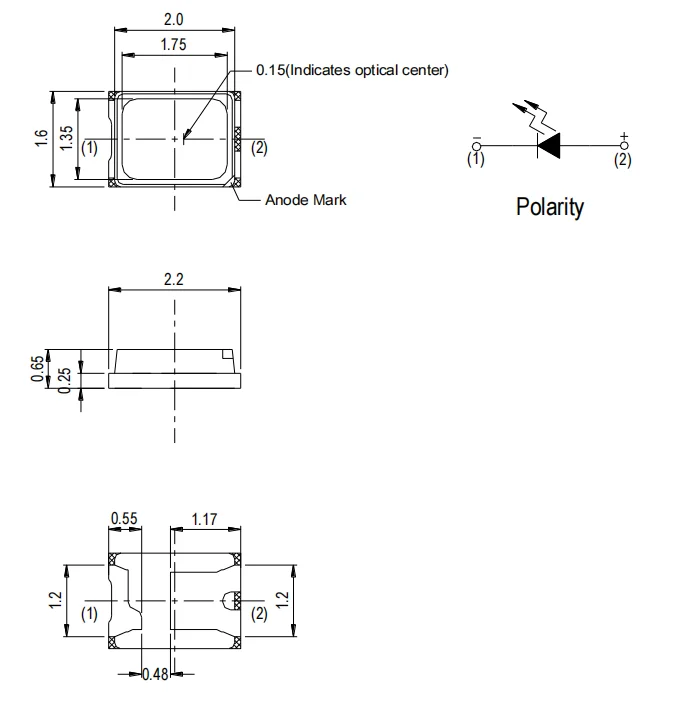

Dimensional Drawing
Remark:
1, All dimensions are in millimeters.
2, Tolerance is ±0.1mm unless other specified.
Our Advantages
FAQ
Q:How about the quality of the leds?
A:Please do not worry about the quality. Our company is the main manufacturer of LEDs in China. Our products have exported worldwide since the year 2010.
Q:Do you offer Custom-made ?
A:Yes , we offer this , but we will charge cost for the custom-made samples .
Q:Can I get free sample?
A:Yes, we can offer free sample for you to check before orderas long as you afford the express freight.
Q:What’s the lead time?
A:Samples delivery out in 3-7 working days.Lead time of mass production needs to negotiate, it depends on quantity.
Q:How about the payment terms?
A:Payment terms: TT in advance (30% of deposit before production and 70% balance before shipment). Please note we do EXW/FOB/CNF/CIF/DDU/DDP.
