Price:$5,200.00 - $5,800.00

Quantity:


Product Overview

Description





Hot Similar Model




Product Description

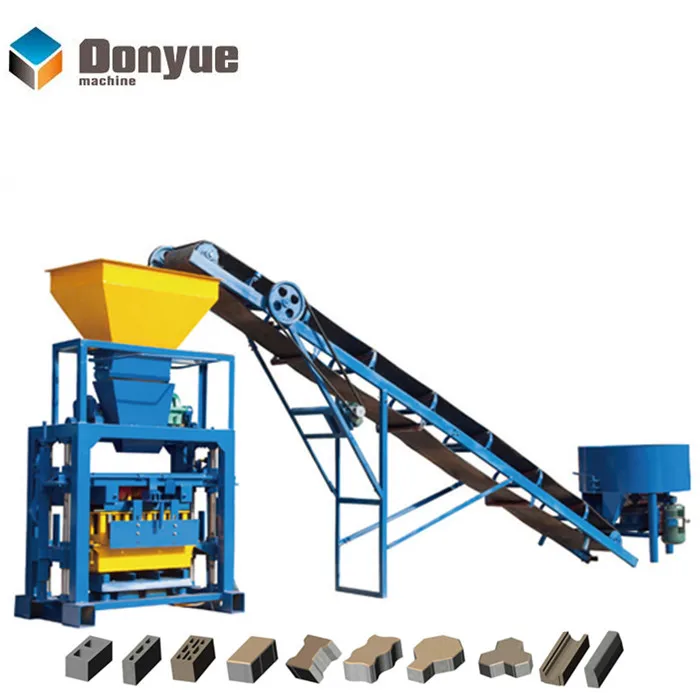

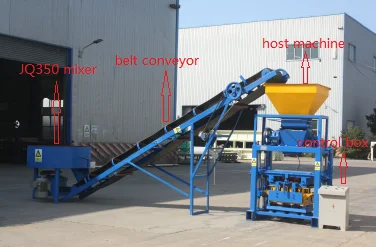

Best selling Semi-automatic line QT40-1
2-3 workers for whole line






QT40-1 - Best selling semi-automatic model
The main advantage of QT40-1 semi auto block making machine.
1.QT40-1 block machine is one of our newly designed block making machine. With less power.
2.It adopts full automatic spiral material laying method, so the material in the mould is well-distributed. With simple operation and high productivity, when producing hollow blocks, it has an advantage over the large hydraulic block machines.

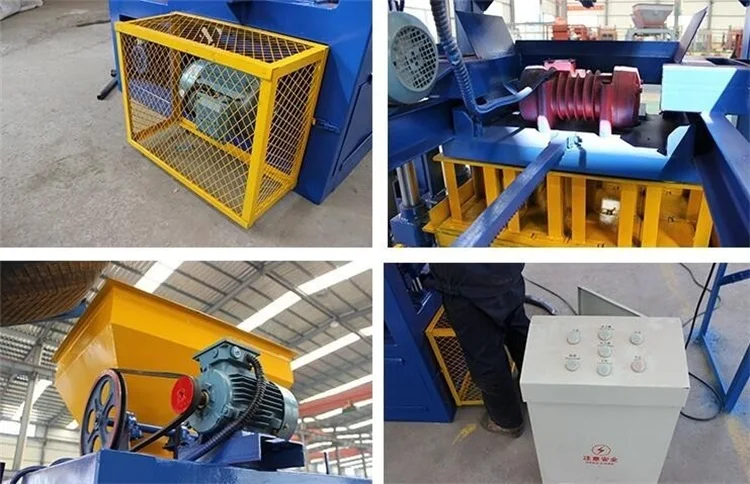

3.It uses Mode 350 speed reducer to raise and lower the mold, so it greatly increases the usage life of the speed reducer.
4.It combines pressure and super vibration. The lower vibration adopts two 3 KW vibrators and the upper vibration adopts two 2.2 KW vibrators, so the blocks made by this machine has high strength and accurate size.Its performance and product quality are comparable to the large equipment.



MAIN TECHNICAL PARAMETER
Dimesion of host machine
1450*1440*2200mm
Total machine power
23KW
Mould period
40S
vibration force
35.5KN
Pallet size
850x450x20mm
Mixer modle
JQ350
Weight of host machine
1300kg
Voltage
380/415/440V

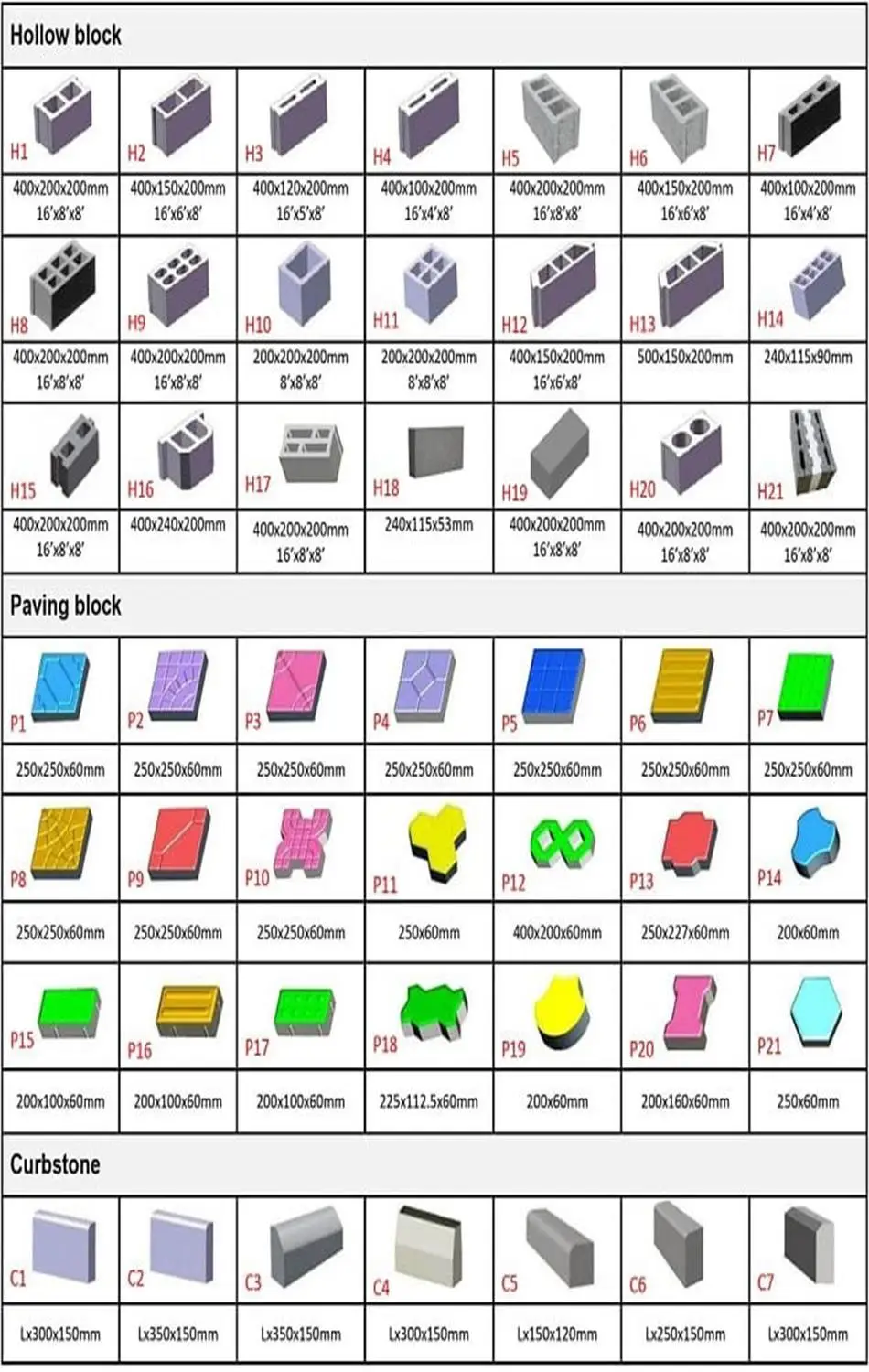

THEORETICAL PRODUCTION CAPACITY
Size (L*W*H)
Pcs/Cycle
Pcs/hour
Pcs /Shift (8 hours)
400x200x200mm
4
360
2800
400x250x200mm
3
270
2160
400x150x200mm
5
450
3600
400x100x200mm
7
630
5040
500X250X200mm hourdis or slab
1
90
720
500X200X200mm hourdis or slab
2
180
1440
500X150X200mm hourdis or slab
3
270
2160
230X110X70mm solid brick
18
1620
12960
200x100x60mm paver block
14
1260
10080
200x163x60mm paver block
8
720
5760
245X112.5X60mm S shape paver
9
810
6480
250x250x60mm Hexagonal brick
3
270
2160
800x80x200mm curbstone
3
180
1440


Production process


Materials
Two options for reference
1. 8%-10% cement, 30-40% sand, 50-60% crushed stone
2. 8-10% cement, 30% fly ash, 60% sand or stone powder
Other materials can also be used

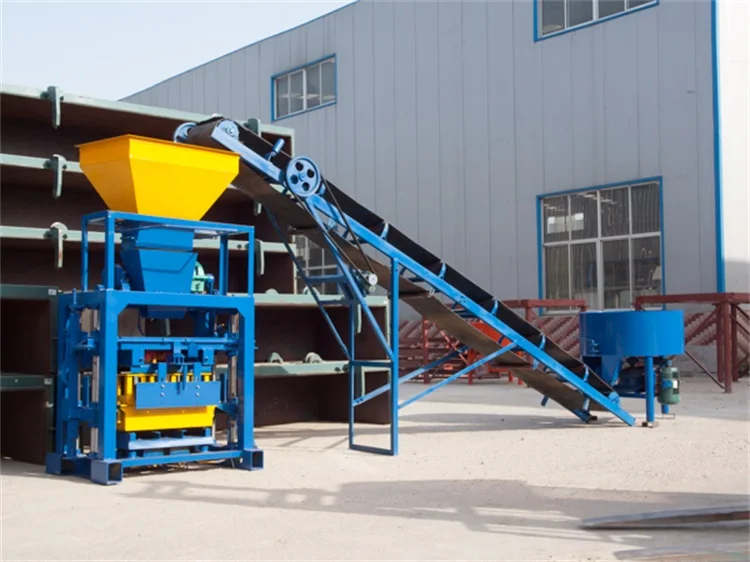

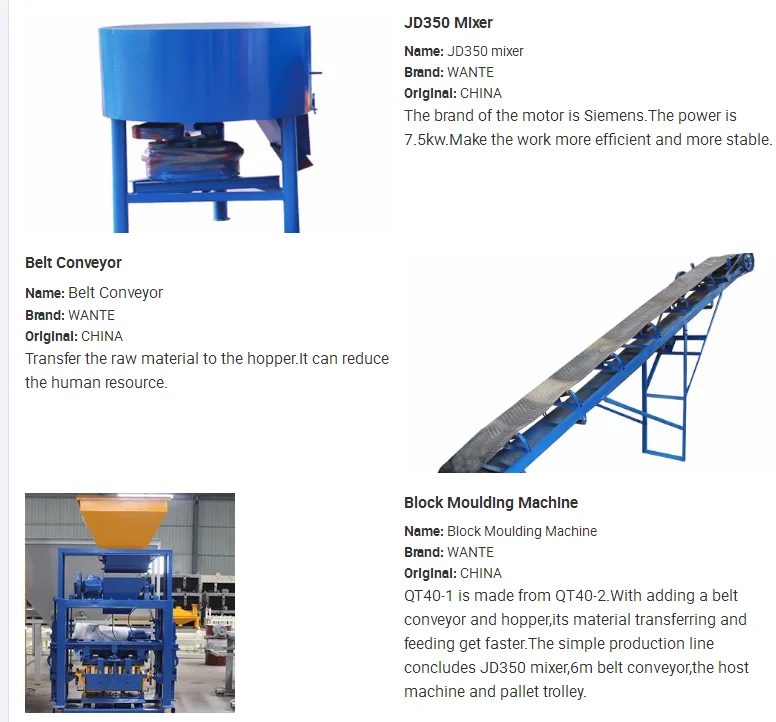

Production process
1. Material Batching and preparation Section: Raw materials are discharged to the mixer. The mixed raw materials are sent to the mixer.
2.Mixing Section: After being mixed evenly with water, raw material are unloaded to the block making machine through belt conveyor.
3.Block forming Section: Mixed raw material are then sent to the mould case. Under PLC computer intelligent control. Hydraulic transmission, vibration, shaping takes place.
4.Automatic Stacker Section: After demoulding ,green brick will be unloaded to the bamboo pallet.

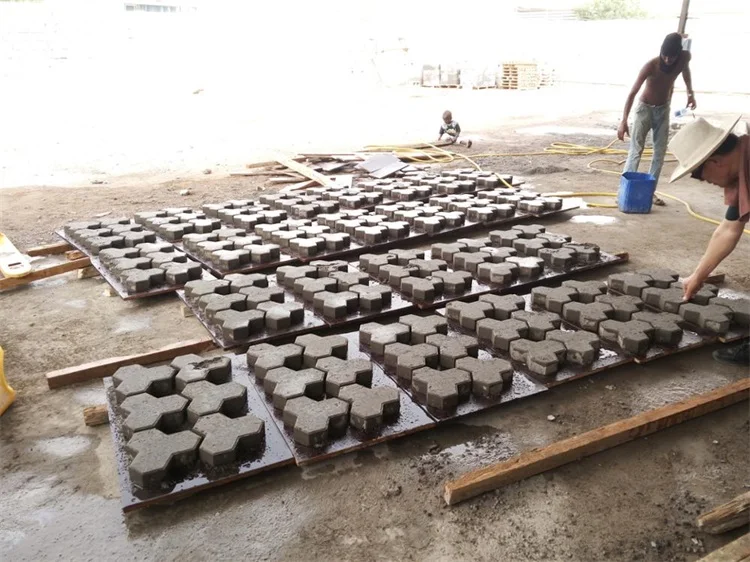

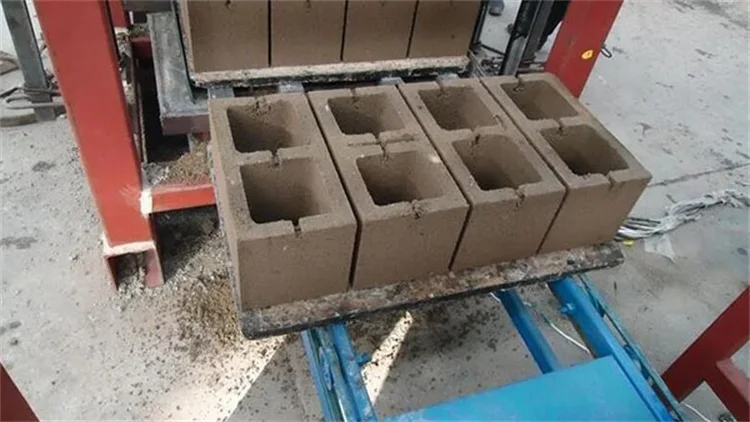

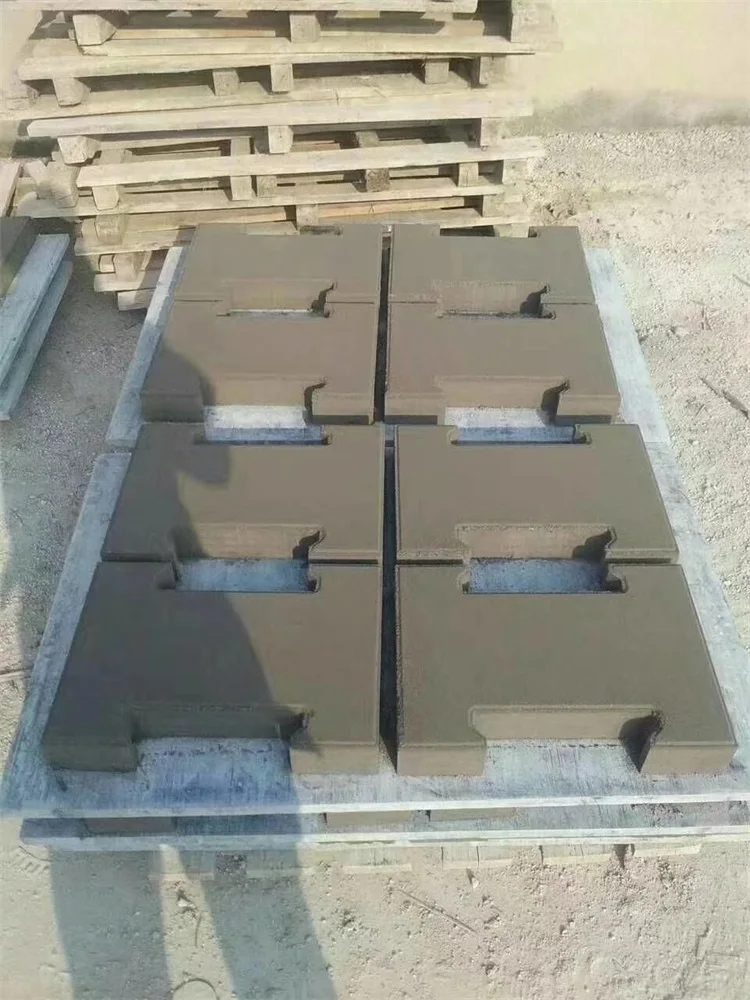

Finished blocks








Packing & Delivery


About loading into containers
One 20ft container can load 2 sets QT40-1 line.
One 20ft container can load 1 set QT40-1 line with 800pcs pallets.
One 20ft container can load 1 set QT40-1 line with stacker and 200pcs pallets.
One 40HQ container can load 14 sets QT40-1 host machine.


Company Profile








DONGYUE MACHINERY GROUP CO.,LTD - Since 1994
Long History With Rich Experience: Our company has been in brick making machine for 28 years .With long time experience, our customers come from Middle East,South East Asia,Africa,South American and we has exported more than 40 countries.
Sincere Service return to our customers: Our block machine has providedmore than 1,000 sets of block machines to different customers to make huge profit.
Perfect After-sale Service : Up to now,we already have office in India, Vietnam,Indonesia.If any problem can not be solved, we will fly to your site for help.Installation concrete blockmachine& train of workers

LINYI Dongyue Building Material Machinery Co.,ltd , which was organized in 2011 is a Chinese manufacturer of dedicated machinery for construction blocks and panels. Our company offers complete production lines for premium building components such as the autoclaved aerated concrete block, autoclaved lightweight concrete panel. Additionally, we provide various types of pressure vessels and block-making machines. By choosing DONGYUE, customers can enjoy professional benefits with our dedicated services for design, installation, layout planning, technology transfer, and production guidance.
we will exceed all expectations. With quality as our highest priority, we have established an optimized control & regulation system. Support from a large distribution network and world-class customer service have allowed our products to gain momentum in a fiercely competitive market. We have led the competition by passing the certifications of both CE and the ISO9001:2000 Management System.Together, we will create a brighter tomorrow!
