2016 IR SMD Led Infrared Diode Ir Infrared Receiver/Emitter Led 850/940nm
- Category: >>>
- Supplier: Shenzhen Hongying Technology Co. Ltd.
Share on (1600512846549):
Product Overview
Description

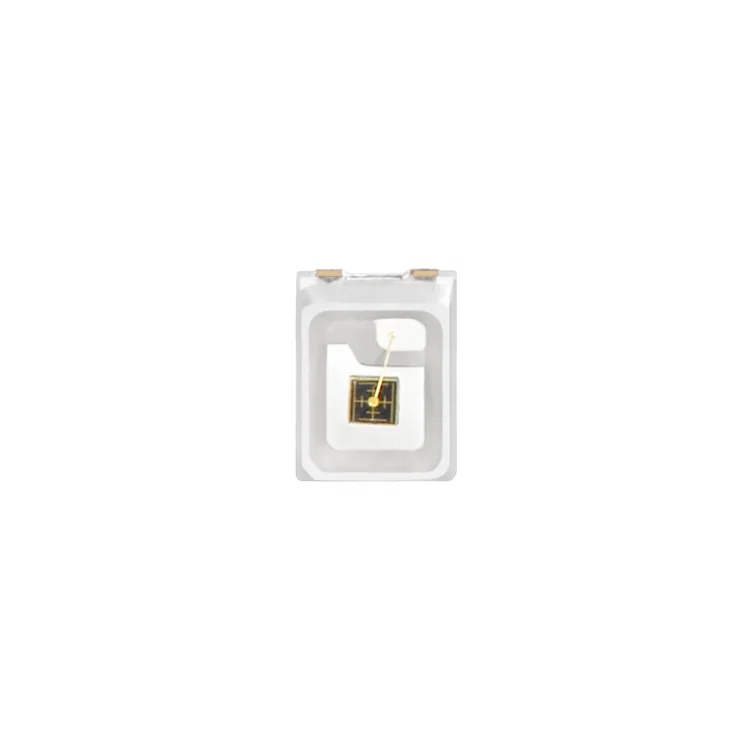

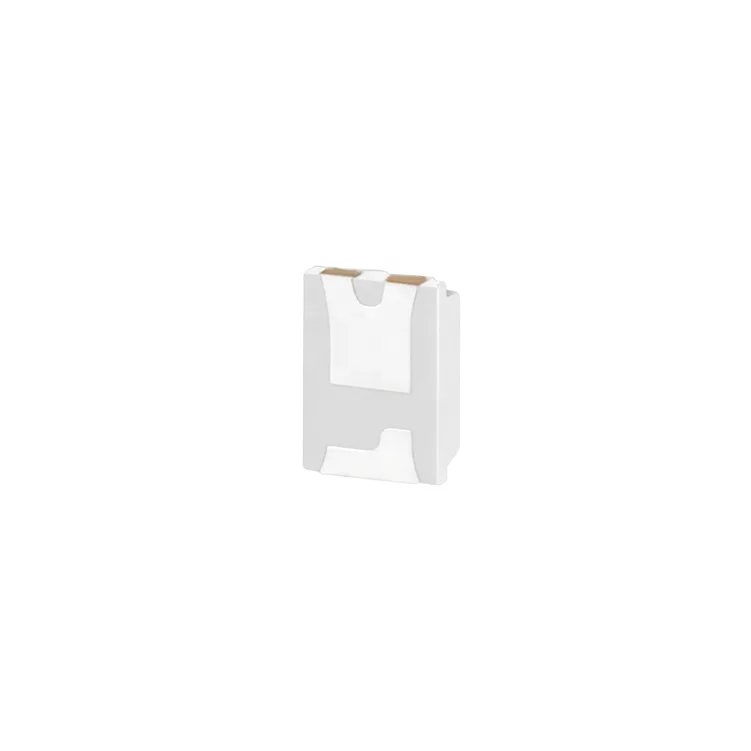

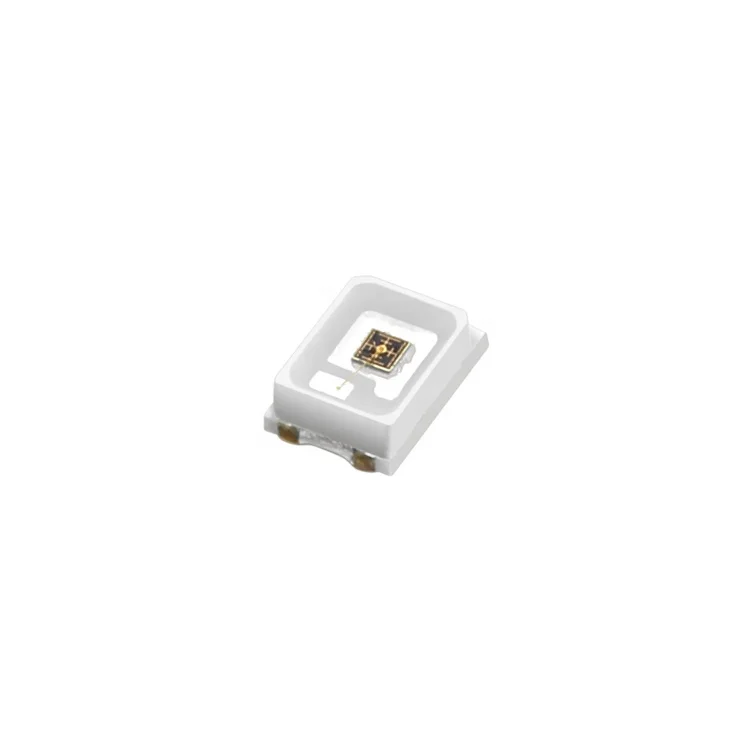

High Power Near Infrared Led Light Source Top View 2016 Infrared Smd Led 940nm
Applications
1, Infrared remote control units with high power requirement
2, Smoke detector
3, Infrared applied system
4, Infrared illumination for cameras
5, Surveillance systems
Maximum Rating (Ta : 25℃)
Parameter | Symbol | Min. | Typical | Max. | Unit |
Forward Current | IF | - | - | 100 | mA |
Peak Forward Current Pulse Width≦100μs ,Duty≦1% | IFP | - | - | 300 | mA |
Reverse Voltage | VR | - | - | 5 | V |
Power Dissipation at(or below) 25℃ Free Air Temperature | Pd | - | - | 150 | mW |
Operating Temperature Range | Top | -40 | - | 85 | ℃ |
Storage Temperature Range | Tstg | -40 | - | 100 | ℃ |
Soldering Temperature | Tsol | - | - | 260 | ℃ |
Electrostatic Discharge(HBM) | ESD | - | - | 2000 | V |
Electro-Optical Characteristics (TSoldering=25℃)
Parameter | Symbol | Min. | Typ. | Max. | Unit | Condition | ||||||
Radiant Intensity | Ee | 7 | 10 | 14 | mW/sr | IF=60mA | ||||||
- | 45 | - | IF=300mA Pulse Width≦100μs ,Duty≦1% | |||||||||
Forward Voltage | VF | 1.1 | 1.4 | 1.7 | V | IF=60mA | ||||||
- | 1.7 | 2.1 | IF=300mA Pulse Width≦100μs ,Duty≦1% | |||||||||
Peak Wavelength | λp | - | 940 | - | nm | IF=60mA | ||||||
Viewing Angle | 2θ1/2 | - | 120 | - | deg | IF=60mA | ||||||
Reverse Current | IR | - | - | 10 | uA | VR =5V | ||||||
Notes: 1, Tolerance of Radiant Intensity: ±10% 2, Tolerance of Forward Voltage: ± 0.05V | ||||||||||||
Dimensional Drawing
Remark:
1, All dimensions are in millimeters.
2, Tolerance is ±0.1mm unless other specified.
