Automatic wire bonder Lithium Ion Battery Pack Assembly Line Ultrasonic Aluminum Wire Bonder Bonding Machine Welder
- Category: >>>
- Supplier: Guangzhou Minder-Hightech Co. Ltd.
Share on (1600512847825):
Product Overview
Description
Products Description

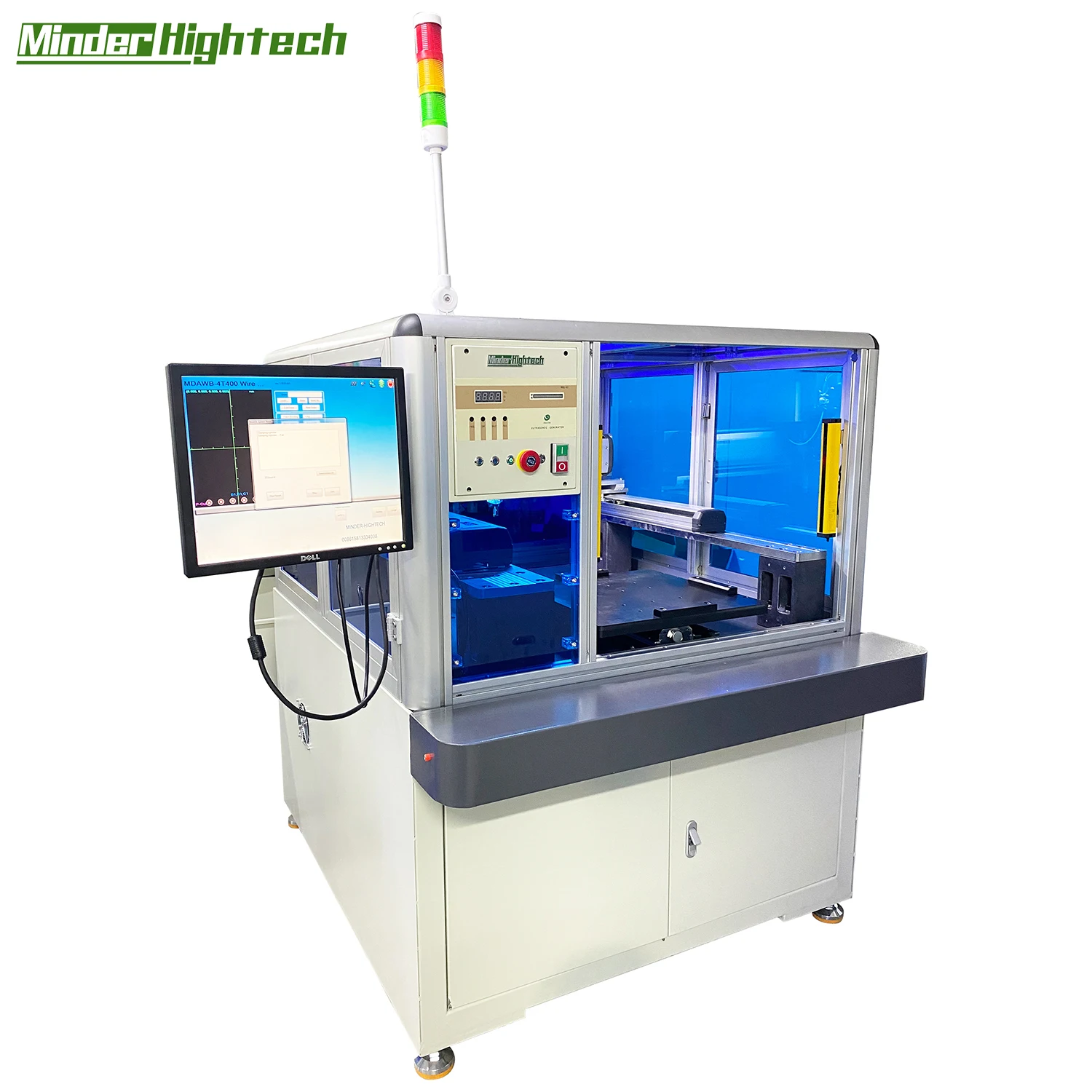

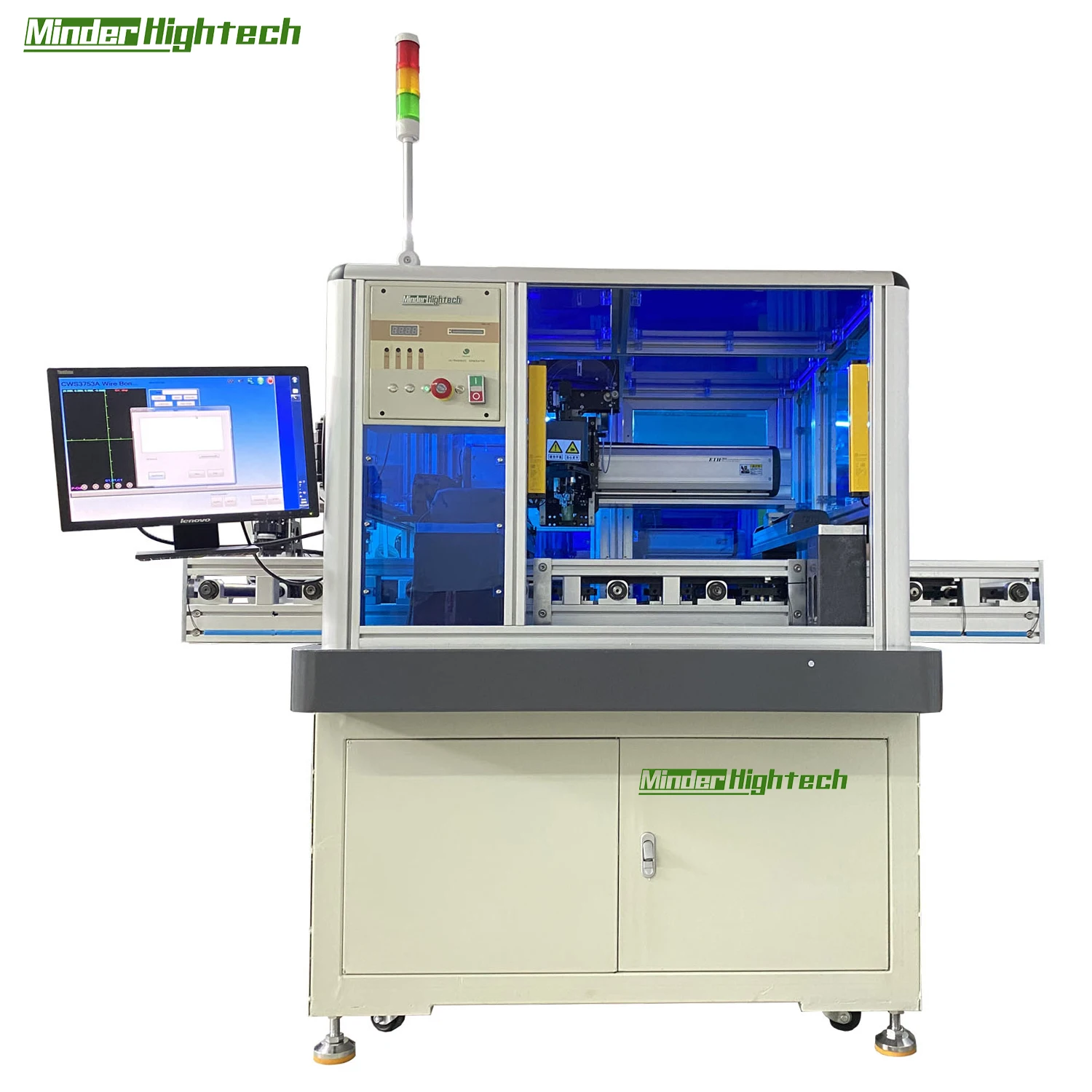

Automatic wire bonder MDAWB-4NL400
New type Automatic wire bonder MDAWB-4T400
Applications

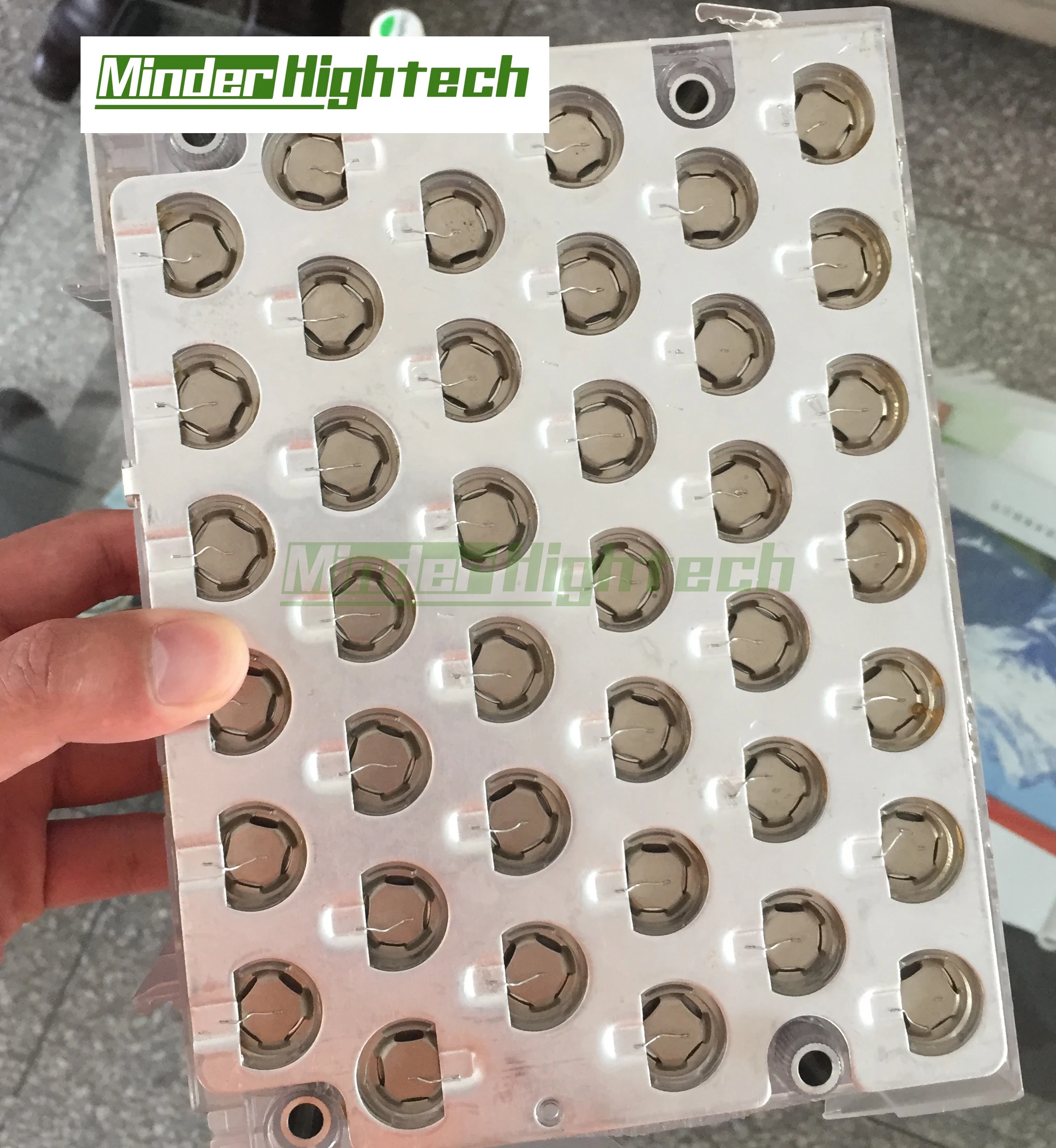

18650,26800,21700
lithium battery wire bonding.or other connection
lithium battery wire bonding.or other connection

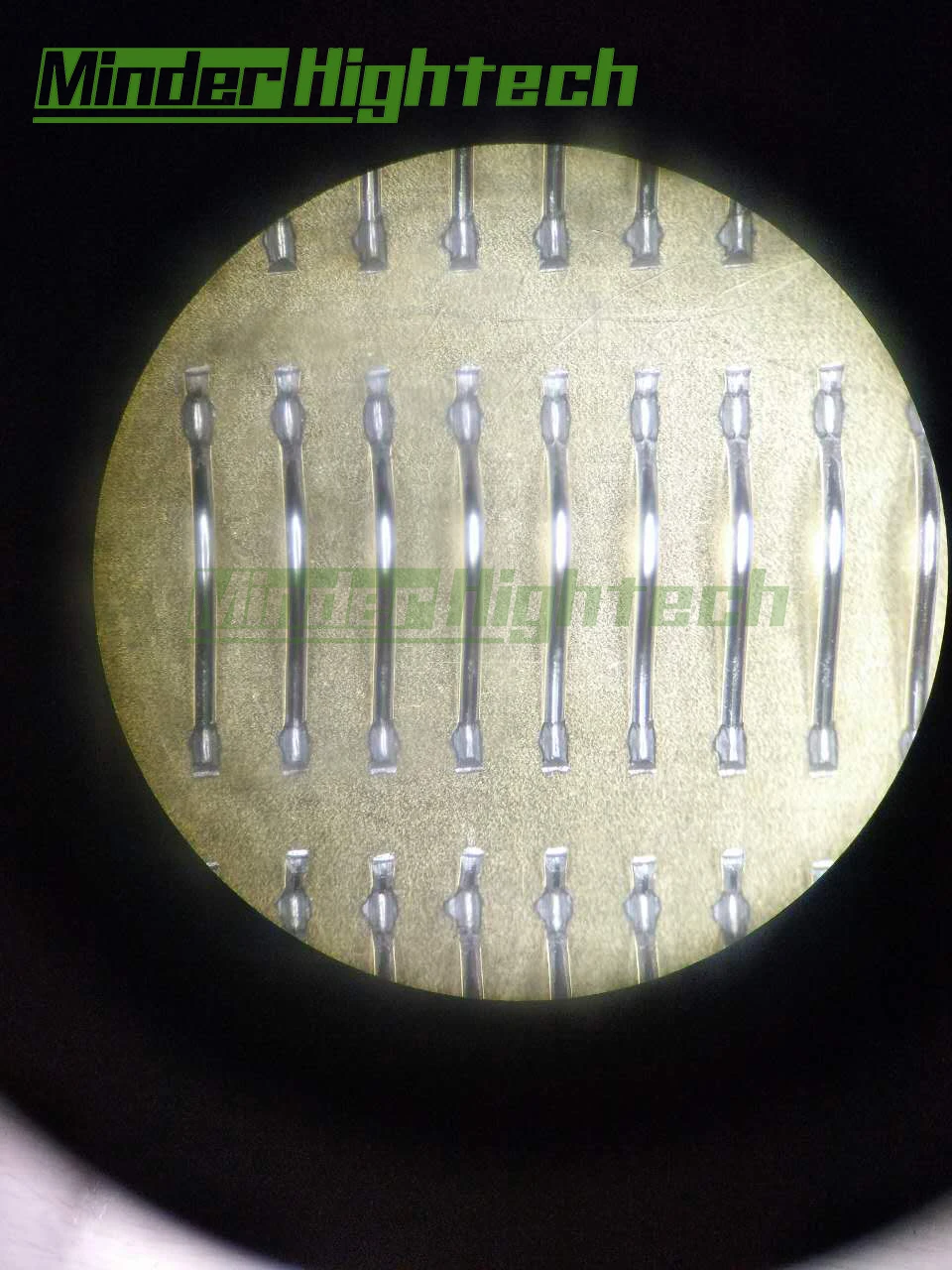

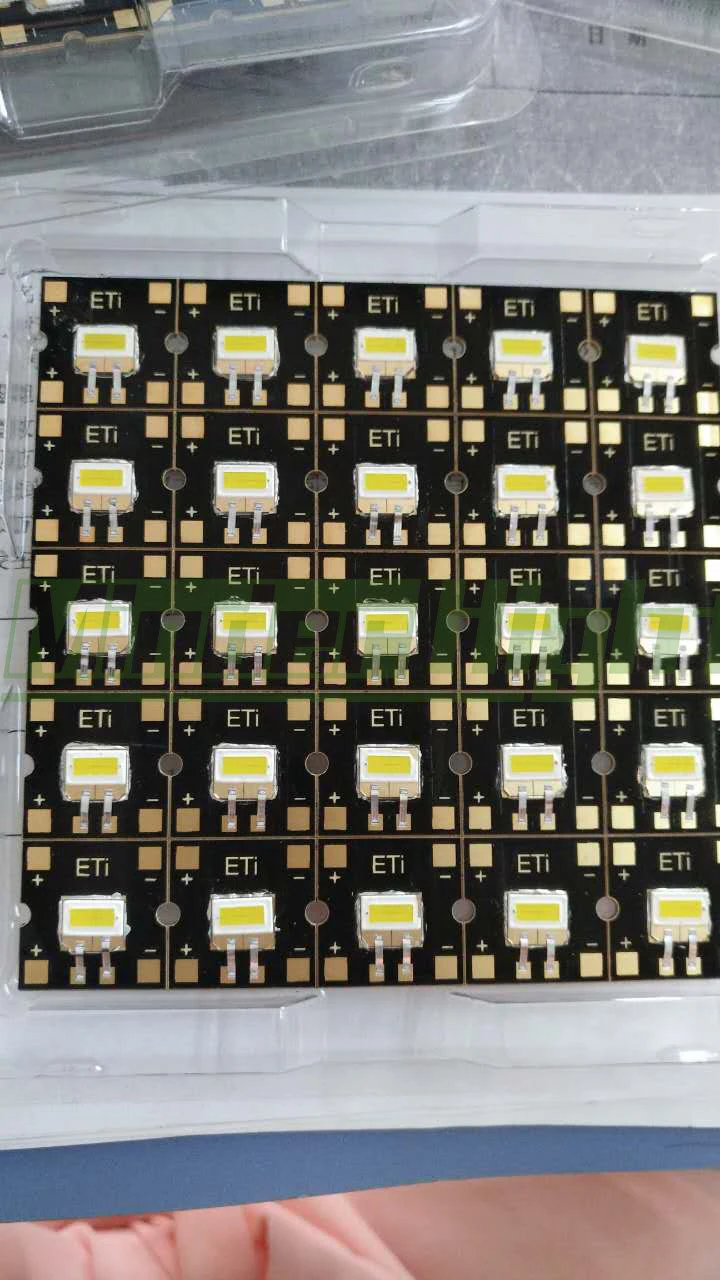

Sample
Product advantages
1,First using rotary bonding head.
2,Digital & automatic frequency tracking ultrasonic system.
3,Digital pressure adjustment system.
4,With advance pattern recognizing system.
5,Full closed-loop motion control system.
6,With like bad bondingor wire feeding block etc.
full error alarm, ensure bonding quality.
7,Optional automatic bond tester.
8,Manual upload, automatic recognition and bonding,manual download.
2,Digital & automatic frequency tracking ultrasonic system.
3,Digital pressure adjustment system.
4,With advance pattern recognizing system.
5,Full closed-loop motion control system.
6,With like bad bondingor wire feeding block etc.
full error alarm, ensure bonding quality.
7,Optional automatic bond tester.
8,Manual upload, automatic recognition and bonding,manual download.
Specification
Power:220v,50Hz,800w.
Suit for aluminum wire:125-500um(5-20mil)
Suit for aluminum wire:125-500um(5-20mil)
Ultrasonic:
frequency:60kHz.
Power:0-30w. automatic changing between first bonding and second bonding.
X axis accuracy:0.02mm.
Time:10-500ms. (multi channel.)
Bonding pressure:50-1200g(multi channel)
Bonding speed:2s/wire.depending on other situation.
Working area:
XY:400*800mm(with Rail transportation from left to right, can connect to production line).
Z:50mm.
C:+-90degree.
Dimension:1500mm*2200mm*1900mm
Weight:~1220KG
frequency:60kHz.
Power:0-30w. automatic changing between first bonding and second bonding.
X axis accuracy:0.02mm.
Time:10-500ms. (multi channel.)
Bonding pressure:50-1200g(multi channel)
Bonding speed:2s/wire.depending on other situation.
Working area:
XY:400*800mm(with Rail transportation from left to right, can connect to production line).
Z:50mm.
C:+-90degree.
Dimension:1500mm*2200mm*1900mm
Weight:~1220KG
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Our customers

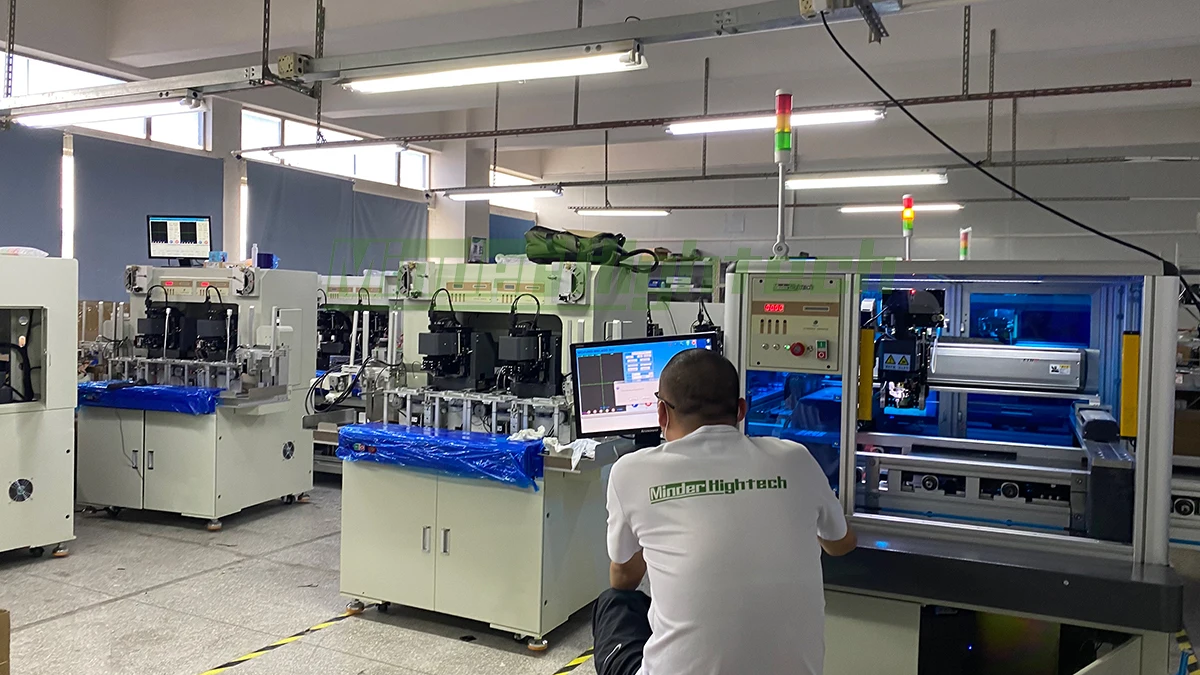

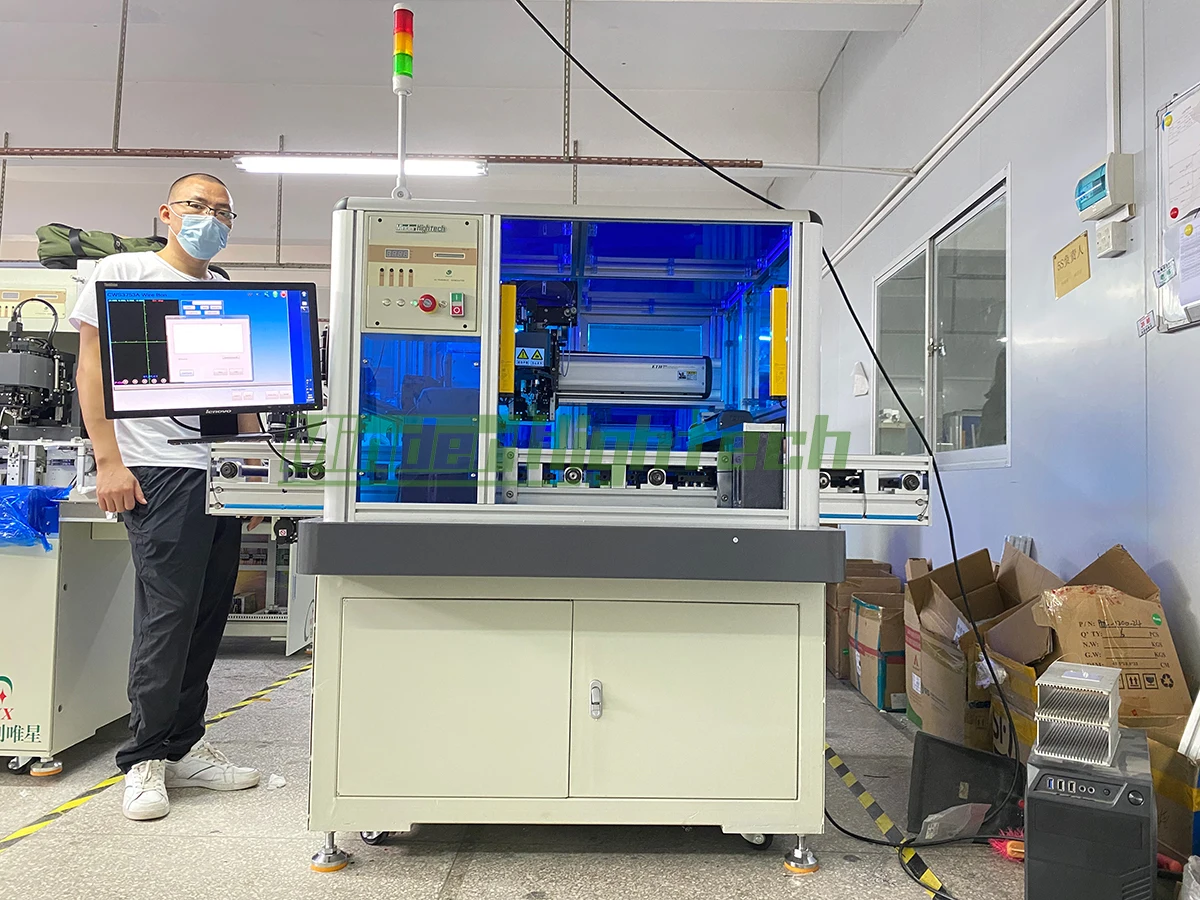

Factory
If you want to konw more,please contact our sales engineer:
