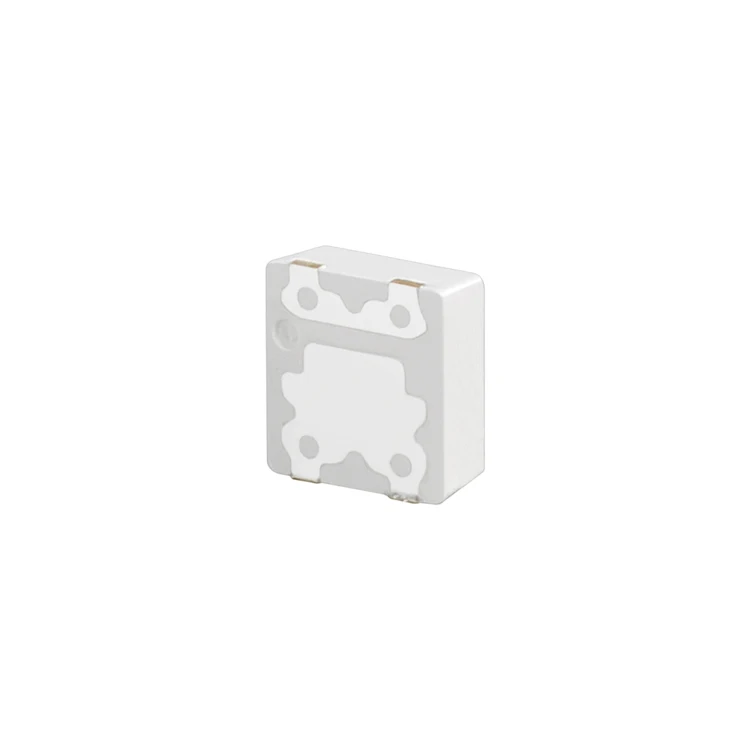

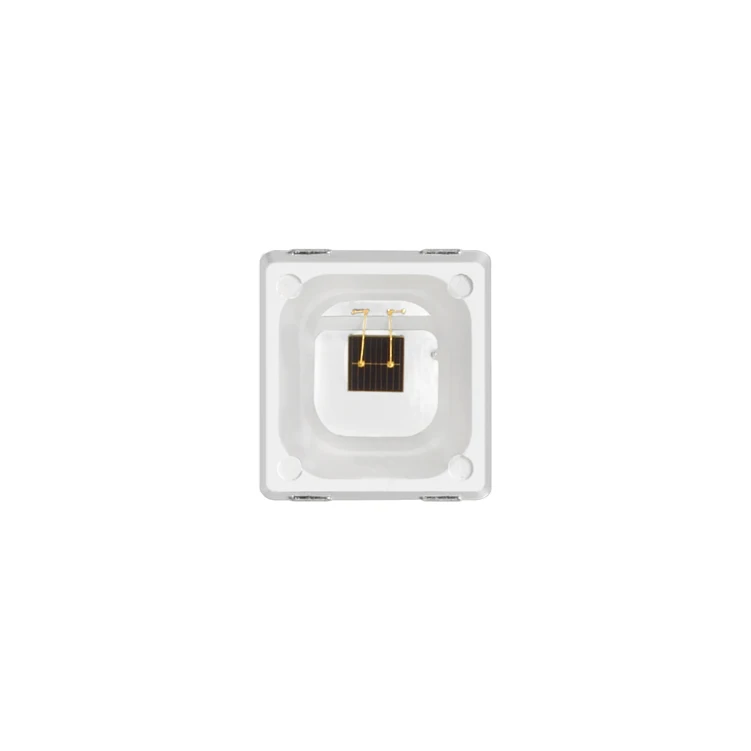

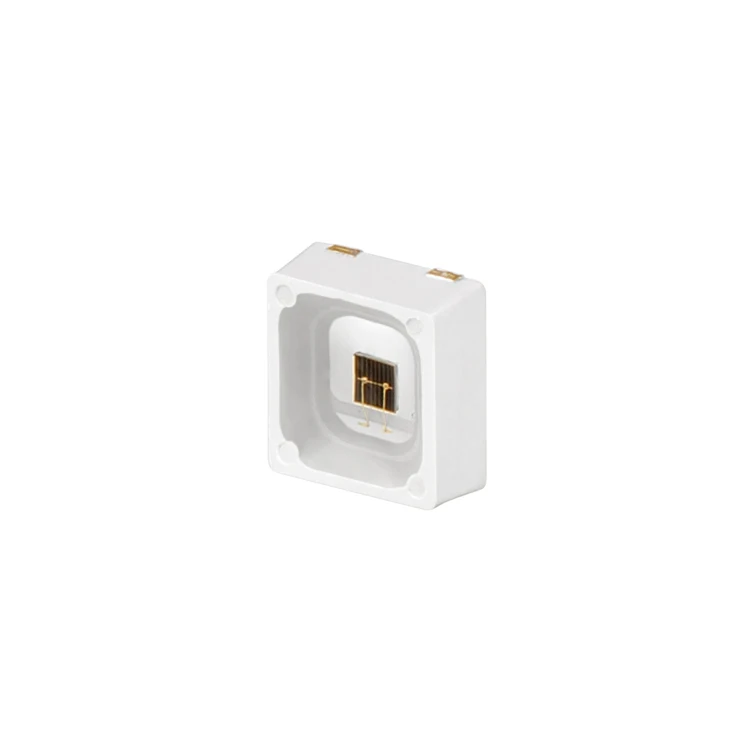

High Power Infrared Led 3432 940nm Infrared Led Emitter For Surveillance Systems
- Category: >>>
- Supplier: Shenzhen Hongying Technology Co. Ltd.
Share on (1600512854865):
Product Overview
Description
New Product Top View 3432 Infrared Leds 850 940nm 3432 Infrared Detector Led Sensor
Applications
1, Infrared remote control units with high power requirement
2, Smoke detector
3, Infrared applied system
4, Infrared illumination for cameras
5, Surveillance systems
Maximum Rating (Ta : 25℃)
Parameter | Symbol | Min. | Typical | Max. | Unit | |||||
Forward Current | IF | - | - | 100 | mA | |||||
Peak Forward Current Pulse Width≦100μs ,Duty≦1% | IFP | - | - | 300 | mA | |||||
Reverse Voltage | VR | - | - | 5 | V | |||||
Power Dissipation at(or below) 25℃ Free Air Temperature | Pd | - | - | 150 | mW | |||||
Operating Temperature Range | Top | -40 | - | 85 | ℃ | |||||
Storage Temperature Range | Tstg | -40 | - | 100 | ℃ | |||||
Soldering Temperature | Tsol | - | - | 260 | ℃ | |||||
Notes: 1, For other ambient, limited setting of current will depend on de-rating curves. 2, When drive on maximum current , Tj must be kept below 150℃ | ||||||||||
Electro-Optical Characteristics (TSoldering=25℃)
Parameter | Symbol | Min. | Typ. | Max. | Unit | Condition |
Radiant Intensity | Ee | 7 | 11 | 14 | mW/sr | IF=60mA |
- | 45 | - | IF=300mA Pulse Width≦100μs ,Duty≦1% | |||
Forward Voltage | VF | 1.2 | 1.4 | 1.8 | V | IF=60mA |
- | 1.7 | 2.1 | IF=300mA Pulse Width≦100μs ,Duty≦1% | |||
Peak Wavelength | λp | - | 940 | - | nm | IF=60mA |
Viewing Angle | 2θ1/2 | - | 120 | - | deg | IF=60mA |
Reverse Current | IR | - | - | 10 | uA | VR =5V |
Dimensional Drawing
Remark:
1, All dimensions are in millimeters.
2, Tolerance is ±0.1mm unless other specified.
Our Advantages
FAQ
Q:How about the quality of the leds?
A:Please do not worry about the quality. Our company is the main manufacturer of LEDs in China. Our products have exported worldwide since the year 2010.
Q:Do you offer Custom-made ?
A:Yes , we offer this , but we will charge cost for the custom-made samples .
Q:Can I get free sample?
A:Yes, we can offer free sample for you to check before orderas long as you afford the express freight.
Q:What’s the lead time?
A:Samples delivery out in 3-7 working days.Lead time of mass production needs to negotiate, it depends on quantity.
Q:How about the payment terms?
A:Payment terms: TT in advance (30% of deposit before production and 70% balance before shipment). Please note we do EXW/FOB/CNF/CIF/DDU/DDP.
