Hot Sale Medical Electrocardiogram 12 Leads 3 Channel Veterinary Digital Portable Ecg Ekg Cardiograph Machine
- Category: >>>
- Supplier: Sino-Hero(shenzhen) Bio-Medical Electronics Co. Ltd.
Share on (1600512884418):
Product Overview
Description
Product Description
Product Name: | SE508-VET dynamic ECG holter |
Display Mode: | 4.3'' color TFT-LCD |
Classification: | Biochemical Analysis System |
Feature: | Testing Device |
Language version: | 18 Languges Optional |
Accuracy: | 95.5% |
Function: | for detecting body helth after excencise |
Color: | white |
Memory: | Memory Stores Minimum190000 Results |
Number of channels: | 12-Channels |
Standard Sensitivity: | 10mm/mV±5% |
Noise level: | ≤30μV |
Scale voltage: | 1mV±5% |

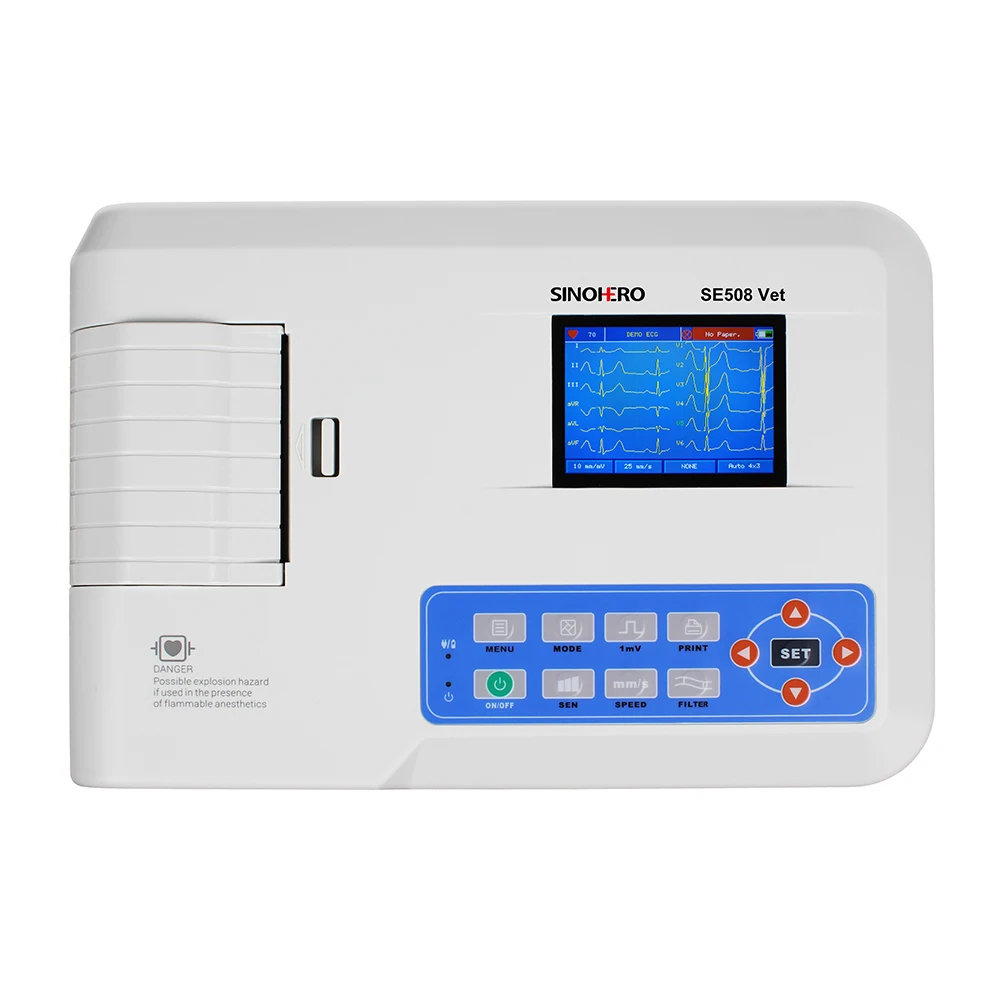

SINOHERO SE508-VET Hot Sale Medical Electrocardiogram 12 Leads 3 Channel Veterinary Digital Portable Ecg Ekg Cardiograph Machine
● Introduction:SE508-VET is a three channel electrocardiograph sampling ECG signals simultaneously and printing ECG waveform with thermal printing system, which features in, record and display ECG waveform in manual or auto-mode, promptings for “Lead off” and “Lack of paper”, multiple languages interface, support both AC and DC for power supply, optional rhythm lead that convenient for abnormal heart rate observation, case database management, etc.
● Features:
1)Sync sampling, digital signal processor, gets better quality ECG waveform by ECG signals filtering through the power frequency filter, baseline filter and EMG filter.
2)Display 3/6/12-lead ECG waveform, and states of print mode, sensitivity, paper speed, filter, etc. in one screen, convenient for contrastively diagnosing.
3)Multi-print mode and format: manual and automatic 4×3, auto 3×4+1, auto 3×4, auto 2×6+1, auto 2×6, auto 3-2+1, auto 3-2, auto 1x12+1, auto 1x12, rhythm 4, rhythm 3 and rhythm2, etc. Waveform length can be adjusted and timing print function is available, which meets the need of different applications.
4)Built-in high-capacity memorizer can store up to 1000 cases, which is convenient for doctor’s review and statistic.
5)The interface languages including: Chinese, English, Spanish, Turkish, Polish, Italian, French, German, Portuguese, Kazak Tili, Russian, Ukrainian, Serbian and Slovenian. Also the reports can be printed in all languages above.
1)Sync sampling, digital signal processor, gets better quality ECG waveform by ECG signals filtering through the power frequency filter, baseline filter and EMG filter.
2)Display 3/6/12-lead ECG waveform, and states of print mode, sensitivity, paper speed, filter, etc. in one screen, convenient for contrastively diagnosing.
3)Multi-print mode and format: manual and automatic 4×3, auto 3×4+1, auto 3×4, auto 2×6+1, auto 2×6, auto 3-2+1, auto 3-2, auto 1x12+1, auto 1x12, rhythm 4, rhythm 3 and rhythm2, etc. Waveform length can be adjusted and timing print function is available, which meets the need of different applications.
4)Built-in high-capacity memorizer can store up to 1000 cases, which is convenient for doctor’s review and statistic.
5)The interface languages including: Chinese, English, Spanish, Turkish, Polish, Italian, French, German, Portuguese, Kazak Tili, Russian, Ukrainian, Serbian and Slovenian. Also the reports can be printed in all languages above.
● Function:
1)Sync collection for 12-lead ECG, adopt digital signal processing technology and get high-quality ECG waveform via power frequency filter, baseline filter and EMG filter of ECG signal.
2)Display of 3/6/12-lead ECG, print mode, sensitivity, paper speed and filter state, etc. on one screen, convenient for contrastively diagnosing.
3)Multiply printing modes and formats, including manual, auto 4×3, auto 3×4+1, auto 3×4, auto 2×6+1, auto 2×6, auto 3-2+1, auto 3-2, auto 1×12+1, auto 1×12, rhythm 4, rhythm 3 and rhythm 2, etc. Waveform length printed can be adjusted, and with time print function, which meets different requirements.
4)With the functions of auto-analysis and auto-diagnosis for routine ECG parameters, provide measurement results and auto-diagnosis conclusion for HR, P-R interval, P Duration, QRS Duration, T Duration, Q-T interval, Q-Tc, P Axis, QRS Axis, T Axis, R(V5), S(V1), R(V5)+S(V1), etc. which reduces the doctor’s burden.
5)Built-in memory stores up to 1000 cases, convenient for case review and statistic.
6)Multi-language(Chinese, English, Spanish, Turkish, Polish, Italian, French, German, Portuguese, Kazakstan, Russian, Ukrainian, Serbian and Slovenian) interface and report.
● Performance:
Input mode: floating and defibrillation protection
Frequency response: 0.05Hz ~ 150Hz(-3dB~+0.4dB)
CMRR: >60dB, >100dB(add filter)
Time constant:≥ 3.2s
Patient leak current: <10µA
Calibration voltage: 1mV
Sensitivity: 2.5, 5, 10, 20, 40 mm/mV ±5%, standard sensitivity: 10mm/mV±2%
Noise level: <15µVp-p
Input circuit current: ≤50nA
Input impedance: ≥50MΩ
Sampling accuracy: 12-bit
Safety classification: class I, type CF and defibrillation-proof applied part
Recording mode: thermal printing system
Auto record: set record according to auto record format and mode, automatically switching leads, measuring and analyzing.
Rhythm record: set record according to rhythm record format and mode, automatically measuring and analyzing.
Manual record: set record according to record format, manually switching leads.
Measurement parameters: HR, P-R interval, P Duration, QRS Duration, T Duration, Q-T interval, Q-Tc, P Axis, QRS Axis, T Axis, R(V5), S(V1), R(V5)+S(V1)
Paper size: 80mm(W)×20m(L)
Sampling frequency: 1000Hz
EMG interference filter: 25Hz/35Hz (-3dB)
Power frequency filter: AC 50Hz/60Hz(-20dB)
Paper speed:
Auto: 25, 50mm/s, ±5%
Rhythm: 25, 50mm/s, ±5%
Manual: 5, 6.25, 10, 12.5, 25, 50mm/s, ±5%
Power supply:
AC: 100V~240V(50/60Hz)
DC: 7.4V/3500mAh rechargeable lithium battery
Fuse specification: two AC time lag fuse(φ5×20mm), T1.6AL250V
Waterproof degree: IPX0
Working mode: continuous working
● Optional:
ECG-Sync software+USB cable
ECG electrode
Bag
Conductive gel
● Physical characteristic:
Working environment
Temperature: 5℃~40℃
Relative humidity: 25%~95%(non-condensing)
Atmospheric pressure: 700hPa~1060hPa
Transport and storage environment
Temperature: -40℃~+55℃
Relative humidity: ≤95%
Atmospheric pressure: 500hPa~1060hPa
ECG-Sync software+USB cable
ECG electrode
Bag
Conductive gel
● Physical characteristic:
Working environment
Temperature: 5℃~40℃
Relative humidity: 25%~95%(non-condensing)
Atmospheric pressure: 700hPa~1060hPa
Transport and storage environment
Temperature: -40℃~+55℃
Relative humidity: ≤95%
Atmospheric pressure: 500hPa~1060hPa
Please consult us for more details and discounts, we'll provide sincere service for you : )
Other products
SE101-vet(ECG Machine)
CMS8000-VET(Patient Monitor)
CONTEC08A-VET(Blood pressure monitor)
Packing & Delivery
Physical Identity:
Dimension: 315mm(L) × 215mm(W) × 77mm(H)
Weigh: 1.6Kg

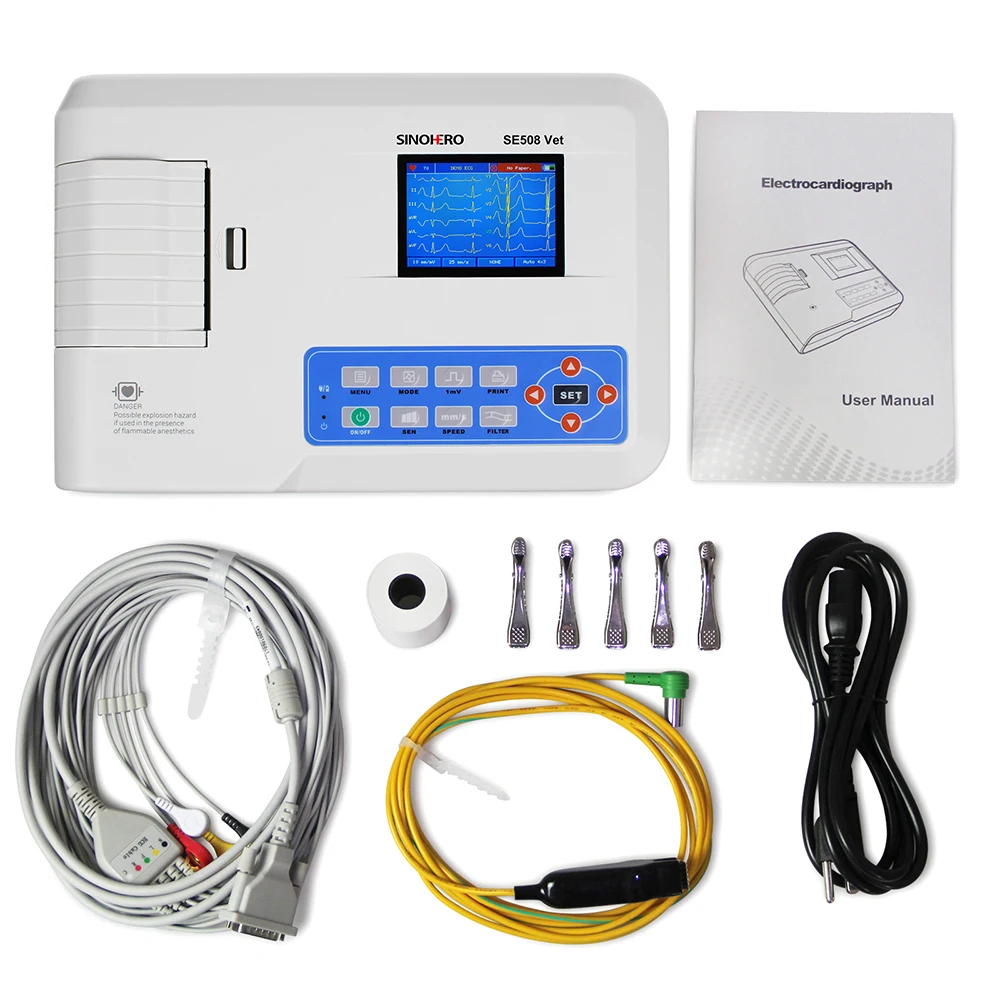

Package included:
1XSE508-VET Veterinary ECG Machine
Dimension: 315mm(L) × 215mm(W) × 77mm(H)
Weigh: 1.6Kg
Package included:
1XSE508-VET Veterinary ECG Machine
1X Lead Wire/cable
1set X Limb electrode(5PCS)
1X Thermal recording paper
1X Power cord
1X Earth wire
1X User manual
