Newest High Quality Rechargeable 4000mah Lithium Polymer Battery 3.7v For Hand held And Esthetically Lamp

Specification

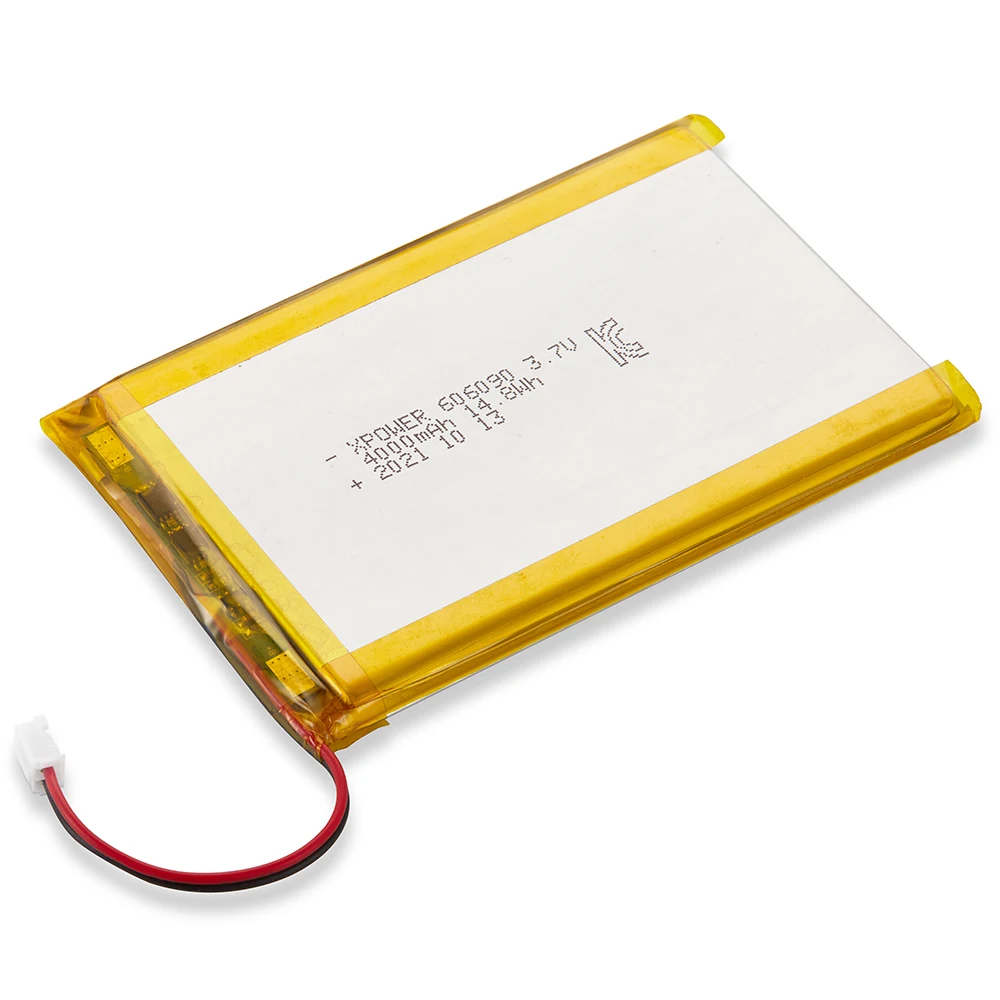

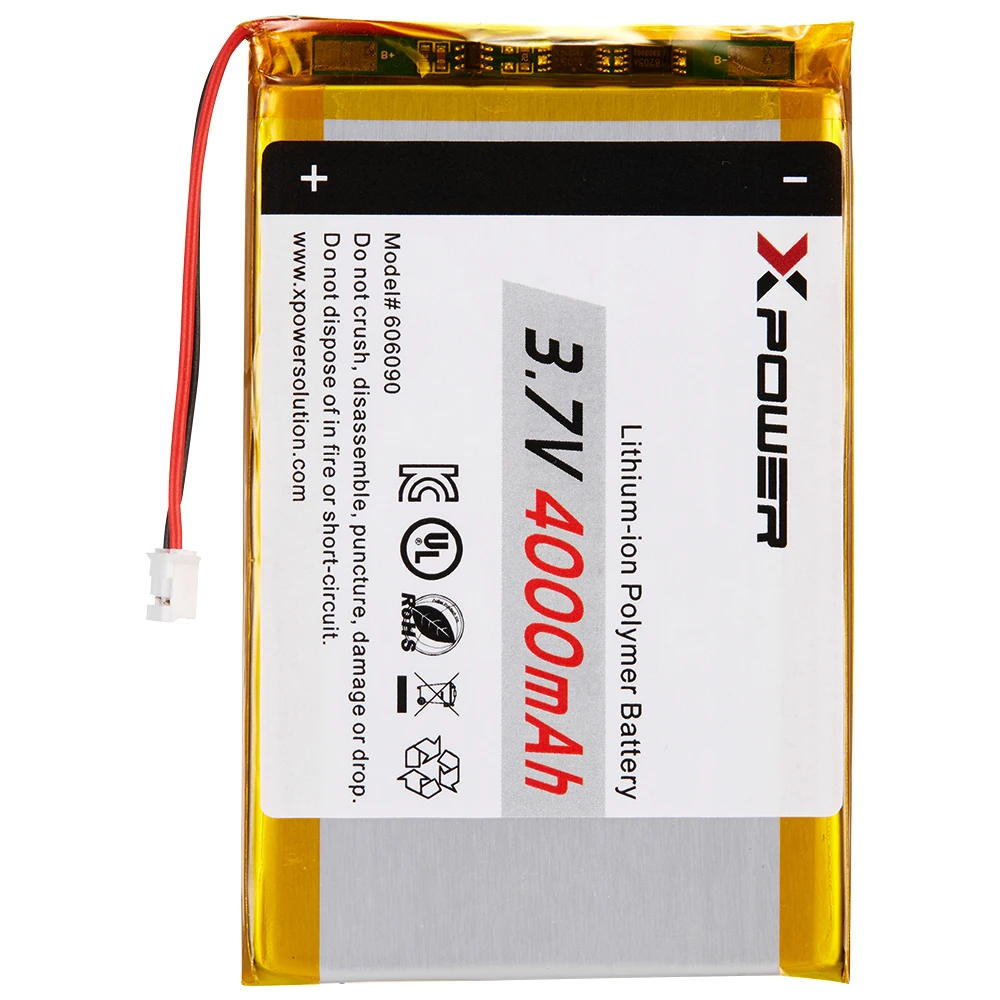

Lithium Polymer Battery Pack 606090 4000mAh 3.7V with Protection Circuit Module (PCM)

This data sheet describes the requirements and properties of lithium polymer rechargeable

battery pack manufactured by XPOWER.

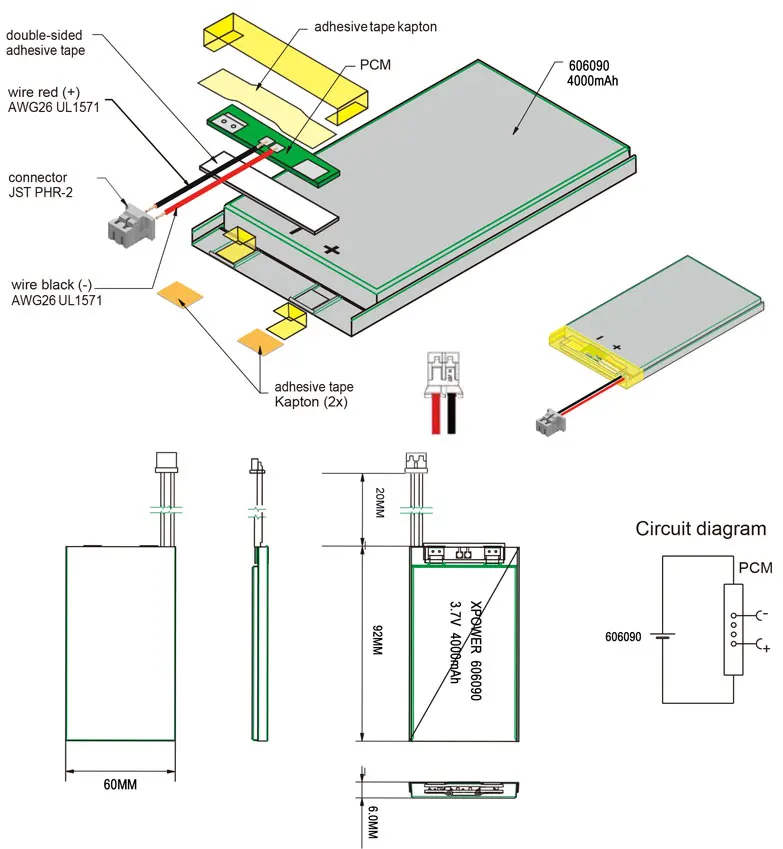

Mechanical Characteristics

Cell : 606090

PCM :Yes

NTC : No

Configuration : 1S1P

Weight : appr 78g

Connector :JST PHR-2

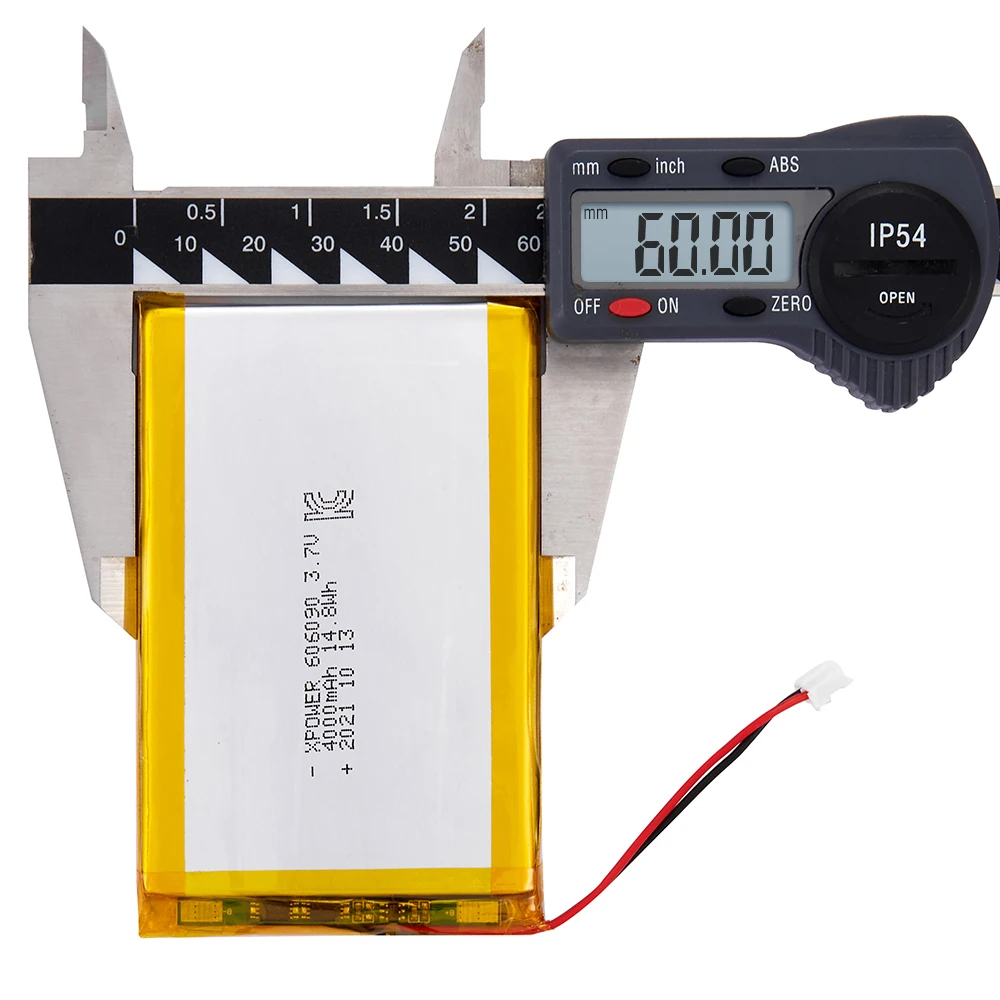

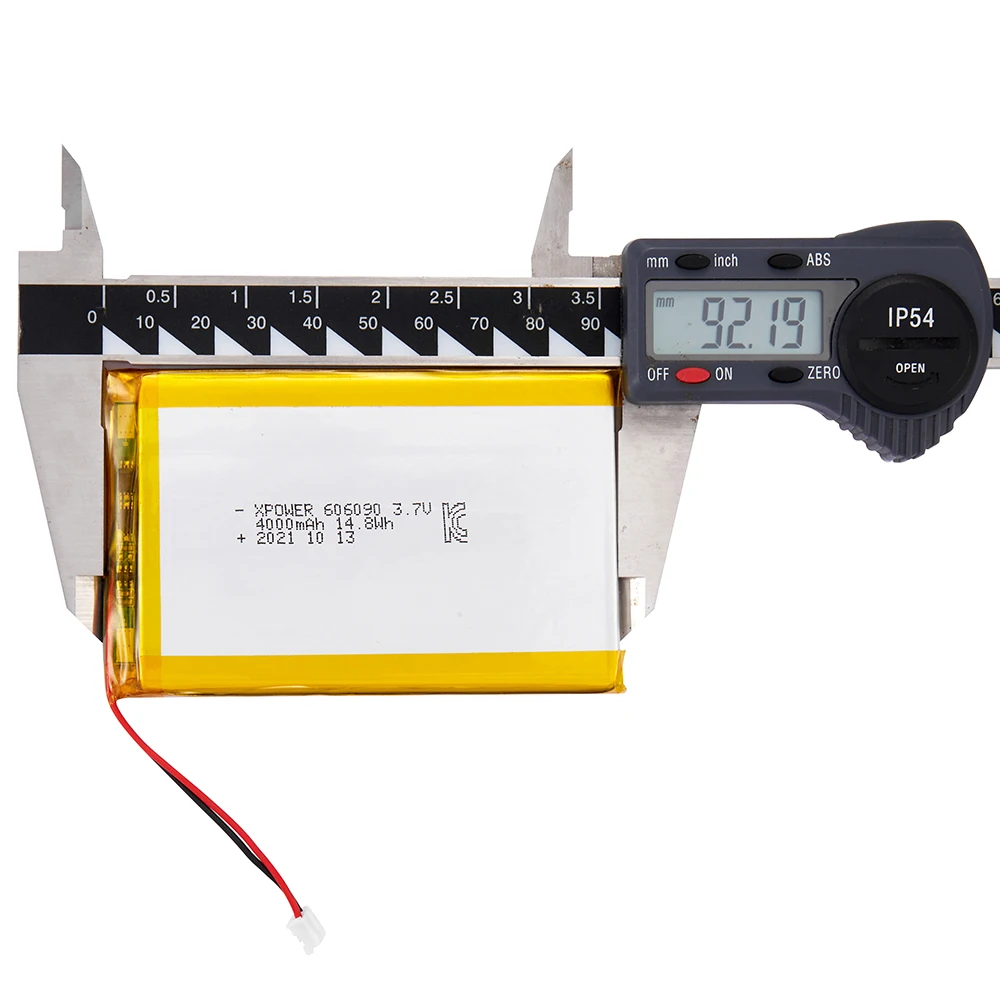

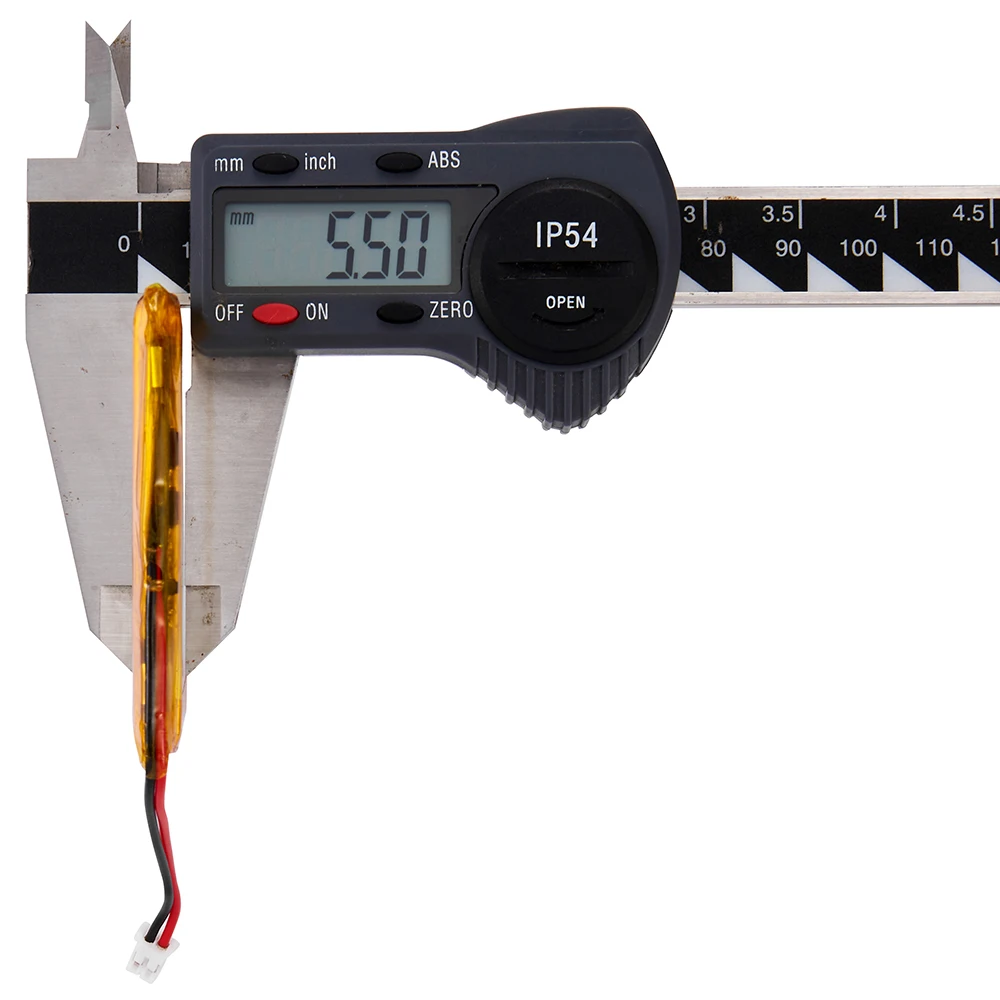

Dimension:Thickness 6.0 * Width 60 * Length 92mm (Including PCB)

Electrical Specification

Rated Capacity: 4000mAh

Nominal Voltage :3.7V

Watt Hour : 14.8Wh

Max Operating Voltage Range : 2.75V~4.2V

Max Charge Voltage: 4.2V±50mV

Max Charge Current : 2000mA (0.5C)

Standard Charge Current: 800mA (0.2C)

Max Continuous Discharge Current: 2000mA (0.5C)

Standard Discharge Current: 800mA(0.2C)

Discharge Cut-off Voltage: 2.75V

Initial Cell Impedance: ≤ 60mΩ

Expected Cycle Life (0.5C|0.5C, 23±5℃):500 cycles ≥ 80% Capacity

Cell Protection

Over Charge Detection: 4.280±50mV (0.08~0.2sec delay, release 4.08±50mV)

Over Discharge Detection: 2.4V±100mV (0.04~0.12sec delay, release 3V±100mV)

Over Current Detection: 3.2A to 4.5A

Short Circuit Protection: Available (Delay time: 500µs)

Working and Storage Condition

Charge Temperature Range:10 to +45℃

Discharge Temperature Range: -20 to +60℃

Storage Temperature Range: <1 month: -20℃~+45℃, >3 months: -10℃~+45℃

Recommend Storage Temperature: 15℃~35℃

Humidity: 85%~90% RH Max.
